Nokia 3105 User manual

Nokia 3105 User Guide

9235338

Issue 2 EN

9235338_en_2_web.fm Page 1 Thursday, August 25, 2005 1:19 PM

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form

without the prior written permission of Nokia is prohibited.

The crossed-out wheeled bin means that within the European Union the product must be taken to

separate collection at the product end-of life. This applies to your device but also to any

enhancements marked with this symbol. Do not dispose of these products as unsorted municipal

waste.

Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered trademarks of

Nokia Corporation. Other product and company names mentioned herein may be trademarks or

tradenames of their respective owners.

Nokia tune is a sound mark of Nokia Corporation.

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

Java is a trademark of Sun Microsystems, Inc.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes

and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special,

incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of

any kind, either express or implied, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or

contents of this document. Nokia reserves the right to revise this document or withdraw it at any time

without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to

you.

9235338 Issue 2 EN

9235338_en_2_web.fm Page 2 Thursday, August 25, 2005 1:19 PM

Contents

For your safety ................................ 5

Overview of the functions .............. 8

1. Your phone................................... 9

Keys and connectors....................................... 9

Standby mode................................................... 9

Access codes ...................................................11

2. Getting started .......................... 13

Installing the battery....................................13

Charging the battery ....................................13

Switching the phone on and off ...............14

Normal operating position..........................14

Keypad lock (Keyguard) ...............................14

Changing the front and back cover..........15

Charging the glow-in-the-dark cover .....16

3. Basic functions .......................... 17

Making a call ..................................................17

Answering or rejecting an incoming call 18

Options during a call ....................................18

Writing text.....................................................19

4. Using the menu..........................23

List of menu functions.................................23

Messages (Menu 1).......................................26

Call register (Menu 2) ..................................34

Contacts (Menu 3) ........................................36

Profiles (Menu 4)...........................................41

Settings (Menu 5)..........................................42

Gallery (Menu 6)............................................54

Voice (Menu 7)...............................................54

Organiser (Menu 8).......................................56

Minibrowser(Menu 9)...................................61

Games (Menu 10)..........................................66

Applications (Menu 11) ...............................67

Go to (Menu 12)............................................69

5. PC Connectivity..........................70

Nokia PC Suite................................................70

6. Battery information................... 72

Charging and discharging...........................72

Battery performance ....................................73

9235338_en_2_web.fm Page 3 Thursday, August 25, 2005 1:19 PM

7. Mobile enhancements ............... 75

A few practical rules for accessory

operation..........................................................75

Chargers and other accessories.................76

Nokia Xpress-on™ colour covers ...............78

Care and maintenance................... 79

Important safety information.......80

Index............................................... 86

9235338_en_2_web.fm Page 4 Thursday, August 25, 2005 1:19 PM

For your safety

Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further

detailed information is given in this manual.

SWITCH ON SAFELY

Do not switch on the phone when wireless phone use is prohibited or when it may

cause interference or danger.

ROAD SAFETY COMES FIRST

Do not use a hand-held phone while driving.

INTERFERENCE

All wireless phones may get interference, which could affect performance.

SWITCH OFF IN HOSPITALS

Follow any regulations or rules. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT

Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELLING

Do not use the phone at a refuelling point. Do not use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Do not use the phone where blasting is in progress. Observe restrictions, and follow

any regulations or rules.

USE SENSIBLY

Use only in the normal position. Do not touch the antenna unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

9235338_en_2_web.fm Page 5 Thursday, August 25, 2005 1:19 PM

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

WATER-RESISTANCE

Your phone is not water-resistant. Keep it dry.

BACKUP COPIES

Remember to make backup copies of all important data.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user's guide for detailed safety

instructions. Do not connect incompatible products.

EMERGENCY CALLS

Ensure the phone is switched on and in service. Press as many times as

needed to clear the display and return to the start screen.

Enter the emergency number, then press . Give your location. Do not end the

call until told to do so.

■About your device

The wireless phone described in this guide is approved for use on the CDMA network.

Contact your service provider for information about the network.

When using the features in this device, obey all laws and respect privacy and legitimate

rights of others.

■Network Services

A number of features included in this guide are called Network Services. These are special

services that you arrange through your wireless service provider. Before you can take

advantage of any of these Network Services, you must subscribe to them through your

service provider and obtain instructions for their use from your service provider.

9235338_en_2_web.fm Page 6 Thursday, August 25, 2005 1:19 PM

For your safety

Note: Some networks may not support all language-dependent characters and/or

services.

■Shared memory

Following phone features share memory: text and multimedia messages, images and ringing

tones in gallery, bookmarks, and Java™ games and applications. Using any such features may

reduce the memory available for any features sharing memory. This is especially true with

heavy use of any of the features. For example, saving many images, Java applications, etc.

may take all of the shared memory and your phone may display a message that the memory

is full. In this case, delete some of the information or entries stored in the shared memory

features before continuing.

■About accessories

Check the model number of any charger before use with this device. This device is intended

for use when supplied with power from ACP-7, ACP-12 and LCH-12.

Warning: Use only batteries, chargers and accessories approved by the phone

manufacturer for use with this particular phone model. The use of any other types

may invalidate any approval or warranty applying to the phone, and may be

dangerous.

For availability of approved accessories, please check with your dealer.

When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord.

9235338_en_2_web.fm Page 7 Thursday, August 25, 2005 1:19 PM

Overview of the functions

The Nokia 3105 phone provides many functions which are practical for daily use,

such as Calendar, Clock, Alarm clock, Profiles, and many more. Some functions are

• MMS - Multimedia Messaging Service, see Multimedia messages on page 29.

• Polyphonic MIDI ringing tones enable richer ringing tones with a wide variety

of sounds.

•CDMA-Code Division Multiple Access is used for sending and receiving data

over the mobile network.

• MIDP Java™ applications specially designed for mobile phones. See

Applications (Menu 11) on page 67.

• Nokia OTA settings service. Several services need proper settings in your phone.

You may receive the settings directly as an OTA (Over the Air) message, and you

only need to save the settings. Contact your nearest authorised Nokia dealer

for more information.

9235338_en_2_web.fm Page 8 Thursday, August 25, 2005 1:19 PM

Your phone

1. Your phone

■Keys and connectors

1. Power key

2. Selection keys and

3. 4-way scroll key with , , and

4. dials a phone number, and answers a call. In

standby mode it shows the most recently called

number.

5. ends an active call.

Exits from any function.

6. - enter numbers and characters.

and are used for various purposes in

different functions.

7. Charger connector

8. Pop-Port

™

connector for headset and data cable, for

example

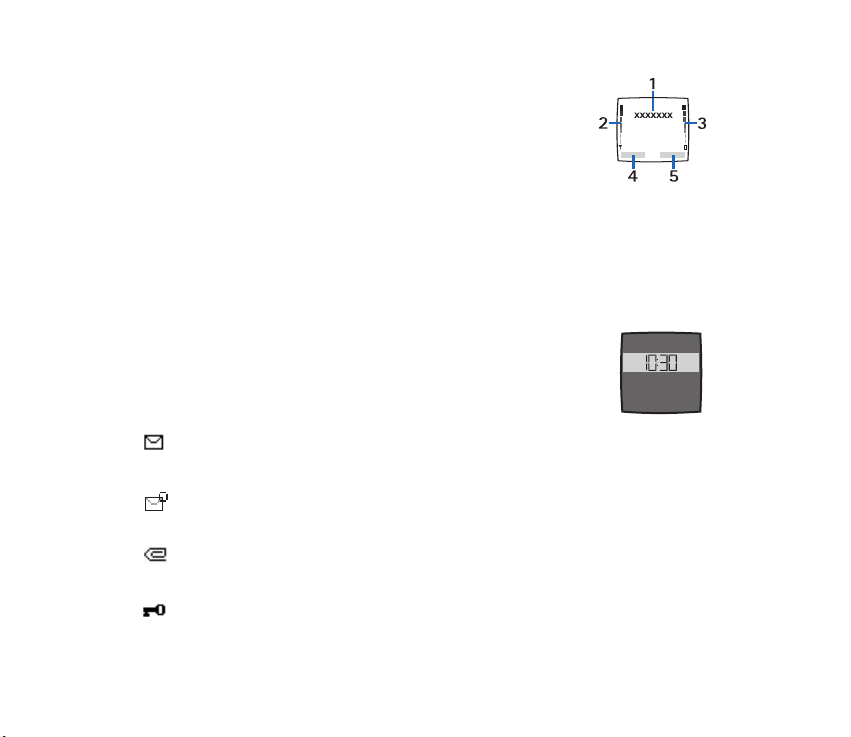

■Standby mode

When the phone is ready for use, and you have not keyed in any characters, the

phone is in standby mode.

9235338_en_2_web.fm Page 9 Thursday, August 25, 2005 1:19 PM

1. Shows the name of the network or the operator logo.

2. Shows the signal strength of the cellular network

at your current location.

3. Shows the battery charge level.

4. The left selection key in standby mode is Menu.

5. The right selection key in standby mode is Contacts or Go to (personal short-

cut). To set the functions for your Personal short-cut, see Personal short-cuts

on page 42.

Power saving

For power saving a digital clock view overwrites the display when

no function of the phone has been used for a certain period of time.

Essential indicators

You have received one or several text or picture messages. See Reading

and replying to a message or a SMS e-mail on page 27.

You have received one or several minibrowser messages. See Minibrowser

messages on page 65.

You have received one or several multimedia messages. See Reading and

replying to a multimedia message on page 31.

The phone’s keypad is locked. See Keypad lock (Keyguard) on page 14.

9235338_en_2_web.fm Page 10 Thursday, August 25, 2005 1:19 PM

Your phone

The phone does not ring at an incoming call or text message when

Incoming call alert is set to Off and Message alert tone is set to Off. See

Tone settings on page 48.

The alarm clock is set to On. See Alarm clock on page 56.

The loudspeaker has been activated. See Loudspeaker on page 19.

■Access codes

Security code (5 to 10 digits)

The security code protects your phone against unauthorised use. The preset code

is 12345. Change the code, and keep the new code secret and in a safe place

separate from your phone. To change the code, see Security settings on page 49.

PIN code (4 to 8 digits)

The PIN (Personal Identification Number) code protects your SIM card against

unauthorised use. The PIN code is usually supplied with the SIM card.

After three consecutive incorrect PIN code entries, the PIN code is blocked. If the

PIN code is blocked, you need to unblock the PIN code before you can use the SIM

card again.

PIN2 code (4 to 8 digits)

The PIN2 code may be supplied with the SIM card and is required to access some

functions such call counters.

9235338_en_2_web.fm Page 11 Thursday, August 25, 2005 1:19 PM

PUK and PUK2 codes (8 digits)

The PUK (Personal Unblocking Key) code is required to change a blocked PIN code.

The PUK2 code is required to change a blocked PIN2 code. If the codes are not

supplied with the SIM card, contact your local service provider for the codes.

9235338_en_2_web.fm Page 12 Thursday, August 25, 2005 1:19 PM

Getting started

2. Getting started

■Installing the battery

Warning: Use only the BLC-5C battery in this Nokia phone. If your dealer

has already installed the battery, please see Charging the battery.

1. Remove the back cover from the phone. With

the back of the phone facing you, push the back

cover release button.

2. Slide the back cover off.

3. Insert the battery.

4. Slide the back cover into its place.

■Charging the battery

1. Connect the lead from the charger to the socket on

the bottom of your phone.

2. Connect the charger to an AC wall socket.

The text Charging is displayed briefly if the phone is

switched on. If the battery is completely empty, it

may take a few minutes before the charging indicator appears on the display or

any calls can be made.

9235338_en_2_web.fm Page 13 Thursday, August 25, 2005 1:19 PM

The charging time depends on the charger and the battery used. For example,

charging a BL-5C battery with the ACP-7 charger takes up to 3 hours in standby

mode.

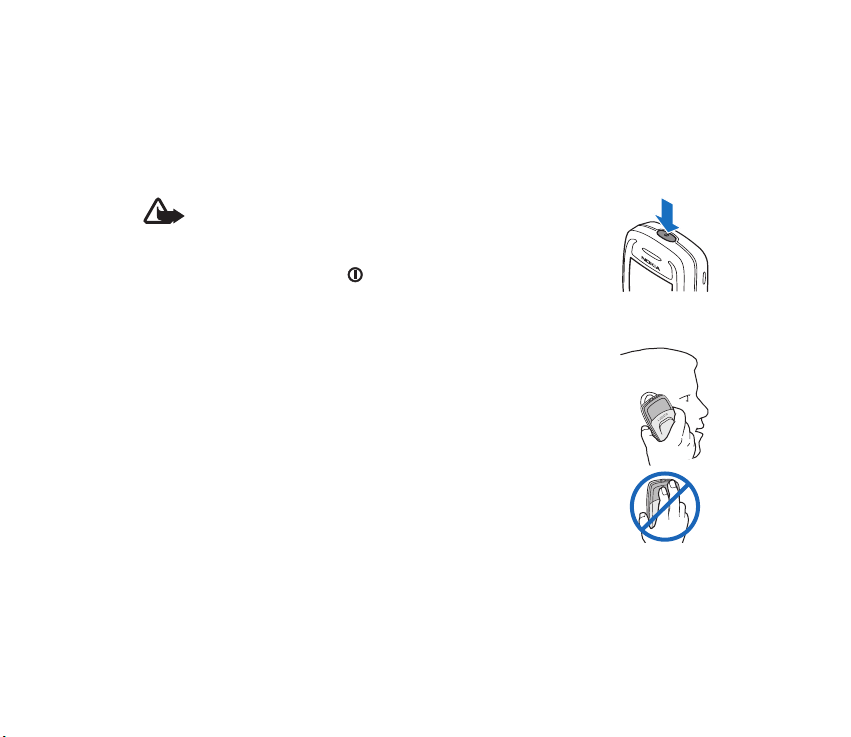

■Switching the phone on and off

Warning: Do not switch the phone on when wireless

phone use is prohibited or when it may cause interference

or danger.

Press and hold the power key .

■Normal operating position

Use the phone only in its normal operating position.

Your phone has a built-in antenna. As with any other radio

transmitting device, do not touch the antenna unnecessarily

when the phone is switched on. Contact with the antenna affects

call quality and may cause the phone to operate at a higher

power level than otherwise needed.

Not touching the antenna area during a phone call optimises the

antenna performance and the talktime of your phone.

■Keypad lock (Keyguard)

You can lock the keypad to prevent the keys being accidentally pressed.

9235338_en_2_web.fm Page 14 Thursday, August 25, 2005 1:19 PM

Getting started

Press (Menu or Unlock) and then within 1.5 seconds to lock or unlock the

keypad.

An incoming call can be handled normally. When you end or reject the call, the

keypad will automatically be locked again.

For automatic keypad lock, see Automatic keyguard on page 45.

Note: When the keypad is locked, calls may be possible to the emergency

number programmed into your phone (e.g. 112, 911 or other official

emergency number). Key in the emergency number and press . The

number is displayed only after you have keyed in its last digit.

■Changing the front and back cover

Before changing the covers, always switch off the power and disconnect the

phone from the charger or any other device. Always store and use the phone with

the covers attached.

1. Remove the back cover of the phone. With the back of

the phone facing you, push the back cover release button

(1) and slide the back cover off (2).

9235338_en_2_web.fm Page 15 Thursday, August 25, 2005 1:19 PM

2. To remove the front cover, gently pull the

back part of the phone away from the

front cover beginning at the bottom of

the phone.

3. Insert the key mat on the new front cover.

4. To attach the front cover, first place the

phone and the front cover properly together and

then gently push on the top and bottom of the

phone until the catch is locked properly.

5. Place the back cover and the phone properly

together (1) and slide the back cover into its place (2) until

the back cover release button is properly locked.

■Charging the glow-in-the-dark cover

The front cover of your Nokia 3105 phone has a glow-in-the-dark element. To

make the cover glow you need to expose it to a bright light source for at least 12

minutes, for full charge 18 minutes.

9235338_en_2_web.fm Page 16 Thursday, August 25, 2005 1:19 PM

Basic functions

3. Basic functions

■Making a call

1. Key in the phone number, including the area code. If you key in a wrong

character, press Clear to delete it.

2. Press to call the number.

3. Press to end the call or to cancel the call attempt.

Making a call using the contacts list

In standby mode, press or to find the name or key in the first character(s)

of the name you are looking for. See also Searching for a name in contacts on

page 37. Press to call the number on the display.

Last number redialling

In standby mode, press once to access the list of up to 20 numbers you last

called or attempted to call. Scroll to the number or name you want, and press

to call the number.

Speed dialling a phone number

Assign a phone number to one of the speed dialling keys, from to ,

see menu option Speed dials in chapter Contacts (Menu 3) on page 36. Call the

number in either of the following ways:

• Press the speed dialling key you want and then press .

9235338_en_2_web.fm Page 17 Thursday, August 25, 2005 1:19 PM

•IfSpeed dialling is set to on, press and hold a speed dialling key until the call is

started. See Speed dialling on page 43.

■Answering or rejecting an incoming call

Press to answer the incoming call and press to end the call.

Press to reject the incoming call.

Press Silence, if available, to mute the ringing tone. Then either answer or reject

the call.

Tip: If the Divert if busy function is activated to divert the calls, for example

to your voice mailbox, rejecting an incoming call will also divert the call.

See Call divert on page 52.

Call waiting

During a call, press to answer the waiting call. The first call is put on hold.

Press to end the active call.

To activate the Call waiting function, see Call waiting on page 52.

■Options during a call

Many of the options that you can use during a call are network services. Press

Options during a call for some of the following options:

End call, Mute or Unmute, Loudspeaker or Handset, New call, Save, Add to contact,

End all calls, Send DTMF, Contacts, Menu,

9235338_en_2_web.fm Page 18 Thursday, August 25, 2005 1:19 PM

Basic functions

Loudspeaker

You can use your phone as a loudspeaker during a call.

Warning: Do not hold the phone near to your ear when the loudspeaker is

in use, because the volume may be extremely loud.

To activate the loudspeaker, press Options and select Loudspeaker, or press

Loudsp., if available.

To deactivate the loudspeaker during a call, press Options and select Handset, or

press Handset, if available.

■Writing text

You can key in text in two different ways, using the traditional text input,

indicated with , or using the predictive text input indicated with at the

top left of the display. The character case is indicated by , , or next

to the text input indicator. You can change the character case by pressing .

The number mode is indicated by , and you can change between the letter and

number mode by pressing and holding .

Setting predictive text input on or off

When writing text, press Options and select Dictionary.

• To set the predictive text input on, select a language in the dictionary options

list.

• To change back to the traditional text input, select Dictionary off.

9235338_en_2_web.fm Page 19 Thursday, August 25, 2005 1:19 PM

Tip: To quickly set the predictive text input on or off when writing text,

press twice, or press and hold Options.

Using predictive text input

Predictive text input is an easy way to write text.

The predictive text input is based on a built-in dictionary to which you can also

add new words.

1. Key in the word you want by pressing each key once for one letter. The word

changes after each keystroke. For example, to write ‘Nokia’ when the English

dictionary is selected, press , , , , .

• To delete the character to the left of the cursor, press Clear. Press and hold

Clear to delete the characters more quickly.

• To switch between upper and lower cases, or between traditional and

predictive text input, press repeatedly and check the indicator at the

top of the display.

• To insert a number, press and hold the desired key. To switch between

letters and numbers, press and hold .

• To insert a period ".", press .

• To get a list of special characters, press and hold , select the character

you want, or press again to select a smiley from the offered list. Press

Use to insert a special character or a smiley.

2. If the displayed word is the one you want, press and start writing the

next word.

9235338_en_2_web.fm Page 20 Thursday, August 25, 2005 1:19 PM

Other manuals for 3105

Table of contents

Popular Cell Phone manuals by other brands

Cyrus

Cyrus CS24NA user manual

LG G5 Verizon user guide

Huawei

Huawei UM840 manual

Lenovo

Lenovo IDEAPHONE S890 specification

Panasonic

Panasonic X60 Setup guide

Hyundai

Hyundai E545 user manual

Samsung

Samsung R225m - SGH Cell Phone user manual

Samsung

Samsung SGH T509 user guide

MOBIWIRE

MOBIWIRE Homephone 4G user manual

Kyocera

Kyocera Laylo user guide

Motorola

Motorola V3 instruction manual

NGM

NGM B3 quick guide

LG KP107a Service manual

Alcatel

Alcatel Pixi4 user guide

LG KF240 user guide

Allview

Allview X2 Soul Style user manual

LG LG-K428 user guide

Kyocera

Kyocera Dorado user guide
