Nokia Lumia Icon User manual

User Guide
Nokia Lumia Icon

Psst...
This guide isn't all there is...
There's a user guide in your phone – it's always with you, available when needed.
On the start screen, swipe left, and tap Lumia Help+Tips.
The instructions in this user guide are based on the latest available software
version. If your device has not been updated to the latest available software,
there may be differences in the availability and functionality of some features.
Check out the videos at www.youtube.com/lumiasupport.
For info on Microsoft Mobile Service terms and Privacy policy, go to
www.microsoft.com/mobile/privacypolicy.
© 2015 Microsoft Mobile. All rights reserved. 2

Contents
For your safety 5
Get started 6
Keys and parts 6
Insert the SIM card 7
Remove the SIM card 7
Switch the phone on 8
Lock the keys and screen 9
Charge your phone 10
Connect the headset 12
Antenna locations 13
Your first Lumia? 14
Set up your phone 14
Explore your tiles, apps, and
settings 15
Navigate inside an app 16
Use the touch screen 17
Transfer content to your Lumia
phone 20
Basics 25
What’s new in this release? 25
Get to know your phone 25
Accounts 32
Personalize your phone 36
Cortana 42
Accessibility 43
Take a screenshot 45
Extend battery life 45
Save on data roaming costs 48
Write text 48
Scan codes or text 53
Clock and calendar 54
Browse your SIM apps 57
Store 58
People & messaging 62
Calls 62
Contacts 66
Social networks 70
Messages 72
Mail 76
Camera 83
Get to know Lumia Camera 83
Change the default camera 83
Camera basics 84
Advanced photography 85
Photos and videos 89
Maps & navigation 94
Switch location services on 94
Positioning methods 94
Internet 95
Define internet connections 95
Connect your computer to the
web 95
Use your data plan efficiently 96
Web browser 96
User Guide
Nokia Lumia Icon
© 2015 Microsoft Mobile. All rights reserved. 3

Search the web 99
Close internet connections 99
Entertainment 101
Watch and listen 101
FM radio 105
MixRadio 106
Sync music and videos between
your phone and computer 106
Games 107
Office 110
Microsoft Office Mobile 110
Write a note 113
Continue with a document on
another device 113
Use the calculator 114
Use your work phone 114
Tips for business users 114
Phone management &
connectivity 117
Update your phone software 117
Use a high speed connection 118
Use a secure VPN connection 118
Wi-Fi 119
NFC 121
Bluetooth 123
Memory and storage 126
Copy content between your
phone and computer 128
Security 130
Wallet 132
Access codes 132
Troubleshooting and support 134
Find your model number and
serial number (IMEI) 135
Product and safety info 135
© 2015 Microsoft Mobile. All rights reserved. 4

For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may
cause interference or danger, for example, in aircraft, in hospitals or near
medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in
restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle
while driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Microsoft
Mobile for use with this device. Third-party chargers that comply with the
IEC/EN 62684 standard, and that can connect to your device micro USB
connector, may be compatible. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is
dropped on a hard surface or receives a substantial impact. If the glass breaks,
do not touch the glass parts of the device or attempt to remove the broken glass
from the device. Stop using the device until the glass is replaced by qualified
service personnel.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels
for long periods. Exercise caution when holding your device near your ear while
the speakerphone is in use.
© 2015 Microsoft Mobile. All rights reserved. 5

Get started
Get to grips with the basics, and have your phone up and running in no time.
Keys and parts
Explore the keys and parts of your new phone.
1 SIM card holder
2 Earpiece
3 Connector for headphones
and loudspeakers (3.5 mm)
4 Front camera
5 Proximity/Light sensor
6 Volume keys
7 Power/Lock key
8 Camera key
9 Search key
10 Start key
11 Back key
12 Micro-USB connector
13 Microphone
14 Microphone
15 Back camera
16 Loudspeaker
17 Microphone
18 Flash
Some of the accessories
mentioned in this user guide, such
as charger, headset, or data cable,
may be sold separately.
© 2015 Microsoft Mobile. All rights reserved. 6

Insert the SIM card
Got a new SIM card? Learn how to insert it into your phone.
Make sure your phone is switched off.

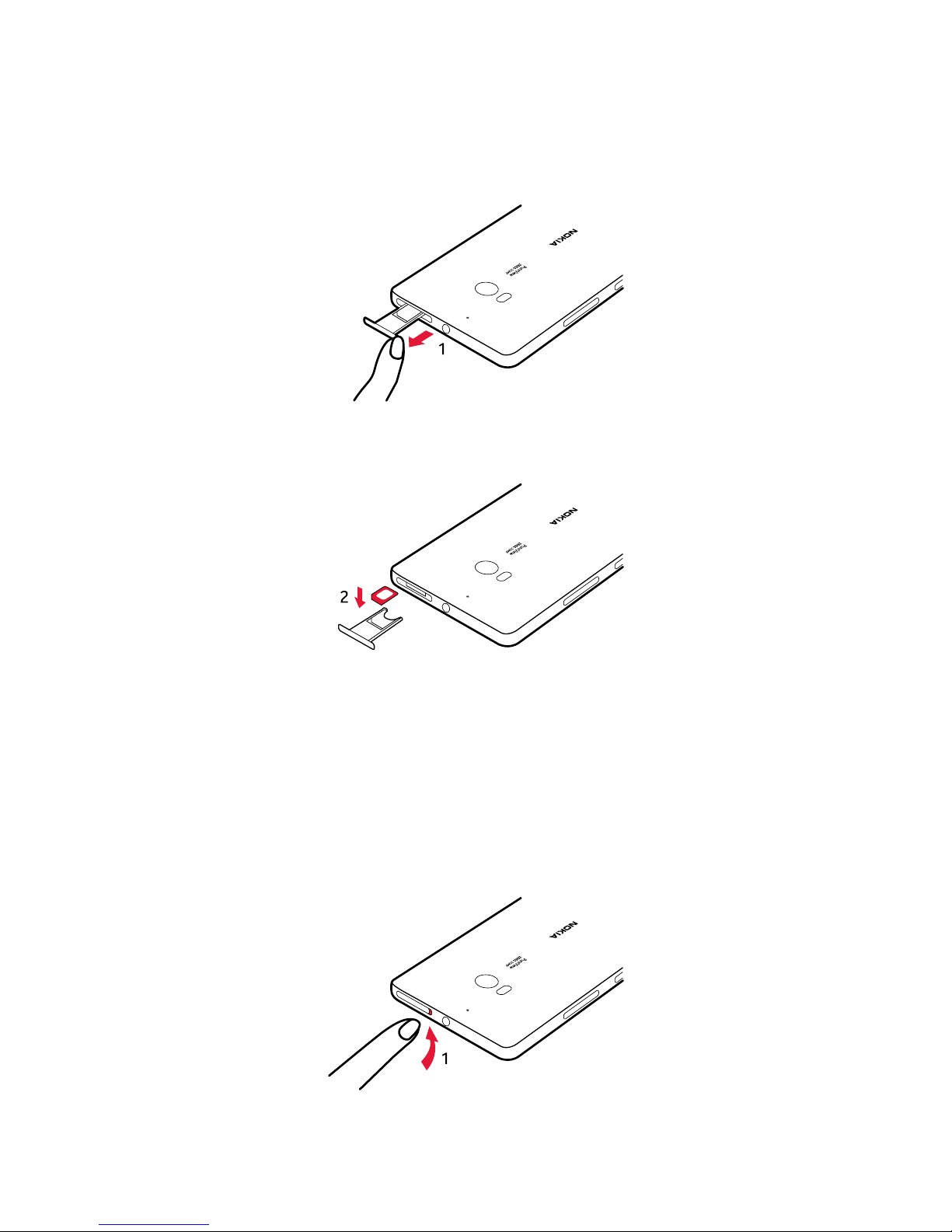

1. Use your fingernail to pull out the SIM tray.
2. Put the SIM in the tray with the contact area face up, and push the tray back
into the phone.
3. To turn the phone on, press and hold the power key until the phone vibrates.
Remove the SIM card
Got a new SIM card? Learn how to remove the previous card from your phone.
Make sure your phone is switched off.
1. Use your fingernail to pull out the SIM card tray.
© 2015 Microsoft Mobile. All rights reserved. 7

2. Take the card out.
Switch the phone on
Are you ready? Switch your phone on, and start exploring it.
Press the power key until the phone vibrates.
Switch the phone off
Press and hold the power key, and drag the lock screen down.
© 2015 Microsoft Mobile. All rights reserved. 8

Lock the keys and screen
Want to avoid accidentally making a call when your phone is in your pocket or
bag?
Press the power key.
Unlock the keys and screen

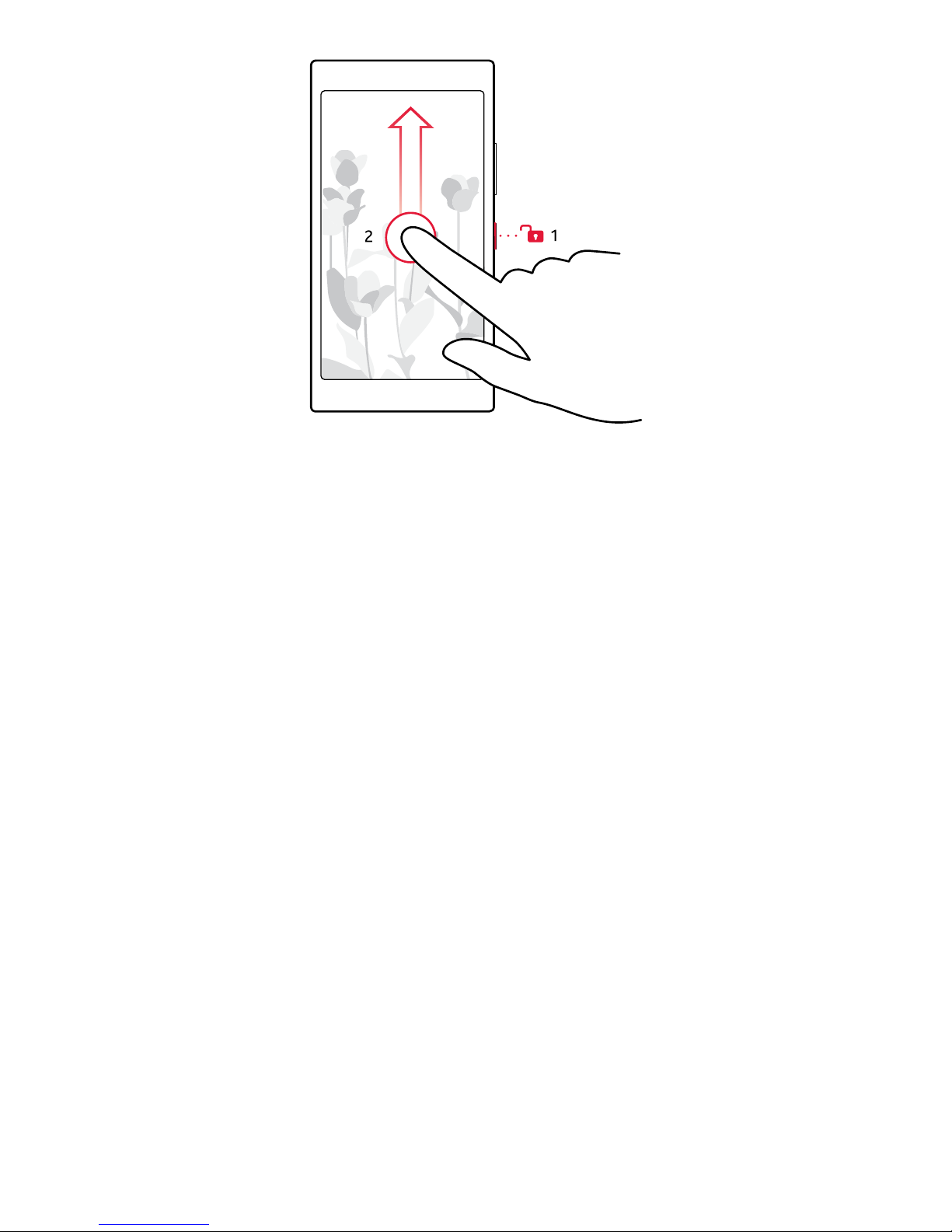

Press the power key, and drag the lock screen up.
© 2015 Microsoft Mobile. All rights reserved. 9

Set the keys and screen to lock automatically
On the start screen, swipe down from the top of the screen, tap ALL
SETTINGS > lock screen > Screen times out after, and select the length of time
after which the keys and screen are locked automatically.
Charge your phone
Learn how to charge your phone.
Charge your phone with a USB charger
Your battery has been partially charged at the factory, but you may need to
recharge it before you can switch the phone on for the first time.
Make sure you use a compatible USB charger to charge your phone. The charger
may be sold separately.

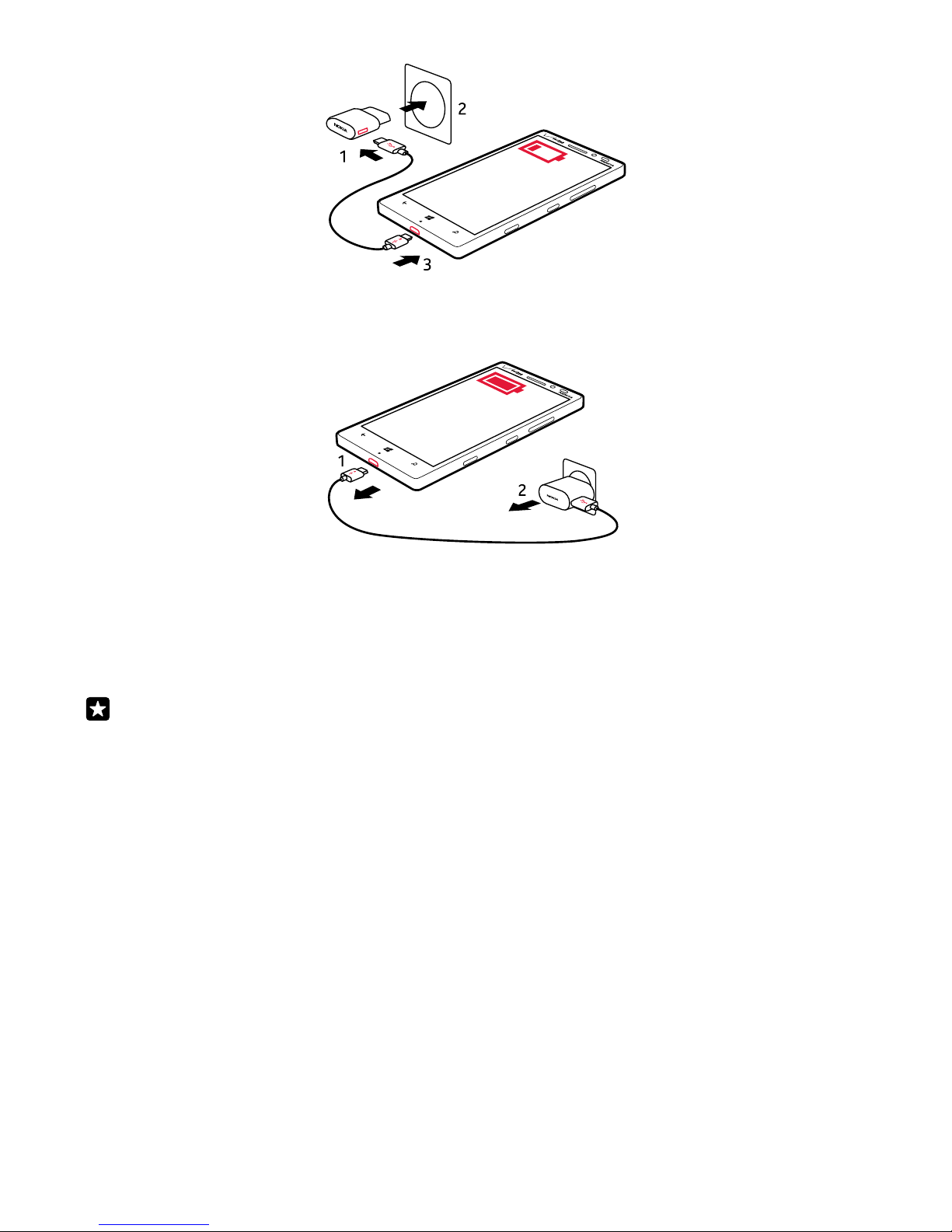

1. Plug the charger into a wall outlet. If necessary, connect the USB cable to the
charger.
2. Connect the micro-USB end of the charger's cable to your phone.
© 2015 Microsoft Mobile. All rights reserved. 10

3. When the battery is full, disconnect the charger from the phone, then from
the wall outlet.
You don't need to charge the battery for a specific length of time, and you can
use the phone while it's charging.
If the battery is completely discharged, it may take up to 20 minutes before the
charging indicator is displayed.
Tip: You can use USB charging when a wall outlet is not available. Data can
be transferred while charging the device. The efficiency of USB charging
power varies significantly, and it may take a long time for charging to start
and the device to start functioning.
Make sure your computer is switched on.
First connect the USB cable to the computer, then to your phone. When the
battery is full, first disconnect the USB cable from your phone, then from
the computer.
The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably shorter than
normal, to replace the battery, take the device to the nearest authorized service
facility.
© 2015 Microsoft Mobile. All rights reserved. 11

Charge your phone wirelessly
No need for hassle with cables, just pop your device on a wireless charger, and
it immediately starts charging.
You may need a wireless charging cover for wireless charging to work. The cover
may be included in the sales box, or it may be sold separately. Only use original
Lumia wireless charging covers designed for your phone.
Wireless chargers are sold separately.
The charging areas on the phone and the charger need to touch, so make sure
you align the phone and charger properly. Not all phone models fit in all chargers.
1. Make sure the wireless charger is switched on.
2. If your phone needs a wireless charging cover, make sure it’s properly attached
to your phone.
3. Place your phone on the wireless charger so that the charging areas touch.
4. When the battery is full, remove your phone from the charger.
Warning: Make sure there’s nothing between the charger and the device.
Do not attach any objects, such as stickers, on the device surface near the
charging area.
For more info on wireless charging, see the user guide of your charger and
wireless charging cover.
Connect the headset
Enjoy your favorite music, or free your hands for other things when in a call.
The headset may be sold separately.

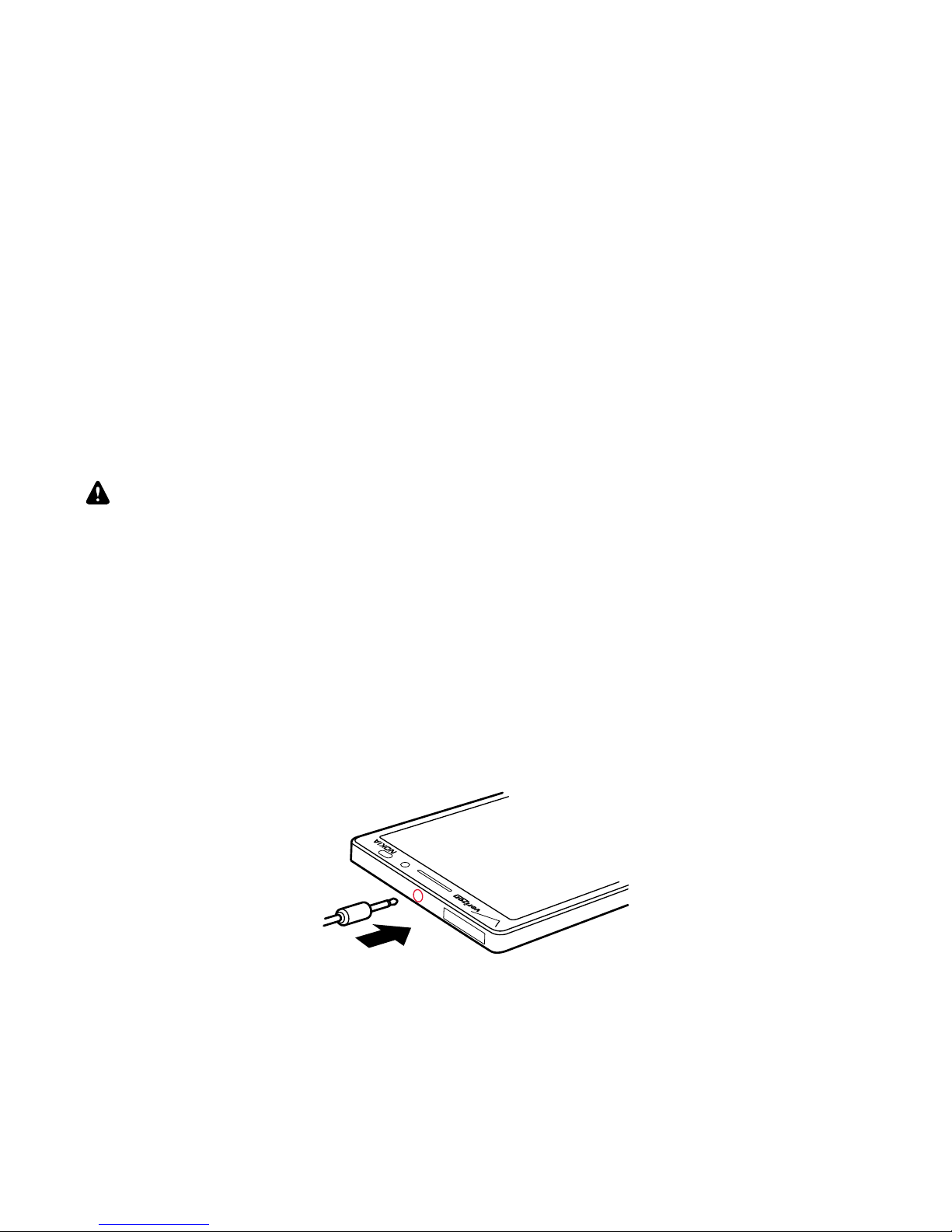

Connect the headset to your phone.
Do not connect to products that create an output signal, as this may damage
the device. Do not connect any voltage source to the audio connector. If you
connect an external device or headset, other than those approved for use with
this device, to the audio connector, pay special attention to volume levels.
© 2015 Microsoft Mobile. All rights reserved. 12

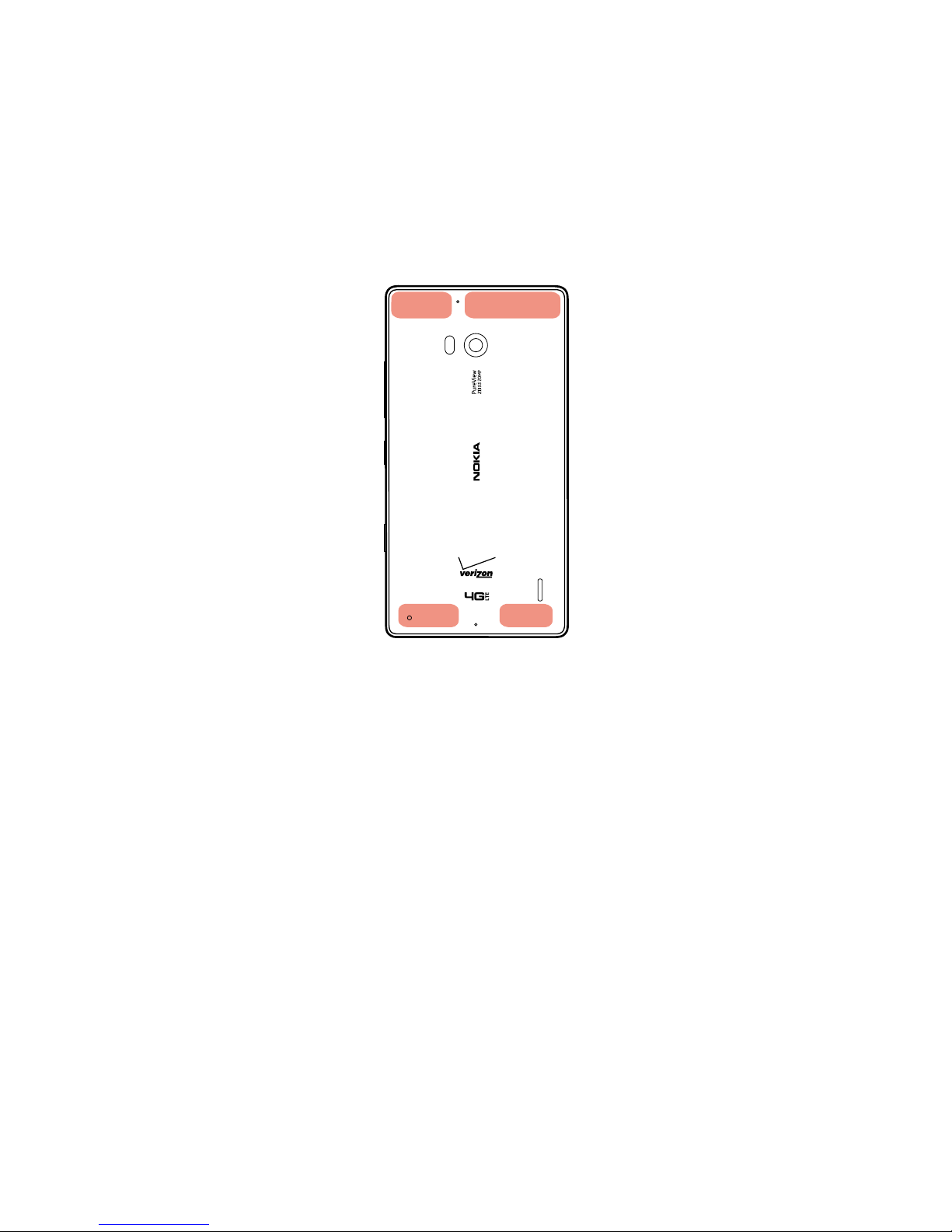

Antenna locations
Learn where the antennas are located on your phone to get the best possible
performance.
Avoid touching the antenna area while the antenna is in use. Contact with
antennas affects the communication quality and may reduce battery life due to
higher power level during operation.
The antenna areas are highlighted.
© 2015 Microsoft Mobile. All rights reserved. 13

Your first Lumia?
Set up your phone
Make the most out of your phone’s features from the get-go.
When you switch your phone on for the first time, your phone guides you to set
up your network connections, phone settings, and Microsoft account in one
sitting.

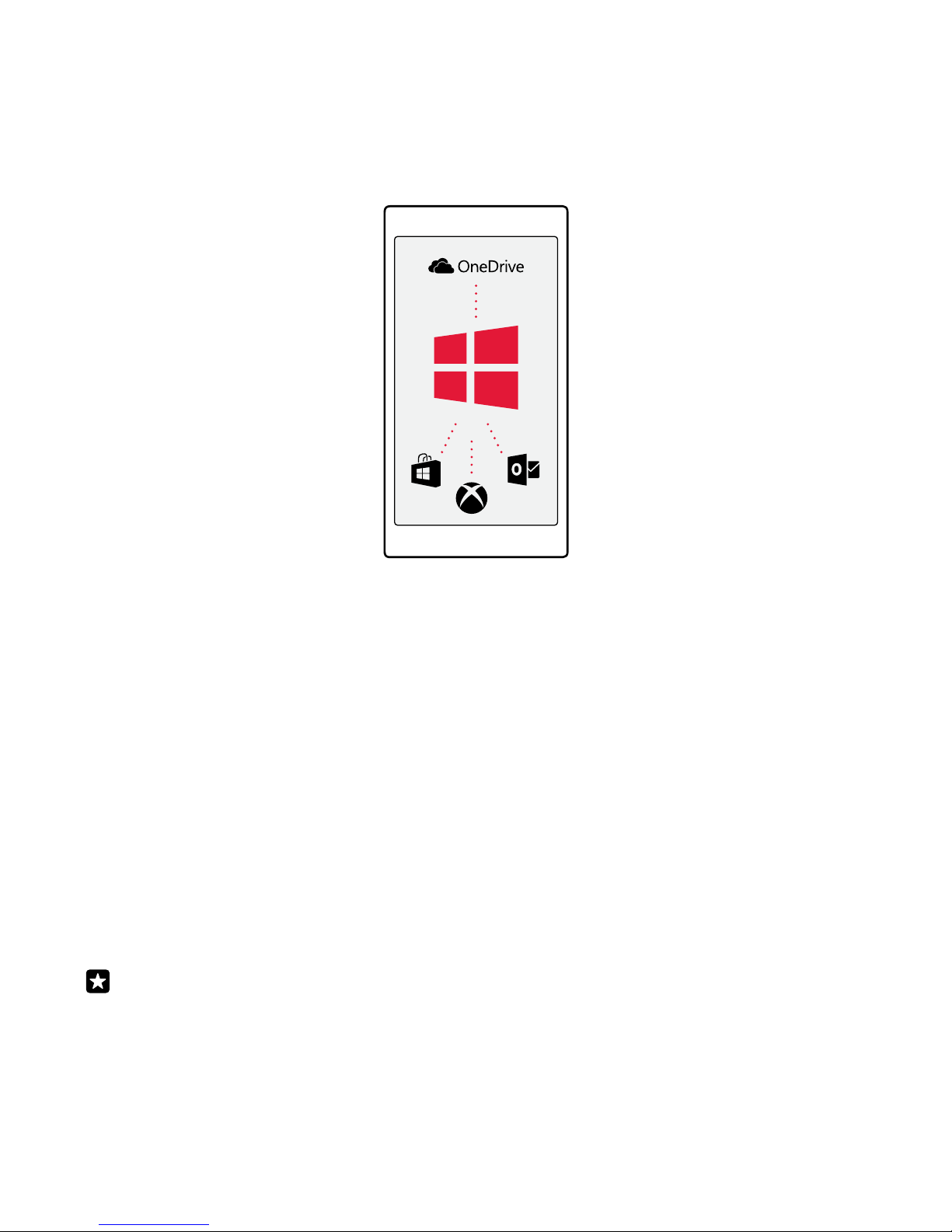

You need a Microsoft account to back up and restore your phone, to buy, install,
and update apps, and to access some Microsoft services, such as:
• Xbox
• OneDrive
• Hotmail
• Outlook
You can use the same username and password on your computer and phone.
1. Switch your phone on, and follow the instructions shown on your phone.
2. When asked, create your Microsoft account if you don’t have one already, or
sign in with your existing username and password.
Tip: You can also create a Microsoft account later. On the start screen, swipe
down from the top of the screen, and tap ALL SETTINGS > email+accounts >
add an account > Microsoft account.
Parents must approve the Microsoft account for children under the age of 13.
To approve an account, on the start screen, swipe down from the top of the
© 2015 Microsoft Mobile. All rights reserved. 14

screen, tap ALL SETTINGS > email+accounts > add an account > Microsoft
account, and follow the instructions shown on the phone.
You can also create or manage your account at www.live.com.
Explore your tiles, apps, and settings
Everything you need is on 2 views: the start screen and apps menu. Fill the start
screen with shortcuts to your favorite apps and the contacts you need the most,
and find all your apps easily in the apps menu.
The start screen consists of tiles, which are shortcuts to your apps, contacts,
browser bookmarks, and more. Some tiles may show you notifications and
updates, such as your missed calls, received messages, and the latest news.
1. To see all the apps on your phone, on the start screen, simply swipe left. To
return to the start screen, swipe right.
Tip: To go back to the start screen from any view, press .
The apps menu is the home to all your apps – in neat alphabetical order. All the
installed apps end up here. To look up an app in the apps menu, tap , or tap a
letter.
© 2015 Microsoft Mobile. All rights reserved. 15

2. To add an app shortcut to your start screen, in the apps menu, tap and hold
the app, and tap pin to start.
Check notifications and change settings quickly
Swipe down from the top of the screen.
In the action center, you can quickly see notifications, such as your missed calls
and unread mails and messages, open the camera, and access all phone settings.
Navigate inside an app
There’s more to your apps than meets the eye. To find more views in an app,
swipe left. To discover more actions, use the options menu.
In most apps, to go to another view, swipe left.
© 2015 Microsoft Mobile. All rights reserved. 16

Find more options in an app
Tap .
In the options menu, you can find additional settings and actions that are not
shown as icons.
Use the touch screen
Explore your phone with a tap, swipe, or drag.
1. To use your phone, simply tap or tap and hold the touch screen.
2. To open further options, place your finger on an item until the menu opens.
© 2015 Microsoft Mobile. All rights reserved. 17

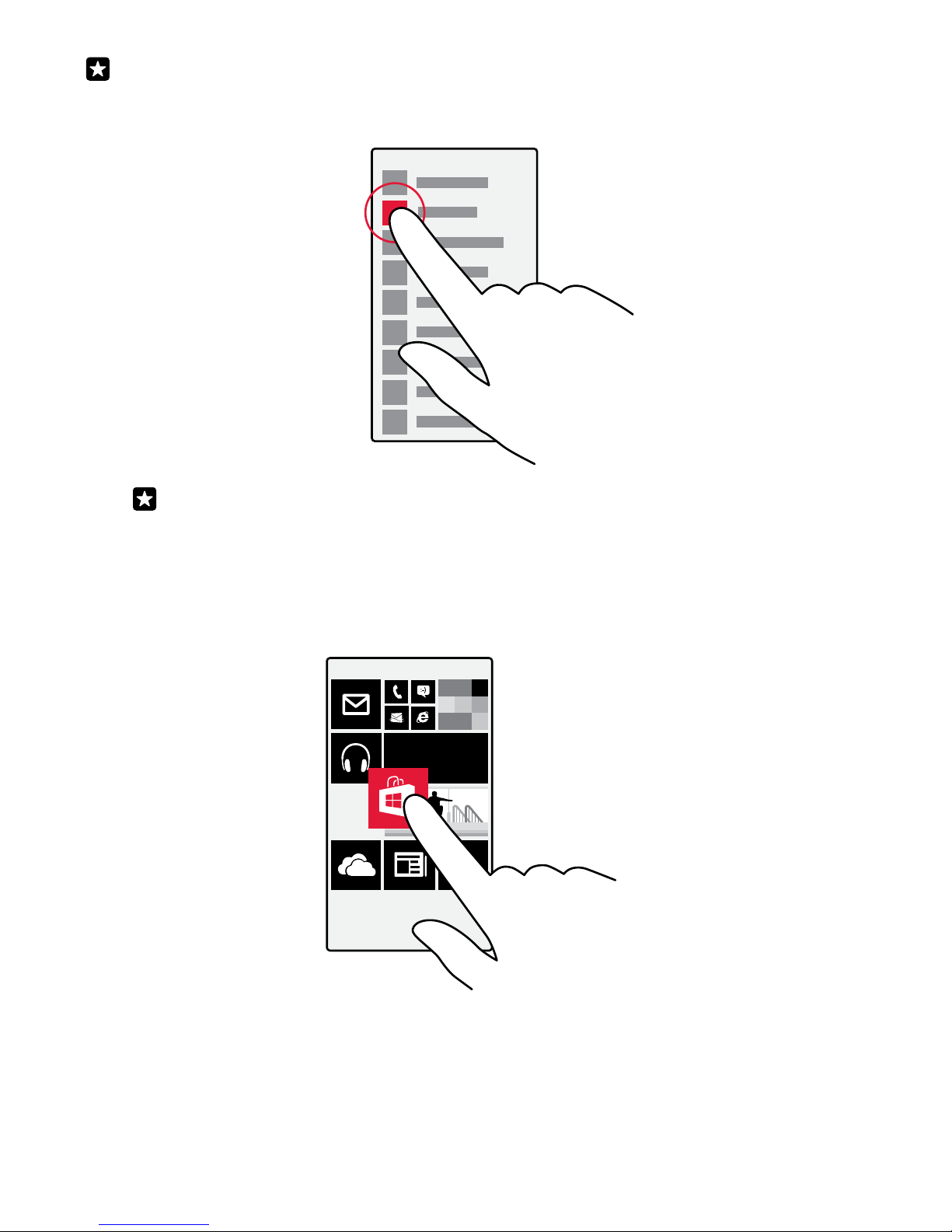

Example: To open an app or other item, tap the app or item. To edit or delete
a calendar appointment, tap and hold the appointment, and select the
appropriate option.
Tip: You can even use your phone while wearing gloves. On the start
screen, swipe down from the top of the screen, tap ALL SETTINGS >
touch, and switch Touch sensitivity to high.
Tap and hold to drag an item
Place your finger on the item for a couple of seconds, and slide your finger across
the screen.
Swipe
Place your finger on the screen, and slide your finger in the direction you want.
© 2015 Microsoft Mobile. All rights reserved. 18

Example: Swipe left or right between the start screen and the apps menu,
or between different views in the hubs. To quickly scroll through a long list
or menu, slide your finger quickly in a flicking motion up or down the screen,
and lift your finger. To stop the scrolling, tap the screen.
Zoom in or out
Place 2 fingers on an item, such as a map, photo, or web page, and slide your
fingers apart or together.
© 2015 Microsoft Mobile. All rights reserved. 19

Important: Avoid scratching the touch screen.
Tip: The screen rotates automatically when you turn the phone 90 degrees.
To lock the screen in its current orientation, on the start screen, swipe down
from the top of the screen, and tap ALL SETTINGS > screen rotation. Switch
Rotation lock to On . Screen rotation may not work in all apps or views.
Transfer content to your Lumia phone
Learn how to transfer content to your Lumia phone.
Transfer content to your new Lumia phone
Got a new phone and don’t want to lose your photos, videos, and other important
stuff you have on your old phone? There are nifty ways to transfer content to
your new phone.
These instructions may not apply to all phone models and manufacturers.
You may need to install some apps on your phone or computer for the transfer.
Depending on what you need to install and how much content you are
transferring, the transfer may take a while.
Some file formats may not be transferred. Some third-party converter apps may
be available to convert the files to a format that can be transferred.
For more info, go to www.microsoft.com/mobile/switch-easy.
© 2015 Microsoft Mobile. All rights reserved. 20
