Nokia RH-9 Service manual

CCS Technical Documentation
RH-9 Series Transceivers
Issue 1 11/02 ãNokia Corporation
Service Tools

RH-9
Service Tools CCS Technical Documentation
Page 2 ãNokia Corporation Issue 1 11/02
Table of Contents
JBV-1 Docking Station and MJF-16 Adapter .............................................................4
Product Code............................................................................................................. 4
MJS-37 Module Jig ......................................................................................................6
Product Code............................................................................................................. 6
MJS-67 Soldering Jig ..................................................................................................7
Product Code............................................................................................................. 7
GAC-4 RF Adapter ......................................................................................................8
Product Code............................................................................................................. 8
FPS-8 Flash Prommer (Sales Pack) .............................................................................9
Sales Package Code................................................................................................... 9
FPS-8C Parallel Flash Prommer (Sales Pack) ...........................................................10
Sales package code.................................................................................................. 10
ACF-8 Universal Power Supply ................................................................................11
Product Code........................................................................................................... 11
RH-9 FLA-23 POS (Point Of Sale) Flash Loading Adapter .....................................12
Product Code........................................................................................................... 12
FLC-2 DC Cable ........................................................................................................13
Product Code........................................................................................................... 13
AXS-4 Service Cable .................................................................................................14
Product Code........................................................................................................... 14
XCS-1 Service Cable .................................................................................................15
Product Code........................................................................................................... 15
SW Security Device PKD-1 ......................................................................................16
Product Code........................................................................................................... 16
FLS-4S POS (Point Of Sale) Flash Device (Sales Pack) ..........................................17
Product Code........................................................................................................... 17
PCS-1 Power Cable ...................................................................................................18
Product Code........................................................................................................... 18
DAU-9S MBUS Cable ..............................................................................................19
Product Code........................................................................................................... 19
SCB-3 DC Cable ........................................................................................................20
Product Code........................................................................................................... 20
XCS-4 Modular Cable ...............................................................................................21
Product Code........................................................................................................... 21
Printer Cable ..............................................................................................................22
Product Code........................................................................................................... 22
Page No

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 3
List of Figures
Page No
Fig 1 View of JBV-1............................................................................................................4
Fig 2 View of JBV-1 and MJF-16 together.........................................................................5
Fig 3 View of JBV-1, MJF-16 and the transceiver RH-9....................................................5
Fig 4 View of MJS-37 .........................................................................................................6
Fig 5 View of MJS-67 .........................................................................................................7
Fig 6 View of GAC-4 ..........................................................................................................8
Fig 7 View of FPS-8............................................................................................................9
Fig 8 View of FPS-8C .........................................................................................................10
Fig 9 View of ACF-8...........................................................................................................11
Fig 10 View of FLA-23 .......................................................................................................12
Fig 11 View of FLC-2 .........................................................................................................13
Fig 12 View of AXS-4.........................................................................................................14
Fig 13 View of XCS-1.........................................................................................................15
Fig 14 View of SW Security Device ...................................................................................16
Fig 15 View of FLS-4S........................................................................................................17
Fig 16 View of PCS-1..........................................................................................................18
Fig 17 View of DAU-9S......................................................................................................19
Fig 18 View of SCB-3 .........................................................................................................20
Fig 19 View of XCS-4.........................................................................................................21
Fig 20 View of Printer Cable...............................................................................................22

RH-9
Service Tools CCS Technical Documentation
Page 4 ãNokia Corporation Issue 1 11/02
JBV-1 Docking Station and MJF-16 Adapter
The JBV-1 Docking Station has been designed for calibration and software update use.
The MJF-16 Docking Station Adapter makes signal connections to the phone. JBV-1 and
MJF-16 are used as one unit.
JBV-1 main electric functions are:
• adjustable VBATT calibration voltage, current measurement limit voltage
"VCHAR", current measurement calibration current "ICHAR"
• adjustable ADC calibration voltage via BTEMP and BSI signal
• BTEMP and BSI calibration resistor
• signals from FBUS to the phone via parallel jig
• control via FBUS or USB
• Flash OK/FAIL indication (only to be used with FPS-8C)
In the calibration mode, the JBV-1 is powered by an external power supply 11-16V DC.
During flashing, power for the phone can be taken from the FPS-8 or from an external
power supply 11-16V DC.
The MJF-16’s main electric functions are:
• phone recognizing from BTEMP
• filters of FBUS signals
Product Code
JBV-1 Docking Station: 0770298
MJF-16 Docking Station Adapter 0775300
GAC-4 Adapter 0770448

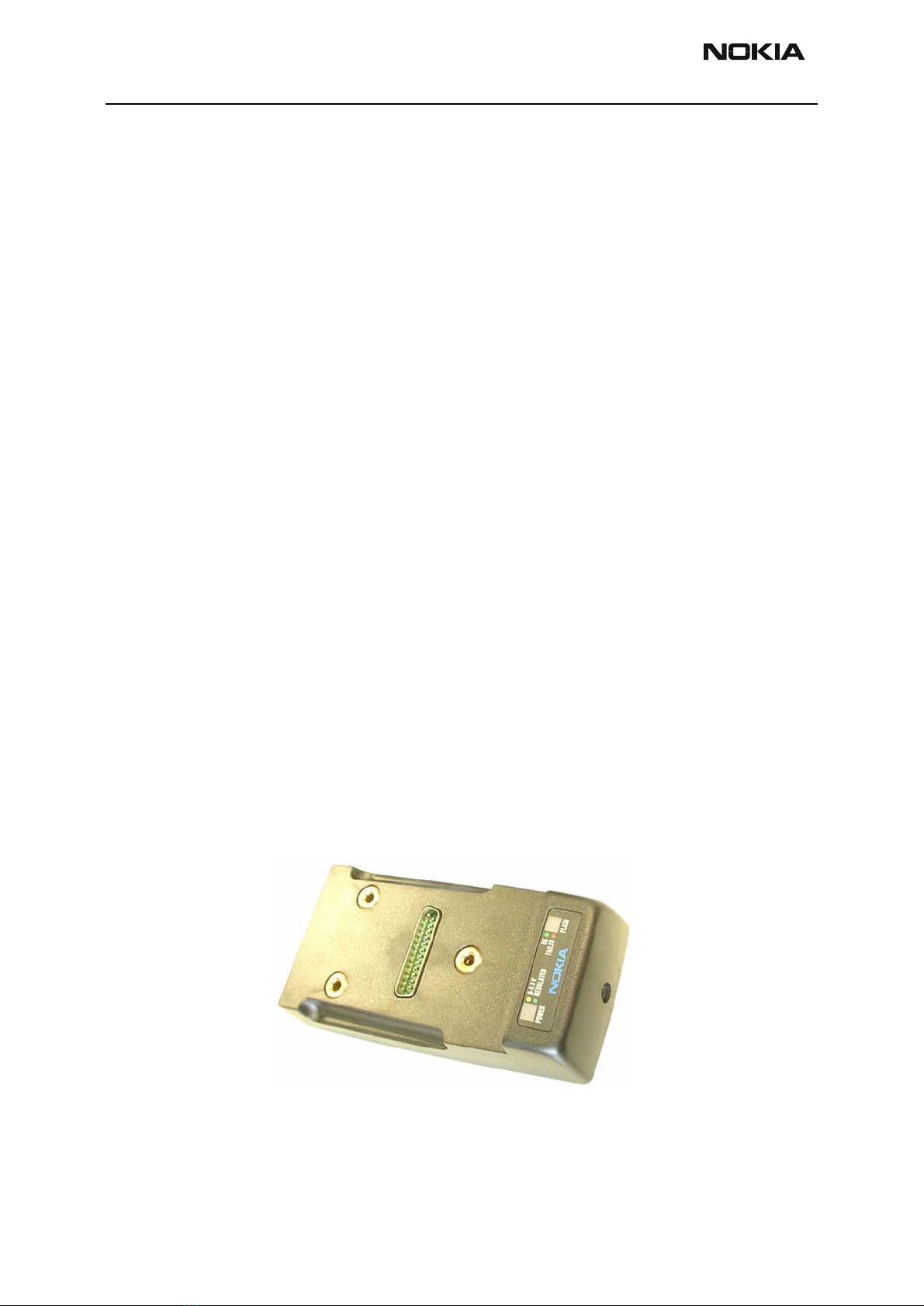

Figure 1: View of JBV-1

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 5

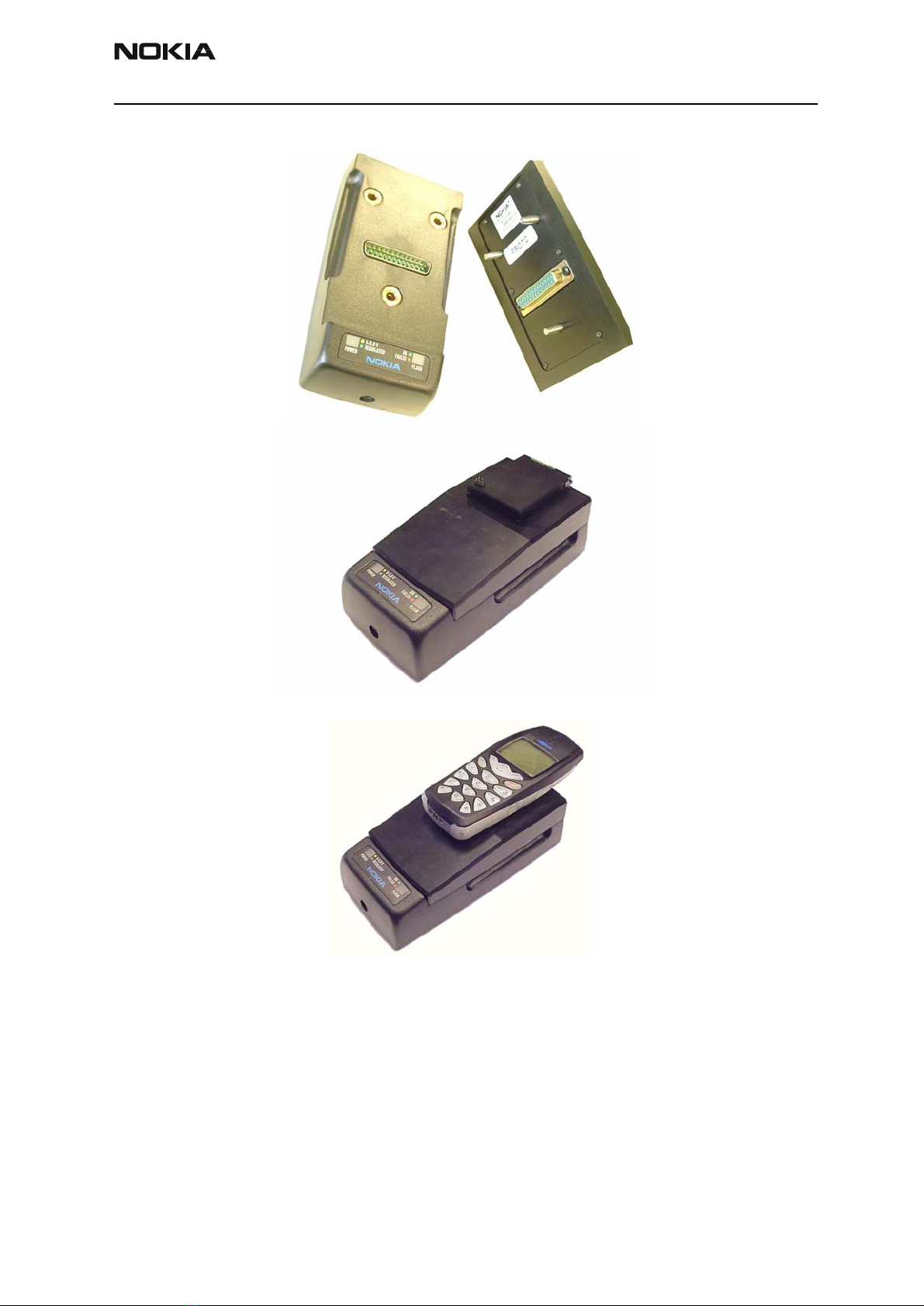

Figure 2: View of JBV-1 and MJF-16 together
Figure 3: View of JBV-1, MJF-16 and the transceiver RH-9

RH-9
Service Tools CCS Technical Documentation
Page 6 ãNokia Corporation Issue 1 11/02

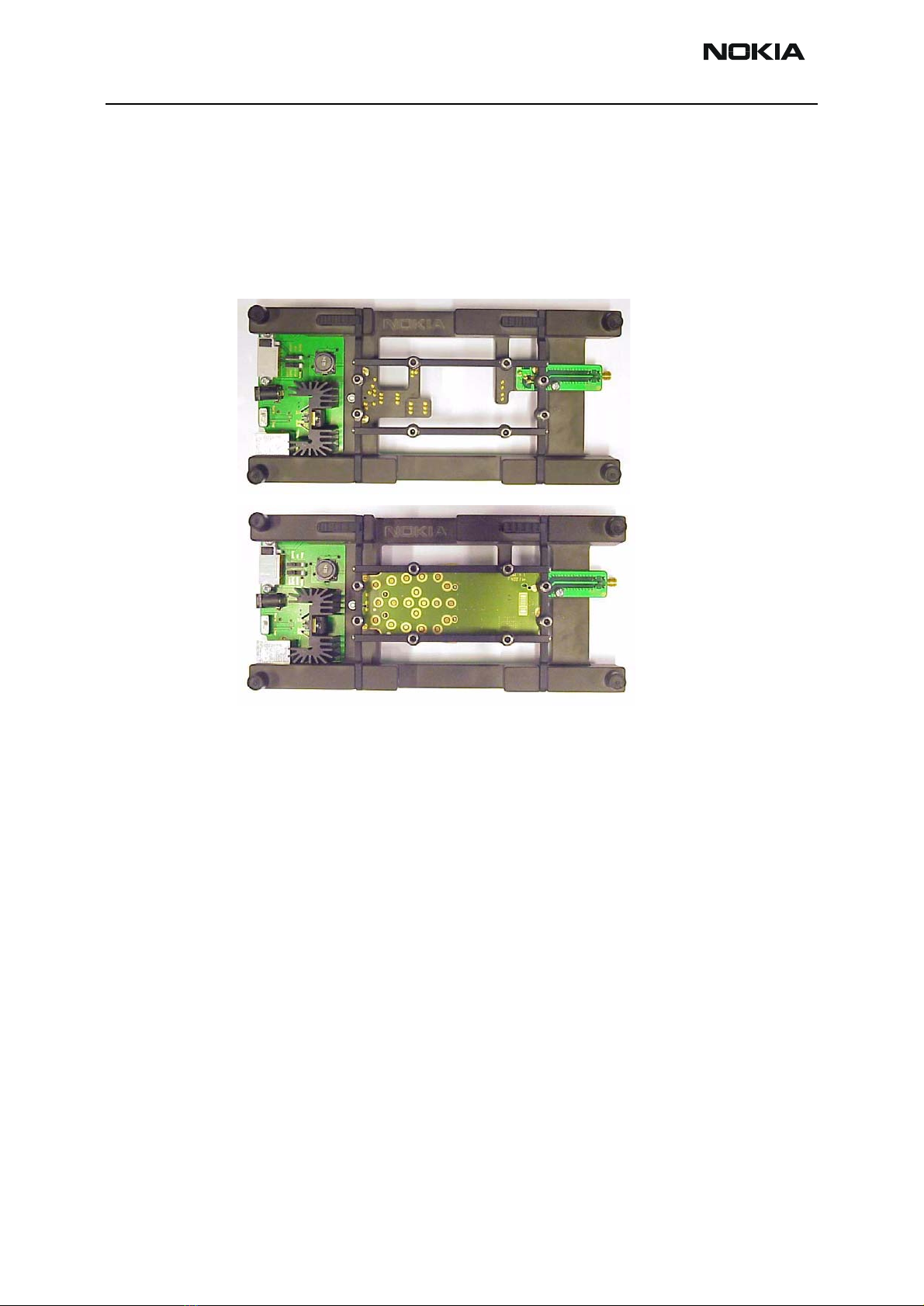

MJS-37 Module Jig
The MJS-37 Module Jig is used for testing of UI/system/RF-module*.
Product Code
MJS-37 Module Jig: 0770282
Figure 4: View of MJS-37
Note: The nominal supply voltage for MJS-37 is 8-12VDC. If the input-voltage
exceeds 12VDC, the MJS-37 jig may be damaged.
By default the MJS-37 supplies the phone with 4.1VDC. If other output volt-
ages are needed (e.g. test or if FPS-8 is used as the power supply), it is possible
to modify MJS-37 to support this by removing R110 and mount S104. See the
MJS-37 schematic for more information.

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 7

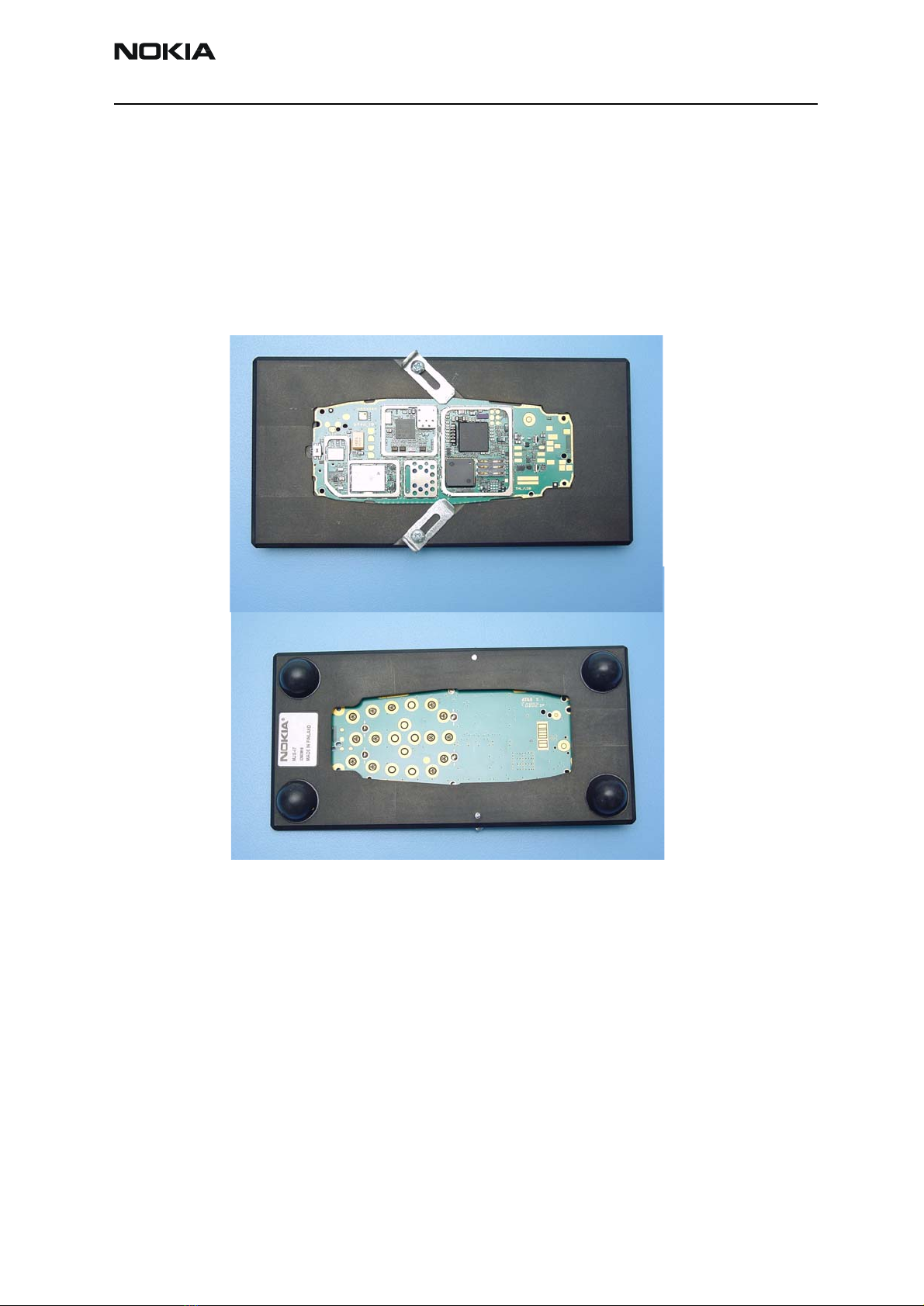

MJS-67 Soldering Jig
The Soldering Jig MJS-67 is used for soldering and as a rework jig for system module.
Product Code
MJS-67 Module Jig: 0770388
Figure 5: View of MJS-67

RH-9
Service Tools CCS Technical Documentation
Page 8 ãNokia Corporation Issue 1 11/02
GAC-4 RF Adapter
The RF adapter GAC-4 is used for enabling RF connection. To be attached after A-cover is
removed.
Product Code
GAC-4 RF Adapter: 0770448
Figure 6: View of GAC-4

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 9
FPS-8 Flash Prommer (Sales Pack)
The Flash Prommer FPS-8 is used with e.g. FLA-23, JBV-1 and MJS-37. Power is supplied
to FPS-8 from the Universal Power Supply.
The sales pack includes:
• FPS-8 Flash Prommer 0750123
• FPS-8 Activation Sheet 9359289
• Universal Power Supply 0680032
• AXS-4 Service Cable (D9-D9) 0730090
• Printer cable 073F000
Sales Package Code
FPS-8 Flash Prommer: 0080321
Figure 7: View of FPS-8

RH-9
Service Tools CCS Technical Documentation
Page 10 ãNokia Corporation Issue 1 11/02
FPS-8C Parallel Flash Prommer (Sales Pack)
The Parallel Flash Prommer FPS-8C is used with MJF-16 and JBV-1. Flash programming
can be done to maximum of 8 phones parallel. FPS-8C consists of eight SF11C program-
ming cards. SF11C card is functionally identical to FPS-8.
Sales package code
FPS-8C Parallel Flash Prommer: 0080396
Figure 8: View of FPS-8C

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 11
ACF-8 Universal Power Supply
ACF-8 Universal Power Supply is used to power FPS-8. ACF-8 has 6 V DC and 2.1 A out-
put.
Product Code
ACF-8 Universal Power Supply: 0680032
Figure 9: View of ACF-8

RH-9
Service Tools CCS Technical Documentation
Page 12 ãNokia Corporation Issue 1 11/02
RH-9 FLA-23 POS (Point Of Sale) Flash Loading Adapter
The POS Flash Loading Adapter FLA-23 is used in place of the phone's normal battery
during service, to supply a controlled operating voltage, and is also used for flashing.
Product Code
FLA-23 POS Flash Loading Adapter: 0775304
Figure 10: View of FLA-23

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 13
FLC-2 DC Cable
The FLC-2 is used to supply a controlled operating voltage.
Product Code
FLC-2 DC Cable: 0730185
Figure 11: View of FLC-2

RH-9
Service Tools CCS Technical Documentation
Page 14 ãNokia Corporation Issue 1 11/02
AXS-4 Service Cable
The AXS-4 D9-D9 Service Cable is used to connect two 9 pin D connectors e.g. between
PC and FPS-8. Cable length is 2 meters.
Product Code
AXS-4 D9-D9 Service Cable: 0730090
Figure 12: View of AXS-4

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 15
XCS-1 Service Cable
The XCS-1 Service Cable is used to connect FLS-4S to FLA-23.
Product Code
XCS-1 Service Cable: 0730218
Figure 13: View of XCS-1

RH-9
Service Tools CCS Technical Documentation
Page 16 ãNokia Corporation Issue 1 11/02

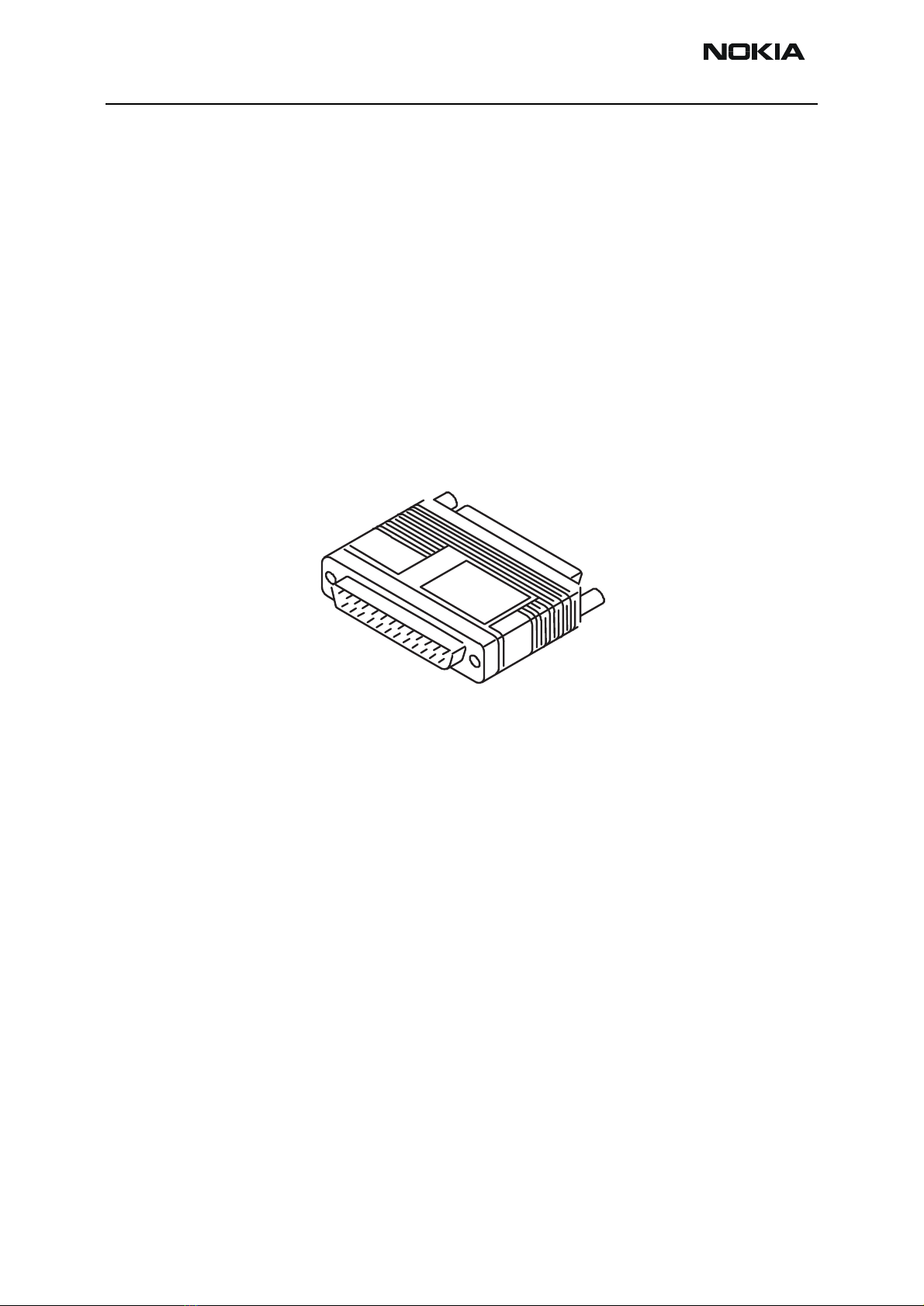

SW Security Device PKD-1
SW security device is a piece of hardware enabling the use of the service software when
connected to the parallel (LPT) port of the PC. Without the dongle present it is not possi-
ble to use the service software. Printer or any such device can be connected to the PC
through the dongle if needed.
Caution: Make sure that you have switched off the PC and the printer before making
connections!
Caution: Do not connect the PKD-1 to the serial port. You may damage your PKD-1.
Product Code
SW Security Device PKD-1: 0750018
Figure 14: View of SW Security Device

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 17

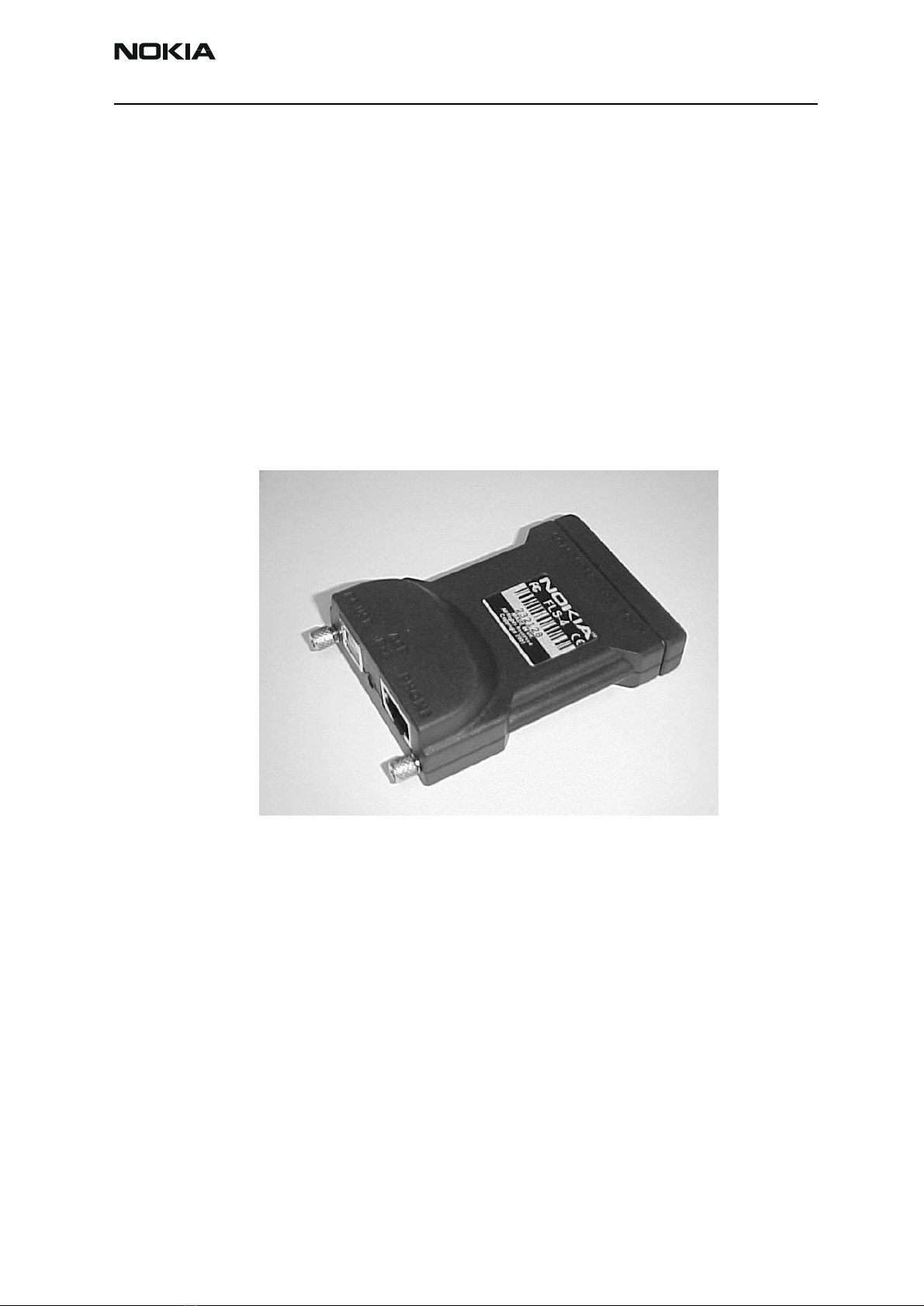

FLS-4S POS (Point Of Sale) Flash Device (Sales Pack)
FLS-4S is a dongle and flash device incorporated into one package, developed specifically
for POS use.
Product Code
Sales Pack - Europe/Africa 0081483
Sales Pack -APAC 0081481
Sales Pack -Americas 0081482
POS Flash device for E&A (FLS-4S) 0080541
Figure 15: View of FLS-4S

RH-9
Service Tools CCS Technical Documentation
Page 18 ãNokia Corporation Issue 1 11/02
PCS-1 Power Cable
The PCS-1 Power Cable (DC) is used to connect, for example, JBV-1 to FPS-8.
Product Code
PCS-1 Power Cable: 0730012
Figure 16: View of PCS-1

CCS Technical Documentation Service Tools
RH-9
Issue 1 11/02 ãNokia Corporation Page 19
DAU-9S MBUS Cable
The MBUS Cable DAU-9S has a modular connector, and is used with between PC's serial
port and, for example, the Module Jig MJS-37.
Product Code
DAU-9S MBUS Cable: 0730108
Figure 17: View of DAU-9S

RH-9
Service Tools CCS Technical Documentation
Page 20 ãNokia Corporation Issue 1 11/02
SCB-3 DC Cable
The DC Cable SCB-3 is used to connect, for example, the JBV-1 to the phone.
Product Code
SCB-3 DC Cable: 0730114

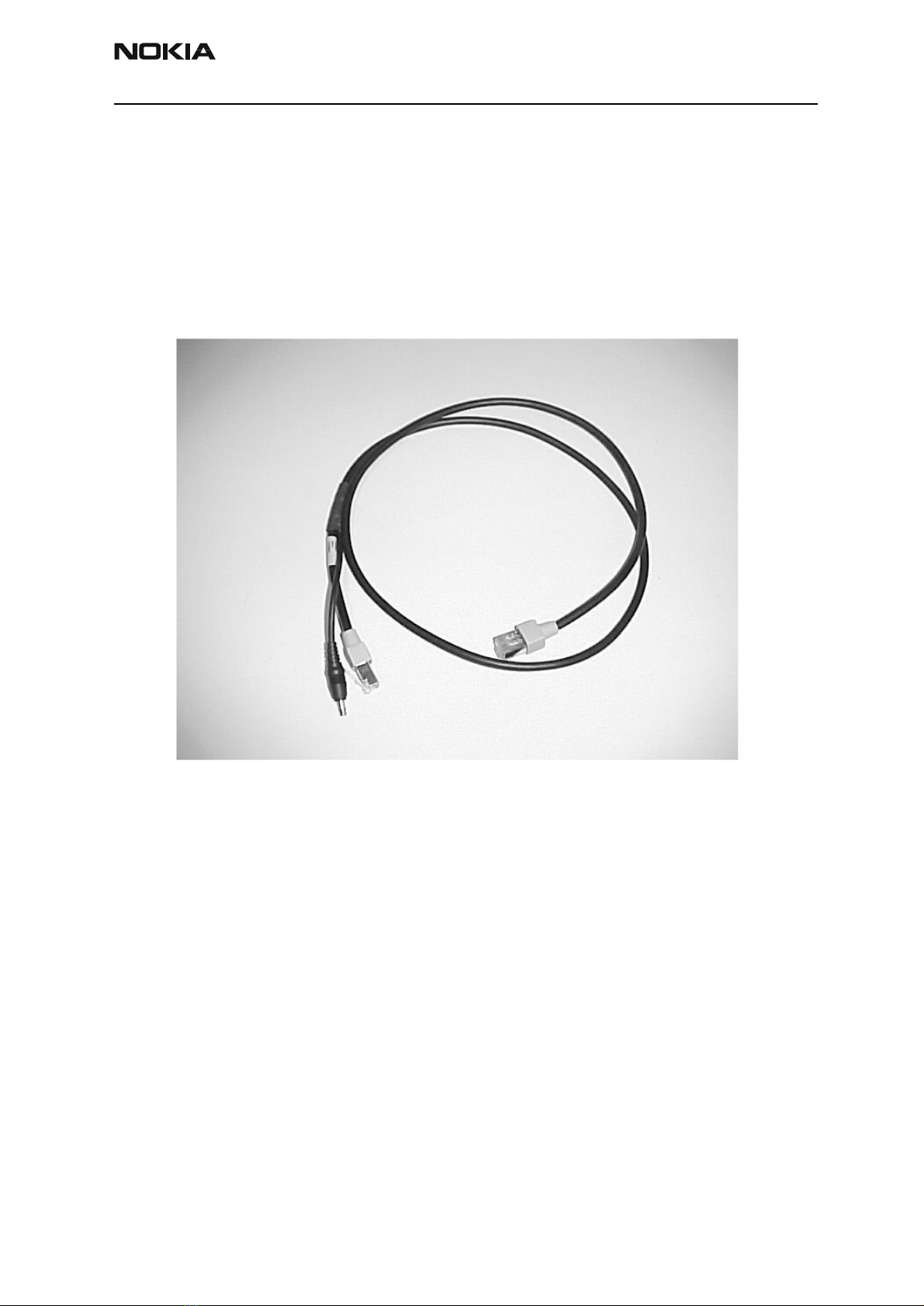

Figure 18: View of SCB-3
