Norden Mfg SSB-72US User manual

Read, Understand, and Follow this manual which provides information
and procedures to safely operate and maintain the attachment.
Skid Steer Buckets
Owner Manual
MADE IN THE USA
SSB-78LL
SSB-84US
SSB-72US

Skid Steer Loader Buckets 3 Norden Mfg. LLC [phone]
CONTENTS
1. INTRODUCTION ..........................4
1.1 Intended Usage .......................4
1.2 Operator Orientation....................4
1.3 Specications .........................4
1.3.1 SSB-72USSpecications .........4
1.3.2 SSB-78LLSpecications..........4
1.3.3 SSB-84USSpecications .........5
1.4 Serial Number Location .................5
1.5 Product Improvements ..................5
1.6 Disposal of Equipment at End of Useful Life . 5
1.7 Unanswered Questions .................5
2. SAFETY .................................6
2.1 General..............................6
2.2 Safety Alert Symbol ....................6
2.3 Safety Icons Nomenclature ..............7
2.3.1 Personal Protection /
Important Information ............7
2.3.2 Prohibited Actions ...............7
2.3.3 Hazard Avoidance ...............7
2.4 General Safety ........................8
2.5 Machine Related Safety .................8
2.6 Safety Decals .........................8
2.7 Operation Safety ......................8
2.8 Transporting Safety ....................8
2.9 Storage Safety . . . . . . . . . . . . . . . . . . . . . . . . 8
2.10 Maintenance Safety . . . . . . . . . . . . . . . . . . . . 8
2.11 Training .............................8
2.12 Authorization/TrainingSign-O󰀨Form .....9
3. SAFETY DECALS AND LABELS ...........11
3.1 General Information . . . . . . . . . . . . . . . . . . . 11
3.2 How to Install Replacement Safety Decals . 11
3.3 Safety Decal Locations.................12
3.4 Safety Decals ........................12
4. NOMENCLATURE .......................13
5. ASSEMBLY AND SETUP ..................14
5.1 Assembly Process ....................14
6. USAGE .................................15
6.1 User Safety..........................15
6.1.1 Machine Operation Recommendations
............................15
6.1.2 Machine Requirements ..........15
6.2 MachineSpecications.................15
6.3 Attaching to Machine ..................16
6.4 Pre-Operation Checklist ...............17
6.5 Usage..............................17
6.5.1 Picking Up a Load ..............17
6.5.2 Moving With a Load.............19
6.5.3 Dumping the Load ..............19
6.6 Detaching from Machine ...............19
7. TRANSPORTING.........................21
7.1 Highway and Transport Safety ...........21
7.2 Pre-transport Checklist.................21
8. STORAGE...............................22
8.1 Placing in Storage ....................22
8.2 Removing from Storage ................22
9. MAINTENANCE ..........................23
9.1 Maintenance Safety . . . . . . . . . . . . . . . . . . . 23
9.2 Practice Safe Service Procedures . . . . . . . . 23
9.3 Bolt Torque Requirements ..............24
9.4 Welding Repairs ......................24
9.5 Bolt-on Cutting Edge Reversal / Replacement
...................................24
9.5.1 Prepare ......................24
9.5.2 Remove Bolt-on Cutting Edge. ....24
9.5.3 Install the Bolt-on Cutting Edge....25
9.6 Service Record ......................26
10. PARTS SECTION.........................27
10.1 Ordering Parts .......................27
10.2 Contact Information ...................27
10.3 Safety Decals and Instructional Labels ....27
10.4 SSB-72US Parts Detail ................28
10.5 SSB-78LL Parts Detail .................29
10.6 SSB-84US Parts Detail ................30

Norden Mfg. LLC [phone] 4 Skid Steer Loader Buckets
1. Introduction
The Norden Skid Steer Bucket is an attachment that
mounts to a skid steer loader or a tractor equipped
with a loader having similar mounting capabilities. It
is designed specically to move loose material.
Note: Thespecicterm“loaderbucketattachment”
willbereferredtosimplyas“loaderbucket”
or“attachment”throughouttherestofthis
manual and may refer to any of the models
covered by this manual. The term skid steer
loader or small utility tractor will be referred to
as“machine”throughoutthismanual.
Read, understand, and follow the manual carefully
to become familiar with your new Norden loader
bucket. Ultimately it is our desire that you will
be operating your loader bucket as a seasoned
professional in very little time!
This manual is intended for all models, but will show
specicpicturesanddiagramsoftheSSB-78LL
loaderbucket.Ifanyspecicationsaredi󰀨erentthan
the model shown, it will be noted.
1.1 Intended Usage
Do not use this loader bucket for any other purpose
than its intended use of moving loads of loose
material.
Note: Do not use an oversized machine; the loader
buckets are intended to be used on machines
rated up to 110 HP or a 3500 pound operating
capacity.
1.2 Operator Orientation
The directions left, right, front, and rear, as
mentioned throughout this manual, are as seen from
the operator’s seat, facing in the direction of travel.
1.3 Specifications
Specifications subject to change without notice.
1.3.1 SSB-72US Specifications
Overall Width 74"
Overall Length 36"
Overall Height 25.5”
Overall Approximate Weight 552.7 lb.
Bolt On Cutting Edge Size
3/4”x6”x74”
4-6(11)-4
Approx. Struck Capacity 15.7Cu.Ft.
1.3.2 SSB-78LL Specifications
Overall Width 80"
Overall Length 42"
Overall Height 23”
Overall Approximate Weight 617 lb.
Bolt On Cutting Edge Size
3/4”x6”x80”
4-6(12)-4
Approx. Struck Capacity 16.4Cu.Ft.

Skid Steer Loader Buckets 5 Norden Mfg. LLC [phone]
1.3.3 SSB-84US Specifications
Overall Width 86"
Overall Length 36"
Overall Height 25.5”
Overall Approximate Weight 615.2 lb.
Bolt On Cutting Edge Size
3/4”x6”x84”
4-6(13)-4
Approx. Struck Capacity 18.3Cu.Ft.
1.4 Serial Number Location
The loader bucket’s serial number and model
number are on the data plate which is located on the
rear of the bucket. Please use these numbers when
requesting service, seeking information, or ordering
parts.
1.
4210 Kinsman Rd NW, North Bloomeld, OH 44450
www.nordenmfg.com - [phone]
Made in USA
Serial Number
Mfg Date
Model Number/Rev
Max Hyd. Pressure
Load Rating
Approx. Weight
Part Number
1027460
Record the serial and model numbers as well as
the date of purchase in the space provided for easy
reference when contacting Norden Mfg LLC with
questions.
Model Number _____________________________
Serial Number ______________________________
Date of Purchase ___________________________
1.5 Product Improvements
Because Norden Mfg LLC maintains an ongoing
program of product improvement, we reserve the
right to make improvements in design or changes
inspecicationswithoutincurringanyobligationto
install them on attachments previously sold.
1.6 Disposal of Equipment at End of Useful
Life
The Norden Mfg LLC loader buckets are designed
forthespecicpurposeofmovinggravelanddirt.
When this loader bucket is no longer capable of
performing its intended use, it should be dismantled
and scrapped. Do not use any materials or
components from this loader bucket for any other
purpose.
1.7 Unanswered Questions
If you have any questions not answered in this
manual, require additional copies, or the manual is
damaged, please contact your dealer or:
Norden Mfg LLC
4210 Kinsman Road NW
North Bloomfield, OH 44450
Phone: [phone]
Fax:(440)693-4336
E-mail: [email protected]
The manual is also available for download at:
www.nordenmfg.com

Norden Mfg. LLC [phone] 6 Skid Steer Loader Buckets
2. Safety
2.1 General
Most work-related accidents are caused by failure
to observe basic safety rules or precautions. An
accident can often be avoided by recognizing
potentially hazardous situations before an accident
occurs. As you use and maintain the loader bucket
you must be alert to potential hazards.
Improper use and/or maintenance of this loader
bucket could cause a dangerous situation that
results in property damage, personal injury, or
death.
WARNING
Do not use the loader bucket until you
read, understand, and follow the
information contained in this manual and all
related equipment manuals. Do not use the
loader bucket for anything other than its
intended purpose.
Safety precautions and warnings are
provided in this manual and on the loader
bucket. If these precautions and warnings are
not followed, bodily injury or death could occur
to you or to other persons.
Norden Mfg LLC cannot anticipate every possible
circumstance that might involve a potential hazard.
The warnings in this manual and on the product are,
therefore, not all-inclusive. If a method of operation
notspecicallyrecommendedbyusisused,you
must satisfy yourself that it is safe for you and for
others. You should also ensure that the attachment
will not be damaged or be made unsafe by the use
or maintenance methods that you choose.
Theinformation,specications,andillustrationsin
this manual are based on the information that was
available at the time this material was written and
can change at any time.
2.2 Safety Alert Symbol
This is the safety alert symbol. It is used to
alert you to potential personal injury
hazards. The symbol is followed by a
signalwordsuchas“WARNING”or
“CAUTION”dependingontheseverityofthe
potential hazard. Obey all safety messages that
follow this symbol to avoid possible injury or death.
This manual contains WARNINGS, CAUTIONS,
NOTICES,SAFETYINSTRUCTIONS,andNOTES.
Warnings, Cautions, and Safety Instructions must
be followed to prevent the possibility of personal
injury or death due to improper operation. Notices
and Notes help prevent loader bucket or property
damage.
WARNING
Indicates a potentially hazardous situation
which, if not avoided, COULD result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, MAY result in minor or
moderate injury.
NOTICE
Indicates that loader bucket or property damage
can result if instructions are not followed.
SAFETY
INSTRUCTIONS
Indicates specific safety-related instructions or
procedures.
Note: Contains additional information important to
operation or a procedure.

Skid Steer Loader Buckets 7 Norden Mfg. LLC [phone]
2.3 Safety Icons Nomenclature
This manual and the loader bucket has numerous
safety icons. These safety icons provide important
operating instructions which alert you to potential
personal injury hazards
2.3.1 Personal Protection /
Important Information
Read the manual
Maintenance procedure
Eye protection
Hearing protection
Hand protection
Foot protection
First aid kit
Use proper tools
OEMOEM
Use OEM parts
Use ROPS and seat belt
Maintain safety decals
Place in park
Remove key
STOP
Stop engine
Visibility - slow moving vehicle (SMV)
Set parking brake
2.3.2 Prohibited Actions
Do not alter or modify
Do not leave out tools
Do not weld
No riders
No children
No alcohol
No drugs
2.3.3 Hazard Avoidance
Crushing hazard
Crushing hazard
Slipping hazard
Tripping hazard
Falling hazard
Safety alert symbol
Defective or broken part
Falling hazard
Maintain safe distance
Pinch point hazard
Crush hazard
Rollover hazard
Not a lifting device
Electrocution hazard
Entanglement hazard

Norden Mfg. LLC [phone] 8 Skid Steer Loader Buckets
2.4 General Safety
WARNING
Read, Understand, and Follow
Manual
To prevent personal injury or even death,
be sure you read, understand, and follow all
of the instructions in this manual and other
related OEM equipment manuals! This loader
bucket was designed for a specific application;
DO NOT modify or use this loader bucket for
any application other than that for which it
was designed. Load forks used improperly
or by untrained personnel can be dangerous!
Inexperienced operators should receive
instruction from someone familiar with the
loader bucket and the machine before being
allowed to use the loader bucket.
Do Not Operate
Do not use the attachment if it is in
need of repair. If you believe the loader bucket
has a defect which could cause injury or death,
you should immediately stop using the loader
bucket.
Fall Hazard
Do not use the loader bucket attachment
as a platform for standing. Do not stand on top
of the loader bucket attachment at any time. Do
not hang on the attachment or allow others to
hang on it.
Pinch Point Hazard
Keep hands and feet away from
the attachment to prevent them from getting
pinched or crushed.
2.5 Machine Related Safety
Impaired User Hazard
Do not attempt to use or maintain
the attachment under the influence of drugs
or alcohol. Consult your doctor before using
the loader bucket while taking prescription
medications.
Falling Hazard
Do not allow riders on the machine
or attachment at any time. Falling can result in
severe injuries or death.
WARNING
Stay Clear
Clear the area of people, especially
small children, before using the attachment.
Under no circumstances should young children
be allowed to work with or around the loader
bucket.
Not A Lifting Device
Do not use the loader bucket to lift other
objects.
2.6 Safety Decals
Refertosection“3.SafetyDecalsandLabels”on
page 11 for safety recommendations related to
using the loader bucket.
2.7 Operation Safety
Refertosection“6.1UserSafety”onpage15for
safety recommendations related to using the loader
bucket. All applicable safety recommendations in
other sections should also be followed.
2.8 Transporting Safety
Referto“7.Transporting”onpage21forsafety
recommendations related to traveling with a
machine and attachment on a public roadway. All
applicable safety recommendations in other sections
should also be followed.
2.9 Storage Safety
Refertosection“8.Storage”onpage22for
safety recommendations related to storing the loader
bucket. All applicable safety recommendations in
other sections should also be followed.
2.10 Maintenance Safety
Refertosection“9.Maintenance”onpage
23 for safety recommendations related to
maintaining the loader bucket. All applicable safety
recommendations in other sections should also be
followed.
2.11 Training
Norden Mfg LLC follows the general Safety
StandardsspeciedbytheFarmEquipment
ManufacturersAssociation(F.E.M.A.),andthe
American National Standards Institute (ANSI).
Anyone who will be using and/or maintaining the
loader bucket must read and clearly understand
ALL safety, operation, and maintenance information

Skid Steer Loader Buckets 9 Norden Mfg. LLC [phone]
presented in this manual, other related OEM
machine manuals, and the safety decals.
If you do not understand any information in this
manual, see your dealer or contact Norden Mfg LLC
before proceeding.
Do not use or allow anyone else to use this
attachment until all information has been reviewed.
Annually review this manual before the season start-
up.
MakeperiodicreviewsofSAFETYandOPERATION
a standard practice. An untrained operator is not
qualiedtousethisloaderbucket.
2.12 Authorization / Training Sign-Off Form
Theauthorizationandtrainingsign-o󰀨formis
provided for your records to show that all personnel
who will be working with the attachment have read
and understand the information in this Operator
Manual and have been trained in the operation of
the machine the attachment is connected to. The
user and the owner should both sign and date the
form to indicate acceptance of the risk of using the
loader bucket.

Norden Mfg. LLC [phone] 10 Skid Steer Loader Buckets
Authorization / Training Sign-O󰀨 Form
Date User’s Signature Owner’s Signature

Skid Steer Loader Buckets 11 Norden Mfg. LLC [phone]
3. Safety Decals and Labels
3.1 General Information
The types of safety decals (hazard labels) and
instructional labels, along with their locations on the
attachment are shown in the following illustrations.
Good safety practices require that you familiarize
yourself with the various safety decals, the type
of warning, and the area or particular operation
relatedtothatareathatrequiresyourSAFETY
AWARENESS.
THINK
SAFETY!
Think SAFETY!
Work SAFELY!
Pay close attention to the safety decals and
instructional labels attached to the machine and
attachment.Thesafetydecalsa󰀩xedtothe
attachment are reproduced in this section. If the
attachment is missing a label or one is unreadable,
replace the label before using the attachment.
SAFETY
INSTRUCTIONS
Safety Decals and Instructional Labels
1. Keep safety decals or instructional labels
clean and legible at all times. Use a clean,
damp cloth to clean safety decals.
2. Replace any missing or hard-to-read safety
decals or instructional labels.
3. Use care when washing or cleaning the
attachment not to remove or damage the
decals. When using a pressure washer to
clean the attachment, avoid spraying too
close to decals; high-pressure water can
enter through very small scratches or under
edges of decals causing them to peel or
come off.
4. Locations for the decals and replacement
part numbers are shown in this section.
5. Replacement parts must have replacement
decals attached before the attachment is
used.
6. Decals are available from your authorized
dealer or from Norden Mfg LLC at no charge.
Contact Information
Forreplacementdecals,contact:
Norden Mfg LLC
4210 Kinsman Road NW
North Bloomfield, OH 44450
Phone: [phone]
Fax:440-693-4336
E-mail: [email protected]
3.2 How to Install Replacement Safety
Decals
1. Clean and dry the installation area.
Note: Do not install the decals if the temperature is
below50°F.
2. Determinetheexactpositionbeforeyouremove
the backing paper.
3. Remove the backing paper.
4. Alignthedecalorlabeloverthespeciedarea
and carefully press the sign to the part/frame.
Note: Small air pockets can be pierced with a pin
and smoothed out using the piece of backing
paper or plastic card.

Norden Mfg. LLC [phone] 12 Skid Steer Loader Buckets

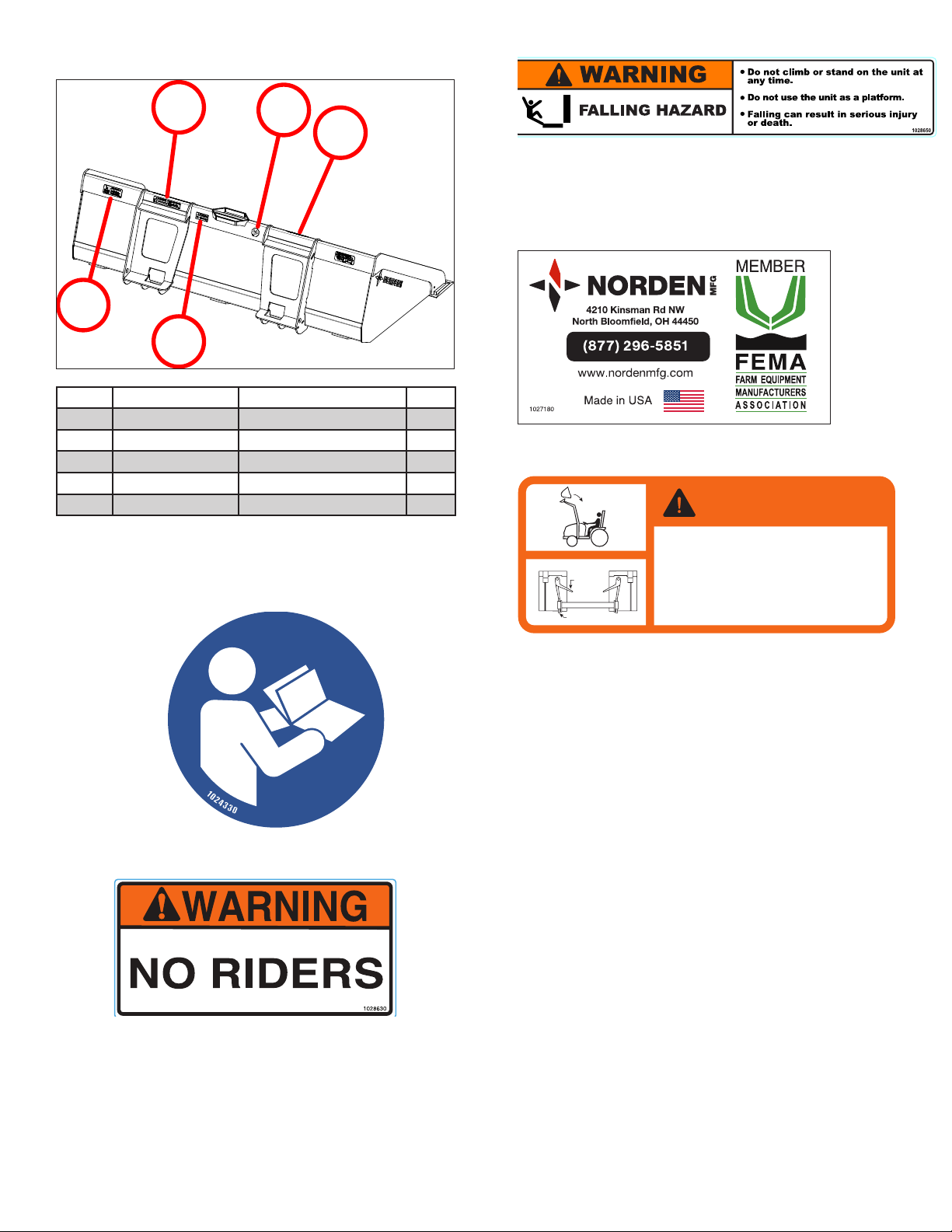

3.3 Safety Decal Locations
1
2
5
4
3
Item Type Description Qty.
1INFORMATIONAL Read the Manual 1
2 WARNING No Riders 1
3 WARNING FallingHazard 1
4INFORMATIONAL Mfg Placard 1
5 WARNING Pin Engagement 1
3.4 Safety Decals
1.
INFORMATIONAL — Read the Manual
2.
WARNING — No Riders
3.
WARNING —FallingHazard
4.
INFORMATIONAL — Manufacturer Placard
5.

To avoid injury or death
caused by falling attachment:
Lockpins must completely
engage attachment plate slots.
Coupler Handles - Locked
Handle
Locked
Lockpin Extended 1027140
WARNING —Pin Engagement

Skid Steer Loader Buckets 13 Norden Mfg. LLC [phone]
4. Nomenclature
1
2
4
3
5
Item Description
1 Loader Bucket
2 Bolt-on Cutting Edge
3 Plow Bolt and Nut
4 Attachment Plate Top Lip
5 Attachment Plate Slots

Norden Mfg. LLC [phone] 14 Skid Steer Loader Buckets
5. Assembly and Setup
5.1 Assembly Process
The loader bucket comes fully assembled from the
factory. Verify that the bolts are all tightened to the
specificationsgivenonthetableinsection“9.3Bolt
TorqueRequirements”onpage24
NOTICE
Confirm Secure Installation
Ensure the cutting edge is properly installed and securely
fastened before using the loader bucket. For light-weight
tractors or specific skid steer loaders, consult the Skid
Steer or Tractor Operator’s Manual to determine if rear
ballast is required for heavy loads to maintain steering
control.

Skid Steer Loader Buckets 15 Norden Mfg. LLC [phone]
6. Usage
6.1 User Safety
Referto“2.4GeneralSafety”onpage8for
additional safety information.
6.1.1 Machine Operation Recommendations
WARNING
STOP
Unintentional
Movement
Before leaving the
operator’s seat, make sure the engine is
stopped, the transmission is placed in park, the
key is removed, and the parking brake is set.
Rollover Hazard
The weight of the machine, plus the
loader bucket, if it rolls onto a person,
could cause serious crushing injury or death.
Entanglement Hazard
If using a small compact or utility
tractor, keep hands and clothing
clear of any rotating parts. Stay clear of the
loader bucket while the machine is moving.
SAFETY
INSTRUCTIONS
The following safety instructions are provided
to help prevent injury or limit loader bucket
damage.
SI
It is the owner’s responsibility to make
sure any person using a machine with the
attachment, especially if it is loaned or rented,
has been thoroughly trained on its proper and
safe use.
SI
Be certain only physically-able persons will
use the attachment.
SI
Users who have not read and understood
all operating and safety instructions are not
qualified to use the attachment.
SI
If the elderly are assisting with the work,
their physical limitations need to be
recognized and accommodated.
SI
Never allow children to use the attachment.
SI
Be especially observant of the operating
area and terrain – watch for loose fill,
holes, rocks or other hidden hazards. Always
inspect the area prior to operation.
SI
Be careful at the edge of ditches or gullies.
Be careful when working on inclines.
SI
Do not use excessive speed when moving
loads.
SI
Allow for loader bucket length when
making turns.
6.1.2 Machine Requirements
WARNING
Machine Operator Manual
Always refer to the machine’s
operator manual to ensure
compatibility and maximum safety.
The machine must be equipped with a universal
quick-attach system on a skid steer loader or a
tractor front-end loader with compatible quick-attach
adapter rated to lift the loader bucket which can
weigh up to 618 pounds plus the weight of the load.
SAFETY
INSTRUCTIONS
SI
Do not use an oversized machine; the
loader buckets are intended to be used on
machines rated up to 110 HP or a 3500 pound
operating capacity.
SI
Using the loader bucket with a machine
that exceeds the specified requirements
may cause machine or attachment damage, be a
potential danger to the operator or bystanders,
and will void any warranty.
SI
Always review the “controls” section of the
machine’s Operator Manual to be familiar
with the location, settings, and function of the
controls. Be familiar with all controls before
using this attachment.
6.2 Machine Specifications
This section is provided to give the operator general
safety information for the machine. Always follow the
OEM instructions given in the operator’s manual for
the machine.

Norden Mfg. LLC [phone] 16 Skid Steer Loader Buckets
WARNING
Unintentional Movement
To avoid serious injury or death
from falling, runover, rollover, or
crushing, the machine must have an approved
Roll-Over Protective Structure (ROPS) or ROPS
cab and seat belt.
1. The machine must be equipped with an approved
Roll-Over Protective Structure (ROPS) or ROPS
cab and seat belt.
a. If equipped with a folding ROPS structure,
keep it locked in the UP position.
b. Only operate the machine when seated in the
operator seat.
c. Always fasten seat belt whenever the machine
is moving.
2. If working around dry grass or vegetation, to
reducetheriskofre,donotuseamachinewith
anunder-frameexhaust.
3. If the machine must travel on a public roadway,
followguidancegivenin“7.Transporting”on
page 21.
4. Maintain all manufacturer’s safety shields and
guards
6.3 Attaching to Machine
WARNING
Pinch Point Hazard
Use caution when connecting
the attachment to the
machine. Keep hands and feet from under the
attachment and clear of pinch points between
bucket and machine. Do not allow anyone to
stand between the machine and loader bucket
during attachment process.
1. Drive carefully towards the loader bucket,
making sure the loader coupler is parallel to the
attachment plate.
2. Tilt the top of the loader coupler slightly forward
in relation to the attachment plate.
3. Guide the top of the loader coupler under the top
lip of the attachment plate.
4. Raise and curl the loader coupler until the
attachment lifts and the back surface of the
attachmentrestsatandrmlyagainstthefront
surface of the coupler.
5. Once the attachment is fully supported, lower
the lift arm until the attachment is slightly above
the ground surface. Make sure the attachment
remainsrmlyagainsttheloadercoupler.
6. If your machine is equipped with hydraulically
operated locking pins, activate the coupler lock
at this time; in this case, skip Steps 7, 8, and 9.
7. Ifoperatingaskidsteer,turno󰀨theengine,
unfasten the seat belt, raise the restraint bar (if
equipped),andexittheoperator’scompartment.If
operating a tractor, properly shut down the tractor.
WARNING
STOP
Unintentional
Movement
Before leaving the
operator’s seat, make sure the engine is
stopped, the transmission is placed in park, the
key is removed, and the parking brake is set.
8. Push the two latch handles down (over center) to
lock the lock pins into the attachment plate slots
on the attachment, securing it to the coupler. Make
sure the locking handles are locked into position to
prevent the pins from releasing.
WARNING
Injury Hazard
To avoid serious injury or death
caused from falling attachment:
Lock pins must completely engage attachment
plate slots.
Crush Hazard
Do not stand under raised
attachment.
9. Reenter the machine and start the engine after
re-fastening the seat belt.
10. Raise the attachment and gradually roll it out.
• If the attachment is not properly secured to
the coupler, lower the lift arm and repeat the
mounting procedure.
11. Visually inspect the engagement of the lock pins
in the attachment’s lower slots. The lock pins
shouldfullyextendthroughthebottomslotsin
the attachment hitch plate.

Skid Steer Loader Buckets 17 Norden Mfg. LLC [phone]
12. Before using the attachment, the operator must
operate it through its full range of motion and
conrmthattheattachmentissecureandsafe.
6.4 Pre-Operation Checklist
Before each use of the attachment, the following
areas should be checked.
Checklist Before Each Use
þTask
Make sure the loader bucket is positively attached to the
machine.Referto“6.3AttachingtoMachine”onpage16.
If the machine uses tires, make sure they are inflated properly
and the lug nuts are tight.
Inspect the tires of the machine for full operational reliability.
Failureofthetirescouldresultindamagetothemachine,load,
or attachment.
Make sure the loader bucket is not bent or cracked.
Make sure the operating area is clear, especially of children and
animals.
6.5 Usage
Before using the attachment, the operator must
have a complete understanding of how to operate
the machine including all controls, and how to use
the attachment.
The operator should read and understand the Safety
and Operation sections of the machine Operator’s
Manual. It is important to note that these manuals
mustbereadandexplainedtoanyoperatorwho
cannot read. It is crucial to never allow anyone to
operate the machine or use the attachment without
complete operating instructions.
To ensure safety to the operator, bystanders, and
equipment, the operator must become familiar
with the surrounding work area and any obstacles
and hazards contained within before starting any
operation. Special attention should be paid to foreign
debris, rough terrain, steep slopes, bystanders, or
animals in the area.
If the operator is not already familiar with the
process, it is recommended to practice lifting,
lowering, maneuvering, and placing a load on a level
siteuntilthecondenceandskillneededtosafely
move loads is achieved. It is important to follow the
safety operating procedures that are spelled out in
this Operator’s Manual.
WARNING
Crush Hazard
When handling loads, improper use
of the machine can result in serious
injury or death to the machine operator. This
could be caused by the contents of the load
falling or rolling backwards into the operator’s
station. Therefore, it is important to handle
loads safely.
CAUTION
Tip Over Hazard
It is important not to exceed 3,500 lbs. or
83% of the lift capacity of the machine.
The operator should not lift the load too high,
creating an unstable and unsafe situation. The
operator should also avoid tilting the load too
far forward, setting up a situation that could
cause the load empty from the bucket.
The operator must travel at a safe speed for
ground conditions. Travel slowly over rough
ground or when making turns. Working on or
around slippery or sloped areas could cause the
operator to lose control of the machine.
The operator must not allow bystanders, pets,
or livestock to approach the danger zone of the
working area.
The operator must not leave the machine with
the attachment raised off the ground.
6.5.1 Picking Up a Load
1. Look for overhead obstructions and wires.
WARNING
Risk of electric shock,
crushing, and ramming.
Be sure to keep a safe distance
between the loader and power lines or barn
roofs when driving with the raised loader. Do
not touch the tractor, loader, or tool if they
come into contact with a live electric cable.
Back the tractor away from the cable or wait
until it is de-energized.
NOTICE
Care must be taken to ensure there is enough overhead
clearance and no potential hazards or obstructions that
could interfere with the lifting and placing of the loads.

Norden Mfg. LLC [phone] 18 Skid Steer Loader Buckets
2. Verifythattheloaddoesnotexceedthesmaller
of the two lift capacities:
• Rated lift capacity of the loader bucket.
• 83% of the rated lift capacity of the machine.
Note: Using 83% of the rated lift capacity accounts
for increased loader stresses caused by the
extendedloaderbucketandensuresproper
tire rating.
NOTICE
Prying with the bucket’s edge or using the bucket with
excessive horsepower can damage the bucket and void its
warranty.
3. Center the bucket on the material to be picked
up.
WARNING
Before digging
Check for hidden live electrical
cables. Do not leave the driver’s
seat if any part of the tractor, loader, or tool
contacts a live electric cable. Avoid touching
the tractor, loader, or tool and the ground
simultaneously. Back the tractor away from the
cable or wait until it is de-energized.
Carefully approach the loading area,
ensuring no objects will come back into
the operator’s space, causing serious
injury or death.
If working on an uphill slope, drive
straight upwards, fill the bucket, and
reverse downhill while lowering the loader
as far as possible. Avoid driving along the side
of a slope to prevent overturning.
SAFETY
INSTRUCTIONS
Transport loads at a height that maintains a
clear line of sight and keep the load low to the
ground when possible to enhance stability.
4. Slowly drive into the pile without ramming the
bucket.
WARNING
Bystander Hazard
Keep all bystanders at a safe distance when
entering and picking up a load. Objects can shift
or be thrown suddenly as the bucket makes
contact with the load, causing serious injury or
death. Avoid ramming the bucket into a pile or
hooking a chain to the bucket for load securing,
as it can damage the attachment.
5. Lift the load of material a short distance and tilt
the bucket back before traveling.
6. Conrmthattheloadisbalancedandsecurely
positioned.
Note: Ensure the material is properly secured before
traveling. Have good control of the load,
releasing and recapturing it if it’s not secure.
7. Verify that no animals or bystanders are behind
you and that it is safe to reverse.
8. Back the load out of the pile slowly, ensuring it
clears all other obstacles.
9. Position the load at a safe, low traveling height
before transferring it to the unloading site. It
is recommended to keep it two to four inches
abovetheoor.
Note: To minimize jerking, stop and start the loader
gradually when lowering or lifting loads.
WARNING
Risk of falling.
Do not use the loader or the
attachment as a working platform.
Do not lift or transport people using the loader
or attachment.
Avoid standing, walking, or working under
or beside a raised loader. Keep everybody,
especially children and animals, away from
the work area. Always keep an eye on your
workplace.
Never carry out work with the attachment
that requires another person to be in the
vicinity of the loader.
NOTICE
No Chains.
Do not attach chains intended for lifting or securing loads
to the loader bucket, as it may cause damage.

Skid Steer Loader Buckets 19 Norden Mfg. LLC [phone]
SAFETY
INSTRUCTIONS
For tractor operators only. Always ensure the
tractor is properly ballasted before attempting to
lift any load with the attachment.
6.5.2 Moving With a Load
1. Always yield to pedestrians.
2. Tilt the load back slightly, adjusting the tilt angle
of the attachment to prevent it from aiming at the
driver when the load is raised.
3. Keep the load low, preferably two to four inches
abovetheoor.
4. Continuously scan all sides for bystanders or
othertra󰀩c.
SAFETY
INSTRUCTIONS
Make sure that the work area is clear of children,
animals, and other obstacles before using the
attachment. This is particularly important in
areas with higher noise levels or quiet cabs, as
you may not hear people shouting.
5. If the load obstructs your view, travel in reverse.
6. Maintain a safe and controlled speed, reduce
speed when turning, and avoid sudden braking.
7. Provide adequate clearance while turning to
avoid contact between the loader buckets, load,
and obstacles such as storage racks, buildings,
trees, or fences.
8. When traveling over ramps or inclines, keep the
loadonthe“uphill”sideofthemachine.
9. Whenever possible, travel straight on grades,
ramps, and inclines, avoiding turns.
10. Only raise or lower the load when the machine is
stopped, not during travel.
11. Reduce speed when traveling over rough or hilly
terrain.
12. Do not transport loads on public roadways.
13. If using public roadways, ensure safe
transportation to allow faster vehicles to pass.
14. Planyourroutetoavoidheavytra󰀩c.
15. Keep equipment away from electrical power
lines and place orange warning signs under
overhead electrical power lines to indicate the
danger.
6.5.3 Dumping the Load
1. Bring the machine to a stop in front of the
desired location for load placement.
2. Gradually raise the load to the required height.
3. Move the machine forward slowly with the load
raised until it is positioned squarely and directly
abovethenaldestination.
4. Tilt the front of the bucket down to release the
load. If necessary, raise the bucket up to allow
the load to fully discharge.
5. Once the load has settled onto the pile, rotate
the front of the bucket level.
6. Before reversing, check all sides for bystanders
orothertra󰀩c.
7. After the load has settled, slowly back up while
watching for clearances, pedestrians, and other
tra󰀩c.
8. Leave enough clearance when turning and/or
lowering the bucket to prevent it from making
contact with obstacles such as vehicles,
buildings, trees, or fences.
9. Lower the bucket to transporting height (low to
the ground) before moving again.
6.6 Detaching from Machine
CAUTION
Pinch / Crush Hazard
Use caution when disconnecting
the attachment from the machine.
Keep hands and feet from under the attachment
and clear of pinch points. Do not allow anyone
to stand near the machine or attachment when
disconnecting.
1. Movethemachineontoaat,level,solid
surface. Lower the loader bucket slightly above
the surface with the front of the bucket slightly
higher than the rear.
2. If your machine is equipped with hydraulically
operated locking pins, retract the coupler lock at
this time; in this case, skip Steps 3, 4, and 5.
3. Shutdown the machine properly without lowering
the loader bucket.

Norden Mfg. LLC [phone] 20 Skid Steer Loader Buckets
WARNING
STOP
Unintended
Movement
Before leaving the
operator’s seat, make sure the engine is
stopped, the transmission is placed in park, the
key is removed, and the parking brake is set.
4. To unhook the loader bucket, pull up the lock
handles to remove the pins from the bottom slots
in the attachment plate.
5. Return to the machine, restart the engine,
6. Tilt the top of the hitch plate slightly forward
toward the loader bucket.
7. Slowly lower the loader bucket to the ground,
allowing the top lip and loader hitch to separate.
8. Gradually reverse the machine, ensuring that the
loader hitch does not interfere with the loader
bucket.
