NordicTrack Club VS NTEX3107.0 User manual

www.nordictrack.com
Model No. NTEX3107.0
Serial No.
Write the serial number in the
space above for reference.
SSerial
Number
Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
iMPORTANT: You must note the
product model number and ser-
ial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.-Fri. 6 a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
US 'S AUAL

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO SET UP THE EXERCISE CYCLE ...................................................... 8
HOW TO UPGRADE THE CONSOLE ......................................................... 10
MAINTENANCE AND TROUBLESHOOTING ................................................... 26
EXERCISE GUIDELINES ................................................................... 27
PART LIST .............................................................................. 28
EXPLODED DRAWING .................................................................... 30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s). If a decal is
missing or illegible, see the front cover of this manual and request
a free replacement decal. Apply the decal in the location shown.
Note: The decal(s) may not be shown at actual size.
,Misuseof this machine
may result in serious
injury.
.Read user's manual
prior to use and foflow
all warnings and
instructions,
• Do not allow children
on oraround machine.
•User weight must not
exceed 35() pounds.
• Replace label if
damaged,
illegible, or
removed.
hands and
clear of
lls area.
NordicTrack is a registered trademark of ICON IP, Inc.
2

iMPORTANT PRECAUTIONS
WARNING: Toreducether skofse.ousnjury,reada, mportantpreoaut onsandin-
structionsin this manual and all warnings on your exercise cycle before using your exercise cycle.
iCON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
.
.
3.
.
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
it is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
Keep the exercise cycle indoors, away from
moisture and dust. Do not place the exercise
cycle in a garage or covered patio or near
water.
Place the exercise cycle on a level surface.
To protect the floor or carpet from damage,
place amat beneath the exercise cycle.
Make sure that there is at least 2 ft. (0.6 m) of
clearance around your exercise cycle.
.
10.
11.
12.
cycle. Always wear atHetic shoes for foot
protection.
Hold the handgrip pulse sensor or the han-
dlebars when mounting, dismounting, or
using your exercise cycle.
Keep your back straight while using your ex-
ercise cycle; do not arch your back.
The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
When you stop exercising, allow the pedals
to s!owly come to a stop.
5. inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately. 13. if you fee! pain or dizziness while exercising, stop immediately and cool down.
.
=
.
Keep children under age 12 and pets away
from your exercise cycle at all times.
Your exercise cycle should not be used by
persons weighing more than 350 Ibs.
(159 kg).
Wear appropriate exercise clothes when ex-
ercising; do not wear loose clothes that
could become caught on your exercise
14.
15.
Do not modify the power cord or use an
adapter to connect the power cord to an im-
proper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
Use your exercise cycle only as described in
this manual.
3

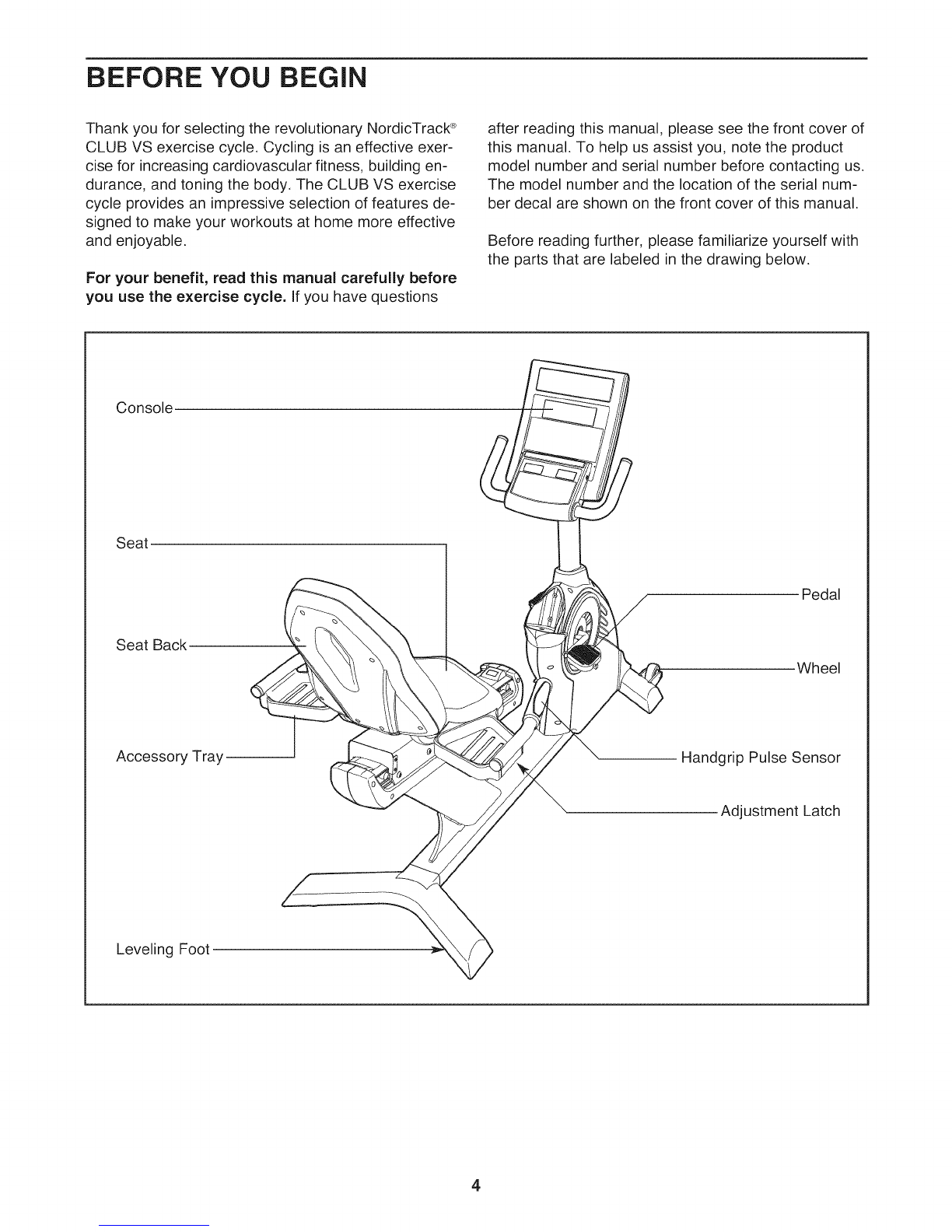

BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack ®
CLUB VS exercise cycle. Cycling is an effective exer-
cise for increasing cardiovascular fitness, building en-
durance, and toning the body. The CLUB VS exercise
cycle provides an impressive selection of features de-
signed to make your workouts at home more effective
and enjoyable.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover of
this manual. To help us assist you, note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Seat
Pedal
Seat Back Wheel
Accessory Tray Handgrip Pulse Sensor
Adjustment Latch
Leveling Foot
4

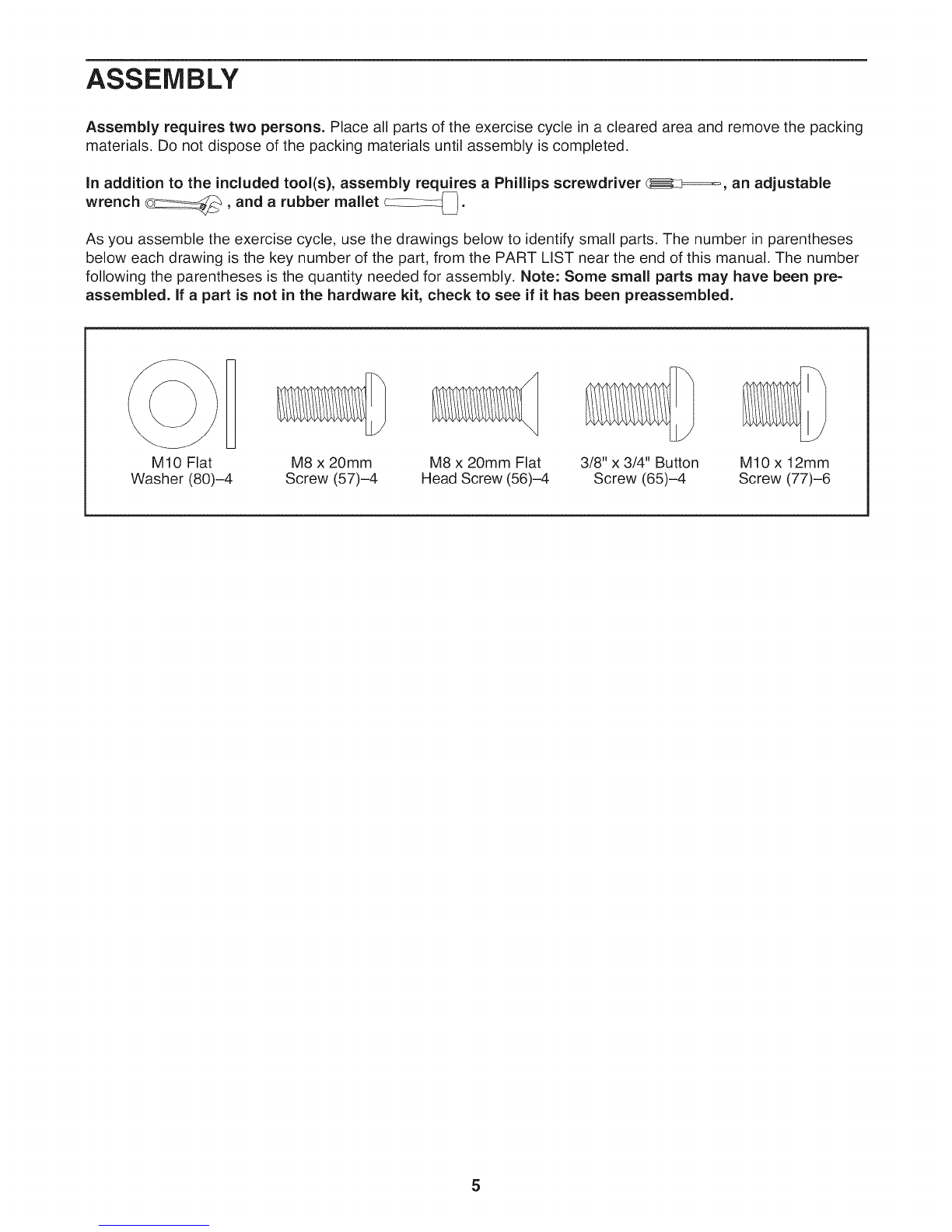

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
in addition to the included tool(s), assembly requires aPhillips screwdriver (_Lb====o, an adjustable
wrench _::_, and a rubber mallet c_.
L_I
As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LiST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M10 Flat M8 x 20mm M8 x 20mm Flat
Washer (80)-4 Screw (57)-4 Head Screw (56)-4 3/8" x 3/4" Button Screw (65)-4 M10 x 12mm Screw (77)-6
5

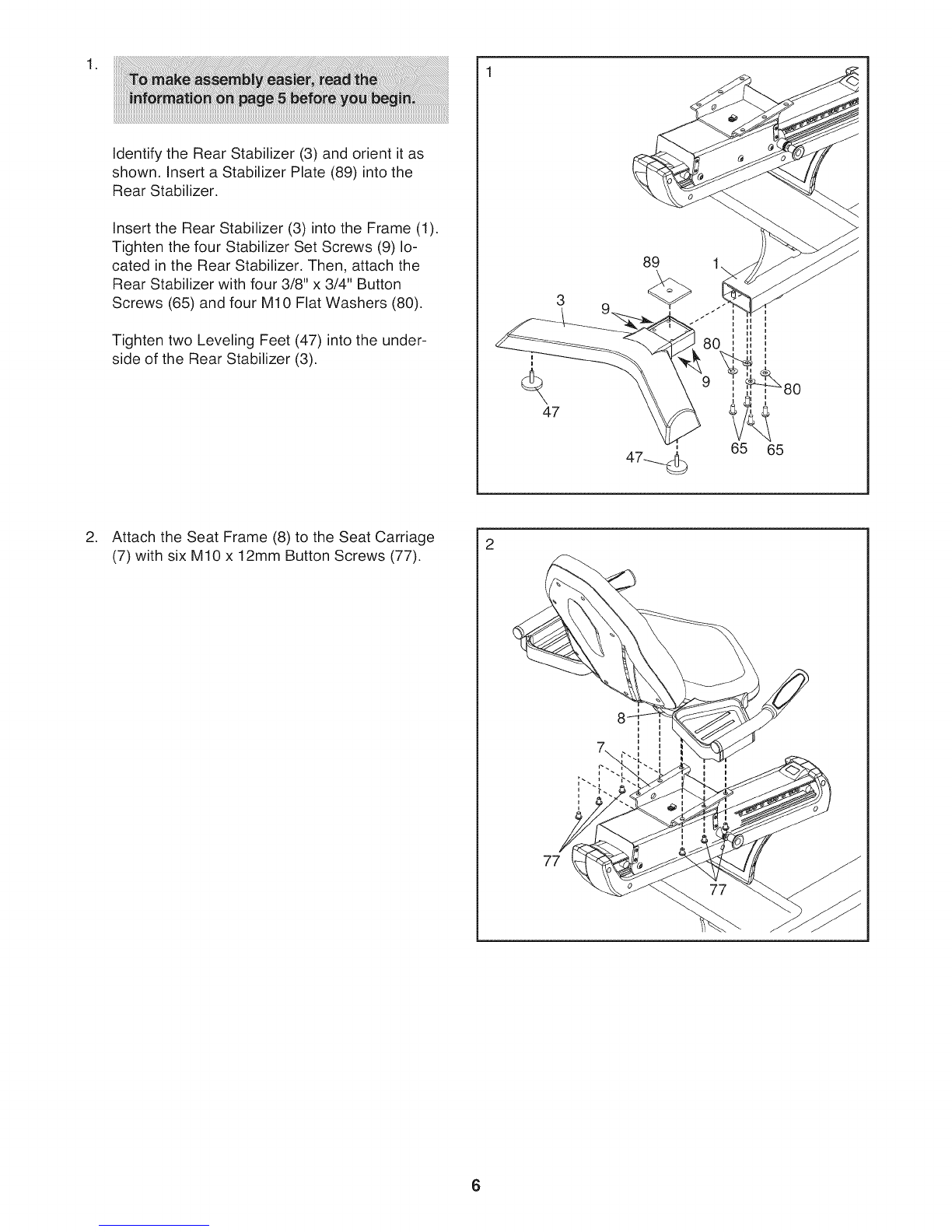

Identify the Rear Stabilizer (3) and orient it as
shown. Insert a Stabilizer Plate (89) into the
Rear Stabilizer.
Insert the Rear Stabilizer (3) into the Frame (1).
Tighten the four Stabilizer Set Screws (9) lo-
cated in the Rear Stabilizer. Then, attach the
Rear Stabilizer with four 3/8" x 3/4" Button
Screws (65) and four M10 Flat Washers (80).
Tighten two Leveling Feet (47) into the under-
side of the Rear Stabilizer (3).
47
89
65 65
.Attach the Seat Frame (8) to the Seat Carriage
(7) with six M10 x 12mm Button Screws (77).
77
6

3. 3

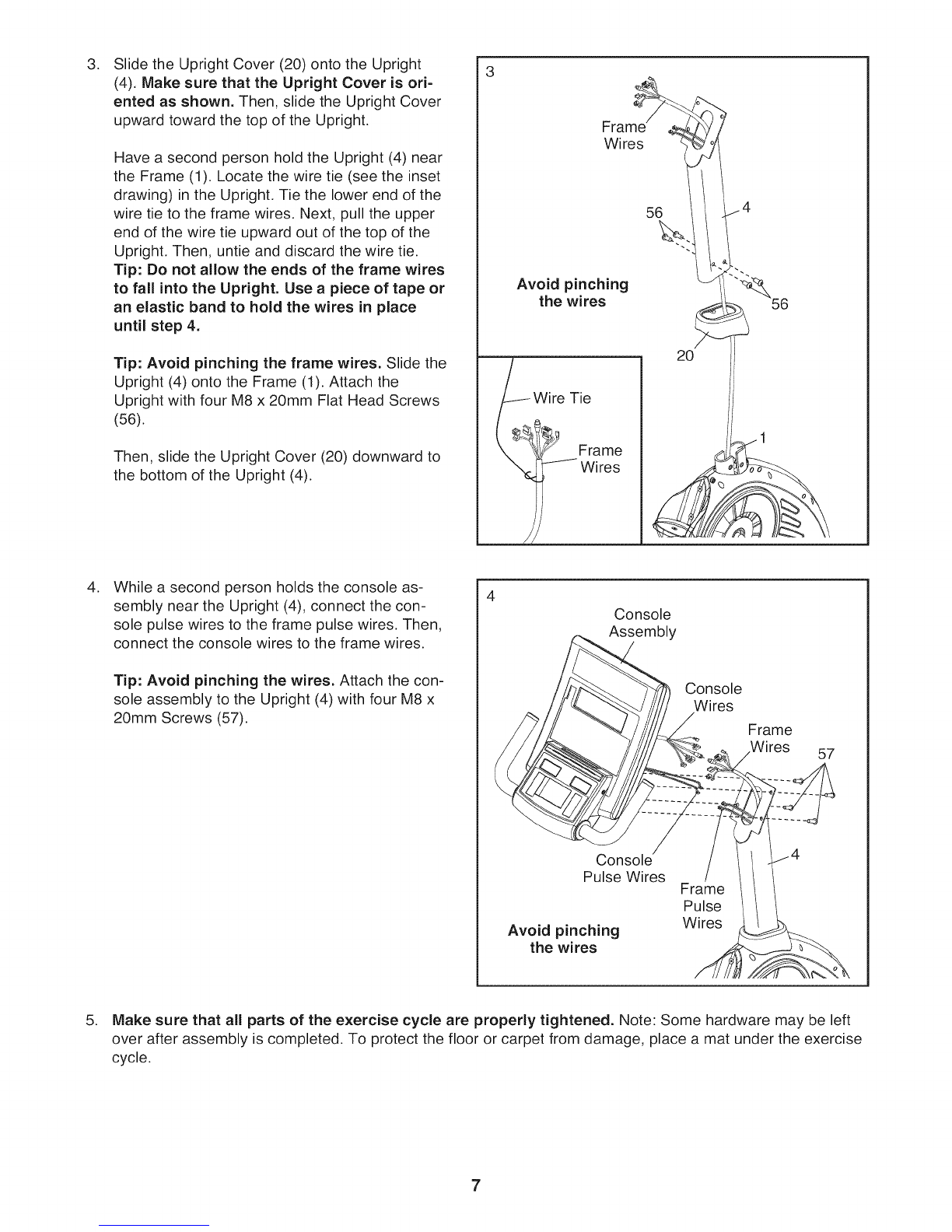

Slide the Upright Cover (20) onto the Upright
(4). Make sure that the Upright Cover is ori-
ented as shown. Then, slide the Upright Cover
upward toward the top of the Upright.
Have a second person hold the Upright (4) near
the Frame (1). Locate the wire tie (see the inset
drawing) in the Upright. Tie the lower end of the
wire tie to the frame wires. Next, pull the upper
end of the wire tie upward out of the top of the
Upright. Then, untie and discard the wire tie.
Tip: Do not allow the ends of the frame wires
to fall into the Upright. Use a piece of tape or
an elastic band to hold the wires in place
until step 4.
Tip: Avoid pinching the frame wires. Slide the
Upright (4) onto the Frame (1). Attach the
Upright with four M8 x 20mm Flat Head Screws
(56).
Then, slide the Upright Cover (20) downward to
the bottom of the Upright (4).
Frame
Wires
Avoid pinching
the wires
/__ Wire Tie
['X_j Frame
_ Wires
56
20
.While a second person holds the console as-
sembly near the Upright (4), connect the con-
sole pulse wires to the frame pulse wires. Then,
connect the console wires to the frame wires.
Tip: Avoid pinching the wires. Attach the con-
sole assembly to the Upright (4) with four M8 x
20mm Screws (57).
4Console
Assembly
Console
Pulse Wires
Avoid pinching
the wires
Console
Wires
Frame
Pulse
Wires
Frame
Wires 57
5. Make sure that all parts of the exercise cycle are properly tightened. Note: Some hardware may be left
over after assembly is completed. To protect the floor or carpet from damage, place a mat under the exercise
cycle.
7

HOW TO SET UP THE EXERCISE CYCLE
HOW TO MOVE AND LEVEL THE EXERCISE
CYCLE
Before moving the exercise cycle, make sure
that the power cord is unplugged. Note: If a
CATV cable is connected to the exercise cycle, it
may be necessary to disconnect the cable if the ex-
ercise cycle will be moved far.
Due to the size and weight of the exercise cycle,
moving it requires two persons. While one person
lifts the indicated end, firmly hold the handlebar and
tip the exercise cycle forward until it rolls on the front
wheels. Carefully move the exercise cycle to the de-
sired location and then lower it to the level position.
CAUTION: To reduce the risk of injury, use ex-
treme caution while moving the exercise cycle.
Do not attempt to move the exercise cycle over
uneven surfaces.
If the exercise cycle rocks slightly during use, turn
the leveling feet under the front and rear of the
frame until the rocking motion is eliminated.
Lift
Here
Leveling __
Feet
Handlebar Wheels
1
HOW TO ADJUST THE SEAT
To adjust the seat, pull the adjustment latch, slide
the seat forward or backward to the desired position,
and then release the adjustment latch.
ustment Latch
HOW TO PLUG IN THE POWER CORD
If the exercise cycle has a Basic console, it can be used with or
without the included power cord. If the exercise cycle has a Workout
TV console, the power cord must be used for the TV to be operated.
To use the power cord, first plug one end of the power cord into the
jack on the front of the exercise cycle. Plug the other end of the
power cord into an appropriate outlet that is properly installed in ac-
cordance with all local codes and ordinances.
Power
Jack
8

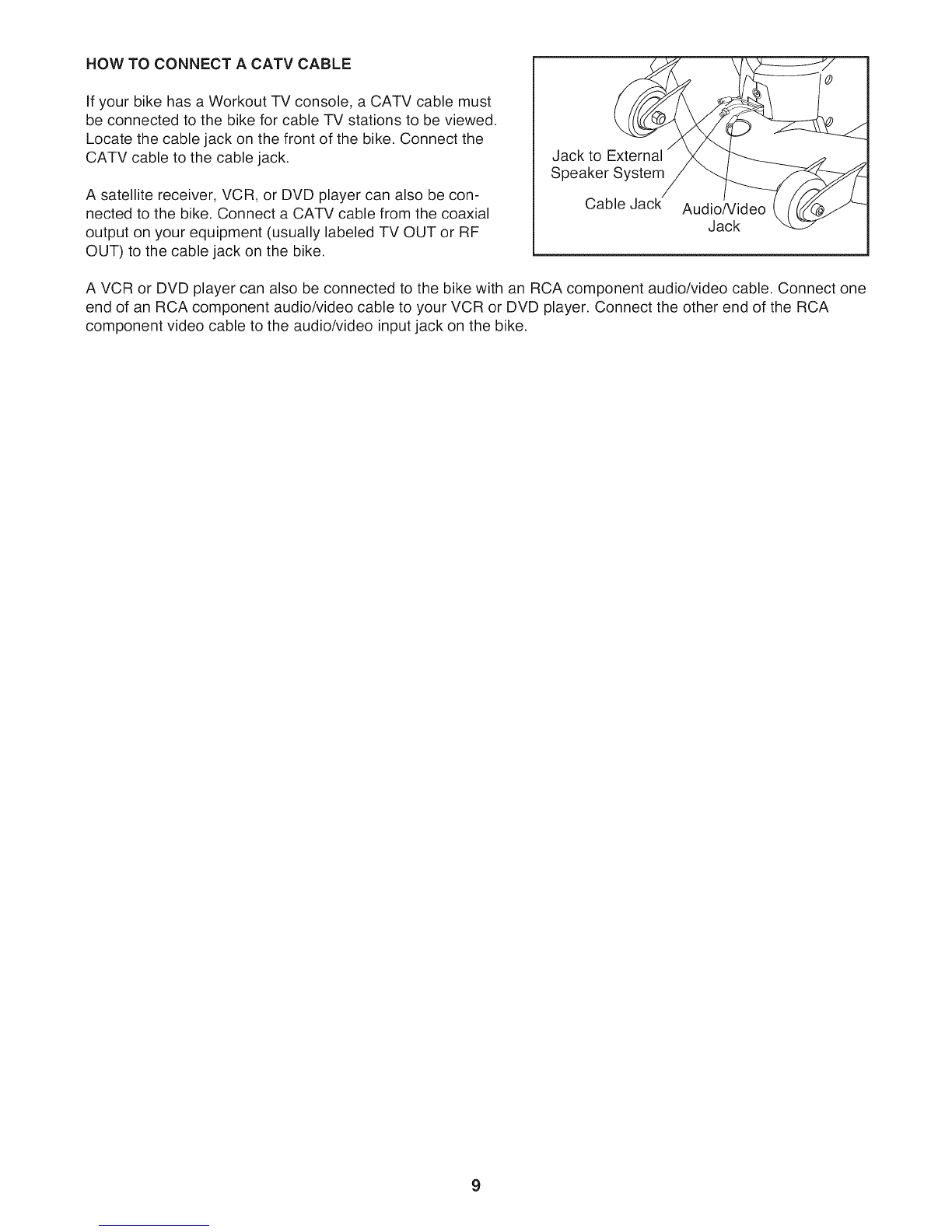

HOW TO CONNECT A CATV CABLE
If your bike has a Workout TV console, a CATV cable must
be connected to the bike for cable TV stations to be viewed.
Locate the cable jack on the front of the bike. Connect the
CATV cable to the cable jack.
A satellite receiver, VCR, or DVD player can also be con-
nected to the bike. Connect a CATV cable from the coaxial
output on your equipment (usually labeled TV OUT or RF
OUT) to the cable jack on the bike.
Jack to External
Speaker System
Cable Jack AudioNideo
Jack
A VCR or DVD player can also be connected to the bike with an RCA component audio/video cable. Connect one
end of an RCA component audio/video cable to your VCR or DVD player. Connect the other end of the RCA
component video cable to the audio/video input jack on the bike.
9

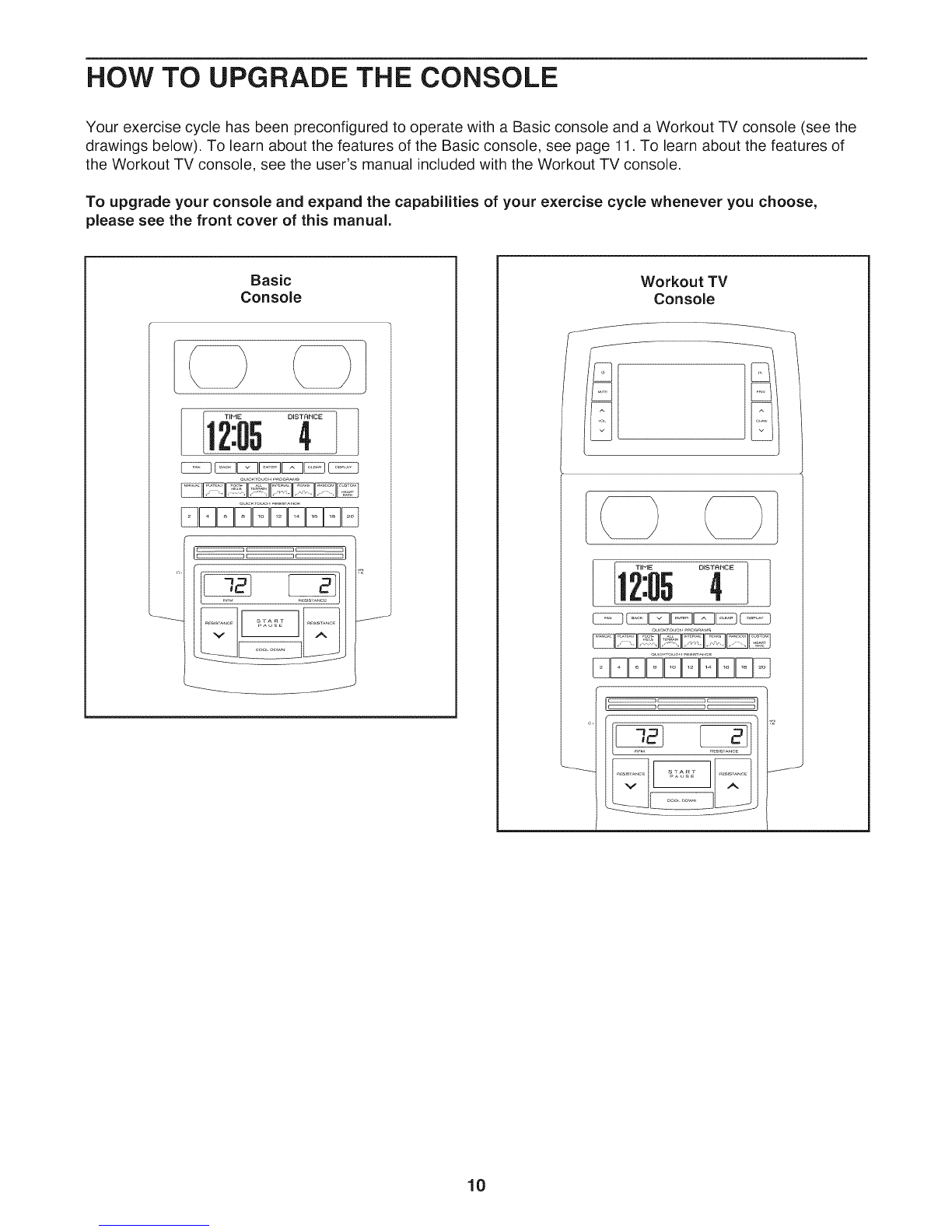

HOW TO UPGRADE THE CONSOLE
Your exercise cycle has been preconfigured to operate with a Basic console and a Workout TV console (see the
drawings below). To learn about the features of the Basic console, see page 11. To learn about the features of
the Workout TV console, see the user's manual included with the Workout TV console.
To upgrade your console and expand the capabilities of your exercise cycle whenever you choose,
please see the front cover of this manual.
Basic
Console
lo ol
Workout TV
Console
TIME DISTANCE l12"!15.4
_DDDDDDDD_
