NordicTrack SL 710 User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
satisfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. NTC07942
Serial No.
Patent Pending
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
NordicTrack is a registered trademark of ICON IP, Inc.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described.
2. It is the responsibility of the owner to
ensure that all users of the exercise cycle
are adequately informed of all precautions.
3. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 250 pounds.
7. Wear suitable clothing when using the
exercise cycle; do not wear loose clothing
that could become caught on the exercise
cycle. Always wear athletic shoes.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
Congratulations for selecting the new NordicTrack®
SL 710 exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the entire body.
The NordicTrack®SL 710 offers an impressive array
of features designed to let you enjoy this healthful
exercise in the comfort and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, call our Customer Service
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, mention
the product model number and serial number when
calling. The model number is NTC07942. The serial
number can be found on a decal attached to the exer-
cise cycle (see the front cover of this manual for the
location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Seat Handle
Fan
Water Bottle Holder*
*No water bottle is included
FRONT
REAR
Backrest
Seat
Wheel
Pedal/Strap
Console
Bookrack
Seat Knob
Leveling Foot
RIGHT SIDE
BEFORE YOU BEGIN

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .

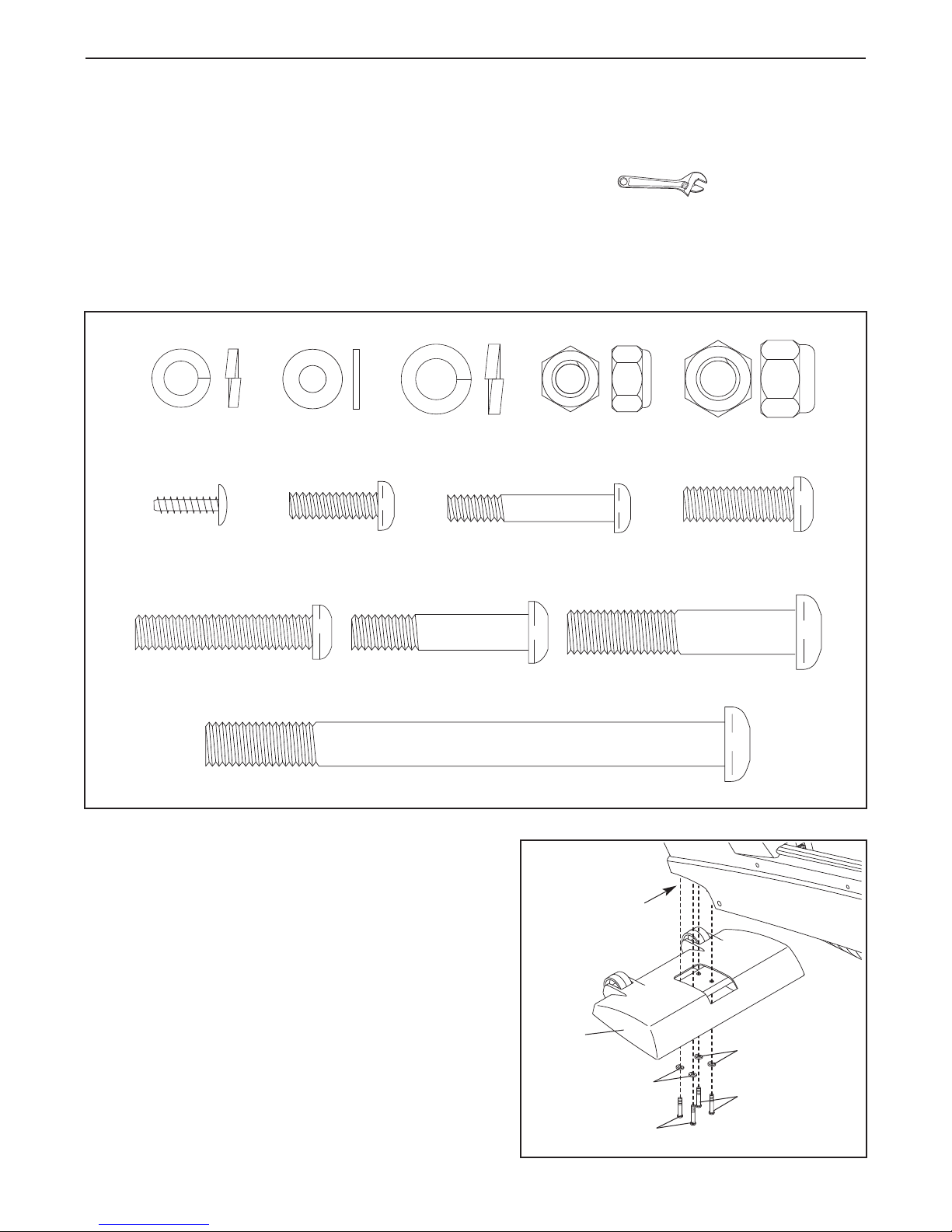

Use the drawings below to identify the small parts used during assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 25. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
M10 Nylon
Locknut (63)–2
M8 Split
Washer (55)–12 M10 Split
Washer (88)–2
M6 Washer
(60)–5
M10 x 118mm Button Screw (78)–2
M10 x 52mm Button Bolt (82)–2
M8 x 40mm Button
Screw (54)–8
M8 x 25mm Button
Screw (79)–4
M4 x 16mm
Screw (57)–5 M6 x 38mm Button
Screw (80)–1
M8 Nylon
Locknut (89)–4
M8 x 40mm Button
Bolt (81)–4
M6 x 20mm Button
Screw (20)–6
1. Identify the Front Stabilizer (15). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with four M8 x 40mm Button
Screws (54) and four M8 Split Washers (55).
15
1
55
55 54
54
1

6

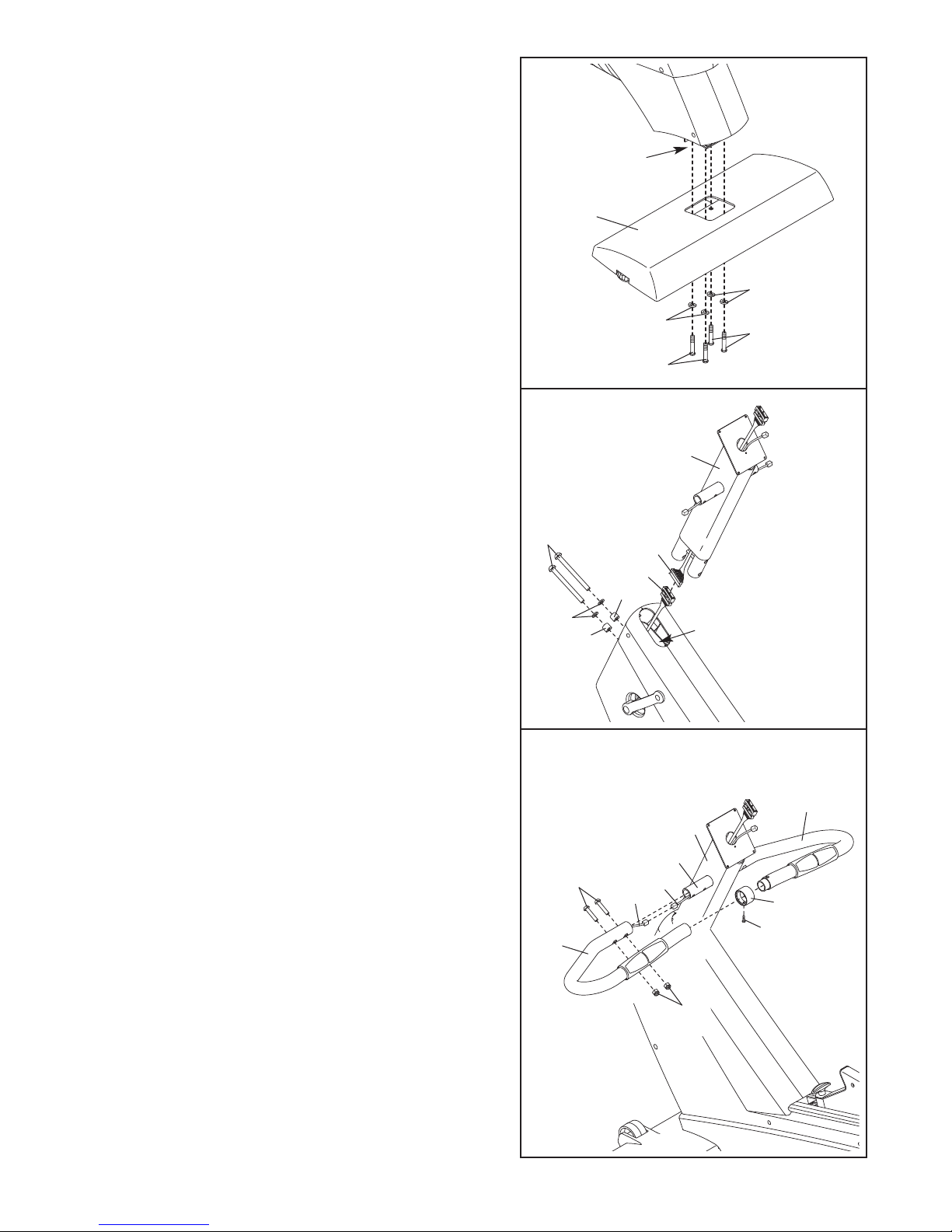

2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with four
M8 x 40mm Button Screws (54) and four M8 Split
Washers (55).
3
2
1
78
43
88
51
77
77
3. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (51) to
the Lower Wire Harness (43). Gently pull the upper
end of the Upper Wire Harness to remove any slack
from the Wire Harnesses.
Insert the Upright (2) into the Frame (1). Be careful to
avoid pinching the Wire Harnesses (43, 51). Attach
the Upright with two M10 x 118mm Button Screws
(78), two M10 Split Washers (88), and two Upright
Spacers (77). Make sure the concave end of each
Upright Spacer is turned toward the Upright.
4. Identify the Left Handlebar (70), which is marked with
an “L” sticker. While another person holds the Left
Handlebar near the Upright (2), connect the left Pulse
Sensor Wire (6) to the Pulse Wire (3). Next, slide the
Left Handlebar onto the indicated tube on the Upright.
Be careful to avoid pinching the Wires. Carefully
insert two M8 x 40mm Button Bolts (81) through the
Left Handlebar and the tube on the Upright. Be care-
ful not to damage the Wires with the Button Bolts.
Finger tighten two M8 Nylon Locknuts (89) onto the
Button Bolts. Next, slide the Handlebar Collar (85) onto
the upper end of the Left Handlebar.
Attach the Right Handlebar (72) as described above.
Note: As you slide the Right Handlebar onto the right
tube on the Upright (2), insert the upper end of the
Right Handlebar into the Left Handlebar (70).
Connect the Handlebars (70, 72) with the Handlebar
Collar (85) and an M4 x 16mm Screw (57). Tighten
the four M8 x 40mm Button Bolts (81). Make sure the
M8 Nylon Locknuts (89) are seated in the hexago-
nal holes in the Handlebars.
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
16
1
55
55 54
54
2
4
Tube
89
57
3
2
6
70
72
85
Make sure the wires
do not get damaged
during this step.
81

7
7. Attach the Seat Frame (7) to the Seat Carriage (11)
with two M10 x 52mm Button Bolts (82) and two M10
Nylon Locknuts (63). 63
7
11
6. Attach the Seat (9) to the Seat Frame (7) with four M6
x 20mm Button Screws (20) and four M6 Washers
(60).
7
20
60
60
9
6
7
82
5. Have another person hold the Console (4) near the
Upright (2).
Connect the Upper Wire Harness (51) to the wire har-
ness on the Console (4). Connect the Pulse Wire (3)
to the pulse wire on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (4) to the Upright with four M4
x 16mm Screws (57). Be careful to avoid pinching
the wires. Next, press the bookrack onto the Console
in the indicated location.
4
2
57
51
3
5
Make sure the wires
do not get damaged
during this step.
Bookrack

8
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

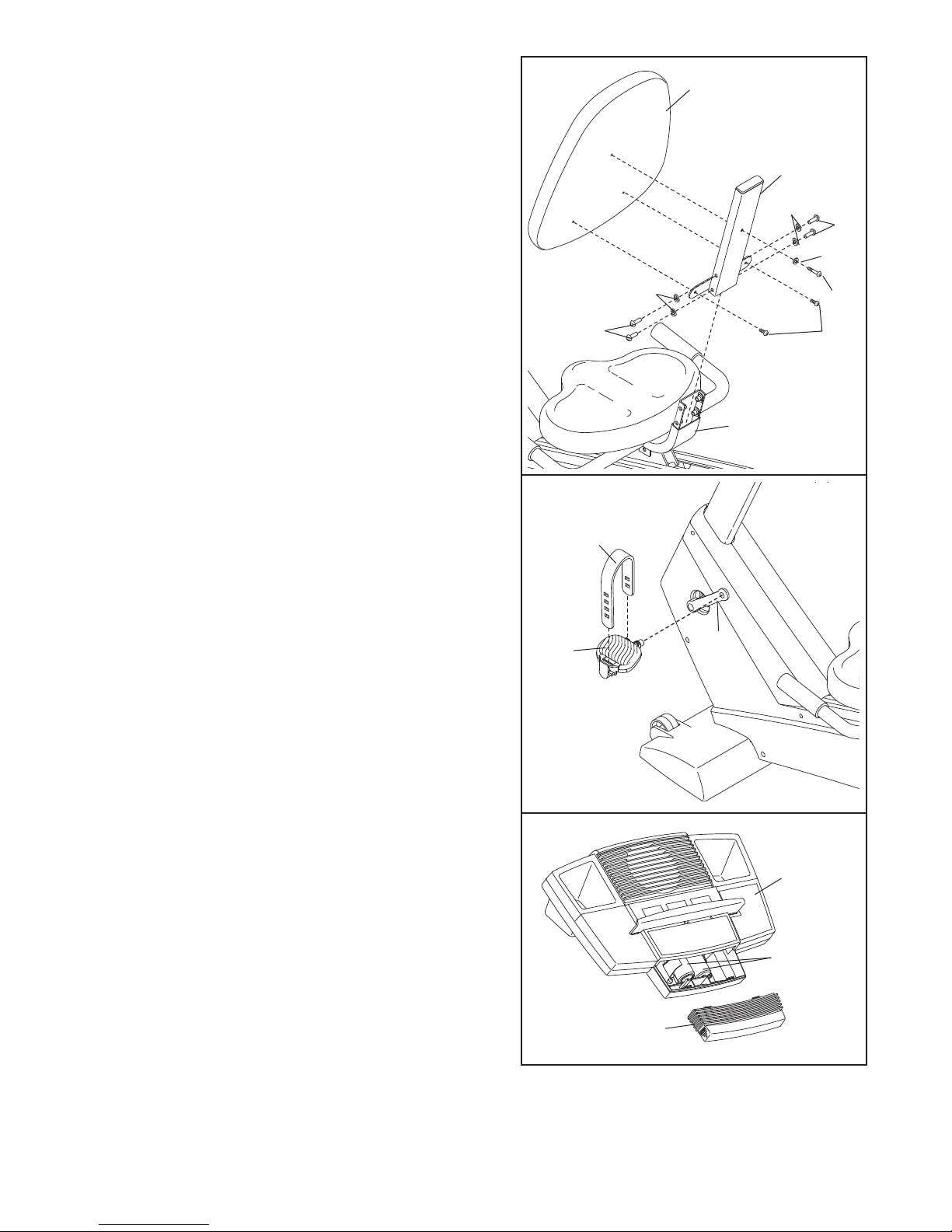

9. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(24). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the exer-
cise cycle for one week, retighten the Pedals. For
best performance, the Pedals must be kept tight-
ened.
Identify the Left Pedal Strap (25), which is marked
with an “L.” Attach the Left Pedal Strap to the Left
Pedal (22), and adjust it to the desired position. Attach
and adjust the Right Pedal Strap (not shown) in the
same way.
9
22 24
25
10. The Console (4) requires four “D” batteries (not
included); alkaline batteries are recommended. Slide
the battery cover off the Console. Insert four batteries
into the battery compartment. Make sure that the
batteries are oriented as shown by the diagram
inside the battery compartment. Slide the battery
cover back onto the Console. Note: When the batter-
ies are installed correctly, the fan will turn on for a
moment.
10
4
Batteries
Battery
Cover
8. Attach the Backrest (62) to the Backrest Frame (42)
with two M6 x 20mm Button Screws (20), an M6 x
38mm Button Screw (80), and an M6 Washer (60).
Slide the Backrest Frame (42) onto the Seat Frame
(7). Attach the Backrest Frame with four M8 x 25mm
Button Screws (79) and four M8 Split Washers (55).
62
7
20
80
60
79
55
55
79
42
8

9

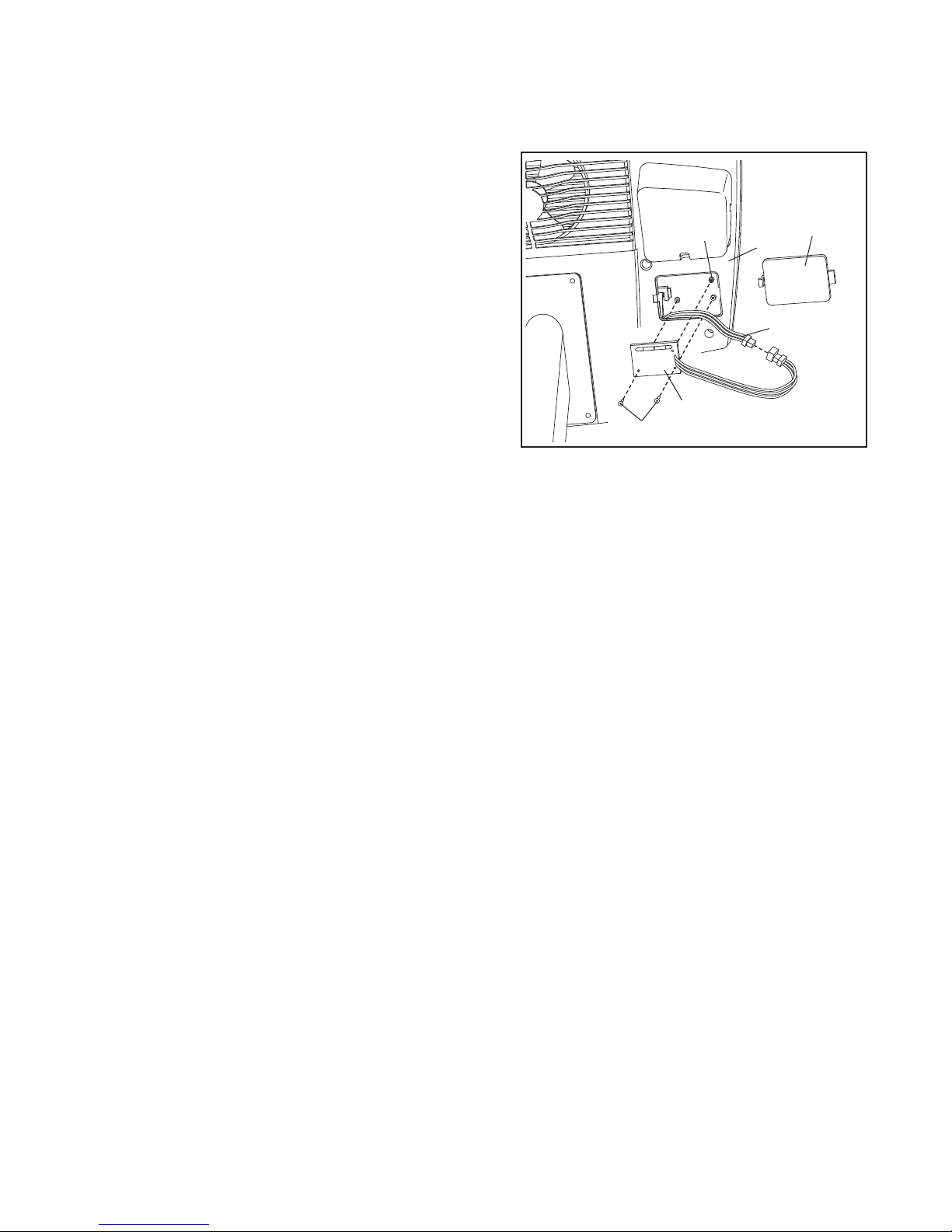

INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the receiver
included with the chest pulse sensor.
Remove the access door from the underside of the
Console (4). You may need to use a small standard
screwdriver to remove the access door.
Slide the receiver onto the indicated plastic pin on the
Console (4); make sure that the receiver is oriented
exactly as shown. Locate the two small screws included
with the chest pulse sensor. Attach the receiver to the
Console with the two screws as shown.
Connect the wire on the receiver to the indicated wire on
the Console (4).
Reattach the access door. Make sure that no wires are
pinched. Note: The other wires included with the chest
pulse sensor may be discarded.
Pin
Access
Door
Wire
Screws
4
Receiver

10
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO MOVE AND LEVEL THE EXERCISE
CYCLE
Stand in back of the exercise cycle, and lift the exer-
cise cycle until it can be moved on the front wheels.
Move the exercise cycle to the desired location and
carefully lower it. Due to the weight of the exercise
cycle, use extreme caution while moving it.
If the exercise cycle
rocks slightly during
use, turn the level-
ing feet under the
rear stabilizer until
the rocking motion
is eliminated.
HOW TO ADJUST THE SEAT
The seat can be
adjusted to the posi-
tion that is the most
comfortable for you.
To adjust the seat,
pull the seat knob,
slide the seat for-
ward or backward,
and then release
the seat knob. Move
the seat forward or
backward slightly
until the pin on the
seat knob snaps into one of the holes in the seat rail.
HOW TO ADJUST THE PEDAL STRAPS
The pedal straps
can be adjusted to
the position that is
the most comfort-
able for you. Press
the tabs on the ped-
als, adjust the
straps to the
desired position,
and then release
the tabs.
Leveling
Foot
Wheel
Seat Seat
Knob
Pedal
Strap
Tab

11
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the exercise cycle can be
changed with the touch of a button. As you exercise,
the console will provide continuous exercise feedback.
You can even measure your heart rate using the hand-
grip pulse sensor. Note: For information about an
optional chest pulse sensor, see page 21.
The console also offers six resistance and pace pro-
grams. Each program automatically changes the resis-
tance of the exercise cycle and prompts you to
increase or decrease your pace as it guides you
through an effective workout.
In addition, the console features two heart rate pro-
grams that automatically change the resistance of the
exercise cycle and prompt you to vary your pace to
keep your heart rate near a target heart rate as you
exercise.

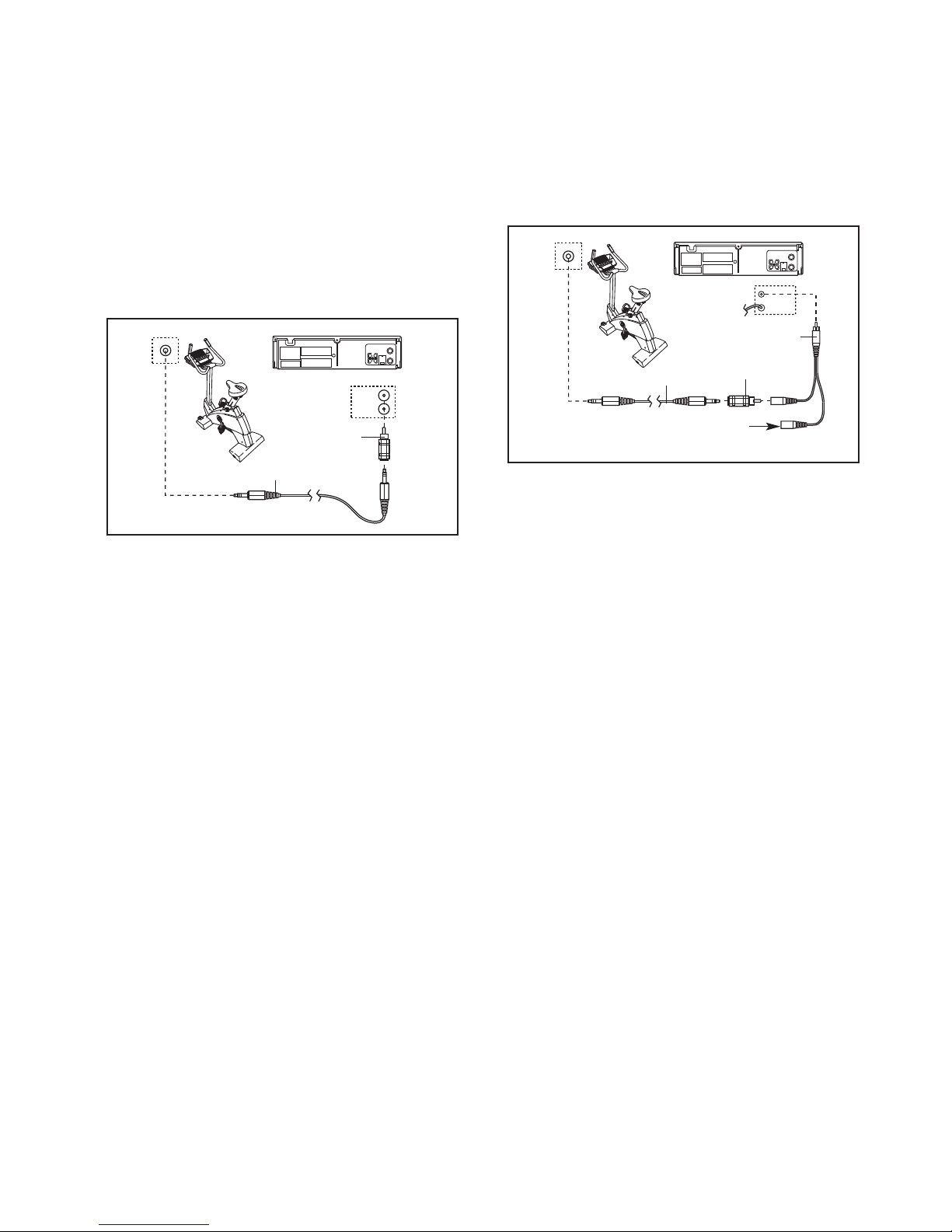

The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the included audio
cable, you can connect the exercise cycle to your
home stereo, portable stereo, computer, or VCR and
play special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the resistance of the exercise cycle and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. High-energy music
provides added motivation. To purchase iFIT.com
CDs and videocassettes, call toll-free 1-888-825-
2588.
With the exercise cycle connected to your computer,
you can also go to our Web site at www.iFIT.com and
access programs directly from the internet. Explore
www.iFIT.com for more information.

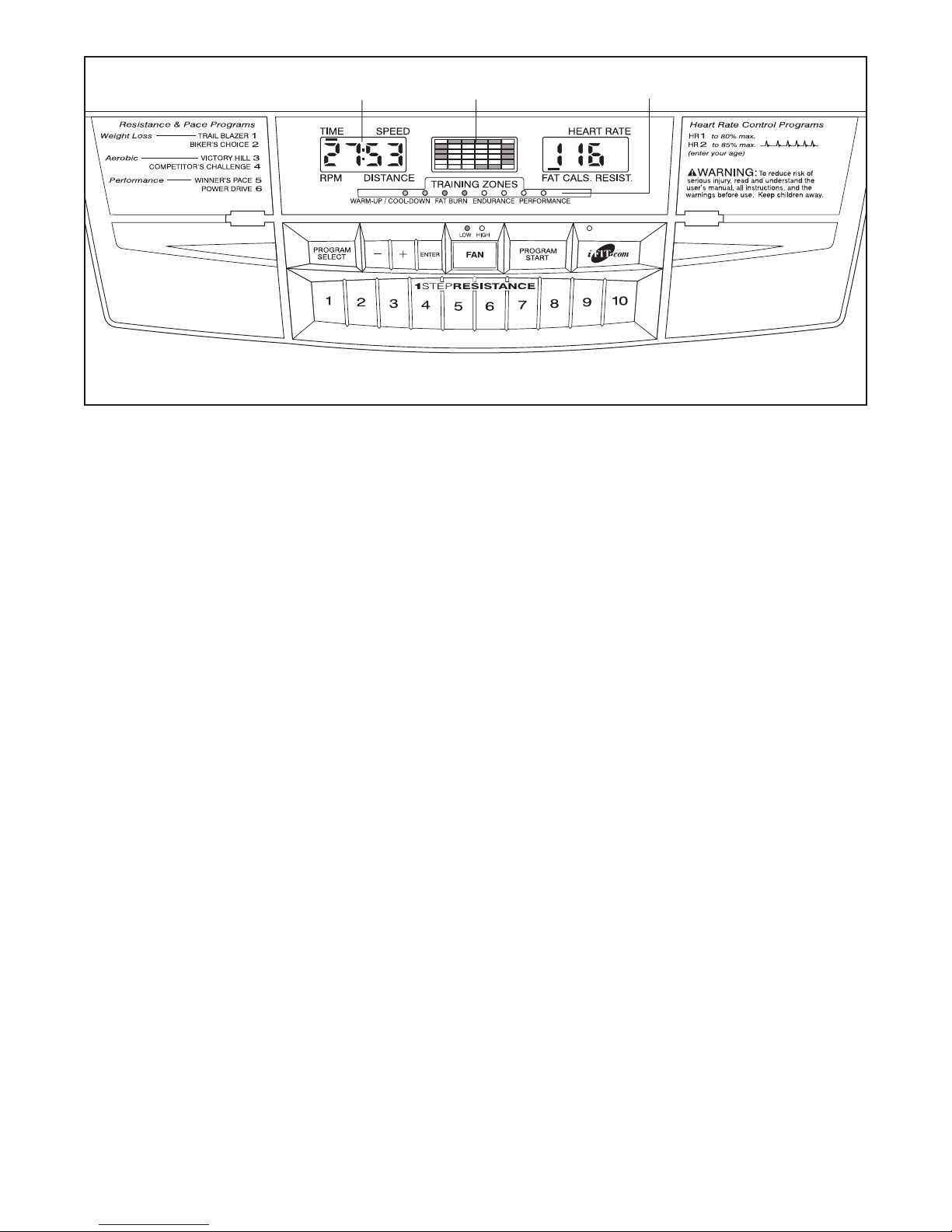

CONSOLE DIAGRAM
Note: If there is a sheet of clear plastic on the face of the console, remove it before using the console.
Matrix Training Zone Bar
Left Display

12

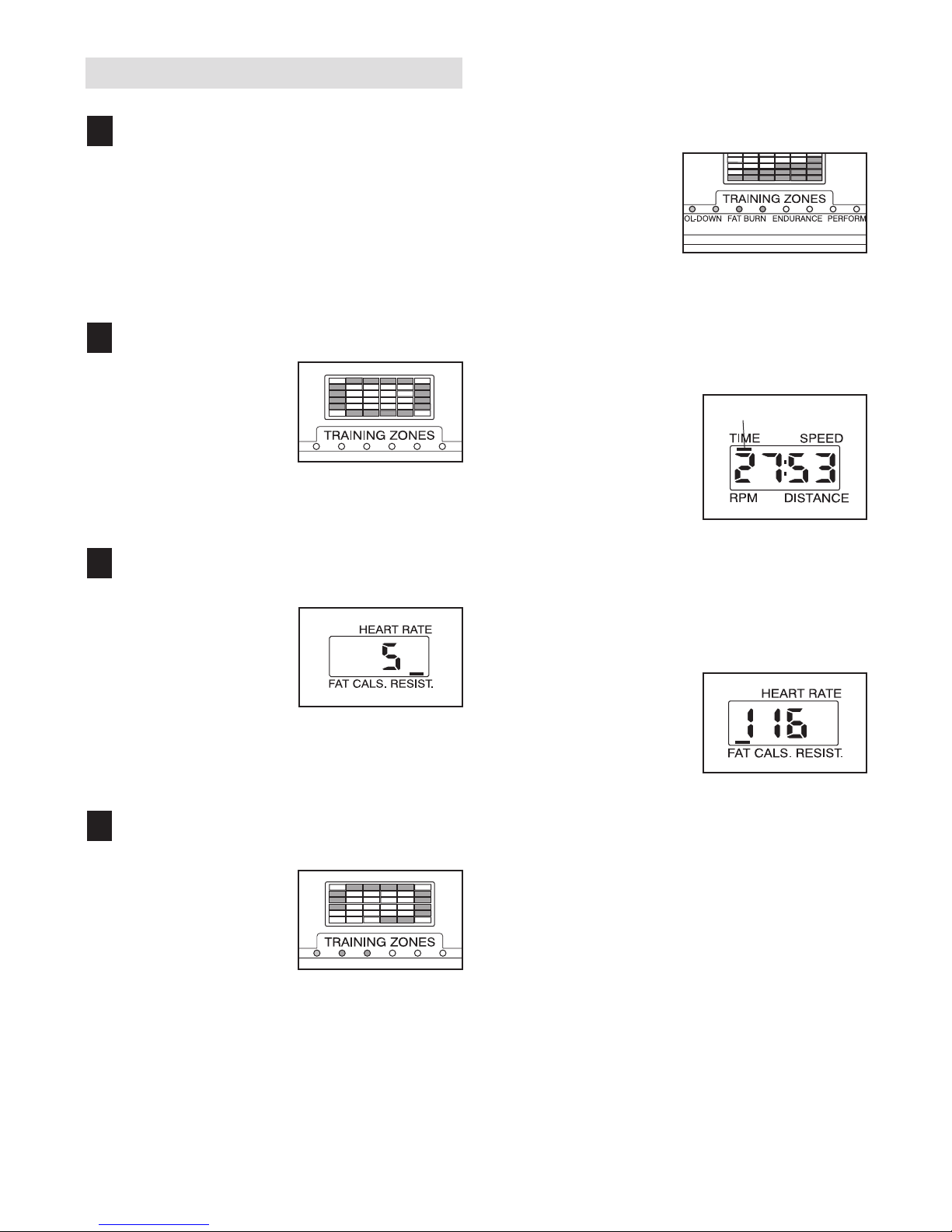

HOW TO USE THE MANUAL MODE
Press any button on the console or begin
pedaling to turn on the console.
Note: The console requires four 1.5V “D” batteries
(see assembly step 10 on page 8).
Press any button on the console or begin pedal-
ing to turn on the console. After a few seconds,
the console displays will light, a tone sound, and
the console will be ready for use.
Select the manual mode.
When the power is
turned on, the manual
mode will be select-
ed. If you have
selected a program or
the iFIT.com mode,
reselect the manual
mode by pressing the Program Select button
repeatedly until a track appears in the matrix.
Begin pedaling and change the resistance of
the exercise cycle as desired.
As you pedal, change
the resistance of the
exercise cycle by
pressing the Resis-
tance buttons. There
are ten resistance
levels. Note: After the
Resistance buttons are pressed, it will take a
moment for the exercise cycle to reach the
selected resistance level.
Monitor your progress with the matrix, the
Training Zone bar, and the two displays.
The matrix—When
the manual mode is
selected, the matrix
will show a track rep-
resenting 1/4 mile. As
you pedal, the indica-
tors around the track will light in succession until
the entire track is lit. The track will then darken
and the indicators will again begin to light in suc-
cession.
The Training
Zone bar—The
Training Zone bar
will show your pace
and the approxi-
mate intensity level
of your exercise.
For example, if three or four indicators in the bar
are lit, the bar shows that your pace is ideal for fat
burning. During programs, the Training Zone bar
will also prompt you to increase or decrease your
pace.
The left display—
The left display will
show the elapsed
time, your pedaling
pace (in revolutions
per minute), the dis-
tance you have ped-
aled, and your pedal-
ing speed. The display will change from one num-
ber to the next every few seconds, as shown by
the mode indicators in the display. Note: When a
program is selected, the display will show the
time remaining in the program instead of the
elapsed time.
The right display—
The right display will
show the approximate
numbers of fat calo-
ries and calories you
have burned (see FAT
BURNING on page
23) and the resistance level of the exercise cycle.
The display will change from one number to the
next every few seconds, as shown by the mode
indicators. The display will also show your heart
rate when you use the handgrip pulse sensor or
the optional chest pulse sensor. Note: Each time
the resistance of the exercise cycle changes, the
display will show the resistance level.
4
3
2
1
Mode Indicator

13
Note: The console
can display speed
and distance in either
miles or kilometers.
To find which unit of
measurement is
selected, you must
select the console’s user mode. Hold down the
Program Select button for about three seconds.
The letter “E” for English miles or the letter “M” for
metric kilometers will appear in the left display. To
change the unit of measurement, press the + but-
ton.
While the user mode
is selected, press the
Program Start button.
The left display will
then show the total
number of hours that
the exercise cycle has
been used. Press the Program Start button again.
The left display will then show the total number of
miles pedaled. To exit the user mode, press the
Program Select button again.
Measure your heart rate if desired.
Note: If you wear the optional chest pulse
sensor and hold the handgrip pulse sensor at
the same time, the console may not display
your heart rate accurately.
If there are
thin sheets of
plastic on the
metal con-
tacts on the
handgrip
pulse sensor,
peel off the
plastic. To
measure your
heart rate, hold the contacts; your palms must be
resting on the upper contacts, and your fingers
must be touching the lower contacts. Avoid mov-
ing your hands.
When your pulse is detected, the heart-shaped
indicator in the right display will flash each time
your heart beats, one or two dashes (– –) will
appear, and then your heart rate will be shown.
For the most accurate heart rate reading, hold the
contacts for at least 15 seconds.
Note: If you continue to hold the pulse sensor,
the right display will show your heart rate for up
to 30 seconds. The display will then show your
heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts too tightly. For opti-
mal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals.
Turn on the fan if desired.
To turn on the fan at low speed, press the Fan
button. Pivot the fan to the desired angle. To turn
on the fan at high speed, press the Fan button a
second time. To turn off the fan, press the Fan
button a third time. Note: If the pedals are not
moved for about thirty seconds, the fan will auto-
matically turn off.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for several seconds, a
tone will sound, the console will pause, and the
left display will begin to flash. If the pedals are not
moved for about five minutes, the console will
turn off and the displays will be reset.
7
6
5
Contacts

14
HOW TO USE RESISTANCE AND PACE
PROGRAMS
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 12.
Select one of the six resistance and pace
programs.
When the power is
turned on, the man-
ual mode will be
selected. To select a
resistance and pace
program, press the
Program Select but-
ton repeatedly until a “P 1,” “P 2,” “P 3,” “P 4,”
“P 5,” or “P 6” appears in the right display.
Each program is divided into several time seg-
ments of different lengths. One resistance setting
and one pace setting are programmed for each
segment. (Note: The same resistance setting
and/or pace setting may be programmed for two or
more consecutive segments.) The resistance set-
ting for the first seg-
ment is shown in the
left column of the
matrix. The resis-
tance settings for
the next five seg-
ments are shown in
the columns to the
right. Note: One bar
in a column represents a resistance setting of
level 1, two bars represent level 2 or 3, three
bars represent level 4 or 5, four bars represent
level 6 or 7, five bars represent level 8 or 9, and
six bars represent level 10.
Press the Program Start button or begin
pedaling to start the program.
When the program is started, the left column of
the matrix will begin to flash, and the exercise
cycle will automatically adjust to the resistance
setting for the first segment.

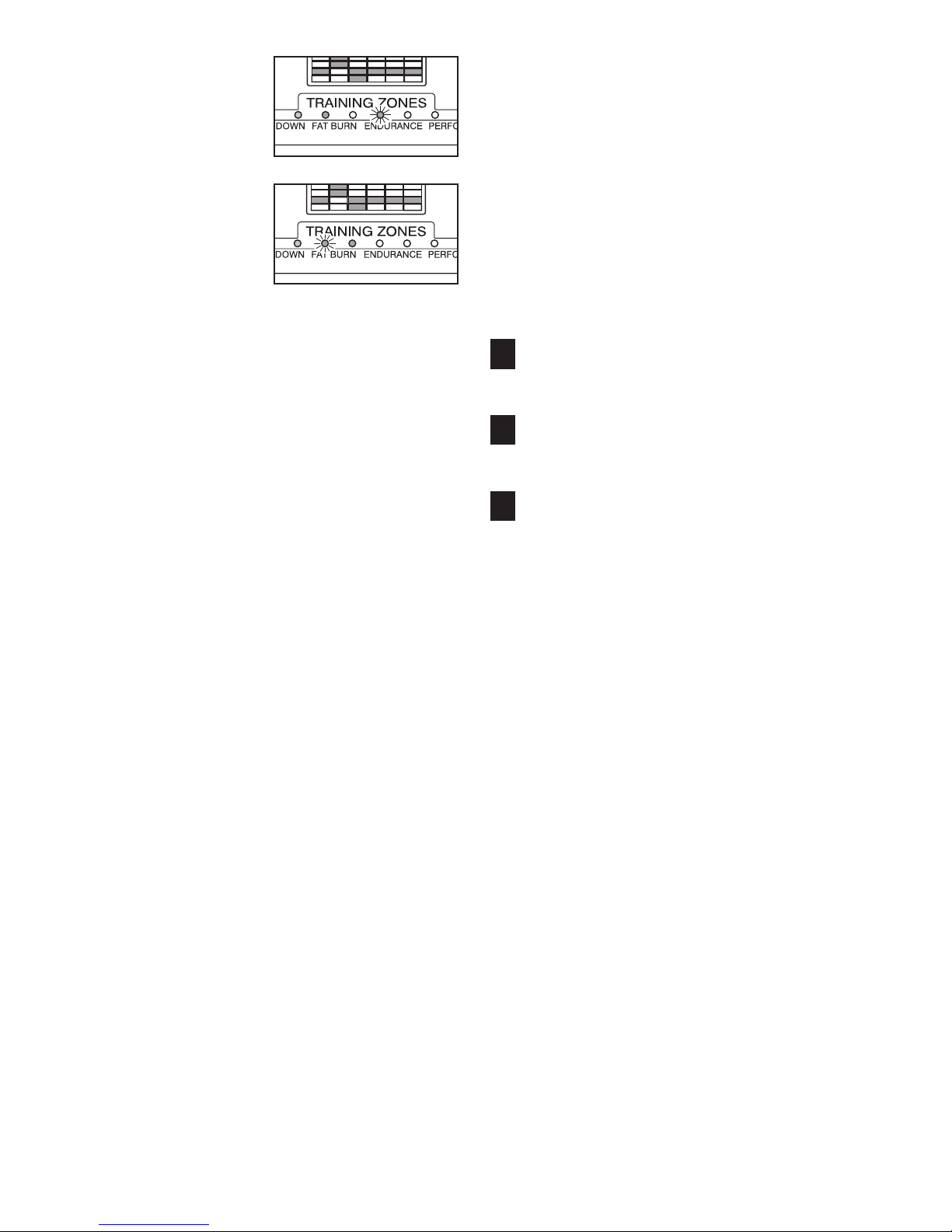

As you exercise, the Training Zone bar will help
you to keep your pedaling pace near the pace
setting for the cur-
rent segment. The
lit indicators in the
bar will show your
actual pace. If an
indicator to the
right of the lit indi-
cators is flashing
(see drawing a),
increase your
pace. If an indica-
tor to the left of
any lit indicator is
flashing (see draw-
ing b), decrease your pace. When no indicator is
flashing, your pace matches the pace setting for
the current segment. Important: The pace set-
tings are intended only to provide motivation.
Your actual pace may be slower than the cur-
rent pace setting. Make sure to exercise at a
pace that is comfortable for you.
When the first segment of the program ends, a
series of tones will sound and all resistance set-
tings will move one column to the left. The resis-
tance setting for the second segment will then be
shown in the left column of the matrix and the
resistance of the exercise cycle will automatically
change to the resistance setting for the second
segment.
Note: During the program, you can override the
resistance setting, if desired, by pressing the
Resistance buttons. However, when the next
segment begins, the resistance will change if a
different resistance setting is programmed for the
next segment.
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling. The pro-
gram will continue until the resistance setting for
the last segment is shown in the left column of
the matrix and the last segment ends.
Monitor your progress with the two displays.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
5
4
3
2
1
Current Segment
a
b

15
Turn on the fan if desired.
See step 6 on page 13.
When the program is finished, the console
will automatically turn off.
See step 7 on page 13.

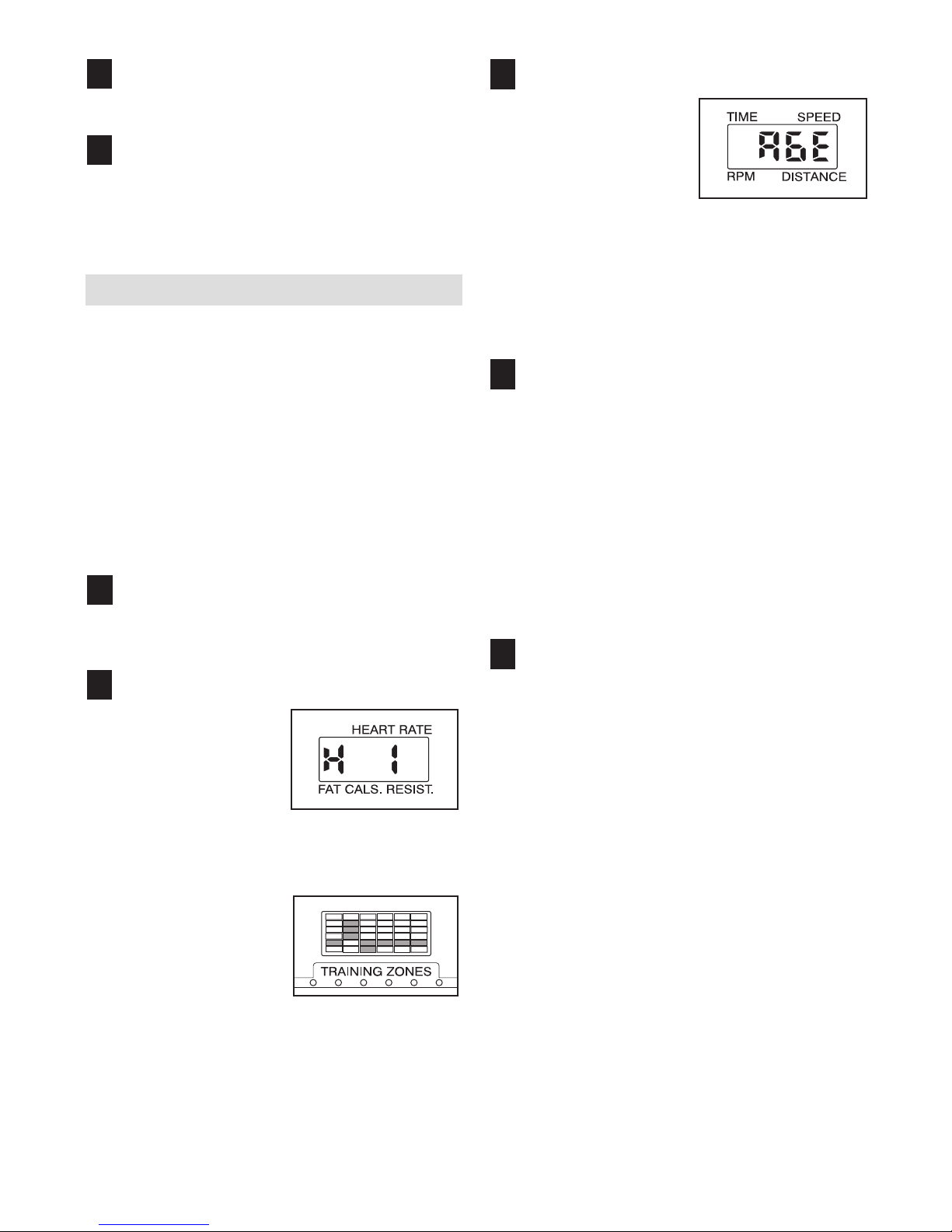

HOW TO USE HEART RATE PROGRAMS
Each heart rate program helps you to keep your heart
rate near a certain percentage of your maximum heart
rate during your workout. (Your maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 30 years old, your maximum heart
rate is 190.) Heart rate program 1 is designed to keep
your heart rate between 50% and 80% of your maxi-
mum heart rate while you exercise; heart rate pro-
gram 2 is designed to keep your heart rate between
50% and 85% of your maximum heart rate.
Follow the steps below to use a heart rate program.
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 12.
Select one of the heart rate programs.
When the power is
turned on, the manu-
al mode will be
selected. To select a
heart rate program,
press the Program
Select button repeat-
edly until an “H 1” or “H 2” appears in the right
display.
During heart rate pro-
grams, the matrix will
show a moving
graphic that repre-
sents your heart rate.
Each time a heart-
beat is detected, an
additional peak will appear.
Enter your age.
When a heart rate
program is selected,
the word “AGE” and
the current age set-
ting will flash in the
left display. You must
enter your age to use
a heart rate program. If you have already entered
your age, press the Enter button and go to step
4. If you have not entered your age, press the +
or – button repeatedly to enter your age, and
then press the Enter button. Once you have
entered your age, it will be saved in memory.
Hold the handgrip pulse sensor.
To use a heart rate program, you must use the
handgrip pulse sensor (see step 5 on page 10)
or the optional chest pulse sensor. If you use the
handgrip pulse sensor, it is not necessary to hold
the handgrips continuously during the program.
However, you should hold the handgrips fre-
quently for the program to operate properly. Each
time you hold the handgrips, keep your hands
on the metal contacts for at least 30 seconds.
Note: When you are not holding the handgrips,
the letters “PLS” will appear in the right display
instead of your heart rate.
Press the Program Start button or begin
pedaling to start the program.
When the program is started, the exercise cycle
will automatically adjust to the resistance setting
for the first segment.
Each program is divided into 20 one-minute seg-
ments. One resistance setting and one target
heart rate setting are programmed for each seg-
ment. Note: The same resistance setting and/or
target heart rate setting may be programmed for
two or more consecutive segments.
During the last three seconds of each segment,a
series of tones will sound. The resistance of the
exercise cycle will then automatically change if a
different resistance setting is programmed for the
next segment.
As you exercise, the Training Zone bar will help
you to keep your heart rate near the target heart
5
4
3
2
1
7
6

16
rate setting for the
current segment.
The lit indicators
in the bar will
show your actual
pace. When you
hold the handgrip
pulse sensor or
wear the optional
chest pulse sen-
sor, the console
will periodically
compare your
heart rate to the
target heart rate setting for the current segment;
if necessary, an indicator in the bar will then flash
to prompt you to increase or decrease your pace
to bring your heart rate closer to the target heart
rate setting. If an indicator to the right of the lit
indicators is flashing (see drawing a), increase
your pace. If an indicator to the left of any lit indi-
cator is flashing (see drawing b), decrease your
pace. When no indicator is flashing, your heart
rate is near the target heart rate setting.
Important: The target heart rate settings are
intended only to provide motivation. Your
actual heart rate may be slower than the tar-
get heart rate settings. Make sure to exercise
at a pace that is comfortable for you.
Note: During the program, you can override the
resistance setting, if desired, by pressing the
Resistance buttons. However, when the next
segment begins, the resistance will change if a
different resistance setting is programmed for the
next segment.
The program will continue until the last segment
ends.
If you stop pedaling for several seconds, a tone
will sound and the program will end. Heart rate
programs cannot be stopped temporarily and
then restarted.
Monitor your progress with the two displays.
See step 4 on page 12.
Turn on the fan if desired.
See step 6 on page 13.
When the program is finished, the console
will automatically turn off.
See step 7 on page 13.
8
7
6
a
b

17
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the exercise cycle must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
17 and 18 for connecting instructions. To use iFIT.com
videocassettes, the exercise cycle must be connected
to your VCR. See page 19 for connecting instructions.
To use iFIT.com programs directly from our Web
site, the exercise cycle must be connected to your
home computer. See page 18 for connecting instruc-
tions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable
into the adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo. Do
not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B
AUDIO OUT
RIGHT
LEFT
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones
Audio Cable
Adapter
A, B

18
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio Cable
Adapter
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
LINE OUT
Audio
Cable
A
PHONES
Audio Cable
B
1/8”
Y-adapter
Headphones/Speakers

19
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 18.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
Adapter
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
A
Audio Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter

20
To use iFIT.com CDs or videocassettes, the exercise
cycle must be connected to your portable CD player,
portable stereo, home stereo, computer with CD play-
er, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on page 17. To pur-
chase iFIT.com CDs and videocassettes, call toll-
free 1-888-825-2588.
Follow the steps below to use an iFIT.com CD or
video program.
Begin pedaling to activate the console.
See step 1 on page 12.
Select the iFIT.com mode.
When the console
is turned on, the
manual mode will
be selected. To
select the iFIT.com
mode, press the
iFIT.com button.
The indicator above the button will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
Amoment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a resistance and pace program (see step 3 on
page 14). However, an electronic “chirping” sound
will alert you when the resistance setting and/or
the pace setting is about to change.
Note: If the resistance of the exercise cycle
and/or the pace setting does not change when
a “chirp” is heard:
• Make sure that the indicator above the
iFIT.com button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the two displays.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When the program is finished, the console will
automatically turn off.
See step 7 on page 13.
8
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
