NordicTrack Commercial 14.9 User manual

USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL71423.2
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
REGISTER YOUR
PRODUCT
MEMBER CARE
For service at any time, go to
my.iFIT.com or scan the QR code.
Please do not contact the store.

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................18
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
MAINTENANCE AND TROUBLESHOOTING.....................................................34
EXERCISE GUIDELINES ....................................................................36
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
EXPLODED DRAWING A ....................................................................41
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. Google Maps is a trademark of Google LLC. The
Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.
This decal is
on both sides

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Keep children under age 16 and pets away
from the elliptical at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise pro-
gram during pregnancy. Use the elliptical
only as authorized by your health care
provider.
5. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
6. Use the elliptical only as described in this
manual.
7. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
8. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
9. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
10. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
11. When connecting the power cord, plug the
power cord into a grounded circuit.
12. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
13. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
14. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
15. The elliptical should not be used by persons
weighing more than 300 lbs. (135 kg).
16. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
17. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical. Before mounting or dismounting,
bring the pedals to a stop with the pedal
on the mounting or dismounting side in its
lowest position.

4
SAVE THESE INSTRUCTIONS
18. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the
elliptical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary
NORDICTRACK®COMMERCIAL 14.9 elliptical. The
COMMERCIAL 14.9 elliptical provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

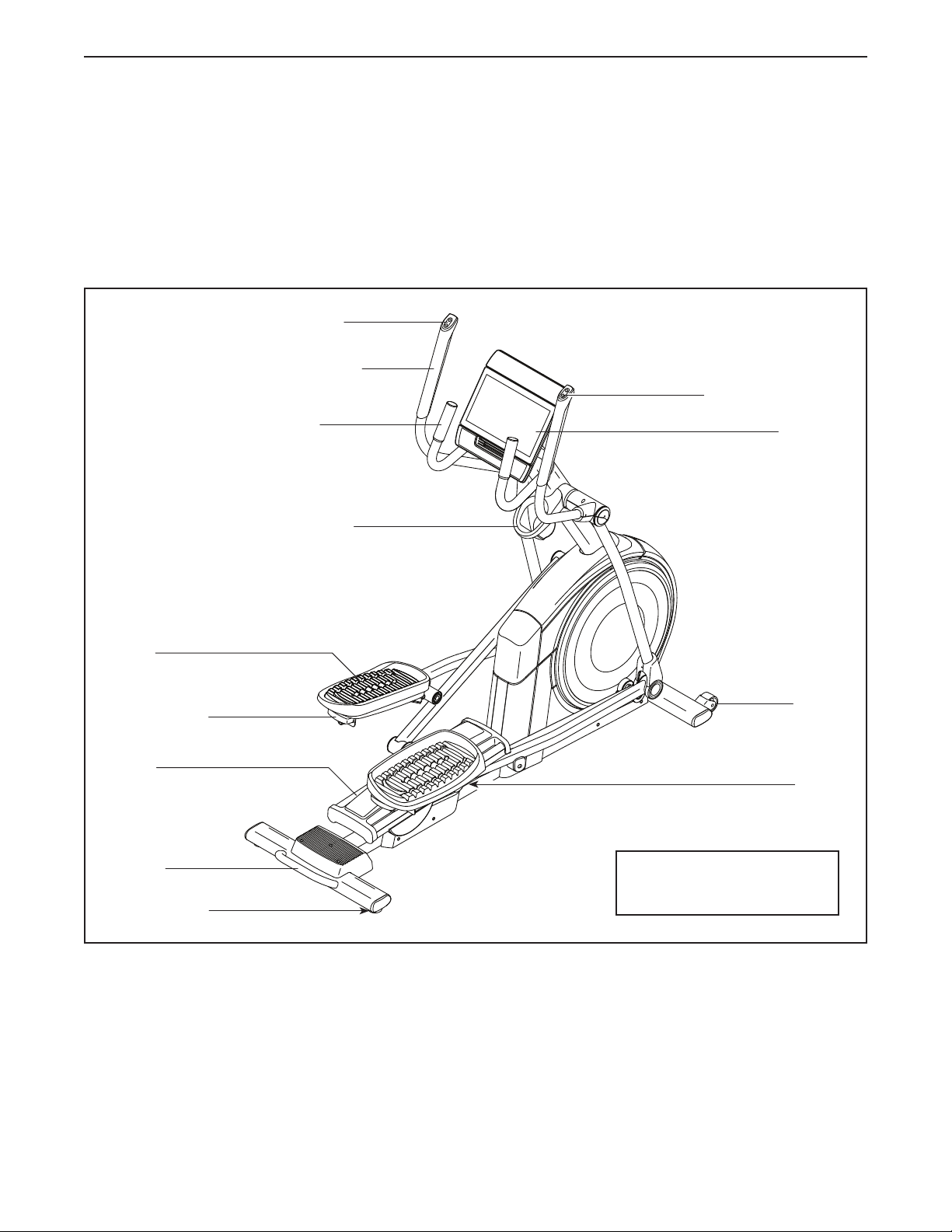

Before reading further, please familiarize yourself with

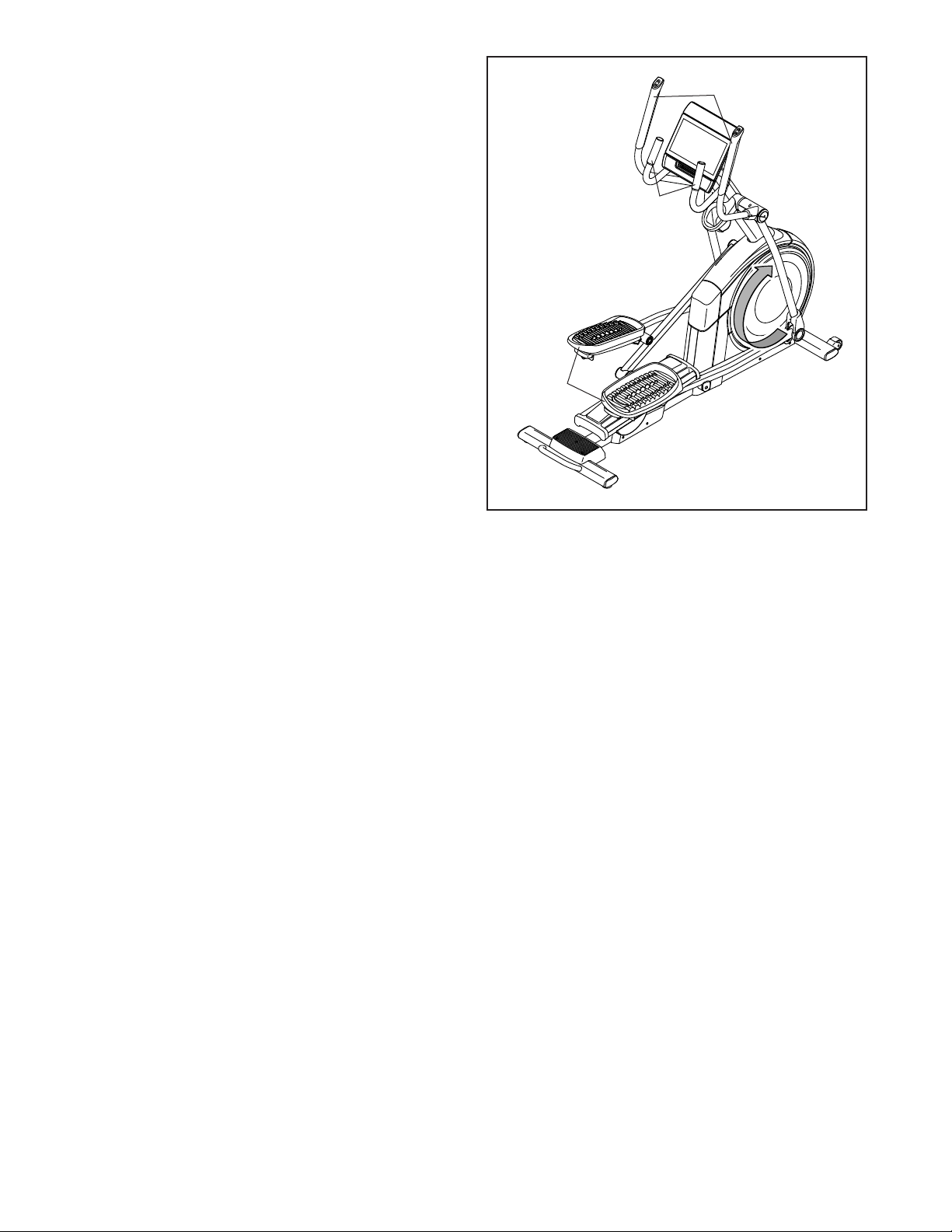

the parts that are labeled in the drawing below.
Accessory Tray
Handlebar
Upper Body Arm
Ramp Control
Pedal
Pedal Handle
Roller
Handle
Ramp
Console
Resistance Control
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 11 in. (180 cm)
Width: 2 ft. 1 in. (64 cm)

7
PART IDENTIFICATION CHART

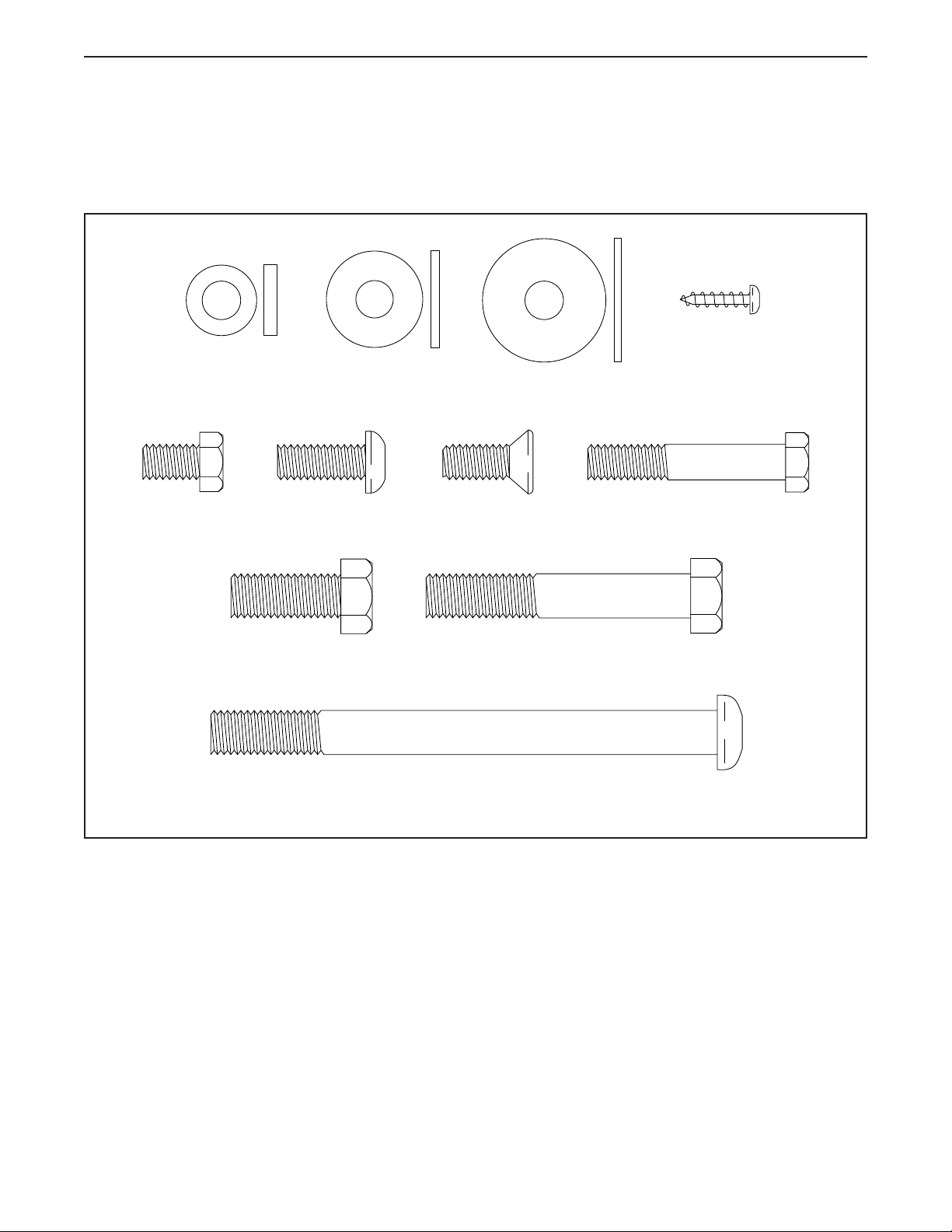

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.
M10 x 115mm Screw
(104)–2
M8 x 13mm
Screw (82)–4
M8 x 45mm Bolt
(96)–4
M8 x 20mm Flat
Head Screw (120)–2
M8 x 20mm
Screw (95)–2
M4 x 16mm
Screw (101)–21
M8 x 22mm
Washer (129)–2
M8 x 28mm
Washer (97)–2
M8 x 16mm
Washer (155)–4
M10 x 25mm
Screw (92)–2
M10 x 60mm Screw
(90)–4

8
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping until you
complete this step.
If there are shipping supports attached to the
rear of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.

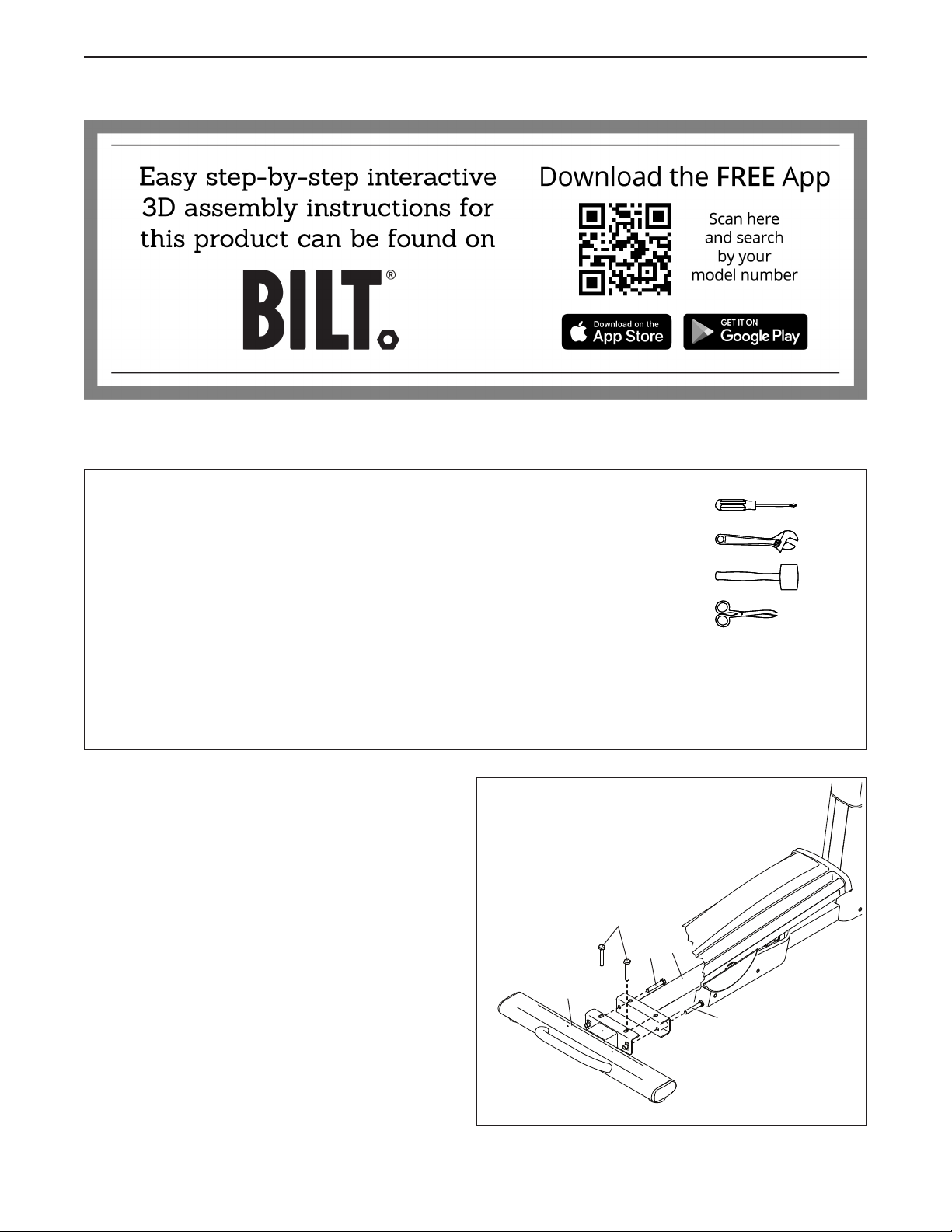

Next, attach the Rear Stabilizer (2) to the Frame
(1) with four M10 x 60mm Screws (90).
Then, remove the packing materials from under
the Frame (1).
2
1
2
90
90
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
two adjustable wrenches
one rubber mallet
one pair of scissors
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. To use the assembly steps in this manual, first see the helpful tips below.
90

9
4
6

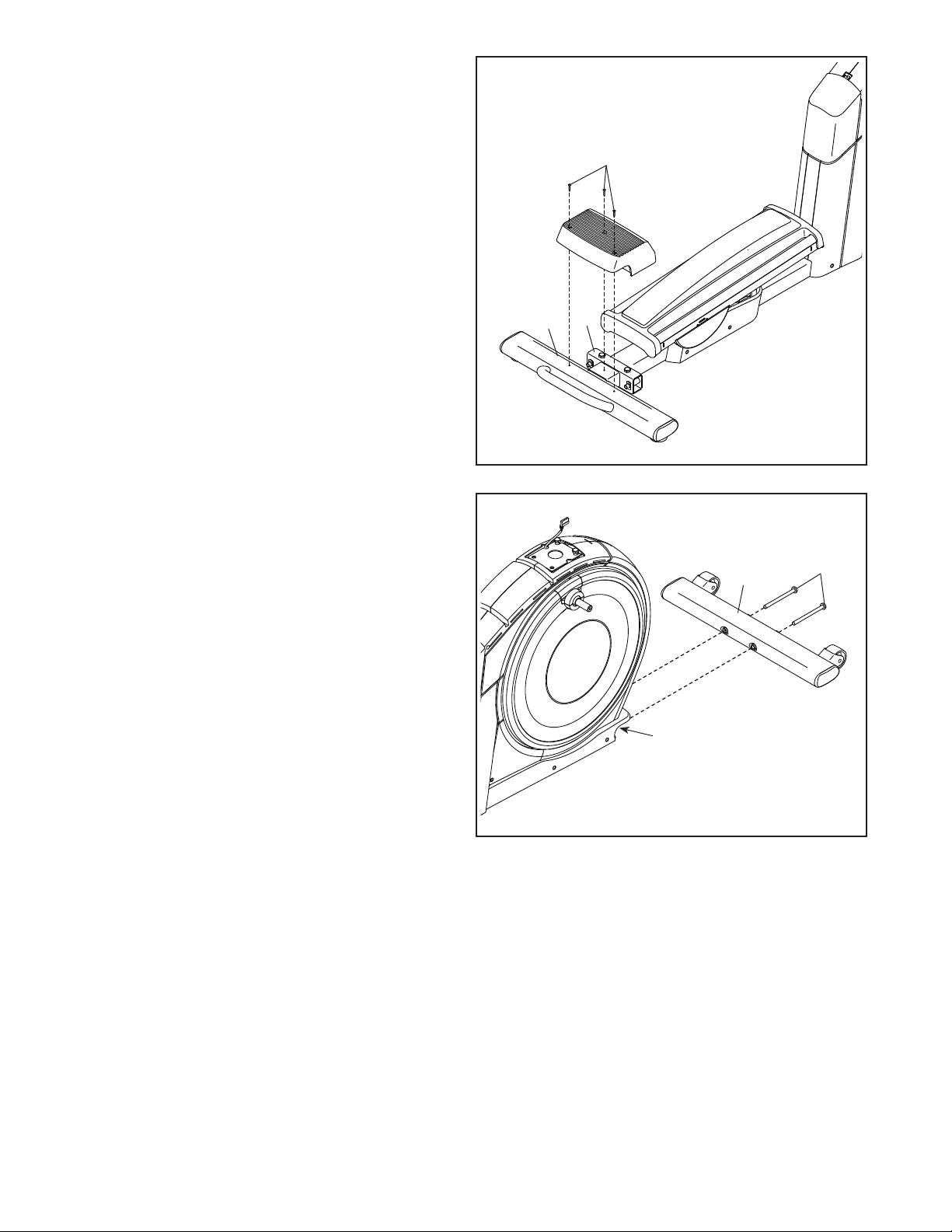

4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second person
hold the Frame to prevent it from tipping until
you complete this step.
If there are shipping supports attached to the
front of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Next, attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the Frame (1).
1
104
3. Attach the Rear Stabilizer Cover (15) to the Rear
Stabilizer with three M4 x 16mm Screws (101);
start all three Screws, and then tighten them.
3
1
2
101

10
IMPORTANT: You will connect wires in one or
more of the following steps. For your ellipi-
cal to function properly, connect the wires as
described below. Note: The actual wires may
look different from the wires shown.
First, firmly push the wires (V) into each connec-
tor (W, X) to make sure that the wires are fully
seated.
Next, turn the wires so that the latch (Y) on one
connector (W) is on the same side as the catch
(Z) on the other connector (X). Then, slide the
connectors together; the connectors should
slide together easily and snap into place with
an audible click.
Then, pull on the connectors (W, X) to make
sure that they are connected; do not pull on the
wires (V). To see a video about connecting
wires, scan the QR code or go to my.iFIT.com.
V
W
X
Y
Z
V
5
7759
45
95

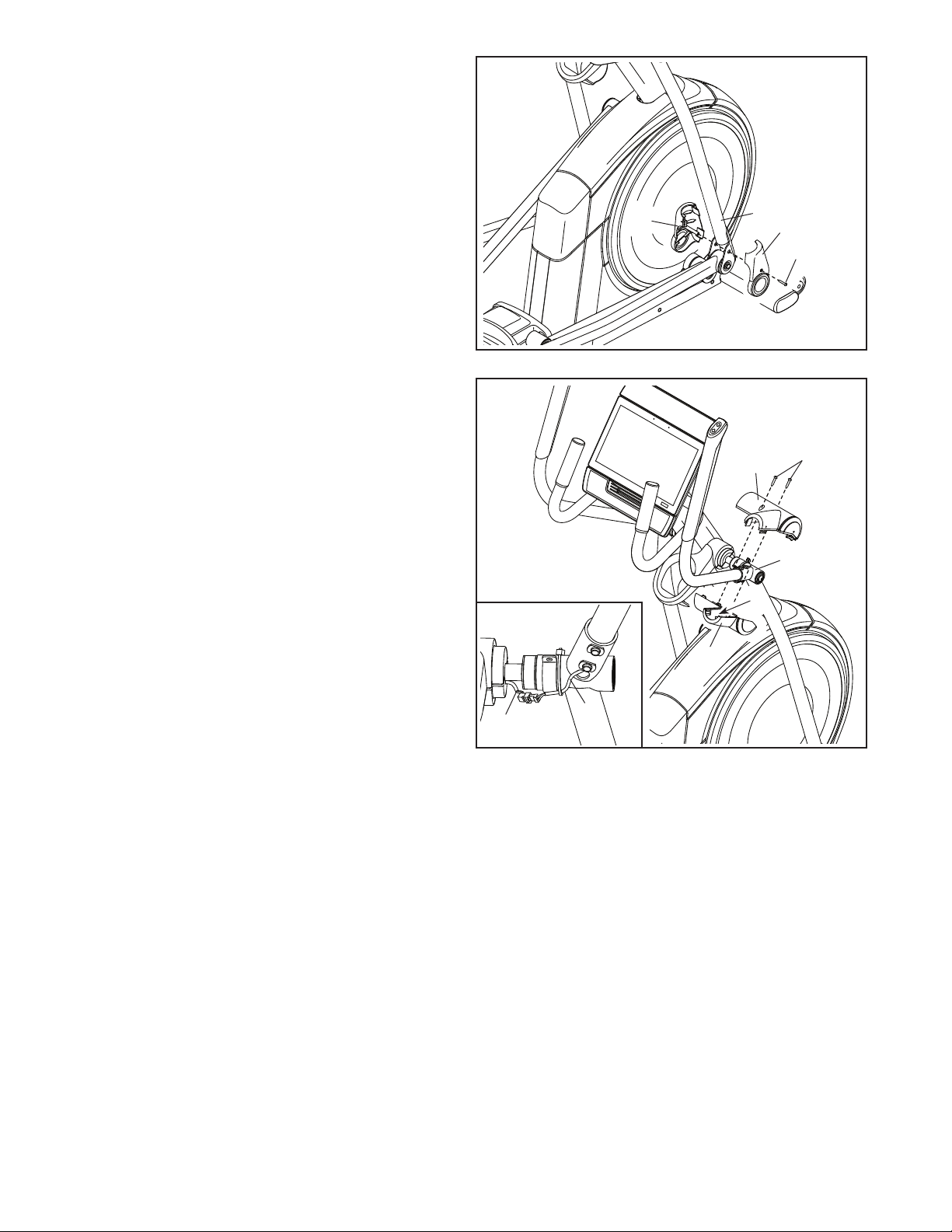

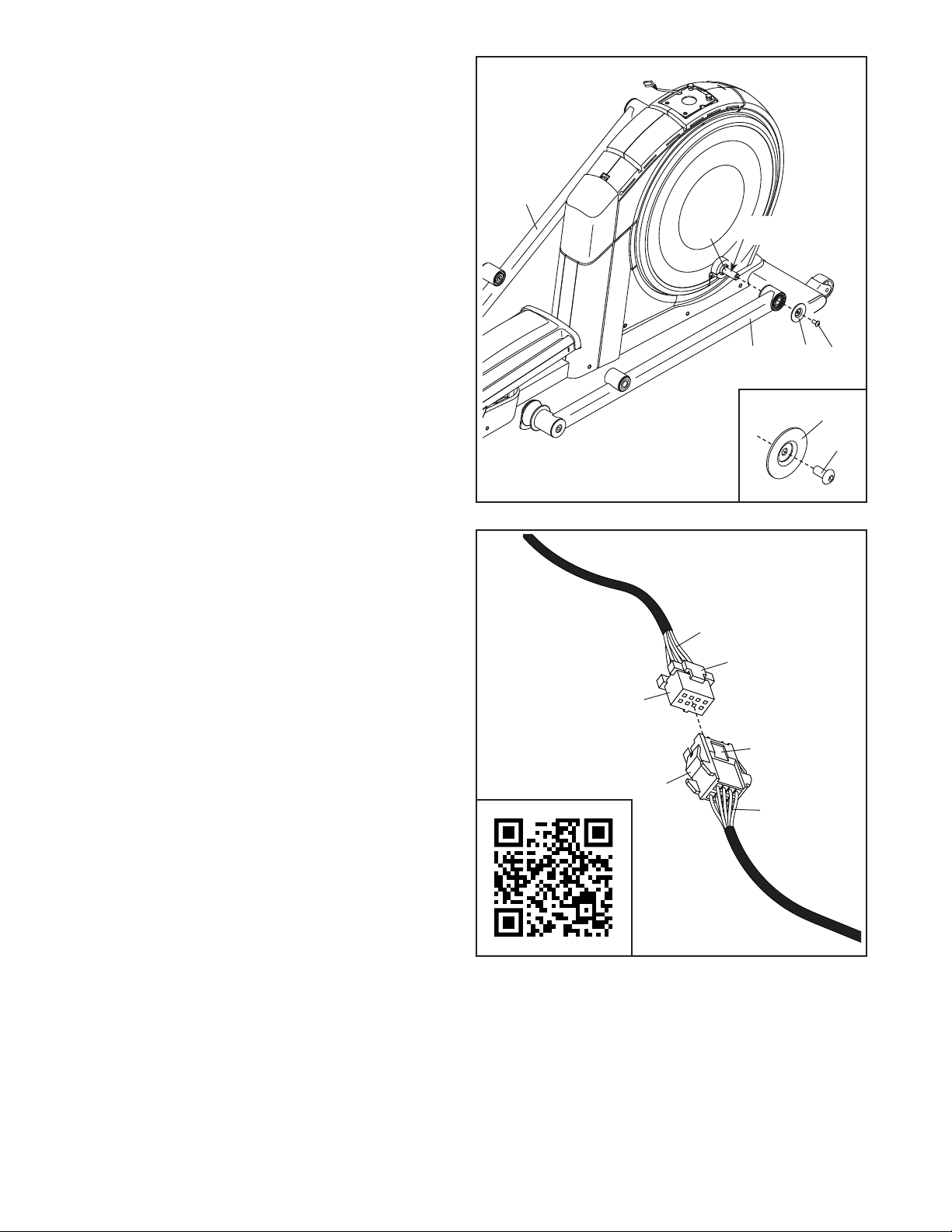

5. Apply a small amount of the included grease to
the axle on the right Crank Arm (20).
Next, identify the Right Roller Arm (59), orient
it as shown, and slide it onto the right Crank
Arm (20).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (95) and a Crank Cover (77);
make sure that the Crank Cover is oriented
as shown in the inset drawing.
Repeat this step for the Left Roller Arm (45).
20
95
77
Grease

11
Avoid pinching
the wires
6
4
110
1
7
4
1
92
92
110

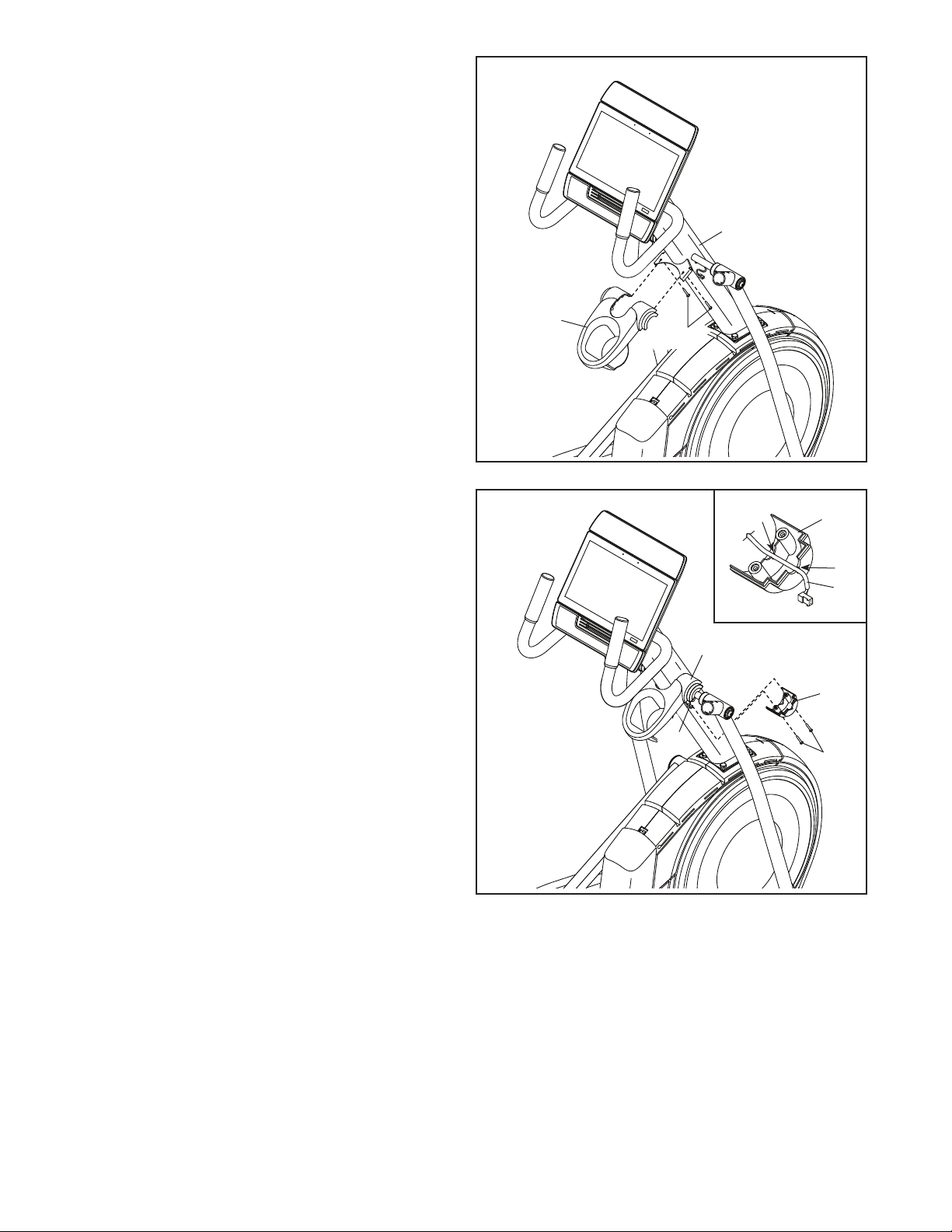

6. Have a second person hold the Upright (4) near
the Frame (1) as shown.
Next, connect the Upright Wire (157) to the
Main Wire (110). IMPORTANT: Make sure to
connect the wires as described previously.
7. Avoid pinching the wires. Have a second
person hold the Upright (4) on the Frame (1).
Note: Two M10 x 25mm Screws (92) are
preattached to the Frame (1).
Attach the Upright (4) with two additional
M10 x 25mm Screws (92); do not fully tighten
the Screws yet.
See the inset drawing. Insert the connectors
on the wires into the left side of the Upright (4).
Next, route the Main Wire (110) through the
notch in the Grommet (156) as shown, and then
press the Grommet into the Upright.
157
4
156
110

12
8
8. Apply grease to the axle on the right side of the
Upright (4).
Next, slide a Pivot Spacer (54) onto the right
side of the Upright (4).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Upright (4).
Attach the Right Upper Body Leg (60) with an
M8 x 13mm Screw (82) and an M8 x 28mm
Washer (97).
Repeat this step to attach the Left Upper
Body Leg (46).
46
4Grease
9
60
60
54
82
97

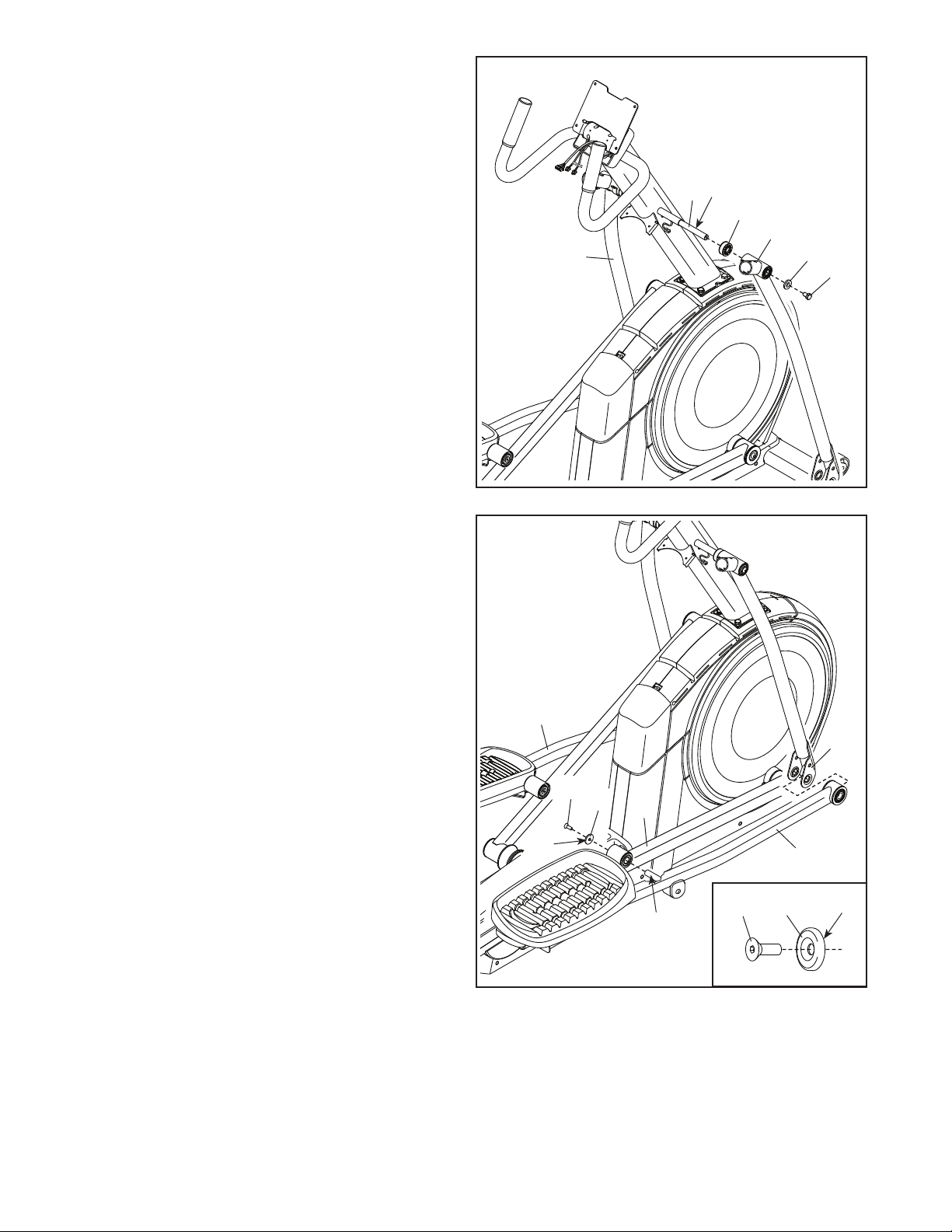

9. Orient the Right Pedal Arm (58) as shown, and
apply grease to the axle.
Insert the Right Pedal Arm (58) into the Right
Upper Body Leg (60) and into the Right Roller
Arm (59).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Flat Head
Screw (120) and a Retainer (55); make sure
that the flat side (A) of the Retainer is facing
the Right Roller Arm as shown in the inset
drawing.
Repeat this step for the Left Pedal Arm (44).
Grease
55
B58
44
59
55 A
120
120

13
10
11
Avoid pinching
the wires
7

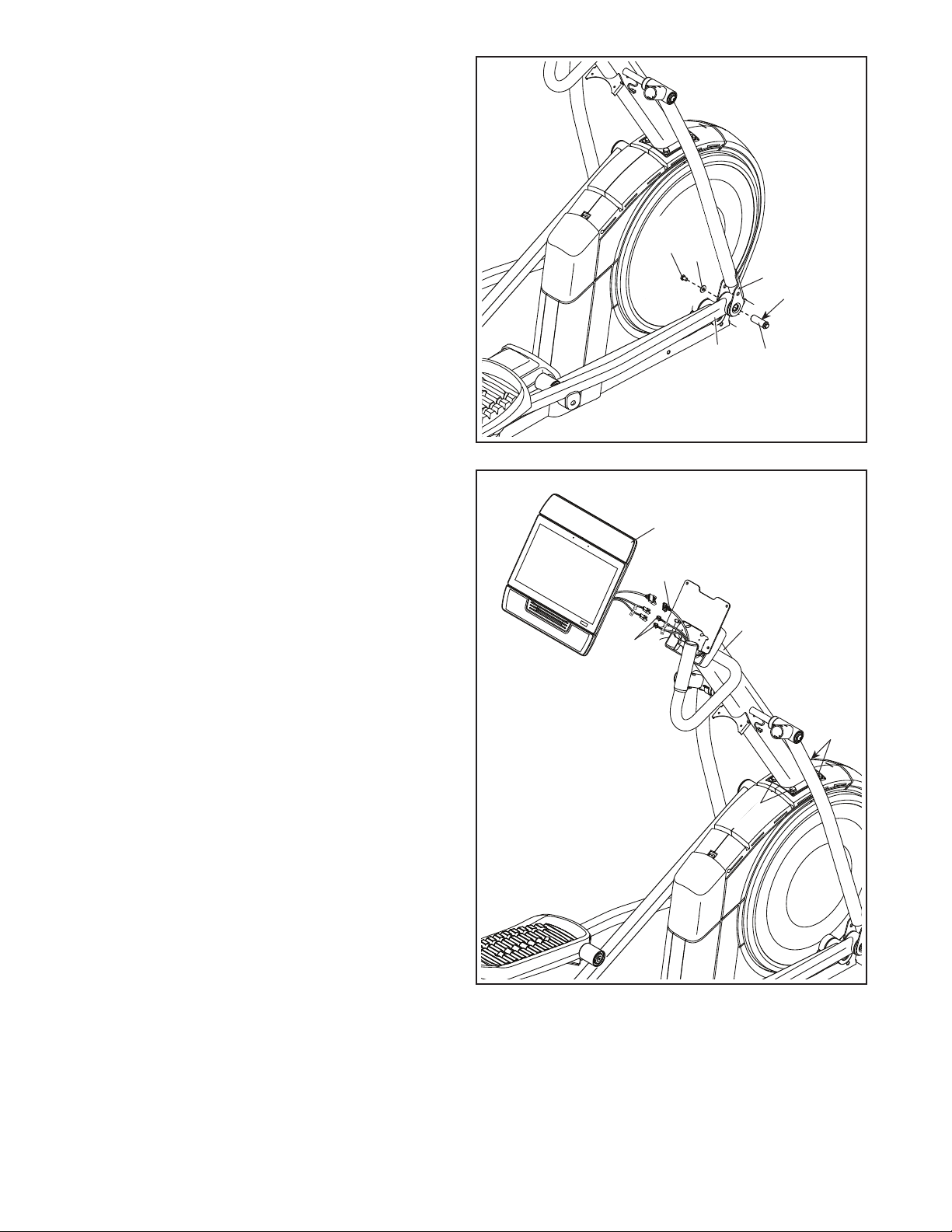

10. Apply grease to one of the Pedal Arm Axles (64).
Insert the Pedal Arm Axle (64) into the Right
Upper Body Leg (60) and the Right Pedal Arm
(58) from the direction shown.
Next, slide an M8 x 22mm Washer (129) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten the Pedal Arm Axle (64) and the
M8 x 13mm Screw (82) at the same time.
Repeat this step on the other side of the
elliptical.
82 129
60
64
Grease
58
4
110
111,
146
11. See step 7. Tighten the four M10 x 25mm
Screws (92).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110) and to the Left
Extension Wire (111) and the Right Extension
Wire (146). IMPORTANT: Make sure to con-
nect the wires as described previously.
Avoid pinching the wires. Insert the excess
wire into the Upright (4).
92
92

14
12
Avoid pinching
the wires
7
101
128

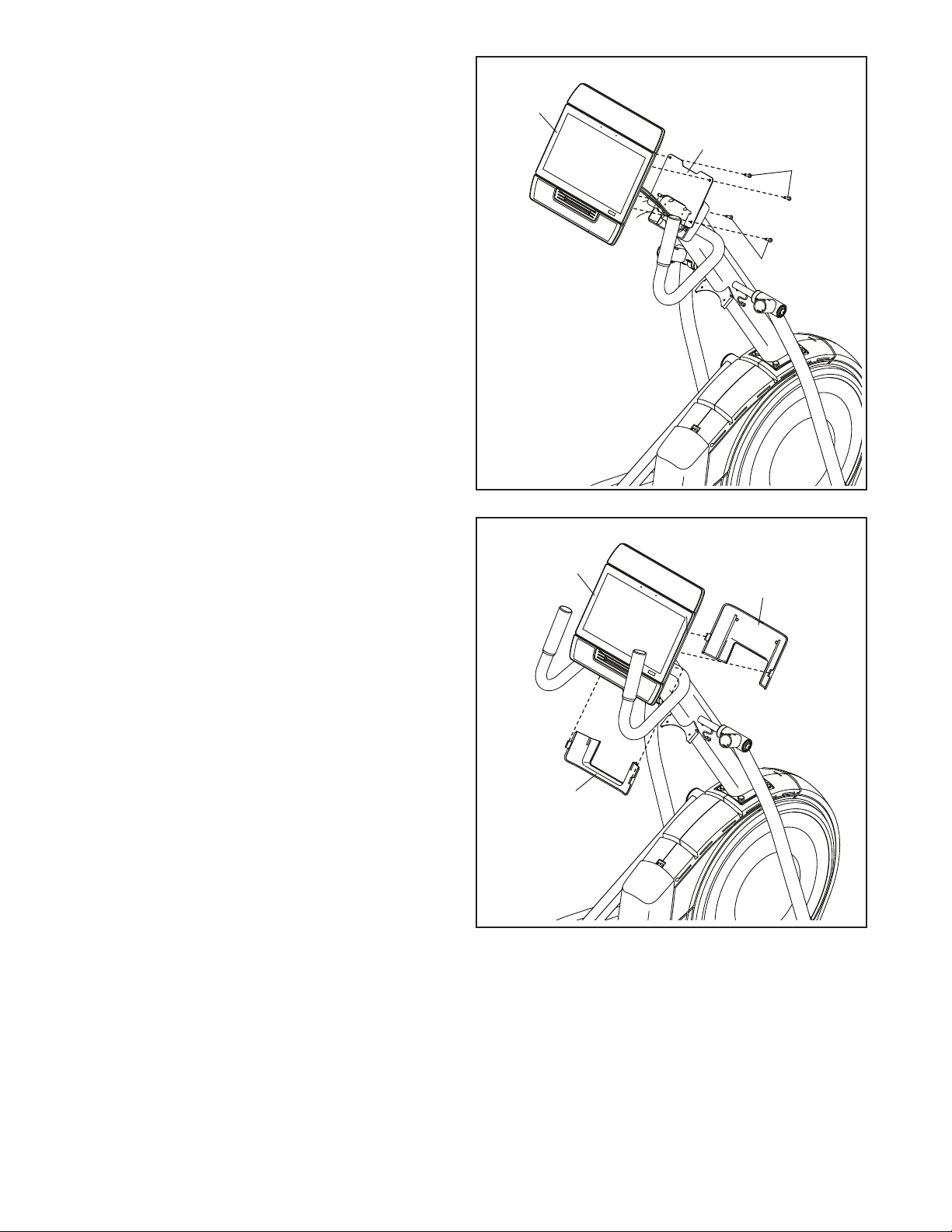

12. Insert the excess wire into the Upright (4).
Avoid pinching the wires. Attach the Console
(7) to the Console Bracket (128) with four
M4 x 16mm Screws (101); start all four
Screws, and then tighten them.
13
13. Orient the Lower Console Cover (152) as shown,
and snap it into the back of the Console (7).
Then, orient the Upper Console Cover (153)
as shown, and snap it into the back of the
Console (7).
153
152
7
101

15
14
14. Orient the Accessory Tray (37) as shown, and
attach it to the Upright (4) with two M4 x 16mm
Screws (101).
4
101
37
15
101
81
37
15. Make sure that the Right Control Wire (B) is
in the location shown.
Orient a Lower Tray Cover (81) as shown,
and hold it near the Right Control Wire (B).
Then, insert the Right Control Wire into
the notches (C) in the Lower Tray Cover as
shown in the inset drawing.
Avoid pinching the Right Control Wire (B).
Attach the Lower Tray Cover (81) to the right
side of the Accessory Tray (37) with two
M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
Avoid
pinching
the Right
Control
Wire (B)
B
C
B
C81

16
75
4
117
101
73, 74
17. Orient the Center Shield Cover (75) and the
Front Shield Cover (117) around the Upright (4)
as shown, and attach them to each other with
two M4 x 16mm Screws (101).
Avoid pinching the wires. Press the Front
Shield Cover (117) and the Center Shield Cover
(75) onto the Left and Right Shields (73, 74).
17
Avoid pinching
the wires
16
16. Identify the Right Upper Body Arm (61), orient it
as shown, and hold it near the Right Upper Body
Leg (60).
See the left inset drawing. Insert the Right
Extension Wire (146) into the Right Upper
Body Leg (60) and route it out of the indicated
hole (D).
Avoid pinching the Right Extension Wire
(146). Insert the Right Upper Body Arm (61) into
the Right Upper Body Leg (60). Attach the Right
Upper Body Arm with two M8 x 45mm Bolts (96)
and two M8 x16mm Washers (155).
See the right inset drawing. Connect the Right
Extension Wire (146) to the Right Control Wire
(B), and insert the excess wire into the Right
Upper Body Arm (61). IMPORTANT: For your
elliptical to function properly, make sure to
connect the wires as described previously.
Next, orient the Wires (B, 146) exactly as shown,
and attach a zip tie (133) around the Right Upper
Body Leg (60) in the location shown. Then, cut
off the excess zip tie.
Repeat this step for the Left Upper Body
Arm (47).
60
61
47
96
Avoid pinching
the wires
D
146
60
146
B146
133
61
60
155

17
19
65
60
101
66
19. See the inset drawing. Make sure that the Right
Control Wire (B) and the Right Extension Wire
(146) are in the exact positions shown.
Avoid pinching the wires. Orient the Right Arm
Front and Rear Covers (65, 66) around the Right
Upper Body Leg (60) as shown, and attach them
with two M4 x 16mm Screws (101). Make sure
to place the Extension Wire (146) in the indi-
cated area (E) of the Right Arm Rear Cover.
Repeat this step on the other side of the
elliptical.
18. Identify the Right Leg Inner Cover (83), orient it
as shown, and insert it through the Right Upper
Body Leg (60).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Attach the Right Leg Outer and Inner Covers
(69, 83) to each other with an M4 x 16mm
Screw (101).
Repeat this step on the other side of the
elliptical.
60
101
69
18
83
20. Make sure that all parts are properly tightened. Extra parts may be included. Place a mat beneath the
elliptical to protect the floor.
To register your product and activate your warranty today, go to my.nordictrack.com.
Avoid pinching
the wires
B146
E

18
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the power
cord (A) into
an appropriate
outlet (B) that is
properly installed
and grounded in
accordance with
all local codes and
ordinances. The
outlet must be
on a nominal 120-volt circuit.
A temporary
adapter (C) may
be used to con-
nect the power
cord to a 2-pole
receptacle (D)
as shown at the
right if a properly
grounded outlet is
not available.
The lug (E) or wire extending from the adapter must
be connected with a metal screw (F) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
B
A
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
D
C
E
F

19
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, mov-
ing it requires two persons. Take any necessary
measures to avoid damaging your floor. Stand in
front of the elliptical, hold the upright (G), and place
one foot against one of the wheels (H). Next, pull on
the upright and have a second person lift the handle (I)
until the elliptical will roll on the wheels. Carefully move
the elliptical to the desired location, and then lower it to
the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet (J) beneath the rear
stabilizer or turn the leveling foot (K) under the center
of the frame until the rocking motion is eliminated.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be
adjusted to several
positions. To adjust
each pedal, simply
pull the pedal handle
(L) outward, move the
pedal to the desired
position, and then
release the pedal
handle into an adjust-
ment hole beneath the
pedal. Make sure to
adjust both pedals to
the same position.
G
I
H
J
K
L

20
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (M) or
the upper body arms (N) and step onto the pedal (O)
that is in the lower position. Then, step onto the other
pedal. Push the pedals until they begin to move with
a continuous motion. Note: The pedals can turn in
either direction. It is recommended that you turn
the pedals in the direction shown by the arrow;
however, for variety, you can turn the pedals in the
opposite direction.
To dismount the elliptical, wait until the pedals (O)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the higher pedal first. Then, step off
the lower pedal.
M
N
O
