NordicTrack NTIVEX99414.0 User manual

USERʼS MANUAL
Visit our website
www.iconsupport.eu
Model No. NTIVEX99414.0
Serial No. : ___________
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
QUESTIONS ?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
Write the serial number in the
space above for reference.
Serial No Decal

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HOW TO MEASURE YOUR PULSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CONSOLE FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
EXERCISE GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Last page
WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is miss-
ing or illegible, call the telephone num-
ber on the front cover of this manual
and request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown
at actual size.
115 Kg
115 Kg
115 Kg
ENGLISH
115 Kg

3
IMPORTANT PRECAUTIONS
WARNING : To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your bike before using it. ICON assumes no
responsibility for personal injury or property damage sustained by or through the use of this
product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use this bike only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the bike are adequately
informed of all precautions.
4. The bike is intended for home use only.
Do not use the bike in a commercial,
rental, or institutional setting.
5. Keep the bike indoors, away from
moisture and dust. Place the bike on a
level surface, with a mat beneath it to protect
the oor or carpet. Make sure that there is at
least 3 ft. (0.9 m) of clearance in the front and
rear of the bike and 2 ft. (0.6 m) on each
side.
6. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
7. Keep children under age 12 and pets away
from the bike at all times.
8.The bike should not be used by persons
weighing more than 250 lbs. (115 kg).
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the bike. Always wear athletic
shoes for foot protection while exercising.
10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
bike.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
12. Keep your back straight while using the
bike; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for purchasing the NordicTrack® GX
Pro 10.0. The bike provides an array of features
designed to make your workouts at home more
effective and enjoyable.
For your benet, read this manual carefully be-
fore you use the bike. If you have questions after
reading this manual, please see the front cover of
this manual. To help us assist you, note the prod-
uct model
number and serial number before contacting us.
The model number is NTIVEX99414.0 and the lo-
cation of the serial number decal are shown on the
front cover of this manual.

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and re-
move the packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and
an adjustable wrench.

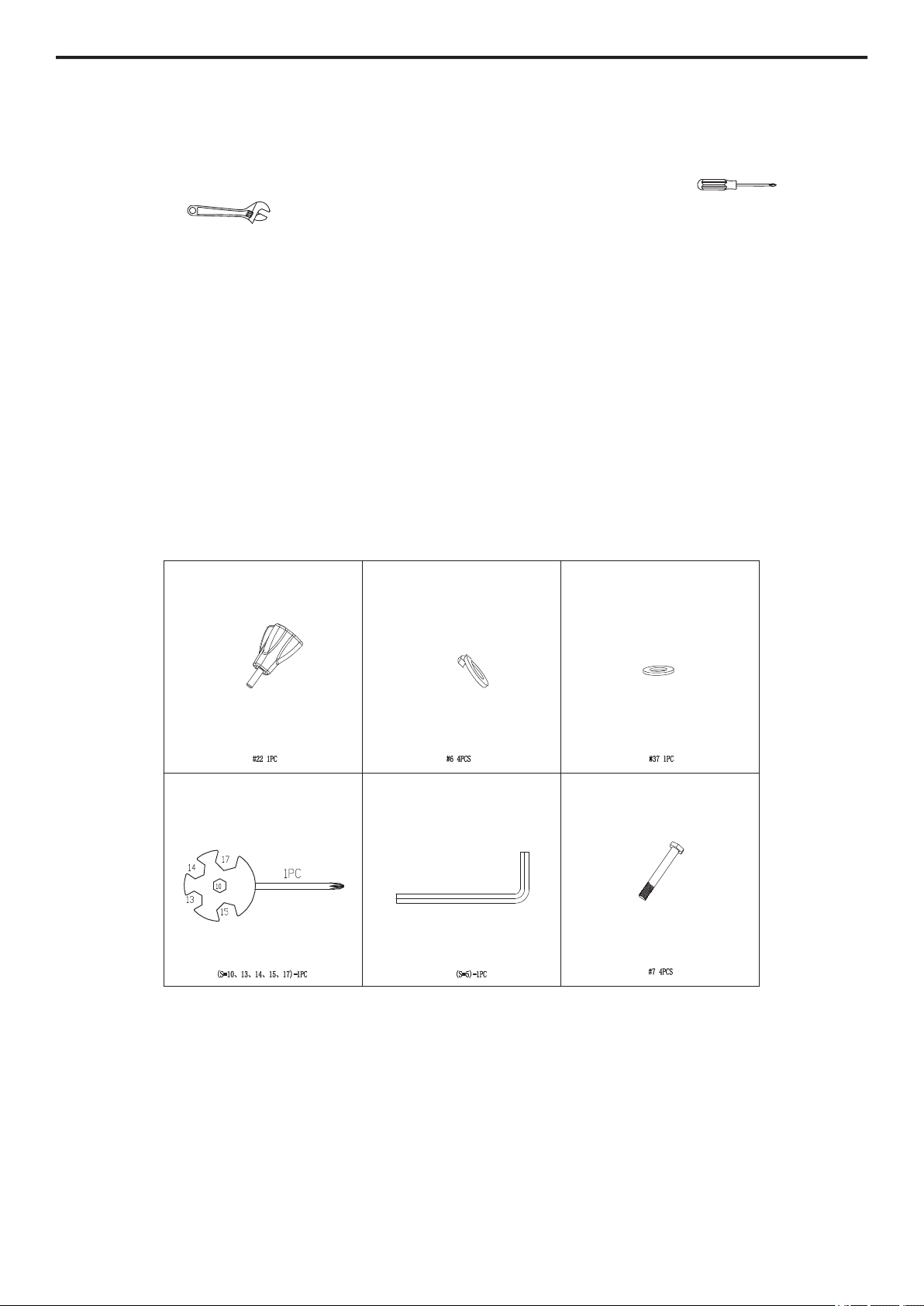

As you assemble the exercice bike, use the drawings below to identify small parts. The number in
parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly.
Note: If a part is not in the hardware kit, check to see if it has been preassembled.

6

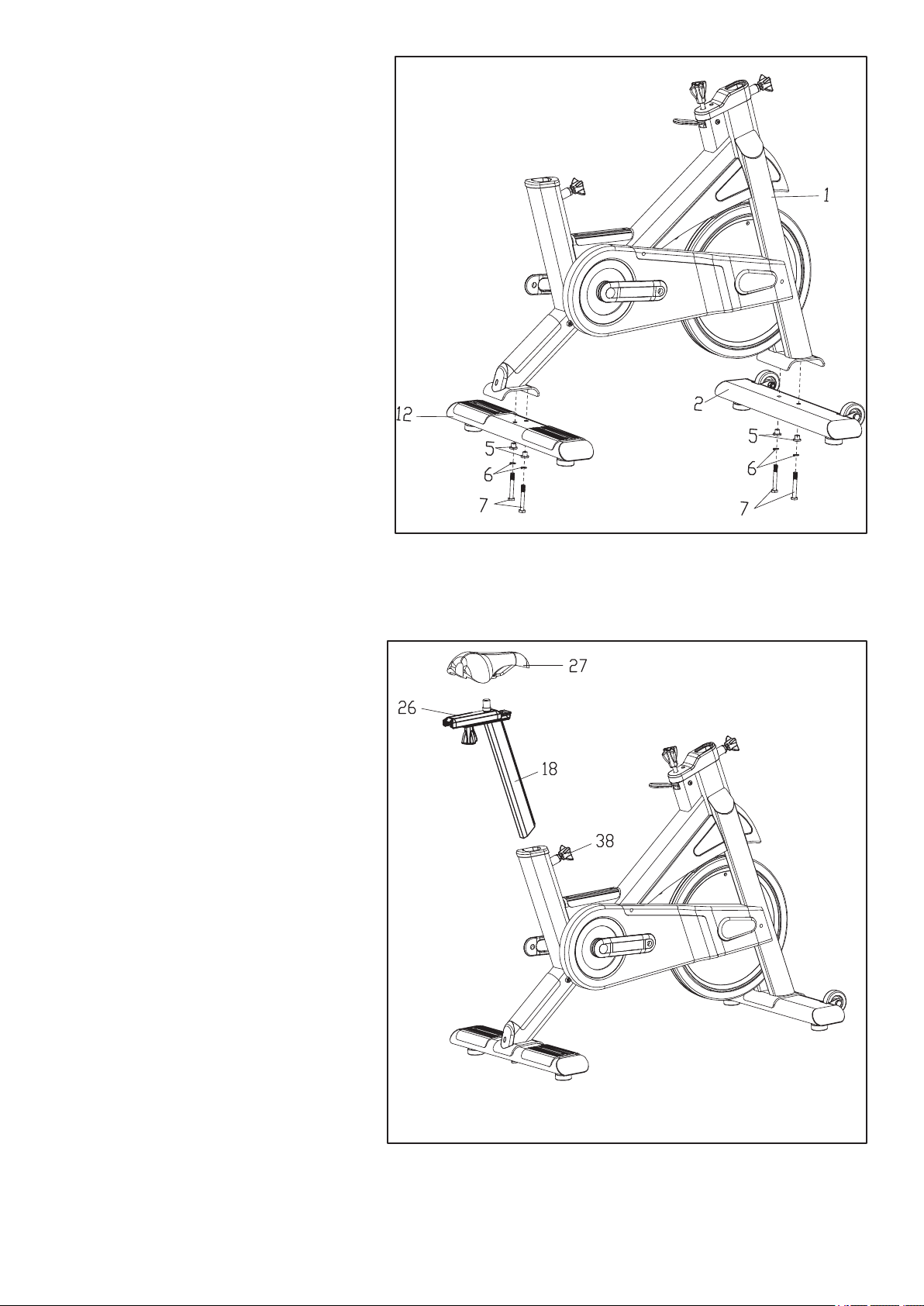

STEP 1
Attach the front stabilizer (2)
and rear stabilizer (12) onto
the main frame (1), secure
with the hex bolts (7), spring
washers (6) and spacer (5).
STEP 2
A. Fix the saddle (27) onto the seat
slider (26).
B. Insert the saddle post (18) into
the tube of main frame (1) properly, lock
adjustable knob 2 (38) tightly lastly.
Note: Make sure the saddle (27) has
been locked tightly before using.

7
STEP 3
A. Fix the handlebar post (31) to
the tube of the main frame (1) proper-
ly, lock the adjustable knob (16) tightly.
B. Attach the nut (23) to the han-
dlebar slider (33) with handlebar knob
(22) and at washer (37). Don’t lock it
tightly rstly.
C. Pull down cross screw (20),
end cap (19) and hex bolt (21). Then
slide handlebar slider onto the slider
of handlebar post (31), and adjust the
nut (23) to the proper position so that it
can slide into the groove of the handle-
bar slider (33). Adjust the handlebar
slider properly, and lock the adjustable
knob (22) tightly.
D. Fix hex bolt (21) to the handle-
bar post (31), and x end cap (19) to
the handlebar post (31) with cross
screw (20) as shown.
STEP 4
A. Attach the pedals (15L/R) to the
cranks (35L/R) of the main frame (1)
respectively. Make ensure the Pedals
are securely locked during exercise to
avoid any damage to the threads of
Pedals or Cranks.
Note: Both pedals are labeled L FOR
LEFT and R FOR RIGHT.
To tighten turn the Left pedal COUN-
TERCLOCKWISE and the Right pedal
CLOCKWISE.
B. Insert the Console bracket (44) to
the Handlebar assembly (34), then in-
sert the Console (60) to the Console
bracket(44).
Now, your machine is ready for use.

8
HOW TO ADJUST THE ANGLE OF THE SEAT
You can adjust the angle of the seat to the position
that is most comfortable. You can also slide the seat
forward or backward to increase your comfort or to
adjust the distance to the handlebar. To adjust the
seat, see the drawing in assembly step
7 on page 8. Loosen the nuts on the seat clamp a
few turns, and then tilt the seat upward or downward
or slide the seat forward or backward to the desired
position. Then, retighten the nuts.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SEAT
To adjust the horizontal
position of the seat, rst
loosen the adjustment
knob and pull it
downward. Then, move
the seat forward or
backward, release the
adjustment knob into
an adjustment hole in the seat carriage, and rmly
tighten the adjustment knob. Make sure that the
adjustment knob is engaged in an adjustment
hole.
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal,
there should be a slight
bend in your knees
when the pedals are in
the lowest position. To
adjust the height of the
seat post, rst loosen the
adjustment
knob and pull it outward.
Then, move the seat
post upward or downward, release the adjustment knob
into an adjustment hole in the seat post, and rmly
tighten the adjustment knob. Make sure that the
adjustment knob is engaged in an adjustment
hole.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE HANDLEBAR
To adjust the horizontal
position of the
handlebar, loosen
the handle, move the
handlebar forward or
backward to the desired
position, and then
tighten the handle.
Note: The handle functions like a ratchet. To loosen
the handle, turn the handle counterclockwise, pull
the handle outward, turn the handle clockwise,
push the handle inward, and then turn the handle
counterclockwise again. Reverse this process to
tighten the handle installed in accordance with all local
codes and ordinances.
HOW TO ADJUST THE HANDLEBAR POST
To adjust the
height of the
handlebar post,
rst loosen the
adjustment
knob and pull
it outward.
Then, move
the handlebar
post upward
or downward,
release the
adjustment knob
into an adjustment hole in the handlebar post, and
rmly tighten the adjustment knob.
Make sure that the adjustment knob is engaged in
an adjustment hole.
HOW TO USE THE EXERCISE BIKE
Adjustment
Knob
Handlebar
Post
Adjustment
Knob
Seat
Seat
Post
Adjustment
Knob
Handlebar
Handle

9
HOW TO ADJUST THE PEDAL STRAPS
To tighten the pedal straps (see the drawing on page
4), simply pull the ends of the pedal straps. To
loosen the pedal straps, press and hold the tabs on
the buckles, adjust the pedal straps to the desired
position, and then release the tabs.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the resistance of the pedals, turn
the resistance
knob clockwise;
to decrease the
resistance, turn the
resistance knob
counterclockwise.
To stop the
ywheel, push
the brake lever
downward. The
ywheel should
quickly come to a complete stop.
IMPORTANT: When the exercise bike is not in use,
tighten the resistance knob completely.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike rocks slightly on your oor during
use, turn one or both of the leveling feet on the front
or rear stabilizer (see the drawing on page 4) until the
rocking motion is eliminated.
HOW TO MAINTAIN THE EXERCISE BIKE
Inspect and tighten all parts of the exercise bike
regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
HOW TO ADJUST THE HANDLEBAR POST
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, see the drawing in assembly step 13 on
page 10.
Rotate the ywheel until the magnet is aligned with
the reed switch. Slide the reed switch slightly toward
or away from the magnet. Then, rotate the ywheel
for a moment. Repeat these actions until the console
displays correct feedback.
Brake
Lever
Resistance
Knob
Inspect and tighten all parts of the exercise bike
regularly.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap.
IMPORTANT: To avoid damage to the console,
keep liquids away from the console and keep the
console out of direct sunlight.
MAINTENANCE AND TROUBLESHOOTING

10
Measure your heart rate if desired.
You can measure you heart rate using the chest pulse
sensor.
When your pulse is detected, your heart rate will be
shown in the display. If your heart rate is not shown,
please read troubleshooting
Never use alcohol, abrasives, or chemicals
to clean the sensors.
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate monitor has two components: a chest
strap and a sensor unit (see the drawing below).
Insert the tab on one end of the chest strap into one
end of the sensor unit, as shown in the inset drawing.
Press the end of the sensor unit under the buckle on
the chest strap.
The tab should be ush with the front of the sensor
unit. Next, wrap the heart rate monitor around your
chest and attach the other end of the chest strap to
the sensor unit. Adjust the length of the chest strap, if
necessary. The heart rate monitor should be under
your clothes, tight against your skin, and as
high under the pectoral muscles or breasts as is
comfortable. Make sure that the logo on the sensor
unit is facing forward and is rightside-up.
Pull the sensor unit away from your body a few
centimeters and locate the two electrode areas on
the inner side (the electrode areas are covered by
shallow ridges). Using saline solution such as saliva
or contact lens solution, wet both electrode areas.
Return the sensor unit to a position against your
chest.
CARE AND MAINTENANCE
• Dry the heart rate monitor after each use. The heart
rate monitor is activated when you wet the electrode
areas and put on the heart rate monitor; the heart
rate monitor shuts off when it is removed and the
electrode areas are dried. If the heart rate monitor is
not dried after each use, the battery may be drained
prematurely.
• Store the heart rate monitor in a warm, dry place.
Do not store the heart rate monitor in a plastic bag
or other container that may trap moisture.
• Do not expose the heart rate monitor to direct
sunlight for extended periods of time or to
temperatures above 122° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the heart rate monitor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. Hand wash
and air dry the heart rate monitor.
TROUBLESHOOTING
If the heart rate monitor does not function properly,
try the suggestions below.
• Make sure that you are wearing the heart rate
monitor as described at the left. Note: If the heart rate
monitor does not function when positioned as
described, move it slightly lower or higher on your
chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sensor
unit. If heart rate readings do not appear until you
begin perspiring, re-wet the electrode areas.
• Position yourself near the console. For the console
to display heart rate readings.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical
conditions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that this
is a problem, try relocating the bike.
HOW TO USE THE HEART RATE MONITOR
Tab
Sensor Unit
Chest Strap
Tab
Sensor
Unit Buckle

11

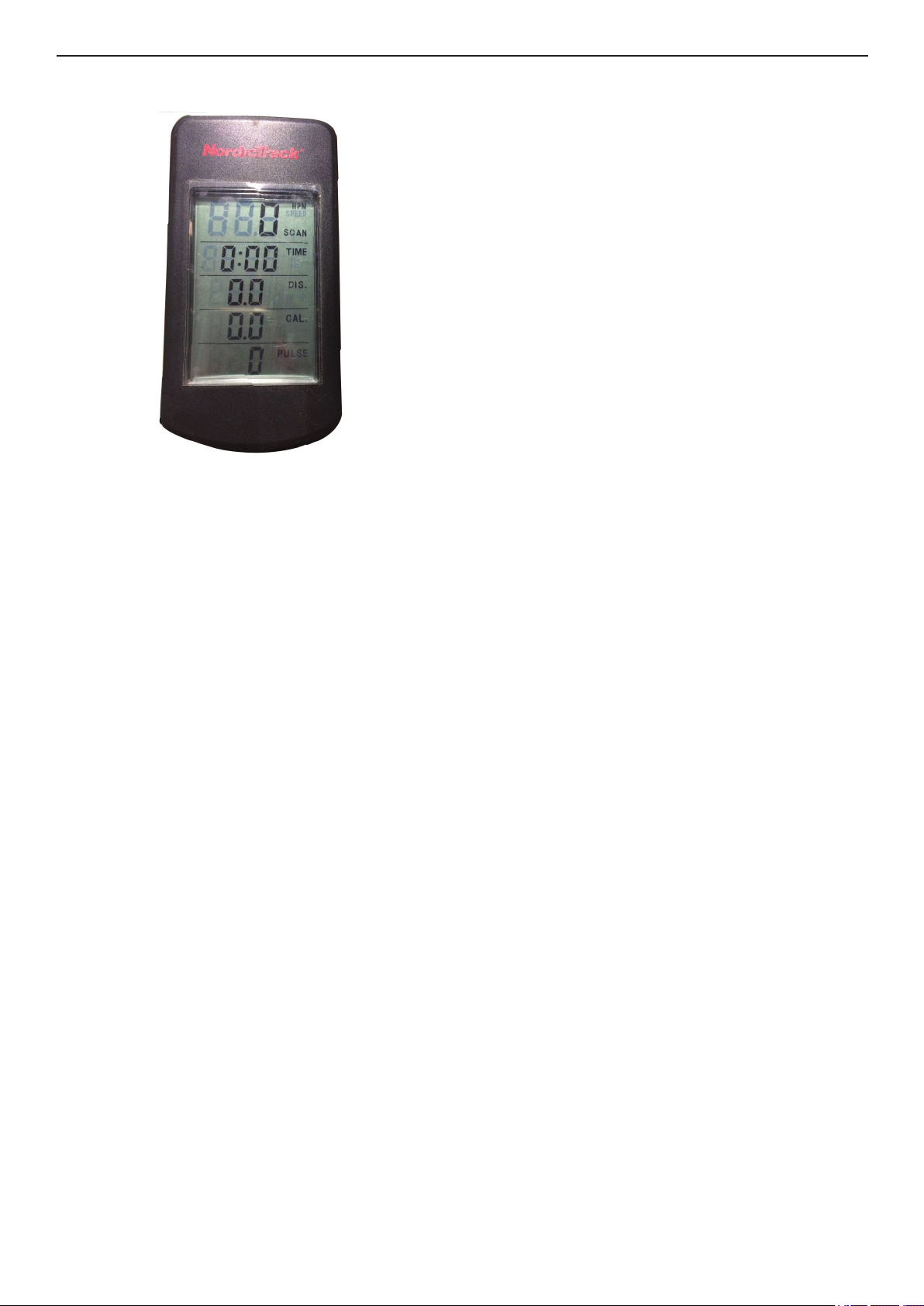

The console offers a selection of features designed
to provide instant exercise feedback and make your
workouts more effective.
Before using the console, make sure that batteries
are installed in the console and the transmitter (see
assembly step 10 on page 9 and assembly step
12 on page 10). If there is a sheet of plastic on the
display, remove the plastic.
Follow your progress with the display.
The console has seven displays that show the
following workout information:
RPM—This display shows your pedaling speed,
in revolution per minute (rpm) or in (Km/h) and
switch to another display every 6 seconds.
TIME—This display shows the elapsed time.
Note: When a smart program is selected, the display
will show the time remaining in the program
instead of the elapsed time.
DISTANCE—This display shows the distance you
have pedaled, in total revolutions.
CALORIES—This display shows the approximate
number of calories you have burned.
PULSE—This display shows your heart rate when
you use the handgrip pulse sensor.
HOW TO USE THE CONSOLE
Make sure that the product is correctly plug (see
page MAINTENANCE AND TROUBLESHOOTING).
If there is a sheet of clear plastic on the face of the
console, remove it.
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.
2. Press the buttons :
SET :
Press this button to set up the value of Time,
Distance, Calories and Pulse. You can hold the button
to increase the value faster. (The computer need to
be in a stop condition).
MODE :
Press this button to conrm all settings and or to
switch from one value to another one.
RECOVERY :
Press this button to activate the recovery test.
3. Start pedaling and follow your progress with
the display :
While you exercise, the console will display the
selected mode.
4. When you are nished exercising, the console
will automatically turn off.
The console has an “auto-off” feature. If the pedals
do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.
How to use the Pulse Recovery Test :
It is a function to check the condition of pulse
recovery that is scaled from F1 to F6 while F1
means the best and F6 means the worst. In order to
get rated correctly, users must test it right after the
workout nished by pressing “TEST(RECOVERY)
” key and then stop exercising. After the key is
pressed, please also apply the heart rate detector
appropriately, the test will last for 1 minute and
the result will show in the display. If the computer
does not detect your current heart rate, pressing
“TEST(RECOVERY) ” will not enter into pulse
recovery test. During the pulse recovery test, press
“TEST(RECOVERY) ” to exit the test and return to
the stop status.
Warning : These Data do not have any medical
value. This test can only give a rough idea of
your changing shape after exercise.
HOW TO PERSONALIZE CONSOLE SETTINGS
1. Turn on the console.
CONSOLE FEATURES

12
Press any button to turn on the console.
2. Set a goal if desired.
When the console is on, press the mode button until
ashing the function you want to set up.
Press the Set button until you reach the value you want to
target during your workout.
Press again the MODE Button, if you want to add another
target.
3. Start to workout.
The console displays the elapsed time and the distance
you’ve pedaled.
4. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM or Km/h), the calories you’ve burnt and
also your heart rate when you use the chest belt sensor.
5. Measure your heart rate if desired.
see HOW TO MEASURE YOUR HEART RATE page 10
6. When you are nished exercising, the console will
automatically turn to sleeping mode
If the pedals do not move for a few seconds, the console
will turn to sleeping mode. If the pedals do not move and
the console buttons are not pressed for a few minutes
then the console will automatically turn off.

13
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device. Vari-
ous factors may affect the accuracy of heart
rate readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper in-
tensity is the key to achieving results. You can use
your heart rate as a guide to nd the proper intensity
level. The chart below shows recommended heart
rates for fat burning and aerobic exercise.
To nd the proper intensity level, nd your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age dene your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is
the heart rate for maximum fat burning, and the high-
est number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the rst few minutes of exercise, your
body uses carbohydrate calories for energy. Only af-
ter the rst few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training one. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in prepara-
tion for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
he rst few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as
you exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the exibility of your
muscles and helps to prevent post-exercise prob-
lems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular ex-
ercise, you may complete up to ve workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.

14
EXPLODED DRAWING—Model No. NTIVEX99414.0 Part 1

15
EXPLODED DRAWING—Model No. NTIVEX99414.0 Part 2

16
PART LIST—Model No. NTIVEX99414.0
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Description
Main frame
Front stabilizer
Hex nut M10
Adjustable pad
Spacer
Spring washer D8
Hex bolt M8X70
Nylon nut M10
Flat washer D10×Φ20×2
Transport wheels
Hex bolt M10×45
Rear stabilizer
Footrest plate
Cross screw M4×12
Pedal
Adjustable knob
Seat post bushing
Saddle post
End cap
Cross screw M4x10
Hex bolt M6X10
Handlebar knob
Nut
End cap 1
End cap 2
Saddle slider
Saddle
Bushing
Plastic cover
Guide bushing
Handlebar post
Brake bolt
Handlebar slider
Handlebar assembly
Crank
Hex bolt M8X15
Flat washer D8×Φ20×2
Adjustable knob 2
Footrest plate
Screw M5x10
EVA cushion
Spring
Square nut
Console bracket
Top brake block
Nylon nut
Spring washer D5
Brake block
Brake spring plate
EVA cushion
Hex screw M5X15
Cattle hide
Qty.
1
1
1
4
4
4
4
2
3
2
2
1
2
6
2
1
1
1
4
16
2
2
2
2
2
1
1
1.
1
1
1
1
1
1
2
2
2
1
1
1
1
1
1
1
1
1
4
1
1
1
3
1
Item
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
Description
Cross screw M5X16
Cross screw m5X20
Plastic washer
Brake plastic spacer
Inner hex pan pin
Screw M6x10
Brake handlebar
Console
Screw M5x10
Connection strap
Bolt M8×15
Crank seal-capping
Flange nut M14×1.5
Bolt M8×18
Middle axle protective guard
Thin nut M25x1.5
Flat washer Φ25×Φ32×2
Bearing
Bushing
Middle axle
Non-slip mat
Rear cover
Screw ST4.2×18
Inner chain cover
Chain cover
Decorative cover
plastic nail
Upper protective guard
Fixed block
Left protective guard
Hex bolt M6×50
Hex nut M6
Flange nut M10×1
Big washer D10×Φ26×3
Flywheel spacer 1
Flywheel spacer 2
Bearing
Cross pan screw ST4×10
Flywheel fender apron
Flywheel
Flywheel bushing
Wheel gear
Nut
Flywheel axle
Chain
Protective guard
Round magnet
Sensor bracket
Sensor
Ribbon
Flat washer D8×Φ19×2
Qty.
1
1
1
1
1
1
1
1
7
1
2
2
2
2
1
1
1
2
1
1
1
1
5
1
1
1
6
1
1
1
2
2
2
2
1
1
2
6
2
1
1
1
2
1
1
1
1
1
1
2
4

ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
IMPORTANT RECYCLING INFORMATION FOR E. U. CUSTOMERS
This electronic product must not be disposed of in municipal waste. To preserve
the environment, this product must be recycled after its useful life as required by
law. Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information about
safe and correct disposal methods, please contact your local city ofce or the
establishment where you purchased this product.
SPECIFICATION :
Open Dimension : (L x l x h): 120.5 x 25.5 x 105 cm
Product Weight : 70 Kg
Printed in China © 2014 Icon Health & Fitness, Inc.
Ref: M01118
