Users Manual
NorSap 1000
March 3, 2011 1:47 PM
This user manual contains the following models:
6000 NorSap 1000 Standard H900
6000HV NorSap 1000 Standard Yacht White H900
6000SO NorSap 1000 Standard Yacht Black H900
6005 NorSap 1000 Standard H380 without foot rest
6010 NorSap 1000 Comfort H710-960
6010HV NorSap 1000 Comfort Yacht White H710-960
6010SO NorSap 1000 Comfort Yacht Black H710-960
6015 NorSap 1000 Oce Standard H900
6016 NorSap 1000 Oce Standard without foot rest
6020 NorSap 1000 Comfort H630-770
6020HV NorSap 1000 Comfort Yacht White H630-770
6020SO NorSap 1000 Comfort Yacht Black H630-770
6025 NorSap 1000 Oce Comfort
6027 NorSap 1000 Oce Comfort

norsap.com
norsap.com
Page 2 of 14
Table of contents
Introduction 2
Functions of the NorSap 1000 chair 3
Replacing seat pillows 4
Replacing armrests 4
Securing additional seat cover 5
Care and maintenance of leather 5
Care and maintenance of fabric 5
Mounting holes measurements 6
Mounting on a deck rail 6
Cabling of extra equipment in armrests 7
Detailed Part lists 8
R-0009 NorSap1000 seat top part list 8
DEL-2011 - Square top 9
Columns for NorSap 1000 series 10
Foot rest 11
Maintenance of moving parts 12
Safety 12
Shipping and storage specications 12
Introduction
Congratulations with your purchase of a NorSap chair and thank you for your condence in our company prod-
ucts. NorSap is among the leading producers of helmsmen and operator seats for the maritime market.
This manual will assist you in making the best use of the functional capabilities of the NorSap chair and will
ensure you will quickly become familiar with its use. If you have any questions regarding the safe and eective
operation of you NorSap chair or accessories after reading this manual, immediately contact our head oce
marketing department for further assistance.
NorSap AS
Mjåvannsveien 35
NO-4626 Kristiansand
NORWAY
Telephone
[phone]
Telefax
[phone]
E-mail
[email protected]om
Web
norsap.com

norsap.com Page 3 of 14
norsap.com
norsap.com

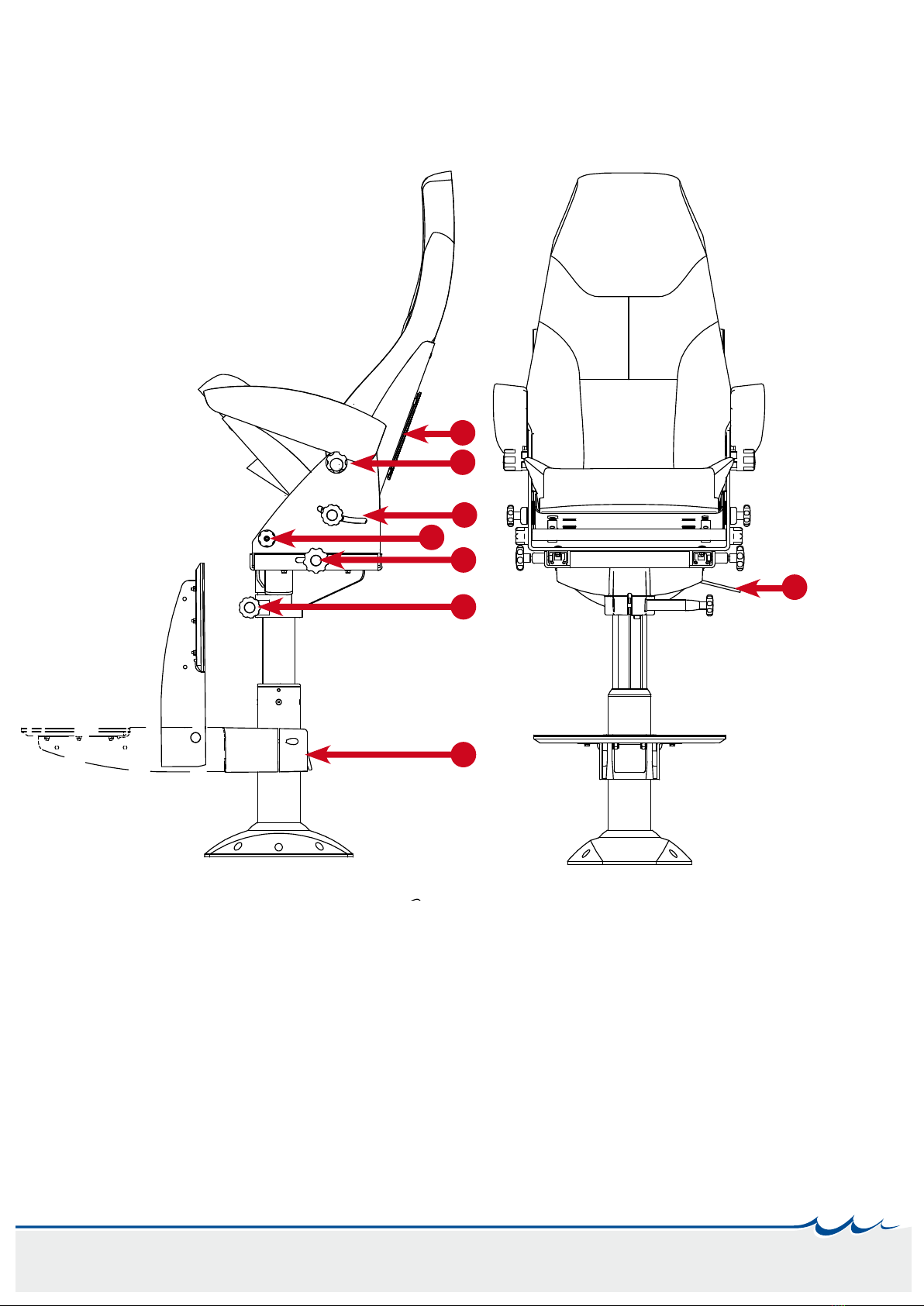

1. Packing net on backside of chair (This document should be stored here)
2. Eccentric adjustment of armrest angle (Armrests can be tilted to an upright position)
3. Back rest adjustment release/tighteners
4. Seat angle adjustment (Seat can be tilted to an upright position)
5. Seat forward/aft adjustment
6. Swivel/turn release of chair top
7. Foot rest height adjustment release (Foot rest can be tilted to an upright position)
8. Column height adjustment gas strut release (Not applicable in all models)
Functions of the NorSap 1000 chair
2
4
1
8
3
5
7
6

norsap.com
norsap.com
Page 4 of 14
Replacing seat pillows
If your upholstery is damaged or worn, its recommended to replace the whole part.
To re-t new leather (or other fabric) on existing cushions is not recommended.
If the chair is intended to be used under extreme conditions, an additional seat cover is advised.
This comes in two dierent materials, water repellent and fabric.
Item Name Item No.
Seat cover in fabric 6050
Seat cover in water repellent 6041
Seat cover in leather 6052

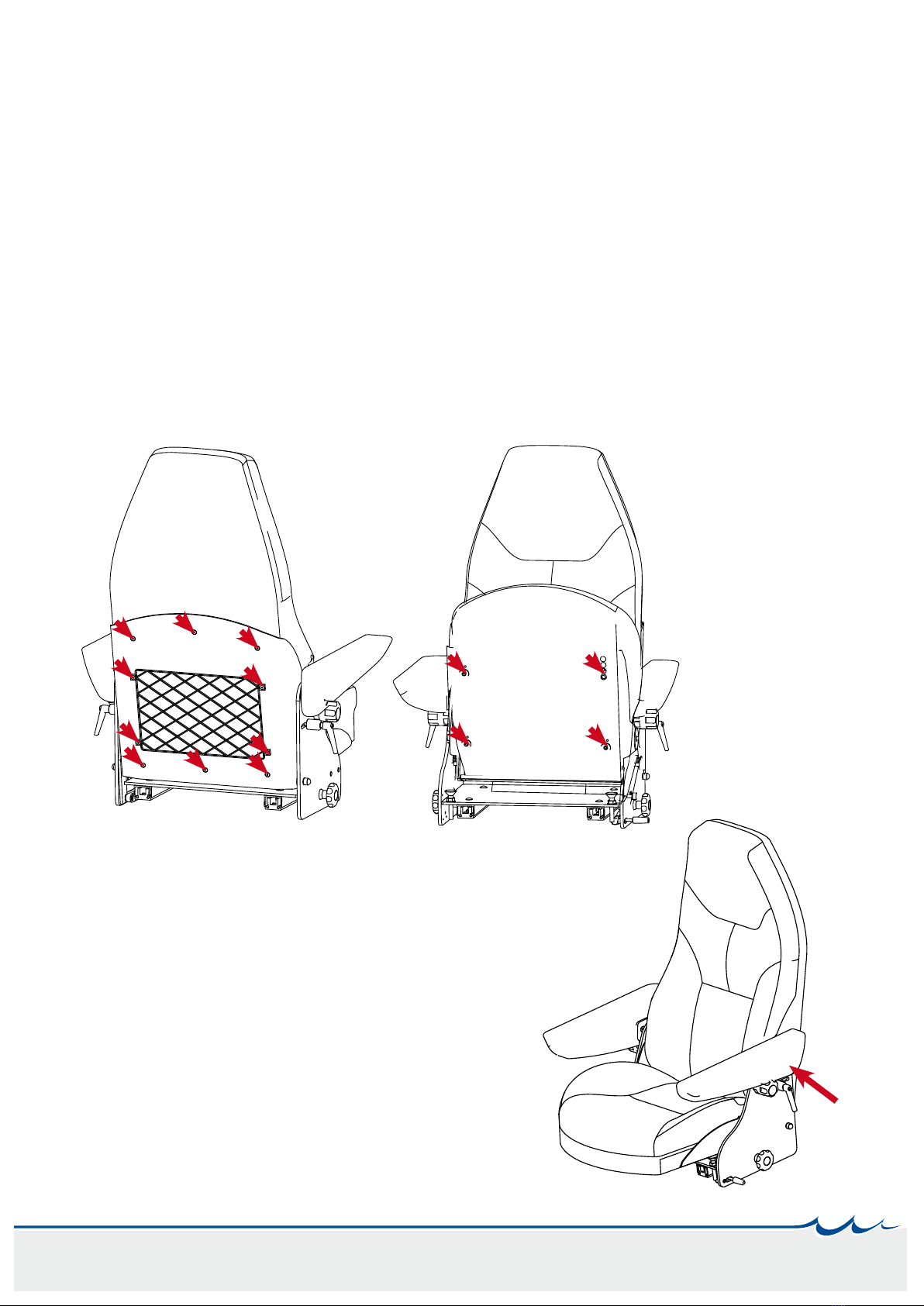

To replace the back rest cushion, unscrew the 10 marked wood-screws on the illustration below.
Replace the cushion with the new one, re-mount the cushion with the wood-screws.
To replace the seat rest cushion, ip up the seat and unscrew the 4 marked wood-screws on the illustration
below. Replace the cushion with the new one, re-mount the cushion with the wood-screws.
Replacing armrests
To replace the armrest, unzip the arm rest cover and fold it up until you gain
access to the two bolts holding the armrest in place. Unscrew the bolts and dis-
mount the old armrest then place the new armrest and tighten the bolts again.
Item Name Item No.
NorSap 1000 Armrest in black leather Left 6051V
NorSap 1000 Armrest in black leather Right 6051H
NorSap 1000 Armrest cover in fabric (set) 6050
NorSap 1000 Armrest cover in leather (set) 6041
illustration shows a NorSap 1500
illustration shows a NorSap 1500

norsap.com Page 5 of 14
norsap.com
norsap.com

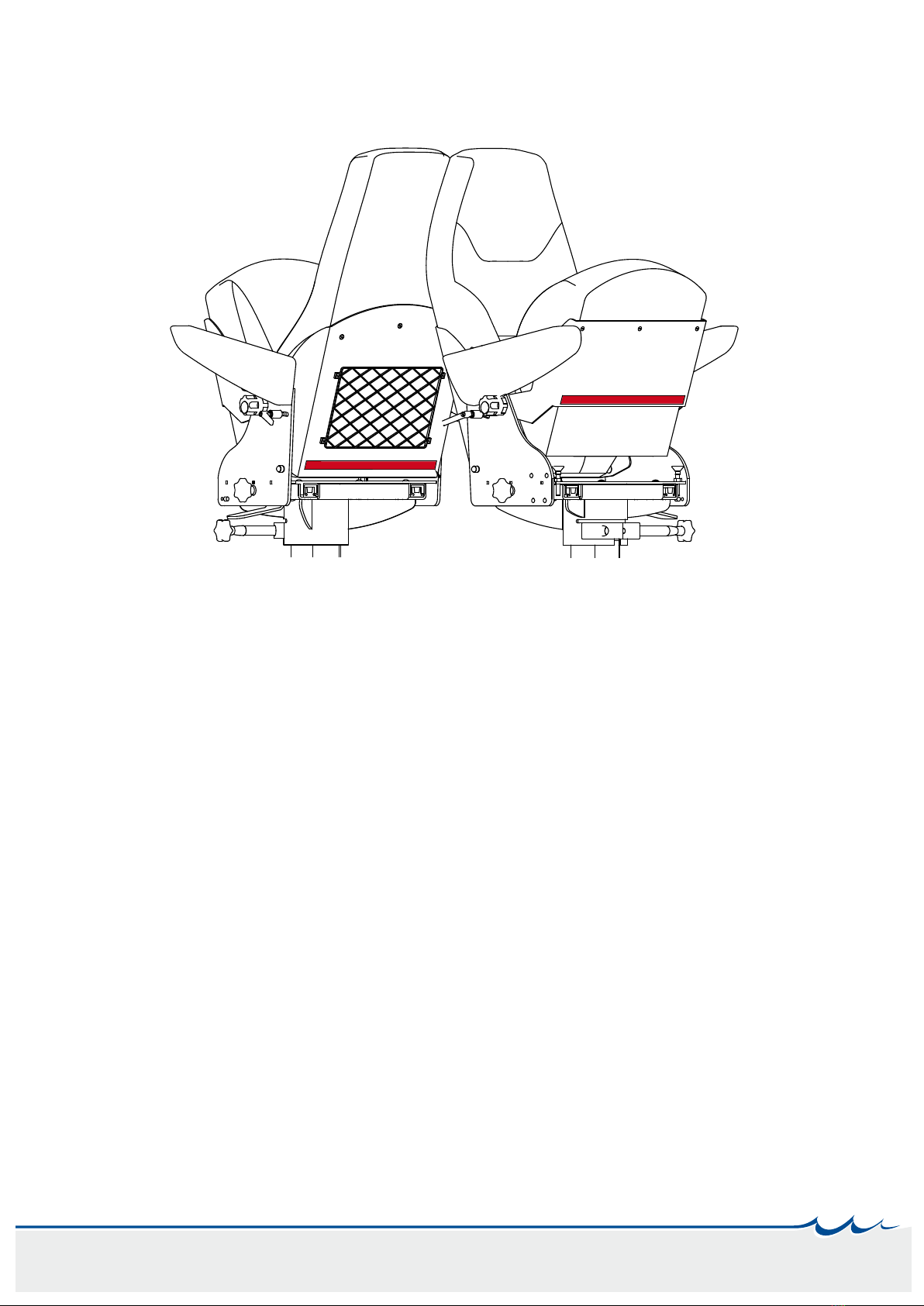

Securing additional seat cover
To secure seat cover, place Velcro tape on the lower back rest and underneath the seat as illustrated below.
Care and maintenance of leather
Most leather qualities have originally received one or another type of surface protection treatment. When
the furniture is taken in use, grease from hand and neck will be in contact with the leather on a regular basis.
Without proper cleaning the leather will over a period of time leave grease spots or discoloration’s. To avoid this
clean with Soft Cleaner on a regular basis, we advise once a month. Use Leather Protection Cream or a leather
cream with impregnation 2-4 times a year. This will protect against spots, increase wear resistance and preserve
the leathers softness. By following these instructions you will ensure a long and lasting leather quality.
Avoid direct sunlight over a longer period of time.
Do not place a heat source within a distance of 20-30 cm.
Remove dust or vacuum, use Soft Cleaner once a month.
Contact us or an authorized leather producer or furniture dealer for more cleaning medium or
for further cleaning details.
Preferred supplier of cleaning medium is: Leather Master AS - 6220 Straumgjerde - NORWAY -
Tel [phone] - Fax [phone] - www.leathermaster.no - [e-mail]
Care and maintenance of fabric
Remove dust or vacuum, use a neutral cleaning agent, such as soapy water when needed.
illustration shows a NorSap 1500

norsap.com
norsap.com
Page 6 of 14

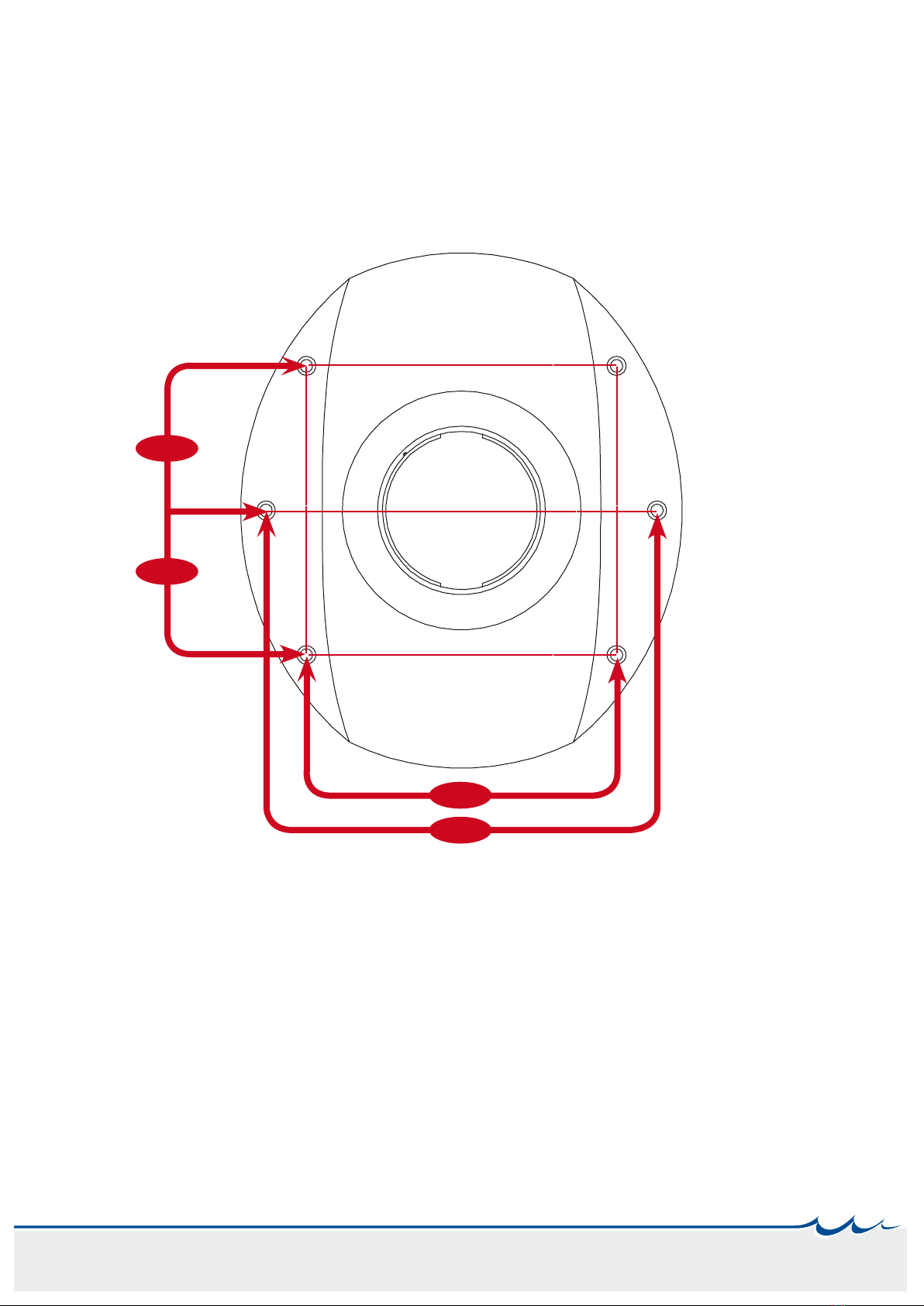

Mounting holes measurements
A strong and level foundation is required to secure the installation of the base.
It may occur that during storage or transport that the telescope column fastens in the lower position. This can
easily be adjusted by fastening the lockable arm for swing, lift up the release handle at the same time pull up
the chair. Use six(6) M-Ø6 bolts to mount the pedestal.
Mounting on a deck rail
First make sure to have mounted the deck rail according to its user manual.
The bolts for mounting the chair to the deck rail is already in place on the carrier wagon.
• If you have an electrical deck rail and the cabling of the switch is done by quick-connections already imple-
mented in the chairs column.
• If you have a manual deck rail with release from seated position, the mounting of the release lever is shown
in the deck rails user manual.
• If you have a basic deck rail, the wiring and mounting of the release lever is shown in the deck rails user
manual.
96mm
96mm
206
264

norsap.com Page 7 of 14
norsap.com
norsap.com

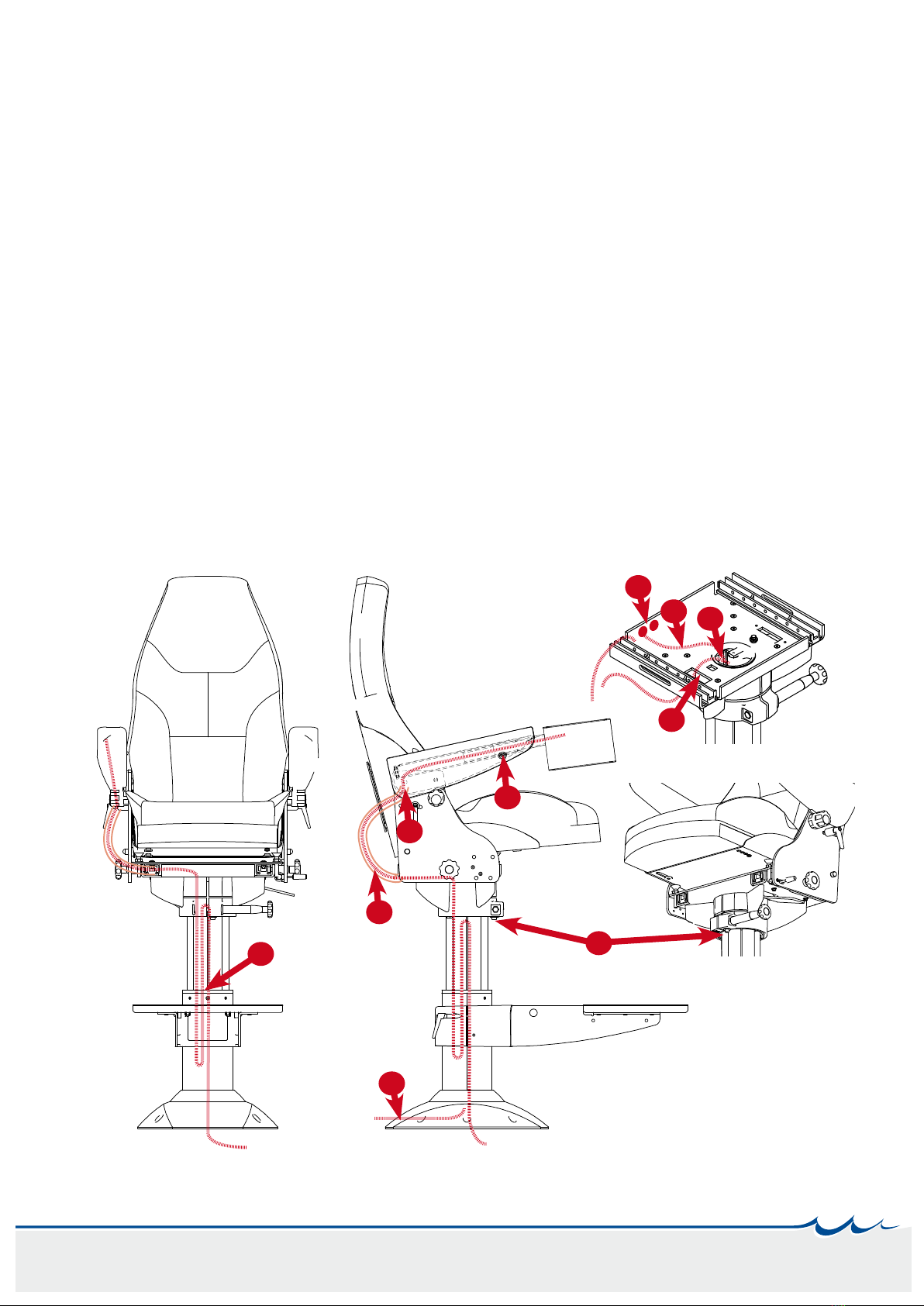

Cabling of extra equipment in armrests
The diagram below shows how to cable the wires thru the chair and column.
Receiving the chair prepped for additional equipment in the armrests,
the wiring of your equipment should follow these steps.
1. Release the hand wheel (pos 1) holding the equipment holder in place.
2. Mount your equipment, making sure the cable is going thru the pipe.
3. Pull the cables out from underneath the arm rest (pos 2), open the zipper to gain access.
4. Use a exible cable channel (pos 3) to secure the cables
going from the armrest all the way to the column top. Leave enough play for chair adjustments.
5. Either use existing holes underneath the square top of the column (pos 6) or
drill new holes corresponding with the size of the cables / cable channel (pos 5).
6. Place the cables thru the column top. Make sure to have enough play of the cables to
compensate adjustments of the seat, swivel (see # 10) and height (pos 4).
7. Find a suitable place to strip tight the cables (pos 8).
8. The cable is connected to further wiring solutions from under the pedestal.
If mounted on a deck rail, please view the deck rails user manual for further info.
9. If needed, you may drill a hole in the pedestal for extraction of the cable and
pull the cables through a designated hole in the lower part of the column. (pos 9)
10. To avoid breakage of cables/wires within the column, a 360° swivel restriction needs to be applied.
Place an B415-M8x16 bolt (pos 10) with a B480-M8 washer.
1
3
6
7
5
9
8
2
410
illustration shows a NorSap 1500 chair

norsap.com
norsap.com
Page 8 of 14

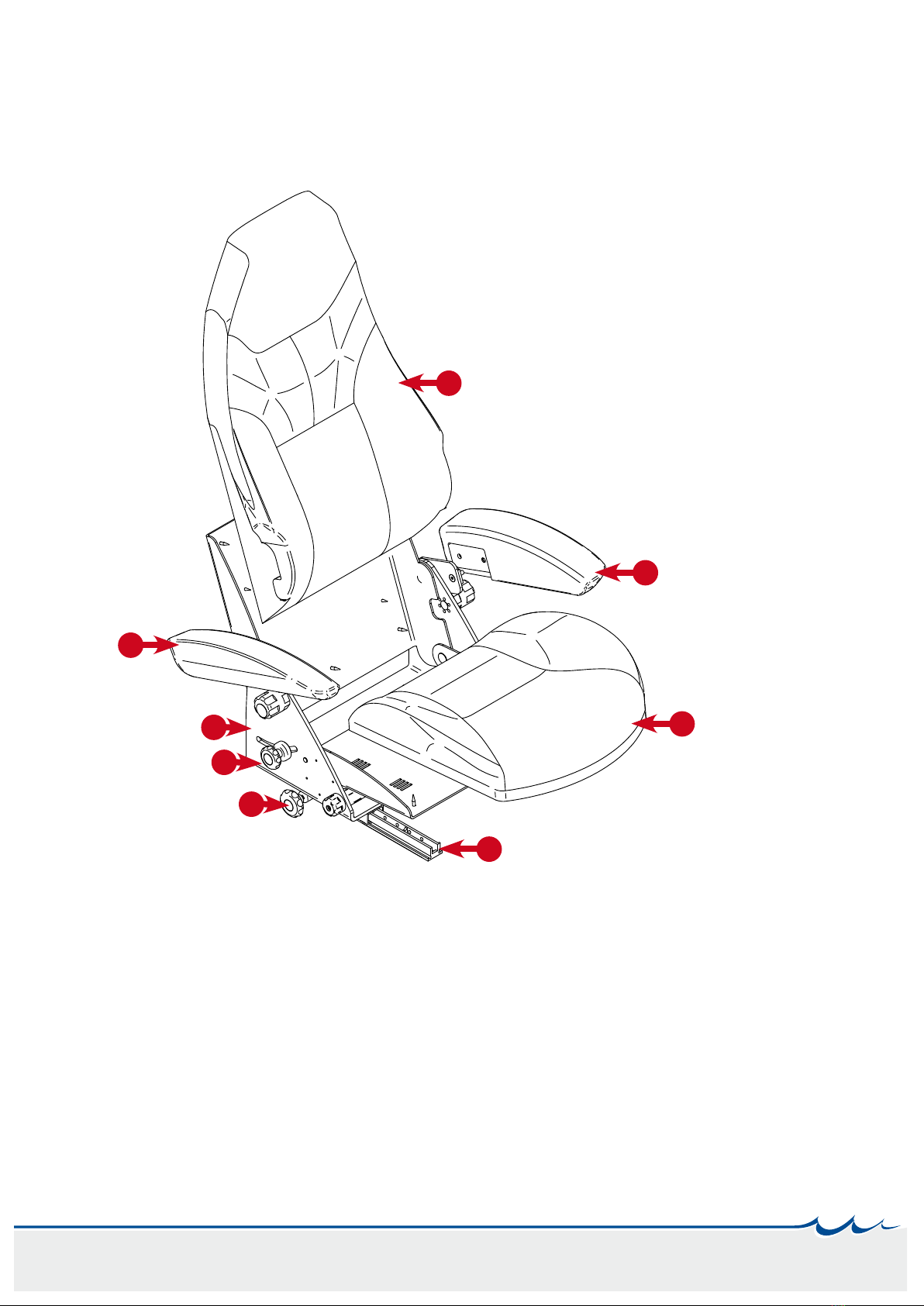

Detailed Part lists
R-0009 NorSap1000 seat top part list
1
7
8
3
2
4
5
6
Pos. Qty Item Name Item No. Rev. Details
1 1 SEAT FRAME ASSEMBLY FOR NS1000 DEL-084 A-10
2 1 ARMREST NS1000 LEFT SIDE DEL-144V
3 1 ARMREST NS1000 RIGHT SIDE DEL-144H
4 1 SEAT REST NS1000 PUTE-004
5 1 BACK REST NS1000 PUTE-003
6 2 GLIDE RAIL PLASTIC MP156 0-4
7 2 HAND WHEEL FOR BACK REST ADJ. RATT-028
8 2 HAND WHEEL FOR SEAT ADJ. RATT-030

norsap.com Page 9 of 14
norsap.com
norsap.com
Pos. Qty Item Name Item No. Rev. Details
7 1 Machined column top SAP-7158 02
8 1 Hex machine screw M10x220 B310-M10x200 02
9 1 Cylinder support SAP-8042 01
10 1 Spacer shell SAP-5096 01
11 1 Shell MP161 01
12 1 Hand wheel RATT-028 01
7
1
8
2
9
3
10
4
11
5
12
6
7

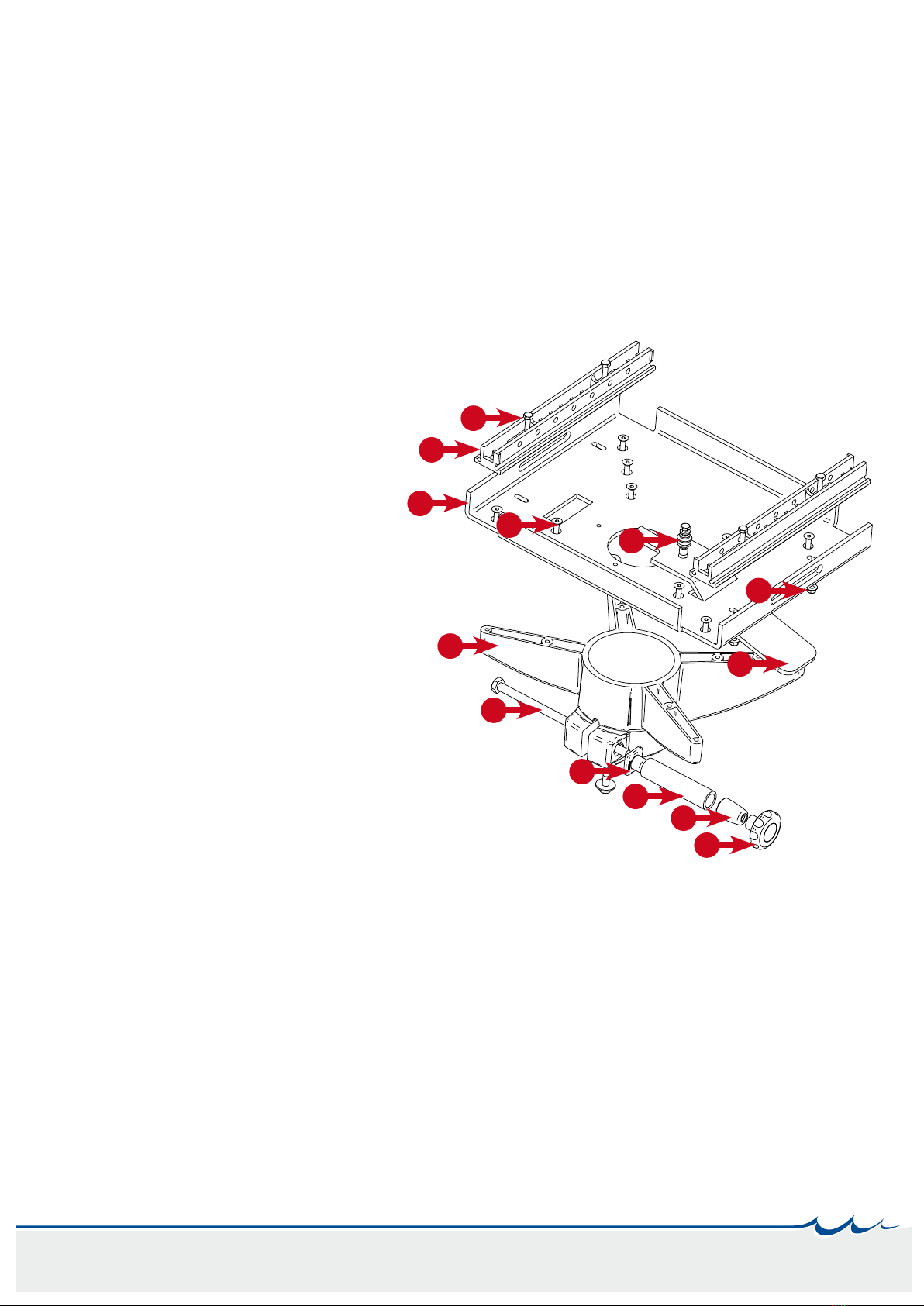

DEL-2011 - Square top
Detailed view of the square top mounted on the column
Pos. Qty Item Name Item No. Rev. Details
1 4 Hex machine screw M6x20 B411-M6X20 04
2 2 Glider PVC MP156 01
3 2 Washer M6 B481-M6
1 Washer L M6 B480-M6
1 Spacer shell SAP-0054 01
1 Washer soft PVC B783-M6
4 1 Machined square top SAP-7040 01
5 4 Nut ‘Selock’ M6 B463-M6
6 1 Release handle SAP-0091 02
7 10 Unbraco countersunk B420xM6X25

norsap.com
norsap.com
Page 10 of 14

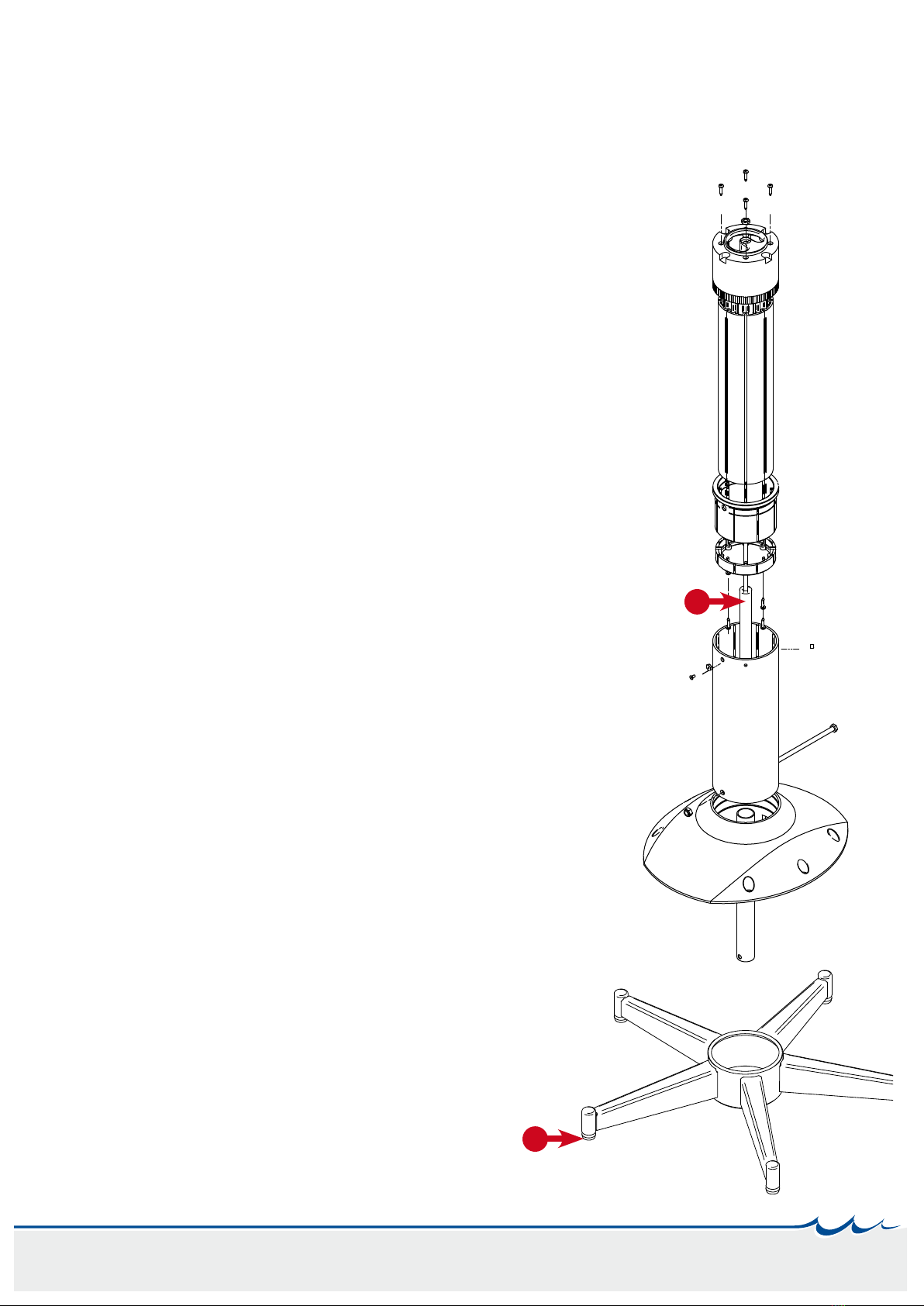

Columns for NorSap 1000 series
To nd out what model your chair is ip up the seat and view the sticker underneath.
Pos. Qty Item Name Item No. Rev. Details
For article no.: 6010, 6010HV, 6010SO
Complete column H754-504 DEL-3651 01
Complete column H754-504 White R-0001HV 01
Complete column H754-504 Black R-0001SO 01
1 1 Replacement gas strut GAS-026
For article no.: 6020, 6020HV, 6020SO
Complete column H614-464 DEL-3655 01
Complete column H614-464 White R-0008HV 01
Complete column H614-464 Black R-0008SO 01
1 1 Replacement gas strut GAS-002
For article no.: 6000, 6005 (not height adjustable)
Complete column R-0006 01
Remember to state seating height at order.
For other parts not specied please contact NorSap.
The ve star legged versions of the chairs is identical as the ones with ange
except for the article numbers and the base and a slightly dierent height.
2 5 Foot rest padding STL-006
2 1 Wheel set (5) for Oce chairs R-0077
1 ‘Twist-lock’ Mounting set R-0073
For article no.: 6025, 6000 (not height adjustable)
Complete column R-0027 01
Remember to state seating height at order.
For other parts not specied please contact NorSap.
1
2

norsap.com Page 11 of 14
norsap.com
norsap.com

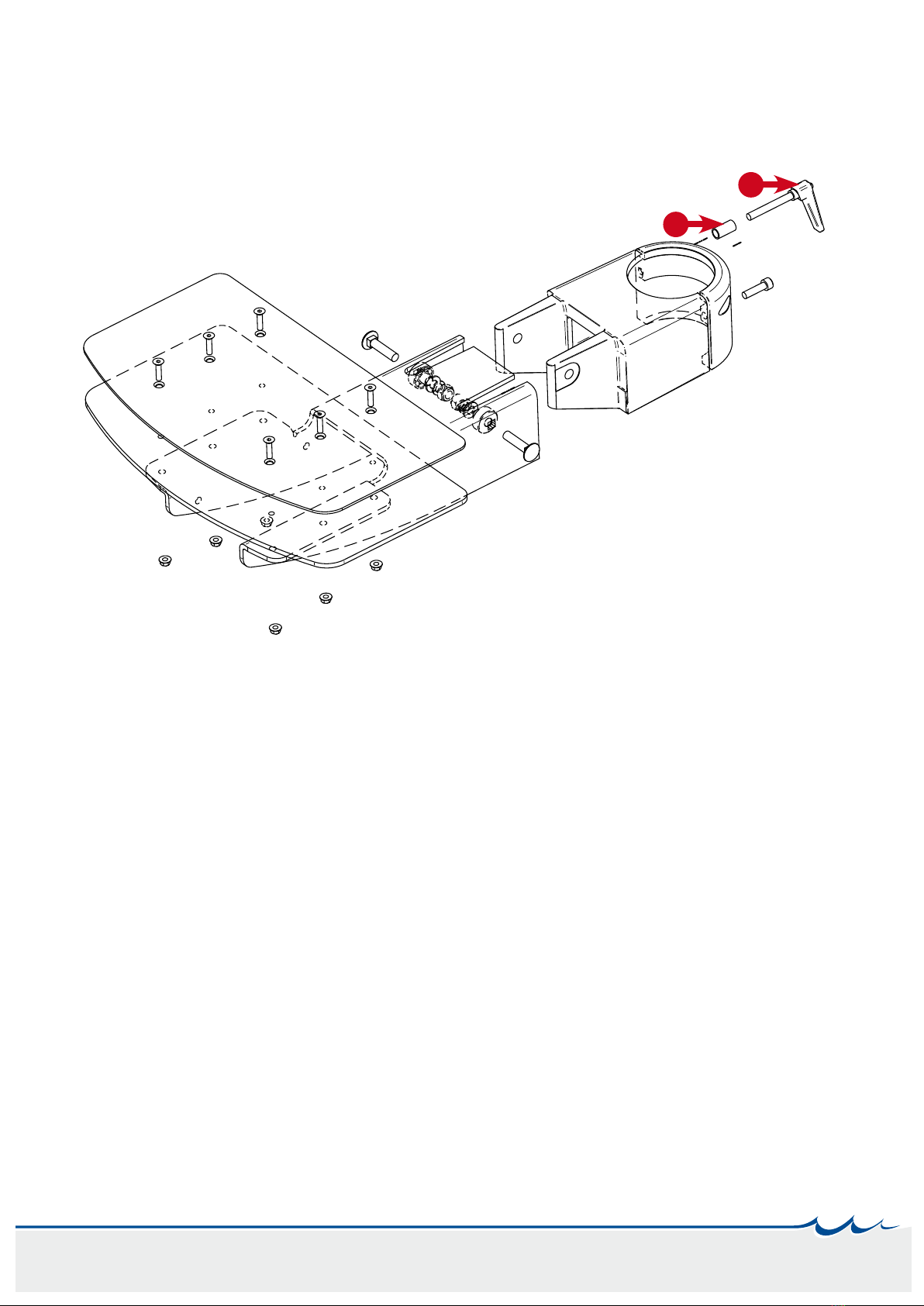

Foot rest
The NorSap 1000 comes either with or without foot rest.
Pos. Qty Item Name Item No. Rev. Details
Complete foot rest DEL-073 01
1 1 Adjustable hand wheel 8X80 RATT-018-80 A1
2 1 Shell Ø13X51 SAP-0576-51 01
1
2

norsap.com
norsap.com
Page 12 of 14
Maintenance of moving parts
The glide parts of the chair can be lubricated with a silicone based lubricant.
If the chair is on a deck rail, its important that the deck rails railway is NOT lubricated.
Safety
All moving parts has a potential squeezing hazard. Be sure to keep hands and ngers out of moving parts
areas when operating the chair.
Shipping and storage specications
The chair should be shipped and stored in an upright condition.
No other materials should be shipped or stored on top of a the chair or deck rail.
The chair should be shipped and stored at temperatures between -20°C and +40°C.
The chair should not be operated until its been acclimatized between 0°C and +30°C.
The chair should be kept in a clean, dry environment.
Upon receipt, we recommend that the shipping packaging be immediately examined for damage. Any damage
should be noted on the delivery receipt and a request for inspection by the transportation company should
be made. The shipping packaging should be opened immediately and the chair or the deck rail examined for
concealed shipping damage.
If the chair appears to be damaged, a concealed bad order report should be immediately
led with the transportation company.

404: This page was intentionally left blank.
norsap.com Page 13 of 14
norsap.com
norsap.com

NorSap AS
Mjåvannsveien 35
N-4628 Kristiansand S
Norway
Tel [phone]
Web norsap.com
Email [e-mail]
norsap.com
norsap.com
norsap.com
norsap.com
