Nortel 4526 User manual

Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A)
.

Document status: Standard
Document version: 01.04
Document date: 6 December 2007
Copyright © 2007, Nortel Networks
All Rights Reserved.
Sourced in Canada, India, and the United States of America
LEGAL NOTICE
While the information in this document is believed to be accurate and reliable, except as otherwise expressly agreed
to in writing NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF ANY
KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are subject
to change without notice.

3
Contents
New in this release 5
Features 5
New SFPs 5
Other changes 5
T1 SFP connections 5
Safety messages 5
Document changes 5
Introduction 7
Safety and regulatory information 9
Handling, safety, and environmental guidelines 9
Electrostatic discharge prevention 9
Care of fiber optic equipment 10
Fiber optic cable care 10
Fiber optic connector care 11
Job aid: connector cleaning tools and materials 12
Cleaning single connectors 12
Cleaning duplex connectors 13
Cleaning receptacles 13
Product safety warnings and information 14
ESD and installation caution messages 14
Laser safety warnings 16
Small form factor pluggable transceivers 19
Selecting an SFP 19
Procedure job aid: SFPs and common applications 20
Procedure job aid: SFP models without DDI support 20
Procedure job aid: SFP models with DDI support 21
Installing an SFP 22
Procedure job aid: locking and extractor mechanisms 24
Removing an SFP 25
10 Gigabit small form factor pluggable transceivers 27
Selecting an XFP 27
Procedure job aid: XFP models 28
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

4Contents
Installing an XFP 28
Removing an XFP 30
SFP specifications 33
SFP labels 33
General SFP specifications 34
100BASE-FX SFP specifications 34
T1 SFP specifications 35
T1 SFP—default settings 37
1000BASE-SX (LC) SFP specifications 38
1000BASE-SX (MT-RJ) SFP specifications 39
1000BASE-LX SFP specifications 40
1000BASE-XD CWDM SFP specifications 40
1000BASE-ZX CWDM SFP specifications 41
XFP specifications 43
XFP labels 43
General XFP specifications 44
10GBASE-SR XFP specifications 44
10GBASE-LR/LW XFP specifications 46
10GBASE-ER/EW XFP specifications 47
10GBASE-ZR/ZW XFP specifications 48
Index 50
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

5
New in this release
The following sections detail what’s new in Nortel Ethernet Routing Switch
4500 Series Installation — SFPs and XFPs (NN47205-301) for Release 5.1.
•"Features" (page 5)
•"Other changes" (page 5)
Features See the following section for information about feature changes:
New SFPs
Release 5.1 supports two new SFPs. See "100BASE-FX SFP
specifications" (page 34) and "T1 SFP specifications" (page 35).
Other changes
See the following section for information about changes that are not
feature-related:
T1 SFP connections
Information about T1 SFP connections, including pinout and cable
information, is added to "T1 SFP specifications" (page 35).
Safety messages
Safety messages and translations are added to "ESD and installation
caution messages" (page 14) and "Laser safety warnings" (page 16).
Document changes
This document is a new document based on the document Installing SFP
and XFP Transceivers and GBICs (318034-D). This document is formatted
to comply with Nortel Customer Documentation Standards.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

6New in this release
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

7
Introduction
This document describes how to select, install, and remove an SFP or XFP.
It also provides specifications for each device.
Navigation
•"Safety and regulatory information" (page 9)
•"Small form factor pluggable transceivers" (page 19)
•"10 Gigabit small form factor pluggable transceivers" (page 27)
•"SFP specifications" (page 33)
•"XFP specifications" (page 43)
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

8Introduction
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

9
Safety and regulatory information
This section contains important safety and regulatory information. Read this
section before you install Small Form Factor Pluggable (SFP) transceivers
or 10 Gigabit SFP (XFP) transceivers.
Navigation
•"Handling, safety, and environmental guidelines" (page 9)
•"Care of fiber optic equipment" (page 10)
•"Product safety warnings and information" (page 14)
Handling, safety, and environmental guidelines
Before you install an SFP or XFP, read the following handling, safety, and
environmental guidelines:
•SFPs and XFPs are static sensitive. To prevent damage from
electrostatic discharge (ESD), see "Electrostatic discharge prevention"
(page 9).
•SFPs and XFPs are dust sensitive. When you store an SFP or XFP, or
when you disconnect it from a fiber optic cable, always keep a dust
cover over the optical bore.
•To clean contaminants from the optical bores of an SFP or XFP, use an
alcohol swab or equivalent to clean the ferrules of the optical connector.
•Dispose of this product according to all national laws and regulations.
Electrostatic discharge prevention
To prevent equipment damage, observe the following electrostatic discharge
(ESD) precautions when handling or installing the components.
•Ground yourself and the equipment to an earth or building ground. Use
a grounded workbench mat (or foam that dissipates static charge) and
a grounding wrist strap. The wrist strap should touch the skin and be
grounded through a one megaohm resistor.
•Do not touch anyone who is not grounded.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

10 Safety and regulatory information
•Leave all components in their ESD-safe packaging until installation, and
use only a static-shielding bag for all storage, transport, and handling.
•Clear the area of synthetic materials such as polyester, plastic, vinyl, or
styrofoam because these materials carry static electricity that damages
the equipment.
Care of fiber optic equipment
Fiber optic equipment must be kept clean and damage-free. Use the
information in this section to properly maintain and care for fiber optic
equipment.
Care of fiber optic equipment navigation
•"Fiber optic cable care" (page 10)
•"Fiber optic connector care" (page 11)
•"Job aid: connector cleaning tools and materials" (page 12)
•"Cleaning single SC and FC connectors" (page 12)
•"Cleaning duplex SC connectors" (page 13)
•"Cleaning receptacles" (page 13)
Fiber optic cable care
Although the glass fiber of fiber optic cable is protected with reinforcing
material and plastic insulation, it is subject to damage. Use the following
precautions to avoid damaging the glass fiber.
•Do not kink, knot, or vigorously flex the cable.
•Do not bend the cable to less than a 40 mm radius.
•Do not stand on fiber optic cable; keep the cable off the floor.
•Do not pull fiber optic cable any harder than you would a cable containing
copper wire of comparable size.
•Do not allow a static load of more than a few pounds on any section
of the cable.
•Place protective caps on fiber optic connectors that are not in use.
•Store unused fiber optic patch cables in a cabinet, on a cable rack, or
flat on a shelf.
Frequent overstressing of fiber optic cable causes progressive degeneration
that leads to failure.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

Care of fiber optic equipment 11
If you suspect damage to a fiber optic cable, either due to mishandling or
an abnormally high error rate observed in one direction, reverse the cable
pairs. If the high error rate appears in the other direction, replace the cable.
CAUTION
Risk of equipment damage
Do not crush fiber optic cable. If fiber optic cable is in the same
tray or duct with large, heavy electrical cables, it can be damaged
by the weight of the electrical cable.
Fiber optic connector care
Before connecting them to transmission equipment, test equipment,
patch panels, or other connectors, clean all fiber optic connectors. The
performance of an optical fiber connector depends on how clean the
connector and coupling are at the time of connection. Use the following
cleaning procedures when analyzing fiber connector integrity.
If a connector performs poorly after cleaning, visually inspect the connector
to determine the possible cause of the problem and to determine if it needs
replacing.
WARNING
Risk of eye injury
Do not look into the end of fiber optic cable. The light source used
in fiber optic cables can damage your eyes.
To avoid getting debris in your eyes, wear safety glasses when
working with the canned air duster.
To avoid eye irritation on contact, wear safety glasses when
working with isopropyl alcohol.
Perform the following maintenance procedures to ensure that optical fiber
assemblies function properly. To prevent them from collecting dust, make
sure connectors are covered when not in use.
CAUTION
Risk of equipment damage
To prevent further contamination, clean fiber optic equipment only
when there is evidence of contamination.
To prevent contamination, make sure the optical ports of all active
devices are covered with a dust cap or optical connector.
To avoid the transfer of oil or other contaminants from your fingers
to the end face of the ferrule, handle connectors with care.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

12 Safety and regulatory information
Job aid: connector cleaning tools and materials
You need the following tools and materials to clean fiber optic connectors.
•Lint-free, nonabrasive wiping cloths
•Cotton swabs, with a tightly wrapped and talcum-free tip
•Optical-grade isopropyl alcohol (IPA)
•Canned compressed air with extension tube
CAUTION
Risk of equipment damage
To avoid contamination, optical ports should only be cleaned when
there is evidence of contamination or reduced performance, or
during their initial installation.
To prevent oil contamination of connectors, do not use commercial
compressed air or house compressed air in place of canned
compressed air.
Do not allow the air extension tube to touch the bottom of the
optical port.
Cleaning single connectors
Clean connectors so that the optical signal is minimally attenuated by the
connector.
Procedure steps
Step Action
1Remove dust or debris by applying canned air to the cylindrical and
end-face surfaces of the connector.
2Gently wipe the cylindrical and end-face surfaces with a pad or a
wipe dampened with optical-grade isopropyl alcohol.
3Gently wipe the cylindrical and end-face surfaces with a dry, lint-free
tissue.
4Dry the connector surfaces by applying canned air or letting them
air dry.
To prevent contamination, do not touch the connector surfaces after
cleaning; and cover them with dust caps if you are not going to use
them right away.
—End—
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

Care of fiber optic equipment 13
Cleaning duplex connectors
Clean connectors so that the optical signal is minimally attenuated by the
connector.
Procedure steps
Step Action
1To remove or retract the shroud, do one of the following.
•On removable shroud connectors, hold the shroud on the top and
bottom at the letter designation, apply medium pressure, and pull
it free from the connector body. Do not discard the shroud.
•On retractable shroud connectors, hold the shroud in its retracted
position.
2Remove dust or debris from the ferrules and connector face with the
canned air duster.
3Gently wipe the cylindrical and end-face surfaces of both ferrules
using a wipe saturated with optical-grade isopropyl alcohol.
4Gently wipe the cylindrical and end-face surfaces of the connector
with Texwipe cloth (or dry lint-free tissue).
5Blow dry the connector surfaces with canned air.
6Using care to not touch the clean ferrules, gently push the shroud
back onto the connector until it seats and locks in place.
—End—
Cleaning receptacles
Clean connector receptacles or ports so that the optical signal is minimally
attenuated by the connection.
Procedure steps
Step Action
1Remove dust or debris by blowing canned air into the optical port of
the device using the canned air extension tube.
2Clean the optical port by inserting a small dry swab into the
receptacle and rotating it.
Each cleaning wand should only be used to clean one optical port.
3Reconnect the optical connector and check for proper function.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

14 Safety and regulatory information
If problems persist, ensure that the connector and receptacle are
not damaged.
—End—
Product safety warnings and information
The products described in this guide meet requirements of:
IEC 60950 3rd edition
CSA 22.2 No. 60950 3rd edition
UL 60950 3rd edition
EN60950 3rd edition
EN60825-1, +A11, +A2
ESD and installation caution messages
This section provides electrostatic discharge (ESD) and installation caution
messages and translations.
CAUTION
Risk of equipment damage
To prevent damage from electrostatic discharge, always wear an
antistatic wrist strap connected to an ESD jack.
CAUTION
ATTENTION
Risque d’endommagement de l’équipement
Pour prévenir tout dommage dû à une décharge électrostatique,
vous devez toujours porter un un bracelet antistatique connecté
à une prise ESD.
CAUTION
ACHTUNG
Risiko eines Geräteschadens
Risiko eines Geräteschadens Um Schäden durch elektrostatische
Entladung zu verhindern, tragen Sie bei der Instandhaltung dieses
Produkts immer ein antistatisches Band am Handgelenk, welches
mit einer ESD-Buchse verbunden ist.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

Product safety warnings and information 15
CAUTION
PRECAUCIÓN
Riesgo de daño del equipo
Para prevenir el daño producido por una descarga electrostática,
use siempre una pulsera antiestática conectada a un enchufe
ESD.
CAUTION
CUIDADO
Risco de danos ao equipamento
Para evitar danos com descarga eletrostática, sempre use uma
pulseira antiestática que esteja conectada a uma tomada ESD.
CAUTION
ATTENZIONE
Rischio di danni all’apparecchiatura
Per evitare danni derivanti da scariche elettrostatiche, indossare
sempre un polsino antistatico collegato a una presa ESD.
CAUTION
Risk of equipment damage
Only trained personnel can install this product.
CAUTION
ATTENTION
Risque d’endommagement de l’équipement
L’installation doit être effectuée exclusivement par un personnel
qualifié.
CAUTION
ACHTUNG
Risiko eines Geräteschadens
Nur geschultes Personal kann dieses Produkt installieren.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

16 Safety and regulatory information
CAUTION
PRECAUCIÓN
Riesgo de daño del equipo
Sólo el personal capacitado puede instalar este producto.
CAUTION
CUIDADO
Risco de danos ao equipamento
Somente pessoal treinado pode instalar este produto.
CAUTION
ATTENZIONE
Rischio di danni all’apparecchiatura
Questo prodotto può essere installato solo da personale esperto.

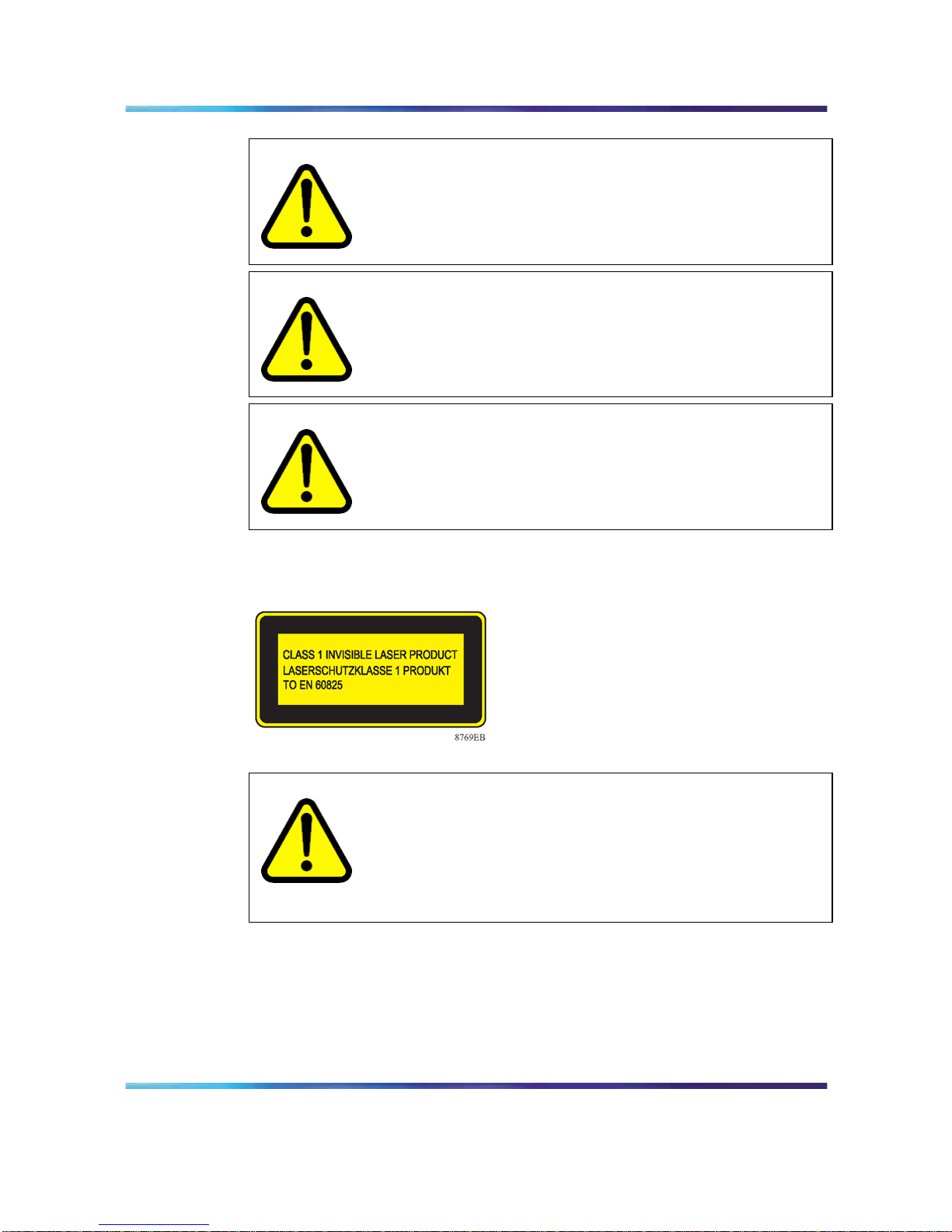

Laser safety warnings
This section provides laser safety warnings and translations.
WARNING
Risk of eye injury by laser
Fiber optic equipment can emit laser or infrared light that can
injure your eyes. Never look into an optical fiber or connector port.
Always assume that fiber optic cables are connected to a light
source.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

Product safety warnings and information 17
WARNING
AVERTISSEMENT
Risques de blessure oculaire par lumière laser L’équipement de
fibres optiques peut émettre une lumière laser ou infrarouge
nuisible à vos yeux. Ne regardez jamais en direction de fibres
optiques ou d’un port connecteur. Supposez toujours que les
câbles de fibres optiques sont connectés à une source de lumière.
WARNING
WARNUNG
Risiko einer Augenverletzung durch Laser Glasfasergeräte können
Laserstrahlen oder ultraviolettes Licht aussenden, das Ihre Augen
verletzen kann. Schauen Sie nie direkt in einen Glasfaserleiter
oder Verbindungsanschluss. Gehen Sie immer davon aus, dass
Glasfaserkabel mit einer Lichtquelle verbunden sind.
WARNING
ADVERTENCIA
Riesgo de lesión en los ojos por láser El equipo de fibra óptica
puede emitir una luz láser o infrarroja que dañe sus ojos. Nunca
mire un puerto de fibra óptica o conector. Siempre asuma que los
cables de fibra óptica están conectados a una fuente de luz.
WARNING
AVISO
O laser pode causar ferimentos no olho O equipamento de fibra
ótica pode emitir laser ou luz infravermelha que pode causar
danos a sua vista. Nunca olhe para dentro da fibra ótica ou da
porta do conector. Tenha sempre em mente que os cabos de fibra
ótica estão ligados a uma fonte de luz.
WARNING
AVVISO
Rischio di ustioni agli occhi dovute al laser Le apparecchiature
con fibre ottiche possono emettere raggi laser o infrarossi in grado
di provocare ferite agli occhi. Non guardare mai all’interno di una
porta di connessione o una fibra ottica. Tenere sempre presente
che i cavi a fibra ottica sono collegati a una sorgente luminosa.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

18 Safety and regulatory information
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

19
Small form factor pluggable
transceivers
This section describes how to select and install small form factor pluggable
(SFP) transceivers.
Use an SFP to interface a device motherboard to a fiber optic or unshielded
twisted pair network cable. The SFPs described in this section provide
Ethernet at 1 gigabit per second (Gbit/s).
Navigation
•"Selecting an SFP" (page 19)
•"Installing an SFP" (page 22)
•"Removing an SFP" (page 25)
•"SFP specifications" (page 33)
Selecting an SFP
Use an SFP transceiver to interface a device motherboard to a fiber optic or
unshielded twisted pair network cable. Select the appropriate transceiver to
provide the required reach.
Procedure steps
Step Action
1Determine the required reach.
Depending on the product, SFPs are available for cable distances
of up to 100 meters (m), 550 m, 10 kilometers (km), 40 km, 70 km,
and 120 km.
2Determine the required media and connector type.
Fiber optic cable is required for any reach over 100 m.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.

20 Small form factor pluggable transceivers
Possible media include CAT5, single mode fiber, and multimode
fiber. Possible connectors include LC (Lucent optical connector),
MT-RJ, and RJ-45.
3If the media is optical fiber, determine any wavelength restrictions or
requirements.
To expand available bandwidth on a common optical fiber, use
CWDM SFPs.
4Determine if digital diagnostic monitoring (DDM) is required.
Not all SFPs or products support DDM.
5Use the following job aids to determine the appropriate SFP for your
application.
—End—
Procedure job aid: SFPs and common applications
The following table describes the reach provided by various SFPs. This
table is informational only—not all Nortel Ethernet switching and routing
products support all the SFPs listed here.
SFPs and common applications
SFP model Common application
T1 Fast Ethernet to
T1 Remote Bridge Provides 1.544 Mbit/s connectivity with up to 2874 m reach over 22 AWG cable. The distance may be reduced when 24 AWG UTP CAT5/5E cable
is used. Applications include connecting remote LANs and providing
transparent LAN services over leased lines.
100BASE-FX Provides 100 Mbit/s LAN services with up to 2 km reach.
1000BASE-T Lowest-cost Gigabit Ethernet solution. Up to 100 m reach over Category 5
(CAT5) unshielded twisted pair (UTP).
1000BASE-SX Well-suited for campus local area networks (LAN) and intrabuilding links.
Up to 275 or 550 m reach (fiber-dependent) over a fiber pair.
1000BASE-LX Up to 10 km reach over a single mode fiber (SMF) pair. Up to 550 m reach
over a multimode fiber (MMF) pair.
1000BASE-XD Up to 40 km reach over a single mode fiber pair.
1000BASE-ZX Up to 70 km reach over a single mode fiber pair.
Procedure job aid: SFP models without DDI support
SFPs are hot-swappable input/output enhancement components designed
for use with Nortel products to allow Gigabit Ethernet ports to link with other
Gigabit Ethernet ports over various media types.
Ethernet Routing Switch 4500 Series
Installation — SFPs and XFPs
NN47205-301 (324186-A) 01.04 Standard
5.1 6 December 2007
Copyright © 2007, Nortel Networks
.
