Nortel Norstar Instruction Manual

Norstar
Modular Plus Release 5
System Administration Guide
Norstar
Compact Plus Release 5
System Administration Guide

Published by Nortel Networks on behalf of British Telecommunications PLC. All
possible care has been taken in the preparation of this publication, but British
Telecommunications PLC assumes no liability for any inaccuracies that may occur.
British Telecommunication PLC reserves the right to make changes without notice both
to this publication and to the product that it describes.
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any human or computer language in any form or by
any means without prior written permission of British Telecommunications PLC.
If you find any errors in this publication, or would like to make suggestions for its
improvement, please write to:
British Telecommunications
Norstar Product Manager
Weston House
246 High Holborn
London, WC1V 7DQ
British Telecom is a registered trademark of:
British Telecommunications PLC
Registered Office 81, Newgate Street
London, EC1A 7AJ
Registered in England, Number 1800000
Meridian, Companion, and Norstar are trademarks of Nortel Networks.
Meridian Norstar Business Communication System is manufactured by Nortel
Networks.
Touchtone is a trademark of British Telecom.
This document is for use with Compact Plus Release 4 Norstar UK.
P0986921 02
Printed in Canada
©2002 Nortel Networks

iii
P0607114 Issue 01 Compact Plus System Administration Guide
Contents
SECTION I: System Administration 9
Introduction 11
Safety and Regulatory information 12
You must be the administrator 13
Here’s what you need to start programming 13

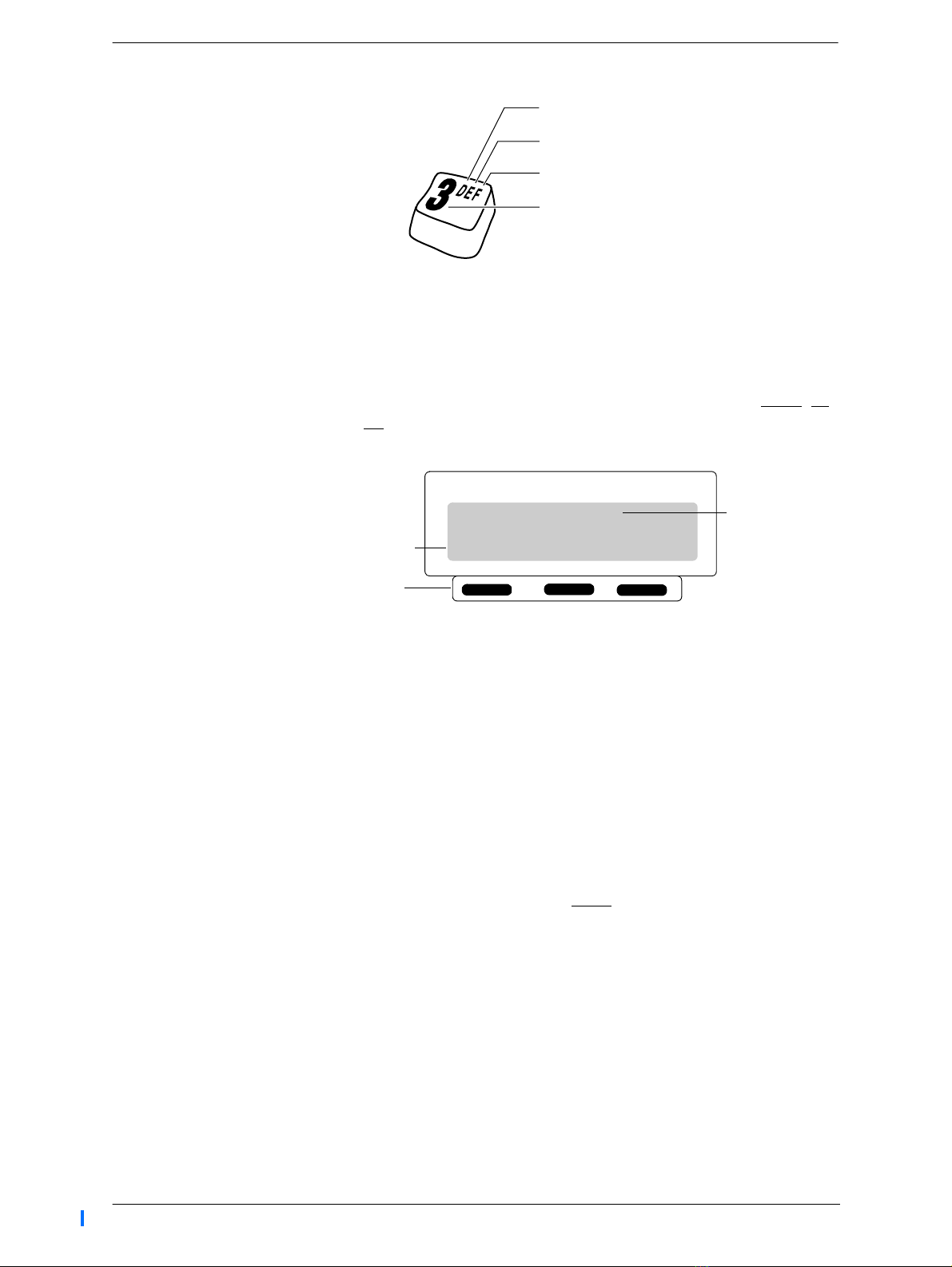

Understanding the telephone keys 15
Starting a programming session 18
Ending a programming session 19
Using passwords to access programming 19
Understanding your system 20
Map of Administrator Plus programming 20
SECTION II: System programming 23
Conventions used in this guide 24
Programming overview 24
Using passwords 29
Programmable settings and features 31
Making suggestions 38
Advice Line 38
Programming Terminals and Extensions 39
Terminals and extensions 40
Assigning a line to an extension (line access) 40
Assigning line pool access 42
Assigning a Prime line to an extension 42
Assigning intercom keys to an extension 43
Assigning an Answer key to an extension 44
Setting the Originating Line Identification for an extension 45
Programming Hospitality Services 47
Hospitality extensions 48
Alarm time (AL) feature 49
Hospitality Services admin alarm feature 51
Room occupancy (RO) 52
Room condition (RC) 53
Service time 55
Software Keys 57
Viewing the System ID 58
Software Keys 58
Setting System speed dial 61
Setting System speed dial 62
Assigning a number to a System speed dial code 62
Selecting a line 63
Setting the system to display a name instead of a number 63
Setting the speed dial number to bypass restrictions 65

iv
P0607114 Issue 01 Compact Plus System Administration Guide
Naming extensions and lines 67
Naming extensions 68
Naming lines 69
Changing the time and date 71
Changing the time and date 72
Changing the time 72
Changing the date 73
Changing the time and date using the Basic password 73
Changing the time by an hour 74
Automatic Time & Date 74
Assigning a Direct-Dial extension 75
Programming Direct-Dial 76
Programming an internal Direct-Dial extension 76
Programming an external Direct-Dial extension 77
Barring calls and privileges (Restrictions) 79
Using restriction filters to bar calls 80
Assigning filters to a telephone (Extn restrns) 83
Assigning filters to a line (Line restrns) 84
Assigning filters to a line/extension (Line/extn restrns) 85
Class of Service passwords 86
Assigning a remote access filter 89
Locking an extension 93
Preventing Last Number Redial 94
Preventing Saved Number Redial 94
Preventing Recall 95
Preventing Redirect 96
Programming capabilities 97
Programming an extension 98
Setting Call Forward no answer 98
Setting Call Forward on Busy 100
Programming Do Not Disturb on Busy 101
Programming Handsfree 102
Programming Handsfree answerback 103
Assigning a Pickup group 104
Assigning a page zone 104
Programming paging 105
Assigning telephones to the Direct-Dial extension 106
Allowing Priority call 107
Assigning a Hotline 108
Auxiliary ringer 109
Activating Redirect ring 109
Receive tones 110
Programming User preferences 111
Programming User preferences 112
Changing the key programming for an extension 112
Changing a personal (user) speed dial code 113
Changing the Call log options 114
Changing the dialling options 114
Changing the display language 115
Changing the display contrast 116
Changing the Ring type 116

v
P0607114 Issue 01 Compact Plus System Administration Guide
Programming Hunt groups 119
Programming Hunt Groups 120
Adding or removing members from a group 121
Moving members of a group 122
Assigning or unassigning lines to a group 122
Assigning a distinctive ring pattern to a Hunt Group 123
Setting the distribution mode 124
Setting the hunt delay 125
Programming options if all hunt members are busy 125
Programming the queue timeout 126
Programming the overflow extension 127
Setting the name 127
Checking hunt group metrics 128
Programming feature settings 131
Background music 132
On hold 132
Receiver volume 133
Camp timeout 133
Park timeout 134
Park mode 135
Transfer callback 136
Network callback 137
Held line reminder and delay 137
Conference tone 138
Directed (call) pickup 139
Page tone 139
Page timeout 140
Call log space 140
Alarm extension 141
Answer extension 142
Setting SWCA controls 143
CLID Match 144
Moving and copying 145
Extension relocation 146
Copying programming for telephones 147
Settings for analogue equipment 151
Settings for analogue equipment 152
Setting the delay before the ATA/I-ATA answers 152
Changing the dial mode of an ATA or an I-ATA 153
Setting whether the ATA/I-ATA should receive system tones 154
Setting whether an ATA is used on-site or off-site 155
Services 157
Using alternate or scheduled services 158
Turning services on or off 158
Designating alternate routes for calls 161
Programming routes 163
Programming destination codes 164
Turning a manual service on or off with a feature code 167
Assigning control extensions 168
Changing the name of a schedule 169
Changing the time of a schedule 170

vi
P0607114 Issue 01 Compact Plus System Administration Guide
Passwords 171
Password security 172
Setting the SAPLUS password 172
Setting the Administrator password 173
Setting the Basic password 173
Hospitality passwords 174
I-RAD password 175
Call services 177
Erasing a forgotten Call log password 178
Programming Call services 179
1st Display 179
Auto called ID 180
Remote access 181
Programming lines and features for remote access 182
Auto Attendant 187
Auto Attendant 188
System Answer 188
Custom Call Routing (CCR) 189
CCR groups 189
Direct extension dialling 190
Customising System Answer and CCR 190
Turning System Answer on or off 191
Turning CCR on or off 191
Choosing the attendant telephone 191
Setting the number of rings before System Answer answers a call 192
Setting the number of rings before a caller hears the CCR greeting 192
Adding or removing extensions from a CCR group 193
Using the pre-recorded greetings 194
Using customised greetings for System Answer and CCR 194
Recording customised greetings for System Answer and CCR 196
Programming or changing CCR destinations 197
Testing your custom System Answer and CCR 197
Maintenance 199
Beginning a Maintenance session 200
Checking the system version of the software 201
System Administration Log record 201
Troubleshooting 203
Recording and reporting alarm codes 204
Clearing lines 204
Power failure 205
Power-fail telephone 206
SECTION III: Using telephone features 207
About your system telephones 209
T7316E Business Series Terminals and KIMs 210
T7316 Business Series Terminal key defaults 213
M7324N telephone and CAPN 214
M7310N telephone 215
M7208N/T7208 telephones 216
M7100N/T7100 telephones 217

vii
P0607114 Issue 01 Compact Plus System Administration Guide
M7000/T7000 telephones 217
Release key 218
Visually Impaired Operator Console 218
Common feature display messages 219
Customising your telephone 223
Dialling mode 224
Display contrast 225
Key Inquiry 225
Moving line keys 226
Ring type 227
Ring volume 227
Programming M7000/T7000 memory keys 227
Using personal features 229
Background music 230
Do Not Disturb 230
Personal Speed Dial codes 231
Using Speed Dial 231
Answering calls 233
Answering a call 234
Sorting calls by distinctive ring patterns 234
Privacy feature (external calls only) 234
Answering the next queued call 235
Answering hunt group calls 235
Multiple appearances of DIA lines 236
Using SWCA line buttons 236
Using Handsfree 239
Answering a telephone using Directed Pickup 240
Answering a telephone using Pickup Group 241
Answer keys 242
Listening in a group 243
Disconnecting accidentally 243
Malicious call identification (MCID) 243
Holding calls 245
Holding 246
Listening on hold 247
Routing calls 249
Call Parking 250
DIA calls 251
Making a Priority call 253
Transferring a call 253
Transferring to a busy extension (Call Camping) 254
Making external calls 257
Using an exchange code 258
Using line pools 258
Making a conference call 259
Using Class of Service passwords 263
Making internal calls 265
Making an internal call 266
Making a conference call 266
Accessing a Direct-Dial extension 266

viii
Compact Plus System Administration Guide P0607114 Issue 01
Leaving messages 267
Paging 270
Remote paging 270
Voice call 271
Forwarding calls 273
Forwarding all calls 274
External Call forward 275
Line redirection 276
Saving time with features 279
Using System Speed Dial 280
Using Autodial 280
Using Redial 282
Programming memory keys 283
Using Ring Again 284
Using Hotline 285
Using display features 287
Time and Date 288
Static Time 288
Call Duration Timer 288
Call Information 289
Call Log 290
Autobumping 295
Special dialling features 297
Special dialling features 298
Inserting a pause 298
Setting Long tones 298
Programmed Release 299
Recall 299
Run/Stop 299
Wait for Dial Tone 300
Integrated Services Digital Network (ISDN) 301
ISDN services 302
Digital Network Adapter 304
Feature quick reference 305
Compact Plus feature codes 306
ISDN terminal features 309
ATA extension features 311
Appendix A: Programming overviews 313
Charts 315
Index 335

P0607114 Issue 01 Compact Plus System Administration Guide
SECTION I: System Administration

10
Compact Plus System Administration Guide P0607114 Issue 01

P0607114 Issue 01 Compact Plus System Administration Guide
Introduction
• Safety and Regulatory information.........12
• You must be the administrator.........13
• Here’s what you need to start programming.........13
• Understanding the telephone keys.........15
• Starting a programming session.........18
• Ending a programming session.........19
• Using passwords to access programming.........19
• Understanding your system.........20
• Map of Administrator Plus programming.........20

12 Introduction
Compact Plus System Administration Guide P0607114 Issue 01
Safety and Regulatory information
Markings
This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.
Hereby, Nortel Networks declares that Compact ICS, is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Information is subject to change without notice. Nortel Networks
reserves the right to make changes in design or components as
progress in engineering and manufacturing may warrant. This
equipment has been tested and found to comply with the
European Safety requirements EN 60950 and EMC requirements
EN 55022 (Class A) and EN 55024. These EMC limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial and
light industrial environment.
The CE Marking on this equipment indicates compliance with
the following:
This device conforms to Directive 1999/5/EC on Radio
Equipment and Telecommunications Terminal Equipment as
adopted by the European Parliament And Of The Council.
WARNING!
This is a class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures. The
above warning is inserted for regulatory
reasons. If any customer believes that they
have an interference problem, either because
their Nortel Networks product seems to cause
interference or suffers from interference, they
should contact their distributor immediately.
The distributor will assist with a remedy for any
problems and, if necessary, will have full
support from Nortel Networks.

Introduction 13
P0607114 Issue 01 Compact Plus System Administration Guide
You must be the administrator
If the installer has given this guide to you, you’re most likely the
system administrator.
As an administrator, your role is to
• help your colleagues learn to use their Norstar and Business
Series Terminal (BST) telephones
• change Norstar programming to customise the system for your
office or to keep up with changes in your office environment
or personnel
• call for help or service when necessary
System Administration Guide contains all the information you
need to become proficient at using and programming the
Compact Plus system.
Here’s what you need to start programming
By following instructions on the telephone display and by
pressing a few keys, you can change the Compact Plus system to
suit the specific needs of your office. Before you begin
programming, make sure you have one of the following:

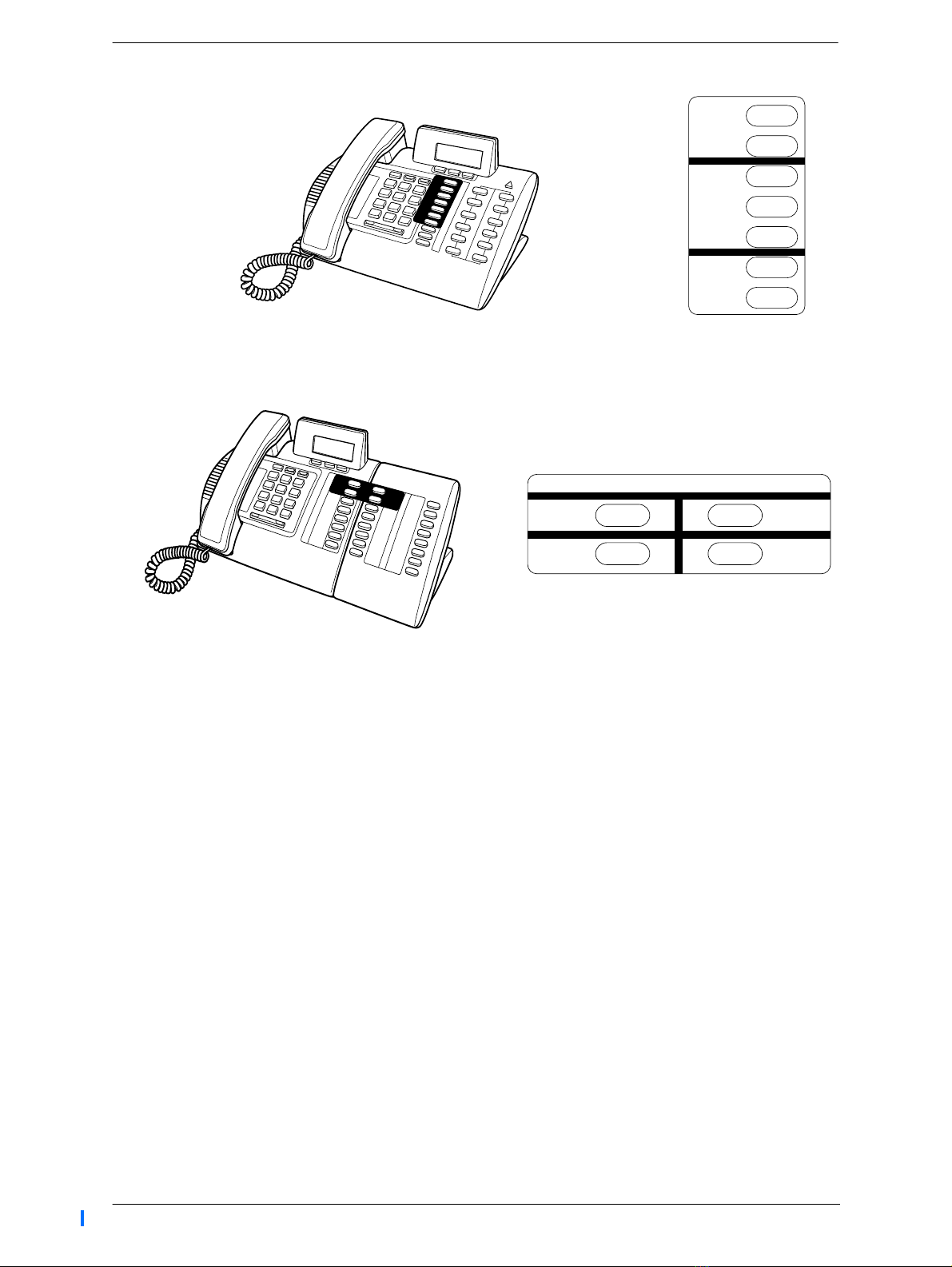

• T7316E telephone and the T7316/T7316E programming
overlay.
Business
Series
Terminal
Programming
overlay
Heading
Back
Show
Next
Heading
Back
Show
Next
T7316E
programming
buttons
T7316
programming
buttons

14 Introduction
Compact Plus System Administration Guide P0607114 Issue 01
• an M7310N telephone and its programming overlay
OR
• an M7324N telephone and its programming overlay.
Placing the programming overlay
Place the programming overlay on the appropriate memory keys
as shown in the preceding illustrations. Four memory keys have
special functions during a programming session. Once you exit
programming, the keys return to their normal functions. The
programming keys are active or inactive at different stages of
programming. When a key is active, the indicator next to it is lit
with a (ªor º).
This is what each programming key does:
Heading—shows you the heading for the current level
Back—moves you back one item at the current level
Show—shows you the first setting within the level
Next—moves you one item forward at the current level
Heading
Back
Show
Norstar
Programming
Overlay
M7310N
Next
Heading
Back
Show
Norstar Programming Overlay M7324N
Next

Introduction 15
P0607114 Issue 01 Compact Plus System Administration Guide

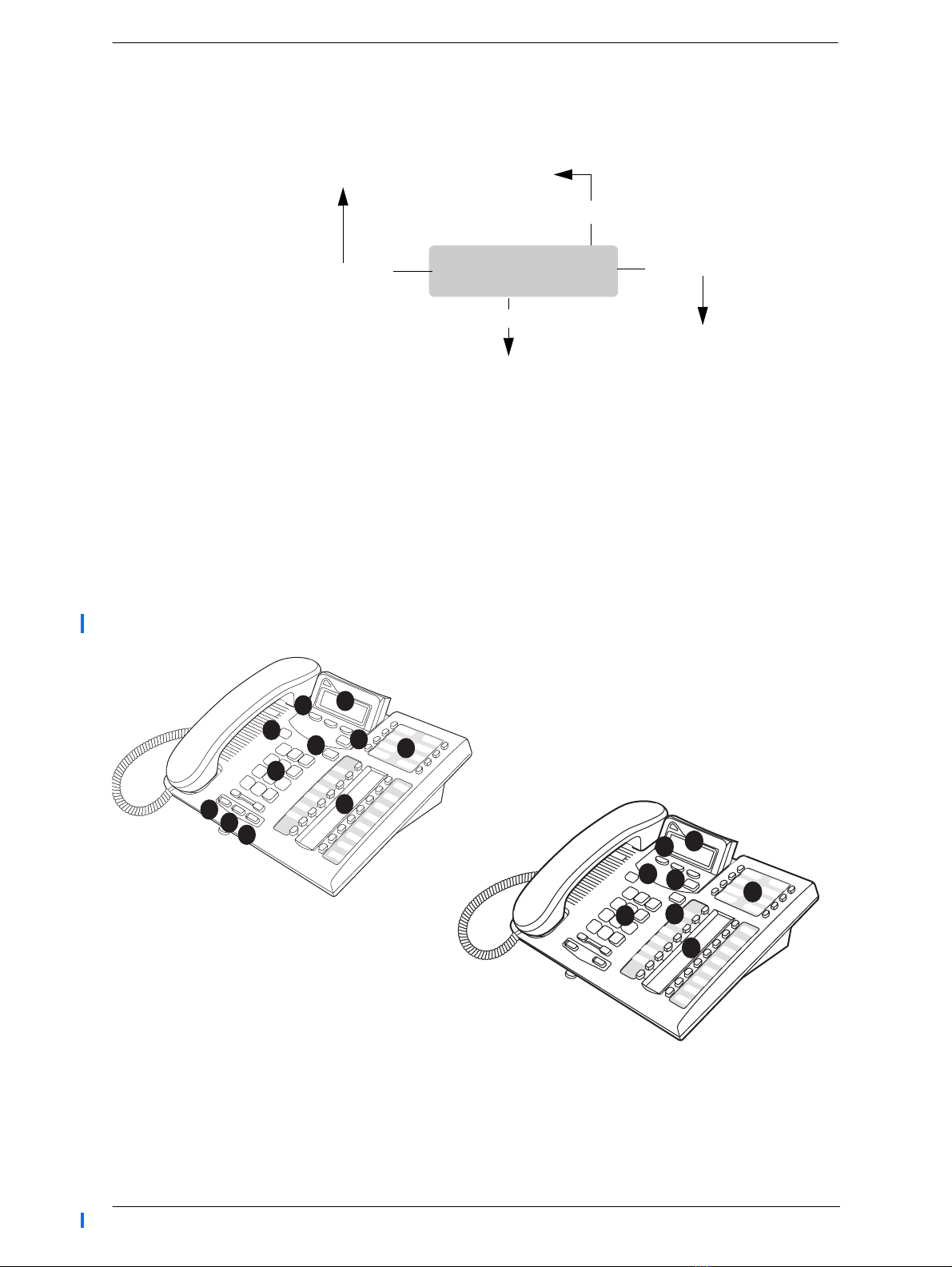

The diagram below visually shows you how the overlay buttons
move through the menus.
Understanding the telephone keys
Take a few minutes to study the telephones. Notice that the T7316
and M7324 telephones do not have a Shift key or dual memory
keys.
Locate the different items shown in the following illustrations.
Terminals&Extns
EXT: 222
EXT: 223
Line Access
Current display
EXT: 221
Heading
Back
Show
Next
9
11
10
1
2
3
4
4
12
7
8
1
2
3
4
4
7
8
9
T7316E
T7316

16 Introduction
Compact Plus System Administration Guide P0607114 Issue 01
The following table describes the various items.
keypad Used for dialling numbers when you are making calls and for
entering numbers and letters when you are programming.
Display Shows instructions for using and programming the telephone.
Display key Activates the instruction that appears on the display above the
display key.
Memory key Activates a number or feature code stored in the key.
Dual memory key Can store two numbers or feature codes (M7310N only).
Shift key Press the Shift key before a dual memory key to activate the
number or feature code stored in the secondary memory of the
dual memory key (M7310N only).
Feature key
(≤, ƒ or ƒ) Allows you to enter a feature code while using or programming the
telephone.
Hold key
(˙, ˙)
Puts an active call on hold.
Release key (®, ®,
®)
Hangs up an active call or ends programming.
M7310N
879
5
6
2
3
1
4
5
3
1
2
1
3
4
7
8
4
4
6
M7324N
1
2
3
4
5
6
7
8
9

Introduction 17
P0607114 Issue 01 Compact Plus System Administration Guide
Telephone programming buttons
This guide shows the Business Series Terminal (BST) buttons.
The following table shows how the BST (T-series) buttons
compare with the Norstar telephones (M-series).
To use a feature: Press ≤, ƒor ƒ and enter the
feature code. For example: Press ≤·°⁄ to access your
mailbox.
Note: The BST terminal programming keys have label tabs
beside the buttons.
Entering numbers and letters using the keypad
Use the keys on the telephone keypad to enter numbers and letters
during programming. When you enter programming or use a
feature code, the keys you press often spell a word. For example,
when you press ≤••¤flfl‹››, the number keys
spell CONFIG. The C is on key number 2, the O is on key number
6, the N is also on key number 6, and so on. However, the display
shows numbers instead of letters. The word just provides an easy
way to remember the sequence of numbers.
Entering names using the keypad
When you want to use a key to spell a name, such as naming a
hunt group during programming, the function of the key changes
according to the number of times you press the key. The
following illustration shows the functions for the keypad key ‹
when entering letters.
Mute key Mutes handset and microphone.
Only available on T7316 and T7316E keystations.
Handsfree key Turns on speaker so user does not have to pick up handset or use
headset.
Only available on T7316E keystations.
Headset key Allows user to use switch between headset and handset answer
mode without removing headset.
Only available on T7316 and T7316E keystations.
Button Name T7316E, T7316, T7208, T7100,
T7000
M7324N, M7310N, M7208N,
M7100N, M7000
Hold ≥˙
≥(T7000)
˙or ˙
≥(M7000)
Release ®®or ™
Feature ≤ƒ or ƒ
10
11
12

18 Introduction
Compact Plus System Administration Guide P0607114 Issue 01
Keypad key
More about display keys
Use the three display keys below the display on your telephone to
set and select options. Their function depends on the instruction
that appears on the display directly above each key. Some display
instructions that you may see during programming are DOWN, UP,
or OK.
Display keys
Starting a programming session
As administrator, the first steps in making any change to the
Compact Plus system are always the same. You must press the
≤ button and then press ••¤flfl‹›› to access
Configuration programming.
Jan1 1:00am Press ≤.
Fe a t ur e : ∫∫∫∫∫∫∫∫
∫∫∫∫∫∫∫∫∫∫∫∫∫∫∫∫
Press ••¤flfl‹››
(CONFIG).
Password:∫∫∫∫∫∫∫
∫∫∫∫∫∫∫∫∫∫∫RETRY
Press ¤‹fl›fl (ADMIN).
Press RETRY to re-enter the password if it is
entered incorrectly.
Terminals&Extns∫
∫∫∫∫∫∫∫∫∫∫∫∫∫∫∫∫
The display shows the first of the seven
headings available for programming.
¤‹fl›fl (ADMIN) is the password, unless the password has
been changed. Check Programming Record for the most recent
password.
press four times for the number 3
press once for the letter D
press twice for the letter E
press three times for the letter F
Display text
Instructions for display keys
Display keys
Contrast level 2
D WN UP K

Introduction 19
P0607114 Issue 01 Compact Plus System Administration Guide
Ending a programming session
The system proceeds with any changes you make to
programming as soon as you move away from a setting, either by
using the navigation keys or ®.
You can see if the changes you have made to telephone
programming have taken effect by pressing the UPDATE display
key. The display shows you how many telephones are still
waiting to update.
Using passwords to access programming
There are three passwords for Administration programming.
•‡¤‡fi°‡ (SAPLUS) — The System Administrator
Plus password accesses all the settings for Administration
programming, plus several installer settings.
•¤‹fl›fl (ADMIN) — The Administrator password
accesses most of the settings for Administration
programming.
•¤¤‡›¤ (BASIC) — The Basic password accesses a
few settings that can be changed using feature codes.
The Basic password allows you to delegate some of the duties of
being an administrator without allowing access to sensitive
programming. It should be given out with care and changed when
necessary (for example, when someone leaves the company).
For information about changing passwords, see “Setting the
Basic password” on page 173. For more information about the
settings that can be changed with the Basic password, see "Using
passwords" on page 29.
Possible display
∫∫∫∫∫∫∫∫∫∫CHAN E
Press ®to end the session.
Endofsession
∫∫∫∫∫∫∫∫∫∫∫∫∫∫∫∫
After a few seconds, the time and date
reappear on the display.

20 Introduction
Compact Plus System Administration Guide P0607114 Issue 01
Understanding your system
Exchange lines have been set up by your installer to be either
public, private, or part of a line pool.
• A public line is assigned to more than one extension.
• A private line is assigned to only one extension and to the
Prime extension for that line.
• A line can be assigned to one of three line pools. Extensions
are assigned access to line pools and they share the lines in the
pool with other extensions having access to that pool.
The Compact Plus system automatically assigns extension 221 as
the Prime extension for each exchange line. The Prime extension
provides back-up answering for all unanswered calls coming in
on the exchange line.
Map of Administrator Plus programming
The programming map on the following pages shows the
headings, sub-headings, and settings that you can view when you
access the programming menus after pressing
≤••¤flfl‹›› (CONFIG) and entering the
Administrator Plus password ‡¤‡fi°‡.
