Norton CFP13W User manual

CFP13 W B
COMPACTORS
OPERATING INSTRUCTIONS
Translation of the original Instructions

VERS. 2023.03.15 CFP13 W B _MAN_ EN
2

VERS. 2023.03.15 CFP13 W B _MAN_ EN
3
The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A.
190, BD. J. F. KENNEDY
L-4930 BASCHARAGE
Declares that this product:
Norton Clipper Compactors CFP13 W B Code: 70184632594
Is in conformity with the following Directives:
"MACHINES" 2006/42/CE
"NOISE" 2000/14/CE
And European standard :
•EN 500-1 Mobile road construction machinery. Safety - Part 1: Common requirements
•En 500-4 Mobile road construction machinery - Safety - Part 4: Specific requirements for
compaction machines
Valid for machines as of serial number : 4503345366000
Storage site for the technical documents :
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG
This declaration of conformity loses its validity when the product is converted or modified without agreement.
Bascharage, le 15.03.2023 :
François Chianese, executive officer and responsible for the technical file.
Bascharage, Luxembourg.
Declaration of conformity

VERS. 2023.03.15 CFP13 W B _MAN_ EN
4
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD J.F. KENNEDY
L- 4930 BASCHARAGE
Declares that this product:
Compactor CFP13 W B Code: 70184608007
is in conformity with the following standard:
•Supply of Machinery (Safety) Regulations 2008
•Noise Emission in the Environment by Equipment
for use Outdoors Regulations 2001
and European standard:
•EN EN 500-1 Mobile road construction machinery. Safety - Part 1: Common requirements
•EN 500-4 Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction
machines
Valid for machines with a serial number greater than: 4503345366000
Authorised Representative:
SAINT-GOBAIN ABRASIVES
Unicorn House • Unit 1, Amison Close
Redhill Business Park • Stafford • England • ST16 1WB
This declaration of conformity loses its validity when the product is converted or modified without
agreement.
Bascharage, Luxembourg, 15.03.2023
François Chianese, executive officer and responsible for the technical file.
Bascharage, Luxembourg.
Declaration of conformity

VERS. 2023.03.15 CFP13 W B _MAN_ EN
5
Norton Clipper CFP 13 W B
OPERATING INSTRUCTIONS
TABLE OF CONTENTS
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 7
2MACHINE DESCRIPTION 9
2.1 Short description 9
2.2 Purpose of use 9
2.3 Layout 9
2.4 Technical DATA 11
2.5 Vibration measurements 11
2.6 Sound measurements 11
3COMMISSIONING 12
3.1 User’s reference guide 12
3.2 Battery’s fixation and starting up the machine 13
3.3 Charging the battery 14
4OPERATING THE MACHINE 15
4.1 Site of work 15
4.2 Preparing the site 15
5TRANSPORT AND STORING 15
5.1 Transport procedure 15
5.2 Long period of inactivity 15
6MAINTENANCE AND SERVICE 15
6.1 Maintenance of the machine 15
6.2 Maintenance of eGX Pack Honda 16
7FAULT : CAUSES AND CURES 17
7.1 Fault –finding procedures 17
7.2 Troubles-shooting guide 17
7.3 Customer service 18
7.4 Spare parts 19

VERS. 2023.03.15 CFP13 W B _MAN_ EN
6
1 BASIC SAFETY INSTRUCTIONS
The Norton Clipper CFP13 W B is exclusively designed for compaction mainly on construction sites.
Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne
entirely by the user. Observing the operating instructions and compliance with inspection and
servicing requirements shall also be considered as included under use in accordance with the
regulations.

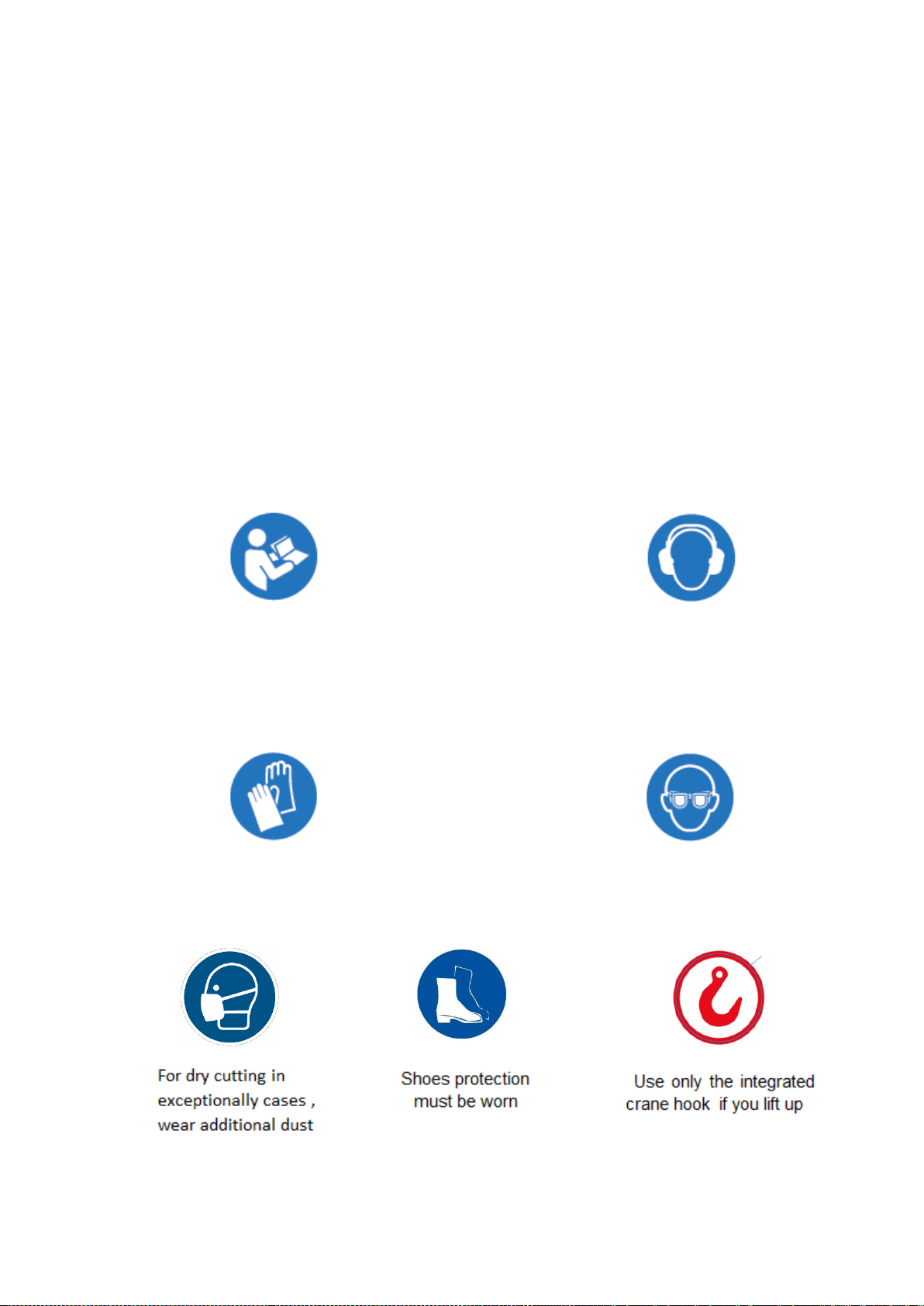

1.1 Symbols
Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator's instructions
Ear protection must be worn
Hand protection must be worn
Eye protection shall be worn

VERS. 2023.03.15 CFP13 W B _MAN_ EN
7

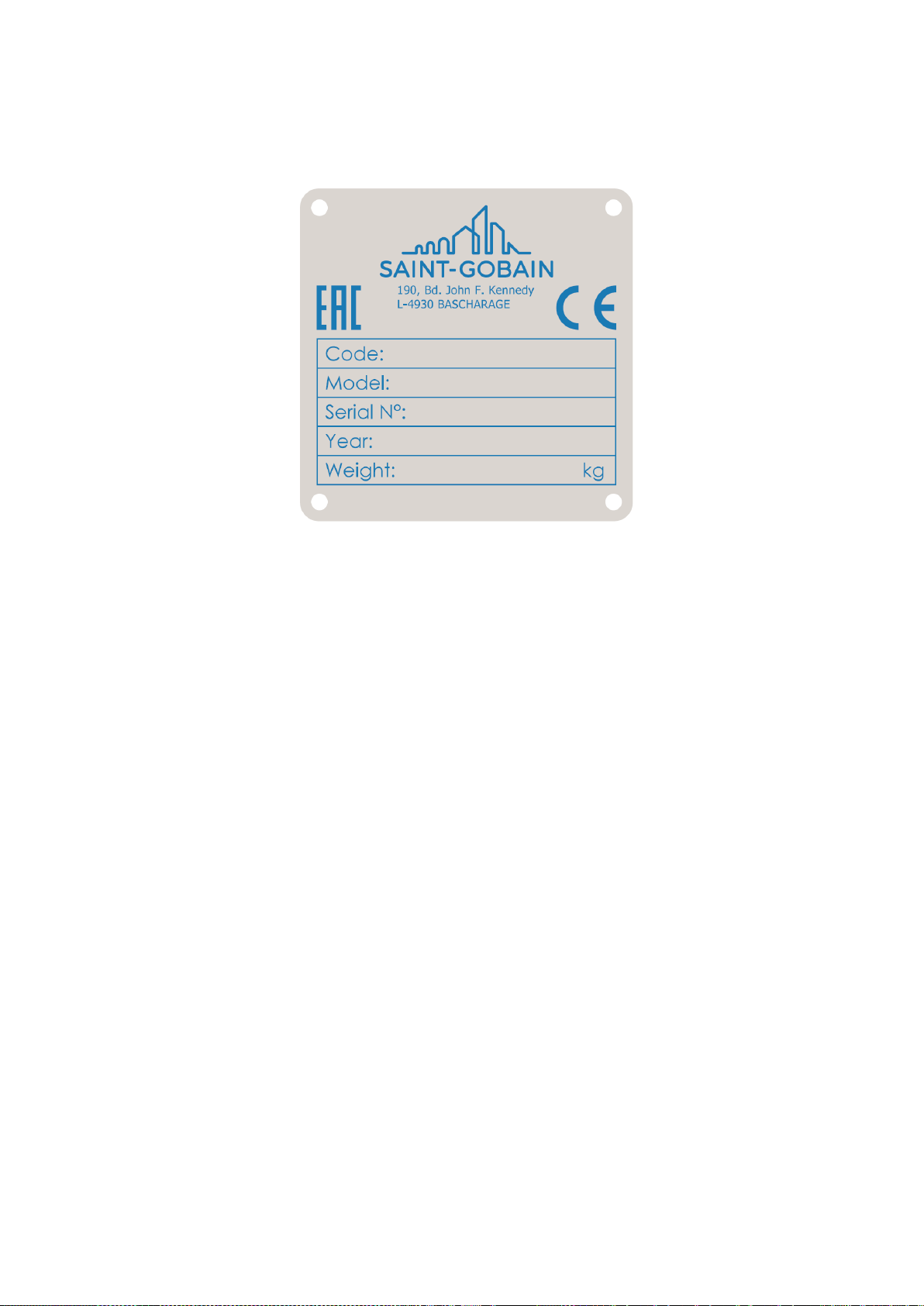

1.2 Machine plate
Important data can be found on the following plate located on the machine:
1.3 Safety instructions for particular operating phases
Before starting the work
•Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
•Plate compactors must only be used for compaction jobs observing safety and operating
instructions.
•People who work with plate compactors must know everything regarding safety instructions.
•Do not take drugs or drink alcohol before using plate compactors.
•Always wear appropriate protective clothes (ear protections, gloves, protecting shoes and
helmet).
•Do not alterate the operation devices of the plate compactor.
•Do not leave control elements during compaction.
•Store the compactor with engine off in a safe place.
•Do not smoke when using compactor. Keep the compactor out of open flames.
•Always wear appropriate protective clothes.
•When the work area is near slopes, the compactor could turn over.
•When you use compactor in reverse and in a narrow place, the operator must be sideways
from the handle in order to avoid stumbling.
•Always operate in safe conditions in order to avoid accidents.
•Always operate in maximum stability conditions.
•Use transport wheels only for movements in yard. In all the other situations they must be
removed.
•Always make sure of the proper functioning of the safety and control devices.
•If there are any problems, stop immediately the machine and inform the person responsible of
the yard.
•Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. and additional dusk
mask for dry cutting (only in exceptionally cases).
Machine model
Machine code
Machine Weight
Year of production
Serial number

VERS. 2023.03.15 CFP13 W B _MAN_ EN
8

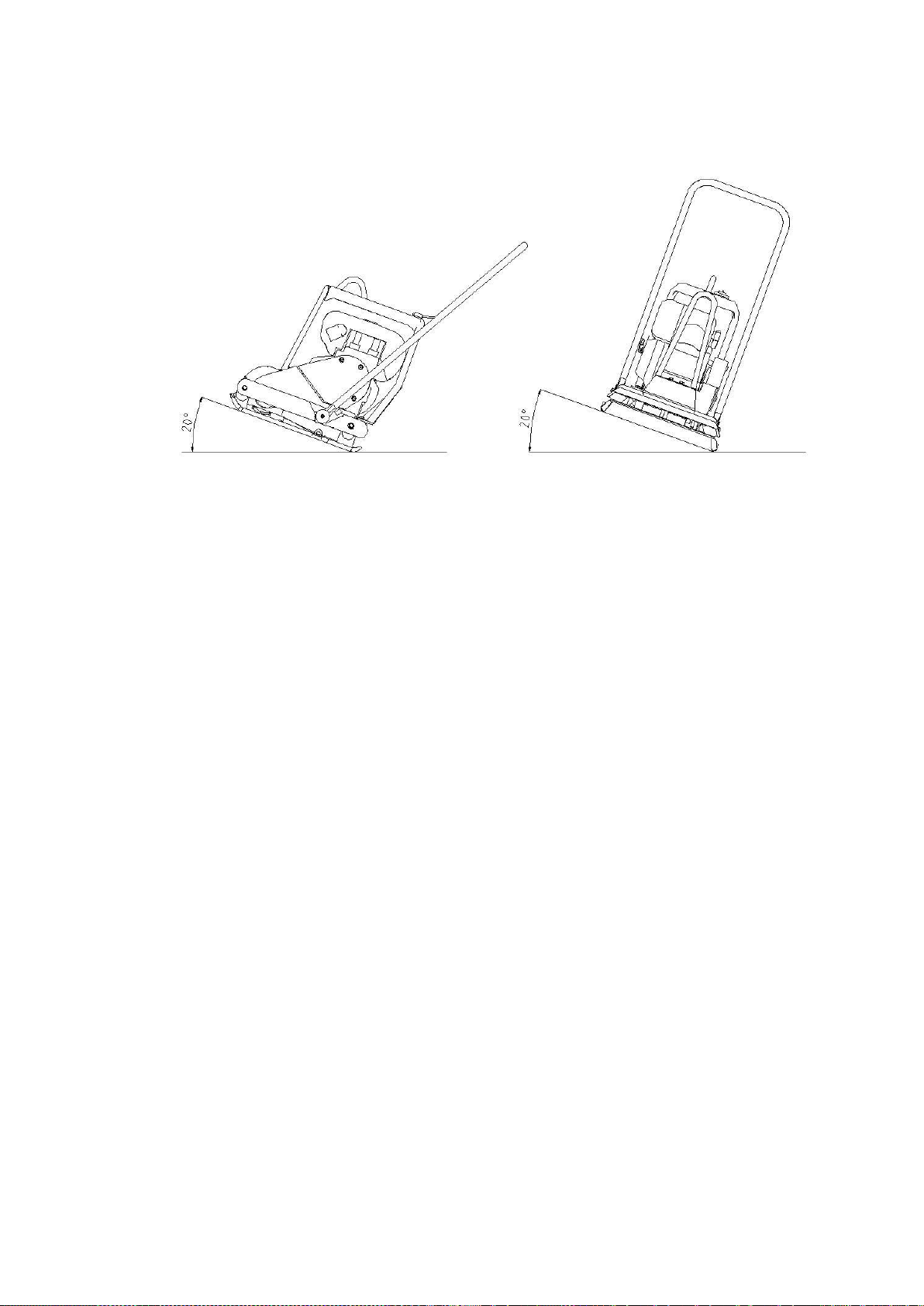

CLIMBING ABILITY

VERS. 2023.03.15 CFP13 W B _MAN_ EN
9
2 MACHINE DESCRIPTION
Any modification, which could lead to a change in the original characteristics of the machine, may be
done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the
safety regulations.
2.1 Short description
The compactor CPF13 W B is suitable for repairing asphalted surfaces, for small compacting jobs
and for preparing green areas
As with all other NORTON products, the operator will immediately appreciate the attention given to
detail and quality of materials used in construction. The machine and its component parts are
assembled to high standards assuring long life and minimum maintenance.
2.2 Purpose of use
The vibration required for tamping is produced by the exciter which is on the compacting plate.
The engine starts the exciter and the torque is transmitted by the centrifugal clutch and by the belt.
In order to allow the idling of the drive engine, the centrifugal clutch, at low engine speeds, interrupts
the flow of power to exciter.
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
Only use the machine for the purpose for which it is intended.

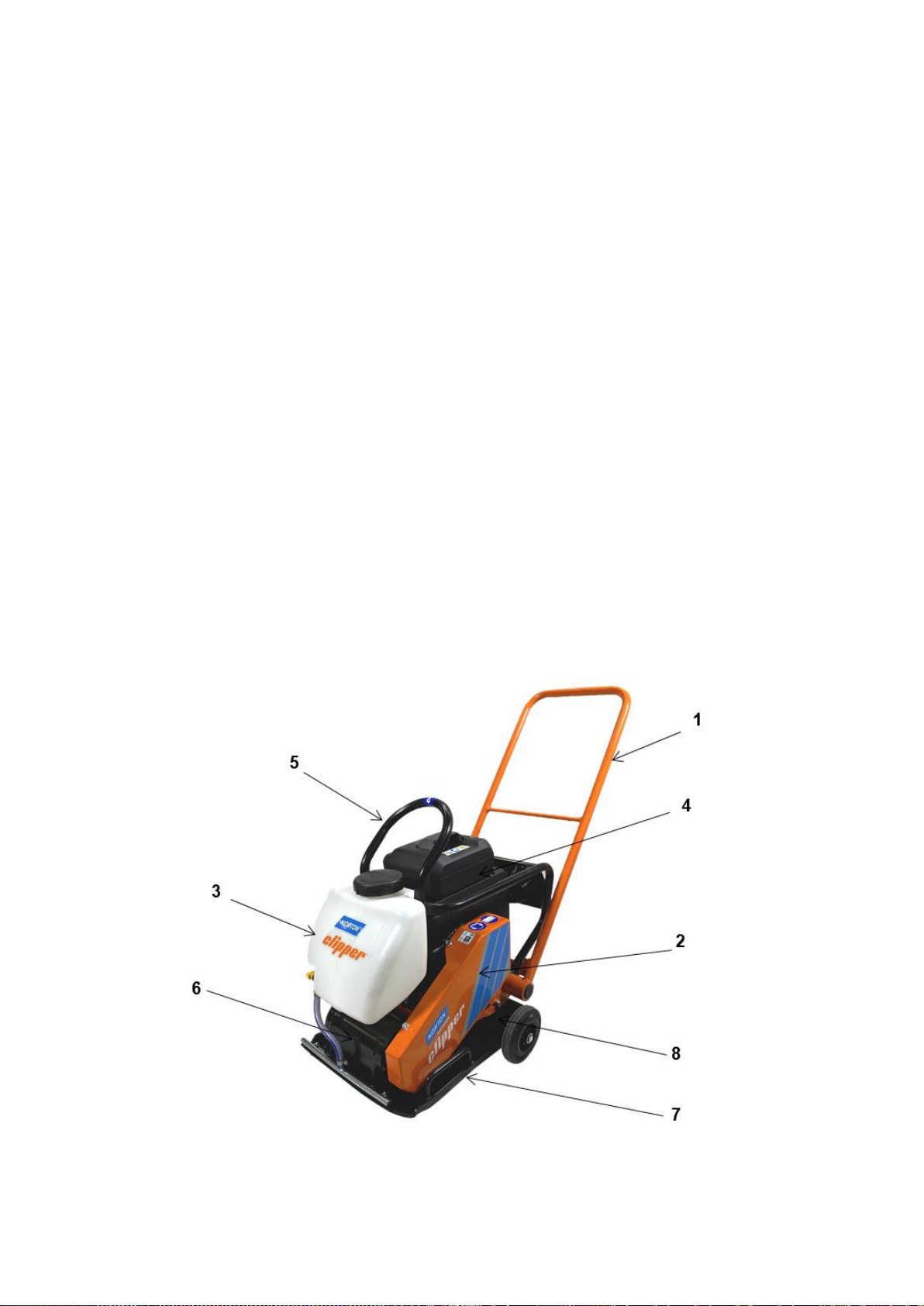

2.3 Layout

VERS. 2023.03.15 CFP13 W B _MAN_ EN
10
Handle (1)
Jig welded steel construction is connected by 4 shockmount on the frame of the machine to reduce
the vibrations reach the operator
Belt drive and belt cover (2)
A centrifugal clutch inside the engine pulley drives the gear shaft through V-Belts. It allows to gradually
engaging the vibration of the machine. The drive assembly is enclosed in a metal guard.
Water tank (3)
Resistant plastic water tank
Battery motor and control panel (4)
The eGX battery engine from Honda which integrates the battery directly on the engine
On the control panel you can find:
- The Power button
- The ON/OFF switch
- The 3 LEDs (green, orange and red) to indicate the state of the motor
Lifting eye (5)
To lift the machine easily and safely, a lifting eye is located over the engine. This allows a balanced
lifting of the machine.
Eccentric element (6)
In our compactors the system of eccentric elements has been optimized by moving the weight to the
right side of the axle, so that less weight counteracts the movement at start-up.
Less power is required to initiate the vibratory action, reducing energy consumption at start-up by
50%.
Plate (7)
The plates have rounded edges and raised to avoid marking the surface
Shock absorbers (8)
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.

VERS. 2023.03.15 CFP13 W B _MAN_ EN
11
2.4 Technical DATA
Model
CFP13 W B
Dimensions plate
mm 420 x 550
Width x Length
Operation weight
93 kg
Working speed
22 m/min
Max climbing ability
20%
Frequency
90 Hz
Centrifugal force
13 kN
Transmission
Centrifugal clutch / belt
Engine
eGX with Battery
Engine power
1,8 kW
2.5 Vibration measurements
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
Products are tested for hand/arm vibration level in accordance with EN500-4:2001.
The hand/harm vibration level is 2,2 m/s2.
The plate compactor has been tested on a surface, produced with not cleaned stone crusher grit, with
16 mm medium diameter (with components which have diameter that goes from 10 to 20 mm).
2.6 Sound measurements
The product has been produced in accordance with the standard 2000/14/CE, procedure I annex VI.
Measured sound power level 99 [dB(A)] and guaranteed sound power level 103 [dB(A)] on a
significant equipment.
Battery technical data
Type de battery
Battery lithium ion rechargeable
Tension
DC 72V
Power capacity
720Wh
Rated capacity
10.0Ah
Temperature range
Charging
5 à 30°C
Operating
-15 à 40°C
Storage
-5 à 30°C
Charger technical data
Charger type
CC/CV quick charger
Input voltage
AC 100 à 240V
Input frequency
50/60Hz
Output voltage
DC 82.8V
Output current
8.5A

VERS. 2023.03.15 CFP13 W B _MAN_ EN
12
3 COMMISSIONING
3.1 User’s reference guide

VERS. 2023.03.15 CFP13 W B _MAN_ EN
13

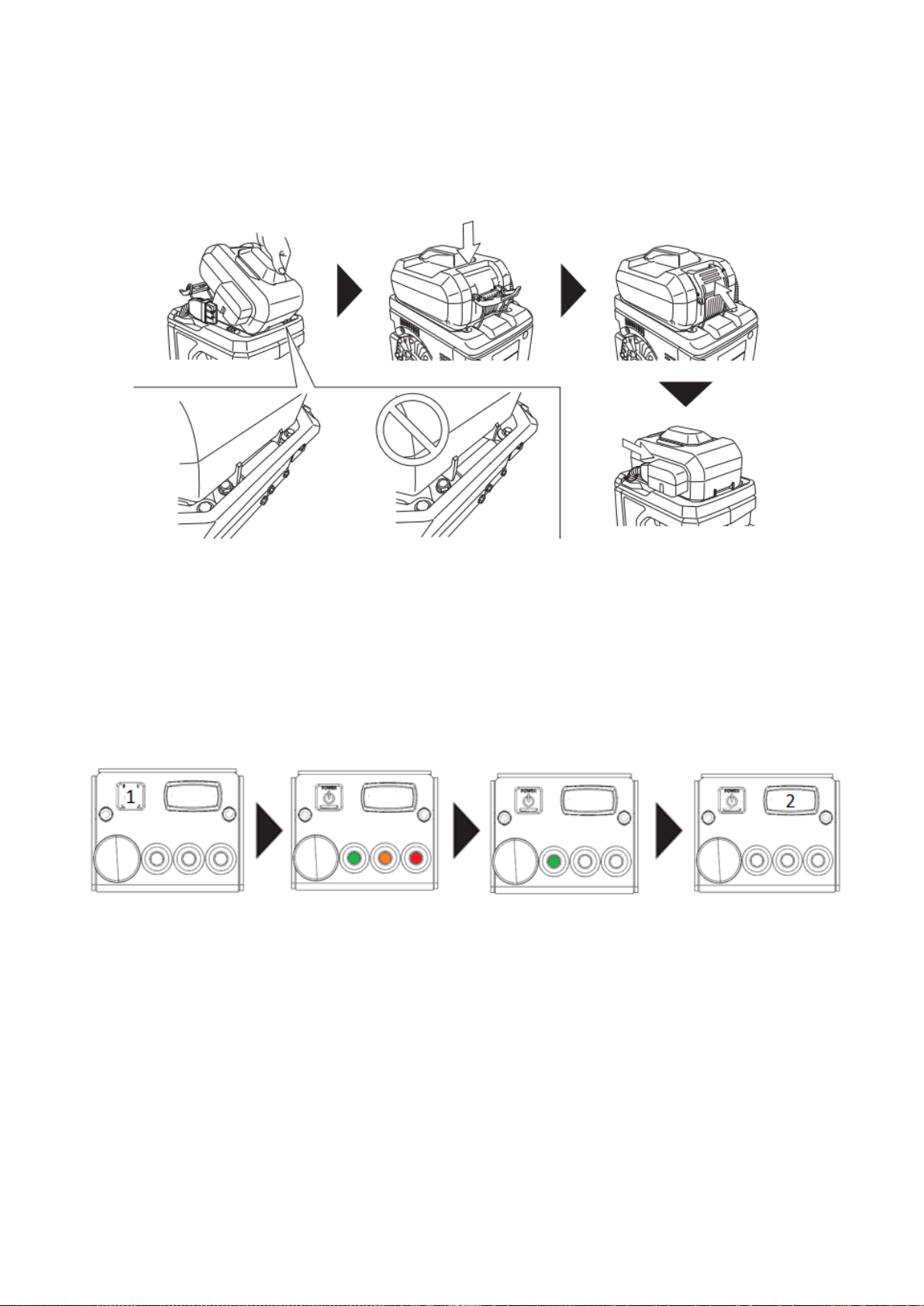

3.2 Battery’s fixation and starting up the machine
•Switch on the battery by pressing the Power button (1) (the switch must be in the OFF position)
the 3 LEDs will lit.
•Wait until the green LED on the control panel is the only one lit
•Put the switch to ON to start the motor and the rotation of the blade (2)
NOTE: When removing the battery, remember to replace the plastic cover on the motor plug to keep
it clean.
NOTE: These operations must be done each time the motor is restarted (even if the engine has just
been stopped).
To stop the machine, put the switch on the control panel to OFF.
CAUTION: when the machine is switched off, the tools will continue turning slowly to complete stop.
Be therefore very careful to avoid injuries.

VERS. 2023.03.15 CFP13 W B _MAN_ EN
14
3.3 Charging the battery
This machine works with a battery, so you have to think about charging it. A fast charger is available
for this. It will take between 1h and 1h30 to recharge a full battery charge. When charging the battery,
the charger fan turns on to prevent the battery from heating up. The charger will stop automatically
once the battery is fully charged, but the fan will remain on for a while to keep the battery cool.
NOTE: The battery must not be charged at a temperature equal to or lower than 5°C.

VERS. 2023.03.15 CFP13 W B _MAN_ EN
15
4 OPERATING THE MACHINE
4.1 Site of work
•Remove from the site anything, which might hinder the working procedure!
•Make sure the site is sufficiently well lit!
•Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time!
•Keep other staff out of the area, so you can work securely.
4.2 Preparing the site
Ad equation to compaction, it will be necessary to identify the characteristics of soils and material, to
study their ability
5 TRANSPORT AND STORING
5.1 Transport procedure
Conform yourself to work regulations, in order to transport the machine safely. To help you transport
the machine, you can remove the transport tube from under the handle and located in the front hole
of the machine.
5.2 Long period of inactivity
If the machine is not going to be used for a long period, completely clean the machine and
disassemble the tools. The storage site must be clean, dry and at a constant temperature.
6 MAINTENANCE AND SERVICE
6.1 Maintenance of the machine
Always perform the maintenance of the machine with the battery disconnected.
To ensure a long-term quality from the use of the Clipper compactors CPF13W W B, please follow
the maintenance plan below:
- Check the eccentric cover (daily)
- Check the belt tension manually (after 20 hours)
- Check the oil level at the eccentric (every 150h) and change the oil (every 200h)
Cleaning the machine
The life of your machine depends on its maintenance. Clean it at the end of each day.

VERS. 2023.03.15 CFP13 W B _MAN_ EN
16
6.2 Maintenance of eGX Pack Honda

VERS. 2023.03.15 CFP13 W B _MAN_ EN
17
7 FAULT : CAUSES AND CURES
7.1 Fault –finding procedures
Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine of
the machine can only be carried out by a qualified technician.
7.2 Troubles-shooting guide
TROUBLE
POSSIBLE CAUSE
SOLUTION
The engine works properly but the
machine does not vibrate
The transmission belt is broken
Replace the belt
The wear and tear has caused the belt to
loosen up
The centrifugal clutch has broken
Replace the centrifugal clutch
Reduced or irregular speed
The engine rpm is not correct
Verify that during compaction gas lever is in
“OPERATIVE” position
Reset the number of engine rpm
The transmission belt has loosened up
Tension the transmission belt and, if
necessary, replace it
The engine rpm are low but the exciter
does not stop
Centrifugal clutch malfunction
Repair the centrifugal clutch and, if
necessary, replace it
The exciter heats up to over 90° (bath oil
only)
There is too much of oil in the exciter
Top up the oil level. Check whether the oil
seal has been damaged; if necessary replace
it
The engine works with difficulty and the
exciter is too noisy and it stops or slows
down
Mechanical block of the exciter (bearings,
shaft)
Remove the element causing the failure or, if
necessary, replace the exciter
The engine turns off or does not work
properly
Defective switch
CAUTION : can only be solved by qualified
electrician
Battery low
Check the charge of the battery (recharge it if
needed)
Engine damaged
Contact an engine service center

VERS. 2023.03.15 CFP13 W B _MAN_ EN
18
7.3 Customer service
When ordering spare parts, please mention:
•The serial number (7 digits).
•The code of the part.
•The exact denomination.
•The number of parts required.
•The delivery address.
•Please indicate clearly the means of transportation required such as "express" or "by air". Without
specific instructions, we will forward the parts through the means which seem appropriate to us -
-- but which is not always the quickest way.
Clear instructions will avoid problems and faulty deliveries.
If not sure, please send us the defective part.
In the case of a warranty claim, the part must always be returned for evaluation.
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which
is often quicker and cheaper.
This machine has been manufactured by: Saint-Gobain Abrasives S.A.
190, Bd. J. F. Kennedy
L- 4930 BASCHARAGE
Grand-duché de Luxembourg.
Tel.: [phone]
Fax: [phone]
http://www.construction.norton.eu
e-mail: [e-mail]

VERS. 2023.03.15 CFP13 W B _MAN_ EN
19
7.4 Spare parts
In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper
by using the following address:
https://spareparts.nortonabrasives.com
For a quick access, you can also use the QR Code shown below using your mobile phone:
This electronic catalogue provides exploded views and spare parts lists for different machines
designed by Norton Clipper so you can find references you need.
Guarantee can be claimed and technical support obtained from your local distributor where machines,
spare parts and consumables can be ordered as well:

VERS. 2023.03.15 CFP13 W B _MAN_ EN
20
