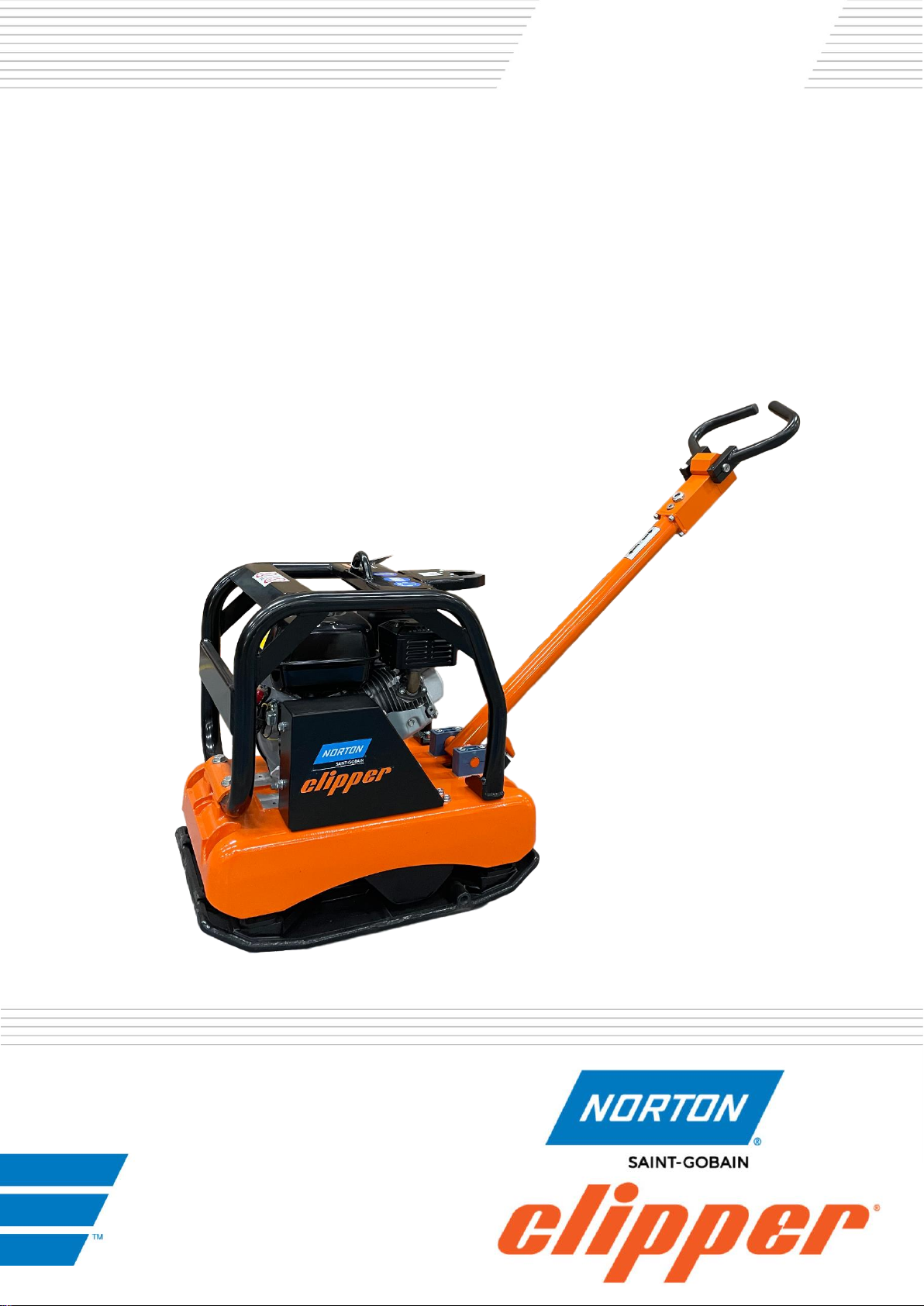

Norton Clipper CRP21 User manual

CRP21
COMPACTORS
OPERATING INSTRUCTIONS
Translation of the original Instructions

VERS. 2022.11.15 CRP21 _MAN_EN
2

VERS. 2022.11.15 CRP21 _MAN_EN
3
The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A.
190, BD. J. F. KENNEDY
L-4930 BASCHARAGE
Declares that this product: Norton Clipper Compactors CRP21
Code: 70184609565 Honda GX160
Code: 70184609566 Diesel Hatz 1B20
Is in conformity with the following Directives:
"MACHINES" 2006/42/CE
"NOISE" 2000/14/CE
And European standard :
EN 500-1 Mobile road construction machinery. Safety - Part 1: Common requirements
En 500-4 Mobile road construction machinery - Safety - Part 4: Specific requirements for
compaction machines
Valid for machines as of serial number : 450xxxxxxx
Storage site for the technical documents :
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG
This declaration of conformity loses its validity when the product is converted or modified without agreement.
Bascharage, Luxembourg, le 15.11.2022 :
François Chianese, executive officer.
Declaration of conformity

VERS. 2022.11.15 CRP21 _MAN_EN
4
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD J.F. KENNEDY
L- 4930 BASCHARAGE
Declares that this product:
Compactor CRP 21 Honda GX160 Code: 70184609565
CRP 21 Diesel Hatz 1B20 70184609566
is in conformity with the following standard:
Supply of Machinery (Safety) Regulations 2008
Noise Emission in the Environment by Equipment
for use Outdoors Regulations 2001
And European standard :
EN 500-1 Mobile road construction machinery. Safety - Part 1: Common requirements
EN 500-4 Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction
machines
Valid for machines with a serial number greater than: 450xxxxxxx
Authorised Representative:
SAINT-GOBAIN ABRASIVES
Unicorn House • Unit 1, Amison Close
Redhill Business Park • Stafford • England • ST16 1WB
This declaration of conformity loses its validity when the product is converted or modified without
agreement.
Bascharage, Luxembourg, 15.11.2022
François Chianese, executive officer.
Declaration of conformity

VERS. 2022.11.15 CRP21 _MAN_EN
5
Norton Clipper CRP21
OPERATING INSTRUCTIONS
TABLE OF CONTENTS
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 7
2MACHINE DESCRIPTION 9
2.1 Short description 9
2.2 Purpose of use 9
2.3 Layout 10
2.4 Technical DATA 11
2.5 VIBRATION MEASUREMENTS 11
2.6 SOUND MEASUREMENTS 11
3ASSEMBLY AND COMMISSIONING 12
3.1 Starting the machine 12
3.2 Starting the machine with Hatz 1B20 engine 13
4OPERATING THE MACHINE 14
4.1 Site of work 14
4.2 Preparing the site 14
5Transport and Storage 14
5.1 Securing for transport 14
5.3 Long period of inactivity 14
6MAINTENANCE AND SERVICE 15
6.1 Maintenance of the machine 15
7FAULT: CAUSES AND CURES 16
7.1 Fault –finding procedures 16
7.2 Troubles-shooting guide 16
7.3 Customer service 17
7.4 Spare parts 18

VERS. 2022.11.15 CRP21 _MAN_EN
6
1 BASIC SAFETY INSTRUCTIONS
The Norton Clipper CRP21 is exclusively designed for compaction mainly on construction sites.
Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne
entirely by the user. Observing the operating instructions and compliance with inspection and
servicing requirements shall also be considered as included under use in accordance with the
regulations.
1.1 Symbols
Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator's instructions
Ear protection must be worn
Hand protection must be worn
Eye protection shall be worn

VERS. 2022.11.15 CRP21 _MAN_EN
7
1.2 Machine plate
Important data can be found on the following plate located on the machine:
1.3 Safety instructions for particular operating phases
Before starting the work
Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents...
Plate compactors must only be used for compaction jobs observing safety and operating
instructions.
People who work with plate compactors must know everything regarding safety instructions.
Do not take drugs or drink alcohol before using plate compactors.
Always wear appropriate protective clothes (ear protections, gloves, protecting shoes and
helmet).
Do not alterate the operation devices of the plate compactor.
Do not leave control elements during compaction.
Store the compactor with engine off in a safe place.
Always refill fuel tank when the engine is off. Do not allow fuel to come into contact with the
hot parts of compactor and engine.
Do not smoke when using compactor. Keep the compactor out of open flames.
Always check fuel tank cap. If there is a fuel cock, shut it off when the engine is not working.
Do not use the compactor in places where there are gaseous exhalations.
Do not use the machine indoors or in an enclosed area unless inadequate ventilation.
Always wear appropriate protective clothes.
When the work area is near slopes, the compactor could turn over.
When you use compactor in reverse and in a narrow place, the operator must be sideways
from the handle in order to avoid stumbling.
Always operate in safe conditions in order to avoid accidents.
Always operate in maximum stability conditions.
Machine model
Machine code
Machine Weight
Year of production
Serial number

VERS. 2022.11.15 CRP21 _MAN_EN
8
Use transport wheels only for movements in yard. In all the other situations they must be
removed.
Always make sure of the proper functioning of the safety and control devices.
If there are any problems, stop immediately the machine and inform the person responsible of
the yard.
Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. and additional dusk
mask for dry cutting (only in exceptionally cases).

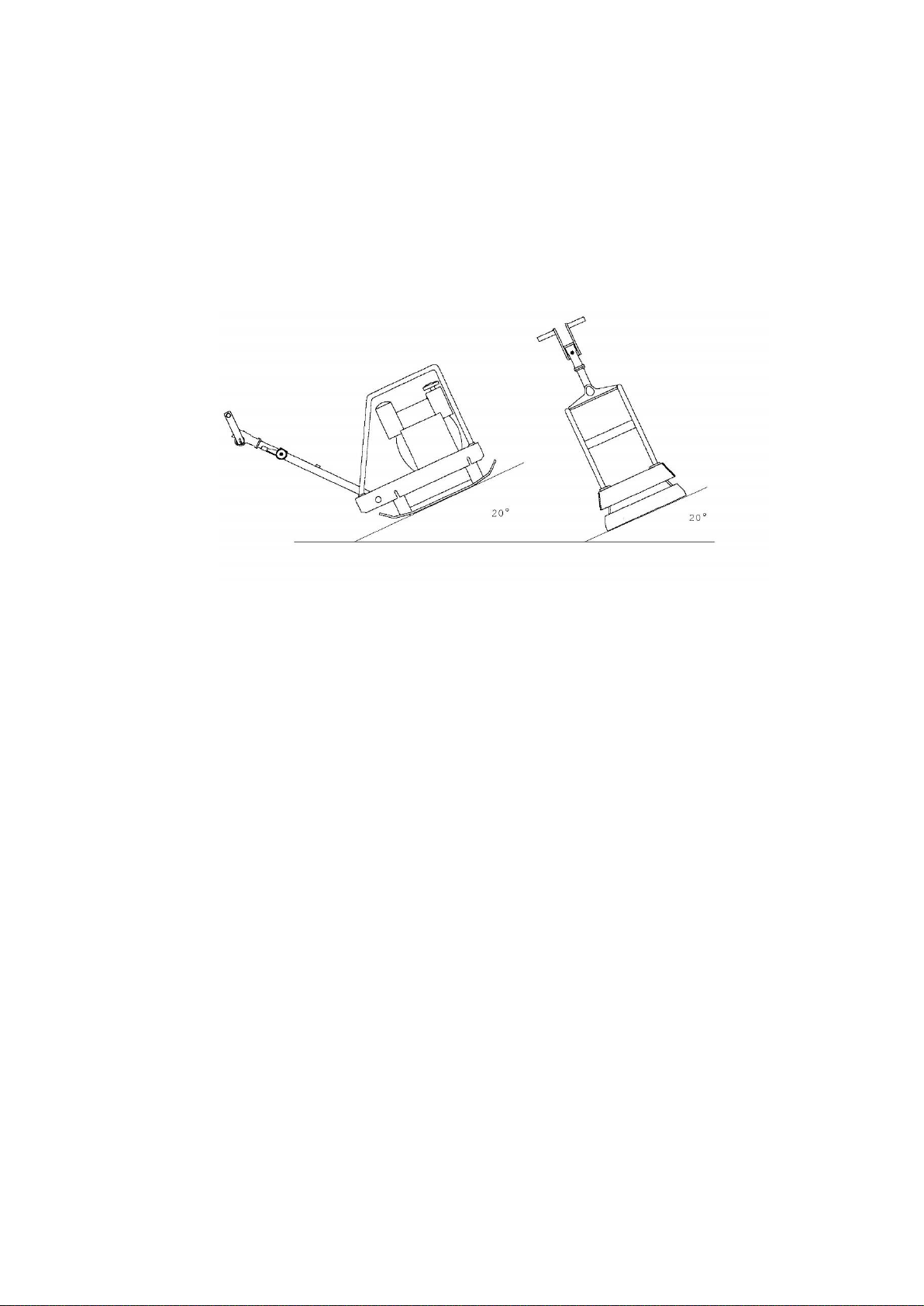

CLIMBING ABILITY

VERS. 2022.11.15 CRP21 _MAN_EN
9
2 MACHINE DESCRIPTION
Any modification, which could lead to a change in the original characteristics of the machine, may be
done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the
safety regulations.
2.1 Short description
The compactor CRP21 is suitable for repairing asphalted surfaces, for small compacting jobs and for
preparing green areas
As with all other NORTON products, the operator will immediately appreciate the attention given to
detail and quality of materials used in construction. The machine and its component parts are
assembled to high standards assuring long life and minimum maintenance.
The direction of plate compactor depends on the position of control levers on the handle.
2.2 Purpose of use
The vibration required for tamping is produced by the exciter which is on the compacting plate.
The engine starts the exciter and the torque is transmitted by the centrifugal clutch and by the belt.
In order to allow the idling of the drive engine, the centrifugal clutch, at low engine speeds, interrupts
the flow of power to exciter. The compactor must always be used with the gas handle in the
“OPERATIVE” position.
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
Only use the machine for the purpose for which it is intended.

VERS. 2022.11.15 CRP21 _MAN_EN
10
2.3 Layout
Handle (1)
A tube is connected by 1 shockmount on the frame of the machine to reduce the vibrations reach the
operator.
Control levers (2)
Levers which control the displacement of the compactor
Belt drive and belt cover (3)
A centrifugal clutch inside the engine pulley drives the gear shaft through V-Belts. It allows to gradually
engaging the vibration of the machine. The drive assembly is enclosed in a metal guard.
Thermal Engine (4)
The machine has a GX160 Honda engine with 4,8HP (3.6kw) or a diesel 1B20 Hatz engine with 5HP
(3.7kW)
Lifting eye (5)
To lift the machine easily and safely, a lifting eye is located over the engine. This allows a balanced
lifting of the machine.
Eccentric element (6)
In our compactors the system of eccentric elements has been optimized by moving the weight to the
right side of the axle, so that less weight counteracts the movement at start-up.
Less power is required to initiate the vibratory action, reducing energy consumption at start-up by
50% and thus using less fuel.
6
2
3
8
5
1
7
4

VERS. 2022.11.15 CRP21 _MAN_EN
11
Plate (7)
The plates have rounded edges and raised to avoid marking the surface
Shock absorbers (8)
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
2.4 Technical DATA
Model
CRP21 Honda GX160
CRP21 Diesel Hatz 1B20
Dimensions plate
mm 400x632
Width x Length
Operating weight
Kg 112
Kg 121
Working speed
25-30 m/min
Max climbing ability
20%
Frequency
90 Hz
Centrifugal force
21 kN
Transmission
Centrifugal clutch / belt
Engine
Mono cylinder –4 temps –A air
Honda GX 160
Diesel Hatz 1B20
Engine power
kW 3,6 (HP 4,8)
3,7kW (5HP)
Displacement
163 cm3
243 cm³
Fuel
Petrol
Diesel
Fuel consumption
1,5
0.7
Fuel tank capacity
3,6L
3.6L
2.5 VIBRATION MEASUREMENTS
The engine supporting and the compacting plates are connected by 4 shockmount, which are
mounted to avoid that vibrations reach the operator.
Products are tested for hand/arm vibration level in accordance with annex D prEN500-4:2001
The hand/harm vibration level is 2,06 m/s2 with the GX160 Honda engine and 2,20 m/s² with the
diesel 1B20 Hatz engine.
The plate compactor hasbeen tested on a surface, produced with not cleaned stone crusher grit, with
16 mm medium diameter (with components which have diameter that goes from 10 to 20 mm).
2.6 SOUND MEASUREMENTS
The product has been produced in accordance with the standard 2000/14/CE, procedure I annex VI.
Measured sound power level 106 [dB(A)] and guaranteed sound power level 108 [dB(A)] on a
significant equipment.

VERS. 2022.11.15 CRP21 _MAN_EN
12
3 ASSEMBLY AND COMMISSIONING
3.1 Starting the machine
Turn the fuel valve to the ON position. Fully press
the dead-man handle against the main handle.
Move the choke lever to the CLOSED position.
NOTE: do not use the choke if the engine is warm or the
air temperature is high.
Move the throttle control lever slightly to the left. Put
the engine switch on ON.
Pull the starter grip lightly until you feel resistance, then pull
briskly.
CAUTION: Do not allow the starter grip to snap back
against the engine. Return it gently to prevent damage to
the starter.
As the engine warms up, gradually move the
choke lever to the OPEN position.
Position the throttle control lever for the
maximum engine speed.
To stop the engine, release the dead-man handle, move the throttle control lever fully to the right,
then turn the engine switch to the OFF position. Turn the fuel valve to the OFF position.
CAUTION: when the machine is switched off, the tools will continue turning slowly to complete stop.
Be therefore very careful to avoid injuries.

VERS. 2022.11.15 CRP21 _MAN_EN
13
3.2 Starting the machine with Hatz 1B20 engine

VERS. 2022.11.15 CRP21 _MAN_EN
14
4 OPERATING THE MACHINE
4.1 Site of work
Remove from the site anything, which might hinder the working procedure!
Make sure the site is sufficiently well lit!
Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time!
Keep other staff out of the area, so you can work securely.
4.2 Preparing the site
Ad equation to compaction, it will be necessary to identify the characteristics of soils and material, to
study their ability
5 Transport and Storage
5.1 Securing for transport
Conform yourself to work regulations, in order to transport the machine safely. To help you transport
the machine, you can insert the wheels into the holes provided.
5.3 Long period of inactivity
If the machine is not going to be used for a long period, completely clean the machine and
disassemble the tools. The storage site must be clean, dry and at a constant temperature.

VERS. 2022.11.15 CRP21 _MAN_EN
15
6 MAINTENANCE AND SERVICE
6.1 Maintenance of the machine
To ensure a long-term quality from the use of the Clipper compactors CRP21, please follow the
maintenance plan below:

VERS. 2022.11.15 CRP21 _MAN_EN
16
7 FAULT: CAUSES AND CURES
7.1 Fault –finding procedures
Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine of
the machine can only be carried out by a qualified technician.
7.2 Troubles-shooting guide
TROUBLE
POSSIBLE CAUSE
SOLUTION
The engine works properly but the
machine does not vibrate
The transmission belt is broken
Replace the belt
The wear and tear has caused the belt to
loosen up
The centrifugal clutch has broken
Replace the centrifugal clutch
Reduced or irregular speed
The engine rpm is not correct
Verify that during compaction gas lever is in
“OPERATIVE” position
Reset the number of engine rpm
The transmission belt has loosened up
Tension the transmission belt and, if
necessary, replace it
The engine rpm are low but the exciter
does not stop
Centrifugal clutch malfunction
Repair the centrifugal clutch and, if
necessary, replace it
The exciter heats up to over 90° (bath oil
only)
There is too much of oil in the exciter
Top up the oil level. Check whether the oil
seal has been damaged; if necessary replace
it
The engine works with difficulty and the
exciter is too noisy and it stops or slows
down
Mechanical block of the exciter (bearings,
shaft)
Remove the element causing the failure or, if
necessary, replace the exciter
The engine turns off or does not work
properly
Fuel tank empty
Add fuel
Oil lack
Add oil
Dirty air filter
Clean air filter, if necessary replace it
Engine damaged
Contact an engine service center

VERS. 2022.11.15 CRP21 _MAN_EN
17
7.3 Customer service
When ordering spare parts, please mention:
The serial number (7 digits).
The code of the part.
The exact denomination.
The number of parts required.
The delivery address.
Please indicate clearly the means of transportation required such as "express" or "by air". Without
specific instructions, we will forward the parts through the means which seem appropriate to us -
-- but which is not always the quickest way.
Clear instructions will avoid problems and faulty deliveries.
If not sure, please send us the defective part.
In the case of a warranty claim, the part must always be returned for evaluation.
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which
is often quicker and cheaper.
This machine has been manufactured by: Saint-Gobain Abrasives S.A.
190, Bd. J. F. Kennedy
L- 4930 BASCHARAGE
Grand-duché de Luxembourg.
Tel.: [phone]
Fax: [phone]
http://www.construction.norton.eu
e-mail: [e-mail]

VERS. 2022.11.15 CRP21 _MAN_EN
18
7.4 Spare parts
In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper
by using the following address:
https://spareparts.nortonabrasives.com
For a quick access, you can also use the QR Code shown below using your mobile phone:
This electronic catalogue provides exploded views and spare parts lists for different machines
designed by Norton Clipper so you can find references you need.
Guarantee can be claimed and technical support obtained from your local distributor where machines,
spare parts and consumables can be ordered as well:

VERS. 2022.11.15 CRP21 _MAN_EN
19

VERS. 2022.11.15 CRP21 _MAN_EN
20
