Norton Clipper Blockbuster BBC347 User manual

OWNERS MANUAL

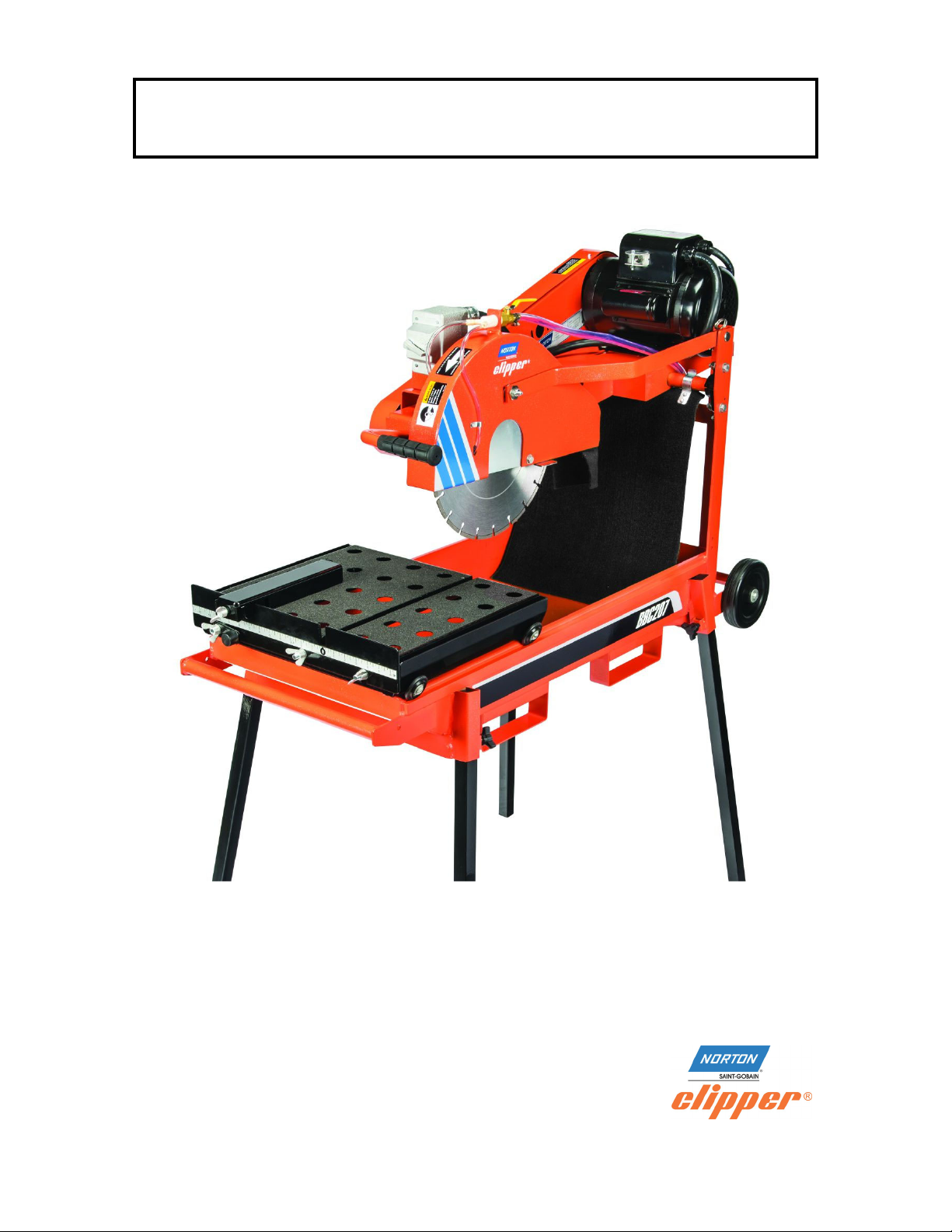

Blockbuster® Compact Masonry Saw
MODELS
BBC157 BBC207
BBC307 BBC347
BBC547 BBC507
Form BBC157-207-307-347-547-507 Manual Rev 5-2022

WARRANTY
Norton warrants all products manufactured by it against defects in workmanship
or materials for a period of one (1) year from the date of shipment to the
customer.
The responsibility of Norton under this warranty is limited to replacement or
repair of defective parts at Saint-Gobain Abrasives, Inc. Stephenville, Texas
factory, or at a point designated by it, of such part as shall appear to us upon
inspection at such point, to have been defective in material or workmanship, with
expense for transportation borne by the customer.
In no event shall Norton be liable for consequential or incidental damages arising
out of the failure of any product to operate properly.
Integral units such as gasoline engines, electric motors,batteries, tires,
transmissions, etc., are excluded from this warranty and are subject to the
prime manufacturer's warranty.
This warranty is in lieu of all other warranties, expressed or implied, and all such
other warranties are hereby disclaimed.
Important: Before placing equipment in operation, record the following
information.
MODEL:_________ SERIAL NO.___________
PURCHASE FROM: _____________________
ADDRESS: ____________________________
CITY_______ STATE ______ ZIP ________
TELEPHONE NO. ______________________
Before using this equipment, make sure that person using it
Read and understand the instructions in this owner’s manual.

3
BBC 157/207/307/547/507
OWNER'S MANUAL
CONTENTS PAGE
I. Preparation
A. Safety Precautions 4-6
B. Assembly 7-12
C. Specifications 13
D. Electrical Connections 14
E. Wiring Diagram 15-18
F. Electrical Motor Trouble Shooting 19
G. Gasoline Engine 19-20
II. Operation
A. How to mount Blade 21
B. How To Use "Step Cutting" With Abrasive Blades 22
C. How To Use "Jam Cutting" And "Step Cutting" With Diamond Blades. 23
D. Dry Cutting 24
E. Wet Cutting 24
III. Maintenance
A. V-Belts 25-26
B. Electric Motor 27
C. Gasoline Engine 27-28
D. Blade Shaft Bearings 29
E. Water Pump 29
IV. Parts List Section
A. Ordering Information 30
B. Parts List 30-39
Power Plant Gasoline BBC157/507 31-32
Power Plant Electric: BBC157/BBC207/BBC307 33
Frame Common All: BBC157/BBC207/BBC307/BBC547/BBC507 34-35
Cutting Head All: BBC157/BBC207/BBC307/BBC547/BBC507 36-37
Cutting Table All: BBC157/BBC207/BBC307/BBC547/BBC507 38-39
C. Baldor Service Policy 40
D. Honda Service Policy 41
Read Owners Manual Before Use
Safety Alert Symbol: Information Following This Symbol Is Very Important.
Use Only Norton Clipper Diamond Blades

4
I. PREPARATION
A. Safety Precautions
Important! The following safety precautions must always be observed.
Hazard Symbols
Fuel (gasoline) is extremely flammable and its vapors can explode if ignited.
Store gasoline only in approved containers, in well-ventilated, unoccupied
approved areas, and away from sparks or flames. Do not fill the fuel tank
while the engine is hot or running. Do not start the engine near spilled fuel.
Never use the fuel as a cleaning agent
Engine components can get extremely hot from operation. To prevent burns,
do not touch the engine or related parts while the engine is running or
immediately after it is turned off. Never operate the engine with any heat
shields or guards removed.
Keep all guards in place when operating any piece of equipment
Keep hands, feet, hair, and clothing away from all rotating parts
Lethal Exhaust Gas use only in well ventilated areas. Engine exhaust gases
contain poisonous carbon monoxide, which is odorless, colorless, and can
cause death if inhaled. Avoid inhaling exhaust fumes, and never run the
engine in a closed building or confined area
Never tamper with the governor components of settings to increase the
maximum speed. Severe personal injury and damage to the engine or
equipment can result if operated at speed above maximum. Always obey the
maximum speed rating of blade.
DO NOT LIFT THE SAW BY THE HANDLE BARS

5
Dust and Silica Warning
Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust,
mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as
respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with
the risks associated with the particular process and/or material being cut or the composition of
the tool being used, review the material safety data sheet and/or consult your employer, the
material manufacturer/supplier, governmental agencies such as OSHA and NIOSH and other
sources on hazardous materials and make certain to comply with all product warnings and
instructions for the safe and effective use of the material being cut. California and some other
authorities, for instance, have published lists of substances known to cause cancer,
reproductive toxicity, or other harmful effects.
Control dust, mist and fumes at the source where possible. In this regard use good work
practices and follow the recommendations of the manufacturer/supplier, OSHA/NIOSH, and
occupational and trade associations. Water should be used for dust suppression when wet
cutting is feasible. When the hazards from inhalation of dust, mists and fumes cannot be
eliminated through engineering controls such as either vacuum and/or water mist, the operator
and any bystanders should always wear a respirator approved by NIOSH/MSHA for the
material being cut.
California Proposition 65 Message
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contain chemicals known (to the State of California) to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products
• Arsenic and chromium, from chemically treated lumber
For Addition Information Consult The Following Sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/consilic.html
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Use Approved:
Eye Protection Hearing
Protection
Respiratory
Protection
Head Protection

6
1. Before mounting any blade on the saw, the blade should be inspected for any damage
which might have occurred during shipment, handling or previous use.
2. The blade collars and arbors should be cleaned and examined for damage before
mounting the blade.
3. The blade must be properly fitted over the arbor with the drive pin on the outside
collar projecting through the drive pinhole on the blade and inside collar.
4. The blade shaft nut, which is a left-hand thread nut, must be tightened securely
against the outside blade shaft collar.
5. The blade must be operated within the specified maximum operating speed listed on
the blade.
6. Turn water control valve to full to provide adequate coolant (4 to 6 gallons per
minute) for diamond blades and wet cutting abrasive blades. Insufficient coolant
could result in severe blade breakage or diamond segment separation.
7. The blade guard must be in place with the nose guard down and locked when the saw
is running.
8. The operator should wear safety glasses and any other appropriate safety equipment.
9. When starting the saw, the operator should stand away and to the side of the blade.
10. If for any reason the saw should stall in the cut, raise the blade out of the cut. Check
the outside blade shaft collar and nut for tightness. Inspect the blade for damage
before restarting the saw. Use caution when resuming a cut. Be certain that the
blade is in alignment with the previous cut.
11. During cutting operations, do not exert excess side pressure on the handles as a
method of steering. Do not force the blade into the cut by lowering the blade too fast
or by pushing the saw too fast.
You Are Responsible For Your Safety!!!

7
I. PREPARATION
B. Assembly
The compact Masonry saws are shipped completely assembled and ready for use except
for diamond blade, gasoline, oil, and Head Locking Bar. Inspect the saw for shipping
damage. If any damage is found, contact the shipper immediately and file a freight claim.
The Norton Company is not responsible for any freight-related damages.
Remove the saw from the pallet.
Items Included with the saw:
UPC Part Number Item QTY
00310006528 82738 Head Locking Handle With Stud 1
00310002135 75817 Leg Kit (Contains Legs and Cap) Set of Four (4) 1
00310007367 83754 Conveyor Cart Assembly 1
00310007501 83892 Guide-A-Cut Assembly 1
00310004633 75132 Water Curtain Assembly 1
00310004053 70807 Wrench 19 mm 1
00310004199 72143 Wrench 22mm 1
00310004237 72305 Water Pump Assembly
(Gasoline Powered Machines Only)
1
70184668392
70184650470
214169
9602010
Water Pump PE-1
Fitting Barb Hose ¼” FPT X ½ Male Barb
(Electric Models Only)
1
Head Locking Handle:
Remove the Head Locking Screw from the machine (see Figure: Head Locking Screw
Removal). Replace the Head Locking Screw with the Head Locking Handle located in the
plastic bag of accessories (see Figure: Head Locking Handle Installation). Read and
understand the remaining sections of this Owners Manual.
The Head Locking Handle is used to lock the cutting head at a set position or depth of cut.
The Head Locking Screw is only used to hold the Cutting Head of the machine in place at
the Norton Company Factory.
Do not install the blade until it is time to use the saw!
ANSI regulations prohibit the transportation of any concrete
saw with the blade installed!

8

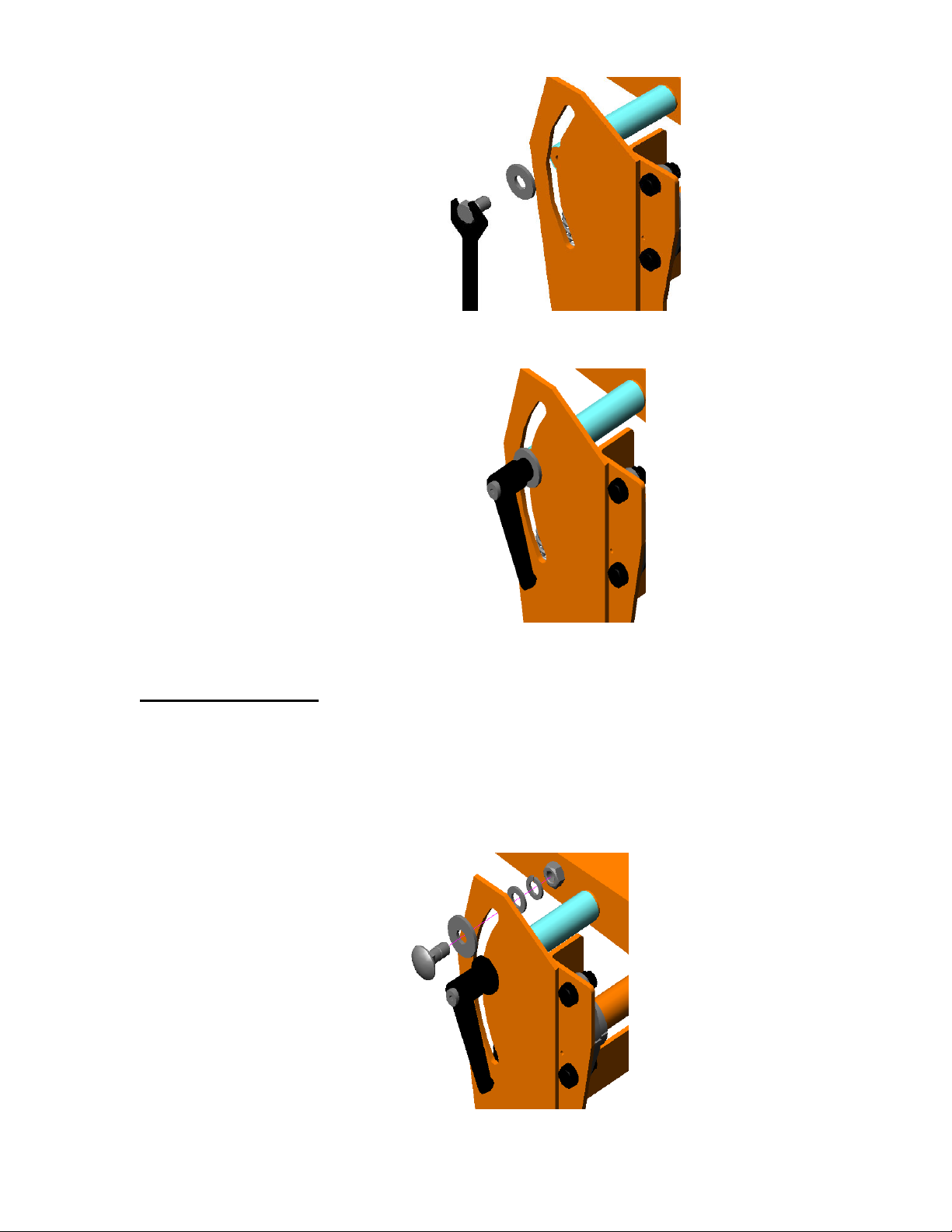

Figure 1: Head Locking Screw Removal
Figure 2: Head Locking Handle Installation
Depth Limiting Bolt:
Remove the 12mm Carriage Bolt, 12mm Large Flat Washer (DIN9021), 12mm Flat
Washer, 12mm Lock Washer, and 12mm Nut from the plastic Bag. Place the 12mm Large
Washer over the 12mm Carriage Bolt. Slide the 12mm Carriage thru the Head Locking
handle Slot either above the Head Locking Handle (to limit the depth of cut) or below the
Head Locking Handle (to limit the tilt angle of the Cutting Head) and attach the 12mm Flat
Washer, 12mm Lock Washer, and 12mm Nut as show in Figure 3: Depth Limiting Bolt
Assembly.
Figure 3: Depth Limiting Bolt Assembly

9
Leg Assembly:
Remove the four (4) Legs from the Saw Water Pan, and the four (4) Plastic Handle Knobs
and four (4) Square Nuts from the plastic bag. Place one (1) Square Nut into each of the
Nut Retaining Brackets located on each of the Leg Holders. Attach one (1) Plastic Knob to
each of the Square Nuts as shown in Figure 4: Plastic Knob Attachment. NOTE: Do not
tighten Plastic Knobs at this time. Place one (1) Leg into each of the Leg Holders and
tighten the Plastic Knobs see Figure 5: Leg Attachment.

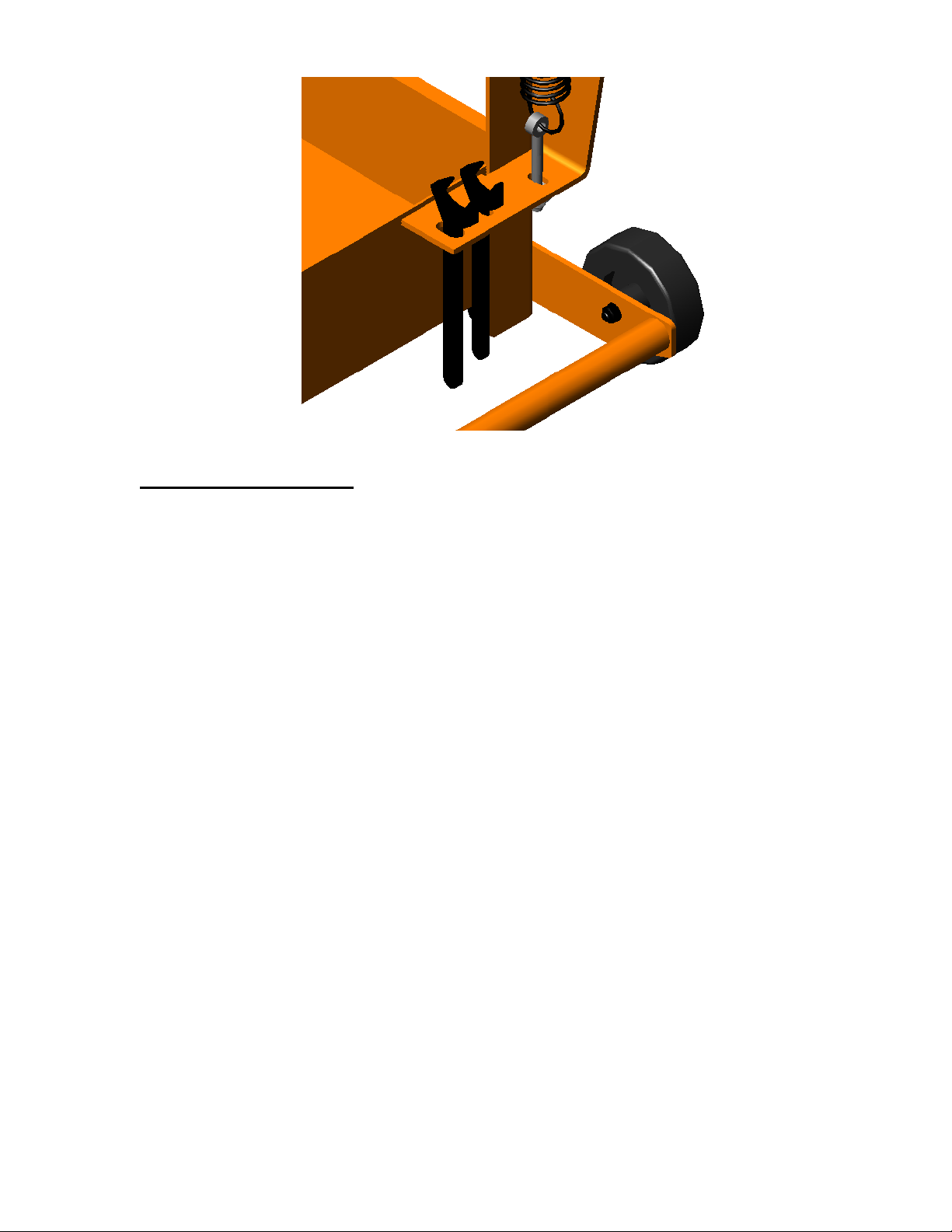

Figure 4: Plastic Knob Attachment
Figure 5: Leg Attachment

10
Conveyor Cart Assembly:
Remove the Conveyor Cart and Back Stop from the Saws Water Pan, and the Wing Nuts,
Carriage Bolts, Washers, and Cart Stop from the plastic bag. Slide one (1) Carriage Bolt
thru each of the three (3) Square Holes located on the front of the Conveyor Cart. Slide the
Back Stop Over each of the Carriage Bolts. Slide the Stop Assembly over the Carriage
Bolt Located on the Left front of the Conveyor Cart NOTE: The Rubber Stop will faces
away from the Conveyor Cart. Attach one (1) Washer and one (1) Wing Nut to each
Carriage Bolt and Tighten. See Figure 6: Back Stop Assembly. Place the Conveyor Cart
on the Machine see Figure 7: Conveyor Cart Installation.

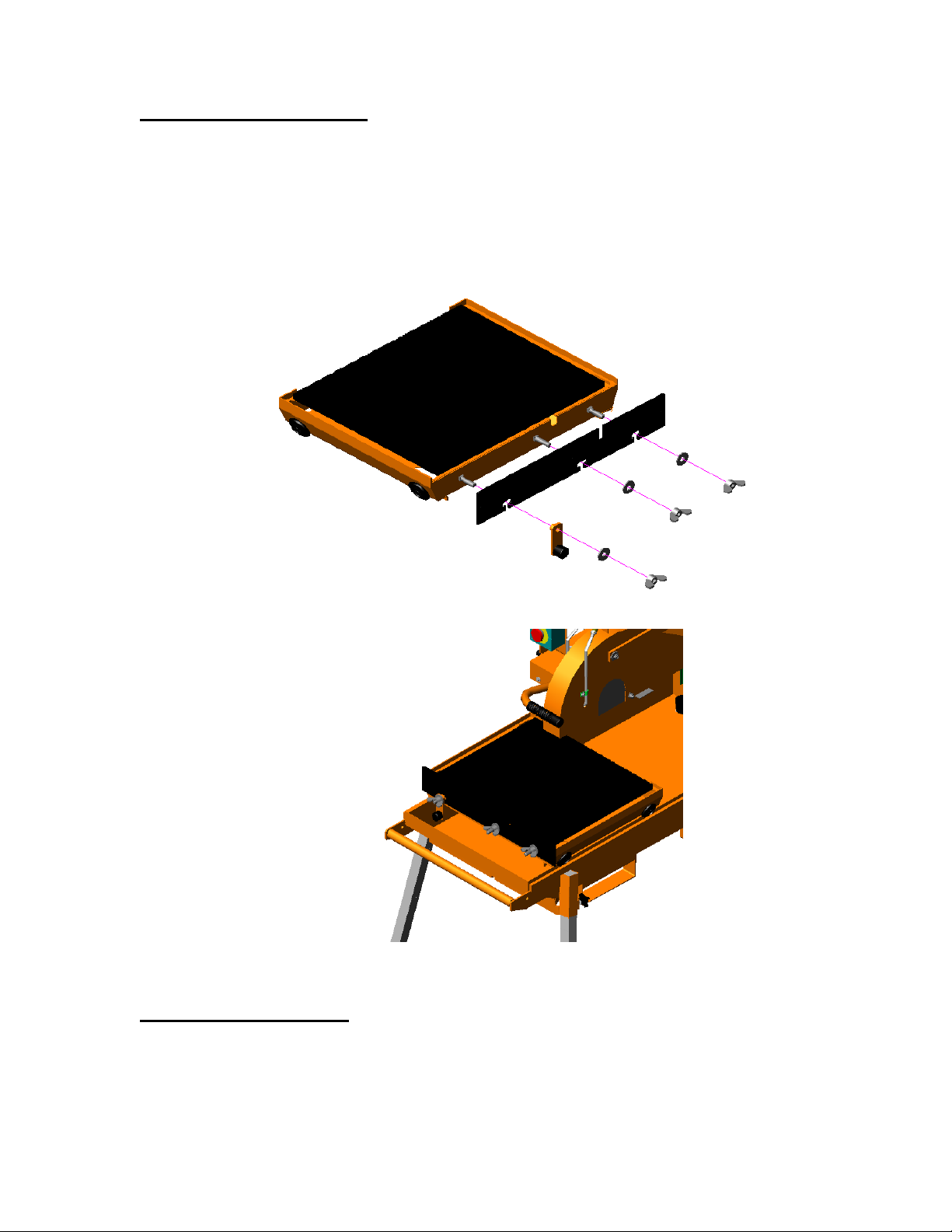

Figure 6: Back Stop Assembly
Figure 7: Conveyor Cart Installation
Guide-A-Cut Assembly:
Attach the Guide-A-Cut to the Conveyor Cart by adjusting the Wing Bolt until the Guide-A-
Cut can slide over the Black Stop. The Guide-A-Cut will work as a Rip Guide that is
adjustable for 90and 45cuts. See Figure 8: Guide-A-Cut Assembly.

11
Figure 8: Guide-A-Cut Assembly
Water Curtain Assembly:
Remove the Water Curtain from the Saw Water Pan. Attach the Water Curtain Spring Clips
to the Pivoting Bar Located Under the Cutting Head. Note that the rough side of the Water
Curtain should face towards the front of the saw. The Water Curtain material is made is
designed to be easy to clean. To clean simply rinse the Water Curtain with water until
clean. The Water Curtain should be used when wet cutting to reduce the amount of debris
thrown from the blade and cutting surface. When dry cutting the Water Curtain can be
removed to allow the dust particles to drift away from the Saw Operator. See Figure 9:
Water Curtain Assembly.
Figure 9: Splash Guard Assembly
Wrenches:
Remove the 19mm and 22mm Wrenches from the plastic bag. Place the Wrenches in the
Wrench Holder Slots located in the rear of the machine see Figure10: Wrench
Placement.
Attach Splash Guard Here

12
Figure 10: Wrench Placement
Water Pump Assembly:
The Water Pump requires no additional assembly.

13
I. PREPARATION
C. BBC157/207/307/347/547/507 Series Masonry Saw Specifications
Dimensions/Weight
Length (Working) 60” (1524mm)
Width 24” (965mm)
Height (Electric) 34” (864mm)
Height (Gas) 38” (965mm)
Weight (Electric) Uncrated 250lbs (kg)
Weight (Gas) Uncrated 275lbs (kg)
Electric Motor
Motor Mfg. Baldor
Motor Type TEFC, Thermal Protection
Motor Voltages 115-230 (Switch able) 60 Hz single Phase
Motor RPM 3450
BBC157 Horse Power 1-1/2 HP
BBC157 Amp Draw 13.4 Amp @ 115v, 6.7 Amp @ 230v
BBC207 Horse Power 2 HP
BBC207 Run Amp 16.8 Amp @115v, 8.4 Amp @ 230v
BBC307 and BBC347 Horse Power 3 HP
BBC307 Run Amp 14.3-14.5 Amp @ 230v
Engine
Engine Mfg. Honda
Model GX160
Spec No. GX160K1QXC9
Engine Type Single Cylinder 4 Cycle
Horse Power 5.5 hp (4.0 kW) @ 3,600 rpm
Max Torque 8 ft-lbs (11 Nm, 1.1 kg-m) @ 2,500 rpm
Cooling System Forced Air
Oil Capacity 0.6 liter (0.63 US qt)
Fuel Capacity 3.6 liter (0.95 US gal)
Fuel Type Unleaded Gasoline (86 pump octane)
Fuel Consumption 310 g/kWh (0.51 lb/Hp hr)
Low Oil Sensor Yes
Air Filtration Four Stage Cyclone
Characteristics
Max Blade 14” (356 mm) BBC157, BBC207, BBC347, and
BBC547
20” (203 mm) BBC307, & BBC507
Depth of Cut 20” (508 mm) 8” (203 mm)
14” (356 mm) 5” (127 mm)
12” (305 mm) 4” (102 mm)
Arbor Bore 1” (25.4 mm)
Blade Shaft Locking Device Machined Into Flats Of Tight Collar
Blade Shaft Speed 2900 rpm
Depth Control Hand Feed With Return Spring
Depth Lock Standard
Number Of V-Belts 1
Blade Guard Type All Steel Construction
Stay Level Blade Guard Yes
Fork Lift Brackets Built In
Rolling Wheels Standard
Water Pump Standard, Mechanically Belt Driven
Sound pressure1 (Gasoline Engine) 88 db (A)
Sound power1 (Gasoline Engine) 105 db (A)

14
1) The sound measures have been made following pr EN 12638, Annex A; 2)“ Floor sawing, grooving and milling machines – Safety “

15
I. PREPARATION
D. Electrical Connections
Important-Before connecting the motor leads to the power supply be sure that the
voltage, cycles and phase shown on the nameplate of the motor correspond to the
available power supply.
Voltage Selection For Single Phase Motors
1-1/2 HP and 2 HP single phase masonry saw motors have a dual voltage capable. A 115-volt
or 230 volt power supply can be used. To change voltage simply move the voltage change
switch located on the front of the motor to the required voltage, no rewiring is required.
Wherever possible, use 230-volt power supply for best operation.
BBC307 3 HP models are 230 volt only.
Failure to run the motor on the proper voltage will damage the motor and is not
covered under warranty. Improperly wired motors are not covered under warranty.
BBC157 & BBC207 models are wired for 115 Volt from the factory!!!
Power Connections
Connect the power supply to the pigtail leads of the switch. Direct wiring connection is
preferred, but an extension cord with an electrical plug with 30-amp minimum capacity may be
used. A 30-amp circuit breaker is recommended. Connecting wires should be as short as
possible and in one piece. In no case should the connecting wires be longer than shown in the
following table for 1-1/2, 2, and 3 HP. Single-phase motors:
Length Of Wire
Wire gauge 115 volt 230 volt
12 AWG 50’ (15m)100’ (30.4m)
10 AWG 50’ (15m)150’ (45.7m)
Caution-When wires that are too small gauge or too long are used, loss of power, over
heating, or possible damage to the motor will result. For the best performance and cost
use a 10 AWG 50 foot (15 meter) extension cord.
Always use the proper wiring connectors that are UL/CSA approved to attach the
motor to the electrical supply. Any wiring hook ups should be made by qualified
personal and made to National Electrical Code and to any Local Codes.
Generators:
If a generator must be used, it must be of 8kW or larger. The generator must have a 30A
circuit and capable of providing a minimum of 8kW at the required voltage. Under size
generators will cause motor damage and is not covered under warranty.

16
D. Wiring Diagram
Be sure to ground the saw properly before operating, such as a ground wire connection
provided by the power company.
Model Part# UPC# Description HP Volts Hz PH Baldor
Specification
Baldor
Drawing
BBC157 232084 00510003896 MOT 1.5HP 115-230v W/Switch 1.5 115-230v 60 1 35R833X136G1 CD0526
BBC207 232085 00510003897 MOT 2HP 115-230v W/Switch 2 115-230v 60 1 35R834X459G1 CD0392
BBC307 232160 70184630439 MOT 3HP 230/60/1 W/Switch 3 230v 60 1 35Z497R207G1 CD0836A01
Before attempting any electrical work always verify the voltage, phase, and Baldor Motor
Specification from the Motor Name Plate with the Chart Shown Above. Any failure due to
misapplication of voltages and or Phase is not covered under any warranty.
For any Electric Motor service, warranty, or technical related questions contact your nearest Baldor service
center:
Baldor Electric Company
Corporate Headquarters
5711 R.S. Boreham, Jr. St.
P.O. Box 2400
Fort Smith, AR 72901
Phone: [phone]
Fax: [phone]
Web: http://www.baldor.com

17
Wiring Diagram BBC157: 1.5 HP 115-230v/60 Hz/1 Phase
Model Part# UPC# Description HP Volts Hz PH Baldor
Specification
Baldor
Drawing
BBC157 232084 00510003896 MOT 1.5HP 115-230v W/Switch 1.5 115-230v 60 1 35R833X136G1 CD0526

18
Wiring Diagram BBC207: 2 HP 115-230v/60 Hz/1 Phase
Model Part# UPC# Description HP Volts Hz PH Baldor
Specification
Baldor
Drawing
BBC207 232085 00510003897 MOT 2HP 115-230v W/Switch 2 115-230v 60 1 35R834X459G1 CD0392

19
Wiring Diagram BBC307 and BBC347: 3 HP 230v/60 Hz/1 Phase
Model Part# UPC# Description HP Volts Hz PH Baldor
Specification
Baldor
Drawing
BBC207 232085 00510003897 MOT 2HP 115-230v W/Switch 2 115-230v 60 1 35R834X459G1 CD0392

20
F. Electrical Motor Trouble Shooting:
Circuit Breaker During Start Up or Not Cutting:
Verify that the power supply voltage matches the motor name plate voltage
Failure to run the motor on the proper voltage will damage the motor
and is not covered under warranty. Improperly wired motors are not
covered under warranty.
Verify that the circuit breaker is at least 30 amps
Verify that the Extension Cord meets the requirements on See: Power
Connections page 9
Have a qualified Electrician verify that the Electrical Connections are correctly
made.
If using a generator verify that it meets the minimum requirements See:
Generators on page 9
Circuit Breaker Trips while cutting: - This is an issue with the Blade or Cutting Method
being used.
Verify that the Blade Being used is correct for the material being cut
Verify that the Blade is properly exposed
Verify that the Blade is installed properly
Verify the cutting method. Forcing the Blade into the material is a sign that
either the Blade is NOT correct for the material being cut or an inexperienced
operator. Let the Blade and Machine work for you do not work for the Blade and
Machine.
Overload Protector (Thermal) Trips – This is a sign of Low Voltage, Incorrect Blade for
Material being cut, or forcing the Blade through the material.
Verify Voltage at the machine!
Verify that the Extension Cord meets the requirements on See: Power
Connections page 9
Verify the cutting method. Forcing the Blade into the material is a sign that
either the Blade is NOT correct for the material being cut or an inexperienced
operator. Let the Blade and Machine work for you do not work for the Blade and
Machine.
Clean Motor by blowing out the fan cover with compressed air
Check the Motor for a damaged fan
G. Gasoline Engine
Prior to attempting to operate the engine, read the information contained in the engine
owner's manual. An engine owner’s manual is supplied with every gasoline powered
concrete saw.
1. Check Oil: Add oil if low. Refer to the engine owner's manual for the recommended SAE
viscosity grades. Capacity of oil is 1.1 liters (1.16 US qt)
