Norton TR 250 H Clipper User manual

TR 250 H
OPERATING INSTRUCTIONS

2

3
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD J.F. KENNEDY
L- 4930 BASCHARAGE
Declares that this product:
Tile saw: TR 250 H
Code : 70184629084
70184629611
is in conformity with the following Directives:
•European Machinery Directive 2006/42/EC
•“LOW VOLTAGE" 2006/95/EC
•Electromagnetic Compatibility Directive 2004/108/EC
and European standard:
•EN 12418 – Masonry and stone cutting-off machines for job site – Safety
Pierre Mersch
Business Manager Machines Europe
Declaration of conformity

4

5
TR 250 H
OPERATING INSTRUCTIONS
1 Basic Safety Instructions 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 7
2 Machine description 8
2.1 Short description 8
2.2 Purpose of use 8
2.3 Layout 8
2.4 Technical Data 9
3 Assembly and commissioning 10
3.1 Assembly of the legs 10
3.2 Cutting head 10
3.3 Tool assembly 10
3.4 Electrical connections 10
3.5 Water cooling system 11
3.6 Starting the machine 11
4 Transport and storing 12
4.1 Securing for transport 12
4.2 Long period of inactivity 12
5 Operating the machine 13
5.1 Site of work 13
5.2 Cutting methods 13
5.3 Cutting with an angle 14
5.4 General advice for the cutting 14
6 Maintenance and servicing 15
7 Faults: causes and cures 16
7.1 Fault-finding procedures 16
7.2 Trouble-shooting guide 16
7.3 Circuit diagram 17
7.4 Customer service 17

6
1 Basic Safety Instructions
The TR 250 is exclusively designed for the cutting of tiles and abrasive materials with NORTON
diamond disks mainly on construction sites.
Uses other than the manufacturer's instructions shall be considered as contravening the
regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall
be borne entirely by the user. Observing the operating instructions and compliance with inspection
and servicing requirements shall also be considered as included under use in accordance with the
regulations.

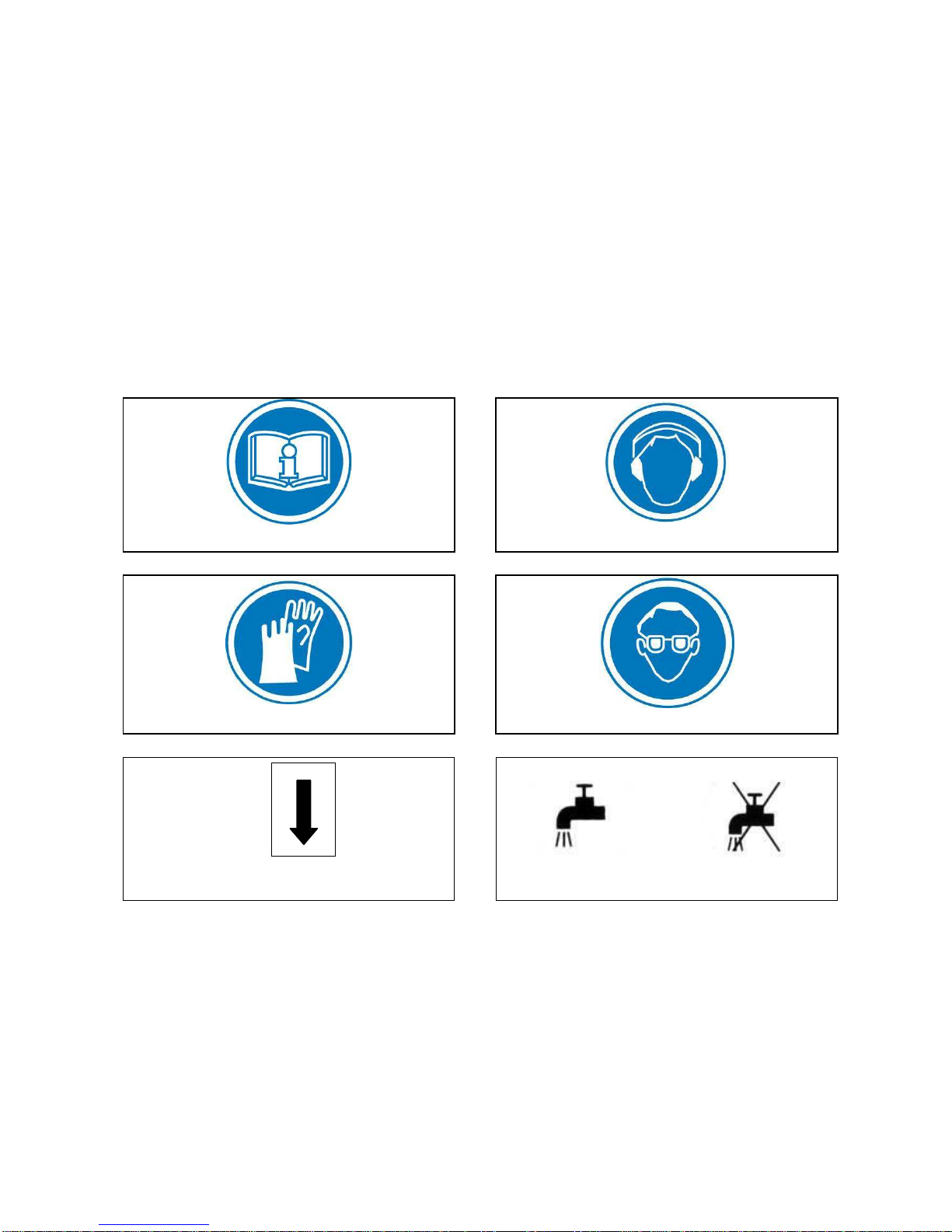

1.1 Symbols
Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator’s instructions Ear protection must be worn
Hand protection must be worn Eye protection shall be worn
Rotation direction of the blade Pump on Pump off

7
1.2 Machine plate
Important data can be found on the following plate located on the machine:
1.3 Safety instructions for particular operating phases
Before commencing work
•Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
•Site the machine on an even, firm and stable base!
•Check for correct mounting of the blade regularly.
•Immediately remove damaged or badly worn blades, as they endanger the operator whilst
rotating.
•The material to be cut must be held securely in place on the table to allow no unexpected
movement during cutting operation.
•Always cut with the blade guard in position.
•Only fit NORTON diamond blades with continuous rim to the machine! The use of other tools
can damage the machine!
•Read the blades’ specifications carefully to choose the correct tool for your application.
•Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.
Electrical powered machine
•Always turn off the machine and separate it from the main source of electricity before any work
on the machine is done.
•Make all electrical connections securely to eliminate contact of live wires with spray water or
dampness
•When the machine is used with water, it is IMPERATIVE that you earth the machine properly.
Let a qualified electrician check in case of doubt.
•Press the red button on the switch to stop the machine in case of emergency.
•In the event of the machine breaking down or stopping for no apparent reason, switch off the
main electricity supply. Only a qualified electrician is allowed to investigate the trouble and
remedy the fault.
Machine Model Machine Code Weight Year of production
Machine type Serial number Power Safety standard Blade speed
Bore diameter
Maximum blade diameter

8
2 Machine description
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity
with the safety regulations.
2.1 Short description
The TR 250 Saw is designed for durability and high performance for onsite wet cutting operations of
a wide range of tiles and masonry products.
As with all other NORTON CLIPPER products, the operator will immediately appreciate the
attention given to detail and quality of materials used in construction. The machine and its
component parts are assembled to high standards assuring long life and minimum maintenance.
2.2 Purpose of use
The machine is designed for wet cutting of a large range of building and refractory materials, or
tiles. It is not designed for cutting wood or metals.
2.3 Layout

9
2.4 Technical Data
Electric motor 1,3kW
Voltage 230V, 50Hz
Protection rating IP 54
Max. blade diameter 250 mm
Bore 25.4 mm
Rotation speed of the blade 2800 min
-1
Flange diameter 90 mm
Cutting depth mm 60 mm
Cutting length mm 1000 mm
Sound pressure level 73 dB (A) (ISO EN 11201)
Sound energy level 87 dB (A) (ISO EN 3744)
Table dimension (LxW) 1110x490 mm
Machine dimensions (LxWxH) 1400x670x1460 mm
Weights
Machine cpl. 66 kg
Ready for use (with water) 89 kg

10
3 Assembly and commissioning
The machine is delivered fully equipped. It is ready for operation after assembly the diamond blade
and after connection to the appropriate power supply.
3.1 Assembly of the legs
Lift up one side of the saw, slide in the legs (with no wheels) to the front side of the saw. Lock the
wing nut to tighten the legs in place. Lift up the other side of the saw and slide in the legs with the
wheels. Lock the wing nut to fasten the legs in place.
3.2 Cutting head
You have to detach the cutting head by unscrewing the knob securing the head on the rail of the
machine.
3.3 Tool assembly
Only NORTON blades with a maximum diameter of 250 mm can be used with the TR 250.
All tools used must be selected with regard to their maximum permitted cutting speed for the
machine’s maximum permitted rotation speed.
Before mounting a new blade into the machine, switch off the machine and isolate it from the main
source of electricity.
To assemble a new blade, follow these steps:
•Loosen on the two nuts holding the outer cover of the blade guard, and remove it.
•Loosen the hexagonal nut (left threaded) on the blade shaft with the 30mm wrench, which holds
the removable outer flange.
•Remove the outer flange.
•Clean the flanges and blade shaft and inspect for wear.
•Mount the blade on the arbor ensuring that direction of rotation is correct (check with the arrow
on the blade guard). Wrong direction of rotation blunts the blade quickly.
•Replace outer blade flange.
•Tighten hexagonal nut.
•Retighten the two mutter screws maintaining the outer cover the blade shaft.
The blade bore must correspond exactly to the diameter of the blade shaft. Cracked or damaged
bore is dangerous for the operator and for the machine.
3.4 Electrical connections
Check that,
•The voltage/phase supply corresponds to the information indicated on the motor plate.
•Available power supply must have ground connection in conformity with safety regulations.
•The connecting cables should have at least a 2.5mm
2
-section per phase.

11
3.5 Water cooling system
•Fill the water pan with clean water to 1cm of the edge of the water tray.
•Ensure that water is delivered adequately to both sides of the blade, as insufficient water supply
may result in premature failure of the diamond blade.
•The water pump must never run without water. Always make sure that there is enough water in
the pan and refill if necessary.
•In case of frost, empty the water cooling system from its water.
3.6 Starting the machine
Connect the machine to the electrical supply. You can start it by pressing the switch on I. To stop
the machine, press switch on 0. 0 is also the emergency switch.

12
4 Transport and storing
4.1 Securing for transport
Before transporting the machine, always remove the blade and empty the water pan. Secure the
cutting head on the rail by using the knob.
4.2 Long period of inactivity
If the machine is not going to be used for a long period, please take the following measures:
•Completely clean the machine
•Empty the water system
•Take the water pump out of the water tray, and clean it thoroughly.
The storage site must be clean, dry and at a constant temperature.

13
5 Operating the machine
5.1 Site of work
5.1.1 Siting the machine
•Remove from the site anything, which might hinder the working procedure!
•Make sure the site is sufficiently well lit!
•Observe manufacturer's conditions for connecting to power supplies!
•Place electric cables in such a way that damage by the device is excluded!
•Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time!
•Keep other staff out of the area, so you can work securely.
5.1.2 Space required for operation and maintenance
Leave 2 m in front of the machine and 1,5 m around it for usage and maintenance of the TR 250.
5.2 Cutting methods
To use the machine correctly, you must face it with one hand on the cutting head, and one on the
material to be cut to maintain it against the material stops. Always keep your hands away from the
moving blade.
5.2.1 Full depth or fixed cutting
In full depth or fixed cutting, the cutting head is locked in a fixed depth pushed into the material as
shown.
•Lower the cutting head to the desired cutting depth (in “through cutting”, lower cutting head until
blade periphery reaches max. 3mm under the surface of the table) by means of the handle on
the blade guard
•Fix position by tightening the clamping device
•Put material on table
•Push the cutting head slowly and without undue pressure towards the material and cut the
material as shown on the picture.
NOTE: While recommended, it is not absolutely necessary to lock the cutting head into a given
depth position when jam cutting. The desired cutting depth can be maintained by holding firmly the
depth feed handle on the cutting head. If the full depth of cut requires excessive pressure (on very
dense material e.g.) make 2 or 3 shallow cuts.

14
5.2.2 Multiple step cutting
Multiple step cutting consists of moving the head back and forward on the material to be cut.
•Place the material to be cut on the table firmly against the guide-a-cut and the backstop,
keeping the hands well away from the blade.
•Move blade forward near the material and pull down the cutting head until blade is lowered to a
point where it will lightly contact the surface of the material.
•Then pass the blade beneath with rapid full length strokes, taking a shallow cut (approximately
3 mm deep as shown on the picture) on the forward. On the backward stroke, lift the blade just
clear over the cutting line.
•Complete each rapid stroke backward and forward by passing the material beyond the centre of
the blade before starting the reverse movement of the cutting head.
NOTE: the harder the material, the more rapid should be the forward and backward strokes.
Step cutting lessens the area of the blade circumference in contact with the material, keeping the
blade cool, running free and cutting at peak efficiency.
5.3 Cutting with an angle
You can cut from 0º to 45º by tilting the head. To this purpose:
•Loosen the two knobs maintaining the head to tilt the head to the desire angle.
•Retighten the two knobs.
5.4 General advice for the cutting
•Only materials with max. dimensions 1110x490x60mm and max. weight 10kg can be cut with
the machine.
•Before commencing work make sure tools are firmly seated!
•Select the right tools as recommended by the manufacturer depending on the material to be
worked, the working procedure (dry or wet cut) to be carried out and the required efficiency.
•Make sure the water pan contains enough water.
•Set the guide-a-cut to the desired width of cut, and to the desired angle using the two engraved
measurements to align it correctly.

15
6 Maintenance and servicing
To ensure a long-term quality from the cutting with the TR 250, please follow the maintenance plan
below:
Begin of the day During the changing of tool End of the day or more often if required After a fault After a damage
Visual control (general aspect,
watertightness)
Whole machine
Clean
Flange and blade fixing devices Clean
Motor cooling fans Clean
Water pan Clean
Motor housing Clean
Reachable nuts and screws Tighten up
Maintenance of the machine
Always perform the maintenance of the machine with the machine isolated from the electrical
supply.
Lubrication
The TR 250 uses life-lubricated bearings. Therefore, you don’t need to lubricate the machine at all.
Cleaning of the machine
Your machine will last longer if you clean it thoroughly after each day of work, especially water
pump, water pan, motor and blade flange.

16
7 Faults: causes and cures
7.1 Fault-finding procedures
Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical
supply. Any works dealing with the electrical system or supply of the machine can only be carried
out by a qualified electrician.
7.2 Trouble-shooting guide
Trouble Possible source Resolution
No electricity Check the electrical supply
(fuse for example)
Connection cable section too
small Change connection cable
Defective connection cable Change connection cable
Defective switch CAUTION : can only be solved
by qualified electrician
Motor is not running
Defective motor Change motor or contact motor
manufacturer
Cutting advance too quick Cut slowly
Blade is blunt or glazed Sharpen the blade in
calcareous stone
Defective blade Change blade
Motor stops during the cutting,
but can be restarted after a
short period (overload
protection)
Wrong blade specification for
the application Change blade
Not enough water in the pan Refill the water pan
Water supply system is blocked
up Clean water supply system
No water on the blade
Water pump is not working Change the pump

17
7.3 Circuit diagram
7.4 Customer service
When ordering spare parts, please mention:
•The serial number (7 digits).
•The code of the part.
•The exact denomination.
•The number of parts required.
•The delivery address.
•Please indicate clearly the means of transportation required such as "express" or "by air".
Without specific instructions, we will forward the parts through the means which seem
appropriate to us --- but which is not always the quickest way.
Clear instructions will avoid problems and faulty deliveries.
If not sure, please send us the defective part.
In the case of a warranty claim, the part must always be returned for evaluation.
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer,
which is often quicker and cheaper.
This machine has been manufactured by Saint-Gobain Abrasives S.A.
190, Bd J.F.Kennedy
L- 4930 BASCHARAGE
Grand-Duché de Luxembourg.
Tel. : [phone]
Fax : [phone]
www.construction.norton.eu
e-mail:[email protected]
BROWN
BLUE
BROWN
GREEN
/
YELLOW
BLUE
M
SWITCH

18
Guarantee can be claimed and technical support obtained from your local distributor where
machines, spare parts and consumables can be ordered as well:
Benelux and France:
From Saint-Gobain Abrasives S.A.
Free telephone numbers:
Belgium : 0 800 18951
France: 0 800 90 69 03
Holland: 0 8000 22 02 70
e-mail: [email protected]
Czech Republic
Norton Diamantove Nastroje Sro
Vinohrdadska 184
CS-13000 PRAHA 3
Tel: [phone]
Fax : [phone]
e-mail : norton.[email protected]
United Kingdom
Saint-Gobain Abrasives Ltd.
Doxey Road
Stafford
ST16 1EA
Tel : [phone]
Free fax : [phone]
e-mail : nort[email protected]
Austria
Saint-Gobain Abrasives GmbH
Telsenberggasse, 37
A-5020 SALZBURG
Tel : [phone]
Fax : [phone]
e-mail: off[email protected]
Germany
Saint-Gobain Abrasives GmbH
Birkenweg 45-49,
D-50389 WESSELING
Tel : [phone]
Fax : [phone]
e-mail: [e-mail]
Spain
Saint-Gobain Abrasivos S.A.
C/. Verneda del Congost s/n
Pol.Ind. El Pedregar
E-08160 MONTMELÓ (Barcelona)
Tel: [phone]
Fax: [phone]
e-mail: Com[email protected]
Italy
Saint-Gobain Abrasivi S.p.A.
Via per Cesano Boscone, 4
I-20094 CORSICO-MILANO
Tel: [phone]
Fax : [phone]
e-mail : Norton.ediliz[email protected]
Hungary
Saint-Gobain Abrasives KFT.
Banyaleg Utca 60B
H-1225 BUDAPEST
Tel: ++36 1 371 2250
Fax: ++36 1 371 2255
e-mail: [email protected]
Poland
Saint-Gobain Diamond Products Sp.zO.O.
AL. Krakowska 110/114
PL-00-971 WARSZAWA
Tel: [phone]
Tel/Fax: [phone]
e-mail: [email protected]

19

20
SAINT-GOBAIN ABRASIVES
190, Bd. J. F. Kennedy
L-4930 BASCHARAGE
LUXEMBOURG
Tel.: ++352 50401-1
Fax: ++352 501633
e-mail: [e-mail]
www.construction.norton.eu
28.04.2008
