CS1-500
OPERATING INSTRUCTIONS
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 8
2GENERAL DESCRIPTION OF THE CS1-500 9
2.1 Short description 9
2.2 Layout 9
2.3 Technical data 12
2.4 Statement regarding the vibration emission 13
2.5 Statement regarding noise emission 14
3ASSEMBLY AND COMMISSIONING 15
3.1 Tool assembly 15
3.2 Water cooling system 15
3.3 Starting the machine 16
4OPERATING THE CS1-500 17
4.1 Site of work 17
4.2 Cutting method 17
5TRANSPORT AND STORING 18
5.1 Securing for transport 18
5.2 Transport procedure 18
5.3 Long period of inactivity 18
6MAINTENANCE AND SERVICE 19
6.1 Maintenance of the machine 19
6.2 Maintenance of the engine 20
7FAULTS: CAUSES AND CURES 23
7.1 Fault-finding procedures 23
7.2 Trouble-shooting guide 23
7.3 Customer service 24
7.4 Spare parts 25

VERS.2022.10.20 CS1-500_MAN_EN
6
1 BASIC SAFETY INSTRUCTIONS
The CS1-500 is exclusively designed for the cutting of floors made of asphalt, green and cured
concrete (reinforced or not) as well as of industrial cement.
Uses other than the manufacturer's instructions shall be considered as contravening the
regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk
shall be borne entirely by the user. Observing the operating instructions and compliance with
inspection and servicing requirements shall also be considered as included under use in
accordance with the regulations.
1.1 Symbols

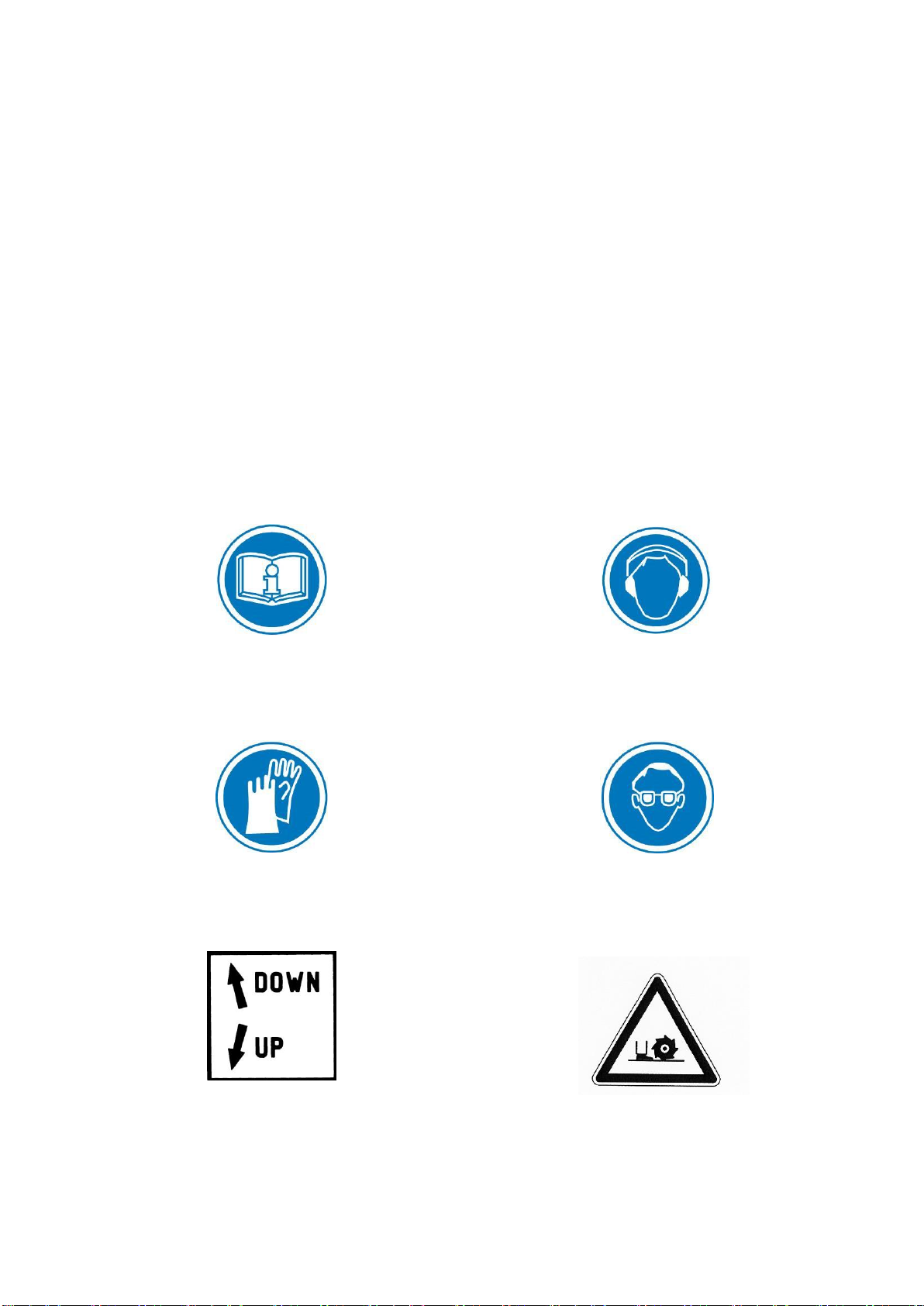

Important warnings and pieces of advice are indicated on the machine using symbols. The
following symbols are used on the machine:
Read operator’s instructions
Ear protection must be worn
Hand protection must be worn
Eye protection shall be worn
The rotation of the hand wheel in the
direction shown : up or down the blade
Danger: risk of cut

VERS.2022.10.20 CS1-500_MAN_EN
7
Never move the machine with the blade
running idle.
Rotation direction of the blade
Emergency Stop
1.2 Machine plate
Important data can be found on the following plate located on the machine:
Ø Bore
Machine type
Serial number
Power
Safety standard
Machine Model
Machine Code
Blade speed
Weight
Year of
production
ØMaximum
blade

VERS.2022.10.20 CS1-500_MAN_EN
8
1.3 Safety instructions for particular operating phases
Before commencing work
Before commencing work, make yourself familiar with the working environment at the place
of use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
Check for correct mounting of the blade regularly.
Immediately remove damaged or badly worn blades, as they endanger the operator whilst
rotating.
Always cut with the blade guard in position.
Only fit NORTON diamond blades to the machine! The use of other tools can damage the
machine!
Attention is drawn to the use of BS2092 safety goggles in conformitywith specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.
For security reasons, never leave the machine unattended, untied or unlocked.
While the engine is running
Do not move the machine whilst the blade is running idle.
Do not run the machine without the security guards in place.
Apply cooling water continuously whilst cutting and in good time!
Diesel powered machines:
Always use the fuel advised.
In confined areas, exhaust gases should be evacuated and the job site properly aerated.
Diesel machines, which by their nature emit toxic exhaust gases, must not be used in places
prohibited by the Health at Work Act 1974 or which are prohibited by Factory Inspectors or
Safety Officers.
Diesel is flammable. Before filling the tank, shut down the engine, extinguish all open flames
and do not smoke. Take care that no diesel is spilled on any motor part. Always wipe up
spilled fuel.

VERS.2022.10.20 CS1-500_MAN_EN
9
2 GENERAL DESCRIPTION OF THE CS1-500
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in
conformity with the safety regulations. Saint-Gobain Abrasives S.A. keeps the right of making
technical or design modification without prior notification.
2.1 Short description
The Floor Saw CS1-500 you have chosen,is usedfor small repair works in concrete and asphalt,
for cutting induction loops and installing cables as well as for cutting expansion joints. It can be
used for either wet or dry cutting operations. Being of small construction, it can be transported in
a car or van. The water container is enclosed in the frame. All component parts on the CS1-500
are assembled to a high quality standard, ensuring long life, reliability and a minimum of
maintenance. Special types of blades are available for asphalt, green concrete, cured concrete
(reinforced or not) as well as for industrial cement flooring.
2.2 Layout

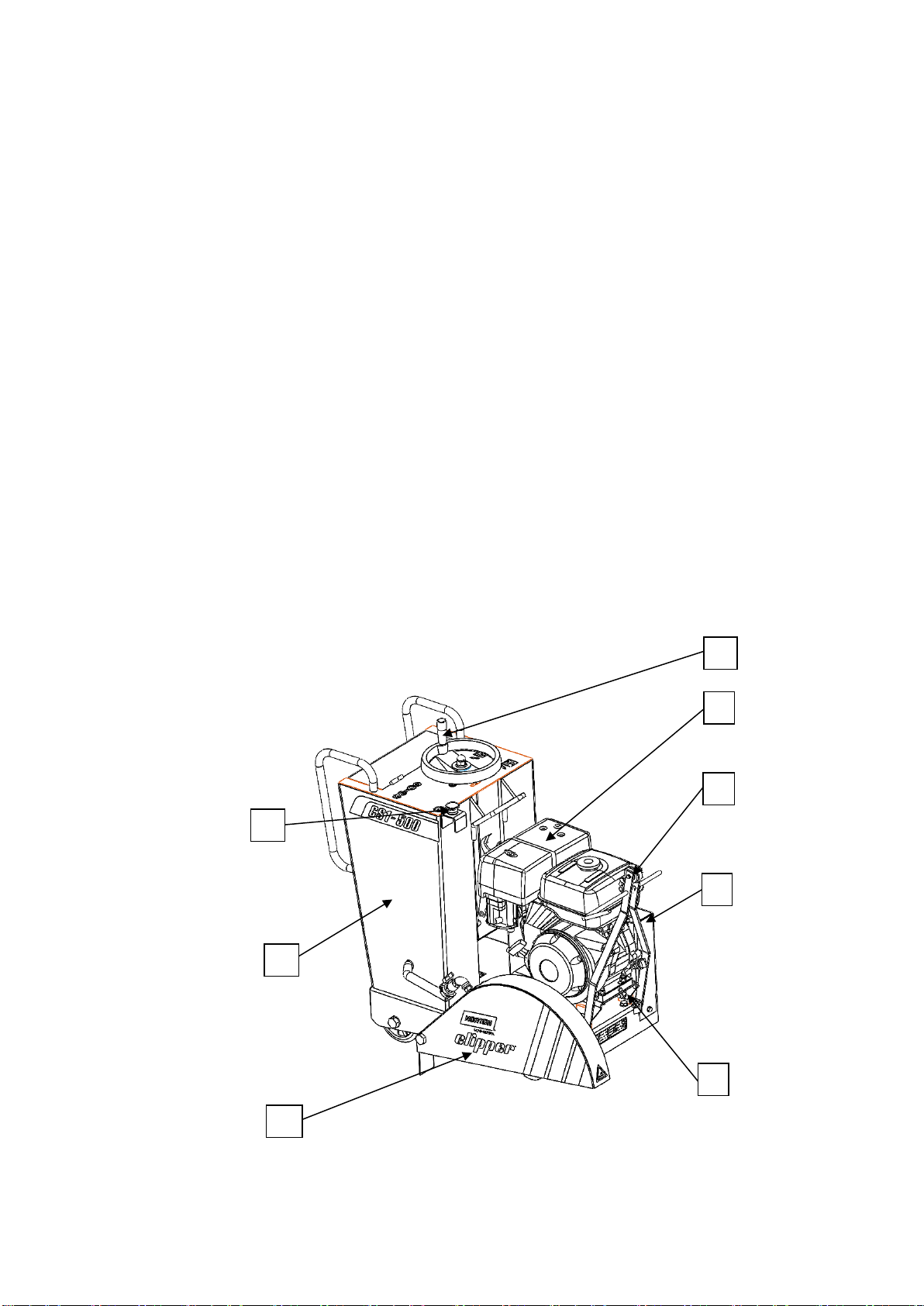

1
7
4
5
6
2
3
8

VERS.2022.10.20 CS1-500_MAN_EN
10
Made of jig welded open profile steel, the CS1-500 is stable but at the same time, easily
transportable.
The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly
fixed to the main frame but can be opened by rotation to change blades.
A manually operated hand wheel mechanism (2) enables graduated depth setting. Turning the
hand wheel clockwise or anti-clockwise will lower or raise the cutting blade.
The pivoting frame (3), hinged on the rear axle, is supporting the engine, the blade shaft
assembly, and the protecting guards. Four heavy-duty belts drive the blade.
The precisely manufactured blade shaft is fitted into two heavy-duty self-aligning pillow block
bearings, including grease nipples. A four-belt taper lock pulley is fitted on one end. The shaft is
reduced to 25,4mm at the other end, allowing an inner flange complete with dowel pinholes to be
fixed.
The steel belt guard (4) is bolted to the mainframe of the machine. It is covering the four drive
belts and pulleys for protection of the environment while the machine is running. The pointer (5)
allows the operator to make precise cut easily.
The Honda GX390 engine (6) is connected to an emergency shut down switch (7) on the board
of the machine. This allows an immediate stop of the machine in case of danger.
The water cooling system (8) is composed of a 70 litres water tank, a water tank tap and two
water nozzles on the blade guard ensuring adequate flow of water to both sides of the blade.

VERS.2022.10.20 CS1-500_MAN_EN
11
The parking brake (9) immobilizes and secures the machine when it is not in use.
The depth indicator (10) lets you know at what depth the user is cutting.

VERS.2022.10.20 CS1-500_MAN_EN
12
2.3 Technical data
Engine
Honda GX390, 4 strokes, 1 cylinder, 13HP (9,6kW)
Fuel
Automotive unleaded gasoline
Oil
Honda 4-Stroke, or equivalent high detergent, premium quality
motor oil certified to meet or exceed U.S. automobile
manufacturer’s requirement for service classification SG, SF. (SG,
SF designated on the oil container).
SAE 10W-30 recommended
Starter
Manual pull chord
Air filter
Dual type (machine type 99277, 99556, 99557, and 99558)
Cyclone type (machine type 99939)
Max. blade diameter
500 mm
Bore
25,4 mm
Max. cutting depth mm
190 mm
Flange diameter
115 mm
Blade shaft speed
2550 min-1
Driving belts
4
Water tank
70 l
Machine dimensions
(length x width x height)
1088x580x925mm
Weight
140 kg
Max. operating weight
220 kg
Sound pressure level
89 dB (A) following ISO EN 11201
Sound energy level
105 dB (A) following ISO EN 3744

VERS.2022.10.20 CS1-500_MAN_EN
13
2.4 Statement regarding the vibration emission
Declared vibration emission value in accordance with EN 12096
Machine
Model / code
Measured vibration
emission value a m/s2
Uncertainty K
m/s2
Tool used
Model / code
CS1-500 P13
HONDA
70184632006
4.22
0.5
Clipper Super Beton Evo
Values determined according to procedure described in annex F of EN 13862
Measurements are made with new machines. Real values in the field could vary the simple
one with the double according to operating conditions, depending on:
oMaterial
oCutting depth
oMachine wear
oLack of maintenance
oTool not adapted to application
oTool in bad shape
oNon-specialised operator
Vibrations exposure time depends on cutting performance too
(adaptation machine / tool / material / operator)
When evaluating risks due to hand-arm vibration, you need to take into account effective
usage at rated power of machine during a full day of work; quite often you will realise that
effective utilisation time represents around 50% of overall duration of work. You have to
consider, of course,breaks, waterfeeding, preparation of work,timetomove the machine,
disk mounting…

VERS.2022.10.20 CS1-500_MAN_EN
14
2.5 Statement regarding noise emission
Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744.
Machine
Model / code
Sound
Pressure level
LPeq
EN ISO 11201
Uncertainty K
(Sound
Pressure level
LPeq
EN ISO 11201)
Sound power
level
LWeq
NF EN ISO 3744
Uncertainty K
(Sound power level
LWeq
NF EN ISO 3744)
CS1-500 P13
HONDA
70184632006
89 dB(A)
2.5 dB(A)
105 dB(A)
4 dB(A)
Values determined using the procedure described in the standard EN 13862.
The measurements aremade with newmachines. Actual values may varywith site conditions,
in terms of:
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
Measured values relate to an operator in normal use, as described in the manual position.

VERS.2022.10.20 CS1-500_MAN_EN
15
3 ASSEMBLY AND COMMISSIONING
Before beginning the work with the CS1-500, you have to assemble some parts.
3.1 Tool assembly
Only use NORTON blades with the CS1-500.
A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with
regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation
speed.
Before mounting a new blade, switch the machine off.
To mount a new blade, follow these steps:
Turn the wheel until the cutting head is in the raised position.
Loosen the screw maintaining the blade guard with the 19mm wrench, and turn it open.
Loosen the hexagonal nut, which holds the removable outer flange with the 36mm wrench.
Remove the outer flange.
Clean the flanges and blade shaft and inspect for wear.
Mount the blade on the shaft ensuring that direction of rotation is correct. Wrong direction of
rotation blunts the blade quickly.
Replace outer blade flange.
Tighten hexagonal nut with spanner supplied for this purpose.
Close the blade guard.
The blade bore must correspond exactly to the blade shaft. Cracked or damaged bore is
dangerous for the operator and for the machine.
3.2 Water cooling system
Fill the water tank with clean water.
Open water-tap (note that handle on water-tap should be in line with water-flow).
Ensure that water is flowing freely in the circuit and delivered adequately to both sides of the
blade, as insufficient water supply may result in premature failure of the diamond blade.
In case of frost, empty the water cooling system.

VERS.2022.10.20 CS1-500_MAN_EN
16
3.3 Starting the machine
Make sure the blade is raised clear up the ground before starting the machine.
Turn the fuel valve to the ON position.
Move the choke lever to the CLOSED position.
NOTE: do not use the choke if the engine is
warm or the air temperature is high.
Move the throttle control lever slightly to the left.
Put the engine switch on ON, and make sure
the emergency switch on the board of the
machine is in the correct position.
Pull the starter grip lightly until you feel
resistance, then pull briskly.
CAUTION: Do not allow the starter grip to snap
back against the engine. Return it gently to
prevent damage to the starter.
As the engine warms up, gradually move the
choke lever to the OPEN position.
Position the throttle control lever for the
maximum engine speed.
To stop the engine, move the throttle control lever fully to the right, then turn the engine switch to
the OFF position. Turn the fuel valve to the OFF position.

VERS.2022.10.20 CS1-500_MAN_EN
17
4 OPERATING THE CS1-500
4.1 Site of work
Before you start working, please check the following points:
Remove from the site anything, which might hinder the working procedure.
Make sure the site is sufficiently well lit.
Make sure you have a continual adequate view of the working area so you can intervene in
the working process at any time.
Keep other staff out of the area, so you can work securely.
4.2 Cutting method
In this section, you can find instructions to make a straight cut at the desired depth.
4.2.1 Preparing your cut
Before starting the machine,
Draw a line on the floor over the cutting length.
Make sure you have filled the engine tank with fuel, and the water tank with water. No petrol
is supplied with the machine.
The engine is shipped with oil. Check oil level before starting. Top up if required.
Make sure you have mounted the correct blade as recommended by the manufacturer
depending on the material to be worked, the working procedure (dry or wet cut) to be carried
out, and the efficiency required.
Make sure that the flanges securely hold the diamond blade.
Make sure that the blade is not touching the floor before starting.
Roll the machine until the blade is over the line.
Lower the guide-a-cut so it touches the line.
4.2.2 Cutting the floor
You can now start the engine.
To make your cut,
You can now start the engine. To make your cut,
Turn on the water tap according to the type of blade used and the cut required:
oWater cutting: a sufficient amount of water should be used continuously throughout
the cutting process to cool the disc properly.
oDry cutting: if possible, a small amount of water should be used to limit the creation of
dust.
Turn the depth hand wheel until the blade slightly touches the floor.
Turn the hand wheel to lower blade into the cut.
Once the required depth of cut is reached, push the machine forward with steady and gentle
pressure and follow the line with the pointer. The feed speed must be adjusted depending on
the material being cut, and depth of cut.
At the finish of the cut, raise the blade out of the cut by turning the hand wheel, switch off the
engine and shut-off the water.

VERS.2022.10.20 CS1-500_MAN_EN
18
5 TRANSPORT AND STORING
Take the following measures in order to transport and store the CS1-500 securely.
5.1 Securing for transport
Before transporting the machine:
Remove the blade.
Empty the water tank.
Raise the guide-a-cut in its upright position.
Raise the cutting frame to its highest position using the hand wheel.
5.2 Transport procedure
The machine can be moved on a flat surface using its wheels. Use the metal hook located on the
board of the machine over the motor to move the machine with a crane.
5.3 Long period of inactivity
If the machine is not going to be used for a long period, please take the following measures:
Completely clean the machine.
Loosen the drive belts.
Grease the threaded shaft.
Possibly change the motor oil.
Empty the water system.
The storage site must be clean, dry and at a constant temperature.

VERS.2022.10.20 CS1-500_MAN_EN
19
6 MAINTENANCE AND SERVICE
ATTENTION: to perform maintenance on the machine, always switch it off. Always wear a face
mask and safety goggles while performing the maintenance of machine.
6.1 Maintenance of the machine
To ensure a long-term quality from the cutting with the CS1-500, please follow the maintenance
plan below:
Regular service period
Perform at every indicated period

After one hour of work
Begin of the day
During the changing of the tool
End of the day
Every week
After a fault
After a damage
Whole machine
Visual control (general aspect,
watertightness)
Clean
Flange and blade fixing devices
Clean
Belts tension
Control
Water hoses and nozzles
Clean
Depth screw
Grease
Engine housing
Clean
Reachable nuts and screws
Tighten up
Adjustment and replacement of the belts
After one hour of work, the belts heat and stretch. Therefore, you have to re-tension them.
To adjust the belts, firstly remove the belt guard by unscrewing the 2 nuts. Loose the 2 bolts at
the back of the engine-plate and shift the engine by using the screw on the back of the plate to
retighten the belts.
To replace the belts, move the engine completely down by unscrewing the screw at the back of
the engine-plate. Adjust the belts and retighten them using the screw at the back of the engine
plate.
Always use a matched set of belts. Do not replace single belts. After controlling or retightening
the belts, reassemble the belt guard on the frame of the machine.
Lubrication
The CS1-500 uses life-lubricated bearings. Therefore, you don’t need to lubricate them at all.
Grease the depth screw every day.
Cleaning of the machine
Your machine will last longer if you clean it thoroughly after each day of work.

VERS.2022.10.20 CS1-500_MAN_EN
20

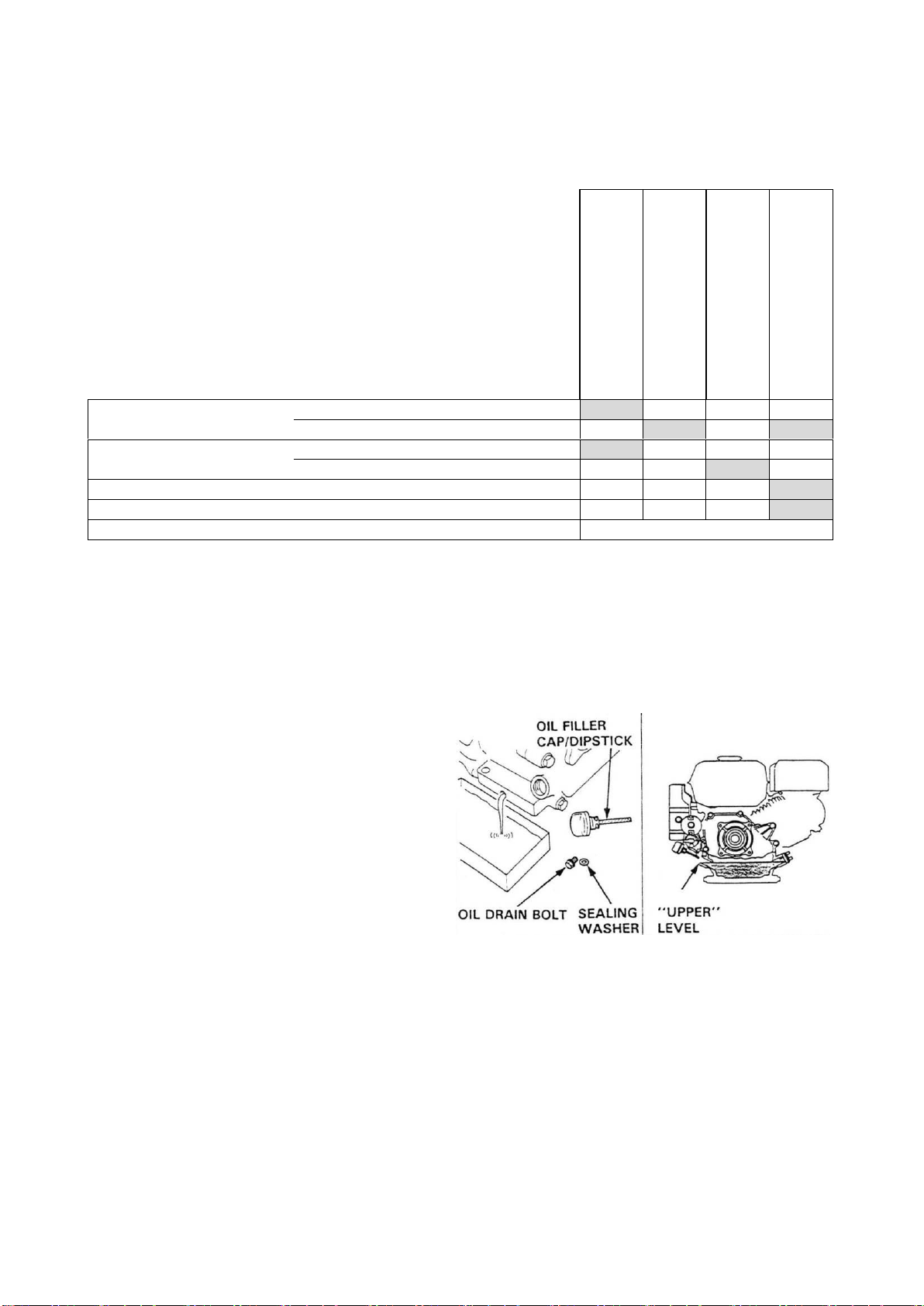

6.2 Maintenance of the engine
Regular service period
Perform at every indicated month or
operating hour interval, whichever comes
first

Each use
First month or 20 hours
Every 3 months or 50 hours
Every 6 months or 100 hours
Engine oil
Check level
Change
Air cleaner filter
Check
Clean
Fuel strainer cup
Clean
Spark plug
Check-Clean
Fuel line
Check (Replace if necessary)
Every 2 years
Engine oil
To change the oil,
Remove the oil filler cap/dipstick and
drain bolt.
Allow the oil to drain completely.
Dispose of used motor oil in a manner
that is compatible with the
environment. We suggest you to take
used oil in a sealed container to your
local recycling centre or service station
for reclamation. Do not throw it in the
trash, pour it on the ground or down in
a drain.
Reinstall the drain bolt, and tighten it to
18 N.m.
Fill the crankcase with the engine oil to
the outer edge of the oil filler neck.
Reinstall the filler cap/dipstick.
