Norton C1320P User manual

OWNERS
MANUAL
MEDIUM CONCRETE SAWS
MODEL:
C1320P
FORM C1320P rev 9-2010

2
WARRANTY
Norton warrants all products manufactured by it against defects in
workmanship or materials for a period of one (1) year from the date of
shipment to the customer.
The responsibility of Norton under this warranty is limited to
replacement or repair of defective parts at Norton's Gainesville,
Georgia factory, or at a point designated by it, of such part as shall
appear to us upon inspection at such point, to have been defective in
material or workmanship, with expense for transportation borne by
the customer.
In no event shall Norton be liable for consequential or incidental
damages arising out of the failure of any product to operate properly.
Integral units such as gasoline engines, electric motors,batteries,
tires, transmissions, etc., are excluded from this warranty and are
subject to the prime manufacturer's warranty.
This warranty is in lieu of all other warranties, expressed or implied,
and all such other warranties are hereby disclaimed.
Important: Before placing equipment in operation, record the following
information.
MODEL:_________ SERIAL NO.___________
PURCHASE FROM: _____________________
ADDRESS: ____________________________
CITY_______ STATE ______ ZIP ________
TELEPHONE NO. ______________________
Before using this equipment, make sure that any person using it
reads and understands the instructions in this owner’s manual.

3
Table of Contents
CONTENTS PAGE
Warranty Information 2
I. Preparation
A. Safety Precautions 4-6
B. Assembly 7
C. Concrete Saw Specifications 8
II. Operation
A. Blade Installation 9-11
B. Changing the Blade Side 12-14-
C. Engine Operation 12-14
D. Starting The Engine 14-16
E. Water Supply 16
F. Controls 17-18
G. Operating The Saw 18-19
H. Cutting Technique 19-20
I. Lead-Off Adjustment 20
III. Maintenance
A. Engine 21-22
Engine Warranty 23
B. Bearings 24
C. V-Belts 25-26
D. Depth Control 26-27
G. Electrical Diagram 13HP Manual Start 28
IV. Parts List Section
A. Ordering Information 29
Common Replacement Parts 29
B. Assembly Drawings/Service Parts Listing 30-43
Frame Common Group 30-31
Raise Axle Group 32-33
Blade Shaft and Engine Group 34-35
Blade Guard and Water System Group 36-37
Controls and Console Group 38-39
Depth Adjustment Group 40-41
Optional Water Tank Group 42-43
Contact Information 44
Read Owners Manual Before Use
Safety Alert Symbol: Information Following This Symbol Is Very
Important.

4
I. PREPARATION
A. Safety Precautions
Important! The following safety precautions must always be observed.
Hazard Symbols
Fuel (gasoline) is extremely flammable and its vapors can
explode if ignited. Store gasoline only in approved containers,
in well-ventilated, unoccupied approved areas, and away from
sparks or flames. Do not fill the fuel tank while the engine is hot
or running. Do not start the engine near spilled fuel. Never use
the fuel as a cleaning agent
Engine components can get extremely hot from operation. To
prevent burns, do not touch the engine or related parts while the
engine is running or immediately after it is turned off. Never
operate the engine with any heat shields or guards removed.
Keep all guards in place when operating any piece of equipment
Keep hands, feet, hair, and clothing away from all rotating parts
Lethal Exhaust Gas: use only in well ventilated areas. Engine
exhaust gases contain poisonous carbon monoxide, which is
odorless, colorless, and can cause death if inhaled. Avoid
inhaling exhaust fumes, and never run the engine in a closed
building or confined area.
Never tamper with the governor components of settings to
increase the maximum speed. Severe personal injury and
damage to the engine or equipment can result if operated at
speed above maximum. Always obey the maximum speed
rating of blade.
DO NOT LIFT THE SAW BY THE HANDLE
BARS

5
Dust and Silica Warning
Grinding/cutting/drilling of masonry, concrete, metal and other materials can
generate dust, mists and fumes containing chemicals known to cause serious or
fatal injury or illness, such as respiratory disease, cancer, birth defects or other
reproductive harm. If you are unfamiliar with the risks associated with the
particular process and/or material being cut or the composition of the tool being
used, review the material safety data sheet and/or consult your employer, the
material manufacturer/supplier, governmental agencies such as OSHA and
NIOSH and other sources on hazardous materials and make certain to comply
with all product warnings and instructions for the safe and effective use of the
material being cut. California and some other authorities, for instance, have
published lists of substances known to cause cancer, reproductive toxicity, or
other harmful effects.
Control dust, mist and fumes at the source where possible. In this regard use
good work practices and follow the recommendations of the
manufacturer/supplier, OSHA/NIOSH, and occupational and trade associations.
Water should be used for dust suppression when wet cutting is feasible. When
the hazards from inhalation of dust, mists and fumes cannot be eliminated
through engineering controls such as vacuum and/or water mist, the operator
and any bystanders should always wear a respirator approved by NIOSH/MSHA
for the material being cut.
Use Approved:
Eye Protection Hearing
Protection
Respiratory
Protection
Head Protection

6
1. Before mounting any blade on the saw, the blade should be
inspected for any damage which might have occurred during
shipment, handling or previous use.
2. The blade collars and arbors should be cleaned and examined for
damage before mounting the blade.
3. The blade must be properly fitted over the arbor with the drive pin on
the outside collar projecting through the drive pin hole on the blade
and inside collar.
4. The blade shaft nut, which is a left hand thread nut, must be
tightened securely against the outside blade shaft collar.
5. The blade must be operated within the specified maximum operating
speed listed on the blade.
6. Turn water control valve to full to provide adequate coolant (5 to 8
gallons per minute) for diamond blades and wet cutting abrasive
blades. Insufficient coolant could result in severe blade breakage or
diamond segment separation.
7. The blade guard must be in place with the nose guard down and
locked when the saw is running.
8. The operator should wear safety glasses and any other appropriate
safety equipment.
9. When starting the saw, the operator should stand away and to the
side of the blade.
10.If for any reason the saw should stall in the cut, raise the blade out of
the cut. Check the outside blade shaft collar and nut for tightness.
Inspect the blade for damage before restarting the saw. User caution
when resuming a cut. Be certain that the blade is in alignment with
the previous cut.
11.During cutting operations, do not exert excess side pressure on the
handles as a method of steering. Do not force the blade into the cut
by lowering the blade too fast or by pushing the saw too fast.
You Are Responsible For Your Safety!!!

7
I. PREPARATION
B. Assembly
The C1320P push concrete saws are shipped completely assembled and
ready for use except for diamond blade, gasoline, oil, and handle bar. Inspect
the saw for shipping damage. If any damage is found, contact the shipper
immediately and file a freight claim. Norton Clipper is not responsible for any
freight-related damages. Remove the saw from the pallet. Reverse the
position of the handlebars so that the handle bar sticks out towards the
operator. Adjust the handlebars to the desired height. Attach the handlebars
to the saw with the supplied hardware. For electric start models fill and check
the electrolyte level and charge the battery. Read and understand the
remaining sections of this Owners Manual. NOTE: Do not install the blade
until it is time to use the saw. ANSI regulations prohibit the transportation of
any concrete saw with the blade installed.
DO NOT LIFT THE SAW BY THE HANDLE BARS

8
C. C1320P Concrete Saw Specifications
Dimensions/Weight C1320P
Length (Transport) 56 inch (1142 mm)
Width 26 inch (660 mm)
Height 40 inch (1016 mm)
Weights 310 (141kg)
Engine
Engine Mfg. Honda
Model GX390
Spec No. GX390K1QXC9
Engine Type Single Cylinder 4 Cycle
Horse Power* 13 hp (9.5kW) @ 3,600 rpm
Max Torque* 19.5 ft-lbs (26.5 Nm, 2.7 kgf-m) @ 2,500 rpm
Cooling System Air
Oil Capacity 1.1 liter (1.16 US qt)
Fuel Capacity 6.5 liter (1.79 US gal)
Fuel Type Unleaded Gasoline (86 pump octane)
Low Oil Sensor Yes
Air Filtration Four Stage Honda Cyclone
Start Type Manual
Characteristics
Max Blade 20” (356 mm)
Depth of Cut
20” (356 mm) 7-1/2 inch (191 mm)
16” (305 mm) 5.50” (140 mm)
Arbor Bore 1 inch (25.4 mm)
Blade Shaft Locking Device Machined Into Flats Of Tight Collar
Blade Shaft Speed 2600 rpm,
Depth Control Hand Wheel With Screw Feed
Depth Lock Standard
Number Of V-Belts 4
Blade Guard Type Pivoting All Steel Construction
Right or Left Side Cutting Standard
Lifting Bale Built In
Handle Bars Adjustable
Recessed Rear Wheels Standard
Front Wheel Wheel 5 x 2 x ¾ With Roller Bearing
Rear Wheel Wheel 6 x 2 x ¾ With Roller Bearing
Water Hose Connector Standard Garden Hose With Flow Control Valve
Sound pressure188 db(A)
Sound power1105 db(A)
* = Horse power and Torque ratings are Gross Horse power and are supplied by the engine manufacturer. Actual output of the engine will vary due to
many factors including operational speed of engine, environmental conditions, maintenance, fuel, and other variables. Saint-Gobain Abrasives, Inc.
makes NO claim to actual or gross horse power and torque ratings. 1) The sound measures have been made following pr EN 12638, Annex A;
2)“Floor sawing, grooving and milling machines – Safety “

9
II. OPERATION
Read and understand this manual before
running or using the machine!
A. Installing the Blade
1. Insure that the Ignition Power Key Switch is in the OFF position and
then disconnect the spark plug.
2. Remove the blade shaft nut, (NOTE: Operator’s Right side is a left
hand thread and the Operator’s Left side is right hand thread), and
remove the outside collar. Rotate the Blade Guard to gain better
access to the Blade Shaft Nut, Loose Collar, Blade, and Tight Collar.
To Rotate the Blade Guard pull the Blade Guard Retaining Pin out
away from the Blade Guard Frame Bayonet and the rotate the Blade
Guard up and out of the way.

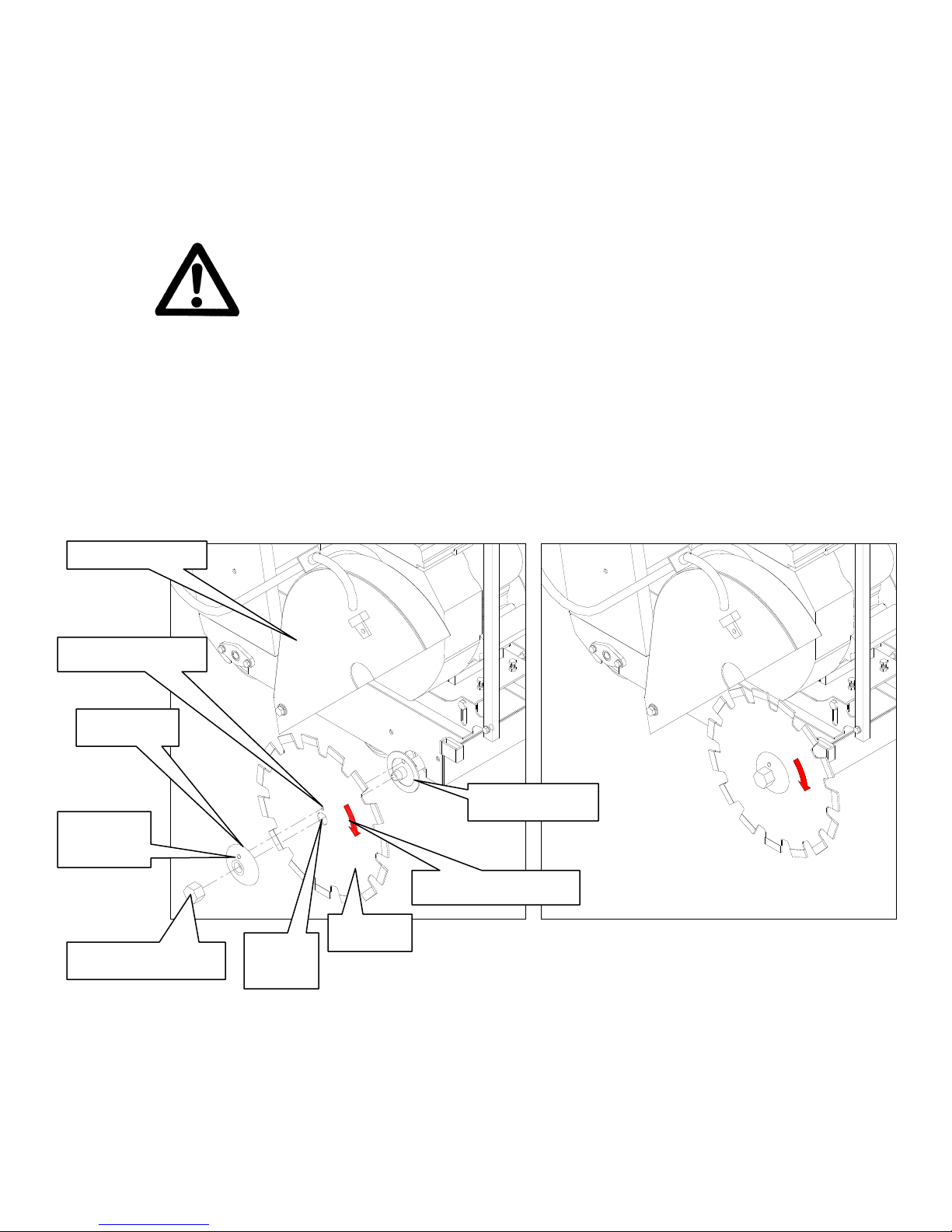

Blade Guard Retaining Pin with Guard Rotated for Access to Blade Shaft
Nut and Collars
3. Clean off any foreign particles on the clamping surfaces of both collars
and on the mounting surface of the blade and also inspect the drive pin
for damage. Replace any damage collars or pins before using the
machine.

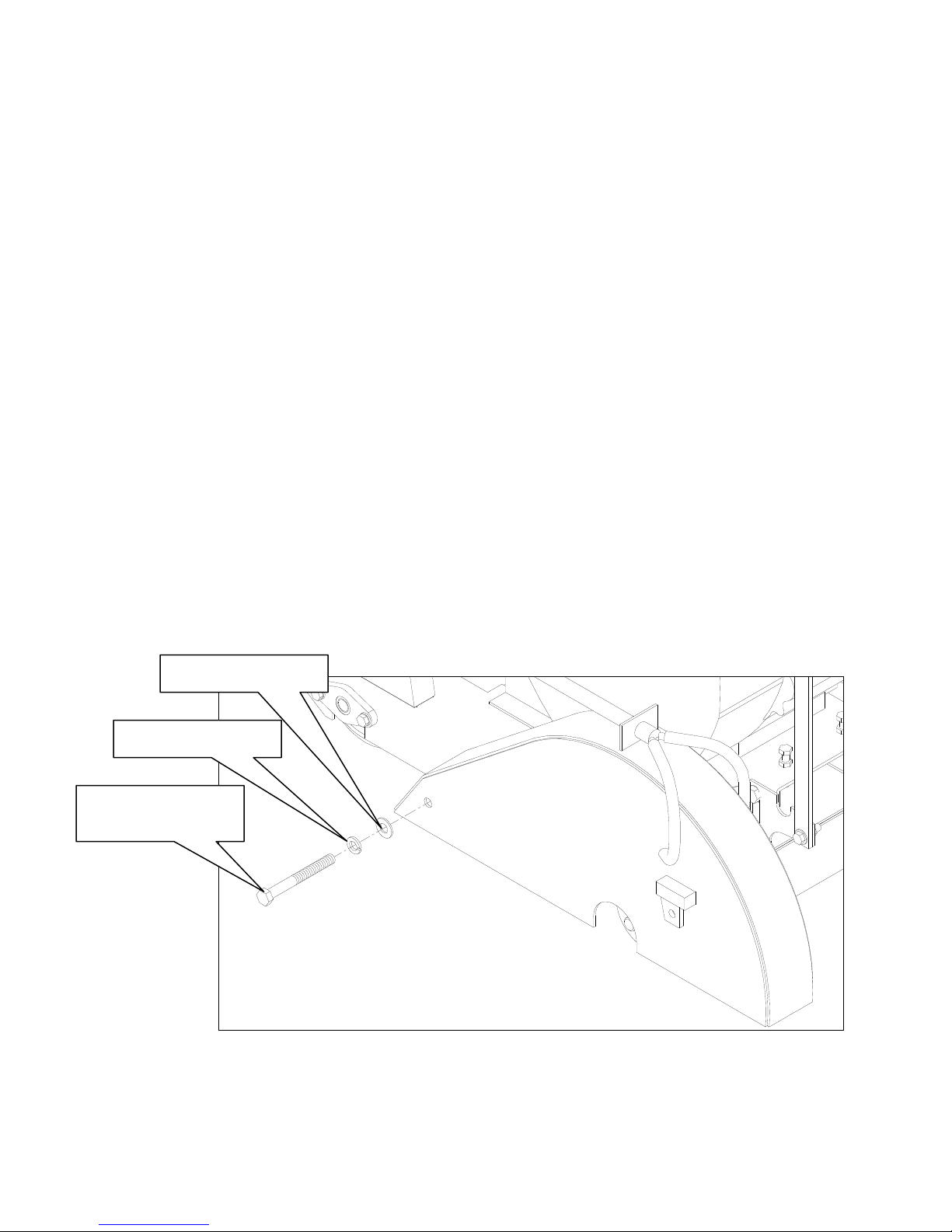

Blade Guard
Retaining Pin

10
4. Inspect the blade for any damage, cracks, burnt or blue areas, missing
segments, and roundness of blade. Also inspect the arbor hole and
drive pin hole to insure both are round. If any problems are found do
not use the blade. In addition check that the blade is the correct
specification for the application.
For Best Performance Use Only Norton Diamond Blades
Specified For the Material Being Cut.
5. Place the blade on the blade shaft, lining up the drive pin hole in the
blade with the drive pinhole in the inside collar. NOTE: Diamond
blades are direction dependent so verify the direction of rotation of the
blade. The machine will rotate the blade into the work surface (down
cut). Place the blade guard in position and insert the blade guard
retainer pin. Never operate the saw without the blade guard or blade
guard retainer pin in position See the following diagram Blade
Installation.
Blade Installation
6. Slide the outside blade shaft collar onto the blade shaft. The drive pin
on the outside collar must project through the drive pin hole in the
blade and into the inside collar.
Blade Shaft Nut
Outside
Collar
Drive Pin
Drive Pin Hole
Blade Guard
Inside Collar
Directional Arrow
Blade Installed
NOTE: Blade Guard is shown
open for clarity. Do not operate
with the Blade Guard O
p
en.
Arbor
Hole
Blade

11
7. Tighten the blade shaft nut (counter-clockwise for the Operator’s Right
Hand side and clockwise for the Operator’s Left hand side).
8. Insure that the Blade Guard is lowered and the Blade Guard Locking
pin is secure. Close Blade Guard Nose. See Blade Installed
diagram below.
Blade Installed
9. Reconnect the spark plug.
Observe rotation arrow on blade and do not exceed maximum
RPM stamped on blade.
NOTE: Organic bonded blades (A) must have a blotter. The
blotter (B) must extend past the blade collar contact area as
shown.
Blades Use Only Norton Diamond Blades

12
B. Changing the Blade Side:
1. Insure that the Ignition Power Key Switch is in the OFF position and
then disconnect the spark plug.
2. Remove the blade shaft nut, (NOTE: Operator’s Right side is a left
hand thread and the Operator’s Left side is right hand thread), and
remove the outside collar.
3. Clean off any foreign particles on the clamping surfaces of both the
outside and inside collars and on the mounting surface of the blade
and inspect the both collars for any damage and also inspect the drive
pin for damage. Reinstall the Blade Shaft Collars to the machine.
NOTE: Replace any damage collars or pins before using the machine.
4. Inspect the blade for any damage, cracks, burnt or blue areas, missing
segments, and roundness of blade. Also inspect the arbor hole and
drive pin hole to insure both are round. If any problems are found do
not use the blade. In addition check that the blade is the correct
specification for the application.
5. Remove the Blade Guard from the machine by unscrewing the Blade
Guard Pivot Bolt from the rear of the Blade Guard. NOTE: Keep the
½” Flat Washer and ½” Lock Washer on the Bolt.
Blade Pivot Bolt Removal
Blade Guard
Pivot Bolt
½” Lock Washer
½” Flat Washer

13
6. Remove the Blade Shaft Guard by removing the Blade Shaft Guard
retaining bolts. See Blade Shaft Guard Removal diagram below.
Blade Shaft Guard Removal
7. Place the blade on the blade shaft, lining up the drive pin hole in the
blade with the drive pinhole in the inside collar. NOTE: Diamond
blades are direction dependent so verify the direction of rotation of the
blade. The machine will rotate the blade into the work surface (down
cut).
7. Slide the outside blade shaft collar onto the blade shaft. The drive pin
on the outside collar must project through the drive pin hole in the
blade and into the inside collar.
8. Tighten the blade shaft nut (counter-clockwise for the Operator’s Right
Hand side and clockwise for the Operator’s Left hand side).
9. Place the blade guard in position and insert and tighten the Blade
Guard Pivot Bolt. Never operate the saw without the blade guard or
blade guard retainer pin in position See the diagram Blade Shaft
Installation on page 10 and Blade Installed on page 11.
10.Insure that the Blade Guard is lowered and the Blade Guard Locking
pin is secure. Close Blade Guard Nose.
11.Attach the Blade Shaft Guard to the opposite side of the machine.
Blade Shaft Guard

14
12.Remove the Pointer and reattach it to the Operators Left hand side of
the machine. NOTE: Reverse the orientation of the Pointer
13.Reconnect the spark plug.
C. Engine Operation
Prior to attempting to operate the engine, read the information
contained in the engine owner's manual. An engine owner’s manual
is supplied with every gasoline powered concrete saw.
1. Check Oil: Add oil if low. Refer to the engine owner's manual for the
recommended SAE viscosity grades. Capacity of oil is 1.1 liters (1.16 US qt)
2. Check Fuel: Fill if low. Use only unleaded gasoline with a pump sticker
octane rating of 86 or higher is recommended. Never use an oil and
gasoline mixture!
3. Air Cleaner: Never run the engine without the air cleaner! Rapid engine
wear will result from contaminants being drawn through the carburetor and
into the engine.
4. Engine Starting: Refer to the engine owner's manual for detailed engine
starting procedure.
5. Engine Speed: Always run the engine and the proper speed for the blade
being used. Never run the blade at a higher speed that it is rated for. See
the Blade Speed chart located on the machine’s console or located in the
manual under the heading “Operating the Saw”
6. All 13 HP units are equipped with a Choke control attached to the Engine
below the Air Cleaner on the Operator’s Right Hand Side.
D. Starting the Engine
1. Refer to the engine owner's manual for detail starting procedures.
2. Always cut with engine rpm in the full throttle setting.

15
Before starting, insure that the blade is properly installed, all
guards are in place and in safe operating condition, and that the
Blade is not in contact with any surface or object. Also verify
that the area where the work is to be preformed is clean, safe,
and has proper ventilation and lighting. Always located and
properly mark all water, gas, and electrical services before
beginning any work.
Locate and under stand the functions of the: Engine Fuel Control Valve
(Located on the Engine under the Air Cleaner), Choke Control (Located On
the Engine under the Air Cleaner), ON/OFF Switch (located on the Operator’s
Left Side Top of the Console), and Throttle Control (located on the Operator’s
Left Side Top the Console). SEE Section F. Controls for Details on the
locations and operation of the machines controls before operating.
Turn the Fuel Control To the ON Position Move the choke lever to the CLOSED position.
NOTE: do not use the choke if the engine is
warm or the air temperature is high.
Raise
Levantar
RPM/Hours (RPM/Horas)
3600 RPM
Ignition
Ignicion
Emergency
Stop
Paro de
Emergencia
Throttle
Acelerador
OFF ON
Pull The Emergency Kill Switch UP and Push The
Throttle Control Forward to provide some engine
throttle.
Raise
Levantar
RPM/Hours (RPM/Horas)
3600 RPM
Ignition
Ignicion
Emergency
Stop
Paro de
Emergencia
Throttle
Acelerador
OFF ON
Place the engine ON/OFF switch to the ON position
Throttle
Control
On/Off
Switch
Emergency
Kill Switch

16
Pull the starter grip lightly until you feel resistance,
then pull briskly. CAUTION: Do not allow the starter
grip to snap back against the engine. Return it gently
to prevent damage to the starter.
As the engine warms up, gradually move the choke
lever to the OPEN position. Position the throttle
control lever for the maximum engine speed (full
Rear).
To stop the engine, move the Throttle Control Lever fully to the Rear Position
(Slow) right, then turn the engine switch to the OFF position. Turn the fuel
valve to the OFF position.
Never transport the machine with the Fuel Valve in the ON
position. Never Store the machine with the Fuel Valve in the
ON position. Never Transport a machine with the blade
installed.
E. Water Supply
Pressurized source: Turn the water control to full "ON" when using wet
cutting blades. The required flow rate is 4-6 gallons per minute.
Optional Water Tank on saw: This supply is designed for use with dry
blades to keep the dust levels down. The tank will not supply the proper
water flow rates when used with wet cut only blades. Do not drink the
water from this tank. Fill the tank with water only. Close the water tank
valve. Attach the saws water supply hose to the tank outlet. Fill the tank
with water. The capacity of the tank is 5 US Gallons. When you are ready
to cut, adjust the water supply rate until a fine mist or a slow trickle is
made. The use of water greatly decreases the amount of dust produced
during the cutting process, aids in the cooling of the blade, and provides
additional stability.
Use Only Water In The Water Tank
Do Not Drink From The Tank

17
F. Controls
Raise
Levantar
RPM/Hours (RPM/Horas)
Lower
Bajar
3600 RPM
Ignition
Ignicion
Emergency
Stop
Paro de
Emergencia
Blade Dia Eng rpm Eng Pulley
Diameter
Blade Shaft
RPM
Blade Shaft
Pulley Dia
Diametro de
Disco Motor rpm Diámetro en
Polea Motor
Flecha Disco
RPM
Diámetro en
Polea de
Flecha Disco
16" (406mm) 3,600 rpm 3.15" (80mm) 2,520 rpm 4.5" (114mm)
16" (406mm) 3,600 rpm 3.15" (80mm) 2,520 rpm 4.5" (114mm)
20" (508mm) 3,600 rpm 3.15" (80mm) 2,520 rpm 4.5" (114mm)
Blade Speed Chart
Tabla de Velocidad
Del Disco
Throttle
Acelerador
Depth Control Hand Wheel:
Controls the cutting depth of the blade. Rotate Clockwise to raise and
counter clockwise to lower the depth of cut.
Engine Throttle:
The Engine Throttle Control allows the operator to adjust the Engine
Speed while starting and operating the machine. To increase the Engine
Speed push the Engine Throttle Control forward. To decrease the Engine
Speed pull the Engine Throttle Control to the rear.
Engine Ignition Switch:
The Engine Ignition Switch allows the operator to start and stop the
engine. The C1320P is equipped with a manual start engine. The engine
will not start unless the Ignition Key is in the On position, Emergency Kill
Switch is pulled out, and the Engine Starter Rope is pulled.
Tachometer/Hour Meter
Emergency Kill
Switch
Engine
Throttle
Engine Ignition
Switch
Depth Control
Hand Wheel

18
Tachometer/Hour Meter:
The Tachometer/Hour Meter shows the engine RPM only when the
Engine is running. The total Engine operating hours (run time) are shown
when the Engine is turned off.
Emergency Kill Switch:
The Emergency Kill Switch will stop the engine when depressed. The
engine will not restart until the Emergency Kill Switch is pulled out. Use
the Engine Ignition Switch for normal shut down of the Engine. Use the
Emergency Kill Switch when a problem arises.
G. Operating the Saw
1. For the engine starting instructions see the Engine manual and follow the
instructions located in section II. Operation sub heading A. Installing the
Blade on page 10.
2. Check the Engine Oil level.
5. Raise the saw to the full upright position. Do not let the blade come in
contact with the ground.
6. Maneuver the saw to the desired starting point.
7. If wet cutting connect the water supply to the saw.
8. Follow the instructions for starting the engine found in the Engine manual.
9. If wet cutting turn on the water supply at the source and then open the
water valves on the saw. Make sure that there is a minimum of two gallons
per minute of water flow!!
10.Be sure that the engine is running at full throttle!!! Check Engine Speed
on the Tachometer to that listed on the Blade Speed Chart located on the
Console is correct for the diameter of Blade being used.
Engine and Blade Speed Chart
Blade
Diameter
Engine
RPM
Engine
Pulley
Diameter
Blade
Shaft RPM
Blade Shaft
Pulley
Diameter
14"
(356mm) 3600 RPM 3.15" (80mm) 2520 RPM 4.5" (114mm)
16"
(406mm) 3600 RPM 3.15" (80mm) 2520 RPM 4.5" (114mm)
20"
(508mm) 3600 RPM 3.15" (80mm) 2520 RPM 4.5" (114mm)

19
11. Slowly lower the blade by rotating the hand wheel clockwise until the
desired depth of cut is reached. Use a reasonable rate of feed. A
reasonable rate of feed will depend on depth of cut, material, and blade.
Normal cutting speeds should be between 2 ft/min in very hard material
and up to 10 ft/min in softer materials. Do not force the blade in to the
cut! If the engine begins to stall or the saw raises out of the cut slow the
forward speed down!
12. If the engine begins to stall or the saw raises out of the cut slow the
forward speed down!
13. When moving the saw to a new location, be sure the blade is not
touching the ground. Always pay close attention to where you are
moving and where the blade is at all times.
13. When the end of the cut is reached, slowly raise the blade out of the cut
by rotating the Hand Wheel Clockwise until the blade is at least one (1)
inch above the ground.
14. To move the machine in reverse raise the blade out of the cut and pull
back on the machine. Only move the saw in reverse with the blade in the
raise position.
15. When moving the saw to a new location be sure that the blade is not
touching the ground and always pay close attention to where you are
moving and where the blade is at all times.
Caution: Do Pull The Machine Backwards While The
Blade Is In The Cut As The Blade May Be Damaged.
H. Cutting Technique
Lower the blade into the concrete to the required depth by turning the hand
wheel clockwise. Ease the handle slowly forward. Retard the forward
pressure if the saw begins to stall. Note: For deeper cuts (4 inches or more),
several cuts should be made in incremental steps of 1-1/2 to 2 inches until the
desired depth of cut is reached. Push the saw steadily forward using the front
pointer as a guide. Exert enough forward pressure so that the engine begins
to labor, but does not slow down. If the saw begins to stall, retard the forward
movement until full rpm is restored to the blade. If the saw stalls, raise the
blade out of the cut before restarting. Avoid excessive side pressure or
twisting of the blade in the cut.

20
Additional Guide Lines For Sawing:
Understand and follow all of the instructions in this owner’s manual.
If wet cutting, turn on the water supply so that there is a minimum of 4-6
gallons per minute of water flow!!
In critically hard aggregate, more than a single pass may be needed to cut
the desired depth.
If the saw stalls in the cut, immediately stop the forward speed and raise
the blade out of the cut. If this is not done the belts can fail or the blade
may be damaged.
Go slowly with a new blade until it opens up, that is, until the diamonds
can be seen and felt.
I. Lead-Off Adjustment
If the saw tends to pull to one side (lead off), it may be steered by applying
slight pressure to the left or right hand handles.
