NOSHOK 850 Series User manual

850 Series
Electronic Indicating
Temperature Transmitter/Switch
Operating Instructions

Table Of Contents
Declarations of conformity can be found online at www.noshok.com.
1. General information 4
2. Safety 6
3. Specications 9
4. Design and function 16
5. Transport, packaging and storage 17
6. Usage, operation 18
7. Maintenance and cleaning 27
8. Faults 28
9. Dismounting, return and disposal 30
10.
Appendix 1: EC Declaration of Conformity
31

4
■
The temperature transmitter/switch described in these operating instructions has been designed
and manufactured using state-of-the-art technology. All components are subject to stringent quality
and environmental criteria during production. Our quality management systems are certied to
ISO 9001:2015.
■
These operating instructions contain important information on handling the instrument. Working
safely requires that all safety instructions and work instructions are observed.
■
Observe the relevant local accident prevention regulations and general safety regulations for the
instrument's range of use.
■
The operating instructions are part of the product and must be kept in the immediate vicinity of the
instrument and readily accessible to skilled personnel at any time.
■
Skilled personnel must have carefully read and understood the operating instructions prior to
beginning any work.
■
The manufacturer's liability is void in the case of any damage caused by using the product contrary
to its intended use, non-compliance with these operating instructions, assignment of insu󰀩ciently
qualied skilled personnel or unauthorised modications to the instrument.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modications.
■
Further information:
www.noshok.com
T: 440.243.0888
F: 440.243.3472
[email protected]
1. General information

5
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious injury or death, if not
avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries or damage to
equipment or the environment, if not avoided.
Information
… points out useful tips, recommendations and information for e󰀩cient and trouble-free
operation.
CAUTION!
... indicates a potentially dangerous situation that can result in burns, caused by hot
surfaces or liquids, if not avoided.
Abbreviations
U+Positive power terminal
U-Reference potential
S+Analog output
SP1 1 switch point
SP2 2 switch point
C Communication with IO-Link
MBA Start of measuring range
MBE End of measuring range
1. General information

6
WARNING!
Before installation, usage and operation, ensure that the appropriate temperature
transmitter/switch has been selected in terms of measuring range, design and specic
measuring conditions.
Non-observance can result in serious injury and/or damage to
the equipment.
WARNING!
Observe the working conditions in accordance with chapter 3 “Specications”.
Further important safety instructions can be found in the individual chapters of these
operating instructions.
2.1 Intended use
The temperature transmitter/switch is used to convert temperature into an electrical signal indoors and
outdoors.
The instrument has been designed and built solely for the intended use described here, and may only
be used accordingly.
The technical specications contained in these operating instructions must be observed. Improper
handling or operation of the temperature switch outside of its technical specications requires the
instrument to be taken out of service immediately and inspected by an authorized NOSHOK service
engineer.
The manufacturer shall not be liable for claims of any type based on operation contrary to the intended
use.
2. Safety

7
2.2 Personnel qualication
WARNING!
Risk of injury should qualication be insu󰀩cient!
Improper handling can result in considerable injury and damage to equipment.
The activities described in these operating instructions may only be carried out by skilled
personnel who have the qualications described below.
Skilled personnel
Skilled personnel are understood to be personnel who, based on their technical training, knowledge
of measurement and control technology and on their experience and knowledge of country-specic
regulations, current standards and directives, are capable of carrying out the work described and
independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g. of aggressive media.
2.3 Special hazards
WARNING!
For hazardous media such as oxygen, acetylene, ammable or toxic gases or liquids,
and refrigeration plants, compressors, etc., in addition to all standard regulations, the
appropriate existing codes or regulations must also be followed.
WARNING!
Residual media in the dismounted temperature switch can result in a risk to persons, the
environment and equipment.
Take su󰀩cient precautionary measures.
2. Safety

8
2.4 Labeling, safety marks

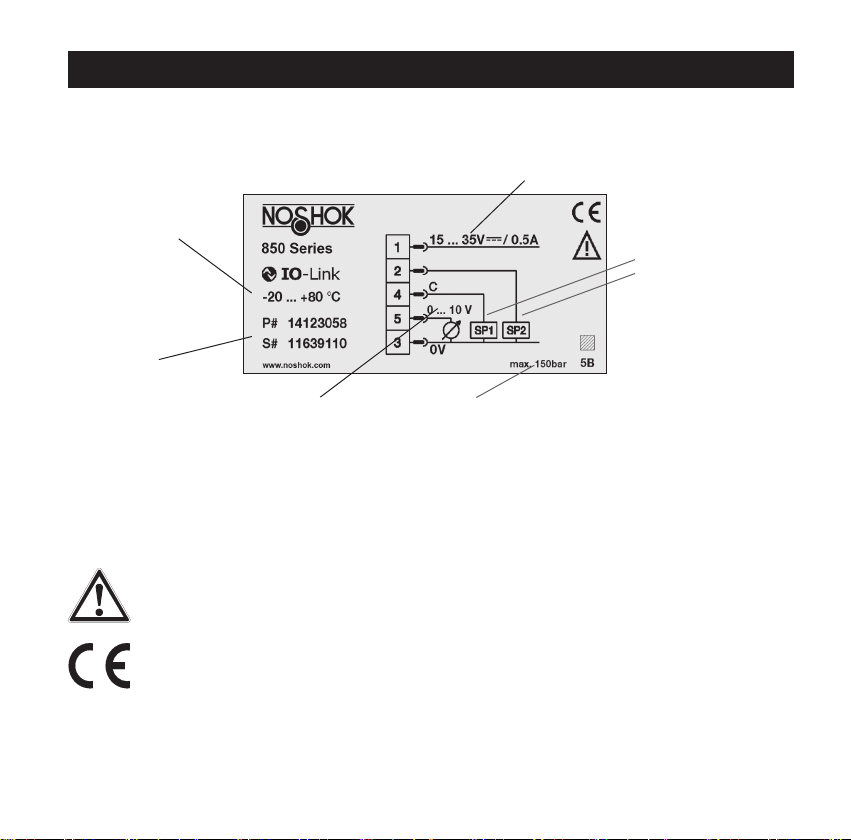

Product label
2. Safety
If the serial number becomes illegible (e.g. due to mechanical damage or overpainting), traceability will
no longer be possible.
Explanation of symbols
General danger symbol
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European directives.
Power supply
P# Product No.
S# Serial No.
Analog signal
Switching output 1
Switching output 2
Measuring range
Maximum working pressure

9
3. Specications
3.1 Measuring ranges
Temperature °C °F
Standard -20 °C to +80 °C -4 °F to +176 °F
Option 1) 2) -20 °C to +120 °C -4 °F to +248 °F
1) Only for process connections with compression tting.
2) Installation instructions under “Operating conditions” must be observed.
3.2 Display
14-segment LED, red, 4-digit, 9 mm (0.35 in) character size
Display can be turned electronically through 180°
Update: 200 ms
3.3 Output signal
Switching output Analog signal
SP1 SP2
PNP - 4 ... 20 mA (3-wire)
PNP - DC 0 ... 10 V (3-wire)
PNP PNP -
PNP PNP 4 ... 20 mA (3-wire)
PNP PNP DC 0 ... 10 V (3-wire)
Optionally also available with an NPN instead of a PNP switching output.

10
3. Specications
IO-Link, revision 1.1 (option)
IO-Link is optionally available for all output signals.
With the IO-Link option, switching output SP1 is always PNP
Switching thresholds
Switch point 1 and switch point 2 are individually adjustable
Switching functions
Normally open, normally closed, window, hysteresis freely adjustable
Switching voltage
Power supply - 1 V
Switching current
■
without IO-Link: max. 250 mA
■
with IO-Link: SP1 max. 100 mA, SP2 max. 250 mA
Adjustment accuracy
≤ 0.5 % of span
Temperature o󰀨set adjustment
±3 % of span
Scaling
Zero point: 0-25 % of span
Full scale: 75-100 % of span
Load
Analogue signal 4 to 20 mA: ≤ 0.5 kΩ
Analogue signal DC 0 ... 10 V: > 10 kΩ
Service life
100 million switching cycles

11
3. Specications
3.4 Voltage supply
Power supply U+
DC 15 ... 35 V
Current consumption
Switching outputs with
■
Analog signal 4 ... 20 mA: 70 mA
■
Analog signal DC 0 ... 10 V: 45 mA
■
without analog signal: 45 mA
IO-Link option causes a deviating current consumption
Total current consumption
■
without IO-Link: max. 600 mA including switching current
■
with IO-Link: max. 450 mA including switching current
3.5 Measuring element
Model
Pt1000, 2-wire, DIN EN 60751 / class A
Insertion length (F)
Parallel thread Tapered thread F
mm 25 1) 50 1) 2) 100 2) 150 2) 250 2) 350 2)
inch 0.98 1) 1.97 1) 2) 3.94 2) 5.91 2) 9.84 2) 13.8 2)
1) Not available with compression tting or measuring range
-4 °F to 248 °F (-20 °C to 120 °C).
2) Not available with G ⅛ A per DIN 3852-E.

12
3. Specications
Response time
T05 < 5 s (per DIN EN 60751)
T09 < 10 s (per DIN EN 60751)
Maximum operating pressure
150 bar (2,175 psi)
When using a compression tting:
max. 50 bar at 120 °C (max. 725 psi at 248 °F)
3.6 Accuracy data
Analog signal
≤ ±0.5 % of span + temperature sensor error
Switching output
≤ ±0.8 % of span + temperature sensor error
Display
≤ ±(0.8 % of span + temperature sensor error) ±1 digit
Temperature sensor
For °C: ±(0.15 K + 0.002 | t |) per EN 60751
For °F: ±[1.8*(0.15 + 0.002 (t - 32) / 1.8)]
|T| is the value of the temperature without consideration of the sign.
The actually achievable accuracy is signicantly determined by the mounting situation (immersion
depth, sensor length, operating conditions). This is especially the case for large temperature gradients
between the environment and the medium.

13
3. Specications
3.7 Operating conditions
Permissible temperature ranges
Medium: See measuring ranges
Ambient: -4 °F to 176 °F (-20 °C to 80 °C) 1)
Storage: -4 °F to 176 °F (-20 °C to 80 °C)
1) The permissible ambient temperature is limited to -4 °F to 176 °F (-20 °C to 80 °C) at the “-20 - 120 °C” measuring range.
At high medium or ambient temperatures, ensure by suitable measures that the instrument case
temperature does not exceed 176 °F (80 °C) in continuous operation (the temperature is measured at
the hexagon of the process connection).
At medium temperatures above 176 °F (80 °C) the thread must not be immersed into the medium.
Humidity
45 - 75 % r. h.
Vibration resistance
Insertion length F ≤ 150 mm (5.91 in):
6 g (IEC 60068-2-6, under resonance)
Insertion length F ≥ 250 mm (9.84 in):
2 g (IEC 60068-2-6, under resonance)
Shock resistance
50 g (IEC 60068-2-27, mechanical)

14
3. Specications
Ingress protection
IP 65 and IP 67 (per IEC 60529)
The stated ingress protection only applies when plugged in using mating connectors that have the
appropriate ingress protection.
Mounting position
as required
3.8 Reference conditions
Temperature: 59 °F to 77 °F (15 °C to 25 °C)
Atmospheric pressure: 950 - 1,050 mbar (13.78 ... 15.23 °F)
Humidity: 45 - 75 % r. h.
Nominal position: Process connection lower mount (LM)
Power supply: DC 24 V
Load: see “Output signal”
3.9 Materials
Wetted parts
Temperature sensor: Stainless steel 316Ti
Non-wetted parts
Case: Stainless steel 304
Keyboard: TPE-E
Display window: PC
Display head: PC + ABS-Blend

15
3. Specications

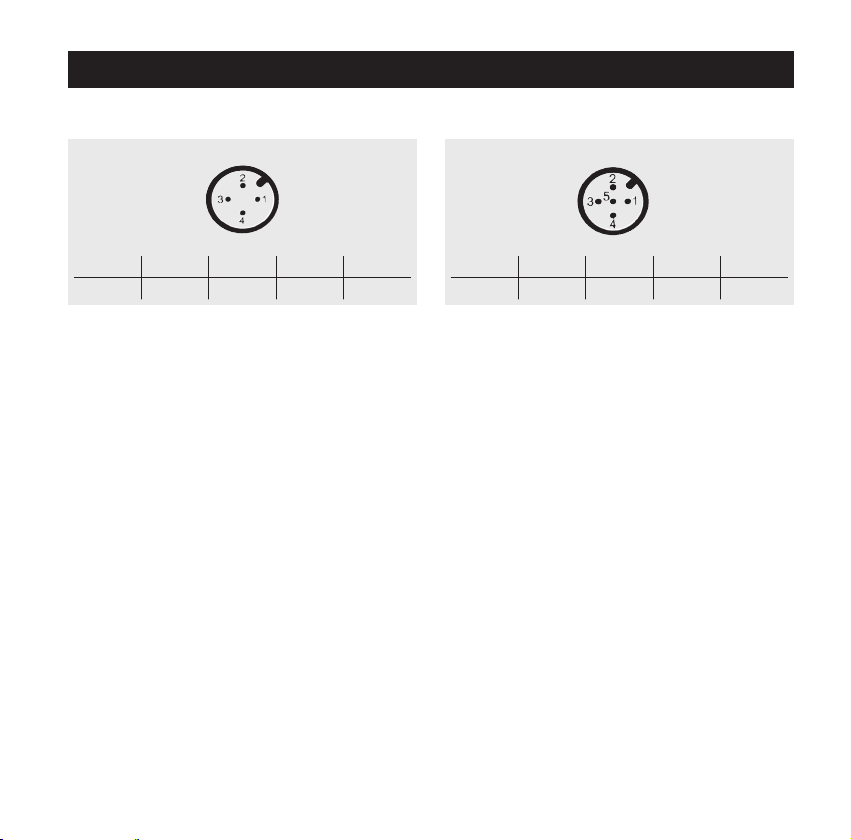

3.10 Electrical connections
Connections
■
Circular connector M12 x 1 (4-pin)
■
Circular connector M12 x 1 (5-pin) 1)
1) Only for version with two switching outputs and additional analog signal
Electrical safety
Short-circuit resistance: S+/ SP1 / SP2 vs. U-
Reverse polarity protection: U+vs. U-
Insulation voltage: DC 500 V
Overvoltage protection: DC 40 V
3.11 CE conformity
EMC directive
2004/108/EC, EN 61326 emission (Group 1, Cass B) and interference immunity (industrial application)
3.12 Manufacturer's declaration
RoHS conformity
2011/65/EU.

16
4. Design and function
4.1 Description
By means of a measuring element (Pt1000) and by supplying power, the prevailing temperature is
converted into a switching signal or an amplied standardized electrical signal via the change in
resistance of the measuring element. This electrical signal varies in proportion to the temperature and
can be evaluated accordingly.
4.2 Scope of delivery
Cross-check scope of delivery with the delivery note.

17
5.1 Transport
Check the temperature transmitter/switch for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
5.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g. change in installation
site, sending for repair).
5.3 Storage
Permissible conditions at the place of storage:
■
Storage temperature: -4 °F to 176 °F (-20 °C to 80 °C)
■
Humidity: 45 - 75 % relative humidity
WARNING!
Before storing the instrument (following operation), remove any residual media. This is
particularly important if the medium is hazardous to health, e.g. caustic, toxic, carcinogenic,
radioactive, etc.
5. Transport, packaging and storage

18
6. Usage, operation

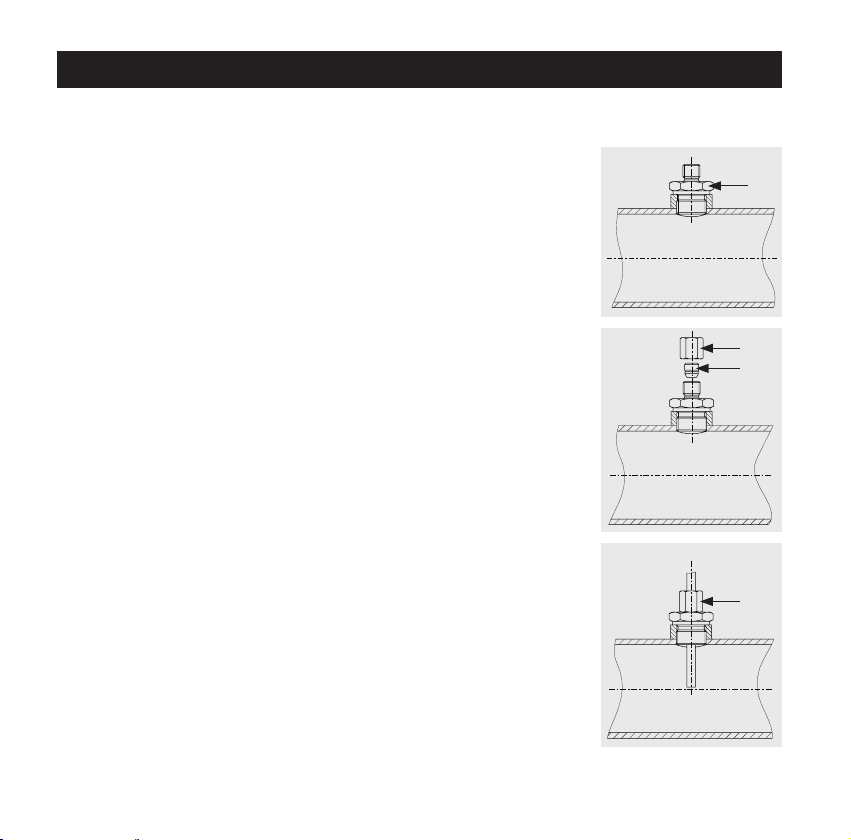

6.1 Mounting
Required tool: Open-ended spanner (spanner width 27)
■
The sealing faces at the temperature transmitter/switch and the measuring point must always
be clean.
■
Only screw in, or unscrew, the instrument via the spanner ats.
Never use the case as a working surface.
■
The correct torque depends on the dimensions of the process
connection and the sealing used (form/material).
■
When screwing in, do not cross the threads.
■
The instrument must be grounded via the process connection.
■
Attach the connector and screw it in hand-tight.
Seal
Correct sealing of the process connections with parallel threads at the sealing face must be made
using suitable at gaskets, sealing rings or NOSHOK prole sealings. The sealing of tapered threads
(e.g. NPT threads) is made by providing the thread with additional sealing material such as, for
example, PTFE tape (EN 837-2).


19
6. Usage, operation
Compression tting
1. Screw the compression tting (1) into the process connection and
tighten.
2. Insert the tapered side of the ferrule (2) into the tting and screw on
the union nut (3) hand-tight.
3. Insert the temperature transmitter/switch into the tting and maintain it
at the required immersion depth. Tighten the union nut (3) with approx.
50 Nm.
4. Optional
Check the assembly: Loosen the union nut. The ferrule is rmly
connected to the sensor tube.





20
6. Usage, operation
6.2 Operating modes
System start
■
Display is fully activated for 2 seconds.
■
When the temperature transmitter/switch is powered up within the range of the hysteresis, the
output switch is set to "not active" by default.
Display mode
Normal operation, display temperature value
Programming mode
Setting the parameters
Connection diagrams
Circular connector M12 x 1, 4-pin
Assignment
U+ U- S+ SP1 / C SP2
13242
Circular connector M12 x 1, 5-pin
Assignment
U+ U- S+ SP1 / C SP2
13542
