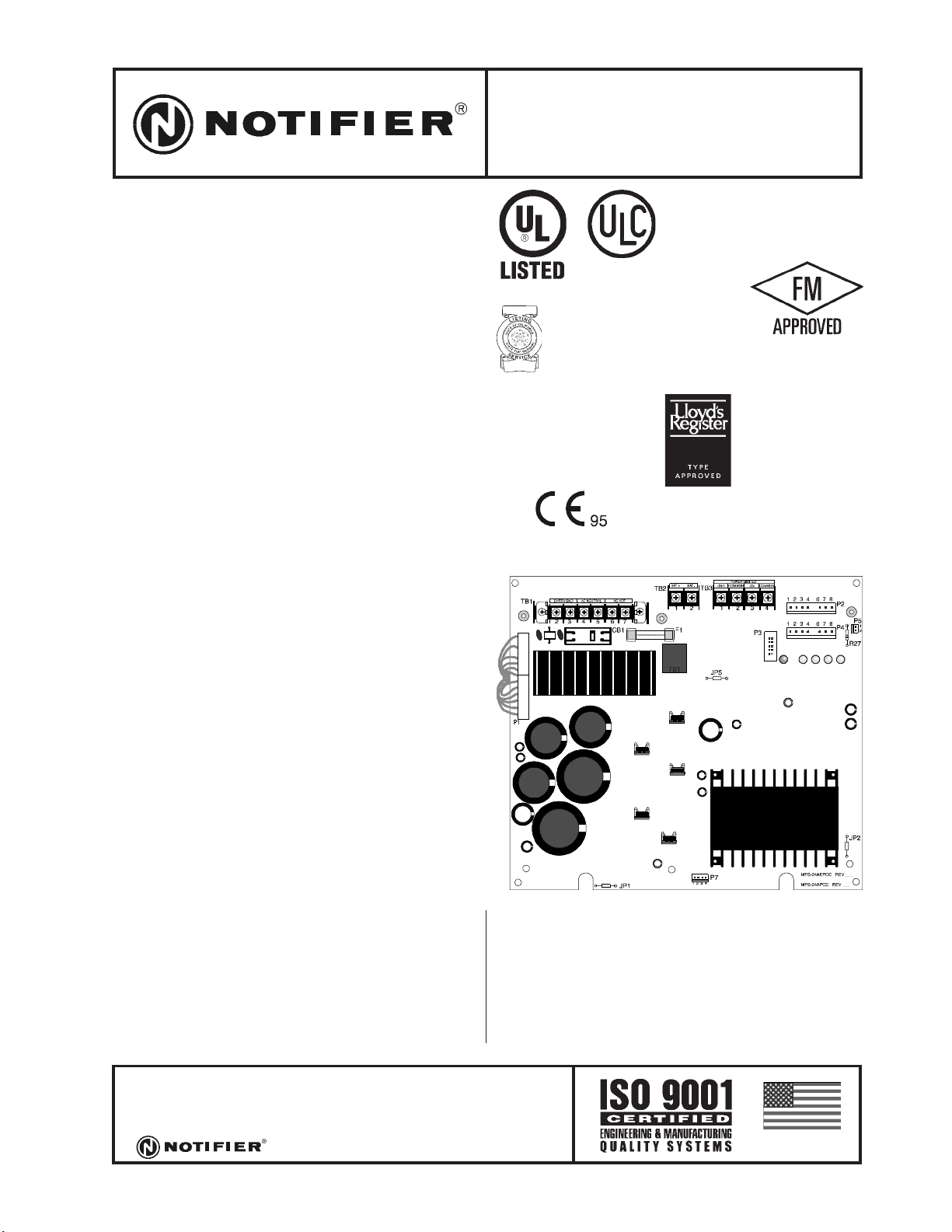

GENERAL
The MPS-24A is the main power supply for the AM2020,
AFP1010, XP Transponder or System 5000 fire alarm control
system. It provides all the necessary internal operating power
plus additional power for operation of external alarm Notifica-
tion Appliance Circuits. A battery charging circuit is included.
FEATURES
• Provides all internal operating power for the system.
• Up to 3.0 A of regulated, filtered alarm notification device
power available, compatible with any listed 24 VDC notifica-
tion appliance or any 24 VDC listed release solenoid.
• Recharges standby batteries up to 55 AH in size.
• Dual-rate charge capability.
• Regulatedandfilteredfour-wiredetectorpoweravailable(de-
pending on the system configuration).
• Trouble LEDs for AC Power Fail, Battery, and Ground Fault
conditions.
• Circuitbreakerandautomatically-resettingPTCresistorspro-
tect against current overload.
• Power-limited on all external output power.
• High-efficiency DC/DC converter for FACP internal +5 V
power.
• High-efficiency switched regulator for notification appliance
power.
• True battery supervision.
• Optional battery backbox holds 55 AH batteries.
APPLICATIONS
The MPS-24A Main Power Supply provides all of the required
internal system operating power, plus 3.0Aof regulated power
is available for external use.
ELECTRICAL SPECIFICATIONS
Primary input power: 120 volts, 50/60 Hz, 1.8 A maximum
(220 VAC option, model MPS-24AE).
Maximum loading of the 24 volt filtered regulated supply is
6.0A (used for internal and external power where filtered regu-
lated power is required). Up to 3.0 A may be used to power
Notification Appliance Circuits (NAC) or ACS Series annun-
ciators.
Battery charger: 24-volt float type, capable of charging 9AH
to 55 AH batteries.
Brown-out and battery monitors.
TROUBLE INDICATORS
•AC POWER FAIL (LED #2) Indicates the loss of AC power,
low AC line or open circuit breaker
•BATTERY (LED #3) Indicates battery failure
•GROUND FAULT (LEDs 4 & 5) indicates a ground fault con-
dition.
INSTALLATION
The MPS-24A power supply is installed in the lower bottom-
left corner of the CAB-A3/-A4, CAB-B3/-B4, CAB-C3/-C4, or
CAB-D3/-D4 enclosures. Screw terminals are provided for
Earth Ground; 120 or 220 VAC; Battery positive and negative;
+24 VDC filtered, regulated, resettable power. Plug-in connec-
tors are provided for the Power Ribbon, Power Harness, and
AVPS-24 Supervision connection.
