Nova gear NG-61 User manual

NG-61
12V CHARGER
INSTRUCTION MANUAL
PRODUCT CODE: 40052

2
SAFETY WARNINGS
1) Keep the battery charger away from
rain or moisture. Penetration of water
in the battery charger increases the
risk of an electric shock.
2) Only charge Nova Gear lithium ion
batteries or batteries installed in Nova
Gear products with the voltages listed
in the technical data. Otherwise there
is danger of fire and explosion.
3) Keep the battery charger clean.
Contamination can lead to danger of
an electric shock.
4) Before each use, check the
battery charger, cable and plug. If
damage is detected, do not use
the battery charger. Never open
the battery charger yourself. Have
repairs performed only by a qualified
technician and only using original
spare parts. Damaged battery
chargers, cables and plugs increase
the risk of an electric shock.
5) Do not operate the battery charger
on easily inflammable surfaces (e.g.
paper, textiles, etc.) or surroundings.
The heating of the battery charger
during the charging process can pose
a fire hazard.
PRODUCT OVERVIEW
Read through the complete text in
the operating instructions before
using the device. The operating
instructions are intended to help
6) Do not use this charger with
non-rechargeable batteries.
7) In case of damage and improper use
of the battery, vapors may be emitted.
Provide fresh air and seek medical help
in case of complaints. The vapors can
irritate the respiratory system.
8) Supervise children. This will ensure
that children do not play with the
charger.
9) Children or persons that owing
to their physical, sensory or mental
limitations or to their lack of experience
or knowledge, are not capable of
securely operating the charger, may
only use this charger under supervision
or after having been instructed by a
responsible person. Otherwise, there is
danger of operating errors and injuries.
NOTE: Improper handling, misuse or
a breakdown of the electrical system
that occurs due to the non-compliance
of the electric regulations and VDE
regulations 0100, DIN 57113 / VDE0113
will be exempt from the warranty
guarantee.
SAFETY
CAUTION: Read the operating
instructions to reduce the risk
of inquiry.

3
the user to become familiar
with the machine and take
advantage of its application
possibilities in accordance with the
recommendations. The operating
instructions contain important
information on how to operate the
machine safely, professionally and
economically, how to avoid danger,
costly repairs, reduce downtimes
and how to increase reliability and
service life of the machine.
In addition to the safety regulations
in the operating instructions, you
have to meet the applicable
regulations that apply for the
operation of the machine in
your country. Keep the operating
instructions package with the
machine at all times and store it in
a plastic cover to protect it from dirt
and moisture. Read the instruction
manual each time before operating
the machine and carefully follow
its information. The machine can
only be operated by persons who
were instructed concerning the
operation of the machine and who
are informed about the associated
dangers.
Green charging indicator
Red charging indicator
Battery compartment

4
OPERATION
b) When the red light is on, insert the
battery into the charging compartment.
c) Battery is fully charged when the red
and green light are solid. Charging time
is approximately 30 minutes.
d) Charge the battery at least once a
month to prolong the life of the battery.
EXTENDING BATTERY LIFE
a) Charge the battery at least once a
month, even if you have not used it in
order to increase the lifetime.
b) Remove the battery from your tool
after each use and before storing to
increase its life.
The charging procedure starts as soon
as the mains plug of the battery charger
is plugged into the socket outlet and
the battery is inserted into the charging
the battery is inserted into the charging
compartment. Due to the intelligent
charging method, the charging condition
of the battery is automatically detected
and the battery is charged with the
optimum charging current, depending
on battery temperature and voltage.
When the battery is not inserted,
continuous red lighting of the battery
charge indicator indicates that the
mains plug is inserted in the socket
and that the battery charger is ready for
operation.
NOTE: The rapid-charging procedure
is only possible when the battery
temperature is within the allowable
charging temperature range.
CHARGING PROCEDURE
a) To charge the battery, plug the charger
into the socket outlet.
NOTE: Observe the mains voltage!
The voltage of the power supply
must correspond with the data
given on the nameplate of the
battery charger.
Battery chargers marked with 230 V
can also be operated with 220 V.
!

5

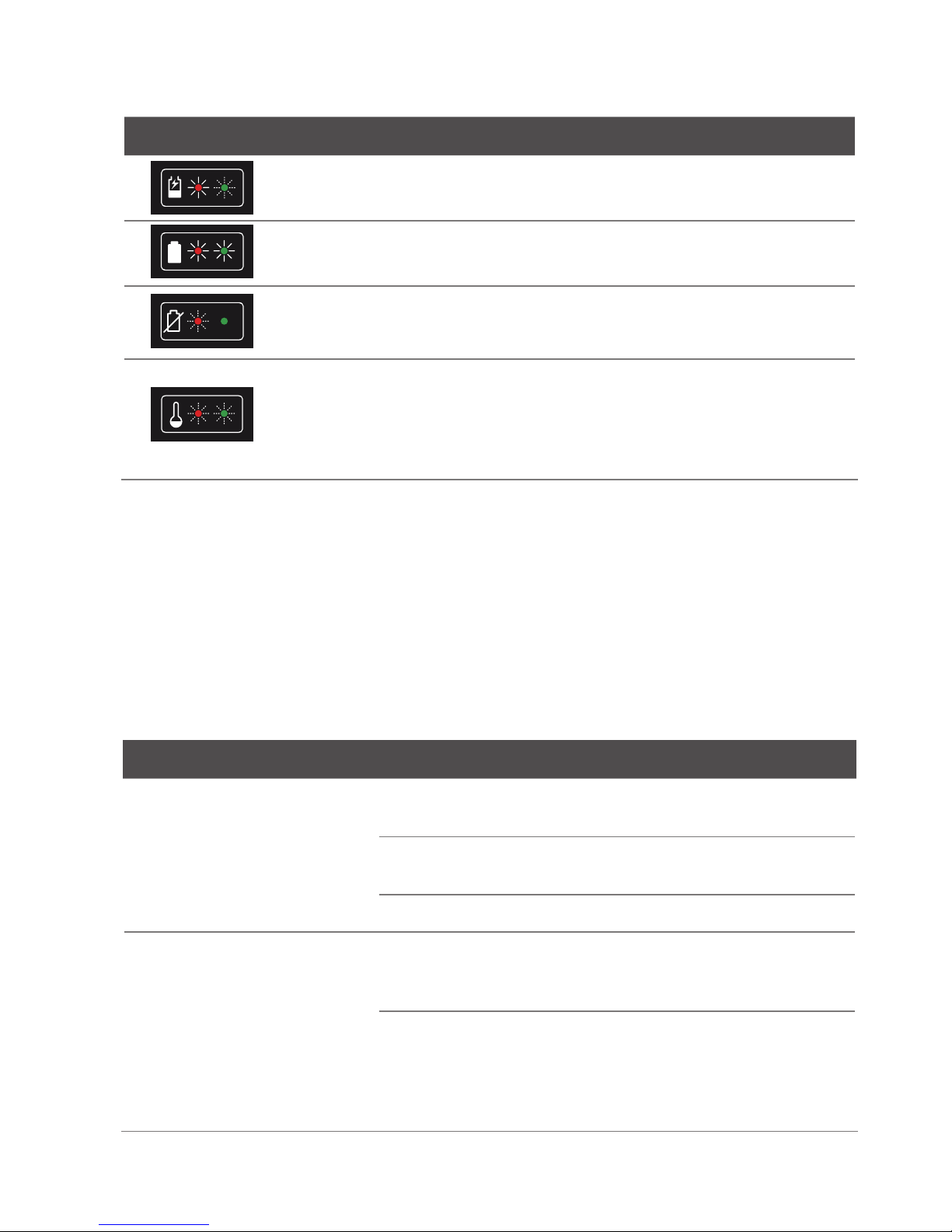

DISPLAY RED LIGHT GREEN LIGHT STATUS
On Flash Charging.
On On Fully charged.
Flash Off Battery fault or
battery not detected.
Flash Flash
Battery is already charged.
System temperature above 45°.
Allow the battery and charger
to cool.
CHARGING STATUS
TROUBLE SHOOTING
FAULT CAUSE SOLUTION
No charging procedure
Battery not inserted
correctly. Insert battery correctly.
Battery contacts
contaminated.
Clean the battery contacts
or replace battery.
Battery defective. Replace the battery.
Battery charge indicators do
not light up
Mains plug not correctly
plugged in to the socket
outlet.
Insert mains power correctly.
Socket outlet, mains
power cable or charger
defective.
Check the mains voltage.
Have an authorised service
agent inspect the battery.
Replace the battery.
With continuous or several repetitive
charging cycles without interruption,
the charger can warm up. This does
not indicate a technical defect of the
battery charger.
A significantly reduced working
period after charging indicates that
the battery is used and must be
replaced.

6
TECHNICAL SPECIFICATIONS
WASTE DISPOSAL
& RECYCLING
SERVICING
SPECIFICATIONS NG-61 CHARGER
Product code 40052
Warranty 3 years
Power input 100-240V AC 50/60Hz
Power output 12.6V DC-3.5A
Charge time 30 minutes
Operating temperature 0° to 40°
Only use with NG-6020 Battery (40050)
Do not dispose of this product
in household waste!
Please recycle this product
responsibly in accordance
with local and national law.
For information on servicing
and repairs please contact
Spot-on on 1300 658 338 or
visit www.spoton.com.au.

7
WARRANTY
The NG-61 Charger comes with a 3
year manufacturers warranty.
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major
failure and for compensation for any
other reasonably foreseeable loss or
damage. You are also entitled to have
the goods repaired or replaced if the
goods fail to be of acceptable quality
and the failure does not amount to a
major failure.
Separate to the above Australia
Consumer Law, Spot-on offers a global
warranty.
The warranty period commences on
the date of purchase, which can be
verified on your receipt or invoice. We
cannot offer a warranty for damages
and defects on appliances or their
parts caused by improper use or
treatment. Damage caused by failure
to comply with the operating manual
will be excluded from the warranty.
In the event that an unauthorised
persons has modified the appliance,
the warranty will be rendered void.
Damages that are caused by improper
handling are excluded from the
guarantee.
If you have any concerns or wish to
make a warranty claim please contact
your retailer or Spot-on Laser and Tool
Company on 1300 658 338.
Spot-on Laser and Tool Company PTY LTD
10-12 Dowsett Street,
South Geelong, VIC 3220
Australia

Spot-on Laser and Tool Company | 1300 658 338 | www.spoton.com.au
