Novatel MiFi2200 Specification sheet

2200
Intelligent Mobile Hotspot
user
product
guide

©2012Novatel Wireless, Inc. All rights reserved. The information contained in this document is subject to change
without notice and should not be construed as a commitment by Novatel Wireless, Inc.
Patents and Licenses
Visit www.novatelwireless.com/patents for a complete list of all Novatel Wireless patents.
Software License
Proprietary Rights Provisions:
The software drivers provided with this product are copyrighted by Novatel Wireless and/or Novatel Wireless’ suppliers.
Although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Novatel
Wireless and/or Novatel Wireless’suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software
drivers for any purpose is strictly prohibited by international law. The copying of the software drivers, except for a reasonable
number of back-up copies is strictly prohibited by international law. It is forbidden by international law to provide access
to the software drivers to any person for any purpose other than processing the internal data for the intended use of the
software drivers.
U.S. Government Restricted Rights Clause:
The software drivers are classied as“Commercial Computing device Software”and the U.S. Government is acquiring only
“Restricted Rights” in the software drivers and their Documentation.
U.S. Government Export Administration Act Compliance Clause:
It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where
such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the
laws of any other country.
Trademarks and Service Marks
Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service marks (collectively the
“Trademarks”) used in this user manual are the property of Novatel Wireless or their respective owners. Nothing contained in
this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel
Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its
respective owners.
• MiFi® and the MiFi logo are registered trademarks of Novatel Wireless, Inc.
• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
• Apple®, Mac®, and Mac OS® are trademarks of Apple, Inc., registered in the U.S. and other countries.
• Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
• SDHC, SD Card, and the SD logo are trademarks of SD-3C LLC.
The names of actual companies and products mentioned in this user manual may be the trademarks of their respective
owners.
Novatel Wireless Revision History
Part Number Revision Description Date
90026090 R1 Initial release 2 Nov 2009
R2 Revised User Interface content 1 Jul 2010
R3 Added Novatel Wireless-branded screens; revised
User Interface content
17 Jan 2012
FCC ID: PKRNVWMIFI2200
PN 90026090 R3 317Jan2012
Please visit www.novatelwireless.com for the latest information about your device.

Contents
Product Overview....................................................... 5
MiFi 2200 Device Overview .................................................................. 6
Features................................................................................. 6
Package Contents ....................................................................... 7
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Your MiFi 2200 Intelligent Mobile Hotspot Device............................................. 8
LED States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caring for Your Device ................................................................... 9
Power Management ........................................................................10
Battery Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Micro USB Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connect the MiFi 2200 Device with the Micro USB Cable .................................11
Using Your MiFi 2200 Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Device for the First Time ..........................................................13
Insert and Charge the Battery ...........................................................13
Turn the Device On and O .............................................................15
Connecting in Wi-Fi Mode ..................................................................16
MiFi Settings .......................................................... 17
MiFi Settings Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Open the MiFi Device Settings ..........................................................18
The Menu Bar ..........................................................................19
Home Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Internet Connection ....................................................................21
Wi-Fi ...................................................................................22
GPS Local Search .......................................................................22
GPS Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
GPS Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
GPS Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
GPS Local Search .......................................................................25
Password Menu ............................................................................26
Set Administration Password ...........................................................26
Wi-Fi Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Wi-Fi: Wi-Fi Proles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Choosing a Prole ..................................................................29
Setting Security ....................................................................29
Setting Up a Temporary Hotspot ....................................................30
Wi-Fi: MAC Filter ............................................................................31
Enable MAC Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Trusted Client List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Finding the MAC Address ...........................................................32
Using MAC Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wi-Fi: Status ................................................................................33
Wi-Fi Network ..........................................................................34
Wi-Fi Clients ............................................................................35
Wi-Fi Log ...............................................................................36
WWAN Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
WWAN: Conguration ......................................................................38
WWAN: Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
WWAN Connection .....................................................................40
WWAN Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
WWAN Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
WWAN: Status ..............................................................................42
Internet Connection ....................................................................43
Trac Counters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Internet Connection Log ................................................................45
Advanced Menu ............................................................................46
Advanced: Advanced Options/Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Access Point ............................................................................48
3G Modem .............................................................................48
Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
System .................................................................................49
Advanced: Cong File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cong File Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cong File Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Advanced: Port Filtering ....................................................................53
Enable Port Filtering ....................................................................54
Enable Port Filtering for Allowed Applications ...........................................54
Enable Port Filtering for Custom Applications............................................55
Advanced: Port Forwarding .................................................................56
Port Forwarding Applications ...........................................................57
Advanced: Power Management .............................................................58
LED Control ............................................................................59
AC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Battery Power ..........................................................................60
Advanced: TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
TCP/IP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Advanced: System Status ...................................................................62
System Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
System Log ............................................................................63
Restarting Your Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Resetting Your Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Common Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Use the Master Reset Button ................................................................69
Technical Support ..........................................................................70
Technical Information .................................................. 71
Product Specications ......................................................................72
Regulatory Notices .........................................................................73
Safety Hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
SAR Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Proper Battery Use and Disposal ........................................................76
Limited Warranty and Liability ..............................................................77
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Glossary....................................................................................79

1
Product Overview
MiFi 2200 Overview
Your MiFi 2200 Intelligent Mobile Hotspot
Power Management
Using the Micro USB Cable

6
MiFi 2200 Overview
Thank you for choosing the Novatel Wireless MiFi 2200 Intelligent Mobile Hotspot for mobile
broadband and Wi-Fi!
This device operates over high-speed 3G mobile broadband networks in the 800/1900 bands
enabling you to connect at high speeds to the Internet, your corporate Intranet, Wi-Fi enabled
devices and to access your email virtually anywhere!
The MiFi 2200 is an intelligent mobile hotspot, empowering you with Wi-Fi connectivity and high-
speed data access on your wireless data network.
Features
With the MiFi 2200, you can:
•Share your 3G Mobile Broadband Connection with up to five Wi-Fi eEnabled Devices over Wi-Fi
•Benefit from Wi-Fi Connectivity
•With the MiFi 2200 intelligent mobile hotspot, connect via Wi-Fi and access high-speed
mobile broadband service to browse the Internet, access email, run business applications
and more from a computer or most Wi-Fi-compatible devices.
•The MiFi device enables multiple Wi-Fi-enabled devices to connect at one time. Connect
up to ve devices including computers, music players, tablets, e-readers and portable
game consoles simultaneously.
•Typical battery usage time is up to 4 hours active and up to 40 hours standby in Wi-Fi
mode (with one Wi-Fi connective device).
•Manage Wireless Network Activity – MiFi Device Settings
•MiFi Device Settings: Allows you to manage, monitor, and customize your Wi-Fi mobile
broadband connection through an easy-to-use interface when the device is in Wi-Fi mode
(that is, without the use of the USB cable).
•Customize Security: Allows you to select security options using the MiFi 2200's advanced
security settings.

7
Additional features include:
•Advanced embedded antenna design for mobile broadband and Wi-Fi
•VPN capability
•Auto installation and connectivity options
•GPS technology to search for stores, restaurants, and other locations in your area
•NDIS conguration
Package Contents
The Novatel Wireless MiFi 2200 package includes:
•MiFi 2200
•AC Wall Charger
•Lithium Ion Battery
•Storage Pouch
•Micro USB Cable
•Quick Start Guide
System Requirements
•Internet browser (for example, Internet Explorer, Safari, Firefox, Opera, Chrome)
•Wireless interface (802.11b/g)
USB Modem Mode only:
•Windows 7, Vista, or XP (Service Pack 2 or higher)
•Mac OS X v10.4.11 or higher
•Type A USB port
•40 MB hard drive
•256 MB RAM

8
Your MiFi 2200 Intelligent Mobile Hotspot
Your MiFi 2200 has the following parts:
➊ Power Button / LED: Powers on and o the device. The LED indicates power, battery status,
and roaming activity.
➋ Micro USB Connector: The AC charger connects here.
➌ Service Status LED: Provides information about your mobile broadband connection.
➍ Network Name and Password Label: The precongured name of your network (SSID) and
your network password (also called a network key) are printed on the back of your device.
➎ Master Reset Button: Resets device to factory default settings. (See Use the Master Reset
Button on page 69.)
➏ Battery Compartment: Battery is placed here.

9
LED States
The MiFi device LED provides valuable information about the state of the device and its connection.
Service Status LED
LED Color Status Description
No Light — Device is powered o.
Green Solid The MiFi device is powered on and connected to a
mobile broadband network, but is not transmitting
or receiving data.
Slow Blinking The MiFi device is powered on but there is no service.
Intermittent Blinking The MiFi device is transmitting / receiving mobile
broadband data. The blinking rate is proportional to
the data speed.
Power Button LED
Led Color Status Description
No Light — Device is powered o.
Green Solid
Glowing
The MiFi device is powered on and fully charged.
The MiFi device is in standby mode (power saving).
Press the power button to wake up the device.
Red Blinking Battery is critically low.
Amber Solid
Blinking
Battery is charging.
Error. (See Troubleshooting on page 64.)
Blue Solid The MiFi device is powered on and roaming.
Caring for Your Device
As with any electronic device, the MiFi 2200 must be handled with care to ensure reliable operation.
Novatel Wireless recommends the following handling guidelines:
•Do not apply adhesive labels to the MiFi 2200; they may cause the device to potentially
overheat and they may alter the performance of the antenna system.
•The USB connector should plug easily into your computer’s Type A USB port. Forcing the
device into a port may damage the connector.
•Protect the MiFi 2200 from liquids, dust, and excessive heat.
•Store the MiFi 2200 in a safe place, when not in use.

10
Power Management
Your device will work from its battery or when plugged into a power source.
•Battery — The battery will last for up to four hours. Charge the battery by plugging in the AC
adapter. While the battery is charging, the Power Button LED will be solid amber. When the
battery is fully charged, it will be solid green.
•Wall power — Use the device by plugging it into a wall socket. The MiFi device battery will
charge while it is plugged in.
•USB power from a computer — Use the device as a USB modem while plugged into the USB
port of a computer using the supplied USB cable. The battery will charge while it is plugged
in. Charging the battery through the USB port is slower than charging it with AC power.
NOTE You cannot use the MiFi device in Wi-Fi mode while it is plugged into a USB port.
Battery Tips
WARNING! To avoid risk of explosion, never dispose of batteries in a fire.
•Battery life depends on the network, signal strength, temperature, features, and accessories
used.
•Always use Novatel Wireless original batteries and chargers. The warranty does not cover
damage caused by non-Novatel Wireless batteries and/or chargers.
•New batteries or batteries stored for a long time may take more time to charge.
•When charging your battery, keep it near room temperature.
•When storing your battery, keep it uncharged in a cool, dark, dry place.
•Never expose batteries to temperatures below -10oC (14oF) or above 45oC (113oF). Never leave
the device in an unattended vehicle since temperatures may be outside the temperature
range for this device.
•It is normal for batteries to gradually wear down and require longer charging times. If you
notice a change in your battery life, it is probably time to purchase a new battery.
•Some batteries perform best after several full charge/discharge cycles.
Before using the MiFi 2200, read the battery safety information in the Safety Hazards section of this
guide. (See Proper Battery Use and Disposal on page 76.)

11

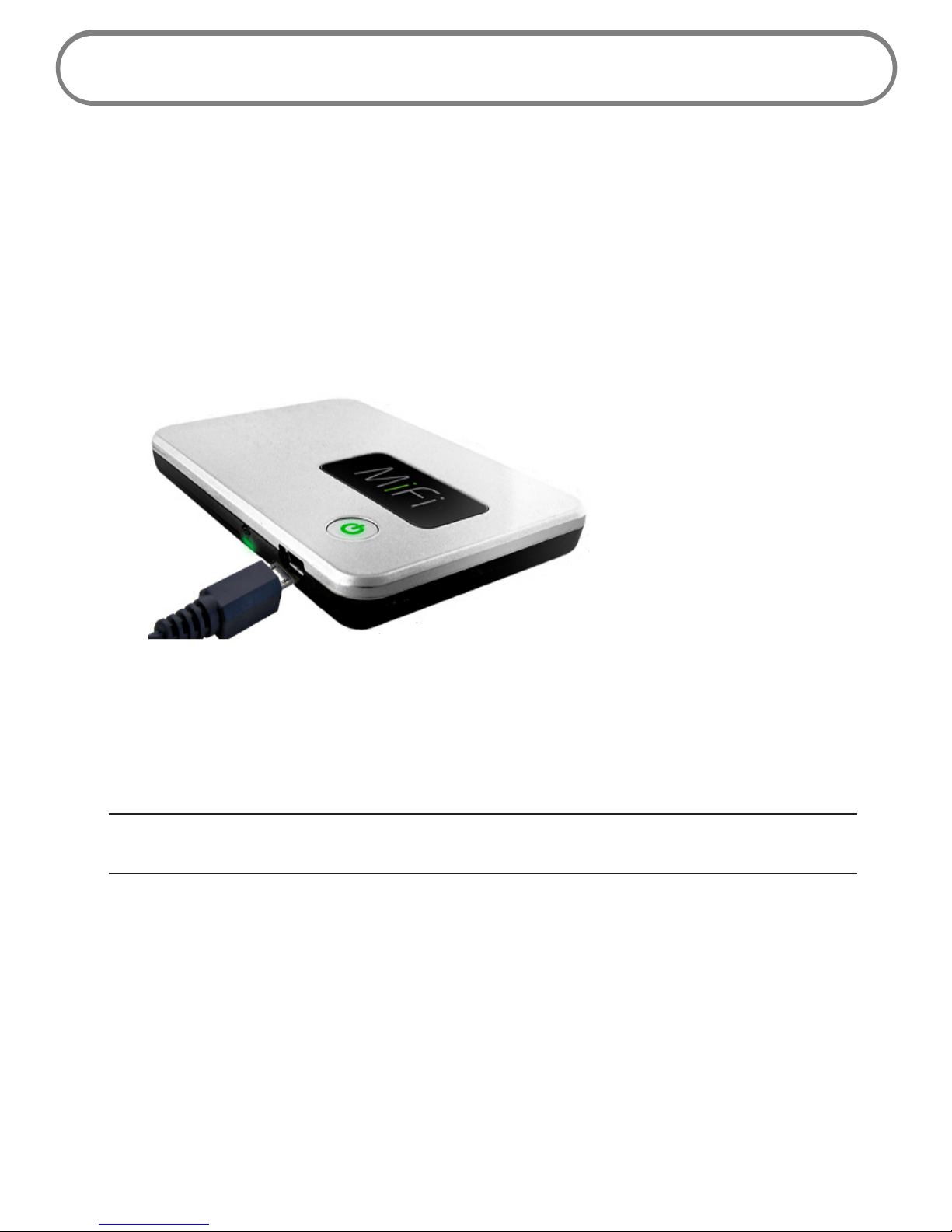

Using the Micro USB Cable
Connect the MiFi 2200 with the Micro USB Cable
To properly connect the device to the USB cable, follow these steps.
➊ Grip the MiFi 2200 by its sides and gently insert the USB cable into the micro
USB port.
➋ Insert the other end of the cable in a Type A USB port. The cable should t easily into the
USB port.
The following occurs:
•The status icon appears in the system tray/notication area (Windows) or in the menu
bar (Mac).
•The MiFi 2200 is powered on automatically and begins charging.
IMPORTANT The recommended minimum distance between you and the device is 8 inches.
Extend the micro USB cable so the MiFi device is at least 8 inches from your body.

2
Using Your MiFi 2200
Using the MiFi 2200 for the First Time
Connecting in Wi-Fi Mode

13
Using the MiFi 2200 for the First Time
IMPORTANT The MiFi 2200 requires an activated account with a network operator in order to
function.
To get started, follow these steps.
•Conrm your computer meets the minimum system requirements. (See System
Requirements on page 7.)
•Insert and charge the battery. (See Insert and Charge the Battery on page 13.)
•Turn on the device. (See Turn the Device On and O on page 15.)
•Connect the device to your computer using Wi-Fi. (See Connecting in Wi-Fi Mode on page
16.)
•Connect to MiFi settings. (See MiFi Settings Basics on page 18.)
Insert and Charge the Battery
NOTE The battery should be fully charged before using the MiFi 2200 for the first time.
To insert and charge the battery, follow these steps.

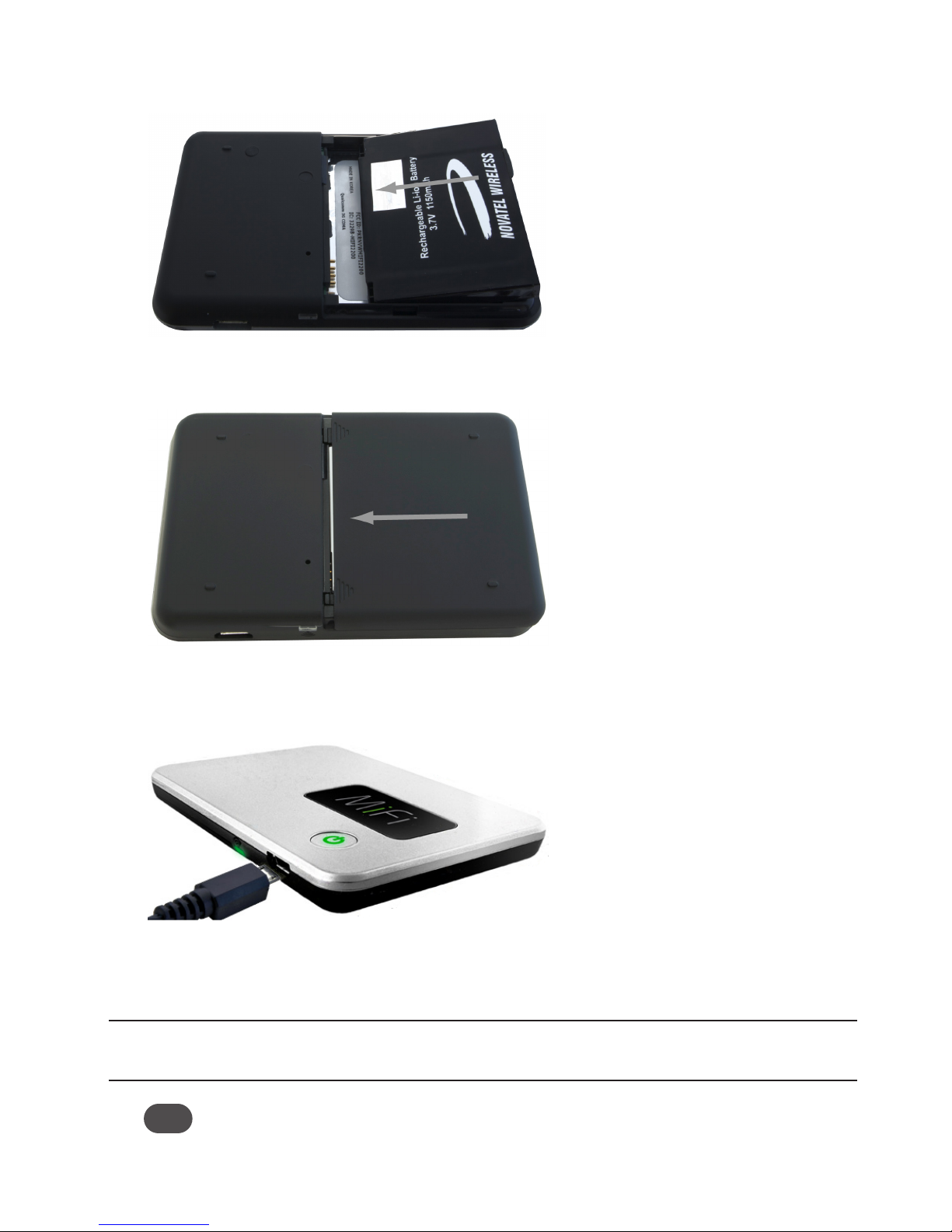

➊ Open the battery compartment, located on the bottom of the device.

14
➋ Insert the battery by lining up the gold contact points on the battery with the gold contact
points in the battery compartment.
➌ Once the battery is secure, place the battery cover back on the device until it locks into place.
➍ Connect the micro USB end of the AC wall charger to the micro USB port of the device
as shown.
➎ Plug the other end of the AC wall charger into the appropriate electrical outlet. Charge for at
least two and a half hours.
CAUTION! Use only an approved charging accessory to charge your device. Use of an
incompatible charger may cause damage to your device and void the warranty.
Tip The default SSID for your MiFi device is MiFi2200 xxxx Secure. Your SSID and Network Key (11-digit
number) will be printed on the back of your device. (The'xxxx' are the last four characters of your
MiFi device's MAC address.)

15
Turn the Device On and O
To power the device on:
➤ Press the Power button until the Power LED lights up solid green.
To power the device off:
➤ Press and hold the Power button until the Power LED shuts o.

16
Connecting in Wi-Fi Mode
Tip The default SSID for your MiFi device is MiFi2200 xxxx Secure. Your SSID and 11-digit Network Key
are printed on the back of your device. (The 'xxxx' are the last four characters of your MiFi device's
MAC address.)
To connect in Wi-Fi mode, follow these steps.
➊ Use the Wi-Fi manager on your computer to select your MiFi device's MiFi2200 xxxx Secure
network name (SSID).
➋ Click Connect.
➌ Enter your 11-digit password when prompted for a security key.
Tip The steps to connect to a Wi-Fi network vary depending on your operating system and whether you
use the native application or third-party software. Generally, you click an icon (often in the Windows
notification area or System Preferences > Network on a Mac) where you can select View
Available Wireless Networks. If you are unfamiliar with wireless networking on your computer,
consult your computer help system.
To connect to the MiFi 2200 for the first time, continue by following these steps.
➍ From your computer's Web browser, enter http://mifi.admin into the address window and
press the Enter or Return key.
Tip You can use any one of these addresses:
http://mifi.admin
http://admin.mifi
http://192.168.1.1
➎ Enter the default login password admin when requested.
➏ Follow the directions on the screen.
IMPORTANT Be sure to record the new administrative password and any network changes that
you make.
➐ After you click Finish, your MiFi device will restart. If your network does not reconnect
automatically, reconnect using your Wi-Fi manager.

3
MiFi Settings
MiFi Settings Basics
Home Page
GPS Menu
Password Menu
Wi-Fi Menu
WWAN Menu
Advanced Menu

18
MiFi Settings Basics
Open the MiFi Device Settings
To open the MiFi device settings, follow these steps.
➊ Open your Web browser and enter http://mi.admin into the address window.
➋ Type the administrative password into the Login box in the upper right corner and
click Login.

19
The Home screen will open.
The Home screen contains the menu bar (See The Menu Bar on page 19.)
The Menu Bar
The menu bar runs horizontally along the top of the MiFi device Settings interface. Besides
allowing you to select menu items, the menu bar also displays information about your MiFi device's
connection strength and battery level.
