Novus NV-8000PS/HP User manual

U s e r ’s m a n u a l
NV-8000PS/HP

NV-8000PS/HP User’s manual ver.1.0
All rights reserved © AAT Holding S.A.
2
COMMENTS AND WARNINGS
EMC (2014/30/UE) and LVD (2014/35/UE) Directives
CE Marking
Our products are manufactured to comply with the requirements of the following
directives and national regulations implementing the directives:
- Electromagnetic compatibility EMC 2014/30/UE.
- Low voltage LVD 2014/35/EC with further amendment. The Directive applies to
electrical equipment designed for use with a voltage rating of between 50VAC and 1000VAC as
well as 75VDC and 1500VDC.
WEEE Directive 2012/19/UE
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European Directive on Waste Electrical and
Electronic Equipment (2012/19/UE) and further amendments. By ensuring this product is
disposed of correctly, you will help to prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. It shall be handed over to the applicable collection point for
used up electrical and electronic equipment for recycling purpose. For more information about
recycling of this product, please contact your local authorities, your household waste disposal service
or the shop where you purchased the product.
RoHS Directive 2011/65/UE
Information concerning the restriction of use of hazardous substances in electrical electronic
equipment.
Out of concern for human health protection and friendly environment, we assure that
our products falling under RoHS Directive regulations, regarding the restriction of the
use of hazardous substances in electrical and electronic equipment, have been designed
and manufactured in compliance with the above mentioned regulations.
Simultaneously, we claim that our products have been tested and do not contain hazardous substances
whose exceeding limits could have negative impact on human health or natural environment.
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other
devices during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING
THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

NV-8000PS/HP User’s manual ver.1.0
All rights reserved © AAT Holding S.A.
3
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A
PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE
YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER
DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO
USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE
PERSONNEL MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF
EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN
ACTION.
IMPORTANT SAFEGUARDS AND WARNINGS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a
direct influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer
is forbidden;
7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers
etc.) is not recommended since it may lead to heat build-up and damaging the device itself
as a consequence;
8. Mounting the device on unstable surface or using not recommended mounts is forbidden.
Improperly mounted injector may cause a fatal accident or may be seriously damaged itself. Injector
must be mounted by qualified personnel with proper authorization, in accordance with this user’s
manual;
IMPORTANT SAFEGUARDS AND WARNINGS

NV-8000PS/HP User’s manual ver.1.0
All rights reserved © AAT Holding S.A.
4
IMPORTANT SAFEGUARDS AND WARNINGS
9. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the device’s technical datasheet. Therefore, it is forbidden to
supply the injector from a power sources with unknown parameters, unstable or not meeting
producer’s requirements;
10. Signal and power cables should be placed in a way excluding the possibility of damaging them by
accident. Special attention must be paid to cables getting from the injector and connecting the
power supply;
11. Electric installation supplying the device should be designed to meet the specifications given
by the producer in such a way that overloading is impossible;
12. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should
be conducted only by qualified service personnel;
13. Unplug the injector from the power source immediately and contact the proper maintenance
department when the following occurs:
 Damages to the power cord or to the plug itself;
 Liquids getting inside the device or exposure to strong mechanical shock;
 Device behaves in a way not described in the manual and all adjustments approved by the
manufacturer and possible to apply by user himself, seem not to have any effect;
 Injector is damaged;
 Atypical behaviour of the injector components may be seen (heard).
14. In necessity of repairs attention to using only original replacement parts (with their parameters
in accordance with those specified by the producer) should be paid. Non-licensed service and
non-genuine replacement parts may cause fire or electrocution;
15. After maintenance activities tests should be run to ensure proper operation of all the functional
components of the device.
Due to the product being constantly enhanced and optimized, certain parameters and functions described
in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual

NV-8000PS/HP User’s manual ver.1.0
All rights reserved © AAT Holding S.A.
5
1. PACKAGE CONTENTS
• NV-8000PS/HP High PoE Injector
• User’s manual
2. MAIN CHARACTERISTICS
• Device Type: High PoE injector
• Power Efficiency: 60W
• Transmission medium: Ethernet cable Cat/5e/6
• PoE Network standard: IEEE802.3 af, IEEE802.3 at
• Transmission distance: up to 100m (max)
• Transmission speed: 10/100/1000 Mb/s
• Connectors: Input: 1 x RJ45 / Output 1 x RJ45
• Surge protection: up to 3kV

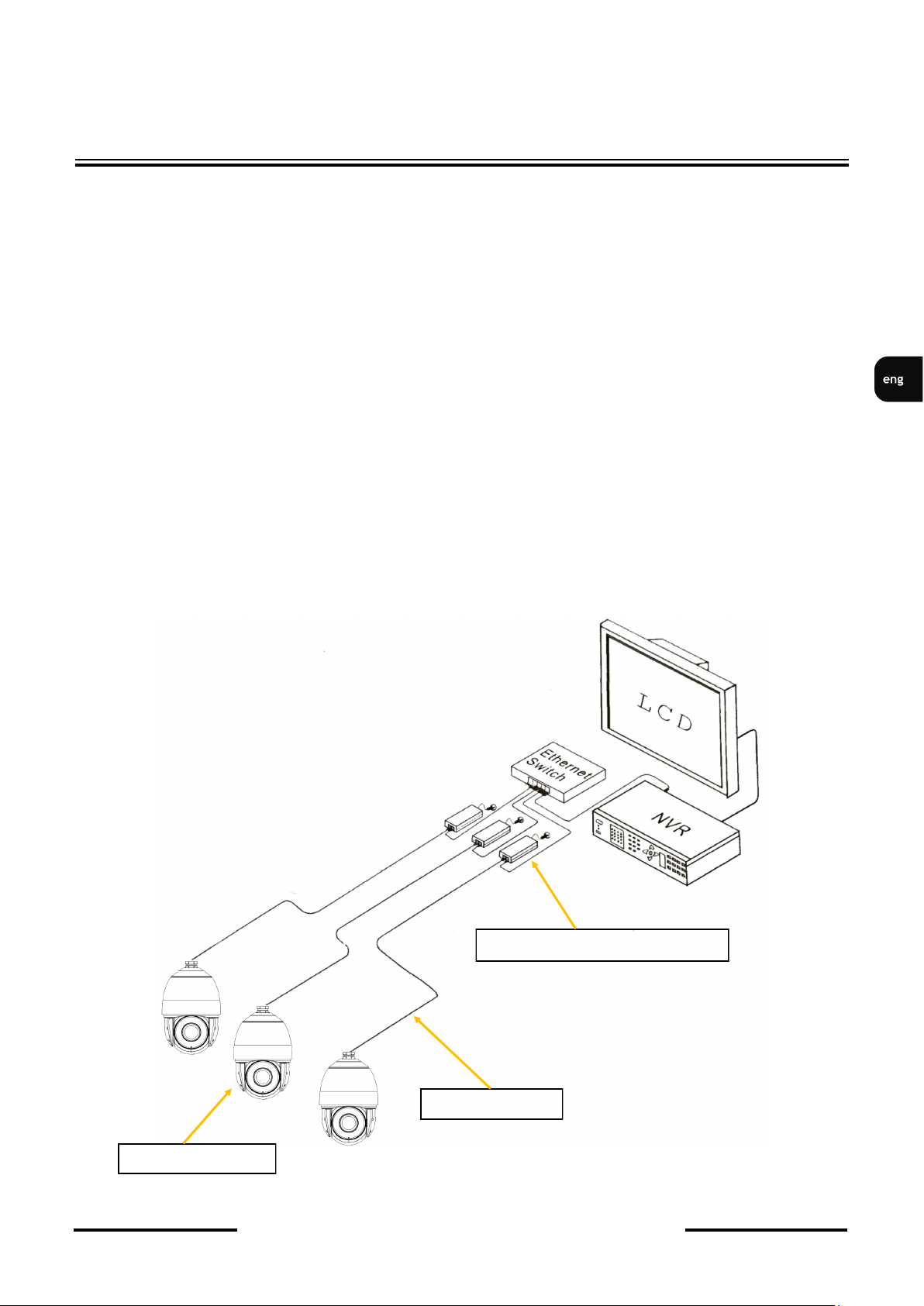

FOREWORD INFORMATION
NV-8000PS/HP High PoE Injectors
High PoE IP Cameras
Cable Cat/5e/6

NV-8000PS/HP User’s manual ver.1.0
All rights reserved © AAT Holding S.A.
6
3. TECHNICAL SPECIFICATION
4. DIMENSIONS
FEATURES AND SPECIFICATION
37 mm
GENERAL
Device Type High PoE injector
NETWORK
Transmission Distance 1 ports in PoE mode: 100 m *
PoE standards IEEE802.3 af, IEEE802.3 at
PoE modes Endspan (1,2+ / 3,6-), Midspan (4,5+ / 7,8-)
Surge protection Maximum voltage: 3kV
INSTALLATION PARAMETERS
Case Metal, color black
Dimensions (mm) 71 (W) x 37 (H) x 185 (L)
Weight 480 g
Power Supply 100 ~ 240 VAC, 50/60Hz
Power Consumption 64 W
Power Efficiency 60 W
Operating Temperature -20°C ~ 60°C
Connector Input: 1 x RJ45 / Output 1 x RJ45
* The values was achieved in a test environment. In different environment this value can change due to interferences or
influence of other devices.

NV-8000PS/HP User’s manual ver.1.0
All rights reserved © AAT Holding S.A.
7

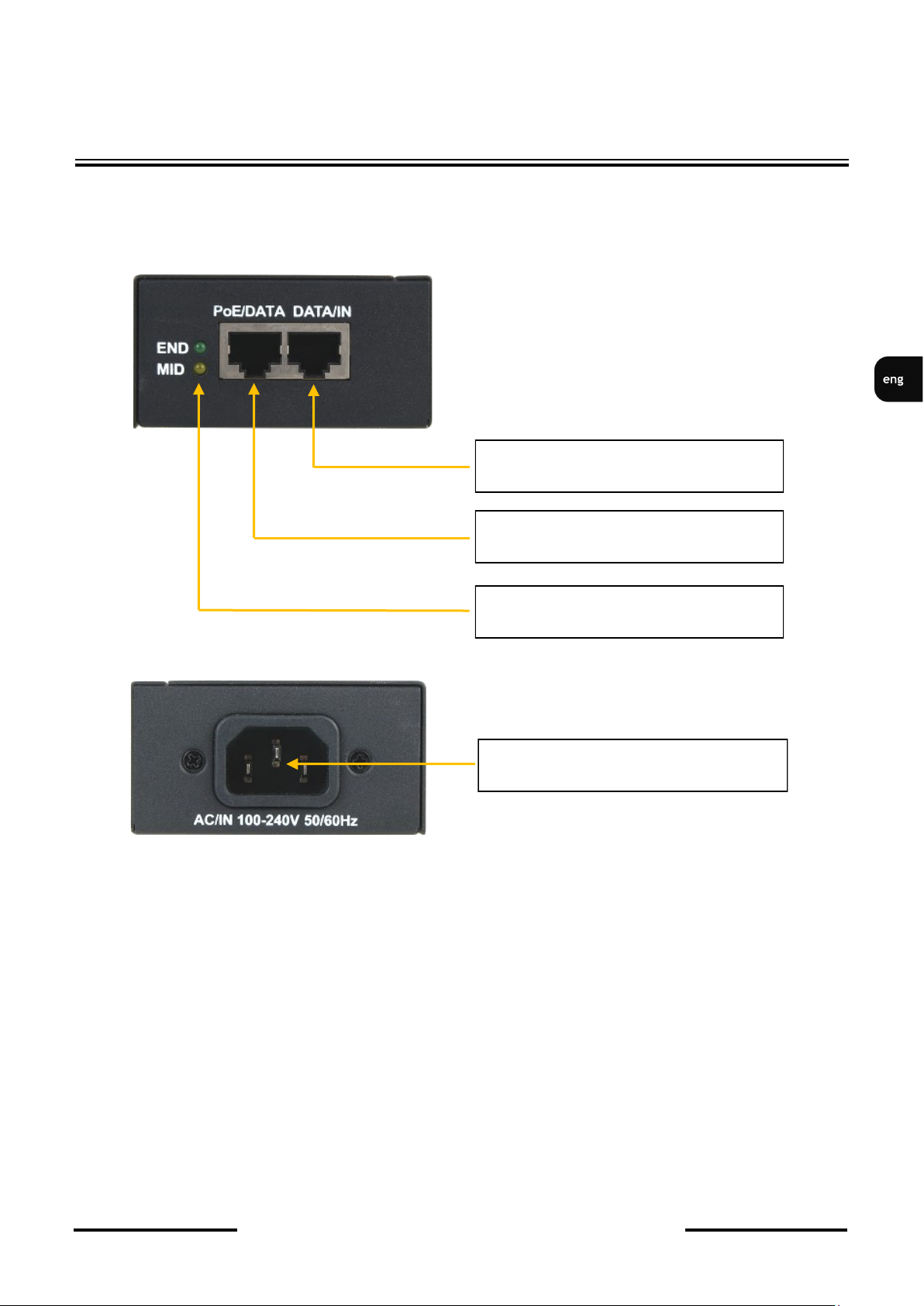

5. POSITION AND FUNCTIONS OF THE INJECTOR COMPONENTS
FEATURES AND SPECIFICATION
PoE/DATA - Connect to High PoE Camera
DATA/IN - Connect to PC or Switch
END/MID - LEDs indicating power of the PoE
camera
AC/IN 100-240V 50/60Hz - Mains Connection

2019-04-18 MM JB ver. 1.0
AAT Holding S.A., 431 Pulawska St., 02-801 Warsaw, Poland
tel.: [phone], fax: [phone]
www.novuscctv.com
