NR N6 72V30Ah User manual

USER MANUAL
E L E C T R I C S C O O T E R

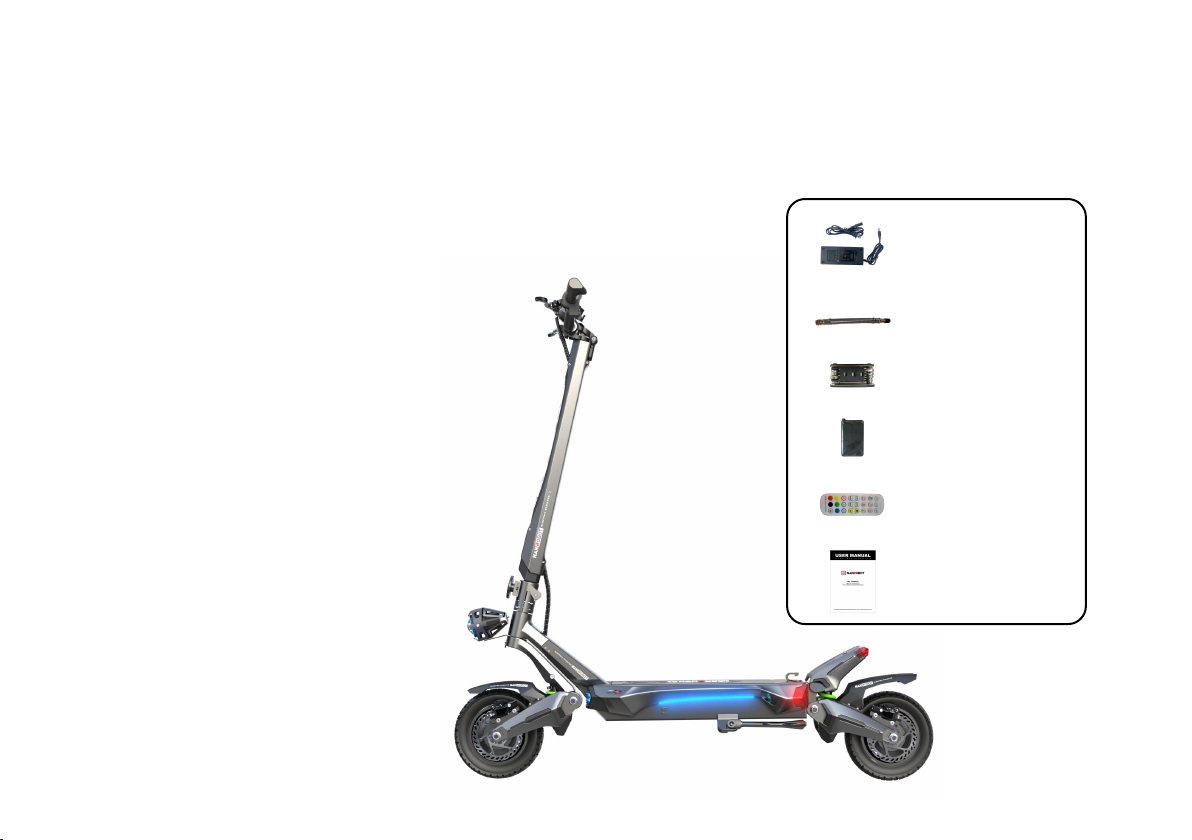

PACKING LIST
CHECK THE FOLLOWING PARTS OF THE PRODUCT AFTER
UNBOXING
1. PLEASE CHECK IF THERE IS A CHARGER.
2. PLEASE CHECK IF THERE IS A EXTENDED
AIR INFLATOR TUBE.
3. PLEASE CHECK IF THERE IS A TOOL KIT.
4. PLEASE CHECK IF THERE ARE TWO NFCS.
5. PLEASE CHECK IF THERE IS A WIRELESS
REMOTE CONTROL FOR LIGHT.
6. PLEASE CHECK IF THERE IS A MANUAL.
7. ALL NUTS AND SCREWS SHOULD BE TIGHT.
8. SEAT (IF AVAILABLE).
9. TEST THE BRAKES.
01
CHARGER
TOOLKIT
NFC*2
MANUAL
EXTENDED AIR
INFLATOR TUBE
WIRELESS REMOTE
CONTROL FOR
LIGHT

02
REQUIRED CHECK BEFORE
RIDING
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT.
1. CHECK THAT THE CONTROL PANEL TURNS ON.
2. ENSURE THAT THE BRAKES ARE WORKING PROPERLY.
3. CHECK THAT THE BRAKE PADS ARE NOT DAMAGED OR NEED REPLACING.
4. MAKE SURE THE SEAT IS STABLE AND SECURE (IF AVAILABLE).
5. CHECK THAT THE HORN IS OPERATING CORRECTLY.
6. MAKE SURE THE VOLTAGE VALUE IS WITHIN THE NORMAL RANGE OF 63-84V.
7. ENSURE THAT THE FOLDING DEVICE IS IN GOOD CONDITION AND FUNCTIONING PROPERLY.
8. PRLONGED EXPOSURE TO UV RAYS, RAIN AND THE ELEMENTS MAY DAMAGE THE ENCLOSURE
MATERIALS, STORE INDOORS WHEN NOT IN USE.
9. WARNING-TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION MANUAL.
10. WARNING - DAMAGE CAUSED BY NATURAL DISASTERS SUCH AS LIGHTNING STRIKE, FIRE,
FLOOD ARE NOT COVERED UNDER THE WARRANTY SERVICE.
11. AVERTISSEMENT - LES DOMMAGES CAUSÉS PAR DES CATASTROPHES NATURELLES TELLES QU'UNE
DÉCHARGE ÉLECTRIQUE, UN INCENDIE OU UNE INONDATION NE SONT PAS COUVERTS PAR LE SERVICE DE
GARANTIE.

03
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT.
SAFETY PRECAUTIONS
1. ALWAYS WEAR A HELMET AND KNEE AND ELBOW PADS WHEN RIDING.
2. WHEN INITIALLY RIDING THE SCOOTER, MAINTAIN A LOW SPEED AND GRADUALLY INCREASE SPEED AS
RIDING SKILLS IMPROVE.
3. DO NOT RIDE IN THE RAIN, IN THE SNOW, OR ON ROADS THAT ARE WET, MUDDY, ICY, OR THAT ARE
SLIPPERY FOR ANY REASON.
4. RIDERS UNDER THE AGE OF 18 YEARS OLD SHOULD RIDE UNDER ADULT SUPERVISION.
5. ADJUST THE HANDLEBAR TO A SUITABLE AND COMFORTABLE POSITION.
6. WHEN GOING DOWNHILL, ENSURE YOU ARE DRIVING SLOWLY TO PREVENT ACCIDENTS.
7. PLEASE ADHERE TO ALL APPLICABLE LOCAL LAWS AND REGULATIONS WHILE USING THIS SCOOTER. DO
NOT RIDE WHERE PROHIBITED BY LOCAL LAWS.
8. MAKE SURE ALL SCREWS ARE IN GOOD CONDITION AND PROPERLY FASTENED.
9. CHARGING INSTRUCTIONS - USE ONLY THE SPECIFIED CHARGER AS INSTRUCTED.
10. THE SLOPE FOR RIDING: ＜30°.
11. STORE THE SCOOTER IN A COOL, DRY, AND WELL-VENTILATED PLACE WHEN NOT IN USE.

04
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT.
PRODUCT SPECIFICATIONS
NANROBOT N6_72V
TIRE 10 INCH RUBER
LITHIUM BATTERY 72V30AH
MOTOR 1500W*2
RANGE
MAXIMUM SPEE
130 KM / 80 MILES
(SINGLE DRIVE, 75KG LOAD, 25KM/H FLAT ROAD RIDE AT CONSTANT SPEED,
FULLY CHARGED, ADEQUATE TIRE PRESSURE)
60-70KM / 37-43 MILES
(DUAL DRIVE)
D
CHARGING TIM
80 KMH
E 8-12H(12 HOURS WITH 1 CHARGER, 8H WITH 2 CHARGERS)
SIZE 53*25*53.7 IN
NET WEIGHT 92.6 LBS/42KG
LOAD CAPACITY MAX 330LBS/150KG
LIGHT TURN SIGNAL LIGHT | FRONT LIGHT |
TAILLIGHT | AMBIENT LIGHT
BRAKE TYPE DUAL HYDRAULIC BRAKE ( NUTT )
SHOCK ABSORBER FRONT AND REAR
NFC √

05

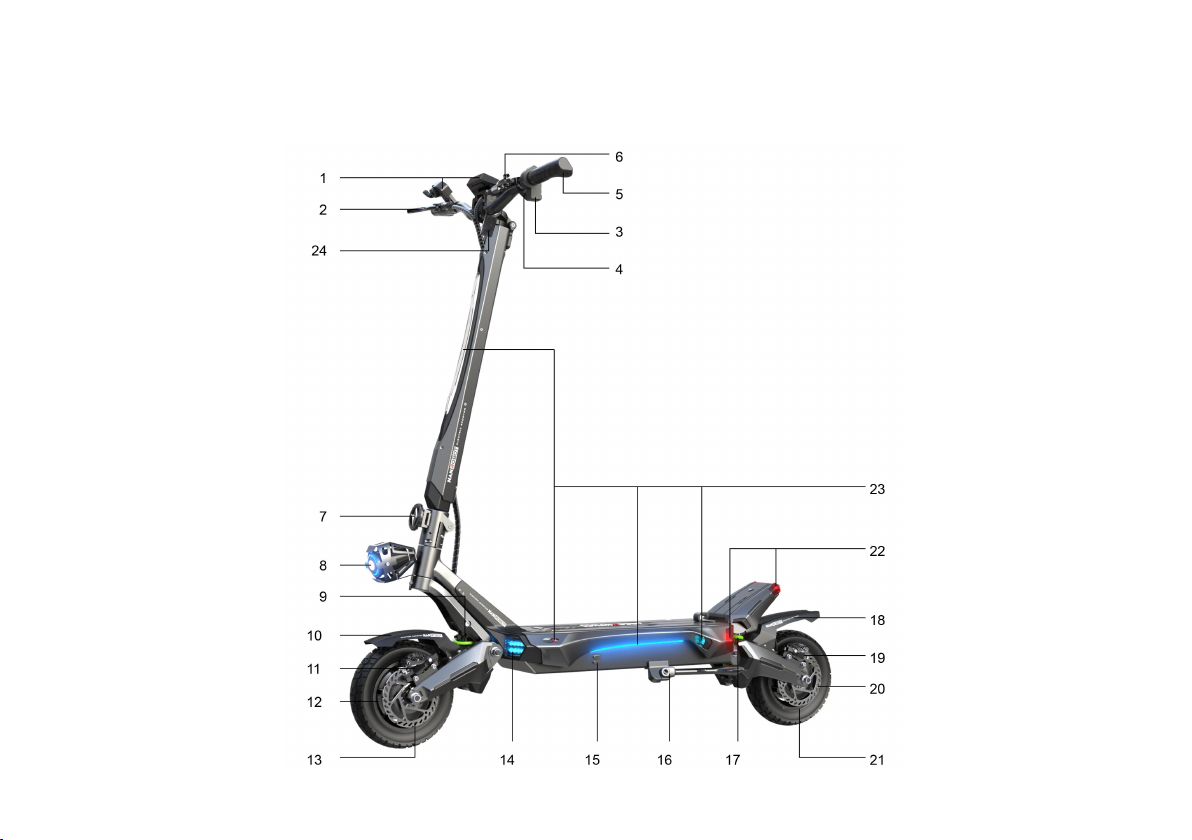

PRODUCT COMPONENTS

PRODUCT COMPONENTS
SERIAL
NUMBER
NAME
SERIAL
NUMBER
NAME
1
CONTROL PANEL
13
BRAKE DISC
2
FRONT BRAKE LEVER
14
FRONT LIGHT
3
HEAD LIGHT BUTTON |
TURN SIGNAL LIGHT
BUTTON | HORN BUTTON
15
CHARGING PORT
4
AMBIENT LIGHT BUTTON
16
KICKSTAND
5
GRIP
17
REAR SHOCK
ABSORBER
6
REAR BRAKE LEVER
18
REAR FENDER
7
FOLDING KNOB
19
BRAKE CALIPER
8
HEAD LIGHT
20
BRAKE DISC
9
FRONT SHOCK
ABSORBER
21
REAR MOTOR
10
FRONT FENDER
22
TAILLIGHT |
TURN SIGNAL LIGHT
11
BRAKE CALIPER
23
AMBIENT LIGHT
12
FRONT MOTOR
24
NFC
06

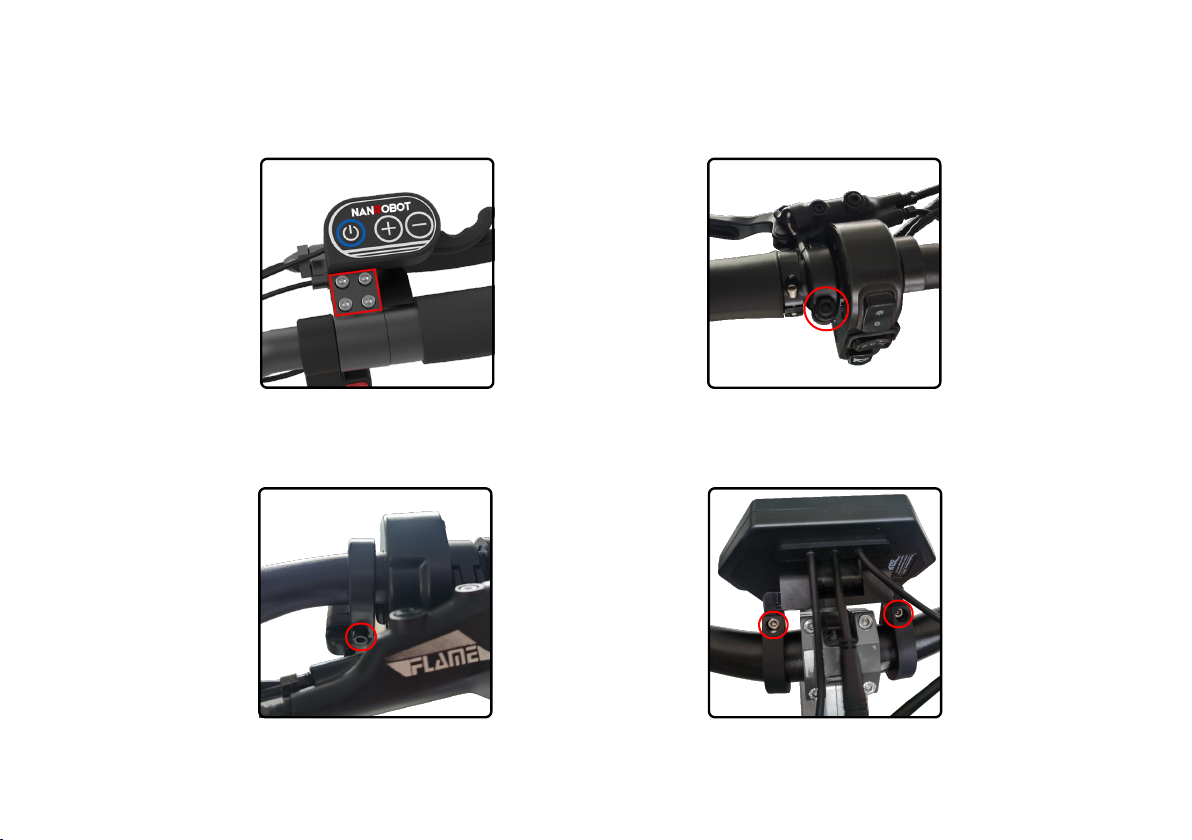

IMPORTANT CHECKLIST
1.CHECK WHETHER THE LED CONTROL
PANEL SCREWS AND THE BRAKE
LEVER SCREWS ARE TIGHTENED.
2.MAKE SURE THE BRAKE LEVER
SCREWS ARE TIGHTENED.
3.CHECK WHETHER THE AMBIENT
LIGHT BUTTON SCREWS ARE
TIGHTENED.
4.CHECK WHETHER THE BRACKET
SCREWS ARE TIGHTENED.
07

1.LOOSEN THE SCREWS ON THE HANDLE
MOUNT WITH A 4MM HEX WRENCH, WHICH IS
INCLUDED IN THE BASIC TOOL KIT.
3. PROGRESSIVELY TIGHTEN THE BOLTS IN
SEQUENTIAL ORDER (1 TO 4), ENSURING
THERE IS EQUAL DISTANCE BETWEEN THE
MOUNT AND HANDLEBAR ENDS.
2. AFTER ALIGNING THE HANDLEBAR WITH
THE CENTER MOUNT, REPLACE THE COVER
MOUNT, AND TIGHTEN THE FIXING BOLT.
4.INSTALLATION COMPLETE.
HANDLEBAR ASSEMBLY
08

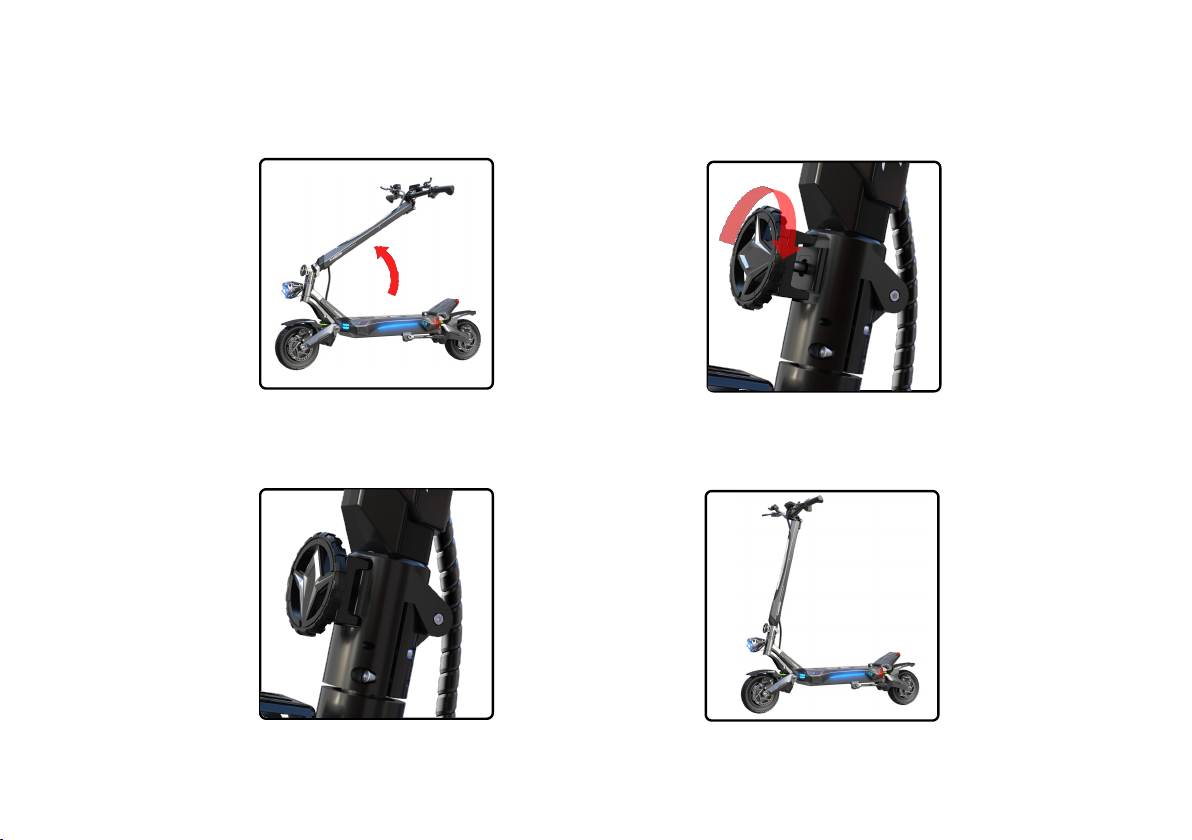

1. PULL THE HANDLEBAR IN THE
DIRECTION INDICATED BY THE ARROW.
3. MAKE SURE TO PERFECTLY ALIGN
THE ] -SHAPED BUCKLE.
2. ALIGN THE ] -SHAPED BUCKLE
WITH THE GROOVES, THEN
TIGHTEN THE FOLDING KNOB.
4.UNFOLDING COMPLETE.
HANDLEBAR UNFOLDING
09

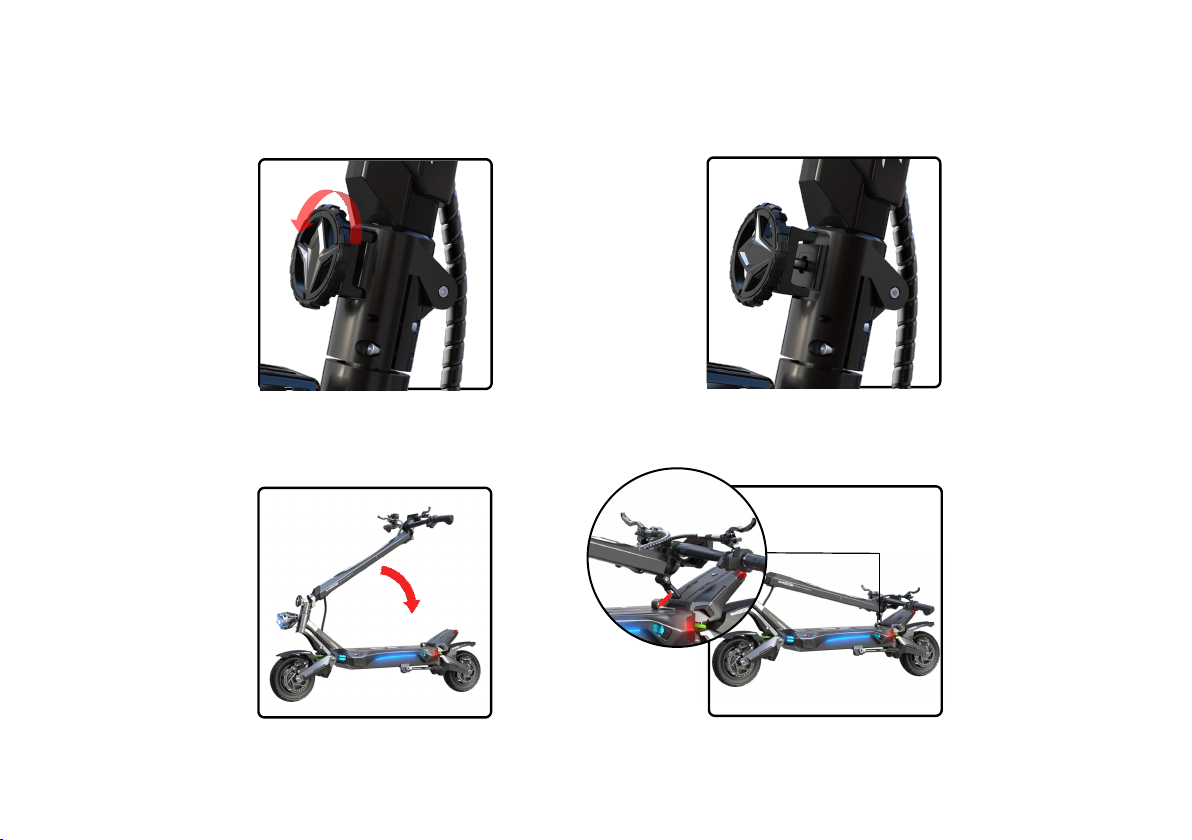

3. LOWER THE HANDLEBAR
1.LOOSEN THE KNOB IN THE
COUNTER CLOCKWISE.
.
2.KEEP LOOSENING THE FOLDING
KNOB UNTIL THE ] -SHAPED BUCKLE
COMPLETELY LEAVES THE GROOVES
4.FOLDING COMPLETE.
HANDLEBAR FOLDING
10

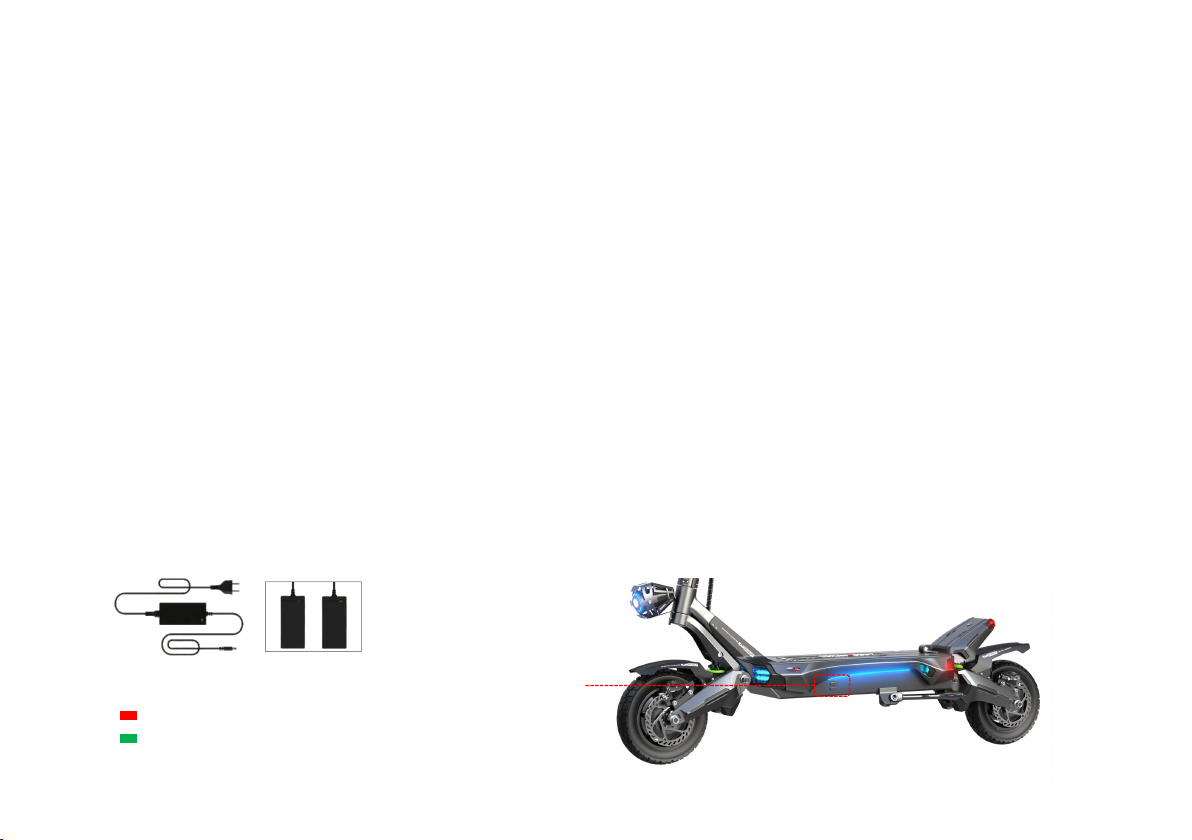

CHARGING
WHEN CONNECTED TO THE CHARGER, THE RED LIGHT INDICATES THAT
THE SCOOTER IS CHARGING. THE LIGHT WILL TURN GREEN WHEN FULLY CHARGED.
BE SURE TO CLOSE THE CHARGING PORT CAP WHEN DRIVING OR STORING EXCEPT
WHEN CHARGING. USE ONLY GENUINE CHARGERS.
RANGE:
CHARGING & RANG
130 KM / 80MILES (SINGLE DRIVE, 75KG LOAD, 25KM/H FLAT ROAD RIDE AT CONSTANT SPEED, FULLY CHARGED,
ADEQUATE TIRE PRESSURE). 60-70 KM / 37-43 MILES (DUAL DRIVE).
THE RANGE OF THE SCOOTER DEPENDS ON MANY FACTORS: ROAD CONDITIONS (OFF-ROAD, UPHILL), WEATHER,
RIDER’S BODYWEIGHT, FREQUENT BRAKING AND ACCELERATION, SINGLE/DUAL DRIVE, GEARS 1/2/3 ETC.
E
CHARGING PORT
CHARGING INDICATOR
CHARGING
FULL CHARGED
11

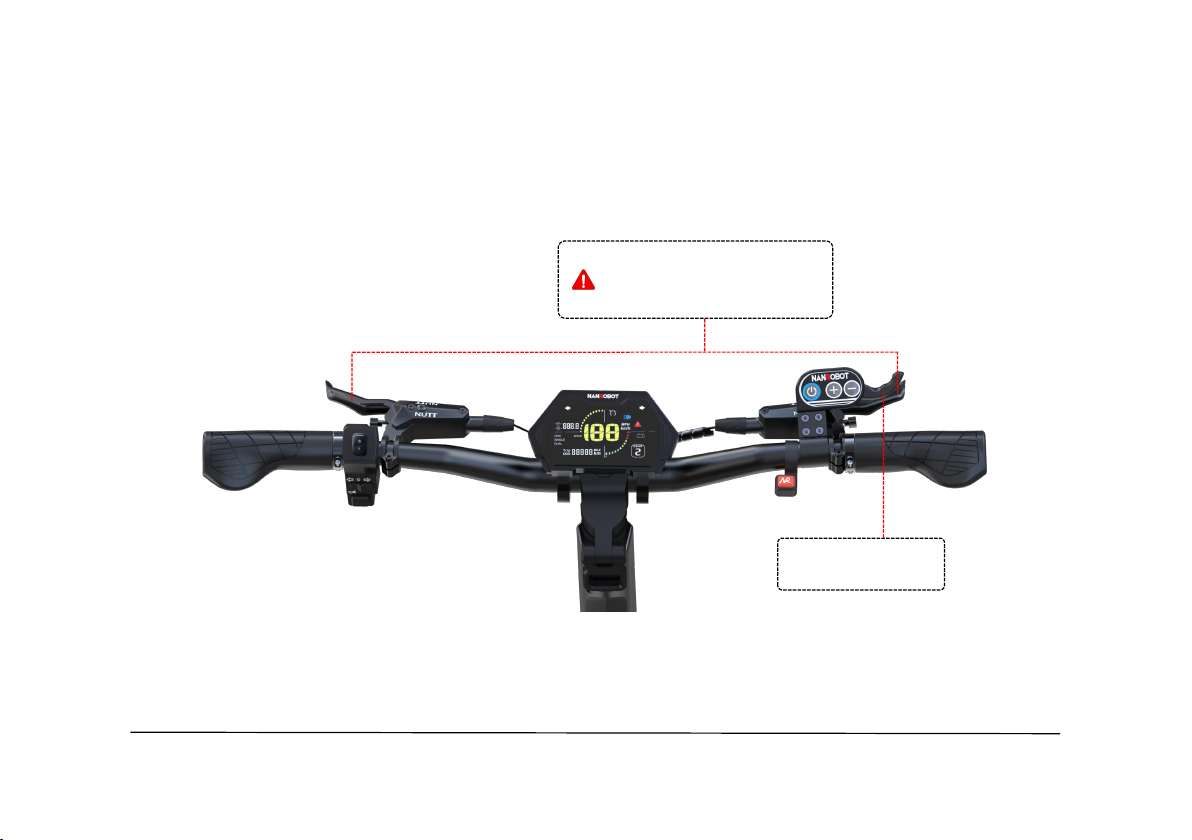

HANDLEBAR CONTROLS
NFC HEAD LIGHT
BUTTON
CONTROL PANNEL TURN SIGNAL
LIGHT BUTTON
HORN
BUTTON
AMBIENT
LIGHT
BUTTON
12

01
02
03
04
05
06
07
08
09
10
11
12
13
14
16
17
18
15
CONTROL PANEL INSTRUCTIONS
DISPLAY ALL THE CONTENTS OF THE METER
13

CONTROL PANEL INSTRUCTIONS
DISPLAY ALL THE CONTENTS OF THE METER
NUMBER
NAME
NUMBER
NAME
01
NFC SENSING AREA
10
MULTI-FUNCTION
DISPLAY AREA
02
LEFT TURN SIGNAL
11
CURRENT UNIT
03
POWER
12
GEAR
04
VOLTAGE
13
BATTERY LEVEL
05
NON-ZERO START
14
UNIT OF SPEED
06
SINGLE DRIVE
15
BRAKE LIGHT
07
DUAL DRIVE
16
RIGHT TURN SIGNAL
08
SINGLE MILEAGE
17
HEAD LIGHT
09
TOTAL MILEAGE
18
CRUISE
14

CONTROL PANEL INSTRUCTIONS
15
19. POWER SWITCH BUTTON
20. POWER “ + ” BUTTON
21. POWER “ - ” BUTTON
22. ACCELERATION 19 20 2221
POWER ON AND OFF
PRESS AND HOLD THE POWER SWITCH BUTTON TO POWER ON. AFTER STARTING UP, PUT THE CARD CLOSE TO THE CENTER
OF THE METER (NFC SENSING AREA), AND THE METER WILL DISPLAY NORMALLY.PRESS AND HOLD THE POWER SWITCH
BUTTON AGAIN, OR SWIPE THE CARD AGAIN TO TURN OFF. WHEN THE SCOOTER COMES TO A STOP FOR 20 SECONDS, THE
DISPLAY WILL SWITCH TO P MODE. TO EXIT P MODE, SIMPLY PULL THE BRAKE LEVER. IF THE SCOOTER REMAINS IDLE AND
NO OPERATION IS PERFORMED ON THE DISPLAY, IT WILL AUTOMATICALLY SHUT DOWN AFTER 5 MINUTES. PLEASE NOTE
THAT FOR YOUR SAFETY, THE ELECTRIC SCOOTER WILL AUTOMATICALLY SWITCH TO THE P MODE WHENEVER IT IS TURNED
ON. TO START DRIVING, PULL THE BRAKE LEVER.
KEY OPERATION
SHORT PRESS THE POWER SWITCH BUTTON TO SWITCH BETWEEN DISPLAYING SINGLE MILEAGE AND TOTAL
MILEAGE.DOUBLE-CLICK THE POWER SWITCH BUTTON TO SWITCH BETWEEN DISPLAYING THE CURRENT VOLTAGE AND
REAL-TIME POWER. SHORT PRESS THE POWER “ + “ BUTTON ON THE DIAL, THE GEAR WILL INCREASE. DOUBLE-CLICK THE
POWER “ + “ KEY TO SWITCH BETWEEN SINGLE AND DUAL DRIVES, AND THE INSTRUMENT DISPLAY WILL SWITCH BETWEEN
"SINGLE" (SINGLE DRIVE) AND "DUAL" (DUAL DRIVE). SHORT PRESS THE POWER “ - “ BUTTON, THE GEAR WILL DECREASE.
DOUBLE-CLICK THE POWER ” - “ BUTTON, "SPEED" FLASHES, THE SCOOTER WILL LIMIT THE SPEED TO 25 KILOMETERS, AND
REPEAT THE OPERATION TO RELEASE THE SPEED LIMIT.

POWER TURN ON/OFF
① PRESS AND HOLD THE POWER BUTTON TO POWER ON
② PUT THE CARD CLOSE TO THE CENTER OF THE METER (NFC SENSING AREA) ,TO GET ALIGHTUP SCREEN.
IT IS IMPORTANT TO READ THESE INSTRUCTIONS BEFORE USING NFC FOR THE FIRST TIME.
① POWER SWITCH BUTTON
② NFC INDUCTION AREA
DEAR USERS, PLEASE READ THIS OPERATION MANUAL CAREFULLY BEFORE USING THE INSTRUMENT. THIS MANUAL WILL GUIDE YOU
TO USE THE METER CORRECTLY.
16

DEAR USERS, PLEASE READ THIS OPERATION MANUAL CAREFULLY BEFORE USING THE INSTRUMENT. THIS MANUAL WILL GUIDE YOU
TO USE THE METER CORRECTLY
ACCELERATION & BRAKES
.
17
THROTTLE
PULL TO ACCELERATE
PULL THE BRAKE LEVER TO BRAKE.
FLASHING INDICATOR ON
DASHBOARD. TAILLIGHT FLASHING.

DEAR USERS, PLEASE READ THIS OPERATION MANUAL CAREFULLY BEFORE USING THE INSTRUMENT. THIS MANUAL WILL GUIDE YOU
TO USE THE METER CORRECTLY.
18
WIRELESS REMOTE
CONTROL FOR LIGHT
TURN OFF TURN ON
LIGHT MODE
MODE SELECTION
COLOR SELECTION
SPEED CONTROL
BRIGHTNESS CONTROL
