Introduction

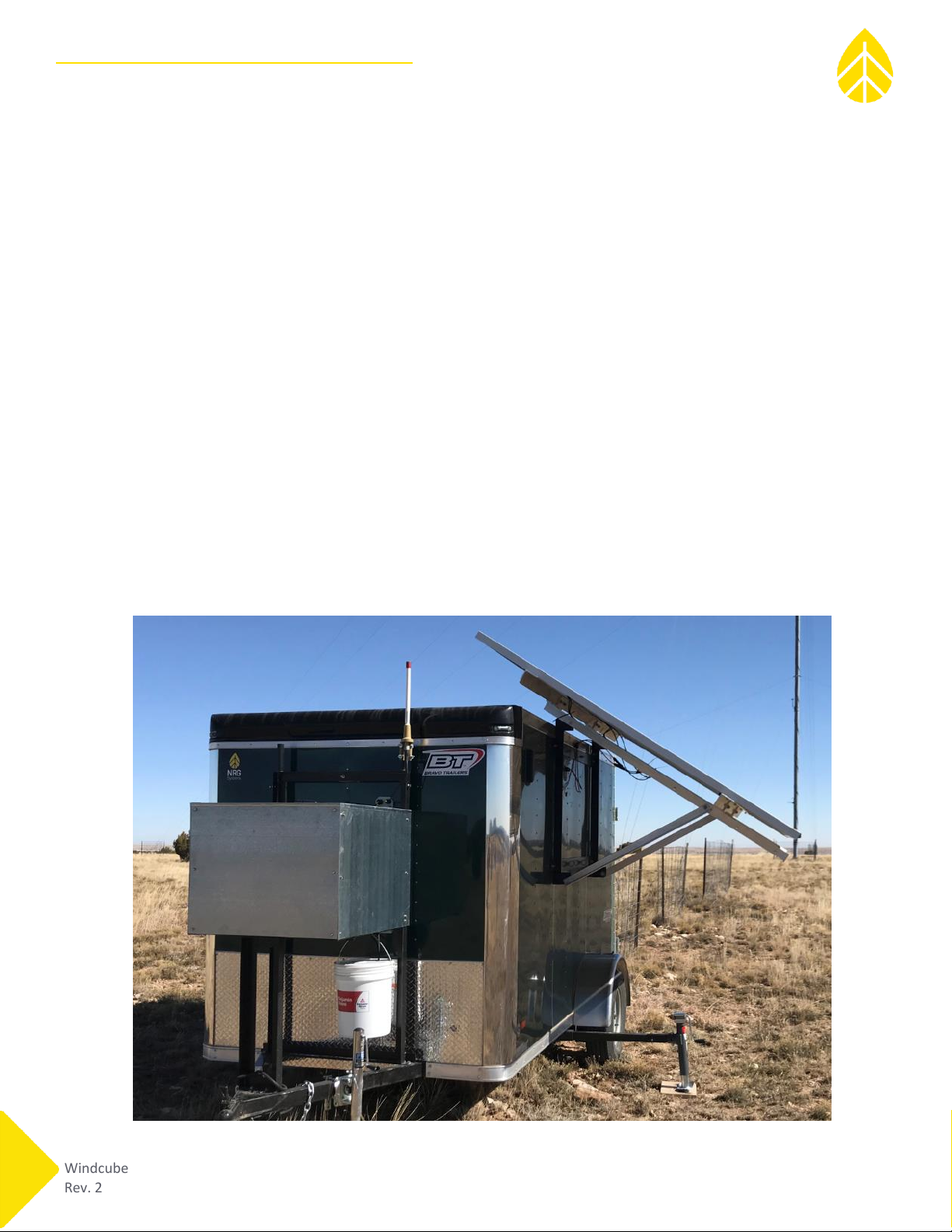

Step-by-step instructions for the installation of the NRG Remote Power Supply Trailer assembly are provided below. This
involves unpacking the equipment, deploying the PV panels and setting up the Windcube platform.
This trailer assembly includes all of the parts and tools required to get the system up and running, including a folding 2’
ladder. Installation requires two able-bodied adults. Access to extra-low voltage (24 V DC) is required; take care when
connecting PV panels and working inside the connection cabinet.
Specifications
Enclosed trailer with
oLeveling jacks
oAnchor kit
oWINDCUBE platform on front
Transport room for WINDCUBE package and other tooling/supplies
PV: 1035W (3 panels at 345W each)
Multi angle and stow position deployment frame
Batteries: 600Ah@24 V (12 count, 12V 100Ah 8G30H)
Low mounted, outside vented, aluminum battery boxes (2)
Charge controller : Prostar PS-30M
Ambient temperature sensing, voltage and remote system monitoring
Exterior WINDCUBE power cord
A toolkit is provided that should cover most assembly.
Materials & Tools
Towing information
2” ball
4-pin trailer lights
Included Tools
Screwdriver - flat
Screwdriver - #2 Phillips
3/8” x 7/16” wrench
1/2” x 9/16” wrench
Adjustable wrench
3/4” wrench
Zip ties
PV connector tool
2’ ladder
Optional Tools

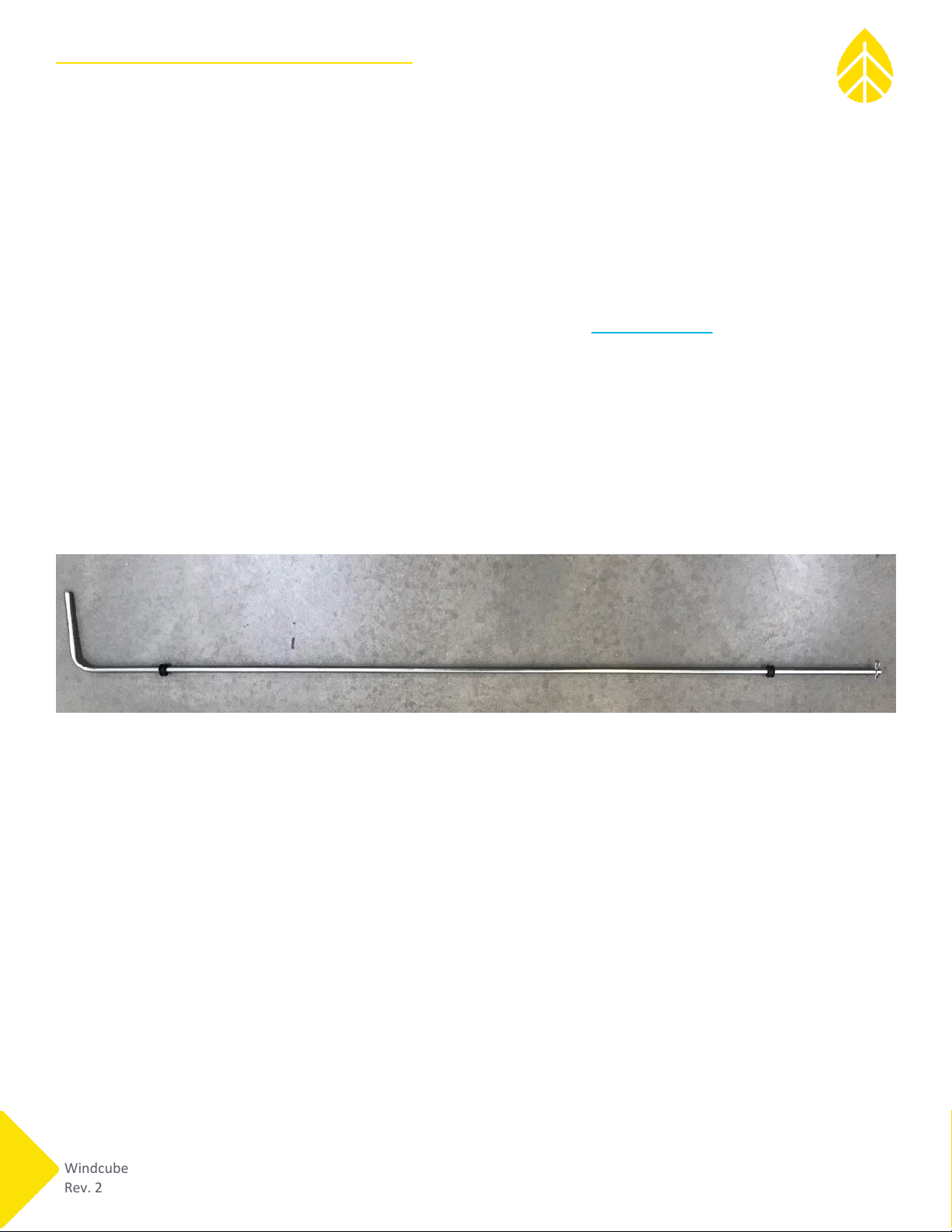

Metal bar for installing anchors is not included

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 4
27 March 2018
Section 1: Towing and Siting
Only tow the remote power trailer with a vehicle with a minimum 3000+ lb towing capacity.
When arriving at the site, be sure to select a relatively level location, and orient the driver’s side of the trailer toward
South. The ground should be firm, but the included blocking will provide extra stability.
Figure 2: Typical towing vehicle
1. Place a block under the tongue jack, and rotate the jack into position.
2. Unclip the wiring, towing chains and tongue clip; disconnect the trailer hitch.
3. Jack the trailer up clear of the towing vehicle and pull the vehicle forward.
4. Place blocks under the rear corner jacks and engage the jacks to stabilize the trailer.
5. Locate the side jacks and extend the driver’s side jack until it reaches the last hole. The passenger side jack is not
extended. Block both jacks and crank them down until they are holding some of the trailers weight.
6. Use a level to adjust the trailer until it is relatively flat.
Section 2: Trailer Assembly
Items have been secured with Bungee cords, Ratchet straps, cardboard pieces and blocking. When unstrapping, be sure
to save all packing materials for future transport.
1. Disconnect all bungee cords.
2. Remove and retain Shipping Bracket at base of Panel Frame and the blocking from the floor (if a Windcube is
shipped inside the trailer).
3. Remove Panel Frame from trailer.
NOTE: Install Panel Frame on trailer before unpacking solar panel.
4. Mount Panel frame to trailer
a. Hold in position and install two pivot bolts at the top of the PV frame to the side of the trailer.

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 5
27 March 2018

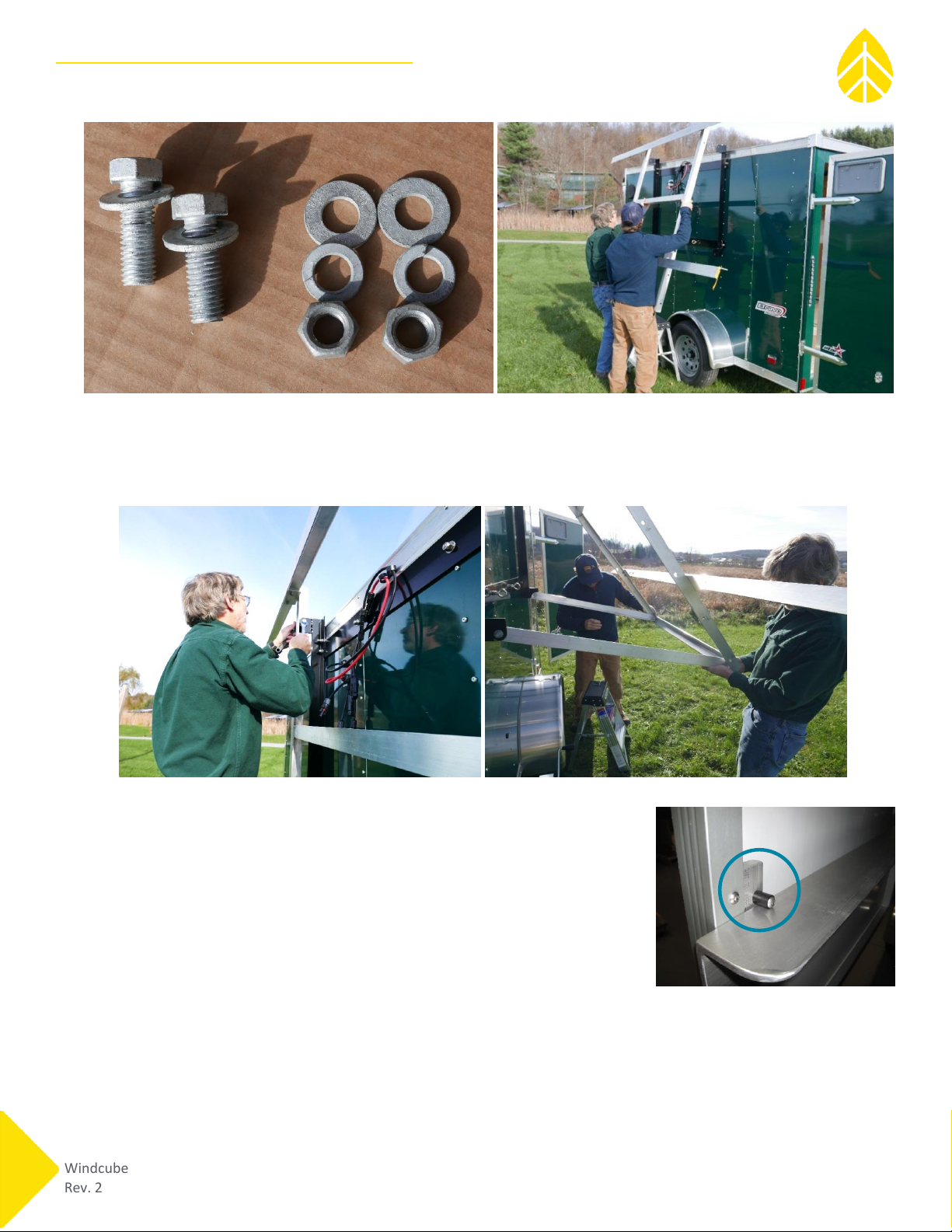

b. Swing out and install struts; choose an angle based on season or location (50°, 33°or 28°).
5. Tighten all bolts hand tight with wrench.
6. Mount PV panels
a. Remove ratchet straps.
b. Remove Shipping Bracket from top of stacked PV panels.
NOTE: Remove PV panels one at a time, and use a bungee cord to
support them against the wall.
c. Lift the first PV panel into position.
NOTE: The PV panels should be installed vertically with the cables and connectors on the top side. There
are two posts (as seen on the right) underneath the lower side that allow the panel to sit on the bottom
crossbar.
d. Line up bolt holes and install bolts.

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 6
27 March 2018
e. Repeat d. and f. for remaining panels.
7. Connect each PV panel’s male and female connectors to the trailer’s male and female connectors.
NOTE: Male connectors attach to female connectors.
Section 3: Windcube Placement
1. Install the Windcube platform.
a. Remove nut and washer from pedestal support.
b. Loosen storage bolts on either side of stowed platform.
c. Lower platform into position and replace washer and nut on the pedestal support; hand tighten.
2. Install Windcube on platform.
a. Install the Windcube on the platform so it is facing North.
b. Attach the Windcube antenna to one of the two Antenna Mounts and push the end of the antenna
cable through the strain relief on the front of the trailer into the inside of the trailer. It may be
necessary to pull out the rubber gasket in the strain relief, slip it over the cable and then reinsert it
Antenna Mounts
Pedestal Support
Storage Bolts

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 7
27 March 2018
to get the cable through. Connect it to the modem inside the electrical cabinet. See Section 5
modem details.
c. Install an Ethernet cable through the strain relief in the front and connect it between the Windcube
and the Ethernet switch in the electrical cabinet.
d. Connect the DC Power Supply Cable that comes with the Windcube to the power cable on the front
of the trailer. Connect to other end to the Windcube.
e. Put the Windcube wiper pump into the provided 5 gallon bucket and feed the wiring through the
hole in the lid. Fill the bucket with distilled or deionized water and it hang under the Windcube
platform. Plug the power cable into the Windcube connection cabinet and the pump hose into the
Windcube’s wiper arm.
f. Once fully commissioned install the metal siding around the three exposed sides of the platform.
i. Fit the front side on first. The bottom of the panel sits in front of the lip of the platform.
ii. Secure the front side by installing lower front bolts hand tight
iii. Thread bolts out thru main frame upper hole, so side panels can be hung on these, and the
bolts facing out on the front panel angles.
iv. Then hang northern side on upper bolts and secure with wing nuts. Install remainder of
bolts in lower holes. Hand tighten.
v. Install the south side last because it allows access to the Windcube’s connection cabinet.
Hang side panel. Use wing nuts on upper bolts and thread in remaining bolts in lower holes.
vi. When all bolts are installed go around and tighten them all.

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 8
27 March 2018
Section 4: Anchoring
The trailer ships with four small screw-in earth anchors that can be used if additional stability is desired. There are two
anchor points on either side of the trailer:
1. Attach one end of the anchor cable to the anchor points on the sides of the trailer.
2. Unscrew the turn buckle until it is extended as far as it can go.
3. Pull the anchor cables out to the sides at about a 45° angle.
4. Take note of where the end of the cable comes to on the ground. Come in some and
screw the anchors straight down into the ground using a metal bar.
5. Attach the anchor cable to the end of the anchor and pull excess cable thru wire rope
clips and tighten clips back up.
6. Adjust final tension with turnbuckles.
7. Repeat at the remaining three anchor points and then tighten them all down to be the
same tension.
Section 5: Connect Windcube, modem and power monitor
Typically, the Windcube’s modem should be moved to the trailer control box to share communications with the PV
power monitor.
1. Remove the modem from the Windcube
a. Open the back door (opposite connection panel).
b. Remove the modem Ethernet, antenna and power connections (3/8” wrench for antenna).
c. Remove the modem (if not already installed in the trailer).
d. Close the back door and open the front door.

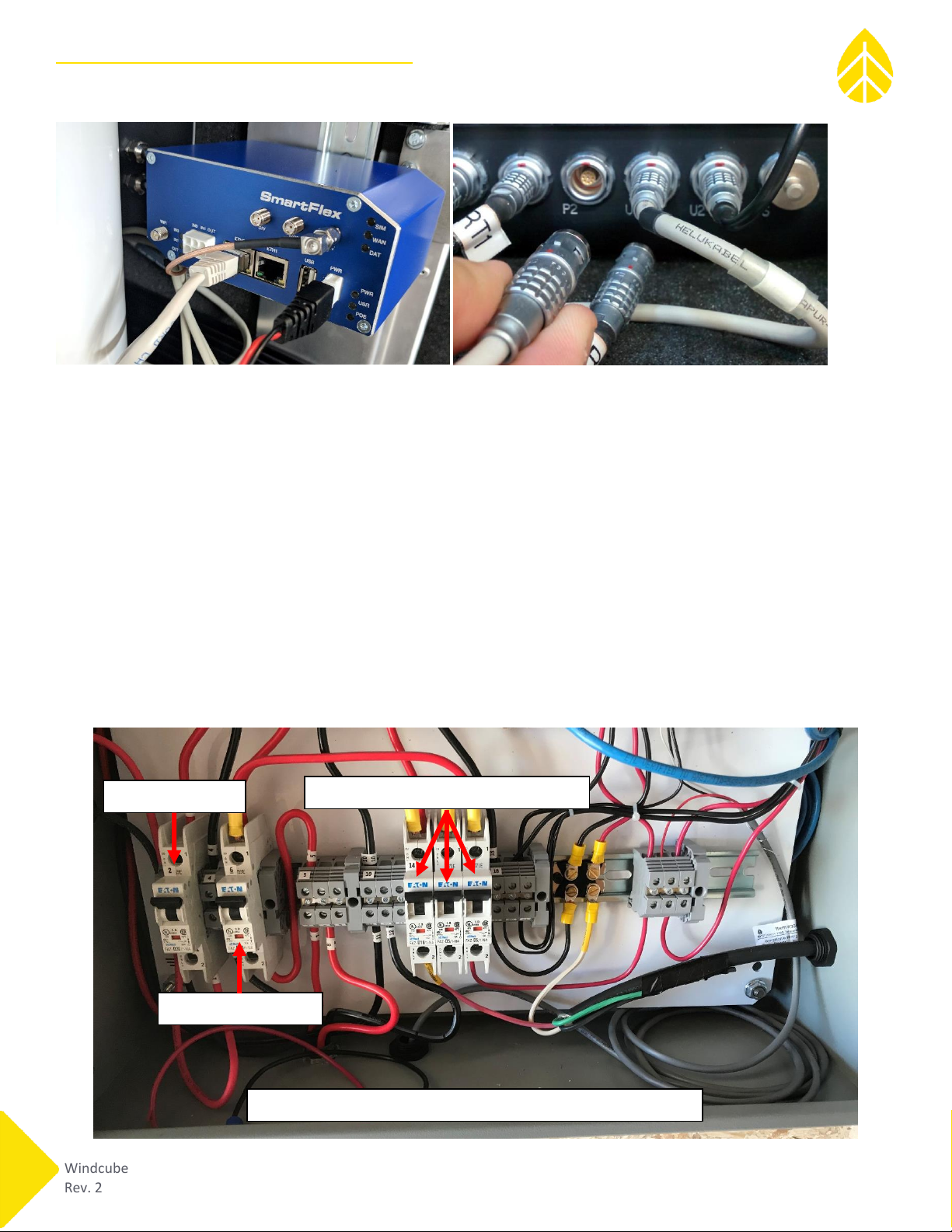

e. Locate P2 on the bottom rack (4th from right, see picture below).
f. Disconnect the WHITE cable from P2 –pull the collar straight back.
g. Connect the BLACK cable to P2 –line up the red dots and push the collar straight in.

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 9
27 March 2018
2. Connect Windcube cables
a. DC supply side cable to trap door.
b. Ethernet cable to LAN port.
3. Install the antenna on the Antenna mount (see picture of mount in Section 3).
4. Mount modem in PV Trailer shelter box.
a. Locate the upper DIN rail, mount modem in place next to the Ethernet switch and connect with an
Ethernet cable.
b. Connect Power Monitor and Windcube Ethernet cables to the switch.
c. Connect 24V DC power cable to modem.
Section 6: Power Equipment On
1. In shelter box, turn on the system by flipping the 2nd breaker first (Charge Controller), followed by the 1st (PV
Panel Power Input), and finally the 3rd, 4th, 5th breakers (Modem/Monitoring Power Supply):
1. PV Panel Input
2. Charge Controller
3. Modem/Monitoring Power Supply
NOTE: Always turn the Charge Controller ON first and OFF last

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 10
27 March 2018
2. Configure modem for cellular service
a. Install SIM card
b. Connect Laptop to Ethernet switch
c. Open browser, navigate to 192.168.1.1
d. User = root
e. Pass = RNRG
f. Configuration > Mobile WAN > Enter APN, username and password (if applicable), scroll down and click
Apply
g. Test internet service by opening a new tab and navigating to www.google.com
Note: NRG has a number of modem configuration instructions sheets. Please contact Technical Support with the
modem model name and the appropriate document will be shared.
3. Turn Windcube on, connect to Laptop port and configure per Windcube the user manual.
Section 7: Transport
The solar panel frame can be secured vertically by removing the struts and letting the frame hang on the top pivot point.
The frame can then be locked into place by inserting the long locking arm into the low part of the frame. This will allow
the trailer to be moved short distances without disassembling the PV array.
Figure 3: PV Frame Locking Arm
For longer distance trips the panels should be removed and stowed in the trailer.

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 11
27 March 2018
Section 8: Commissioning Report
Summary
Summary of scope of work here…
Preparations ahead of the installation were made by __________ , including:
Enter info here
Enter info here
The installation was completed XX/XX/XXXX and took approximately X days.
Site Description
Access to the site is via…
The installation site is…(describe site’s proximity to other nearby landmarks or features)
The area around the installation site….describe landscape and soil, note any unusual features.
Configuration
General Info
Client Name
System Installed
Windcube WLS7-XXX; NRG Systems PV/Battery Trailer - XXX
Date of Field Work:
Location:
Client contact name:
Telephone
Email
Field engineer
Client participants

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 12
27 March 2018
Lidar physical setup and orientation
Site location (internal GPS)
Site location (handheld GPS)
Internal compass heading (magnetic north)
degrees
Handheld compass heading (magnetic north)
degrees
Magnetic declination
deg W
Lidar physical orientation, reference true north
Pitch/Roll
deg / deg
Lidar surface height
1.7 m
Lidar beam angle
28degrees
Distance to closest met tower
m
Vertical offset (tower base)
< X m
Power source
NRG Systems PV / Battery Trailer
Cellular service
User: / Pass:
SIM SN / Phone Number
89014103270290631886 / 415-629-2860
Modem IMEI
Modem Login
Windcube Key Location
Windcube Transport Case Location
Lidar Software Setup
Lidar software version
Statistical averaging interval
10 minutes
Measurement heights (m)
Time synchronization
Programmed direction offset (config)
degrees

NRG INSTRUCTIONS
Windcube PV Trailer
Windcube_PVTrailer_ModerateClimate_Instructions
Rev. 2
[email protected]m | Page 13
27 March 2018
Trailer Configuration
Local Conditions
Photo documentation of surrounding terrain and surface features in 45° direction sectors
Azimuth, distance and elevation angle, as seen from the remote sensing instrument, of nearby met tower
Estimated magnitude and orientation of any slope at the site
Written description of surface features/obstacles to the wind flow within visible range, along with estimated
distance, height, elevation.
Lidar Software Screen Shots
Real time wind speed and direction
CNR
Acquisition/spectra
Flow Complexity Recognition (FCR) enabled?
Communicating with WindWeb?
Trailer Padlock Combo
PV/Battery Specs
3 x 345W = 1035 W / 600 Ah @ 24v DC
Trailer Hitch and Light Connector Type
2” ball, 4-pin trailer lights
Location of Trailer Title
Solar Panel Angle
Battery Monitoring IP Address
Modem Type / SN / MAC / IMEI
