NS FUZZ User manual

FUZZ
FUZZ TECH MANUAL

4
5
6
6
6
6
7
8
10
10
10
11
11
11
12
12
14
15
16
17
18
19
Warnings and important information
General riding information
Introduction
Frame concept & information
Technical sheet / specs
Frame size recommendations
Geometry
Exploded view
Replacements
Instruction: general info
Suspension settings
Integrated seat clamp installation
Rear wheel mounting & cs length adjust
Adjusting the brake adapter
External cable routing
Internal cable routing
Accessories
Tightening torque
Maintenance & periodical safety checks
Box contains
NS BIKES warranty
Proof of purchase – warranty card 3
SAM PILGRIM
2013 FMB TOUR
WINNER

WARNINGS AND IMPORTANT INFORMATION
ATTENTION: Please read this manual carefully. It contains important safety information!
WARNING: Extreme riding is a very dangerous sport; it requires an amazing amount of skill. By engaging in this type of
activity, you are accepting the risk of possible injury or even death. Even the best bike will not help you land a clean trick if you
lack the skills. Even the best protective gear will not guarantee complete safety. Remember that in this kind of riding, you can
only trust your own abilities and you must accept the inherent risk. While riding you can reach significant speeds and there-
fore face significant hazards and risks. Inspect your bicycle and equipment carefully and be sure that it is in perfect condition
before each ride. If possible consult with area site personnel, expert riders and race ocials on conditions and equipment
advisable. Always wear appropriate safety gear, including an approved full face helmet, full finger gloves, body armour, bright,
visible clothing that is not so loose that it can be tangled in the bicycle or objects at the side of the road or trail, shoes that will
stay on your feet and will grip the pedals (make sure that shoe laces cannot get into moving parts, and never ride barefoot or
in sandals). Always use protective eyewear, to protect against dirt, dust and bugs.
WARNING: Some of the service procedures require specialist tools and good mechanical skills. Therefore, to minimize the
risk of serious or even fatal accidents, maintenance and assembly work on your bike should be carried out by an authorized
bicycle workshop.
IMPORTANT NOTICE: This manual is not intended as a comprehensive use, service, repair or maintenance manual. Please
consult your dealer for advice and your dealer may also be able to refer you to classes, clinics or books on bicycle use, ser-
vice, repair or maintenance.
WARNING: The frame box contains instructions for components made by third parties. You must study these carefully and
follow the directions before riding your bike. Make sure you read and follow the suspension set up and service instruction
manual provided by the manufacturer. If the instruction manual has not been provided, please contact your dealer or the
manufacturer.
WARNING: Failure to maintain, check and properly adjust the suspension system may cause suspension malfunction, in
result of which you may lose control and fall.
WARNING: Introducing changes in the suspension adjustment can alter the handling and braking characteristics of your
bicycle. It is forbidden to change the suspension adjustment unless you are thoroughly familiar with the suspension system
manufacturer’s instructions and recommendations; you should always check for changes in the handling and braking char-
acteristics of the bicycle after the suspension has been adjusted by taking a careful test ride in a safe area.
WARNING: As with all mechanical components, the frame is subjected to wear and high stresses. Dierent materials and
components may react to wear or stress fatigue in dierent ways. If the design life of a component has been exceeded, it
may suddenly fail possibly causing injuries to rider. Any form of crack, scratches or change of colour in highly stressed areas
indicate that the life of the component has been reached and it should be replaced.
3
FUZZ

5
MACIEK KUCBORA
NS PRODUCT DEVELOPER
/
PLANAI, AUSTRIA
GENERAL RIDING INFORMATION
Riding a bicycle can be dangerous. You must keep this in mind and be cautious at all times.
See and be seen. Use lights and reflective clothing in low light conditions.
Always wear a helmet when riding. It can save your life.
Always conduct a pre-ride check (detailed information can be found further in this manual).
Never ride the bicycle if you observe any technical problems or have any doubts about the proper functioning of any ele-
ments in the bicycle.
Keep the bike clean and well maintained.
Carry a pump, spare inner tube, patch kit, and a basic tool kit - you may need this in the case of a flat tire of other common
mechanical problem that is usually easy to fix if you have the right tools. Ask your dealer for advice on this issue.
If your bicycle is equipped with gears, you can choose a gear combination that is most comfortable for the riding conditions.
Gears will allow you to maintain a constant rate of pedaling. Use lower gears for going uphill and higher gears for going down-
hill. Ease up on your pedaling pressure when you shift gears. Ask your dealer to give you more advice on this issue.
Be careful with the brakes - they can be powerful and if activated too aggressively, may cause a crash. You should spend
some time to get a better feel of the brakes on a side road or empty parking lot before the first ride. Avoid riding too fast,
especially downhill. It is easy to loose control of the bicycle and crash at high speeds, and also you will find it very dicult to
slow down especially if the hill is steep.
If your bike has been equipped with suspension, the increased speed you may develop will also increase the risk of injury. For
example, front of the bike may dive on the suspension fork while hard braking. You can easily lose control and fall if you are
not prepared for this. Please, learn how to operate your suspension system safely.
Thanks to the suspension the wheels can follow the terrain better, which improves control and comfort. This improved
capacity may provide opportunity for riding faster, but you should be careful not to mistake the enhanced capabilities of the
bicycle for your own riding skills. Improving skills takes time and practice.
Protect your bike from theft. Purchase a lock and never leave your bike unlocked while unattended, even if you are planning to
be away from it for just a few minutes.
FUZZ

INTRODUCTION
Thank you for choosing NS Bikes. We are passing into your hands a frame that has been a milestone in the development of
our company. We have worked on it passionately for well over 2 years, gone through countless prototypes, tested each one
by our team riders and re-worked it untill everything got dialled.
Seeing satisfied customers is the biggest reward that we can get for this working hard. So we did everything in our power to
make this happen, but even then, a product that is not properly set up or maintained will be a disappointment. That is why it’s
so important that you acquaint yourself with this manual before your first ride.
We hope that you will be just as happy riding your new FUZZ as we are!
FRAME CONCEPT & INFORMATION
The Fuzz is a true DH machine build to compete with the best in the pits, yet it is still a modern do-it-all rig for any gravity as-
sisted riding. The frame has been raced by our specially assigned R&D team, thrashed by one of the most vicious freeriders
- Jaws, and then flipped and whipped by the #1 freestyle rider in the world - Sam Pilgrim. As with all NS products, the Fuzz has
been built to provide the best race-day performance combined with everyday usability and reliability. It’s strong, easy to adjust
and will rip right out of the box.
Geometry: The frame has truly modern DH geometry - it’s low, slack, and has a very short rear end with a roomy front triangle.
Thanks to the adjustable dropouts you can set up the bike with a super tight rear end or you can fit the wheel in a more standard
position to suit the characteristics for any track and riding style. The short position results in one of the tightest rear ends on the
market. Thanks to this we could really open up the front end and benefit from massive stability and confidence improvements,
yet still keep the wheelbase (hence maneuverability) under control.
Suspension: the Fuzz has a clearly progressive leverage ratio curve. The first stage of the travel is very supple and absorbs small
and medium impacts. Towards the end of the travel, the frame becomes stier, and gives the rider a feeling of support, which
results in predictable launches o jump lips and other obstacles that require getting air to clear. It’s important to note that the
characteristics are dierent on the short and long setting with a noticeably softer and less progressive feel in the long setting.
Kinematics: the 4-bar Horst link suspension has a significant amount of rearward axle movement which helps to absorb square
faced bumps. The system, unlike most other designs on the market (including virtual pivot designs) it is immune to brake jack
(i.e. the torque generated by the brakes will not cause the suspension to stien). There is also a fair amount of anti-squat built
into the design to counter pedal induced bob. The shock, which is the most heavy part of the frame is tucked away near the BB to
keep the center of gravity as low as possible.
TECHNICAL SHEET / SPECS
rear wheel travel: short CS: 198mm (7.8”) / long CS: 202mm (8.0”)
AL6061-T6 + AL6066-T6 custom formed and butted tubes
smooth ‘double pass’ welding in all critical areas
weight (w/o shock): ~3.65kg
rear shock: 240x76mm (9.5x3.0”)
internal or external cable guide option
head tube: tapered 1.5 ZS (ID 44/56mm), 115mm (4.5”) stack height, headset included with frame
fits forks with standard 1-1/8” or tapered 1.5 - 1-1/8” steerer tubes
rear hub 157x12mm, rear axle included
IS-2000 disc brake mount
BB: standard mtb english 1.37x24tpi, 83mm wide, ISCG-05 mounts
rear derailleur: removable hanger included
front derailleur: not compatible
seat post/clamp: 30.9mm / integrated seat clamp
max tire: 26 x 2.6” (will fit 650B x 2.5” tire in long CS position)
FRAME SIZE RECOMMENDATIONS
S size for riders between 162cm - 173cm
M size for riders 173cm - 184cm
L size for riders 184cm and taller
FUZZ

GEOMETRY METRIC
GEOMETRY IMPERIAL
7
REACH
S: 405mm/M: 430mm/L: 450mm
SEAT TUBE
S: 399mm/M: 399mm/L: 420mm
CHAIN STAYS
CHAIN STAYS
420-438mm
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 1173mm-1188mm/M: 1198mm-1213mm/L: 1218mm-1233mm
BB HEIGHT
+10.0mm
STACK 581mm
EFFECTIVE TOP TUBE
S: 595mm/M: 620mm/L: 640mm
SEAT TUBE
REACH
S: 15.9”/M: 16.9”/L: 17.7”
SEAT TUBE
S: 15.7"/M: 15.7"/L: 16.5"
16.5"-17.2"
SEAT TUBE
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 46.2”-46.8”/M: 47.2”-47.8”/L: 47.9”-48.5”
BB HEIGHT
0.4”
STACK 22.9”
EFFECTIVE TOP TUBE
S: 23.4"/M: 24.4"/L:25.2"
REACH
S: 405mm/M: 430mm/L: 450mm
SEAT TUBE
S: 399mm/M: 399mm/L: 420mm
CHAIN STAYS
CHAIN STAYS
420-438mm
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 1173mm-1188mm/M: 1198mm-1213mm/L: 1218mm-1233mm
BB HEIGHT
+10.0mm
STACK 581mm
EFFECTIVE TOP TUBE
S: 595mm/M: 620mm/L: 640mm
SEAT TUBE
REACH
S: 15.9”/M: 16.9”/L: 17.7”
SEAT TUBE
S: 15.7"/M: 15.7"/L: 16.5"
16.5"-17.2"
SEAT TUBE
EFFECTIVE ANGLE
72°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 46.2”-46.8”/M: 47.2”-47.8”/L: 47.9”-48.5”
BB HEIGHT
0.4”
STACK 22.9”
EFFECTIVE TOP TUBE
S: 23.4"/M: 24.4"/L:25.2"
FUZZ

EXPLODED VIEW
Seat stay
Integrated seatclamp
Chain stay
Kit 7
Kit 6
Rocker arm
Front triangle
Frame main parts
Dropouts parts
FUZZ

#6801
Kit 3
Kit 3
#6801
#6801
#6801
#6902
Kit 1
Kit 1
#6902
Rocker arm parts
Kit 1
Kit 1
Kit 4
Kit 2
Kit 2
Kit 4 Kit 4
Kit 4
#6801-12x21x5
#6902-15x28x7
#6801-12x21x5
#6002-15x32x9
#6801
#6801
#6801
#6801
#6002
#6002
Kit 5
Kit 3
Kit 5
Kit 3
Kit 4
Kit 4
Kit 4
Kit 4
9
Rear triangle parts
FUZZ

INSTRUCTION: GENERAL INFO
Fork: The frame is designed to work with double and single crown DH/FR forks with 180-220mm of travel. Use of dierent
style of forks or forks with longer travel may result in frame failure, possible injury or even death.
Rear shock: The frame is designed to work with 240x76mm (9.5x3.0”) DH/FR shocks. Use of dierent style of shocks or
shocks with dierent length may result in frame failure, possible injury or even death.
Headset: The FUZZ frame comes with a tapered head tube with 1.5 ZS (bottom: 56mm ID* / top: 44mm ID) and 115mm stack
height. It fits forks with standard 1-1/8” or tapered 1.5 - 1-1/8” steerer tubes. The headset added to the frame works with both 1
1/8” and 1.5” steerers as there are two crown races included. The headset comes with two top-caps: 8mm and 15mm, to suit
riders personal preferences. Additional headset spacers can be added between the headset and the stem/crown. Don’t cut
your steer-tube too low! The process of mounting headsets in the frame should be done by a qualified mechanic.
*Please note that headsets with OD55 mm bottom cups or other internal headsets won’t fit. Only headsets with a bottom
cup with 56m OD will work with the FUZZ frame. The use of a wrong type of headset can be dangerous & can damage the
frame.
BB: The frame is designed to work with 83mm bottom bracket size only and will accept conventional threaded, external BB
standards such as SRAM GXP, Shimano BB80 or FSA MegaExo. Before installation make sure that the BB is clean, lightly
greased, free of dirt and paint. The installation process should be carried out according to the BB manufacturers instruc-
tions.
Chainring sizes: The frame is designed to work with chainrings up to 38t. Max chainring size is only an approximate refer-
ence. It can vary depending on the manufacturer, model, cranks & BB used.
Biggest tire: The frame will fit tires of maximum 26 x 2.6” (will fit 650B x 2.5” tire in long CS position). Note that these num-
bers are for reference only as the size and shape of the tire can vary depending on the manufacturer and rim width.
Brake compatibility: The FUZZ frame is disk brake compatible and it comes with an International Standard IS-2000 disc
brake mount, it will fit discs up to 200mm.
Seatpost & seatclamp: The FUZZ frame works with 30.9mm seatposts and comes with the integrated seat post clamp. Be
carefull not to loose it! Do not extend the seat post above the minimum insertion mark. Maximum seat insertion is 175mm for
S and M size, and 200mm for L size.
WARNING: It is important to make sure that the rear tire won’t touch the saddle when suspension reaches it’s maximum
amount of travel. To check that please compress rear suspension fully without the spring installed onto the rear shock.
REPLACEMENTS
PARTS:
- Fuzz Rocker arm (2 sides)
- Fuzz Kit1: Shock bolts & nuts (2 sets)
- Fuzz Kit2: Rocker bolts & C-clips (2 sets)
- Fuzz Kit3: Clevis bolts (2pcs - set for 1 link)
- Fuzz Kit4: Bearing hardware (4pcs - set for 1 link)
- Fuzz Kit5: Main pivot axle & bolt
- Fuzz Kit6: NS 157mm axle + dropout insert
- Fuzz Kit7: Derailleur hanger (w/bolt)
- Fuzz Kit 8: integrated seat clamp
ACCESORIES:
- Fuzz Kit9: Internal cable routing kit
- Fuzz Kit10: Shock fender
- Fuzz Kit 11: Neoprene CS protector
- Fuzz Kit 12: Protective self-adhesive foil
- Fuzz Kit 13: NS shock mounting hardware (fits: RS, MZ, FOX)
- Fuzz Kit 14: headset (fits standard and taper steer tubes)
- Fuzz Kit 15: removable cableguides
11
SUSPENSION SETTINGS
Suspension settings are a matter of personal preference. Some riders like it plush, some like it firm. However here are some
suggestions of shock settings that you can use as basic guidelines.
Typically, the Fuzz should run with about 30% to 35% sag. To measure sag, push the bottom-out bumper up the shock shaft
until it meets the body of the shock. Gently stand up on the pedals with all your weight on the bike (fully kitted up with body
armour, helmet, neck brace, hydration pack, etc. – it’s important to make the situation as ‘real world’ as possible to give you
the most accurate results) and note how far the bumper displaces.
10
FUZZ

REAR WHEEL MOUNTING AND ADJUSTING THE CS LENGHT
The FUZZ frame is compatible with 157x12 thru-axle hubs that work with adjustable chainstay length systems. For proper
rear wheel installation and adjustment of the chainstay length please follow the instructions:
- choose the chainstay length by flipping the dropout insert over on the non drive side
(it is secured by 2,5mm allen key from the bottom),
- choose the correct brake caliper position for your currently chosen chainstay length
- make sure the wheel is aligned and the disc sits properly in the brake caliper
- put the wheel into the dropouts with the chain set up correctly on a cassette,
- put the 12mm axle through and tighten properly with 8mm allen key.
- secure the axle with 2,5mm allen key bolt on the bottom of the dropout.
ADJUSTING THE BRAKE ADAPTER
INTEGRATED SEAT CLAMP
Before seat post insertion make sure to correct-
ly position the integrated seat clamp wedges.
Edges parallel with seat post
11
Long Chain Stay position
Brake adapter holes for
long chain stay Brake adapter holes for
short chain stay
Short Chain Stay position
Change the spring and check the correct spring rate for your weight to make sure you get it set up correctly. To achieve a
medium-soft suspension with approximate 30-35% of sag we recommend the following:
For rider weight of :
66-74kg a 350 lbs spring // 74-82kg a 400 lbs spring // 82-90kg a 450 lbs spring //>90 and more a 500 lbs spring
These values are only recommendations. Play around with the spring weights and shock preload adjustment until you find a
setting that suits you best.
FUZZ

EXTERNAL CABLE ROUTING
Cables should be attached on the upper side of the down tube into the shock cage (see Fig. 4, 5). From here the brake cable
should go on the non-drive chainstay and up to the caliper, the rear derailleur cable should go on along the chainstay directly
to the derailleur. The rear shock has to be disassembled for this operation.
INTERNAL CABLE ROUTING
The Fuzz frame has an option of running the cables inside the frame.
In order to avoid damage of the cables and the steertube we added a kit of protectors for internal routing (see Fig. 1):
-Headtube groomets (2pcs)
-Steertube protectors (2pcs: each one working with specific standard:: 1& 1/8” or taper 1.5” to 1 & 1/8” steertubes)
Cable installation procedure:
For this process you will need to disassemble the brake hose and / or derailleur cable and remove the fork from the from the
head tube.
1 / Mount the rubber grommets in the head tube (Fig. 2). They will protect the cable being kinked on the head tube entrance.
2 / Insert the cable and / or hose into the head tube. The cables coming from the left side of the handlebar should enter the
right hole, and the cables coming from the right side should enter the left hole.
3 / As on Fig. 3 lead cables on each side of the steertube to the downtube. Use the correct steertube protector for your
steertube
12

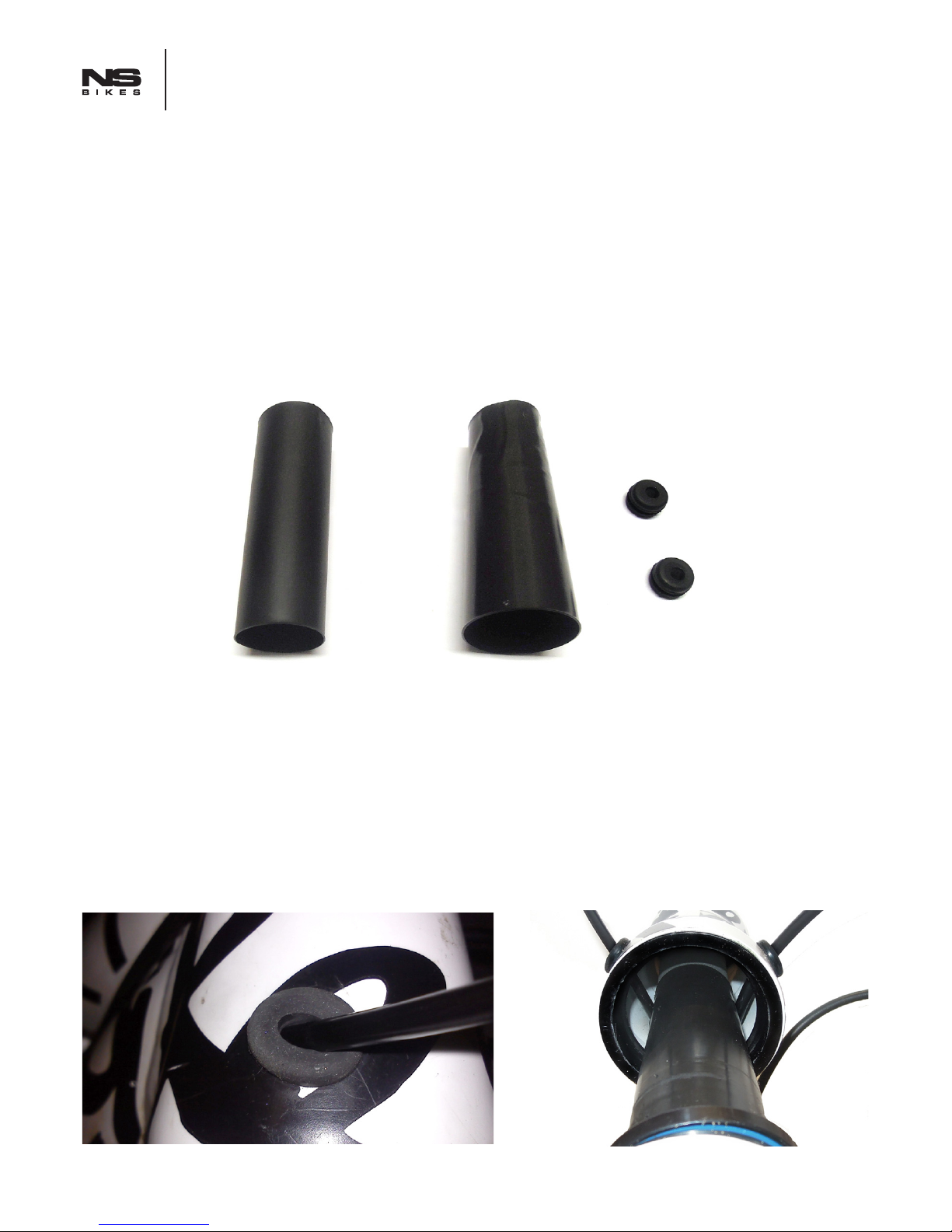

Fig 3. Internal cable rounting inside the headtube.
Steertube protector.
Fig.1 Fuzz frame internal cable routing kit
Fig. 2 Headtube rubber grommet protector
FUZZ

Fig. 4 Internal routing brake outlet and routing/ External routing
internal
external
both
internal
external
both
Fig. 5 Internal routing derailleur outlet and routing/ External routing
FUZZ

ACCESORIES:
The Fuzz comes with:
- neoprene Chain Stay protector
- set of self-adhesive protective foil
- shock fender
The neoprene CS protector should be placed over the rear-derailleur cable to protect it and the frame from the chain.
Please refer to the diagram for correct location of each sheet on the frame.
Please de-grease and clean the surface of the frame before applying the protective foil on your frame.
SS (R)
SS (L)
CS (L)
CS (R)
TT
DT
Self-adhesive protective foil set might be used to additionally protect
the top tube, down tube, chain stays and seat stays.
To install the shock fender place it first inside the
shock cage so it sits firmly on the ribs inside the
shock cage and run zip-ties through the fender
holes and over shock hardware on the CS yoke
and tighten them.
FUZZ

15
TIGHTENING TORQUE
Correct tightening forces on fasteners, nuts, bolts, screws on your bicycle are crucial. Too little force, and the fastener may
not hold securely. Too much force, and the fastener can strip threads, stretch, deform or break. Either way, incorrect tighten-
ing force can result in component failure, which can cause you to loose control and fall. If in any doubt, or if any problems
are found during the pre-ride check you should immediately seek professional advice from a professional bicycle mechanic.
Study the manuals of the suppliers of the suspension fork, rear shock, and other parts that come with this frame. Do not ride
the bicycle until all problems have been resolved. Riding a bicycle with any defects can be a hazard to your health and life!
Unless you are a very competent bicycle mechanic, do not attempt to execute any of these adjustments yourself. Seek
advice at your local bicycle shop. The rear suspension bolts (rear shock and pivots) have been tightened in the factory with
specific torque. In case of re-adjustment extreme care should be taken when re-tightening them.
DO NOT lubricate any of the pivot points. High quality self lubricating Teflon has been applied in the factory.
Tightening torque for various bolts on the frame:
8Nm
3Nm
3Nm
3Nm
3Nm
15Nm
15Nm
15Nm
15Nm
15Nm
20Nm
20Nm
5Nm
For other components please first refer to manufacturer instructions.
HUBERT POSMYK
RACE DAY
/
WISŁA, POLAND
FUZZ

MAINTENANCE & PERIODICAL SAFETY CHECKS
DO NOT RIDE THE BICYCLE IF IT YOU SEE ANY DEFECTS.
Take care of your frame and you will enjoy it for a longer time. Before every ride you should always make a pre-ride check. It
should include the following points: clean the frame (note that high-pressure washing may cause damage to some compo-
nents on the bicycle so it should be avoided if possible) and examine it CAREFULLY for any indications of potential failures
including cracks, corrosion, dents, paint peeling and any other indications of potential problems, inappropriate use or abuse.
If anything suspicious is found, contact your local bike dealer for a proper inspection. These are important safety checks and
very important to help prevent accidents, injury and shortened product lifespan.
Things to check before each ride:
- all frame bolts are correctly tightened – refer to # TIGHTENING TORQUE
- wheel to frame & fork connections - this is critical for your safety. If you have axle bolts they should be tightened according
to the manufacturer’s specification. If you have a quick release make sure that it is set to the CLOSED position, and that there
is a reasonable amount of resistance applied.
- steering system. The steering system includes: handle bar, stem, headset and fork. All elements should be connected firmly
for riding safety. If you wish to make any adjustments yourself, be warned that incorrect setup can be very dangerous and we
always advise you to seek professional advice for this! Check headset looseness, check stem to handlebar connection and
stem to steertube connection. Check the connection between the handlebars and stem. Try pushing the handlebars up and
down - there should be no movement between these two elements. Check the headset for eventual free play (stand next to
the bicycle, apply the front brake and push forwards and backwards. There should be no play between the frame and fork).
If any play is found contact your local bike shop. Do not attempt to make any adjustments yourself. If you are confident that
you can do this yourself then adjust the steering system according to the headset/stem manufacturer instructions. All parts
of the stem should be regularly checked for damage or cracks. If you find anything suspicious, contact an experienced bike
mechanic immediately. A defective steering system can cause serious injury or death.
- bottom bracket connection to the frame. There should be no play between the frame and bottom bracket.
- the connection between the cranks and bottom bracket.
- the connection of the pedals to the cranks.
- chain line and chain tension.
- derailleur connection with the frame and make sure the function is proper before every ride.
- brake clamp to frame & fork connection.
- the general condition of rear shock and front fork (take special note of any cracks or deformations).
- shock / fork pressure (for air shocks). Refer to the # SUSPENSION SETTINGS and manufacturers instruction. Make sure
the SAG doesn’t exceed the reasonable limit. Make sure the air pressure does not exceed limits provided by shock / fork
manufacturer
- clean rear shock & forks stanchion tubes.
- brake cables and their housing for kinks, rust, broken strands or frayed ends. If you notice any damage, you should ask a
bicycle shop to replace the cables immediately. Damaged cables can seriously impede braking eciency.
For information about servicing the shock and other parts like the headset mounted on the bike it is necessary to follow
manufacturers instructions closely. The user manual for the additional parts are supplied in the frame box.
16
FUZZ

BOX CONTENTS:
- FUZZ frame
- 157mm NS thru axle
- headset (2 crown races, 2 top caps)
- NS shock hardware
- internal cableguide kit
- shock fender
- neoprene CS protector
- set of self-adhesive protective foil
- tech manual
17
SAM PILGRIM
FMB CHAMPION
NS TEAM RIDER
/
SAALBACH
AUSTRIA
FUZZ

NS BIKES WARRANTY
1. 7ANNA sp. z o.o. sp. k. (hereinafter on referred to as 7ANNA), manufacturer of NS Bikes, warrants all new full suspension frames
for a period of 3 years.
2. If any defects are noticed in the product, the Customer must stop using it immediately and should report this to the dealer that
sold it within 14 days. Using a damaged product will void the warranty, lead to more extensive damage and may pose a serious
hazard to the rider’s health and life.
3. The warranty period starts from the day when the product is purchased. This purchase must be documented with the cash
receipt for all products plus a filled in warranty card for frames (which includes the following information: date of purchase, serial
number of frame, customers name and name of dealer).
4. The warranty applies only to the original owner and is not transferable.
5. Claims under this warranty should be made through the dealer where the product was purchased.
6. The warranty is valid only if the component is sold by an authorized dealer and assembled by a qualified bicycle mechanic.
7. The warranty does not cover:
- normal wear and tear
- bearings
- labour charges for replacing parts,
- paint and decals,
- problems that result from excessive loads occurring during extreme riding or from bad riding technique,
- problems that result from incorrect assembly or installation.
- cost of travel or shipment to and from an authorized dealer such cost, if any, shall be borne by the original owner
8. This warranty is void if:
- the warranty card is filled in incorrectly or incompletely,
- any modifications have been made to the product by the customer,
- damage has been caused by external parts that have been incorrectly assembled on the frame,
- the product had not been used, maintained or repaired according the manufacturers instructions,
- the product was transferred to any third party.
9. Directions on how to deal with warranty cases shall be provided by the distributor of the product in the region where it was
purchased.
10. The crash replacement warranty covers damage resulting from crashing, or excessive loads generated by things like casing
jumps or throwing the bike. Such damage won’t be covered by the normal warranty, however 7ANNA oers the possibility to
replace the product for 50% of the original suggested retail price under the Crash Replacement policy.
The conditions for this are:
- Crash Replacement applies to NS full suspension frames for a period of 3 years from the date of purchase.
- 7ANNA reserves the right to deny Crash Replacement without further explanations,
- Crash Replacement does not apply to parts damaged in other situations than in riding
(for example Crash Replacement will not cover a part that has been damaged during shipping),
- Crash Replacement only applies to components made by 7ANNA.
11. This limited warranty does provide the original owner with certain legal rights and recourse and the original owner may
possess other rights or recourse, depending on the state, jurisdiction, country, or province. Please be informed that this is a
final statement of the 7ANNA and all the remedies available to the original owner are stated herein. 7ANNA does not allow or
authorise any entity (including authorised dealers) to extend any other express or implied warranties on its behalf. An original
owner agrees that 7ANNA’s liability under this warranty under no circumstances shall be greater than the original purchase
price. In no event shall 7ANNA be liable for incidental or consequential damages. All other remedies, obligations, liabilities,
rights, warranties, express or implied, arising from law or otherwise, including (but not limited to) any claimed implied war-
ranty of merchantability, any claimed implied warranty arising from course of performance, course of dealing or usage of
trade, and any claimed implied warranty of fitness, are disclaimed by 7ANNA and waived by the original owner. Some states,
jurisdictions, countries, and provinces do not allow some or all of the limitations set forth herein, or the exclusion or limitation
of incidental or consequential damages. If any provision is found unenforceable, only that provision shall be stricken and all
others shall apply.
18
FUZZ

Frame model
Frame serial number
Shock serial number (if any)
Price
Date of purchase
I certify that I am acquainted with the actual specification of the
bicycle (this can be slightly dierent than that published by the distributor).
Buyer’s signature
Dealer’s signature
: ................................................................................................
: ................................................................................................
: ................................................................................................
: ................................................................................................
: ................................................................................................
: ................................................................................................
: ................................................................................................
PROOF OF PURCHASE - WARRANTY CARD
Dealer’s stamp
manufactured by: 7anna sp. z o.o. sp. k., Raciborskiego 123, 80-215 Gdansk, POLAND
tel +48520 18 04 / mobile + 48533 01 90 80
Always wear a helmet when riding. It will not make you deathproof, but will increase your chances to
avoid serious injury if you crash (and you WILL crash). A broken leg can be fixed. A broken brain cannot!
Even if you see some of our riders without a helmet, it’s only because they are complete idiots!
FUZZ

WWW.NSBIKES.COM [email protected]
FUZZ
