Operation Overview

Pump suction pulls water through skimmer. Water owing

into skimmer carries oating leaves, bugs, etc., where they

are trapped in the skimmer basket. Dust, body oils, etc., pass

through the basket to be removed by the lter. Weir door in

skimmer opening enhances surface ow and skimming action.

Water Level

Keep pool, spa or hot tub water level

at the middle water level mark, on the

data plate image located inside skimmer

housing, for best performance. Never

operate below the low mark, see Figure 1.

Flow Adjustments

Adjust valves located before the pump,

see Figure 2.

Vacuuming Pool

Remove deck lid and skimmer basket. If there is a oat valve,

remove it and plug equalizer port that is closest to the pool.

Replace basket and place vacuum plate on top of basket. Fill

the vacuum hose with water and then place your hand over

the end of the hose as you bring it through the skimmer throat,

or over the deck to attach it to the vacuum plate (Figure 3).

Follow instructions in vacuum owner’s manual for vacuuming

operation. After vacuuming, remove hose, vacuum plate and

basket, unplug equalizer port and reinstall oat valve, basket

and deck lid.

VINYL/FIBERGLASS

FLOW STAR™SKIMMERS

PUBLIC & RESIDENTIAL INSTALLATION, OPERATION & PARTS

Float valve and deck lid are not NSF certied.

IMPORTANT SAFETY INSTRUCTIONS FOR SKRVFL3Nxxx, SKRVFL3Nxxx-L, SKRVFL18xxx, SKRVFL18xxx-L, SKRFFL3Nxxx,

SKRFFL3Nxxx-L, SKRFFL18xxx, SKRFFL18xxx-L, SKRFL12xxx, SKRFL12xxx-L, SKRFL12Bxxx, SKRFL12Bxxx-L, SKR36xxx,

SKR36xxx-L, SKR36Bxxx, SKR36xxx-L

Adjust Shut-o

Valves to

Balance Flow

From Pool

Main Drains

Plug

To Pump

Suction

Figure 2: Typical residential installation

Figure 3: Vacuuming pool; oat and check valves removed,

equalizer port plugged.

Equalizer

Line

Plug Equalizer

and Remove

Float Valve

Regulator Valve

Skimmer Cone

Cleaner Hose

To Pump

Suction

Figure 1:

Data Plate Image

OPERATION

Certied to

NSF/ANSI/CAN 50

⚠WARNING!

HAZARDOUS SUCTION. RISK OF HAIR OR BODY ENTRAPMENT, DROWNING OR DISEMBOWELMENT. When an

equalizer is used, the opening in the pool shall be protected by a VGBA Compliant drain cover rated for 100 GPM or greater. NOTE:

Skimmer is not equivalent to a main drain. If not using a single, unblockable drain, all pools, spas and hot tubs must have at least

two main drains besides skimmer(s) or a "single, unblockable" drain.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

READ AND FOLLOW ALL INSTRUCTIONS

Max Flow

⁄'' Pipe:  GPM

'' Pipe : 6 GPM

Min Flow

⁄'' Pipe:  GPM

'' Pipe :  GPM

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

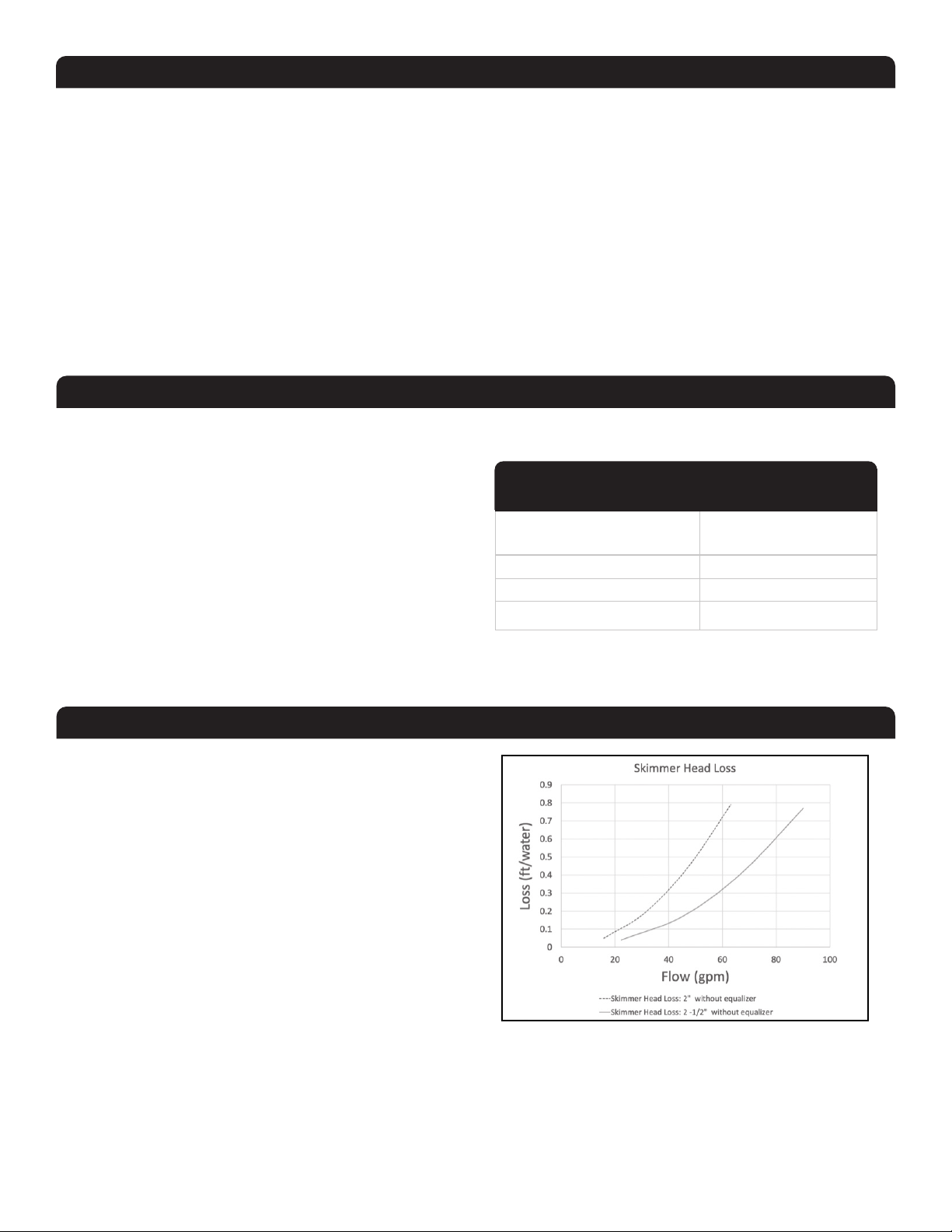

Skimmers are critically important for removing oating

contaminants, oils, and debris; for this reason modern pool

building codes require that the number of skimmers installed are

capable of handling 100% of the ltration ow rate.

1. The minimum number of skimmers needed is based on

facility type (See Table 1).

2. When selecting the location for skimmers, at least one

should be placed so that the prevailing wind blows towards

the skimmer.

3. Size suction pipe based on the design ow rate such that

the water velocity in the pipe will not exceed six feet per

second. To increase system ow capacity for long pipe runs,

use multiple pipes (both ports) or larger pipe (2.5'' spigot, or

3''/4'' adapter bushing #BFB101). See gures 5 and 7 piping

layout.

SKIMMER LAYOUT AND SUCTION LINE SIZING

See section "Dimensions and Parts List", "Face Plate Dimensions",

and "Face Installation Instructions" for basic dimensions and

further instructions . Top cover frame has 1" vertical height

adjustment.

PIPE CONNECTIONS AND TESTING

Connect pump inlet line to rear port in bottom manifold.

Skimmer manifold is PVC, and comes in a variety of

congurations. For threaded connections inside skimmer

manifold, do not use pipe dope; to seal joint use RTV Silastic

#732 (preferred), Teon tape or Plasto-Joint Stik. For slip

connections, apply PVC primer to PVC pipe only. Then apply

PVC to PVC solvent cement to both pipe and slip connections.

Consult distributor for correct solvent cement for pipe used.

Assemble joint per cement manufacturer’s instructions, allowing

recommended set time before pressure testing.

INSTALLATION

MAINTENANCE

Periodically check weir for free operation. Replace if damaged or worn. Check strainer basket as often as needed for accumulated

leaves, debris, etc. Empty basket as required.

Skimmer deck lid is made of impact and weather resistant materials, but extended use (5-10 years) may lead to reduced strength.

Regularly check condition of skimmer lid. Look for cracks, chips, deterioration of plastic, etc. If any sign of damage or deterioration

is found, replace the deck lid and fasteners.

To winterizing, drain pool until level is below skimmer inlet. Remove cover, basket and oat. Plug bottom port(s). Cover skimmer

to prevent rainwater or snow from entering the skimmer where it could freeze.

WARNING! LOW WATER LEVEL CAN MAKE IT DIFFICULT TO EXIT POOL AND MAY DAMAGE PUMP AND OTHER POOL EQUIPMENT.

Note: An equalizer line is a way to bypass the skimmer and it is intended to inhibit damage to the pump when pool water level is below

the throat of the skimmer or the basket is full. You must check your local code as some require equalizer lines, others don’t allow them

and others leave it to the pool designer. When equalizer line is used the cover inside the pool must be VGBA compliant, and have a ow

rating higher than the skimmer’s conguration-specic ow rating.

Table 1: Skimmers Required Per Square Foot Area

Facility Type Area Per Skimmer

(sq. .)

Public Pool 500

Residential Pool 800

Public and Residential Spa 150

Example: A public pool that is 1000 sq. ft. requires at least two skimmers.

WARNING! PLASTIC CEMENTS AND PRIMERS CAN BE FLAMMABLE, POISONOUS OR BOTH. CLOSELY FOLLOW

CEMENT MANUFACTURER’S INSTRUCTIONS.

WARNING! FALLING AND TRIPPING HAZARD. THE DECK LID MUST BE INSTALLED FLUSH WITH THE DECK

LEVEL.

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

Float valve and deck lid are not NSF certied.

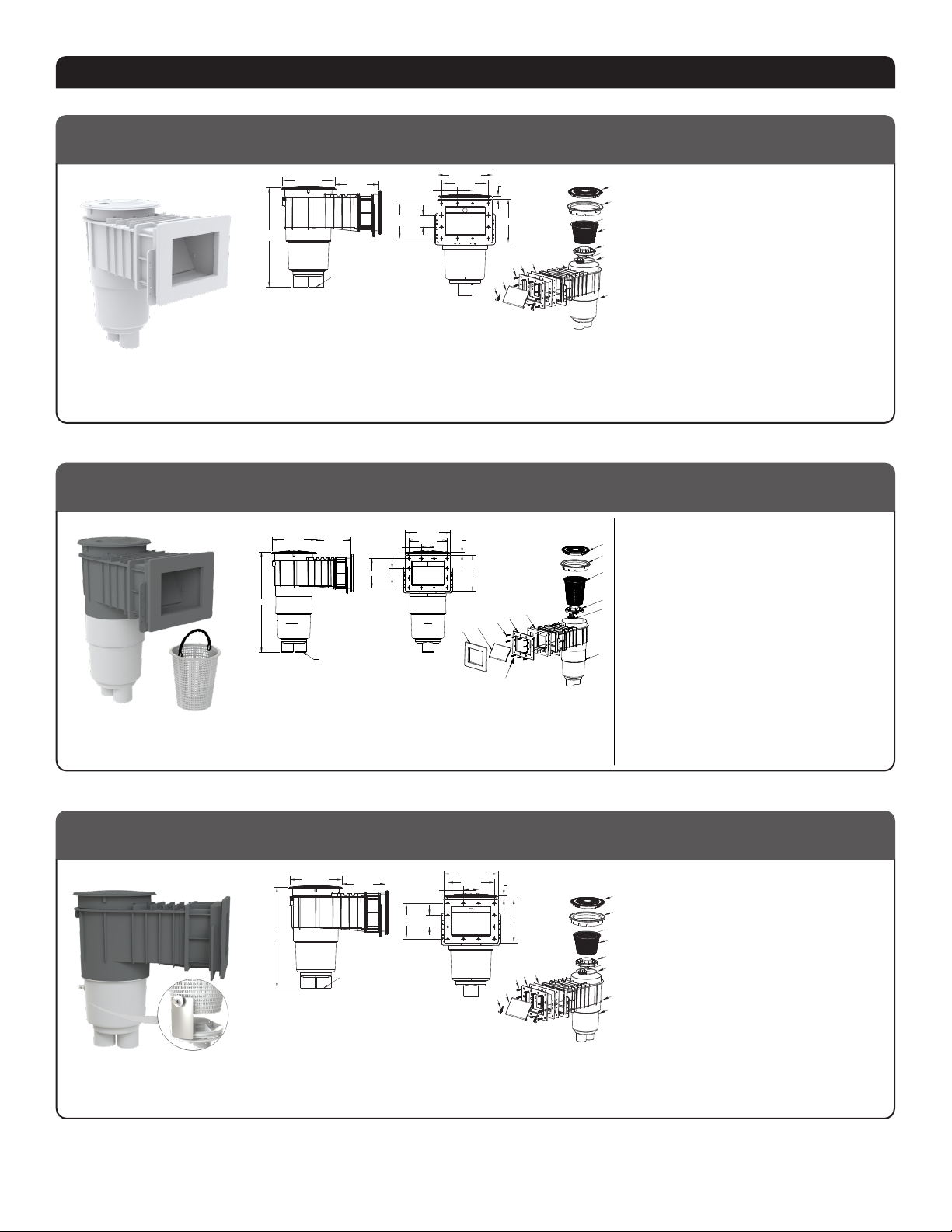

DIMENSIONS AND PARTS LIST

Float valve and deck lid are not NSF certied.

FlowStar® Skimmer with Narrow 9’’ Throat and Water Bond for Vinyl

Part # SKRVFL18xxx

Part Numbers/Colors

SKRVFL18101B - White

SKRVFL18102B - Black

SKRVFL18103B - Lt. Gray

SKRVFL18105B - Dk. Gray

SKRVFL18108B - Tan

2-1/2"

Spigot

2" S

ocket

x 2" NPT

1. Skimmer body

2. 2" Port Plug

3. O-Ring

4. Float Assembly

5. Basket

6. Skimmer Basket Rod

7. Collar

8. Lid

19-21/32

9-1/16

10-23/32

6-15/16 8 -17/32

2-15/16 11/16

2-5/16

8-7/16

10-7/32

9. Weir Assembly

10. Weir Clip, Qty 2

11. Gasket, Extender 9" And 12", Qty 2

12. Face Frame, Extender 9" And 12"

13. 12 x 1-1/4" Flat Head Phillips, 316 SS, Qty 12

14. Bonding Plate Assembly

Also Included

15. Decorative Cover

Part # SKRVFL3Nxxx-L/

SKRVFL18xxx-L (Bonded)

Part Numbers/Colors

SKRVFL3N101-L - White

SKRVFL3N102-L - Black

SKRVFL3N103-L - Lt. Gray

SKRVFL3N105-L - Dk. Gray

SKRVFL3N108-L - Tan

~23-23/32

~9-1/16

~10-23/32

~6-15/16 ~8-17/32

~2-15/16

~11/16

~2-5/16

~8-7/16

~10-7/32

2 1/2" SP. X 2" SOC. X 2" NPT

1. Deep Skimmer Body

2. 2" NPT Port Plug

3. Float Assembly

4. 9" Ultra Skimmer Basket

5. Skimmer Collar

6. Skimmer Lid

7. Gasket Extender 9" And 12", Qty 2

8. Face Frame, Extender 9" And 12"

9. 12 x 1-1/4 Flat Head Phillips, 316 SS, Qty 12

10. Weir Door Assembly

11. Weir Door Clips

12. Decorative Cover

FlowStar® Skimmer with Narrow 9’’Throat and 9’’ Ultra Basket for Vinyl (Optional Water Bond)

Part Numbers/Colors

SKRVFL3N101 - White

SKRVFL3N102 - Black

SKRVFL3N103 - Lt. Gray

SKRVFL3N105 - Dk. Gray

SKRVFL3N108 - Tan

Part # SKRVFL3Nxxx

FlowStar® Skimmer with Narrow 9’’Throat for Vinyl

2-1/2"

Spigot

2" S

ocket

x 2" NPT

1. Skimmer body

2. 2" Port Plug

3. O-Ring

19-21/32

9-1/16

10-23/32

6-15/16 8 -17/32

2-15/16 11/16

2-5/16

8-7/16

10-7/32

8. Lid

9. Weir Assembly

10. Weir Clip, Qty 2

11. Gasket, Extender 9" And 12", Qty 2

12. Face Frame, Extender 9" And 12"

13. 12 x 1-1/4" Flat Head Phillips, 316 SS, Qty 12

Also Included

14. Decorative Cover

4. Float Assembly

5. Basket

6. Skimmer Basket

7. Collar

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

Float valve and deck lid are not NSF certied.

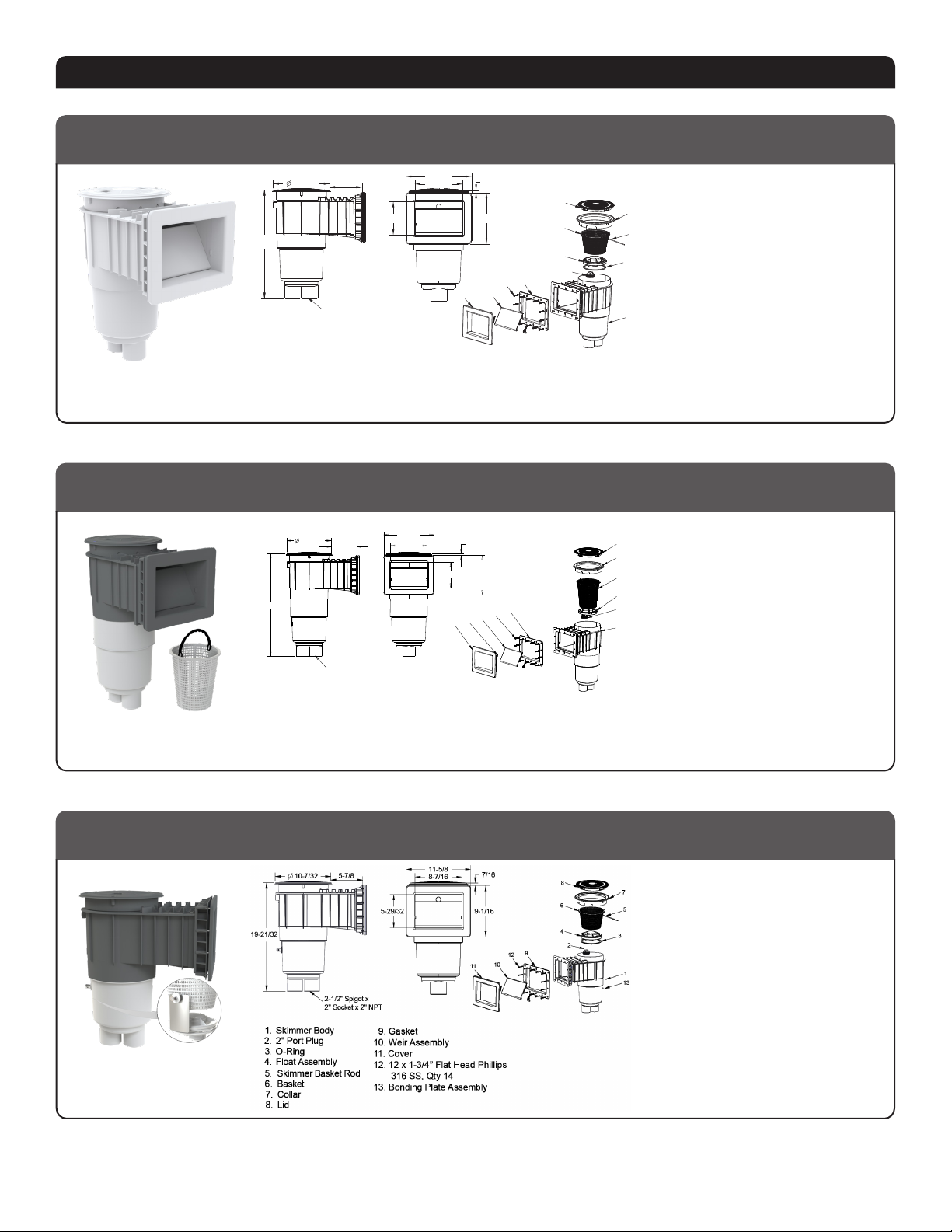

DIMENSIONS AND PARTS LIST

Part # SKRFFL3Nxxx-L

Part # SKRFFL18xxx-L

Part Numbers/Colors

SKRFFL18101 - White

SKRFFL18102 - Black

SKRFFL18103 - Lt. Gray

SKRFFL18105 - Dk. Gray

SKRFFL18108 - Tan

Part # SKRFFL18xxx

2-1/2" Spigot x

2" Socket x 2" NPT

1. Skimmer body

2. 2" Port Plug

3. O-Ring

4. Float Assembly

5. Basket

6. Skimmer Basket Rod

7. Collar

8. Lid

19-21/32

9-1/16

10-23/32

6-15/16 8 -17/32

2-15/16 11/16

2-5/16

8-7/16

10-7/32

9. Weir Assembly

10. Weir Clip, Qty 2

11. Gasket, Extender 9" And 12", Qty 2

12. Face Frame, Extender 9" And 12"

13. 12 x 1-3/4" Flat Head Phillips, 316 SS, Qty 12

14. Bonding Plate Assembly

Also Included

15. Decorative Cover

FlowStar® Skimmer with Narrow 9’’Throat and Water Bond for Fiberglass

Part Numbers/Colors

SKRFFL3N101-L - White

SKRFFL3N102-L - Black

SKRFFL3N103-L - Lt. Gray

SKRFFL3N105-L - Dk. Gray

SKRFFL3N108-L - Tan

~23-23/32

~9-1/16

~10-23/32

~6-15/16 ~8-17/32

~2-15/16

~11/16

~2-5/16

~8-7/16

~10-7/32

2 1/2" SP. X 2" SOC. X 2" NPT

1. Deep Skimmer Body

2. 2" NPT Port Plug

3. Float Assembly

4. 9" Ultra Skimmer Basket

5. Skimmer Collar

6. Skimmer Lid

7. Gasket Extender 9" And 12", Qty 2

8. Face Frame, Extender 9" And 12"

9. 12 x 1-3/4 Flat Head Phillips, 316 SS, Qty 12

10. Weir Door Assembly

11. Weir Door Clips

12. Decorative Cover

FlowStar® Skimmer with Narrow 9’’Throat and 9’’ Ultra Basket for Fiberglass (Optional Water Bond)

Part Numbers/Colors

SKRFFL3N101 - White

SKRFFL3N102 - Black

SKRFFL3N103 - Lt. Gray

SKRFFL3N105 - Dk. Gray

SKRFFL3N108 - Tan

2-1/2" Spigot x

2" Socket x 2" NPT

1. Skimmer body

2. 2" Port Plug

3. O-Ring

19-21/32

9-1/16

10-23/32

6-15/16 8 -17/32

2-15/16 11/16

2-5/16

8-7/16

10-7/32

8. Lid

9. Weir Assembly

10. Weir Clip, Qty 2

11. Gasket, Extender 9" And 12", Qty 2

12. Face Frame, Extender 9" And 12"

13. 12 x 1-3/4" Flat Head Phillips, 316 SS, Qty 12

Also Included

14. Decorative Cover

4. Float Assembly

5. Basket

6. Skimmer Basket

7. Collar

Part # SKRFFL3Nxxx

FlowStar® Skimmer with Narrow 9’’Throat for Fiberglass

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

Float valve and deck lid are not NSF certied.

DIMENSIONS AND PARTS LIST

FlowStar® Skimmer with 5’’ Deep Throat and Water Bond for Fiberglass

Part Numbers/Colors

SKRFL12B101 - White

SKRFL12B102 - Black

SKRFL12B103 - Lt. Gray

SKRFL12B105 - Dk. Gray

SKRFL12B108 - Tan

Part # SKRFL12Bxxx

Part # SKRFL12xxx-L

SKRFL12Bxxx-L (Bonded)

FlowStar® Skimmer with 5’’ Deep Throat and 9’’ Ultra Basket for Fiberglass (Optional Water Bond)

Part Numbers/Colors

SKRFL12101-L - White

SKRFL12102-L - Black

SKRFL12103-L - Lt. Gray

SKRFL12105-L - Dk. Gray

SKRFL12108-L - Tan

~5-7/8

~10-7/32

~23-23/32

~11-5/8

~9-1/16

~8-7/16

~5-29/32

~7/16

2 1/2" SP. X 2" SOC. X 2" NPT

1. Deep Skimmer Body

2. 2" NPT Port Plug

3. Float Assembly

4. 9" Ultra Skimmer Basket

5. Skimmer Collar

6. Skimmer Lid

7. Face Frame

8. #12 x 1-3/4, Flat Head Phillips, 316 SS

9. Weir Door Assembly

10. Weir Door Clips

11. Skimmer Colllar

12. Decorative Cover

Part Numbers/Colors

SKRFL12101 - White

SKRFL12102 - Black

SKRFL12103 - Lt. Gray

SKRFL12105 - Dk. Gray

SKRFL12108 - Tan

2-1/2"

Spigot

Socket

x 2" NPT

5-7/8

10-7/32

19-21/32

11-5/8

9-1/16

8-7/16

5-29/32

7/16

1. Skimmer Body 7. Collar

8. Lid

4. Float Assembly

6. Basket

3. O-Ring

2. 2" Port Plug

5. Skimmer Basket Rod

9. Gasket

10. Weir Assembly

11. Cover

12. 12 x 1-3/4’’ Flat Head Phillips

316 SS, Qty 14

Part # SKRFL12xxx

FlowStar® Skimmer with 5’’ Deep Throat for Fiberglass

Float valve and deck lid are not NSF certied.

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

Float valve and deck lid are not NSF certied.

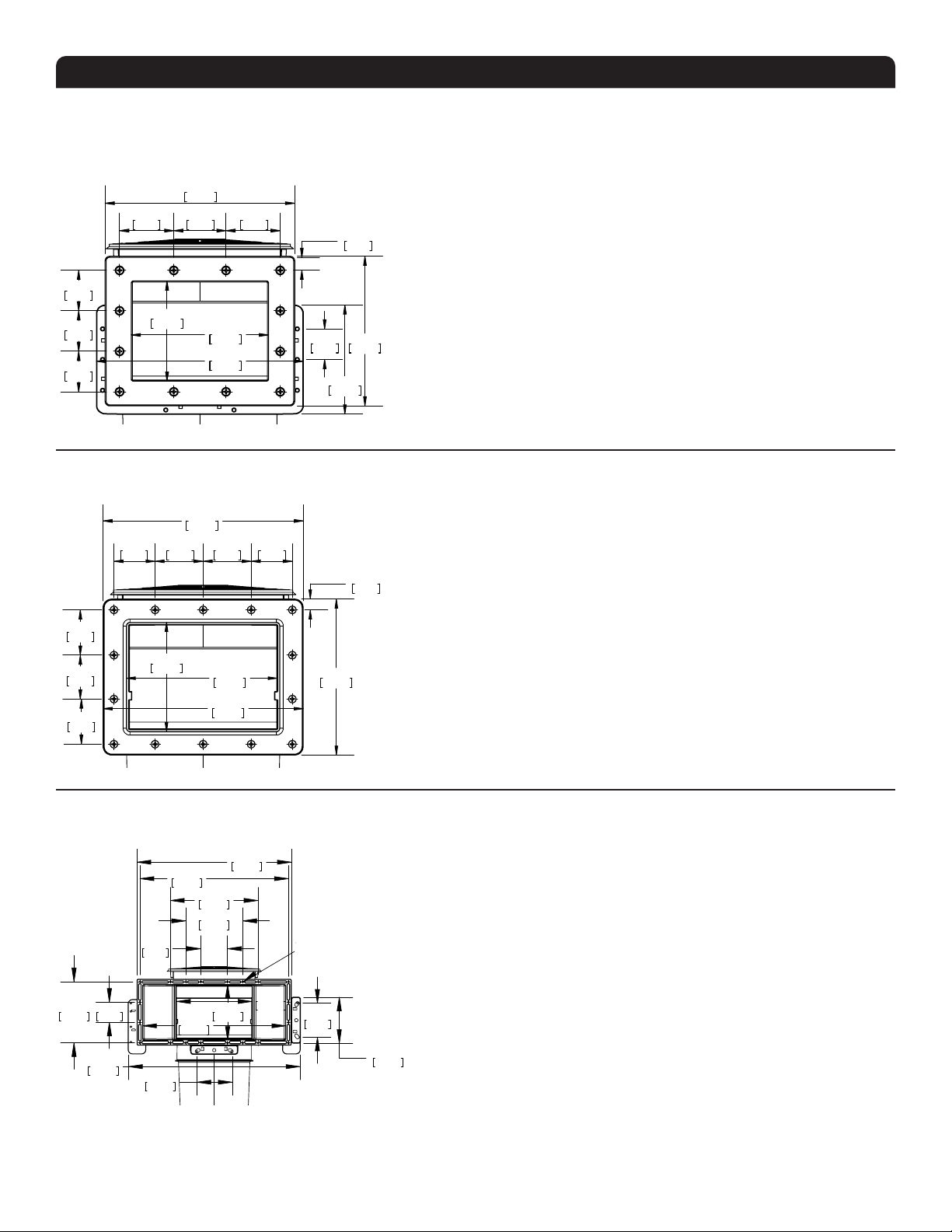

DIMENSIONS AND PARTS LIST

Part # SKR36xxx-L

SKR36xxxB-L (Bonded)

Part # SKR36Bxxx

Part Numbers/Colors

SKR36B101 - White

SKR36B102 - Black

SKR36B103 - Lt. Gray

SKR36B105 - Dk. Gray

SKR36B108 - Tan

~10-7/32

~19-23/32

3/4

~9-13/16

2 1/2" SP. X 2" SOC. X 2" NPT

~18-5/16

~15-7/32

~5-21/32 ~8-11/16

~19/32

1. Skimmer body

2. O-Ring

3. 2" Port Plug

9. Weir Assembly

10. Weir Clip, Qty 2

11. Gasket

12. Face Frame

13. 12 x 1-1/4" Flat Head Phillips, 316 SS, Qty 16

14. Bonding Plate Assembly

Also Included

15. 5/8" Pan Head Phillips, 316 SS, Qty 4

16. 1-1/2" Flat Head Phillips, 316 SS, Qty 4

17. Decorative Cover

18. Easy Clip Spacer, Qty 3

4. Float Assembly

5. Basket

6. Basket Rod

7. Collar

8. Lid

FlowStar® Wide Mouth Skimmer and 9’’ Ultra Basket for Vinyl and Water Bond

FlowStar® Wide Mouth Skimmer and 9’’ Ultra Basket for Vinyl (Optional Water Bond)

Part Numbers/Colors

SKR36101-L - White

SKR36102-L - Black

SKR36103-L - Lt. Gray

SKR36105-L - Dk. Gray

SKR36108-L - Tan

~10-7/32

3/4

~9-13/16

~18-5/16

~15-7/32

~5-21/32 ~8-11/16

~19/32

10 1

9. Weir Clip, Qty 2

10. Gasket

11. Face Frame

12. 12 x 1-1/4" Flat Head Phillips, 316 SS, Qty 16

Also Included

13. 5/8" Pan Head Phillips, 316 SS, Qty 4

14. 1-1/2" Flat Head Phillips, 316 SS, Qty 4

15. Decorative Cover

16. Easy Clip Spacer, Qty 3

1. Skimmer body

2. O-Ring

3. 2" Port Plug

4. Float Assembly

5. 9"Ultra Basket

6. Collar

7. Li d

8. Weir Assembly

~23-23/32

2 1/2" SP. X 2" SOC. X 2" NPT

Part # SKR36xxx

Part Numbers/Colors

SKR36101 - White

SKR36102 - Black

SKR36103 - Lt. Gray

SKR36105 - Dk. Gray

SKR36108 - Tan

~10-7/32

~19-23/32

3/4

~9-13/16

2 1/2" SP. X 2" SOC. X 2" NPT

~18-5/16

~15-7/32

~5-21/32 ~8-11/16

~19/32

10. Weir Clip, Qty 2

11. Gasket, Qty 2

12. Face Frame

13. 12 x 1-1/4" Flat Head Phillips, 316 SS, Qty 16

14. Decorative Cover

Also Included

15. 12 x 1-1/2" Pan Head Phillips, 316 SS, Qty 4

16. 12 x 5/8" Pan Head Phillips, 316 SS, Qty 4

17. Easy Clip Spacer, Qty 3

1. Skimmer body

2. O-Ring

3. 2" Port Plug

4. Float Assembly

5. Basket

6. Basket Rod

7. Collar

8. Lid

9. Weir Assembly

FlowStar® Wide Mouth Skimmer for Vinyl

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

3-1/16"

78mm

2-15/16"

75mm

3-1/16"

78mm

10-23/32"

272mm

2-5/16"

59mm

2-5/16"

59mm

2-5/16"

59mm

3/4"

19mm

5-23/32"

145mm

7-3/4"

197mm

5-23/32"

145mm

11-23/32"

297mm

1-3/4"

44mm

8-17/32"

217mm

6-7/32"

158mm

Flow Star Skimmer with 9'' Deep Throat, Float Assembly, Basket, Lid, Adjustable Collar For Fiberglass/Vinyl

Model # SKRFFL3Nxxx/SKRFVL3Nxxx, SKRFFL3Nxxx-L/SKRFVL3Nxxx-L, SKRFFL18xxx/SKRVFL18xxx, SKRFFL18xxx-L/SKRVFL18xxx-L

CUT OUT PANEL OTHER THAN WOOD

A-HEIGHT MAX 5-13/16″ (148 mm) MIN 6-1/16″ (154 mm)

B-WIDTH MAX 8″ (203 mm) MIN 8-1/4″ (210 mm)

CUT OUT PANEL FOR WOOD PANEL WITH VINYL LINER

A-HEIGHT MAX 7-9/16″ (192 mm) MIN 7-13/16″ (198 mm)

B-WIDTH MAX 9-7/8″ (251 mm) MIN 10-1/8″ (257 mm)

DRILL or PUNCH 12 HOLES ¼″ DIAMETER AS SHOWN,

2-11/32"

60mm

2-3/4"

70mm

2-3/4"

70mm

2-11/32"

60mm

11-7/16"

290mm

2-9/16"

65mm

2-9/16"

65mm

2-1/2"

64mm

5/8"

16mm

8-7/8"

226mm

6-7/32"

158mm

8-5/8"

219mm

11-7/16"

290mm

Flow Star Skimmer with 5'' Deep Throat, Float Assembly, Basket, Adjustable Collar For Fiberglass

Model # SKRFL12xxx, SKRFL12xxx-L, SKRFL12Bxxx, SKRFL12Bxxx-L

Flow Star Wide Mouth Skimmer with 9'' Deep Throat, Float Assembly, Basket, Lid, Adjustable Collar For Fiberglass/Vinyl

Model # SKR36xxx, SKR36xxx-L, SKR36Bxxx, SKR36Bxxx-L

17-5/16

440mm

16-21/32

423mm

9-13/16

249mm

6-13/32

163mm

76mm

5-9/32

134mm

3-7/8

99mm

2-5/16

59mm

178mm

3-31/32

101mm

16-1/16

408mm

8-15/32

215mm

19-1/4

489mm

6-3/8

162mm

HOLES FOR SECURING

SCREWS (X4)

CUT OUT PANEL OTHER THAN WOOD

A-HEIGHT MAX 6-9/16″ (167 mm) MIN 6-13/16″ (173 mm)

B-WIDTH MAX 9-1/8″ (232 mm) MIN 9-3/8″ (238 mm)

DRILL or PUNCH 14 HOLES ¼″ DIAMETER AS SHOWN,

CUT OUT PANEL OTHER THAN WOOD

A-HEIGHT MAX 6″ (152 mm) MIN 6-1/4″ (159 mm)

B-WIDTH MAX 15-9/16″ (395 mm) MIN 15-13/16″ (402 mm)

CUT OUT PANEL FOR WOOD PANEL WITH VINYL LINER

A-HEIGHT MAX 7-11/16″ (195 mm) MIN 7-15/16″ (202 mm)

B-WIDTH MAX 17-7/16″ (443 mm) MINZ 17-11/16″ (449 mm)

DRILL or PUNCH 16 HOLES ¼″ DIAMETER AS SHOWN,

DIMENSIONS AND PARTS LIST CONTINUED

P-8- F8--POOL [email protected]om www.aquastarpoolproducts.com

Vinyl

Liner

Wall Panel

(Other Than Wood)

Gaskets

Decorative

Cover

1″ Flat Head Screw

Face Plate

Countersink

For Pan Head

Securing Screws

5/8″ Pan Head

Gaskets Gaskets

Wall Panel

Vinyl

Figure 7: Skimmer Installation Cut-away Figure 8: SKR36xxx Securing Screws

INSTRUCTIONS FOR OTHER THAN WOOD PANEL

(See Figure 7)

1. Drill and cut wall panel section per above dimensions on

previous page.

2. Place gasket on skimmer face, making sure holes in

gasket align with holes in skimmer face. A very light

application of silicon sealant will assist in holding gasket in

place.

3. Align skimmer face and gasket with drilled panel holes

and fasten to wall panel. For SKR36xxx use the top center

and bottom center holes with the pan head securing

screws (Figure 8). Use appropriate holes and four screws.

4. If vinyl liner pool, install liner before proceeding to step

5. Align second gasket and face plate. Tightly fasten the

skimmer face with provided screws. If vinyl liner pool,

pierce liner through face plate holes one at a time prior

to inserting screws. Screws must go through face frame,

gasket, liner, wall panel, gasket, and into skimmer face.

6. Install skimmer face cover, (Not available with SKR36xxx).

If vinyl liner pool, cut out liner along inside edge of the

skimmer face cover.

INSTRUCTIONS FOR WOOD PANEL WITH VINYL

(See Figure 8)

1. Cut out wall panel approximately 1/8" larger than

outside dimensions of skimmer face (NOT face frame or

cover).

2. Insert skimmer into panel cut out from rear. Butt the

mounting ange against the rear of the panel. Use “U”

shims, if necessary to make the face of the skimmer ush

with the inside of the pool. Fasten the skimmer to the rear

of the wood panel by securing with stainless or brass wood

screws through the skimmer mounting ange.

3. Place gasket on skimmer face, make sure the holes in

the gasket align with holes in skimmer face. A very light

application of silicon sealant will assist in holding gasket in

place.

4. Install vinyl liner.

5. Align second gasket and face plate. Fasten tightly to

skimmer face with provided screws. Pierce liner through

face plate holes one at a time by inserting screws.

6. Install skimmer face cover, (Not available with SKR36xxx).

Cut out liner along inside edge of the skimmer face cover.

LIMITED WARRANTY

Skimmers manufactured by AquaStar are warranted to be free of defects in material and workmanship for one year from date of installation. The foregoing

warranties relate to the original consumer purchaser (“Purchaser”) only. AquaStar shall have the option to repair or replace the defective product, at its sole

discretion. Purchasers must pay all labor and shipping charges necessary to replace the product covered by this warranty. Requests for warranty service must

be made through the installing dealer. This warranty shall not apply to any product that has been subject to negligence, misapplication, improper installation

or maintenance, or other circumstances which are not in AquaStar’s direct control. This warranty sets forth AquaStar’s sole obligation and Purchaser’s exclusive

remedy for defective products. AQUASTAR SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL OR CONTINGENT DAMAGES WHATSOEVER. THE

FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND SHALL NOT EXTEND BEYOND THE DURATION OF

THE APPLICABLE EXPRESS WARRANTIES PROVIDED HEREIN. Some states do not allow the exclusion or limitation of incidental or consequential damages or

limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specic legal rights and
