HARMSCO®Hurricane®
Swing Bolt Water Filters
Models: HUR 1X170FL, HUR 3X170FL
HUR 5X170FL, & HUR 8X170FL
INSTALLATION AND OPERATION MANUAL
HUR 5X170FL
HUR 8X170FL
HUR 1X170FL
HUR 3X170FL

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 2 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
INTRODUCTION
The Harmsco®Hurricane®Swing Bolt Water Filter is a water filtration device that
utilizes the Harmsco®Hurricane®HC/170 size cartridge filter in various quantities
from one per housing (HUR 1X170FL) to 8 per housing (HUR 8X170FL).
The Hurricane®HC/170 cartridges are available in many micron ratings, styles and
materials of construction. High temperature cartridges are also available. Consult
the Harmsco®Product Catalog (www.harmsco.com) or a Sales Representative for
more details.
All of the Harmsco®Hurricane®Swing Bolt housings; HUR 1X170FL, HUR
3X170FL, HUR5X170FL & HUR 8X170FL are equipped with pipe flanges on both
the inlet and the outlet, & cartridge lifting handle(s) (part # 362-L). All models are
NSF Certified per Standard 61 when used with Genuine Harmsco®Hurricane®
HC/170 cartridges.
The Harmsco®Hurricane®Swing Bolt Water Filter is designed as a strong
economical filter that continuously improves the water quality with minimal
maintenance.
CONTENTS
Introduction and Table of Contents Pg. 2
Safety Precautions & Warnings Pg. 3
Requirements/Recommendations Pg. 4
Installation/Set-up Pg. 5
Specifications Pg. 6
Installation Block Diagram Pg. 7
Installation Diagrams - HUR 1X170FL Pg. 8
HUR 3X170FL Pg. 9
HUR 5X170FL Pg. 10
HUR 8X170FL Pg. 11
Cartridge Replacement Pgs. 12 - 18
Flow Curves HUR 1X170FL Pg. 19
HUR 3X170FL Pg. 20
HUR 5X170FL Pg. 21
HUR 8X170FL Pg. 22
Filter Cartridge Cleaning Instructions Pg. 23
Cartridge Replacement Instructions (Quick Reference) Pg. 24
Warranty Information Pg. 25

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 3 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
INSTALLATION & OPERATION MANUAL
Safety Precautions:
Before using and installing this product or its components
please read this entire manual. Failure to do so could result in seri-
ous personal injury or damage to the equipment and assembled
components.
This product and all of its components MUST NOT be installed
or used in any manner other than that which is specified in this
manual.
! WARNINGS !
1. Seek qualified assistance for installation. Piping shall conform to
all applicable codes and be independently supported.
2. Do not install the unit where a temperature of 32° F or lower can
occur. Damage caused by freezing shall void all warranties.
3. The unit shall be properly bonded in accordance with all
applicable codes. A grounding lug is provided.
4. After unit is installed, flush (through outlet) to drain for
10 minutes at recommended flow rates prior to use.
5. Always isolate unit and relieve pressure before servicing.
6. Utilizes Genuine Harmsco®Hurricane®HC/170 filter cartridges,
available in many micron ratings and styles.
The use of any filter cartridges other than Genuine Harmsco®
Hurricane®filter cartridges will void certifications by NSF
International.
This product is manufactured under one or more of the following patents: U.S. NO. 4,187,179;
3,720,322; CANADA NO. 977,693; GT. BRIT. NO. 1,372,014; W. GERMANY NO. 2,261,817;
FRANCE NO. 7,246,864; EUROPEAN NO. 0,191,844. Other patents pending.
Notice: The information contained in this publication is considered accurate and is intended to
be used as a guide. This information is subject to change without notification. Contact
Harmsco®Filtration Products for the latest and most up to date specifications. Harmsco®
Filtration Products does not assume any liability for the accuracy and completeness of
the data in this publication.

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 4 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
REQUIREMENTS
●Only qualified personnel are to perform the installation.
●Flush unit (through outlet) to drain for 10 minutes at recommended flow
rates prior to use.
●Install shut off valves on both the inlet and the outlet to isolate unit
while servicing.
RECOMMENDATIONS
●Plumb drains with appropriate valves to reduce service time.
●Include a by-pass with shut off valves between the inlet and outlet.
See installation Block Diagram on page 7.
●Install appropriate pressure gauges into the gauge ports provided.
Model HUR1X170FL outlet pressure gauge is to be installed in-line
and in close proximity to the outlet flange.
●Install plug or appropriate valve into the vent port provided.
●Lubricate Swing Bolt Assemblies (all models) & Davit Assemblies
(HUR 3X170FL, HUR 5X170FL & HUR 8X170FL) using Food Grade
grease with PTFE and NSF rated H1 only.
●Replace cartridge(s) when certain conditions exist.
For example: 1. Differential pressure is greater than 30 psi.
2. Quality of water is unacceptable.
3. Flow rate has diminished.
4. Every 6 months
●Spare Parts:
1. Sufficient supply of replacement cartridges.
Note: Harmsco®Hurricane®HC/170 filter cartridges available
include: Activated Carbon, High Temperature, SureSafeTM,
Poly-Mesh, Poly-PleatTM & more.
Contact a Harmsco®sales representative for Harmsco®
Hurricane®HC/170 filter cartridge specifications.
2. Housing O-ring Seal:
Model # Part #
EPDM (std) BunaN Viton
HUR 1X170FL 361-E 361-B 361-V
HUR 3X170FL 363-E 363-B 363-V
HUR 5X170FL 365-E 365-B 365-V
HUR 8X170FL 368-E 368-B 368-V
3. Optional: Cartridge Lifting Handle, Part #362-L

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 5 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
INSTALLATION/SET-UP
The following instructions & diagrams show the Harmsco®Hurricane®Swing Bolt
Water Filter housing with typical plumbing hook-up requirements. All steps of the
installation are to be performed by qualified personnel.
1. Always adhere to state and local plumbing codes and requirements for
design and installation.
2. Mount and secure housing using the holes at the base of the legs -
see Installation Diagrams, pages 8-11.
Models HUR 5X170FL & HUR 8X170FL have two lifting lugs welded onto
the lid for positioning of the housing. Swing bolts must be engaged and the
housing must be empty prior to using the lifting lugs.
3. Bond the filter housing utilizing the grounding lug on the leg.
- must be performed by a qualified electrician.
4. Install incoming water supply with shut off valve to flange marked "Inlet".
5. Install return line with shut off valve to flange marked “Outlet”.
6. Install plugs or valves in drain lines into the FPT couplings located at
the bottom center and side of housing.
7. Install plugs or pressure gauges into the gauge ports.
8. Install plug or valve into the vent port.
9. Refer to Specifications, Installation Block Diagram & Installation Diagrams
for more details, pages 6-11.
Notes:
●Shut-off valves shall be installed on inlet and outlet to isolate the filter
when servicing.
●To protect against electrolysis, all filters shall be bonded.
Failure to properly bond the filter will void all warranties.
●Valves, plugs and pressure gauges are not provided.
●Use gaskets, sealants and/or expansion/vibration coupling materials
appropriate for the application.
●Flush unit (through outlet) to drain for 10 minutes at recommended flow
rates prior to use.
●For cartridge replacement, see pgs. 12 - 18, 24.
●For models HUR 3X170FL, HUR 5X170FL & HUR 8X170FL, make
sure sufficient space is available to rotate lid away from housing
allowing access to all cartridges.

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 6 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
SPECIFICATIONS
Specification Model
HUR 1X170FL HUR 3X170FL HUR 5X170FL HUR 8X170FL
Cartridge Quantity
1
1358
Recommended Flow Rate, gal/min 105 315 525 840
Max. Flow Rate, gal/min 150 450 750 1200
Pressure Rating, P.S.I.G. Max. * 150 * 150 * 150 * 150 *
Height, inches 48" 64" 74" 84"
Service Height, inches 77" 98-1/2" 98-1/2" 104-1/2"
Housing Diameter 11" 20" 30" 35-3/8"
Inlet/Outlet
2
2" Flange 3" Flange 4" Flange 6" Flange
Height of Inlet, inches 23-5/8" 35-1/4" 38" 44-1/4"
Height of Outlet, inches 9 3/4 12" 14-1/8" 20-1/2"
Drai n (Qt y 2, Femal e) 3/ 4" NPT 1- 1/ 2" NPT 1-1/ 2" NPT 1-1/ 2" NPT
Weight, Dry 150 lbs. 420 lbs. 1,100 lbs. 1,600 lbs.
Weight, Wet 284 lbs. 929 lbs. 2,284 lbs. 3,535 lbs.
Floor Contact Area .188 ft² .292 ft² .776 ft² 1.164 ft²
Floor Load (approx.)
2,3
1,515 lbs/ft² 3,200 lbs/ft² 3,000 lbs/ft² 3,100 lbs/ft²
Floor Space
4
1.6 ft² 4.5 ft² 8.5 ft² 14.0 ft²
Bonding: Housing shall be bonded in accordance with all applicable codes.
A grounding lug is provided on the leg.
Housing Material: Stainless Steel Construction.
All wetted metallic components are ASTM A-240
Finish: Electro-polish
O-ring Material: EPDM is standard. Buna-N & Viton are available
Temperature Rating: Up to 140°F, Note: Higher temperatures are possible,
check cartridge specifications and contact a Harmsco
®
sales engineer.
* Models with -HP suffix 200 P.S.I.G. Max.
Not es :
1. Utilizes Genuine Harmsco
®
Hurricane
®
HC/170 cartridges.
- HC/170 cartridge filters are available in many micron ratings and styles.
- Activated carbon and several high temperature cartridges are also available.
- The use of cartridges other than Genuine Harmsco
®
Hurri c ane
®
HC/170 filter cartridges will void
certifications by NSF International.
2. Piping shall conform to all applicable codes and be independently supported.
3. If floor strength is suspect, use appropriate measures to adequately distribute load.
4. Does not include Cover/Davit swing position for models HUR 3X170FL, HUR 5X170FL & HUR 8X170FL
.

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 7 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
Installation Block Diagram
* Models with –HP suffix = 200 psi.

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 8 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
Installation Diagram
Model HUR 1X170FL

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 9 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters

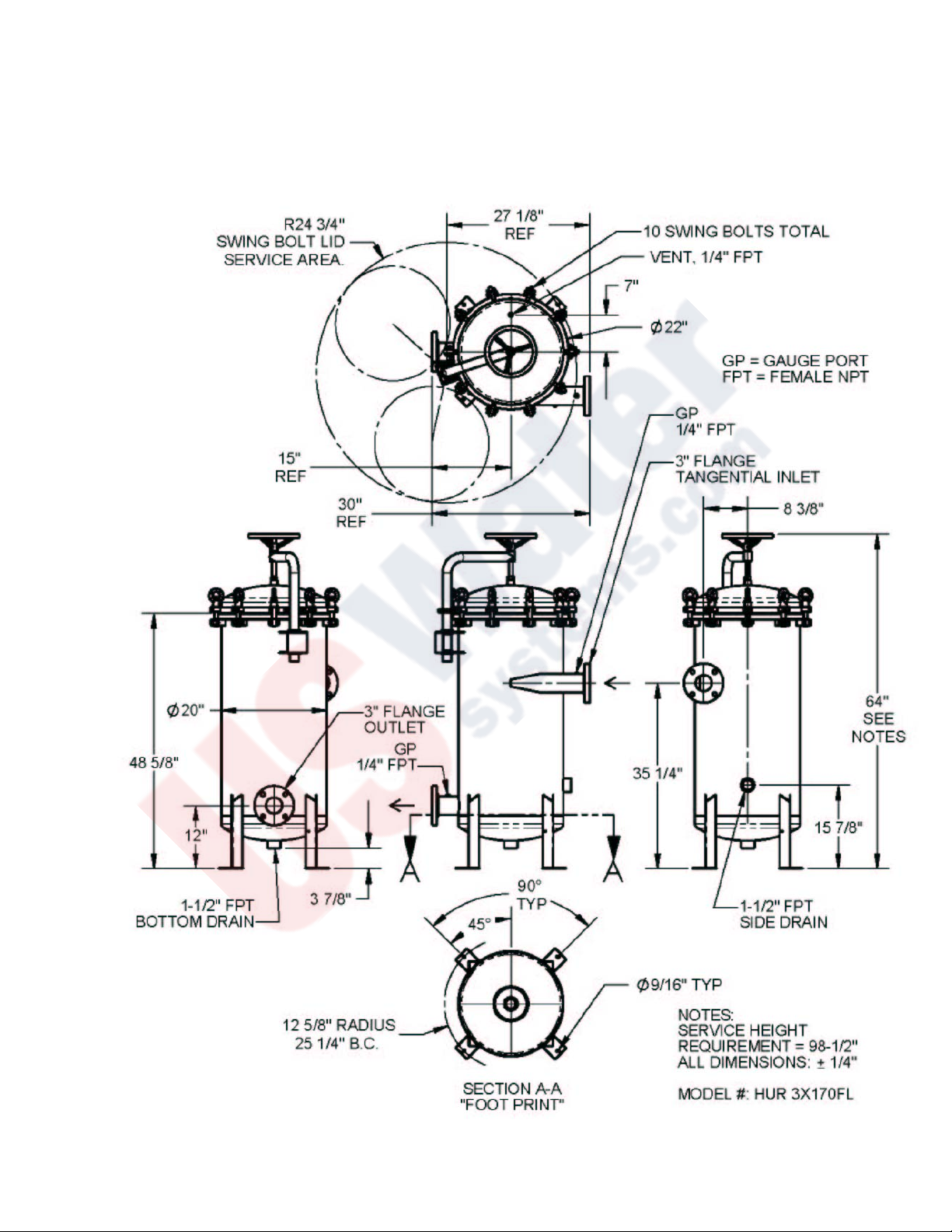

Installation Diagram
Model HUR 3X170FL

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 10 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
Installation Diagram
Model HUR 5X170FL

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 11 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
Installation Diagram
Model HUR 8X170FL

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 12 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters

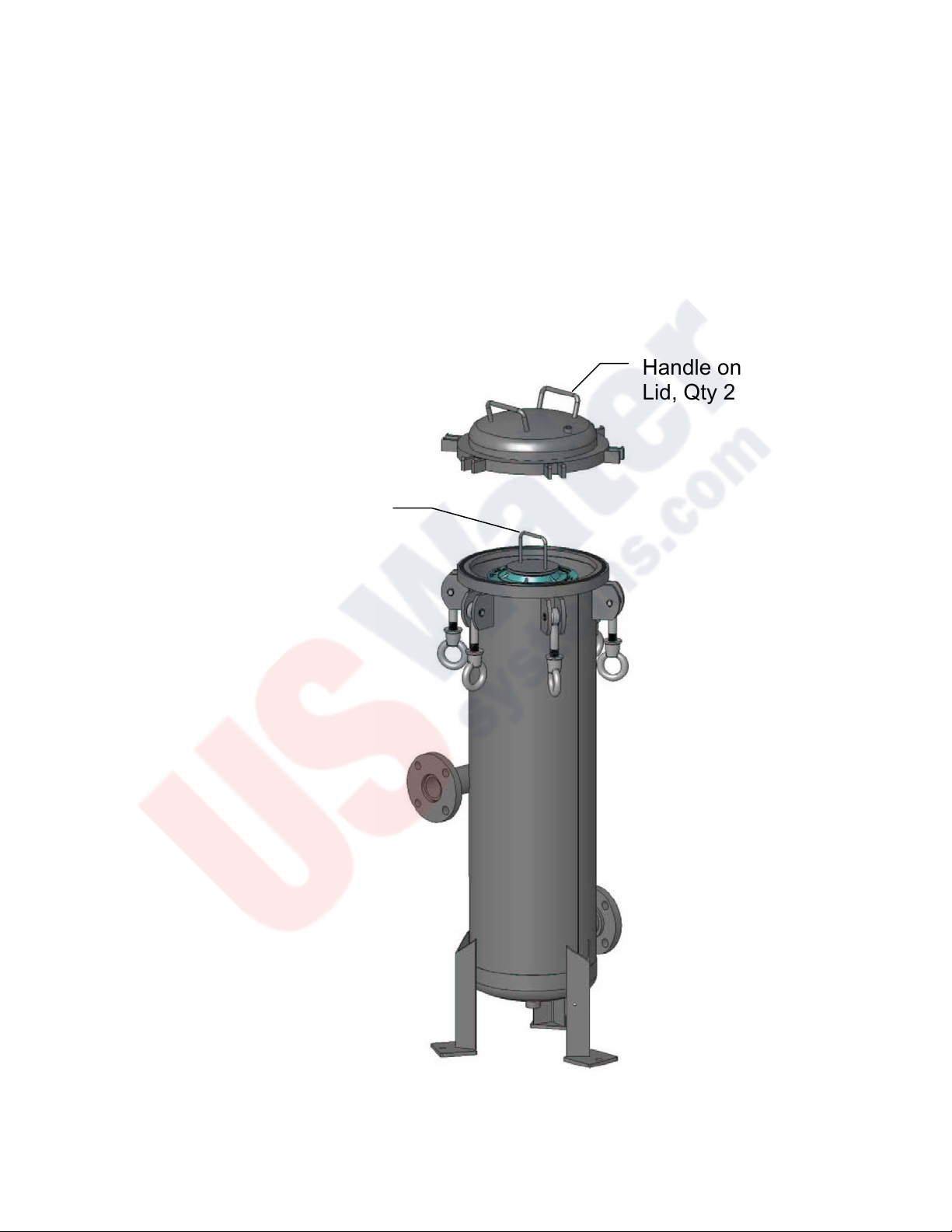

CARTRIDGE REPLACEMENT
1. Isolate unit from all water sources (close I/O lines) and relieve pressure to
housing by first opening the housing’s “Bottom Drain” and let drain completely.
See Installation Diagrams (pgs. 8-11). This will protect the cartridges (installed)
from experiencing a reverse flow that could cause damage.
2. Open Side Drain and let housing drain completely.
3. Loosen all Eye Nuts of Swing Bolts by 1/2 turn increments counter-clockwise to
gradually step down load applied to swing bolts. Repeat process as needed.
4. Fully loosen Eye Nuts but do not remove from Swing Bolt. Lift Washer above
Tangs in Lid Cleats and allow Swing Bolt to rotate downward along the side of
the housing’s Tank Wall.
Loosen Tighten
Eye Nut
Washer
Swing Bolt
Lid Cleat
Tang of
Lid Cleat
Swing Bolt,
Eye Nut & Washer
Disengaged
from Lid
Tank Wall

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 13 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
CARTRIDGE REPLACEMENT cont.
5. When all of the Swing Bolt hardware is disengaged, the Lid can be removed.
5 a. For Model HUR 1X170FL the Handles on the Lid are used to raise and remove
the Lid.
Note: The Lid must be raised sufficiently to clear the Cartridge Lifting Handle
prior to removal.
Model HUR 1X170FL
Handle on
Lid, Qty 2
Cartridge
Lifting Handle
Part #362-L

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 14 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
CARTRIDGE REPLACEMENT cont.
5 b. Models HUR 3X170FL, HUR 5X170FL & HUR 8X170FL all have
a Davit Assembly and Lid Lifting Wheel to raise and lower the Lid.
To raise Lid, turn Lid Lifting Wheel clockwise. To lower Lid, turn
Wheel counter-clockwise.
Note: Housing O-ring may stick to Lid. To prevent this, it is suggested
to raise the Lid about 1/8” inch and move the Lid/Davit Assembly slightly
sideways to free the O-ring from Lid while keeping the O-ring in its housing
channel.
Continue raising Lid approximately 1” to clear housing. Swing Lid
and Davit Assembly until cartridge compartment is fully exposed.
Caution: The Lid should be secured when servicing.
Lid Closed
Model HUR 3X170FL
Lid Open
Model HUR 3X170FL
To Ra i s e
Lid
To
Lower
Lid
Lid Lifting
Wheel
Davit
Assembly
Lid
Davit
Assembly
Pivot Axis
Housing
O-ring

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 15 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
CARTRIDGE REPLACEMENT cont.
6. Install Cartridge Handle(s), part #362-L, to Cartridge(s). Tighten securely to
seal with Top End Cap to prevent by-passing of the Cartridge.
Exploded View
Cartridge Lifting Handle
Part #362-L
Top End Cap
HARMSCO® Hurricane®
170 Cartridge
Partial Sectional View
Top End Cap
Seal
HARMSCO®
Hurricane®
170 Cartridge
Cartridge
Lifting Handle
Part #362-L

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 16 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
CARTRIDGE REPLACEMENT cont.
7. With swing bolts disengaged and lid removed, install Cartridge/Handle
assembly(s) onto Stand-pipe(s). Position Cartridge/Handle assembly
downward until Cartridge’s Bottom End Cap contacts the housing’s Tube
Sheet. The Cartridge’s Bottom End Cap will seal with the Stand-pipe
Coupling to prevent by-passing. A clockwise rotating motion will help to
position the Cartridge while engaging the Stand-pipe Coupling. Confirm all
Cartridge/Handle assemblies are fully installed with all Cartridge Bottom End
Caps contacting the housing’s Tube Sheet, see illustrations on page 17.
Stand-pipe Cartridge/
Handle Assy
Lid Lifting
Wheel
Note:
Models HUR 3X, 5X & 8X (FL)
have a Lid/Davit Assy (swing
arm). The Lid Lifting Wheel
raises and lowers the Lid for
servicing.
DO NOT USE The Lid/Davit
Assy to raise the Lid while
swing bolts are engaged. Model HUR 3X170FL
Davit Assy
Lid Assy
Inlet
Housing
O-ring
Upper Housing
Chamber Drain
Outlet

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 17 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
CARTRIDGE REPLACEMENT cont.
8. Inspect Housing O-ring and make sure that it is free from cracks and debris.
9. Clean Housing and Lid O-ring mating surfaces.
10. Place Housing O-ring into channel of Housing.
11. Return Lid to closure position and maintain alignment of Lid on Housing.
Lower lid onto Housing O-ring. Make sure O-ring stays in the channel of the
Housing. Do not allow tilting or cocking of Lid on the O-ring.
Note: The Lid/Davit Assembly is NOT to be carrying any load from the
Lid at this time.
Section View
Model HUR 3X170FL
Stand-pipe
Stand-pipe
Coupling
Seal
Cartridge
Bottom
End Cap
Tube
Sheet
Tube
Sheet
Support
Lower
Housing
Chamber
Lid Lifting
Wheel
Lid
Housing

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 18 of 25
HARMSCO®Hurricane®
Swing Bolt Water Filters
CARTRIDGE REPLACEMENT cont.
12. Return all Swing Bolts, Eye Nuts, & Washers to their closure position.
13. Tighten all Eye Nuts by hand in a “star/criss-cross” pattern several times
until all Eye Nuts are uniformly tight. Make sure Lid position and alignment to
Housing is maintained.
14. Start the flow of water by first opening the inlet valve and allow the housing
to completely fill, then, open the outlet valve.
15. Flush unit at recommended flow rate for 10 minutes prior to use.
Inspect closure for any leaks. If a leak is observed, Isolate and Remove
Pressure in Housing, then repeat steps 8 through 15.
The Harmsco®Swing Bolt Water Filter is now operational.
Model HUR 3X170FL
Swing Bolt
Washer
Eye Nut

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 19 of 25
0 30 60 90 120 150 180
113
.
5
22
7.
1
340
.7
4
5
4
.
2
5
6
7.
8
681
.
4
GPM
LPM
Pressure Drop vs. Flow Rate Curve
Harmsco®HUR 1X170FL
Hurricane®HC/170-20 Cartridge
Qty 1; with clean water.
Delta P (PSI)
Bar
8.0 .5516 7.0 .4826 6.0 .4137 5.0 .3447 4.0 .2758 3.0 .2068 2.0 .1379 1.0 .0689 0.0
Max. Flow Rate - 150 GPM Recommended Flow Rate - 105 GPM

Copyright Harmsco®Inc.
All rights reserved.
1243-HP, MANUAL - HUR FL Page 20 of 25
Pressure Drop vs. Flow Rate Curve
Harmsco®HUR 3X170FL
Hurricane®HC/170-20 Cartridges
Qty 3; with clean water.
0 100 200 300 400 500
3
7
8
.5 757.
1
1
,
13
5.
6
1
,5
1
4.
1
1
,
892
.7
GPM
LPM
Delta P (PSI)
Bar
10.0
.6895 9.0 .6205 8.0 .5516 7.0 .4826 6.0 .4137 5.0 .3447 4.0 .2758 3.0 .2068 2.0 .1379 1.0 .0689 0.0
Max. Flow Rate - 450 GPM Recommended Flow Rate - 315 GPM
