NSF Kasco CertiSafe RM-100 User manual

CertiSafe™Floor Mount
Assembly & Installation Manual
800 Deere Rd. Prescott, WI 54021 • 715-262-4488 • [email protected] • www.kascomarine.com
Document number 852111

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
2
Contents
Safety First .......................................................................................................3
Product and Installation Overview....................................................................4
Suggested Tools and Supplies .........................................................................4
Parts Included...................................................................................................5
Base Assembly.................................................................................................7
Retrieval Chain Attachment – Mixer Side.........................................................8
Cord Attachment – Mixer Side..........................................................................9
Tank Penetration for Cable Support and Cord Grip........................................10
CertiSafe™ Tank Mixer Maintenance Recommendations..............................14
CertiSafe™ Tank Mixer Warranty ...................................................................15
Non-Warranty Repairs....................................................................................16
Repair Contact Form ......................................................................................17
Phone: [phone]
Fax: [phone]
www.kascomarine.com
[email protected]
Questions?

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
3
IMPORTANT: PLEASE READ THIS MANUAL AND SAVE FOR FUTURE REFERENCE
SAFETY FIRST
• Under NO circumstances should anyone enter the water with the mixer connected or in operation.
• Running the unit out of water will create a dangerous situation and damage the seals.
• NEVER lift the unit by the power cord. If you need to remove the mixer, use the installation or mount apparatus.
• The unit must be connected to a GFCI-protected circuit.
• Comply with local and national wiring standards during any electrical service disconnect.
• Consult a qualied professional for electrical installation.
• Use all Personal Protective Equipment necessary for safe ingress, installation, and egress from the work site.
• Refer to applicable national and local laws and standards to facilitate the safe installation of a CertiSafe Tank Mixer. These may
include but are not limited to OSHA, CCOHS, and other regulations related to:
• Working over or near water
• Fall protection systems
• Falling object protection systems
• Electrical standards
• Illumination
• Ventilation
• Installation of CertiSafe™ Tank Mixers requires entry into environments that pose potential hazards, such as those described in
section 1910.146 of OSHA’s Occupational Safety and Health Standards for Permit-required conned spaces. As such:
• Observe any applicable pre-entry measures required by the entry supervisor.
• Only those authorized via the permit system in place at the installation site should participate in installation.
• Any authorized entrant should be accompanied by at least one authorized attendant to monitor conditions inside and outside
the permit spaces during installation.
• Prior to installation, be aware of all potential fall, trip, and atmospheric hazards in the permit space, both before and after an
entrance cover is removed.
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
4
PRODUCT AND INSTALLATION OVERVIEW
Featuring durable stainless steel, Kasco’s RM-100 Floor Mount positions CertiSafe™ Tank Mixers securely within the tank for effec-
tive water movement. This manual will provide instructions for mounting a CertiSafe™ unit using the RM-100 and installing the entire
assembly within the tank.
• Read these instructions thoroughly prior to installation.
• Contact your CertiSafe™ representative for specic recommendations as necessary.
• Verify that the hatch opening is at least 24” (square) or 25” (round) to accommodate the assembled unit with mount.
• The cord grip and cable support equipment described here are supplied with the mixer unit.
• To prevent galling, we recommend a moisture-cured, polyurethane compound sealant suitable for contact with potable water and
certied to meet the shrinkage for interior and exterior use. Refer to NSF/ANSI Standard 61 for indirect additives.
• Be aware of clearance between the mixer assembly and any xed objects within the tank, including ladders, ensuring that there is
enough room for the CertiSafe™ unit to function correctly and avoid damage to any protective coatings.
• Please consult your CertiSafe™ sales representative for mixer mount placement, retrieval, and inspection requirements.
Note: some parts will arrive pre-assembled from Kasco; however, all assembly steps are listed for reference.
SUGGESTED TOOLS AND SUPPLIES
Pan to catch shavings
Adjustable pliers
Electric or cordless drill
Half-round metal le
3/8” drill bit 7/8” hole saw
or 1-7/64” (for 10 AWG cord)
hole saw
Side cutter
10mm wrench
7/16” wrench
1/2” wrench
7/16” socket wrench
1/2” socket wrench
1/8” Allen wrench
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
5
PARTS INCLUDED
Assembly Item Description Quantity Part number
Base ACertiSafe™ mixer base leg 3 997200
B5/16” serrated ange screw 6 566206
C5/16” nylon locknut 6 566202
D1/4” shoulder screw 2 451110
E1/4” at washer 4 566208
F1/4” nylon locknut 2 566212
Retrieval Chain and
Cable Attachment
GLong retrieval chain - 50 ft. 1 636382
HTop connecting link 1 636342
IBottom connecting link 1 636342
JShort retrieval chain 1 636381
KExtension spring 1 997202
L1/4” nylon locknut 1 566212
MClamp ring 1 997204
N1/4” split lock washer 1 840537
O1/4” hex head bolt 1 451130
PZip ties 12 415038
Tank Penetration Q5/16” eye bolt 1 566226
R5/16” nylon locknut 1 566202
S5/16” at washer 2 566204
T5/16” sealing washer 1 566229
for use with Cord AWG
Ships with
CertiSafe™ mixer
UCord grip
14-16 AWG
1
997210
12 AWG 997211
10 AWG* 997212
VCord grip nut 12-16 AWG 1997215
10 AWG 997216
WCable support 10 AWG 1997220
12-16 AWG 997221
*Requires larger hole in tank roof (Ø 1-7/64”)
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
6

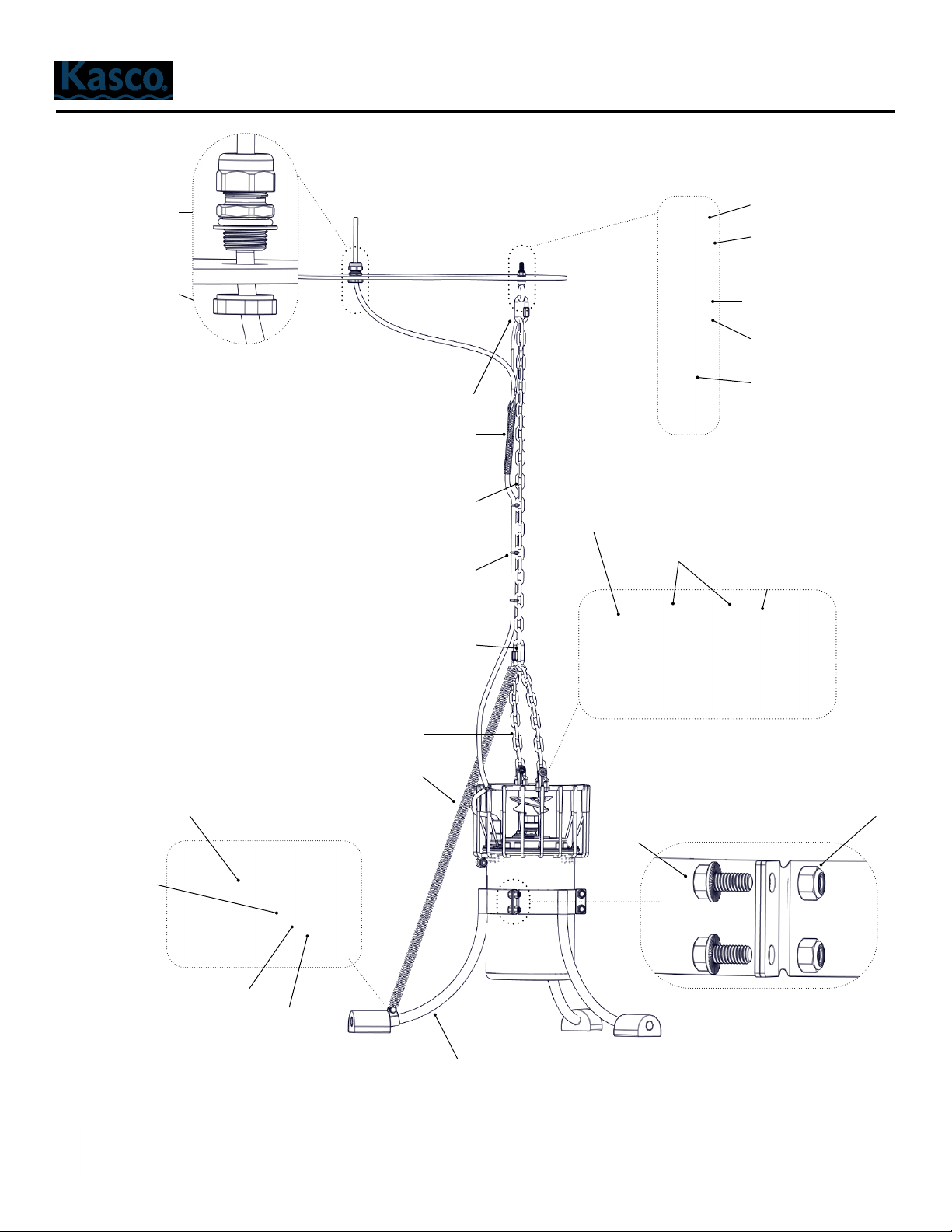

Steel tank roof
Cord grip (U)
5/16” eye bolt (Q)
Cable support (W)
Long retrieval chain - 50 ft. (G)
Short retrieval chain (J)
Extension spring (K)
Zip ties (P)
CertiSafe™ mixer base leg (A)
Clamp ring (M)
Top connecting link (H)
Bottom connecting link (I)
5/16” at washer (S)
5/16” sealing washer (T)
Cord grip nut (V)
5/16” nylon locknut (C)
5/16” serrated ange screw (B)
5/16” nylon locknut (R)
5/16” at washer (S)
1/4” nylon locknut (F)
1/4” at washer (E)
1/4” shoulder bolt (D)
1/4” nylon locknut (L)
1/4” split lock washer (N)
1/4” hex head bolt (O)
Fig. 1
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
7

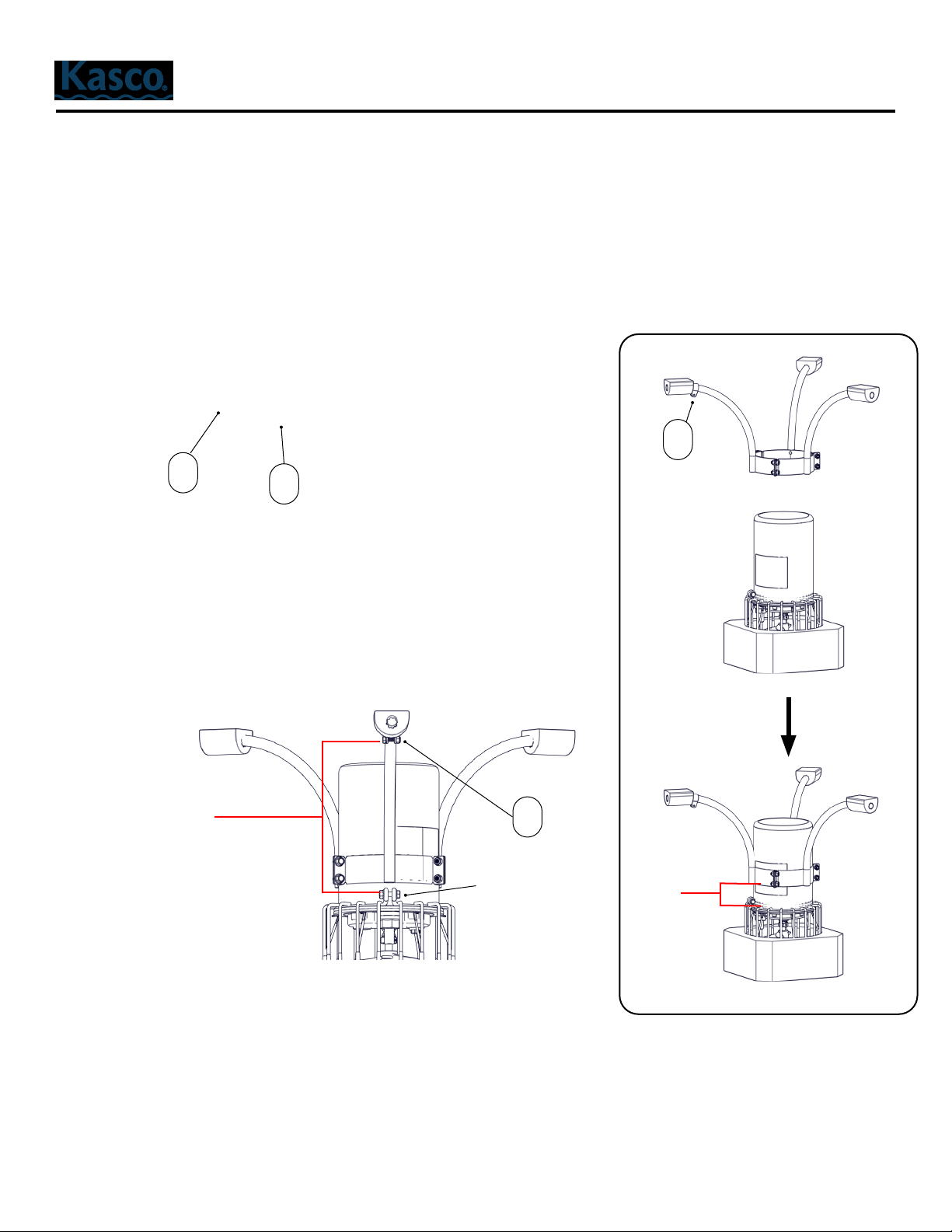

BASE ASSEMBLY
1. Assemble the three mixer base legs loosely to each other using six 5/16” anged screws (B) and 5/16” nylon locknuts (C).
2. Place the mixing unit upside down on the foam packing from the mixer unit box, if
available.
3. Slide the loosely assembled mixer base ring over the inverted mixer unit.
4. Make sure the leg with the clamp ring (M) afxed is in line with the clamp on the
mixer cage.
BC
5. Position the mixer base ring approximately 3 inches from the mixer unit
cage, as shown in Fig. 3.
6. Tighten the six 5/16” screws (B) to nuts (C) in order to secure base
assembly to the mixer.
Fig. 2
Maintain alignment M
Fig. 4
Cage clamp
M
3 inches
Fig. 3
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
8
RETRIEVAL CHAIN ATTACHMENT – MIXER SIDE
1. Place the unit upright on the legs of the base assembly.
2. Insert each end link of the short retrieval chain (J) into a tab slot on
the cage top ring.
3. Fasten the short retrieval chain to the cage using two 1/4” shoulder
bolts (D), 1/4” at washers (E), and 1/4” nylon locknuts (F).
4. Remove the hex head bolt (O), 1/4” split lock washer (N), and 1/4”
nylon locknut (L) from the clamp ring (M).
5. Align the loop of the extension spring with the holes in the clamp
ring and replace the hardware to attach the spring to the mount.
6. Find the center link of the short retrieval chain (J) and attach the bottom connecting link (I).
7. Now attach the bottom connecting link (I) to the top loop of the spring (K).
8. Finally, attach the rst link of the long retrieval chain (G) to the bottom connecting link (I).
G
J
DEF
Fig. 5
K
M
L
N
O
Fig. 6
Fig. 8
J
I
K
Fig. 7
I
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
9
CORD ATTACHMENT – MIXER SIDE
1. Use zip ties (P) to attach the power cable rst to the cage and then to the long retrieval chain. Ensure there is enough gathered
slack in the cable so that when the assembled unit is lowered into the tank, its weight is on the chain and not the cable.
2. Continue to fasten the power cable to the long retrieval chain using zip ties
at intervals of approximately 4 feet.
No tension on power cable
while lowering
Slack in cable before installation
P
Fig. 9
Fig. 10
P
Fig. 11
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
10
Ø 7/8” or 1-7/64”
Ø 3/8”
4”
TANK PENETRATION FOR CABLE SUPPORT AND CORD GRIP
Note:
• The maximum tank roof thickness accommodated by the tank penetration parts included is 1/8”.
• Suggested measurements are based on a 24” square access hatch.
1. Drill a 7/8” (or 1-7/64” for 10 AWG cable) clearance hole through the tank at a location conveniently reached from the tank hatch.
This is for the cord grip (U).
2. Deburr both sides of the hole.
3. Drill a 3/8” clearance hole about 4” from the hole drilled in step 1. This is for the eye bolt (Q).
4. Deburr both sides of the second hole.
5. From the tank exterior, pass the O-ringed side of the cord grip
(U) through the 7/8” hole, with the O-ring outside the tank roof.
6. From the tank interior, t the cord grip nut (V) on the threads
protruding into the tank.
7. Tighten the nut until snug, being careful not to over-tighten.
Steel tank roof
Steel tank roof
U
V
Tank hatch center point
Fig. 12
Fig. 13
Fig. 14
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
11

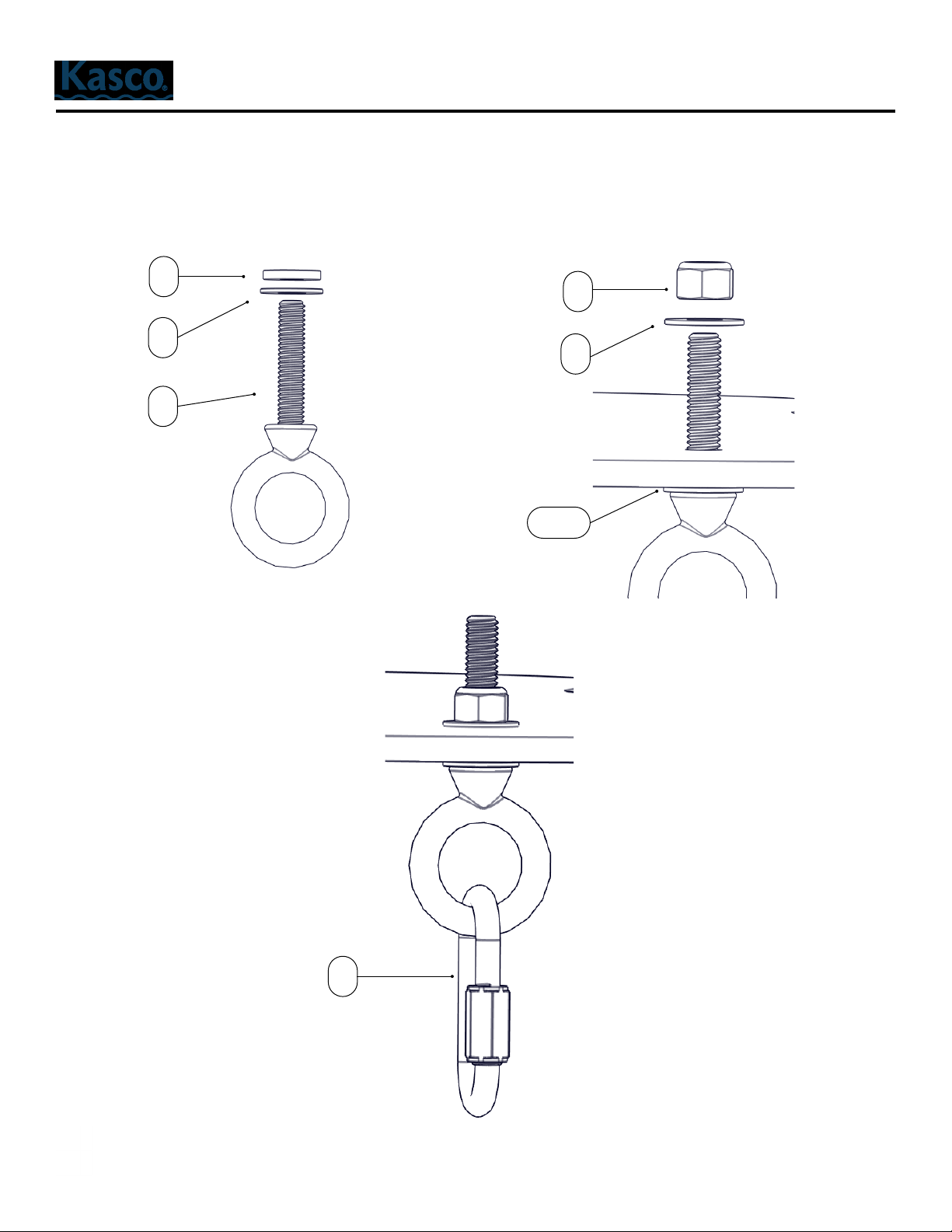

8. Fit a at washer (S) and then the sealing washer (T) onto
the eye bolt (Q).
9. From the tank interior, insert the eye bolt (Q) with washers
(S, T) through the 3/8” hole.
10. From the tank exterior, t a second at washer (S) onto the eye
bolt.
11. Fasten the 5/16” nylon locknut (R) to the eye bolt.
12. Tighten the locknut until snug, being careful not to damage the
sealing washer.
13. Attach the top connecting link (H) to the eye bolt.
S
T
S
R
H
Steel tank roof
Steel tank roof
Q
T, S
Fig. 15
Fig. 16
Fig. 17
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
12

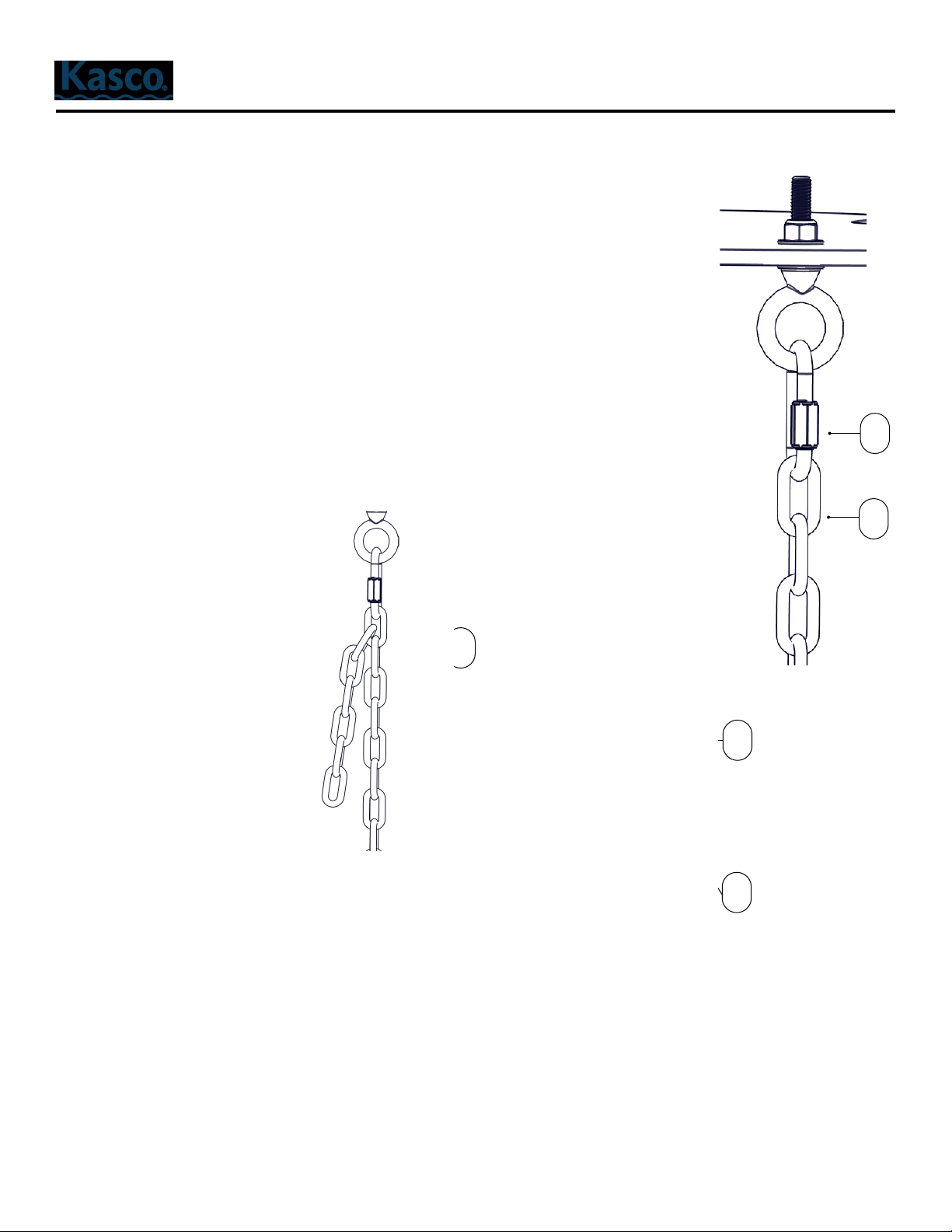

ASSEMBLED UNIT INSTALLATION
With the mount, retrieval chain, and cord afxed to the mixer and the tank roof penetration complete, the
entire assembled unit is ready for installation.
1. As a precaution against dropping the chain, attach the last link of the long retrieval chain (G) to
the top connecting link (H) prior to lowering the CertiSafe™ unit into the tank.
2. Hold both the long retrieval chain and the power cable while lowering the unit until the mixer is posi-
tioned on properly on the tank oor.
3. Remove excess slack from the long retrieval chain (G) without adding tension by:
• Carefully removing the long retrieval chain from the top connecting link.
• Pulling up any excess chain.
• Reattaching the long retrieval chain to the top connecting link, allowing any
excess chain to fall slack.
• Coil excess chain and tie with wire.
4. Attach the cable support (W) to the top connecting link (H).
5. Tighten the connecting link.
G
H
G
W
H
Chain slack
Fig. 18
Fig. 19
Fig. 20
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
13
6. Feed power cable through the cable support (W).
7. Continue to feed power cable through the cord grip (U) and out of the tank until all excess cord length has been taken up, leaving
only enough so that there is no strain on the cable.
8. Tighten the top nut on the cord grip (U) to seal the power cable penetration.
9. Terminate the power cable into an exterior junction box (not supplied by Kasco).
U
W
Fig. 21
Fig. 22
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
14
CERTISAFE™ TANK MIXER MAINTENANCE RECOMMENDATIONSCERTISAFE™ TANK MIXER MAINTENANCE RECOMMENDATIONS
Electrical Troubleshooting
• If a unit fails to operate, you can use a series of simple checks to determine the general cause.
• Once you’ve located the fault, please contact your distributor for information on how to proceed with repair.
Is the GFCI Tripped?
1. If yes, reset the GFCI and check operation.
2. If the GFCI continues to trip, disconnect the unit in the panel and reset the GFCI.
• If the GFCI doesn’t trip, the fault lies in the unit or its cord.
• If the GFCI continues to trip, the fault lies in the control panel power source.
Is the cord damaged?
1. With the power off, perform a visual inspection of the power cord.
• If there is visible damage, contact your distributor for repair options.
What happens with an alternate
power source?
1. If the power cord and unit appear to be in good condition, safely plug it into an
alternate GFCI-protected power source.
• If the unit starts and continues to run, fault lies in the control panel or power
source.
• If the alternate GFCI continues to trip, fault lies in the unit or cord.
GFCI
• GFCI (Ground Fault Circuit Interrupter) is a safety feature
that can alert you to problems with the mixer. It is important
to test the GFCI upon installation, after each re-installation,
and regularly thereafter to ensure consistent operation. If
you experience repeat interruptions, disconnect and remove
the equipment. Inspect the power cord and unit (mixer) for
damage. If no damage is apparent, please contact your
Kasco distributor or representative for further instruction.
Observation
• Monitor the operating mixer for any reduction or variation in
performance.
• Inspect the mixer annually and clean as needed to allow for
heat dissipation and to verify that the propeller is clean and
free of nicks.
• Inspect the power cable annually for damage or abrasion
and replace as necessary.
• Regularly clean all external rotating parts and examine them
for wear.
• If you note a deciency in performance, remove the equip-
ment from service and inspect for any damage or failure. If
you observe any canister leakage during annual inspection,
send the mixer to Kasco’s factory for service and repair.
Cleaning
• The stainless-steel motor housing needs to be kept clean in
order to allow heat to effectively dissipate.
Seal and Oil Replacement
• Replacing the seal and changing the oil every 3-5 years will
add reliability and longevity to the mixer.
• Seal replacement and all other repair services should be
performed by Kasco Marine.
IMPORTANT: Disconnect electrical power prior to any maintenance or servicing!
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
15
CERTISAFE™ TANK MIXER WARRANTY
Kasco offers a standard 3-year warranty with the following
models:
• 2400C61
• 3400C61 / 3400HC61
• 4400C61 / 4400HC61
• 8400C61
At the time of purchase, a 5-year warranty is available for pack-
ages including Advanced model control panels.
Warranty must be purchased at the same time as the mixer
package. (Mixer package consists of the mixer, mount, and
control panel.)
Control panel MUST have GFCI protection.
Kasco® Marine, Inc. warrants this CertiSafe™ mixing system to
be free from defects in material or workmanship under appro-
priate use and service. The Kasco Marine, Inc. obligation under
this warranty is limited to replacing or repairing, without charge,
proven defective part while within the warranty period. Customer
shall pay shipping charges for returning the unit to Kasco.
Note: Kasco only accepts complete assemblies for warranty repair. We must receive the power cord and all other components
with the motor as originally assembled. Kasco will bill the customer to replace any missing parts necessary for repair. It is not
necessary to return the control panel, mount, or other parts with the motor assembly, unless specically requested by a Kasco
representative.
Please attach a repair form with the shipment. The repair form must include a name, physical address (for return delivery of the
repaired unit), daytime phone number, and an e-mail address for correspondence regarding the warranty claim.
Any expedited shipping method for the return of the unit is at the customer’s expense. Kasco Marine will return units repaired
under warranty at our expense via ground freight within the continental United States.
Shipping Address:
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
Attn: Repairs
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES,
EXPRESSED OR IMPLIED. IN NO EVENT WILL KASCO
MARINE, INC. BE LIABLE FOR ANY CONSEQUENTIAL
DAMAGES.
Warranty is void if:
• The mixer is not maintained according to the recommenda-
tions supplied in this manual.
• The mixer is returned for repair without the power cord.
• The unit, control box, or power cord are altered in any way
from original shipment.
• The power cord is nicked or cut.
• The mixer is damaged by unauthorized service.
Warranty Claim Procedure
Warranty period is established by the original receipt. For efcient service, please register the unit online at:
www.kascomarine.com/warranty-registration.
Once warranty coverage has been established, you may send the unit to Kasco for evaluation and repair.
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
16
NON-WARRANTY REPAIRS
You can often repair failed equipment at a lower cost than re-
placement. Kasco Marine estimates repairs at the request of the
customer. This request should include a daytime phone number
and e-mail address.
Estimate options are as follows:
• Kasco contacts the customer with a repair total after we
evaluate the unit, but before we perform the work quoted.
• Customer pre-approves repair of the unit if costs are below
a stated dollar amount. Example: “Please repair if total is
under $150.00 before shipping charges.”
Kasco will recycle any unit we receive for estimate but which
the customer declines to repair, unless the customer species
otherwise. If the customer would like the product returned, Kasco
will return the unit to the condition in which we received it, and
we will ship it at the customer’s expense.
Billing
Contact Kasco to arrange payment for any non-warranty repairs.
We will request payment information upon customer approval of
the estimate.
Kasco Marine
800 Deere Road
Prescott, WI 54021
Contact Us
Phone: [phone]
Fax: [phone]
www.kascomarine.com
[email protected]
Back to Contents

RM-100 CERTISAFE™ FLOOR MOUNT MANUAL
852111 / 2021.1.1
17
REPAIR CONTACT FORM
• Kasco requires that all equipment sent for repair MUST be accompanied by this form and marked to Repairs attention.
• Kasco is NOT responsible for shipping damage accrued in return shipment.
• It is the responsibility of the customer to ship and pay freight to Kasco.
• Do not ship the mount or control panel with unit, unless otherwise instructed.
• A fee of $60 per hour will be assessed for cleaning excessively dirty units.
• Refer to the CertiSafe™ Tank Mixer Operation & Maintenance Manual for easy-to-follow troubleshooting tips to rule out site issues.
Note: Contact Information should be that of the person or company to contact for repair information.
Company name
Contact name
First name Last name
Address
Street
City
State
ZIP code
Phone number
Primary Alternate
Email address
Preferred method of contact
(circle) Phone Email
Purchase order number
Additional notes
for repair technician:
Kasco Marine
800 Deere Road
Prescott, WI 54021
Back to Contents
