NTI VOPEX-DVI4K-2 User manual

MAN245 Rev Date 7/16/2015
VOPEX-DVI4K-2
2 Port 4K DVI/HDMI Video Splitter
Installation and Operation Manual
VOPEX®Series
VOPEX-
D
VI4K-2

TRADEMARK
VOPEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2009-2015 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
TABLE OF CONTENTS
Introduction......................................................................................................................................................................1
Materials..........................................................................................................................................................................2
Connectors And LEDs.....................................................................................................................................................2
Installation .......................................................................................................................................................................3
Cascading........................................................................................................................................................................6
Technical Specifications..................................................................................................................................................7
Troubleshooting...............................................................................................................................................................7
Warranty Information.......................................................................................................................................................7

NTI 4K 2-Port DVI Video Splitter
1

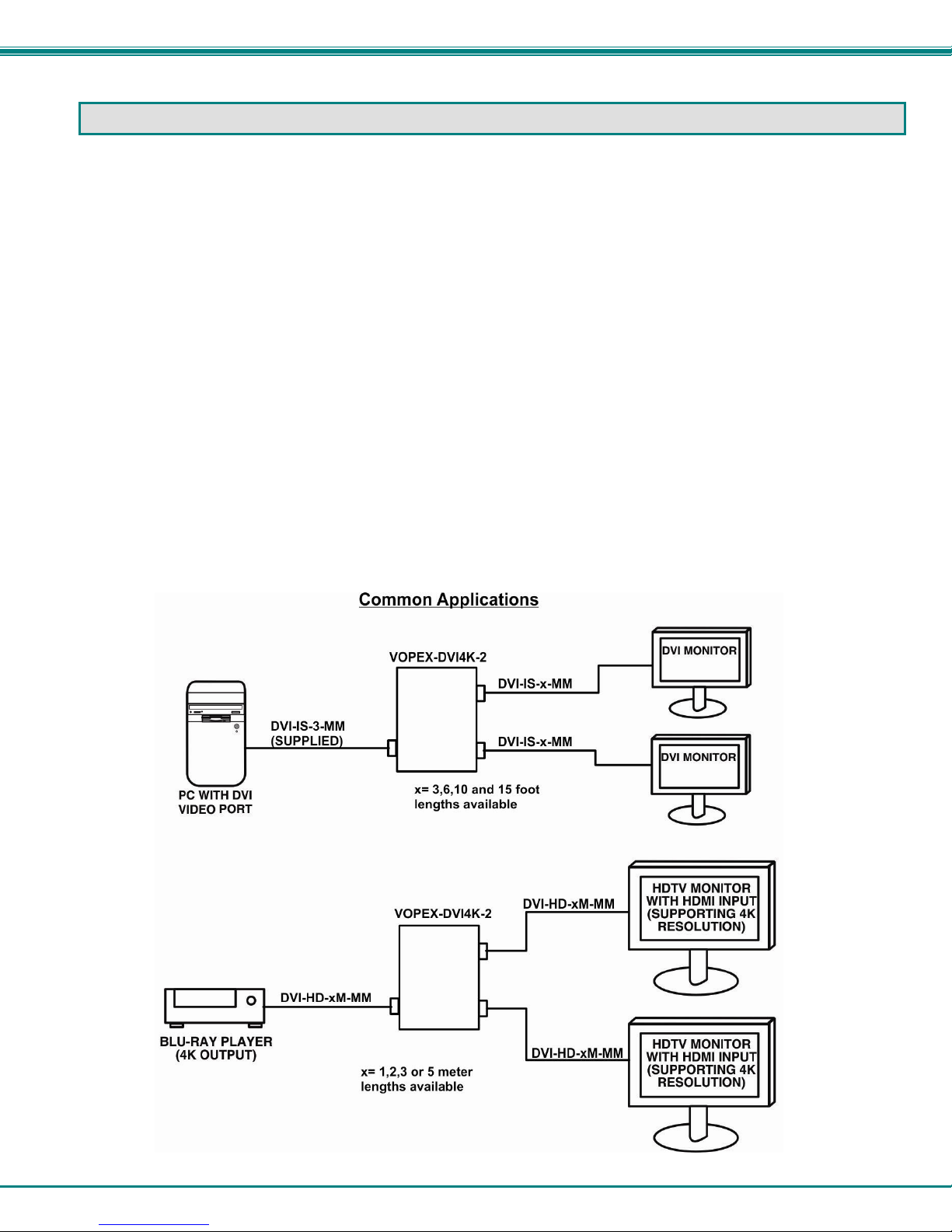

INTRODUCTION
The VOPEX-DVI4K-2 2-Port 4K DVI/HDMI video splitter enables two single-link digital DVI displays or two 4K HDMI displays
(with appropriate cables or adapters) to be driven by a single digital DVI or HDMI source (PC, DVD player, Satellite receiver, etc.)
with no loss of signal. Compatible displays include (but are not limited to) HDMI monitors, HDTV (LCD, PDP), projectors, etc.
Features:
•Connects HDTV or computer DVI or HDMI source to two DVI or HDMI compatible displays or projectors.
•Supports video resolutions to 4K @24Hz and 30Hz ; 1080p@60Hz
oPC resolutions to 3840x2160 @24Hz and 30Hz; 1920x1200 @60Hz
•Distributes digital 4K graphic signal to two displays simultaneously.
•No distortion or attenuation of the signal.
•Supports DVI 1.0, HDMI 1.4a and HDCP 1.3 standards.
•Full DDC2B communications are supported.
•EDID learning for the support of any DVI display device
•Passes HDMI audio and video signal through DVI-I port.
- Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.

NTI 4K 2-Port DVI Video Splitter
2

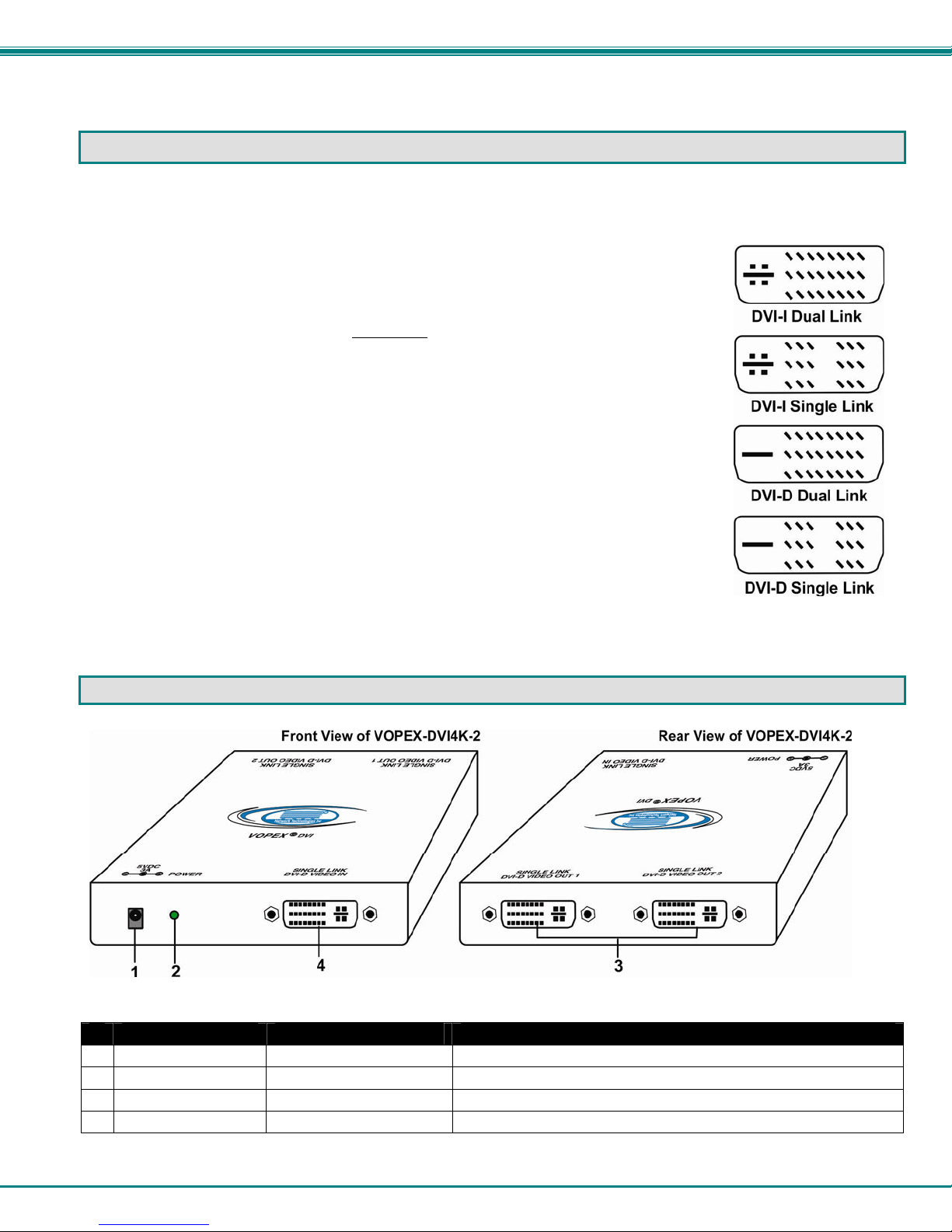

MATERIALS
Materials Supplied with this kit:
•NTI VOPEX-DVI4K-2 DVI/HDMI Video Splitter
•100VAC to 240VAC at 50 or 60Hz-5VDC/3.0A AC Adapter
•DVI-IS-3-MM 3 foot DVI-I single link video interface cable
•This owners manual
Materials Not Supplied, but REQUIRED:
DVI interface cables ARE REQUIRED but not supplied.
•DVI-IS-x-MM
cable -DVI-I single link cable for video interface
Available (x) in 3, 6 , 10 and 15 foot cables
Also available from NTI:
•DVI-DS-2M-MM DVI-D single link 2 meter cable for video interface
•DP-DVID-x-MM -Display port to single link DVI -D cable for video
interface
Available (x) in 3, 6 , 10 and 15 foot cables
•DVI-HD-xM-MM -1, 2, 3 or 5 meter single link DVI-D to HDMI for
video and audio interface
Where MM indicates male-to-male connector
All cables can be purchased from Network Technologies Inc by calling 800-RGB-TECH (800-742-8324) or (330)-562-7070.
CONNECTORS AND LEDS
# LABEL CONNECTOR/LED DESCRIPTION
1 5V 3.0A 3.5x1.3mm Power Jack for connection of power supply
2 Power Green LED illuminates to indicate proper power to the unit
3 DVI Video Out DVI female connector for connection of the display devices
4 DVI Video In DVI female connector for connecting video cables from DVI or HDMI video source

NTI 4K 2-Port DVI Video Splitter
3

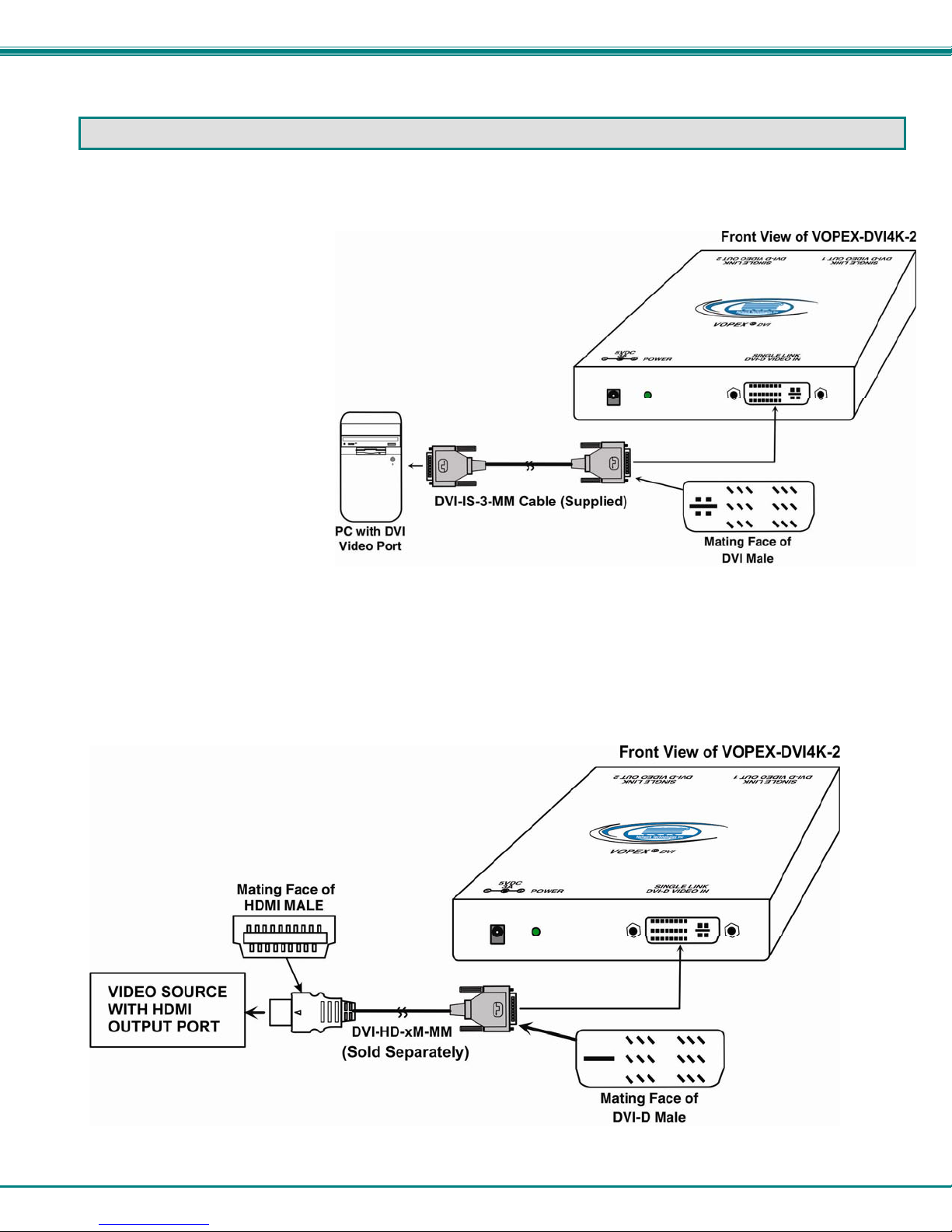

INSTALLATION
The VOPEX is a Plug-and-Play device with no special configuration settings and easy installation steps:
1. Before connecting the VOPEX to the video source, make sure the video source and the monitor(s) are turned OFF.
2. Connect the video source to the
DVI port labeled “DVI-D Video In" on
the rear panel of the VOPEX using
the DVI-IS-3-MM cable (supplied).
Longer lengths (6, 10 and 15 foot)
are also available.
When the video source has an HDMI output port, connection can be made using a DVI-HD-xM-MM cable (x= 1, 2, 3 or 5 meters-
sold separately).
Note: If the video source and the connected monitors each support 4K resolution, 4K resolution will be displayed,
regardless of the HDMI or DVI cable type used to connect them.

NTI 4K 2-Port DVI Video Splitter
4

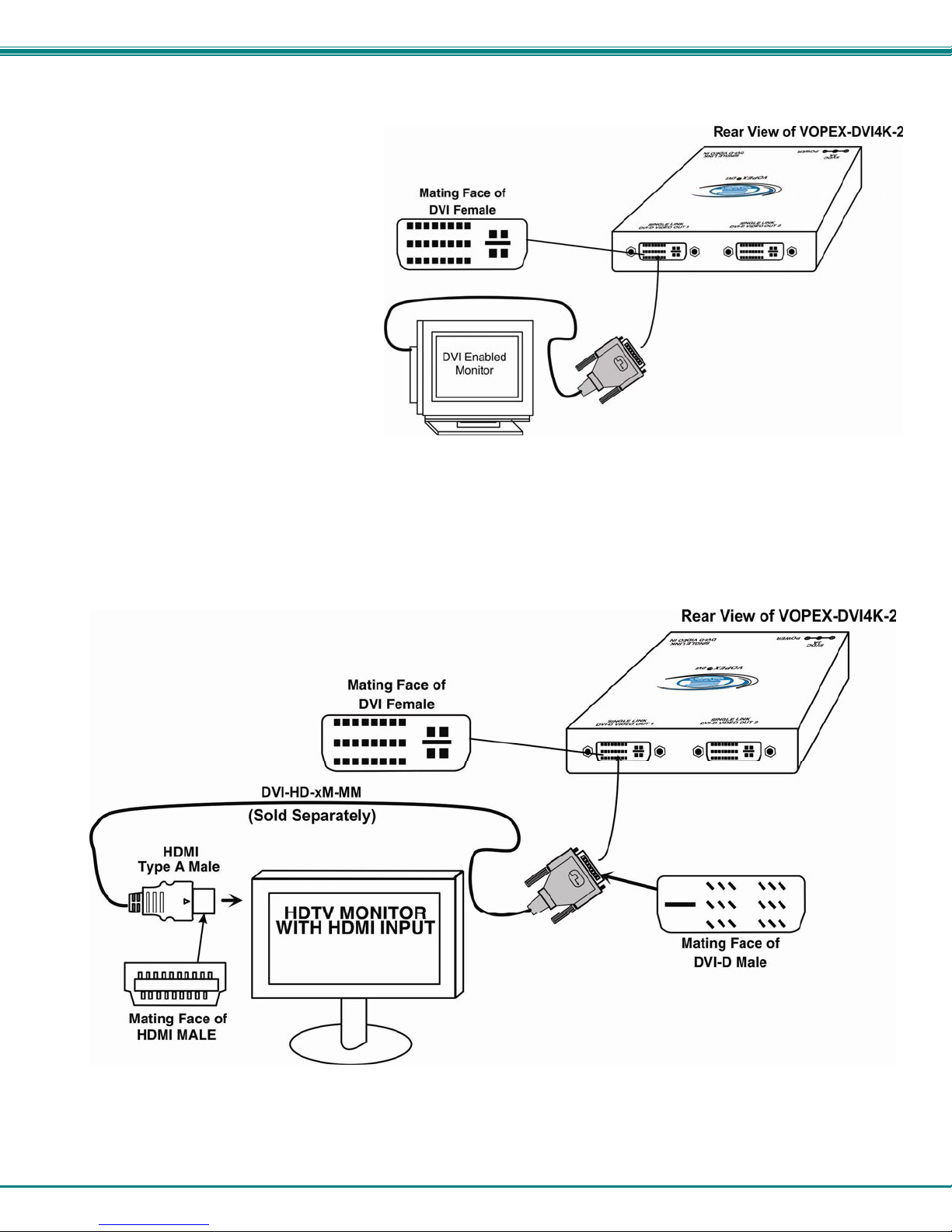

3. Connect a monitor to a DVI female port
labeled “DVI-D Video Out x” on the rear
panel of the VOPEX using a male-to-male
DVI cable.
Note: Some monitors need to have their
video input type set manually. In this
case, select “Digital DVI” as the input
type.
Note: We recommend using monitors of
all the same model, however it is not
required. DDC data is collected from all
monitors but only resolution options
common to all connected monitors are
passed to the source.
When the display has an HDMI port, connection can be made using a DVI-HD-xM-MM cable (x= 1, 2, 3 or 5 meters-sold
separately).

NTI 4K 2-Port DVI Video Splitter
5
4. Plug the 5VDC AC adapter into the power jack on the rear panel.
5. Power up the VOPEX.
6. Power up the display device(s).
7. Power up the video source.
The video from the source should now be displayed on both connected display devices.

NTI 4K 2-Port DVI Video Splitter
6

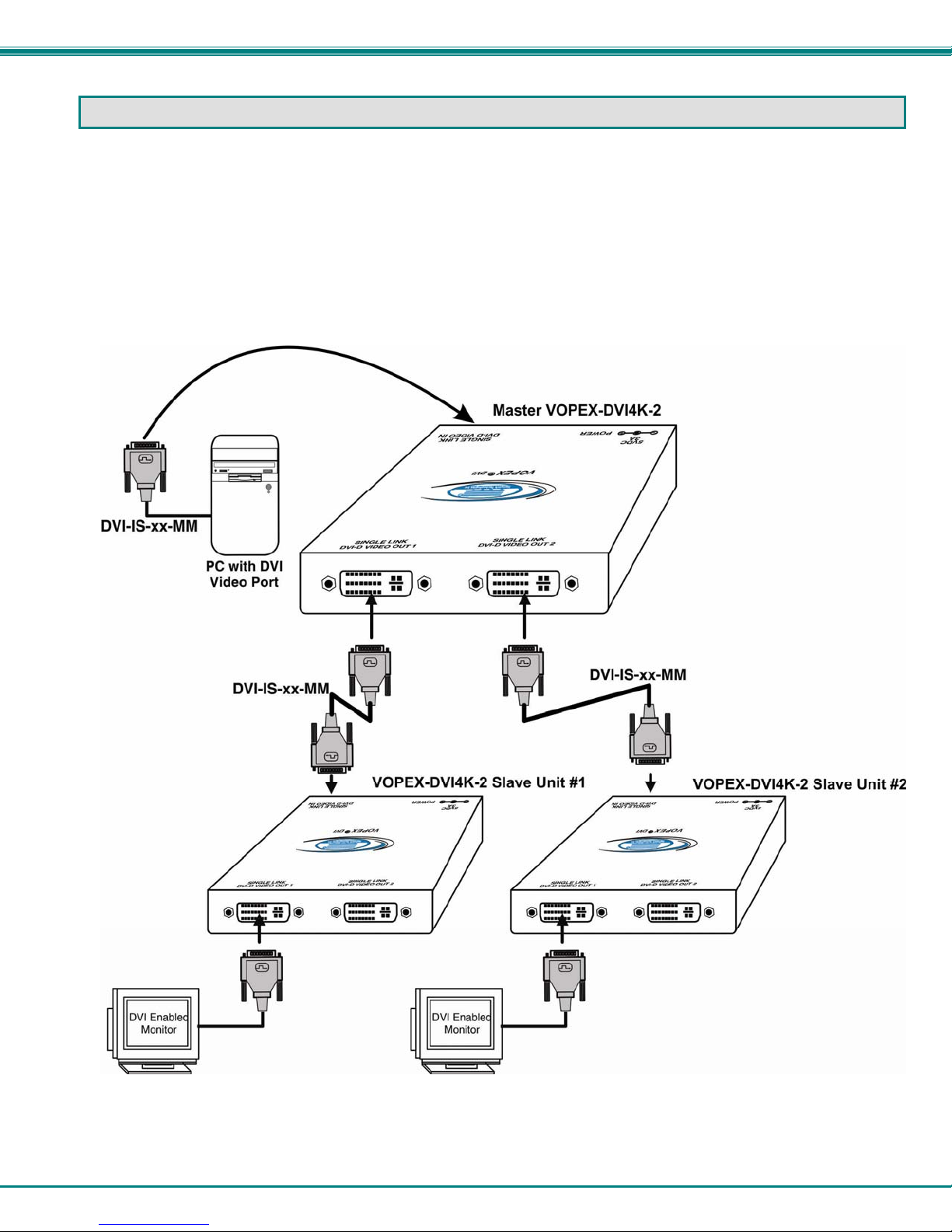

CASCADING
For applications that require more connections than are provided for by the VOPEX-DVI4K-2, one option is to connect multiple
VOPEXs in a cascaded configuration (example below). Using additional DVI-IS-xx-MM cables, connect the DVI Video Out ports
of a master VOPEX unit (master is connected to the video source) to the DVI Video In ports of additional VOPEX-DVI4K-2
(shown as “Slave Unit #1” and “Slave Unit #2” below). Connect DVI/HDMI enabled displays to the cascaded VOPEXs for a
larger configuration.
Note: Additional tiers of slave units can be added, however If too many levels of slave units are added, the image on the
lower tiers may become unstable.

NTI 4K 2-Port DVI Video Splitter
7
TECHNICAL SPECIFICATIONS
VIDEO
Video Source Any with DVI or HDMI output (Computer, Satellite Receiver, DVD player,etc)
Video Connections Female DVI-I Single Link
Maximum Pixel Clock Rate 340 MHz
Supported Standard Resolution Up to 4K/3840x2160@30Hz or 1080p/1920x1200@60Hz.
Supported video standards DVI 1.0, HDMI 1.4a and HDCP 1.3
DDC Supported on all ports (finds all EDID data and sends common data to source)
GENERAL
Operating temperatures 32 to 100°F (0 to 38°C)
Operating Relative Humidity 10 to 90% non-condensing RH
Power Supply 100 to 240 VAC at 50 or 60 Hz-5VDC\3A AC adapter
Size (In.) WxDxH 4.25 x 3.87 x 1.09
TROUBLESHOOTING
If the VOPEX is not working properly, please look for a solution in the list below:
PROBLEM: No video at all
SOLUTION: Check cable connections on the video source, monitor and the VOPEX. After reconnecting, if a CPU is the video
source, the CPU may need to be re-booted in order to sense the monitor connection.
PROBLEM: No video on one port
SOLUTION: Check cable connections on that port. Hot plug and/or power cycle the video source while that port is connected
PROBLEM: Some artifacts in the picture
SOLUTION: Check for any loose connection between cable and connectors. If loose, it may be necessary to reboot the CPU
to achieve a clear image.
If a solution was not found in the list above, answers may be found in the Frequently Ask Questions (FAQs) section of our website
at http://www.networktechinc.com or call us directly at [phone] (800-RGB-TECH) or [phone] and we will be
happy to assist in any way we can.
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at [phone] (800-RGB-TECH) or [phone] or visit our website at http://www.networktechinc.com
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN245 Rev. 7/16/15
