nubeca FT7122 User manual

1/11
Rev. 1:01/15
Digital Thermometer
Instruction Manual
Model：FT7122 （MT-B321FB）
CONTENTS
What is “normal” body temperature? ----------------------------------------- 1
Section 1: Precautions for use ---------------------------------------- 2
Section 2: Product Description ----------------------------------------- 2
Section 3: Technical Specifications ---------------------------------------- 3
Section 4: ℃/℉Switch ---------------------------------------- 3
Section 5: Measuring Guidelines --------------------------------------- 3
Section 6: Operation ---------------------------------------- 4
Section 7: Battery Replacement ---------------------------------------- 5
Section 8: Troubleshooting --------------------------------------- 5
Section 9: Explanation of LOT number ---------------------------------------- 6
Section 10: Cleaning/Disinfection and Maintenance -------------------------- 6
Section 11: Disposal ---------------------------------------- 6
Section 12: Limited Warranty --------------------------------------- 7
Section 13: Applying Standards --------------------------------------- 7
Section 14: Symbol & Explanation ---------------------------------------- 7
Section 14: EMC Table ------------- -------------------------- 8
Read the instruction manual thoroughly and carefully before using the unit.
What is “normal” body temperature?
“Normal” body temperature varies from person to person, changes according to time of
day and body location. Hot or cold baths, physical exercise, smoking and drinking, hot
or cold drinks may change body temperature b one degree or more.
The following table shows the temperature ranges:
What is fever?
Average normal temperature ranges
Forehead
Over 37.8°C
36.1 ~ 37.8°C
Rectal*
Over 38°C
36.3 ~ 38°C
Oral (mouth)*
Over 37.8°C
36.1 ~ 37.8°C
Axilla (armpit)*
Over 37.2°C
35.2~ 37.2°C
* Fever definitions according to American Medical Association

2/11
The thermometer is designed to measure the temperature in the forehead, in approx..
between the end of eyebrow and the hairline. It is important to know that the thermal
characteristics of each measurement body location – forehead, axillar, oral or rectal –
are unique. The variance in temperature measurement in different body locations is
due to the human body and not the thermometer.
It is recommend to measure the body temperature when healthy to establish the
specific normal temperature.
PRECAUTIONS FOR USE
1. The device can be used by all persons, including children, elderly person &
Patient. Handicapped persons and Children need assistance by another person to
use the device.
2. Use of the device is not intended to be a substitute for consultation with your
physician.
3. Disregarding the information given in this instruction manual is considered to be
abnormal use.
4. The device is for indoor use only. Please do not use the device under a noisy
environment.
5. Keep the thermometer out of reach of children
6. After showering, exercising, eating or drinking, wait for 30 minutes before you
intend to measure your temperature.
7. Do not store the unit in direct sunlight, at a high temperatures, in high humidity or
dust. The performance of the unit may be degraded.
8. Normally speaking, body temperatures in the morning (lower) will be different from
that in the afternoon (higher). So, please measure your body temperature in the
same place and at the same time of day.
WARNING: No modification of this equipment is allowed.

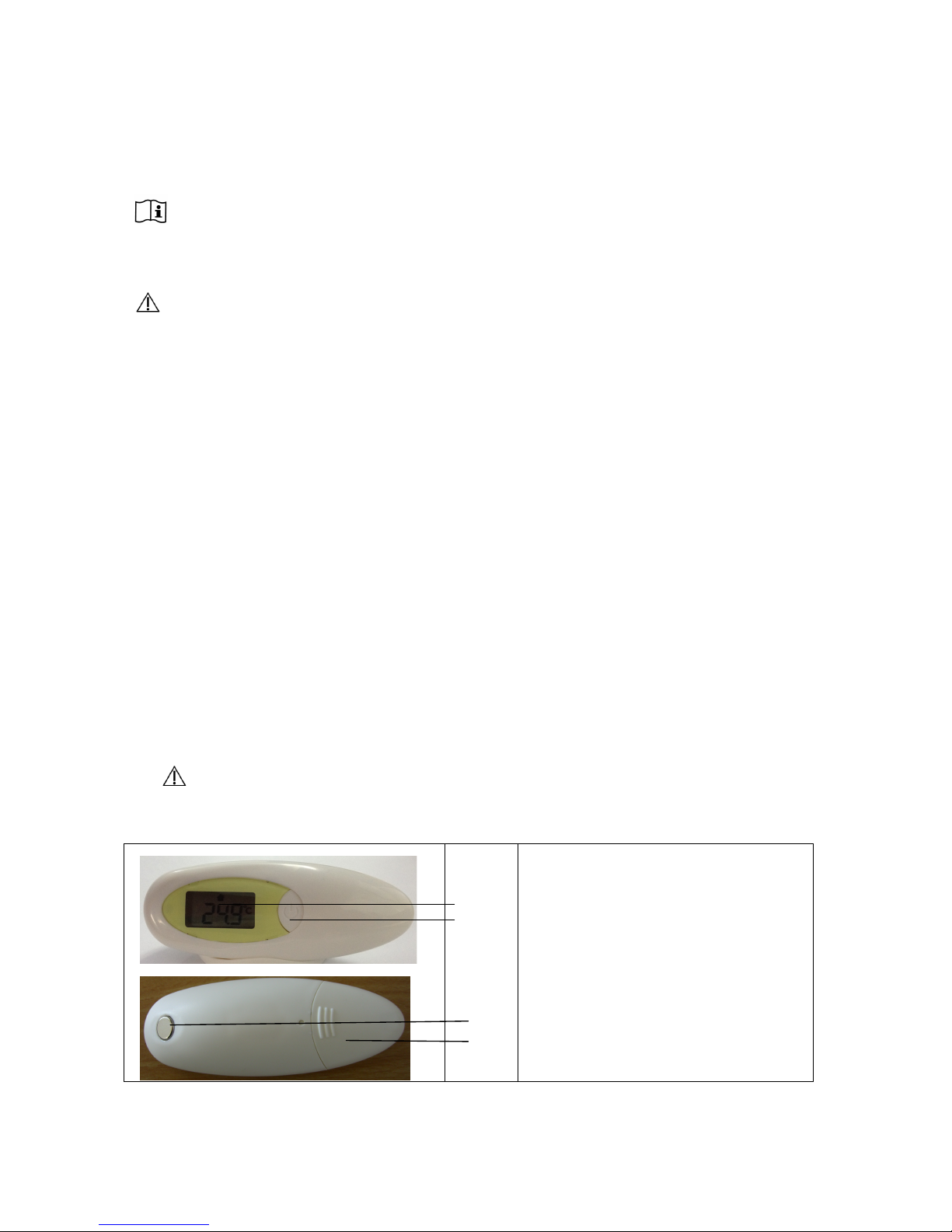

PRODUCT DESCRIPTION
1
2
3
4
1. LCD Screen
2. On/off button
3. Sensor
4. Battery Cover

3/11
TECHNICAL SPECIFICATIONS
Measurement time:
5 seconds
Measurement location:
The area between the end of eyebrow and the hairline
Measurement range:
35.0°C ~ 43.0°C
Accuracy:
±0.2°C – 35.0°C ~ 35.4°C
±0.1°C – 35.5°C ~ 42.0°C
±0.2°C – 42.1°C ~ 43.0°C
Display unit:
0.1°C
Storage (transport)
condition:
-25°C ~ 55°C (-13°F ~ 131°F ) / 30% - 85% RH /
700 – 1060hpa
Operation condition:
15°C ~ 35°C (59°F ~ 95°F ) / 10% – 95% RH / 700 –
1060hpa
Battery:
One Lithium CR2032 battery (3V)
Battery life:
1,000 measurements approximately (under normal use)
Weight:
Approx. 25 grams including battery
Dimensions:
93.65 mm (L) x 34.75 mm (W) X 24.85 mm(T)
Memory:
Last reading display when turn on
Applied part:
type BF (sensor)
Degree of protection
from liquid and solid
particle:
IP 22
The thermometer is not waterproof.
Note 1: The thermometer is an adjusted mode clinical thermometer
Note 2: This thermometer converts the forehead temperature to display its “oral
equivalent”.
°C / °F SWITCH
To switch between ℃and ℉, press and keep pressing the on/off button for 5 seconds
when power off, then the LCD screen will show the default unit. Press the button again
to switch to the opposite unit.
MEASURING GUIDELINES
1. Measurement location is the area between the end of eyebrow and the hairline.
2. Do not place the thermometer on scarred tissue compromised by skin disorder,
open sores or abrasions and patients in trauma.
3. Temperature readings are affected by many factors including exercise and drinking
prior to taking a reading.
4. Consult your physician when using drug therapies that may raise the local skin
temperature in the forehead; this may lead to incorrect reading.

4/11
5. If the thermometer has been stored at a cold temperature, allow the unit to warm
naturally to room temperature before using.
6. Performance of the device may be degraded if operated or stored outside stated
temperature and humidity ranges.
OPERATION
Before measuring:
1. Sweat will affect the reading result on the forehead, so please make sure your
forehead is clean before measurement.
2. Move the hair aside from the measurement location and apply the probe to the bare
skin.
Taking temperature
1. Press on/off button to turn on the unit.
2. The LCD window will display full segments for approx.. 1 second.
3. Then, the last measured value will be shown on the LCD screen with “M” icon
(memory).
4. Finally, you will see “Ok” on the LCD screen, it means the thermometer is ready for
measurement.
5. Place the probe sensor in the area between the end of eyebrow and the hairline.
6. Gently press and hold it against the measurement location to ensure good contact
with the skin is maintained.
Correct placing and good contact with the skin ensure reliable readouts.
Make sure the thermometer and the patient do not move while measurement
is in progress.
7. When you will hear a long beeping sound, it means the measurement is finished.
8. Remove the probe sensor and the LCD screen will display the measured value.
9. If the measured value is over 37.8℃(100 ℉), six consecutive beeps will be heard
to indicate fever alarm.
10.For re-measurement, please wait until you see ” Ok” on the LCD screen.
11.After measurement, if no button is pressed, the thermometer will enter standby
mode after 1 minute. Under this mode, current room temperature and the icon
“ ” will be shown on the LCD screen. If you want to switch to Forehead mode,
please press on/off button again.
12.To turn off the thermometer under any mode, press the on/off button.
Do not make any measurement until you see “Ok” on the LCD screen. If you
measure the body temperature before seeing “Ok” on the LCD screen, the
thermometer won’t detect the temperature.

5/11
Make sure that the probe completely touches the skin as below.
For all types of thermometers, slight temperature variations can happen. Therefore,
it is recommended to take several readings (removing the thermometer from the
forehead between each measurement) and take the highest one into account.
BATTERY REPLACEMENT
When the battery symbol “ ” is displayed on the LCD screen, please
replace the battery and follow the instructions below.
Steps
Drawings
Instructions
1
Gently press the top of the battery cover so as to release the
battery cover.
2
Slide back the battery cover.
3
Take the battery out. When placing a new battery, please make
sure the polarity of battery (“+” is upward) is correct.
4
Place the battery cover on the top of battery compartment.
5
Replace the battery cover.
Do not recharge the battery.
Do not swallow the battery which may be fatal.
Do not dispose of the battery in fire as it may explode.
Do not attempt to disassemble the unit except battery replacement.
It is recommended to remove the battery from the thermometer when it is not used
for some time.
TROUBLESHOOTING

6/11
Error signals
Problems & Solutions
Q: If the temperature is more than 43℃/109.4°F, the LCD displays “Hi”.
A: Recheck the measured object before measuring.
Q: If the temperature is below 35°C/95°F the LCD will keep displaying
“Lo”.
A: Recheck the measured object before measuring.
Q: Informing battery replacement time.
A: Replace the battery.
Err 1
Q: Operation temperature is out of range.
A: Put the device at a place with normal room temperature (15°C
~35°C/59°F ~ 95°F) for, at least, 30 minutes before measuring.
Err 3
Q: If the thermometer has some problems and can’t measure
temperatures, the LCD will display “Err 3”.
A: Send the thermometer back to your retailer or the store you bought.
EXPLANATION OF LOT NUMBER
The date of manufacture is included in the LOT. The LOT has 5 numbers. The
first number means the year (0-9). The second number means the month (Jan. - Sep.:
1-9, Oct.: A, Nov.: B, Dec.: C). The third and fourth numbers mean the date (1-31). And
the last number means the batch of the month.
Example: LOT 95051
CLEANING/DISINFECTION AND MAINTENANCE
1. When continuous re-measurements are required, clean the sensor by medical
alcohol (75%), then wipe it with clean and dry cloth (medical cotton) before
each use.
2. After cleaning, wait at least 2 minutes before taking a measurement for the unit to
readjust to room temperature.
3. Use only a soft dry cloth to clean the body of the thermometer (if necessary). Never
use an abrasive cleanser or submerge the thermometer in water or other liquids.
3. Keep the product under normal room temperature (15°C ~ 35°C/59°F ~ 95°F).
4. We recommend to verify the accuracy by an authorized laboratory every 2 years.
month
batch of the month
year
date

7/11
DISPOSAL
1. Please dispose of the product and the battery separately.
2. The product and the battery should not be disposed of with household waste.
3. Please follow local waste / battery disposal regulations.
LIMITED WARRANTY
This thermometer is guaranteed for 2 years from the date of purchase against
Manufacturer's defect under normal use. If your unit does not function properly due to
defective parts or assembly, we will repair it free of charge. All parts are covered by this
warranty except the battery and damage to the unit due to improper handling.
APPLYING STANDARDS
1. MDD 93/42/EEC
2. EN 60601-1:2006 + AC:2010
3. EN 60601-1-2:2007
4. EN ISO 80601-2-56:2012
5. ASTM E1112:00
Symbol & Explanation
The CE mark and Notified
Body Registration Numbers,
the requirement of Annex V
article 3 from Medical Device
Directive 93/42/EEC are met.
Manufacturer
Warning
Authorized representative in the
European Community.
Consult instruction for use.
Type BF applied part
IP 22
A coding system to indicate
the degrees of protection
provided by an enclosure
against access to hazardous
parts, ingress of solid foreign
objects, ingress of water and
to give additional information
in connection with such
protection.
The unit should not be disposed
of with other household wastes
at the end of its working life.
LOT
Batch code (reference label
on the device)

8/11
Guidance and manufacturer’s declaration – electromagnetic
emissions
The FT7122 is intended for use in the electromagnetic environment specified below. The customer or the user
of the FT7122 should assure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment –
guidance
RF emissions
CISPR 11
Group 1
The FT7122 uses RF energy only for its
internal function. Therefore, its RF
emissions are very low and are not likely
to cause any interference in nearby
electronic equipment.
RF emissions
CISPR 11
Class B
The FT7122 is suitable for use in all
establishments, including domestic
establishments and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic purposes.
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
Guidance and manufacturer’s declaration – electromagnetic
immunity
The FT7122 is intended for use in the electromagnetic environment specified below. The customer or the user
of the FT7122 should assure that it is used in such an environment.
Immunity test
IEC 60601
test level
Compliance level
Electromagnetic
environment –
guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30 %.
Power
frequency
(50/60 Hz)
magnetic field
3 A/m
3 A/m
Power frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
environment.

9/11
IEC 61000-4-8
NOTE UTis the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration – electromagnetic
immunity
The FT7122 is intended for use in the electromagnetic environment specified below. The customer or the user of
the FT7122 should assure that it is used in such an environment.
Immunity
test
IEC 60601 test
level
Compliance
level
Electromagnetic environment –
guidance
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz to 2,5 GHz
3 V/m
Portable and mobile RF communications
equipment should be used no closer to any
part of the FT7122 including cables, than
the recommended separation distance
calculated from the equation applicable to
the frequency of the transmitter.
Recommended separation distance
d = 1,2
d = 1,2 80 MHz to 800 MHz
d = 2,3 800 MHz to 2,5 GHz
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in metres (m).
Field strengths from fixed RF transmitters,
as determined by an electromagnetic site
survey,a should be less than the compliance
level in each frequency range.b
Interference may occur in the vicinity of
equipment marked with the following
symbol:

10/11
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic
site survey should be considered. If the measured field strength in the location in which the FT7122 is used
exceeds the applicable RF compliance level above, the FT7122 should be observed to verify normal operation.
If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating
the FT7122.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

11/11
Recommended separation distances between
portable and mobile RF communications equipment and the FT7122
The FT7122 is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the FT7122 can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment (transmitters)
and the FT7122 as recommended below, according to the maximum output power of the communications
equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d = 1,2
80 MHz to 800 MHz
d = 1,2
800 MHz to 2,5 GHz
d = 2,3
0,01
0,12
0,12
0,23
0,1
0,38
0,38
0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the recommended separation distance
d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P
is the maximum output power rating of the transmitter in watts (W) according to the transmitter
manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
EXAMPLE 1 As indicated in Table 6 of IEC60601-1-2:2007 for ME EQUIPMENT, a
typical cell phone with a maximum output of 2 W yields d=3,3 m at an IMMUNITY
LEVEL of 3 V/m.
