Preface
This document is intended to assist the service technician in the operation, maintenance and repair of the Numark
device. Together with the User Reference Manual, this document provides a complete description of the
functionality and serviceability of the Device. Any comments or suggestions you may have pertaining to the
document are welcome and encouraged.
Read This!
In addition to any purchase price that Numark may charge as consideration for Numark selling or otherwise
transferring this service manual (“Manual”) to you, if you are not a service and repair facility (“Service Center”)
authorized by Numark in writing to be an authorized Service Center, Numark sells or transfers the Manual to you on
the following terms and conditions:
Only Service Centers authorized by Numark in writing are authorized to perform service and repairs covered by an
Numark warranty (if any), and transfer of the Manual to you does not authorize you to be an authorized Service
Center. Therefore, if you perform, or if the Manual is used to perform, any service or repairs on any Numark
product or part thereof, any and all warranties of Numark as to that product and any service contract with
Numark for that product shall be voided and shall no longer apply for such product, even if your services or
repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your responsibility, and Numark
shall have no liability for any such repairs or service work. All such service or repairs are performed at the sole
risk of the person performing the service or repairs. You agree that all such work will be performed in a
competent, professional and safe manner at all times and to indemnify and fully hold Numark and its successors
and assigns harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of resale or other
transfer.
As the owner of the copyright to the Manual, Numark does not give you the right to copy the Manual, and you agree
not to copy the Manual without the written authorization of Numark. Numark has no obligation to provide to you
any correction of, or supplement to, the Manual, or any new or superseding version thereof.
Numark shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in its sole
discretion. You shall not use, sell or otherwise transfer spare or replacement parts supplied by Numark to you (i) to
repair or be used in products manufactured for or by third parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Numark or the use thereof on
behalf of Numark or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you, and no other
terms shall apply unless in a writing signed by an authorized representative of Numark.
All Trademarks are property of their respective companies.

Confidential Numark Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO WATER OR
MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the enclosed product which may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the presence of
important operating, maintenance and servicing instructions in the literature which
accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED NUMARK SERVICE CENTER
WILL VOID THE NUMARK WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY
NUMARK DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR
SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED NUMARK SERVICE CENTER
SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND NUMARK SHALL HAVE NO LIABILITY
TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a replaceable fuse. Danger of
fire or electrocution if fuse is incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a internal battery. Danger of
explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.

Confidential Numark Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions before using this
product. Use extra care to follow the warnings written on the product itself and in the operating instructions. Keep
the operating instructions and safety suggestions for reference in the future.
1. Power Source. The product should only be connected to a power supply which is described either in the
operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to step on the
cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product’s AC power supply
cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any openings of the
product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or other heat
producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation. Improperly
ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer recommends. The
combination of the product and rack should be moved carefully. Quick movements, excessive force or uneven
surfaces may overturn the combination which may damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in the operating
instructions for the user. For any other service required, the product should be taken to an authorized service
center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain situations including
without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate normally, or
e. The enclosure of the product has been damaged.

SPECIFICATION
FUNCTION
1. UI Browser-----------------A standard detented encoder with push switch is used to navigate through the software
2. Master Volume------------Controls the gain of the master outputs.
3. Gain-------------------------This pot controls the gain for its associated channel on the mixer.
4. Treble-----------------------This knob controls the high end treble output of its associated channel on the mixer.
5. Mid--------------------------This knob controls the Mid-range frequency of its associated channel on the mixer.
6. Bass--------------------------This knob controls the low end bass frequencies of its associated channel on the mixer.
7. Filter-------------------------This center detented knob acts as a low pass filter from center sweeping left and a high pass
filter from center sweeping right.
8. Channel Fader--------------This is the volume controller for the channel. Channel faders are not user replaceable.
9. Cross Fader-----------------This fader is for transitioning from Left assigned (A) Cross fader Deck Position to Right
assigned (B) Cross fader Position.
10. Channel PFL--------------This button activates the Headphone CUE for its associated channel allowing users to preview
tracks in the Headphone CUE.
11. Software FX---------------These radio style buttons will allow the end-user to have instant access to choose a single
software effect.
12. FX Paddle On/Off--------This is used to activate software FX for the corresponding deck.
13. Software FX Wet/Dry----This knob Adjusts the Wet/Dry of all FX.
14. Beats Multiplier Knob---This pot determines the Time division associated with the selected effect.
15. Tap--------------------------This allows the end-user the ability to manually tap in the tempo of the software effects
engine. SHIFT + returns the tempo to the tracks default BPM.
16. DECK Selector------------This switch will select deck control and focus between decks 1 & 3 on the Left side and 2 & 4
on the right side.
17. Platter/Jog------------------This control sends Relative MIDI data when turned, and when the jog is touched sends a
separate momentary MIDI message.
18. Pitch Fader-----------------This control sends absolute MIDI data.
19. Pitch Bend “-”-------------This momentary button will temporarily increase the play back speed of the track allowing the
user to better align their mix.
Pitch Bend “+”------------This momentary button will temporarily increase the play back speed of the track allowing the
user to better align their mix.
SERVICE MANUAL
MODEL: MIXTRACKPLATINUMFX

20. Sync-----------------------This control sends a momentary MIDI message. This control is used to force the track to align
with the other deck’s tempo and phase. It is up to the software to either hard align or gently
nudge it into place, depending on the Smart or Simple Sync chosen from the settings. The LED
for this control will light when active.
21. Cue Gain------------------adjusts volume of headphone pot.
22. Cue Mix-------------------Selects Master or PFL outputs in the headphones.
23. Loop On/Off--------------Loop On/Off (Tact Switch w/ Amber LEDs) When pressed, activates autoloop on/off. Loop size i
is determined by what is set in the software.
24. ½ Loop--------------------When a loop is active this will decrease the loop size by ½.
When inactive changes the default trigger size.
25. 2x Loop-------------------When a loop is active this will double the loop size.
When off changes the default trigger size.
26. Shift------------------------this button will add/perform secondary functions when another button is pressed while still
holding.
This control will adjust the Input volume of the Microphone.
The Microphone GAIN is summed with the master output of the software.
AUDIO OUTPUT
LINE OUT
OUTPUT LEVEL-------------1.3±0.2Vms(1KHz 0dB)
S/N RATIO---------------------MORE THAN 80dB
CHANNEL SEPARATION--MORE THAN 80dB
HARMONIC DISTORTION-LESS THAN 0.03%
HEADPHONE OUT(Load:32Ω)
OUTPUT LEVEL--------------0.65±0.1Vms(1KHz 0dB)
S/N RATIO--------------------- MORE THAN 80dB
HARMONIC DISTORTION-LESS THAN 0.03%
MIC INPUT(Load:32)
OUTPUT LEVEL--------------1.4±0.2 Vms (1KHz 0dB)

DISASSEMBLY PROCEDURES
1. REMOVAL OF THE B CABINET .(Fig1)
(A) TAKE OUT THE 5 PCS VR CAP AND 17 PCS KNOB FROM OF CABINET.
(B) TAKE OUT THE 14 PCS SCREWS FROM OF BOTTOM CHASSIS.
Fig.1

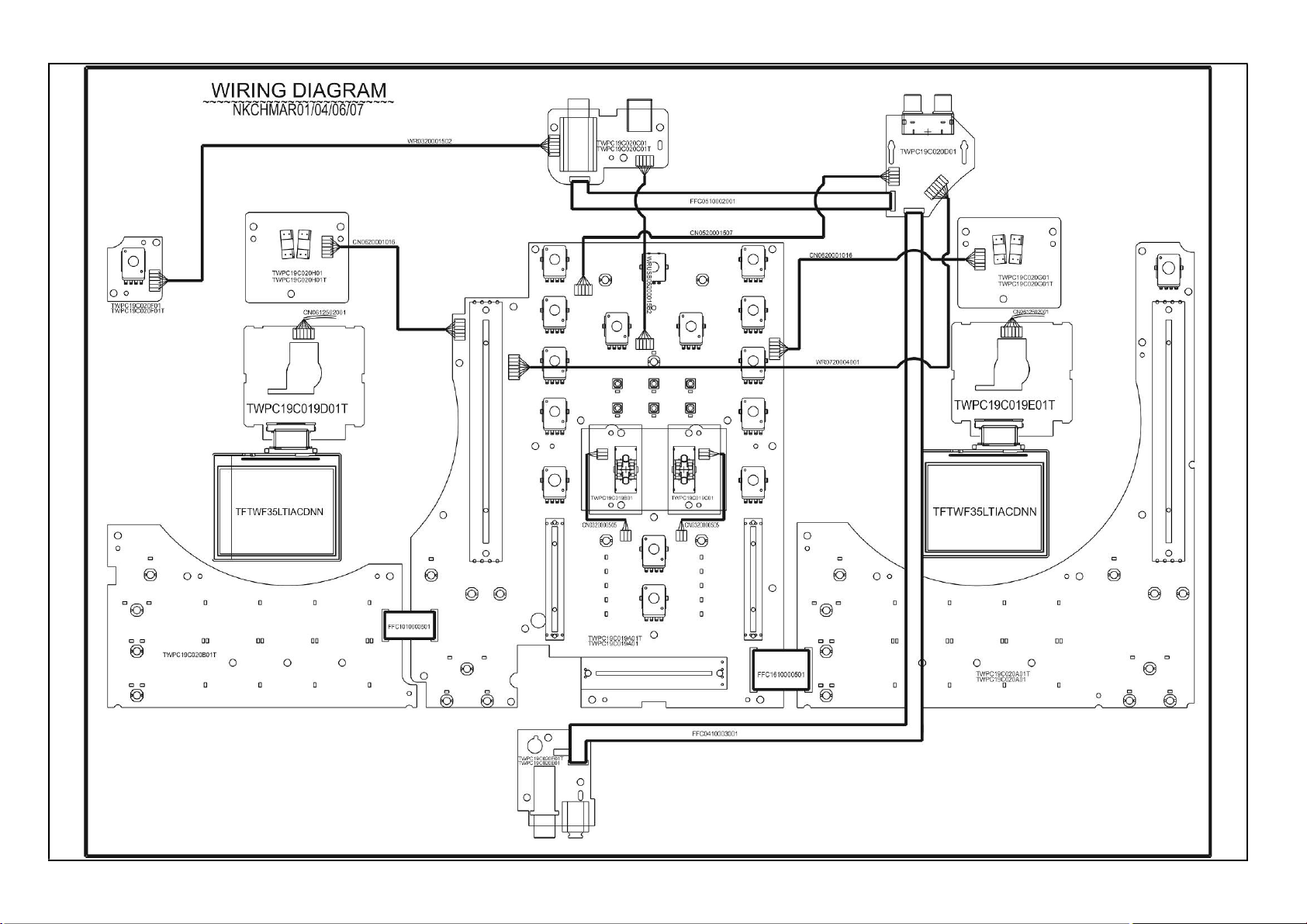

2. REMOVAL PCB ASSEMBLY. (Fig. 2)
(A)REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF TOGGLE SW PCB DIP ASSEMBLY.
(B)REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF IC VR PCB DIP ASSEMBLY.
(C)REMOVE THE 6 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF LEFT& RIGHT SENSOR PCB SMT
ASSEMBLY.
(D) REMOVE THE 16 PCS SCREWS AND 5 PCS CONNECTORS BEFORE REMOVAL OF MAIN PCB SMT ASSEMBLY.
(E) REMOVE THE 6 PCS SCREWS BEFORE REMOVAL OF LEFT PAD PCB SMT ASSEMBLY.
(F) REMOVE THE 11 PCS SCREWS BEFORE REMOVAL OF RIGHT PAD PCB SMT ASSEMBLY.
Fig.2

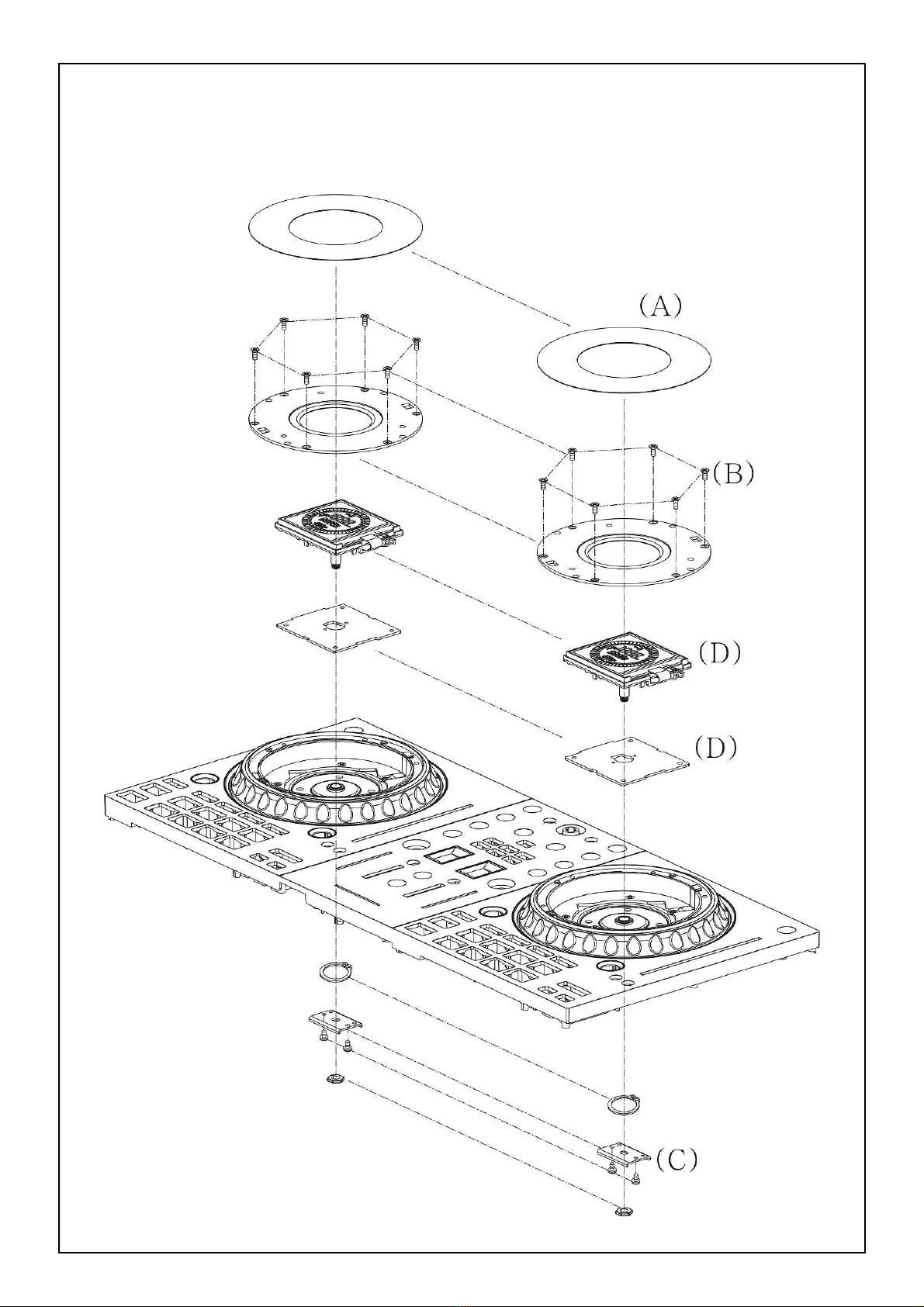

3. REMOVAL OF 3.5 INCH PCB ASSEMBLY. (Fig.3)
(A) TAKE APART THE 2 PCS WHEEL PLATE.
(B) REMOVE THE 12 PCS SCREWS BEFORE REMOVAL OF WHEEL FIXED HOLDER.
(C) REMOVE 2 PCS NUT(M16) AND 4 PCS SCREWS AND 2 PCS C RING BEFORE REMOVAL OF TFT
HOLDER.
(D) TAKE APART THE 2 PCS TFT HOLDER BEFORE REMOVAL OF 3.5 INCH PCB ASSEMBLY.
Fig.3

LEVEL P/N DESCRIPTION QTY REF
0.1 AL9-44-0016 LCD VO6760A-KVW-OW 6O'clock(2 inch) 2 15
0.1 BAGL-55A CABLE CLIP 55L 2 77
0.1 CA040218002 Usb Cable 1.8M A/B Black 1
0.1 CN0320000505 Flat Cable 3Pin Pitch 2.0mm Single Row Length 50mm 2 60
0.1 CN0520001507 Flat Cable 5Pin Pitch:2.0mm Length 150mm 1
0.1 CN0612502001 Flat Cable 6Pin Pitch 1.25mm Single Row Length:200mm 2 61
0.1 CN0620001016 Flat Cable 6Pin Pitch 2.0mm Single Row Length 100mm 2 62
0.1 FFC0410003001 FFC 4PIN PITCH:1.0MM LENGTH:300mm 1
0.1 FFC0510002001 FFC 5PIN PITCH:1.0MM LENGTH:200mm 1
0.1 FFC1010000501
FFC 10Pin Pitch
：
1.0mm Length
：
50mm
1 63
0.1 FFC1610000501 FFC 16Pin Pitch:1.0mm Length:50mm 1 64
0.1 LAC22MAR1122 Serial Number Label 1 68
0.1 LAC53MAR1102 Warning Label 1 69
0.1 LAC62MAR1123 Bar Code Label(CODE 39) 0.5
0.1 LAC62MAR1124 Bar Code Label(GTIN-14) 0.5
0.1 LAC67MAR1090 Label 4 16
0.1 LAC67MAR1126 LABEL 1 79
0.1 LAC67MAR1127 LABEL 1 80
0.1 LAC67MAR681 Label(Circle Limpid) 2
0.1 LAC67YAH261 Label f8mm Green 0.5
0.1 MT11018108 Ground Plate 2 34
0.1 MT11018112 Ground Plate 1 78
0.1 MT1101891 Ground Plate 2 22
0.1 MT11044195 Fixed Plate 2 57
0.1 MT1105552 Copper 2 33
0.1 NM1106115 Velvet Carpet 2 36
0.1 NM1106138 Velvet Carpet 2 52
0.1 NP211MAR259 Display Plate 2 9
0.1 NP211MAR260 Wheel Plate 2 10
0.1 NUT01060IIP Nut 2 58
0.1 PNKCHMAR01/06 Pack Assembly 1
..2 CGNKCH310MAR01 Inner Box 1
..2 CTNKCH513MAR01 Carton 0.5
..2 GEMAR118 Down Load Card 1
..2 LAC67MAR1093 LOGO Label(Numark) 1
..2 OPNK14MAR13 Saety Manual(1372-H) 1
..2 OPNKCHMAR01 Instruction Book 1
..2 PE230370404B09A Pe Bag 8.8
..2 PLNKCH01 Poly Foam(Let) 1
..2 PLNKCH02 Poly Foam(Right) 1
..2 SD630330024B09 Sotsheet 1
0.1 PNKCHMAR04 Pack Assembly 1
..2 CGNKCH310MAR01 Inner Box 1
..2 CTNKCH513MAR01 Carton 0.5
..2 GEMAR118 Down Load Card 1
..2 LAC67MAR1093 LOGO Label(Numark) 1
..2 OPNKCHMAR01 Instruction Book 1
..2 PE230370404B09A Pe Bag 8.8
..2 PLNKCH01 Poly Foam(Let) 1
..2 PLNKCH02 Poly Foam(Right) 1
..2 SD630330024B09 Sotsheet 1
0.1 PNKCHMAR07 Pack Assembly 1
..2 CGNKCH310MAR01 Inner Box 1
..2 CTNKCH513MAR01 Carton 0.5
..2 GEMAR118 Down Load Card 1
..2 LAC67MAR1093 LOGO Label(Numark) 1
..2 OPNKCHMAR03 Instruction Book(JP) 1
..2 PE230370404B09A Pe Bag 8.8
..2 PLNKCH01 Poly Foam(Let) 1
..2 PLNKCH02 Poly Foam(Right) 1
NKCHMAR01/04/06/07 BOM

..2 SD630330024B09 Sotsheet 1
0.1 PT1110631623 Button(Phone)(Printing) 2 49
..2 PT11106316 Button 2
0.1 PT1110644302 Button(+,-)(Printing) 2 41
..2 PT11106443 Button (two Button) 2
0.1 PT1110649601 KNOB (Painting) 1 1
..2 PT11106496 Knob(LRG) 1
0.1 PT11106555 Light Pipe(5) 2 51
0.1 PT1110657403 Button Assembly(SATIN) 2 38
0.1 PT1110658504 Button(SHIFT) Printing 2 37
..2 PT11106585 Button 2
0.1 PT1110659301 KNOB (Painting) 1 4
..2 PT11106593 Knob(MED) 1
0.1 PT11106603 Knob 7 2
0.1 PT1110666906 Button(LOOP)(Printing) 2 44
..2 PT11106669 Button 2
0.1 PT1110669502 Wheel Lamp(Painting) 2 14
..2 TWPT11106695 Wheel Lamp Ass'y 2
0.1 PT1110673302 Rotate Button(Painting) 2 53
..2 PT11106733 ROTATE BUTTON 2
0.1 PT11106772 Knob (Cool GRAY 10C) 6 5
0.1 PT11106773 VR Knob 2 6
0.1 PT1110677701 Button (L) Printing 1 45
..2 PT11106777 Button 1
0.1 PT1110677702 Button (R) Printing 1 46
..2 PT11106777 Button 1
0.1 PT1110710501 Wheel Frame(Painting) 2 13
..2 TWPT11107105 Wheel Frame Ass'y 2
0.1 PT1110801 Wheel Base 2 24
0.1 PT1130210701 Cabinet-Printing(Painting) 1 35
..2 PT11302107 Cabinet 1
...3 ABS5000 ABS MATERIAL 567
...3 CM-003-MG power *340.000
0.1 PT1130313101 Bottom Chassis(Printing) 1 28
..2 PT11303131 Bottom Chassis 1
...3 ABS5000 ABS MATERIAL 515
...3 CM-003-MG power *300.000
0.1 PU005005025A Conductive Foam 2 20
0.1 PU008008008 CONDUCTIVE FOAM 1 50
0.1 PU008008012 Canductive oam 1 81
0.1 RN4100001 CS Ring(10mm) 2 56
0.1 RU1110620303 Rubber Button(FX) 1 48
0.1 RU1110621301 Rubber (PAD)(Printing) 2 39
0.1 RU1530608 Rubber Foot 6 31
0.1 SC0308FBBI Screw M3X8 PFB Tapping 13 11
0.1 SC0308FIBI Screw M3X8 PFB 8 23
0.1 SC0308RBNI Screw M3X8 PRN Tapping 52 26
0.1 SC0310PBBI Screw M3X10 PPB TAPPING 14 30
0.1 SC2604RINI Screw M2.6X4 PPN 2 21
0.1 TWMT112025302 Wheel Axis Assembly 2 25
..2 MT1105591 Wheel Axis 2
..2 MT1105593 Copper 2
..2 MT1120253 Metal Plate(Wheel) 2
0.1 TWPT11044322 LCD Fixed Holder Ass'y 2 17
0.1 TWPT1110649802 Knob(18.0mm)Assembly 2 7
..2 PT11106498 Knob(18.0mm) 2
..2 PT11106499 Decoretive(18.0mm) 2
..2 PT1130030 Knob Plate(18.0MM)(Black) 2
0.1 WR0320001502 Shielding Cable 3pin Single Row pitch 2.0mm Length 150mm 1 65
0.1 WR0720004001 Isolation Cable 7Pin Single Row Pitch 2.0mm Length 400mm 1 66
0.1 WRUSB05200015B2
Shielding Cable USB 2.0 5Pin Single Row Pitch 2.0mm Length 150mm
1 67
0.1 WS116010305O Washer 2 32

0.1 TWPC19C01901 Main PCB Assembly 1
..2 TWPC19C01901T Main PCB SMT Integration Assem 1
...3 PC19C019 Main PCB 1
...3 TWPC19C019A01T Main PCB SMT Assembly 1 72
....4 AA822524X IC SN74HC165PW 3 IC16,18,20
....4 AL2-51-4403 TRANSISTOR 2N4403 PNP 1 Q2
....4 AL2-75-4344 IC CS4344-CZZ 24bit 192KHz Ste 2 IC9,11
....4 AL2-85-0403 IC TPS60403 1 IC7
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 16 C20,21,22,23,25,26,28,29,30,31,42,43,50
,111,116,121
....4 CS103K5003X7R CCAP SMD 0.01uF/50V 10% 0603 X7R 4 C2,15,32,33
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 49
C3,4,6,7,8,9,10,12,13,16,19,27,36,44,45,
49,58,67,73,83,84,85,86,87,88,89,91,92,9
3,94,95,96,97,98,99,101,102,103,104,105
,106,107,108,109,113,114,118,119,123
....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 11 C1,5,11,24,35,38,39,40,41,48,64
....4 CS106K1606X5R CCAP SMD 10UF/16V 10% 1206 X5R 4 C14,82,90,100
....4 CS300J5003NPO CCAP SMD 30pF/50V 5% 0603 NPO 2 C17,18
....4 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 4 C34,37,46,47
....4 CS561J5003NPO CCAP SMD 560pF/50V 5% 0603 NPO 3 C112,117,122
....4 DICM1213A01SO Diode ESD Protection Arrays CM1213A 4 D3,4,5,6
....4 ECS10616B Capacitor Electrolytic 10uF/16V B type SMD 4 EC7,8,11,12
....4 ECS22616B Capacitor Electrolytic 22uF/16V B type SMD 1 EC1
....4 ECS22716D8LE ECAP LOW ESR 220uF/16V 6.3x7.7mm SMD 4 EC5,6,15,16
....4 ECS47606B ECAP 47uF/6.3V 4*5.3mm SMD 1 EC2
....4 FCN1T1001001 FCN Down Touch Pitch 1.0mm 90° 10Pin 1 FCN2
....4 FCN1T1001602 FCN Down Touch ZIF SMD Pitch=1.0mm 16P 1 FCN1
....4 IC74AHC1G14DBVR IC 74AHC1G14DBVR 1 IC21
....4 IC74HC4051PW IC 74HC4051 SINGLE 8-CHAN MUX 3 IC12,13,14
....4 IC74HCT595D IC 74HCT595D 3 IC15,17,19
....4 ICLP2985-40DBV IC LP2985-40DBV 1 IC8
....4 ICTLV1117LV33 IC TLV1117LV33DCYR 1 IC1
....4 ICXC6209F452MR IC XC6209F452MR 1 IC5
....4 ICYH108C02 IC YH108C02(STM32F411RCT6+Program) 1 IC2
.....5 ICSTM32F411RCT6 IC STM32F411RCT6 1 -
....4 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 0603 120° 22 LED1,2,3,4,5,6,7,8,9,11,12,13,14,16,17,1
8,19,20,21,22,23,24
....4 LDL-S291SWC-ML5 LED White SMD 0603 120° 2 LED10,15
....4 RS000010J03 RESISTOR 0 5% SMD 0603 9 R4,5,6,9,11,106,111,112,114
....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 2 R103,108
....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 4 R17,107,113,115
....4 RS003310F03 RESISTOR 33 1% SMD 0603 41
R19,20,21,22,23,24,25,27,28,30,31,33,35
,36,40,41,42,43,44,45,46,47,48,49,50,51,
52,53,54,55,56,57,127,131,133,139,142,1
52,159,162,164
....4 RS004716F02 RESISTOR 47 1% SMD 0402 2 R16,18
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 30
R1,2,3,14,15,37,38,58,66,117,118,119,12
0,121,122,123,124,144,145,146,147,148,
149,150,151,167,168,169,170,171
....4 RS015010F03 RESISTOR 150 1% SMD 0603 4 R104,105,109,110
....4 RS01K210F03 RESISTOR 1.2K 1% SMD 0603 18 R116,135,136,137,138,140,141,143,153,
154,156,157,158,160,161,163,165,166
....4 RS033010F03 RESISTOR 330 1% SMD 0603 6 R125,126,128,130,132,134
....4 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 1 R69
....4 RS04R704F06 RESISTOR 4.7 1% SMD 1206 2 R59,65
....4 RS086610F03 RESISTOR 866 1% SMD 0603 3 R7,8,10
....4 RS47K510F03 RESISTOR 47.5K 1% SMD 0603 2 R12,13
....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 4 R129,155,172,173
....4 SWEVQ11L05R Switch Tact 5mm 160g Horizonta DIP 11 SW1,2,3,10,11,12,13,14,15,16,17
....4 SWEVQPLHA15 Switch Tact Stem Height:1.5mm SMD 6 SW4,5,6,7,8,9
....4 TE591271001 Pin Header 180° Pitch:1.27mm Dual Row 5Pin*2 SMD 1 (TE1)
....4 TRDMP3099L MOSFET DMP3099L P-CHAN 30V 3.8A 1 Q1

....4 UH160808T-600Y BEAD 60 @100MHz 3A ±25% 0603 19 L2,3,4,5,6,7,8,9,10,11,15,16,17,18,19,20,
21,22,23
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 4 L1,12,13,14
....4 XTM24000X8 Crystal 24MHz 3.2*2.5*1.0MM SMD 1 XTM1
...3 TWPC19C019D01T Left LCD PCB SMT Assembly 1 18
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C2,4,5,7
....4 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 1 C9
....4 CS105K5003X5R CCAP SMD 1uF 10% 50V 0603 X5R 2 C1,8
....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 2 C3,6
....4 FCN1T1001001 FCN Down Touch Pitch 1.0mm 90° 10Pin 1 FCN1
....4 RS000010J03 RESISTOR 0 5% SMD 0603 1 R6
....4 RS002004F06 RESISTOR 20 1% SMD 1206 1 R1
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R7
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 2 R4,5
....4 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 2 R2,3
....4 TE681250201 Box Header 90° 1.25mm Single Ron 2Pin SMD 1 (TE2)
....4 TE681250601 Box Header 90° 1.25mm Single Ron 6Pin SMD 1 (TE1)
....4 UH160808T-601Y CAPACITOR 2 L1,2
...3 TWPC19C019E01T Right LCD PCB SMT Assembly 1 19
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7 4 C11,13,14,16
....4 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7 1 C18
....4 CS105K5003X5R CCAP SMD 1uF 10% 50V 0603 X5R 2 C10,17
....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 2 C12,15
....4 FCN1T1001001 FCN Down Touch Pitch 1.0mm 90 1 FCN2
....4 RS000010J03 RES 0 5% SMD 0603 2 R14,16
....4 RS002004F06 RES 20 1% SMD 1206 1 R9
....4 RS010010F03 RES 100 1% SMD 0603 1 R15
....4 RS010K10F03 RES 10K 1% SMD 0603 1 R12
....4 RS04K710F03 RES 4.7K 1% SMD 0603 2 R10,11
....4 TE681250201 Box Header 90° 1.25mm Single 1 (TE4)
....4 TE681250601 Box Header 90° 1.25mm Single 1 (TE3)
....4 UH160808T-601Y CAPACITOR 2 L3,4
..2 TWPC19C019A01 Main PCB DIP Assembly 1 72
...3 SWDC11B2020469 Switch Rotational Encode 20Pulse Total Length 25mm 1 ENC2
...3 SWDC11B2021431 Switch Rotational Encode 20Pulse Push 18.8mm 1 ENC1
...3 TE10200502 Connector (5P Socket)180° 2 (TE3,6)
...3 TE10200601 Connector in Header 180° Pitch:2.00mm Single Row 6P DIP 2 (TE2,4)
...3 TE10200702 Connector R(7P Socket 90° 2.0mm) 1 (TE5)
...3 TE612000301 Pin Header 180° Pitch:2.00mm Single Row 2 (TE9,11)
...3 VRR10301701 VARIABLE 10KB 5 VR1,2,3,4,5
...3 VRR10301704 Poltertiomaeter Rotary Volume 10K2B Shat 17.5mm 8 VR6,7,8,9,10,11,13,14
...3 VRS10304518 Potentiometer Slide 10K Travel 45mm 1 VR12
...3 VRS10304525 Potentiometer Slide 10K2B Trav 2 VR15,16
...3 VRS10310013
Potentiometer Rotary Valume 10KB Shat Length 100mm
1 VR17
..2 TWPC19C019B01 Toggle SW PCB DIP Assembly (Left) 1 54
...3 SWLBCR23M-095A Switch Toggle dual Row 3Pulse 1 SW19
...3 TE622000302 Pin Header 90° Pitch:2.00mm Single Row 1 (TE10)
..2 TWPC19C019C01 Toggle SW PCB DIP Assembly (Right) 1 55
...3 SWLBCR23M-095A Switch Toggle dual Row 3Pulse 1 SW18
...3 TE622000302 Pin Header 90° Pitch:2.00mm 3P DIP 1 (TE8)
0.1 TWPC19C02001 Function PCB Integration Asse 1
..2 TWPC19C02001T Function PCB SMT Integration A 1
...3 PC19C020 Function PCB 1
...3 TWPC19C020A01T Right PAD PCB SMT Assembly 1 73
....4 AA822524X IC SN74HC165PW 3 IC2,4,6
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 3 C4,9,14
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 9 C1,2,6,7,11,12,15,16,19

....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 2 C18,20
....4 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 1 C17
....4 CS561J5003NPO CCAP SMD 560pF/50V 5% 0603 NPO 2 C5,10
....4 DICM1213A01SO Diode ESD Protection Arrays CM1213A 1 D1
....4 FCN1T1001602 FCN Down Touch ZIF SMD Pitch=1.0mm 16P 1 FCN1
....4 IC74HCT595D IC 74HCT595D 3 IC1,3,5
....4 ICXC6209F452MR IC XC6209F452MR 1 IC7
....4 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 0603 120° 21 LED1,2,3,4,7,8,9,10,11,12,13,14,15,16,17
,18,19,20,21,22,23
....4 LDLTST-C193TGKT
Liquid-emitting Diode Green SMD 0603 angle 130°
2 LED5,6
....4 RS003310F03 RESISTOR 33 1% SMD 0603 9 R16,19,21,34,37,40,47,49,50
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 22 R1,2,3,4,5,6,7,8,26,27,28,29,30,31,32,33,
51,52,53,54,55,56
....4 RS01K210F03 RESISTOR 1.2K 1% SMD 0603 11 R9,10,11,13,14,15,43,44,45,46,48
....4 RS033010F03 RESISTOR 330 1% SMD 0603 12 R17,18,20,22,23,24,25,35,36,38,41,42
....4 RS04R704F06 RESISTOR 4.7 1% SMD 1206 1 R58
....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 3 R12,39,57
....4 SWEVQ11L05R Switch Tact 5mm 160g Horizonta DIP 10 SW13,14,15,16,17,18,19,20,21,22
....4 UH160808T-600Y BEAD 60 @100MHz 3A ±25% 0603 5 L1,2,3,4,5
...3 TWPC19C020B01T Left PAD PCB SMT Assembly 1 71
....4 AA822524X IC SN74HC165PW 2 IC101,103
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 2 C103,108
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 6 C100,101,105,106,109,112
....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 2 C111,113
....4 CS475K1605X5R CCAP SMD 4.7uF/16V 10% 0805 X5R 1 C110
....4 CS561J5003NPO CCAP SMD 560pF/50V 5% 0603 NPO 1 C104
....4 ECS22716D8LE ECAP LOW ESR 220uF/16V 6.3x7.7mm SMD 2 EC100,101
....4 FCN1T1001001 FCN Down Touch Pitch 1.0mm 90° 10Pin 1 FCN100
....4 IC74AHC1G14DBVR IC 74AHC1G14DBVR 1 IC104
....4 IC74HCT595D IC 74HCT595D 2 IC100,102
....4 ICXC6209F452MR IC XC6209F452MR 1 IC105
....4 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 0603 120° 16 LED100,101,102,103,106,107,108,109,11
0,111,112,113,114,115,116,117
....4 LDLTST-C193TGKT
Liquid-emitting Diode Green SMD 0603 angle 130°
2 LED104,105
....4 RS003310F03 RESISTOR 33 1% SMD 0603 6 R115,118,120,125,136,138
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 16 R100,101,102,103,104,105,106,107,127,
128,129,130,131,132,133,134
....4 RS01K210F03 RESISTOR 1.2K 1% SMD 0603 6 R108,109,110,111,113,114
....4 RS033010F03 RESISTOR 330 1% SMD 0603 12 R116,117,119,121,122,123,124,126,135,
137,139,140
....4 RS04R704F06 RESISTOR 4.7 1% SMD 1206 1 R143
....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 3 R112,141,142
....4 SWEVQ11L05R Switch Tact 5mm 160g Horizonta DIP 4 SW112,113,114,115
....4 UH160808T-600Y BEAD 60 @100MHz 3A ±25% 0603 4 L100,101,102,103
...3 TWPC19C020C01T USB PCB SMT Assembly 1 27
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 4 C203,206,207,208
....4 CS102K5003X7R CCAP SMD 1nF/50V 10% 0603 X7R 2 C205,209
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 2 C200,201
....4 CS225K1605X7R CCAP SMD 2.2uF/16V 10% 0805 X7R 2 C202,204
....4 DITVSNUP2201SM Transient Voltage Suppressol Diode 1 D200
....4 ECS10616B Capacitor Electrolytic 10uF/16V B type SMD 3 EC200,201,202
....4 FCN2T1000501
FCN Dual Touch 180° SMD Pitch=1.0mm 5P
1 FCN200
....4 ICNJM-2114M IC Dual OPA NJM-2114M 1 IC200
....4 RS000110F03 RESISTOR 1 1% SMD 0603 2 R201,203
....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R200
....4 RS002716F02 RESISTOR 27 1% SMD 0402 2 R210,211
....4 RS002K10F03 RESISTOR 2K 1% SMD 0603 3 R204,206,209
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R207
....4 RS056010F03 RESISTOR 560 1% SMD 0603 2 R205,208

....4 RS510K10F03 RESISTOR 510K 1% SMD 0603 1 R202
....4 TE6A2000502 Pin Header 90° Pitch 2.0mm Single Row 5Pin SMD 1 (TE200)
...3 TWPC19C020D01T RCA PCB SMT Assembly 1
....4 AL2-51-4403 TRANSISTOR 2N4403 PNP 1 Q302
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 5 C302,303,304,305,306
....4 CS105K1603X7R CCAP SMD 1uF/16V 10% 0603 X7R 6 C313,319,320,322,323,325
....4 CS106K1605X5R CCAP SMD 10uF/16V 10% 0805 X5R 5 C309,312,324,333,336
....4 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 4 C315,316,328,329
....4 CS225K1603X5R CCAP SMD 2.2uF/16V 10% 0603 X5R 3 C326,330,332
....4 CS331J5003X7R CCAP SMD 330pF/50V 5% 0603 X7R 4 C310,311,334,335
....4 CS471J5003NPO CCAP SMD 470pF/50V 5% 0603 NPO 1 C318
....4 DIEN1N4148WSM HF Diode 1N4148 SOD123 SMD 2 D300,301
....4 ECS10616B Capacitor Electrolytic 10uF/16V B type SMD 1 EC300
....4 ECS22716D8LE ECAP LOW ESR 220uF/16V 6.3x7.7mm SMD 1 EC301
....4 FCN2T1000402 FCN Dual Touch 180° SMD Pitch=1.0mm 4P 1 FCN301
....4 FCN2T1000501 FCN Dual Touch 180° SMD Pitch=1.0mm 5P 1 FCN300
....4 ICDRV604PWP IC DRV604PWP 1 IC301
....4 ICNJM-2114M IC Dual OPA NJM-2114M 1 IC300
....4 RS000010J03 RESISTOR 0 5% SMD 0603 1 R311
....4 RS000110F03 RESISTOR 1 1% SMD 0603 3 R330,332,335
....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 4 R304,309,315,331
....4 RS010010F03 RESISTOR 100 1% SMD 0603 2 R302,307
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 9 R300,301,306,308,313,319,327,328,329
....4 RS011K10F03 RESISTOR 11K 1% SMD 0603 4 R320,321,338,339
....4 RS018K10F03 RESISTOR 18K 1% SMD 0603 4 R324,325,333,334
....4 RS022K10F03 RESISTOR 22K 1% SMD 0603 1 R326
....4 RS02K410F03 RESISTOR 2.4K 1% SMD 0603 2 R303,305
....4 RS033K10F03 RESISTOR 33K 1% SMD 0603 4 R322,323,336,337
....4 RS100K10F03 RESISTOR 100K 1% SMD 0603 2 R310,312
....4 TE6A2000502 Pin Header 90° Pitch 2.0mm Single Row 5Pin SMD 1 (TE301)
....4 TE6A2000702 Pin Header 90° Pitch 2.0mm Single Row 7Pin SMD 1 (TE300)
....4 TR2SD2114KSM TRANSISTOR 2SD2114K NPN 4 Q300,301,303,306
...3 TWPC19C020E01T HP PCB SMT Assembly 1
....4 CS101J5005NPO HF CCAP SMD 100pF/50V 5% 0805 NPO 2 C400,401
....4 FCN2T1000402
FCN Dual Touch 180° SMD Pitch=1.0mm 4P
1 FCN400
....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 2 R402,403
....4 RS003308F05 RESISTOR 33 1% SMD 0805 2 R400,401
....4 TR2SD2114KSM TRANASISTOR 2SD2114K NPN 2 Q400,401
...3 TWPC19C020G01T Right Sensor PCB SMT Assembly 1 75
....4 AA822748X Diode BAV99 1 D602
....4 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q600,602
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C600,601,603,604
....4 DIEN1N4148WSM HF Diode 1N4148 1 D600
....4 DIENMMBD4148SE Diode Single MMBD4148SE 100V 200mA 1 D601
....4 IC74LVC2G17DBV IC 74LVC2G17DBV 1 IC600
....4 ICLM393DR IC OPA LM393DR 1 IC601
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 5 R601,603,607,608,612
....4 RS033210F03 RESISTOR 332 1% SMD 0603 2 R606,611
....4 RS056010F03 RESISTOR 560 1% SMD 0603 2 R604,609
....4 RS12K110F03 RESISTOR 12K1 1% SMD 0603 1 R600
....4 RS22K110F03 RESISTOR 22.1K 1% SMD 0603 2 R605,610
....4 RS49K910F03 RESISTOR 49.9K 1% SMD 0603 1 R602
....4 TE6A2000601 Pin Header 90° Pitch 2.0mm Single Row 6 1 (TE600)
....4 TR2SK1828 Moset N-CH 20V MAIN 2-Pin 1 Q601
....4 UHBLM18PG121SN1 Bead 120 ±25% 2A 0603 2 L600,601
...3 TWPC19C020H01T Left Sensor PCB SMT Assembly 1 76
....4 AA822748X Diode BAV99 1 D702
....4 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q700,702
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 4 C700,701,702,704
