Nuovo EB Easy-Printer User manual

Operating Manual
EB Easy-Printer
Omnia PX 530
(NO 350)
Dorpsstraat 84 NL5471 NA Loosbroek
Tel. ++31 (0) 413229180
Fax.
++31 (0) 413229158
Special systems for Egg handling
[e-mail]

Nuovo
Representation of Nuovo AG
Representation of Nuovo AG:
General office:
Nuovo BV
Dorpsstraat 84
NL-5471 NA LOOSBROEK
Ph: 0031 (0) 413 229180
Fax: [phone]
Email [e-mail]
www.nuovo.ch
Advice
Sales
Service
Customer Service

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 9, 2016
Table of Contents
1 Introduction.......................................................................................................................... 2
2 Identification ........................................................................................................................ 2
3 Safety instructions............................................................................................................... 3
3.1 Proper use...................................................................................................................................................... 3
3.2 Location of instructions for use ...................................................................................................................... 3
3.3 User requirements / Operating personnel ...................................................................................................... 3
3.4 Performance of work on the machine ............................................................................................................ 3
3.5 Dangers in case of non-compliance with safety instructions.......................................................................... 3
4 Set-up and adjustment of the machine .............................................................................. 4
4.1 Place of use of the machine........................................................................................................................... 4
4.2 Electrical connection ...................................................................................................................................... 4
5 Description of the machine................................................................................................. 4
5.1 Function.......................................................................................................................................................... 4
5.2 Electrical system ............................................................................................................................................ 4
5.3 Protective cover, Safety switch....................................................................................................................... 4
6 User-manual ......................................................................................................................... 5
6.1 Machine description ....................................................................................................................................... 5
6.2 Power up / Power down.................................................................................................................................. 5
6.3 Print delay....................................................................................................................................................... 6
6.4 Electrical connection ...................................................................................................................................... 6
6.5 Electrical overview Easy-Print ........................................................................................................................ 7
6.6 Electrical connection power supply ................................................................................................................ 8
6.7 Positioning the imprint heads ......................................................................................................................... 9
6.8 Assembling and disassembling the ink reservoir ........................................................................................... 9
6.9 Complete stamping bar ................................................................................................................................ 10
6.10 Service bracket............................................................................................................................................. 10
6.11 Parking station.............................................................................................................................................. 10
7 Malfunctions and their elimination................................................................................... 11
8 Cleaning, Maintenance, Repair......................................................................................... 11
8.1 Cleaning ....................................................................................................................................................... 11
8.2 Maintenance................................................................................................................................................. 11
8.3 Repair........................................................................................................................................................... 11
9 Packing, Transport, Storage .......................................................................................... 12
9.1 Packing......................................................................................................................................................... 12
9.2 Transport ...................................................................................................................................................... 12
9.3 Storage......................................................................................................................................................... 12

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
1
10 Disposal........................................................................................................................... 12
11 General technical data ................................................................................................... 12
12 Spare parts ...................................................................................................................... 13
12.1 Stamping head ............................................................................................................................................. 13
12.2 Ink reservoir.................................................................................................................................................. 13
12.3 Complete stamping bar ................................................................................................................................ 14
12.4 Parking station.............................................................................................................................................. 14
12.5 Connection-Box parts................................................................................................................................... 15
12.6 L-Brackets .................................................................................................................................................... 17
13 Filling the egg-stamp / Replacing the pad.................................................................... 18
14 Consumables .................................................................................................................. 19

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
2
1 Introduction
•Please comply with these Instructions before placing the machine into operation. Be familiar with all settings
and their functions.
•Maintenance and repair work should be performed only by qualified technical personnel. Unauthorized
changes to the machine are disallowed.
•Any use other than stamping EB product is considered as improper. The manufacturer will not be liable for
resulting damages.
•Relevant safety regulations are to be followed.
•Delivery of replacement parts requires an order specifying serial number and year of installation, number or
name of the spare part, method of shipping and address.
2 Identification

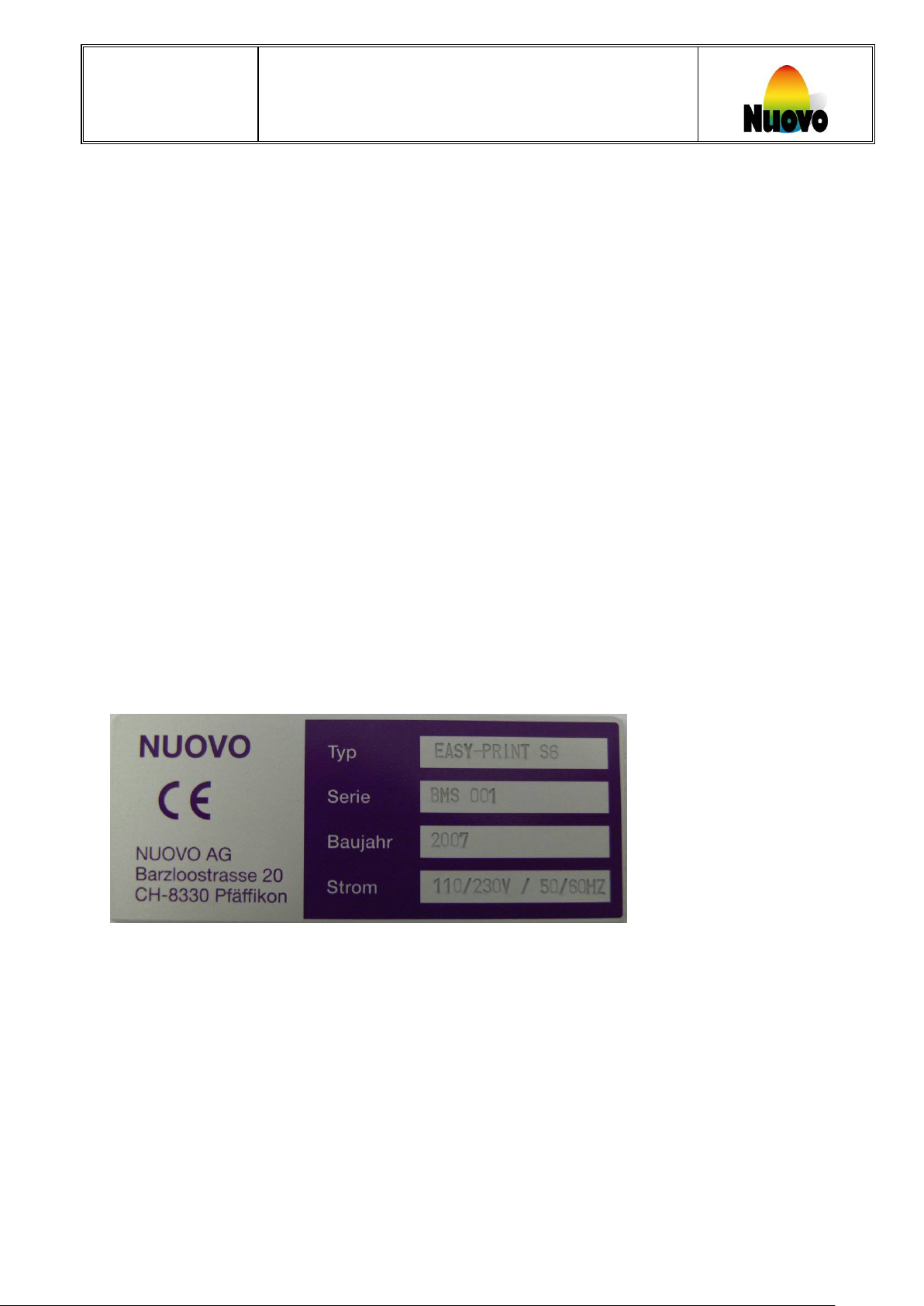

EB Easy Printers are identified with a tag indication serial number and the year the machine was built.

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
3
3 Safety instructions identification
3.1 Proper use
The EB EASY-PRINTER is only to be used to apply logos as approved by Eggland’s Best, Inc.
Any other use is not permitted and will lead to the removal of machines from the plant.
The EB EASY-PRINTER conforms to accepted safety regulations.
3.2 Location of instructions for use
The Instructions for use should be available to supervisory and maintenance personnel in plants.
3.3 User requirements / Operating personnel
The EB EASY-PRINTER is to be operated only by trained personnel under the control of plant management and
a designated line supervisor.
3.4 Performance of work on the machine
Personnel authorized to maintain or repair the machine must understand these Instructions for Use.
3.5 Dangers in case of non-compliance with safety instructions
Non-compliance with the safety instructions can result in accidents.
Non-compliance with the safety instructions can lead to improper stamping, damage to components of the
machine and operational failure.

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
4
4 Set-up and adjustment of the machine
4.1 Place of use of the EB Easy Printer machine
The EB EASY-PRINTER machine is to be operated in a plant conforming to USDA and EB standards.
The machine should be operated in a dry environment.
The machine must be accessible from at least one side.
The EB EASY-PRINTER machine should be installed horizontally.
4.2 Electrical connection
Make sure signal, power supply and especially the ground are in order.
The EB EASY-PRINTER has to be wired for the type of packer it is going to be used on.
Power supply unit: 110/230 Volt and 50/60 Hertz.
Caution:
•Components within the machine are under high voltage. Only remove the cover when the power
supply has been disconnected.
•An incorrect or malfunctioning power supply can lead to overload of the circuits and damage to the
machine.
5 Description of the EB Easy Printer Machine
5.1 Function
The EB EASY-PRINTER machine is designed to stamp eggs. This process involves screen printing using USDA
approved food grade ink.
5.2 Protective cover
Caution: Disconnect the power supply before opening the electrical cabinet.

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
5
Power switch
Open the protective cover. (The
stamps will make a single stroke)
Green LED will illuminate
Clean the rubber ink pads with a
paper tissue.
6 User-Manual
6.1 Machine Description

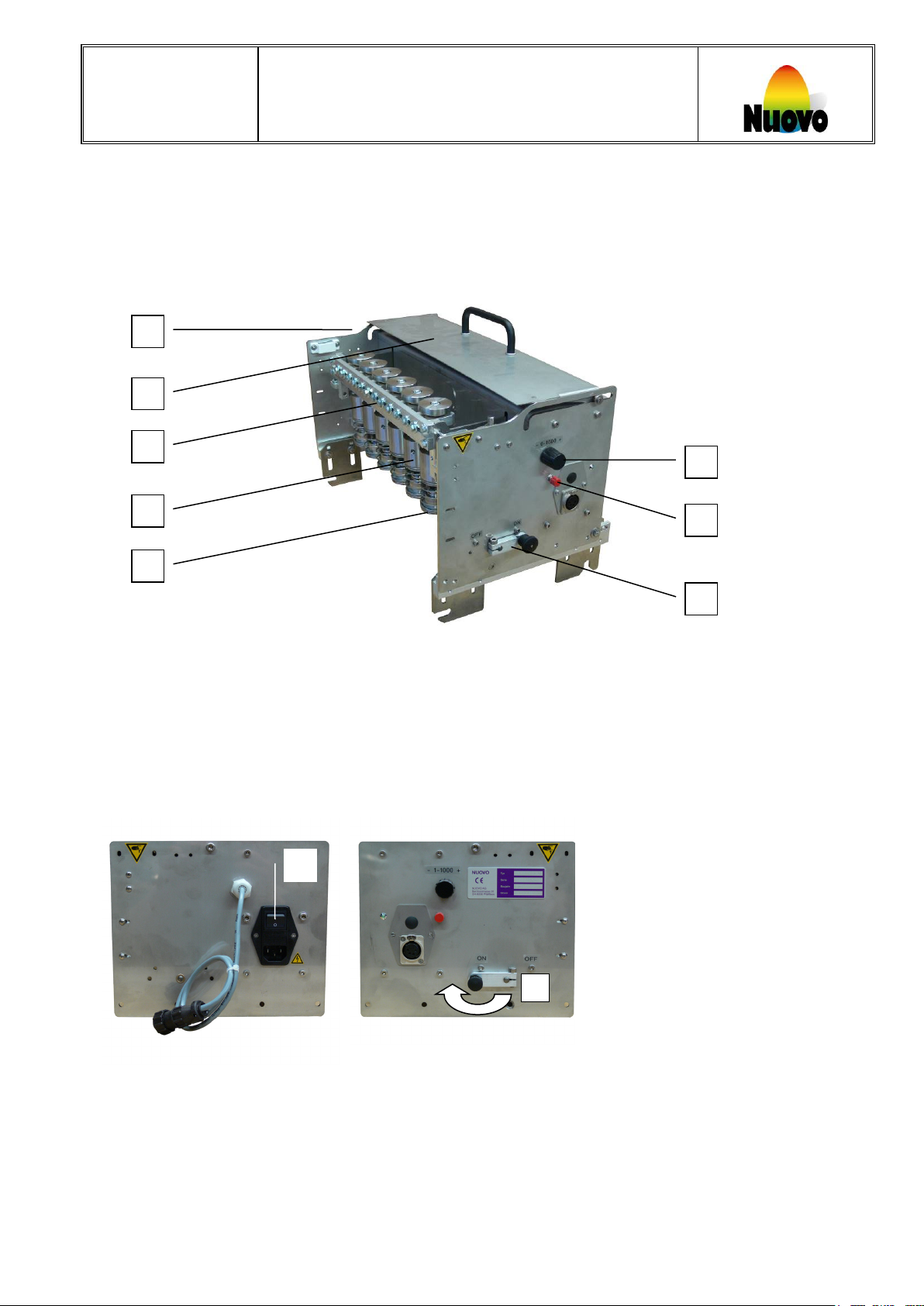

The picture below shows the main components of the EB EASY-PRINTER.
6.2 Power on / Power off
Advice
To turn off the machine, close the protective cover and turn off the machine using the power switch.
The protective cover must be closed to operate the machine. If the power switch is turned on with the protective
cover open the machine will not operate and the green LED will not illuminate. To activate the machine close the
protective cover.
As soon as the safety guard [5] is opened the machine automatically stops.
2
1. Power switch
2. Lever for opening and closing the protective cover
3. Ink-reservoir with rubber stamping pad
4. Inch button for single stoke
5. Safety-Lid
6. Printing head
7. Complete stamping bar
8. Selector switch for setting delay time
1
2
1
3
1
2
3
(Backside)
4
8
6
7
5
(Shown: Left model)

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
6
6 Selector switch for setting
the delay-time of the
stamper
6.3 Print delay
To synchronize the machine with the packing lane, adjust the delay-time using the selector switch [6].
6.4 Electrical connection
The EASY-PRINT has to be internally connected as follows:
6
For the start signal, there are two possibilities:
Give start with a potential free contact.
Direct, already connected
Connect the blue connector with wire colour yellow and
orange to position number 1 (x0) on the Easy unit
Connect the start signal + positive (white wire) to colour
yellow on the connection strip
Connect the start signal - negative (yellow wire) to colour
orange on the connection strip
Give start signal with direct current (max 24 V)
(Optocoupler)
Connect the blue connector (optocoupler) with wire colour
black and green to position number 1 (x0) on the Easy unit
Connect the start signal + positive (brown wire) to colour
blue on the connection strip
Connect the start signal - negative (green wire) to colour
red on the connection strip
(as shown on scheme)

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
7

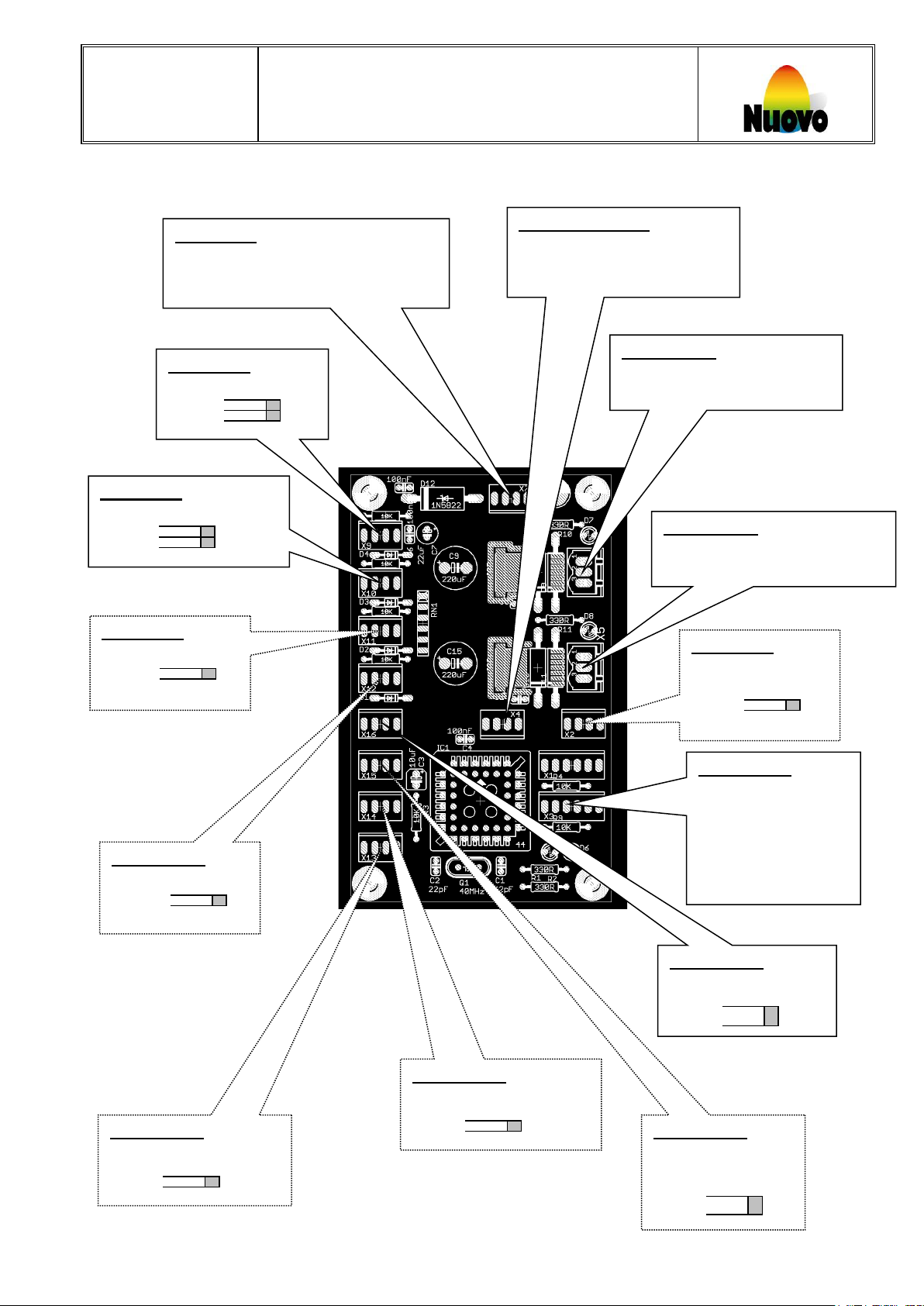

6.5 Electrical overview EasyUnit10
Input X0:
Start-Sensor
Pin 1: +24VDC
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Input P0:
Power supply +24VDC
Pin 1: +24VDC
Pin 2: GND DC
In-/Output C0:
Serial data cable (TTL)
Pin 1: RXD
Pin 2: TXD
Pin 3: GND
Pin 4: +5VDC
Input X1:
Index-Sensor
Pin 1: +24VDC
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Output X7:
Conveyor belt
ON/OFF
Pin 1: -
Pin 2: Signal
Pin 3: GND
Output X3:
Sealing-off lit
Pin 1: +24VDC
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Output X6:
5VDC for Egg counter
Pin 1: -
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Output X4:
5VDC LED (green)
Pin 1: -
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Output X5:
5VDC LED (red)
Pin 1: -
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Input X2:
Safety-Guard
Pin 1: +24VDC
Pin 2: Signal
Pin 3: GND
Pin 4: +5VDC
Output A0:
Stamper-Motor 24VDC
Pin 1: Power output A
Pin 2: Power output B
Output A1:
Conveyor belt-Motor 24VDC
Pin 1: Power output A
Pin 2: Power output B
Input X10:
Selector switch for
Setting delay time
Pin 1: D0
Pin 2: D1
Pin 3: D2
Pin 4: D3
Pin 5: GND
Pin 6: +5VDC
Input X8:
Button for
manual start
Pin 1: Signal
Pin 2: GND
Pin 3: Signal
Pin 4: GND

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
8
A Potentiometer for adjustment DC voltage
(Default settings 24 Volt)
6.6 Electrical connection power supply
A

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
9
6.7 Positioning the imprint heads
To position the stamp to the centre of the eggs, release the fixing bolts [5] and center the imprint heads.
Fixing bolts
6.8 Assembling and disassembling the ink reservoirs
To detach the ink-reservoir, hold the spring, turn the ink reservoir anti-clockwise and remove.
To install the ink-reservoir, turn it counter-clockwise until it snaps into place.
1
2
1
1
2

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
10
1
2
3
4
6.9 Complete stamping bar
To change, clean or maintain the imprint heads, the entire imprint head bar can be removed from the EB EASY-
PRINTER machine.
To remove the stamping-bar from the EB EASY-PRINTER machine:
1 Move the lower part of the bar in the direction of the arrows (number [1]).
2 Move the complete bar in the direction of the arrows (number [2]).
6.10 Service bracket
The service-tool set to position [3] is used to service/clean or refill the imprint heads. (Optional)
To use the service mounting tool to store printer assemblies, place the printer head bar into the slot as shown
[4].
6.11 Parking station for individual ink reservoirs
The individual ink reservoirs can be parked (Optional) as shown:

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
11
7 Trouble Shooting
•If a malfunction occurs, the following list should be reviewed.
•Before the elimination of malfunctions and repairs, the safety regulations are to be followed.
•When the EB EASY-PRINTER is ready for operation the green LED is on.
Malfunction
Problem
Action
EB EASY-PRINTER
does not operate LED
not illuminated
Main power to packer is switched off.
EASY-PRINT is switched off.
Connector is not plugged in.
- Switch on power supply to grader.
-Switch on machine.
-Plug in connector.
EB EASY-PRINTER
does not
operate
The protective cover is closed or not
completely opened.
(Cover has to be closed when the Easy-
printer is turned on
- Open the protective cover
completely.
EB EASY-PRINTER
does not operate
Safety lid is not completely closed. - Close safety-lid.
Caution:
•The wires in the control box are under high voltage. Open the electrical cabinet only when the main
plug has been pulled out.
8 Cleaning, Maintenance, Repair
8.1 Cleaning
Clean machine periodically, at least weekly, depending on accumulation of dirt.
Before cleaning, the machine power switch must be in the off position.
The power supply plug has to be pulled out of the socket.
Never submerge the machine in water or in other liquids.
Cleaning personnel are to be instructed on approved procedures.
8.2 Maintenance
With careful monitoring and maintenance of the machine, disassembly will be necessary only to replace worn
parts.
8.3 Repair
In case of malfunctions, due to a defective component the main switch must be turned off.
Before repair, the machine is to be switched off and disconnected from the power supply.
Never put a damaged device into operation.
Reaching into the device with any object or opening the machine by unauthorized persons is dangerous.
Mechanical and electrical repairs or changing parts on the machine and controller shall be performed only by
technical personnel of the authorized service center or by trained maintenance engineers. No other person may
perform repairs or change parts on the machine.
Spare parts must comply with the technical requirements established by the manufacturer. Original spare parts
are to be used as listed in section 12 ‘Spare Parts’.

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
12
9 Packing, Transport, Storage
9.1 Packing
Check that specified components have been supplied. In case of missing parts, please contact customer service
without delay.
9.2 Transport
The EB EASY-PRINTER machine can be transported in any vehicle.
The machine should be transported upright.
To avoid damage to the machine use proper packing material and sturdy outer container.
9.3 Storage
The machine should be stored in a dry area at a moderate temperature.
After lengthy storage of the machine, all internal parts must be inspected for corrosion or other damage before
operation. Clean or replace defective or corroded components.
10 Disposal
At the end of its lifetime, the machine must be returned to Eggland’s Best, Inc. or a designated agent.
11 General technical data
Egg-Stamper
Stamp head mounting
For 5 or 6 stamps produced
Quantity Stamp head holder
1
Stamp ink
Food grade ink
Control
Print software
Easy-Unit version 00.30 or higher
System
Microprocessor
Control voltage USA
1 x 110/230 V / 50/60HZ
Control element
Main switch, Single stroke button, Sealing cap approx. Switch, Safety-Guard
approx. Switch, approx. Index.
Machine dates
measurements in mm
(length x width x height)
approximately 500 x 250 x 250 mm
Weight
approximately 16 kg

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
13
12 Spare Parts

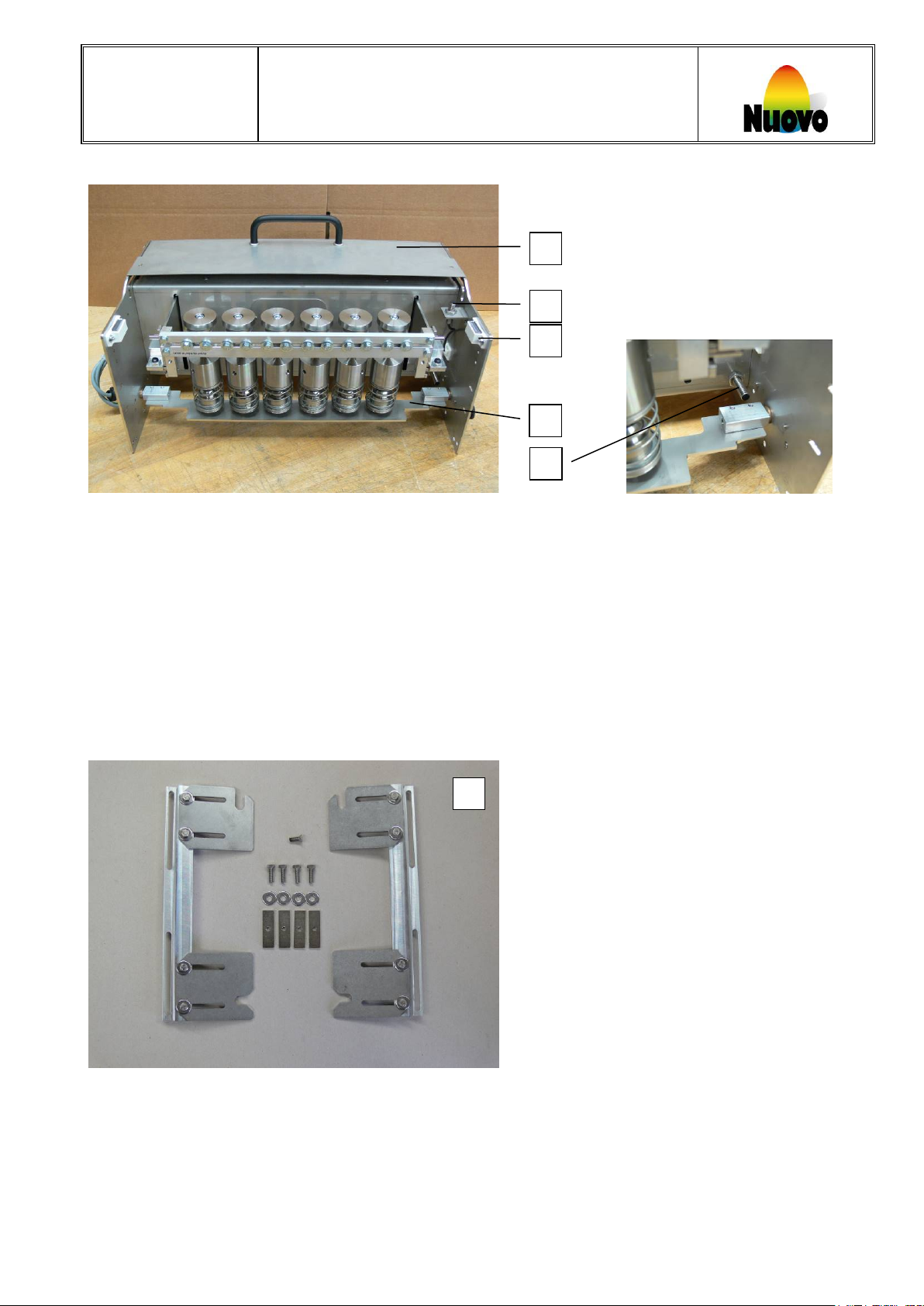

12.1 Stamping-head, complete (03120)
12.2 Ink-reservoir, complete (03123)
A
C
D
E
F
I
H
G
B
K
L
M
Part name Part number
A Bolt M6x20 03100
BEnd (ring) 03101
CMute ring 03102
D Vertical axle, 6angle 03103
E Lining, Aluminum 03104
F Spring-Holder incl. bolts 03105
G Pressure spring 03106
H Pre-pressure connector 03107
I Ink reservoir holder 03108
Part name Part number
J Ink reservoir 03109
K Perforated washer 03110
L Foam (d=30, h=10) 03111
M Pad, with logo 03112
N Ring RFS 03115
J
N

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
14

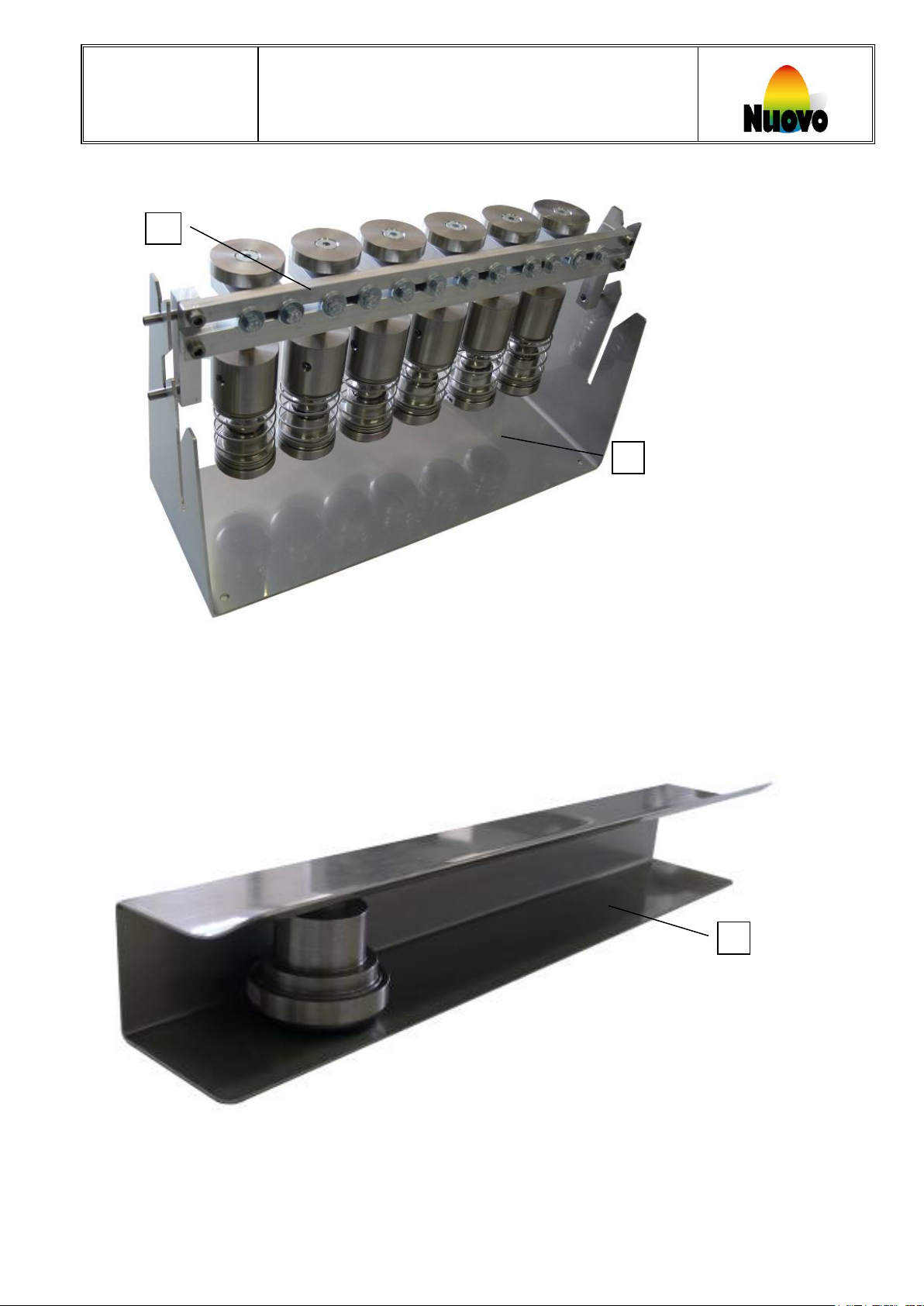

12.3 Complete stamping bar
12.4 Parking station
R
S
Part name Part number
R Stamping-Unit, 5fold (for R5 with 5 stamping heads) 03130
RStamping-Unit, 6fold (for R6 with 6 stamping heads) 03131
SService bracket 03132
T
Part name Part number
TParking station, 6fold (for 5 or 6 ink reservoirs 03133

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
15
12.5 Connection box parts
Part name Part number
A Power switch 00652
B Fuse 5x20, 3.15A 03157
C Signal cable, Omnia 03320
D Inch button 03151
E LED green 03153
F Stamp delay selector 03152
GConnector socket 03159
H Lever, only alu 03154
I Bolt, Stainless steel 03168
A
F
B
D
C
G
E
I
H

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
16
L
J
Part name Part number
J EasyUnit10 (Microprocessor) 03300
KPower supply unit 10 03310
L Electrical engine incl. gearbox i=16 03149
K
Part name Part number
M Proximity switch break 00844
N Contra spring 03143
M
N

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
17
Part name Part number
OSafety-Lid Omnia, complete 03326
PProximity switch (For safety-guard open or close detection) 00844
QClosing magnets for Safety-Guard 03161
RProtective cover 03275
S Proximity switch (For protective cover open or close detection) 03290
12.6 Bracket Omnia, standard
TBracket Omnia, standard, left 03187
TBracket Omnia, standard, right 03188
P
O
Q
T
R
S
