Nuprodx multichair 5000 User manual

ASSEMBLY INSTRUCTIONS FOR THE MULTICHAIR 5000 Series
!ATTENTION: READ BEFORE ASSEMBLING/OPERATING!
!ATTENTION: READ BEFORE ASSEMBLING/OPERATING!
multichair 5000 multichair 5100
multichair 5200
November 2016

- PAGE 1 -

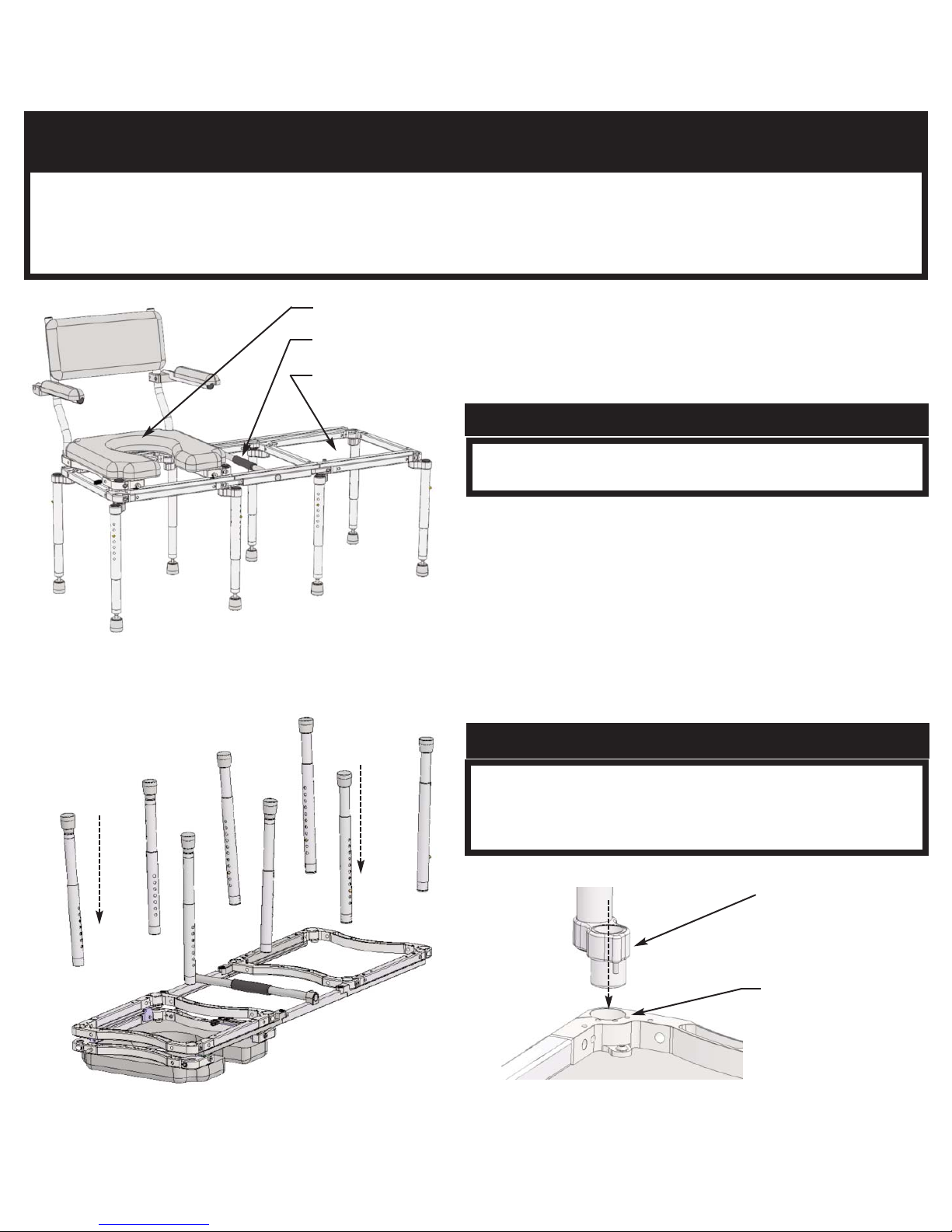

A The multiCHAIR 5000, 5100, and 5200 (Refer to Figure 1) are
composed of a shuttle with back and fold-back cantilever arms,
lower frames with legs & adjusting feet.
B Unpack all parts from the shipping carton. Remove all tape
and/or packing from the chair. Keep shipping materials for future
use. Note the location of padding materials and sheet-plastic which
protects parts of your chair.
CPosition the frames upside down and install the legs (Refer to
Figure 2)
DPosition the legs so that the brass buttons point outward (Making
it easier for future leg height adjustment). Make sure that the legs
slide “home” into the socket of the seat frame. Use the included ¼”
Allen wrench to securely tighten the bolts located at the corners of
the frame (Refer to Figures 2 & 3).
!ATTENTION: PLEASE READ!
ASSEMBLY INSTRUCTIONS
Please see LIMITED WARRANTY of these instructions. If the warranty is not acceptable, contact Nuprodx, Inc. for information
about returning the chair for a refund (Restocking fees and shipping charges will be applied). This chair is designed and intended
for indoor shower and bathroom use. It is not designed for outdoor use and will void the warranty if used in this fashion. If thresh-
olds, shower curbs or barriers are encountered that exceed ½” in height, the area in question should be brought within the code for
disabled accessibility.
NOTE!
If you need to position the chair so the tub is on the user’s right
side, refer to ADDITIONAL ASSEMBLY INSTRUCTIONS (Page 3)
Figure 3
SAFETY PRECAUTION!
If any of the legs are not fitted correctly into the socket of the seat
frame or are not securely tightened there is an extreme risk of the
legs dislodging completely from the chair. This could cause seri-
ous injury or even death!
Commode Section
Connector Bridge
Tub Section
Figure 1 multiCHAIR 5000
Figure 2
offset leg with
pin
seat frame

- PAGE 2 -

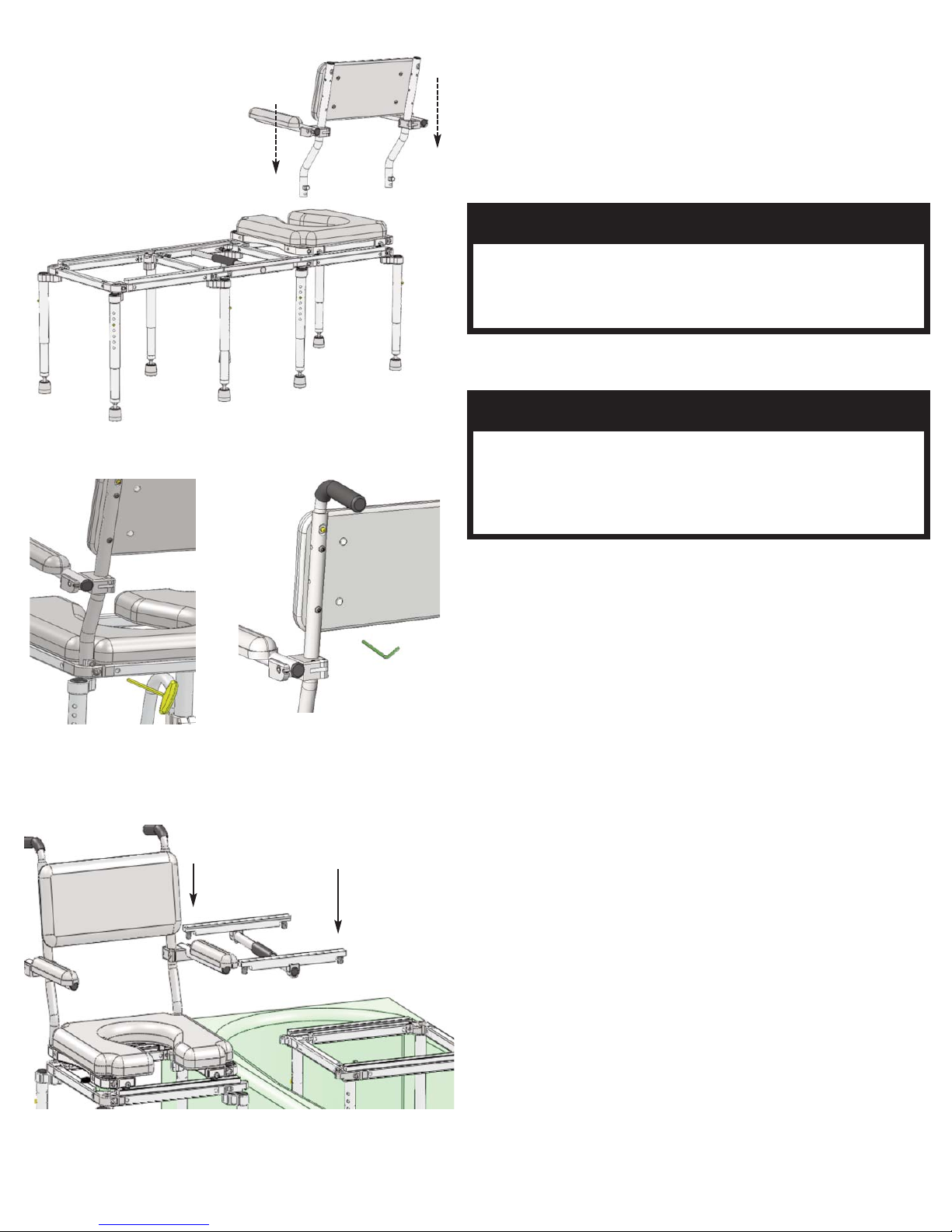

FTurn the chair right side up and install the backrest
assembly. Slide the two backposts into the back of the seat
frame and tighten the two socket head cap screws using
the ¼" Allen wrench (Refer to Figures 4 & 5). Also tighten
the four button head capscrews that attach the back cush-
ion to the back posts using the 5/32” Allen wrench (Refer to
Figure 6).
G Place the connector bridge into the matching holes on
both the roll-in section and tub section (Refer to Figure 7).
Figure 4
SAFETY PRECAUTION!
Both backrest posts must be completely engaged with the seat
frame and securely tightened. If they are not fitted correctly, there
is a risk of the posts dislodging from the seat frame.
This could cause serious injury or even death!
Figure 7
SAFETY PRECAUTION!
The connector bridge must be fully seated into the corresponding
holes of both the roll-in section and tub section. If this is not done
correctly, the seat frame could dislodge itself from the chair when
transferring from the roll-in section to the tub section.
This could cause serious injury or even death!
Figure 5 Figure 6

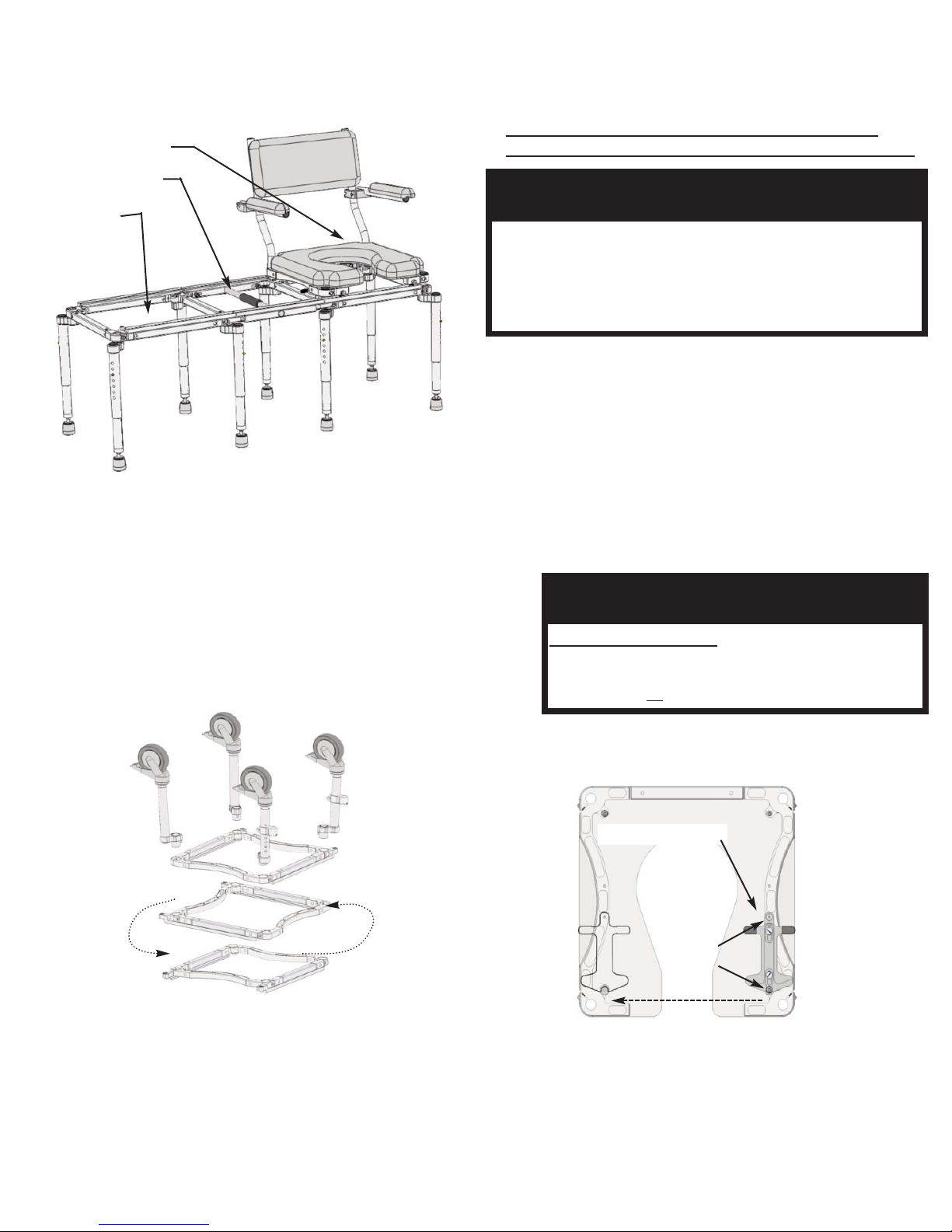

Reconfigure the multiCHAIR 5200 with the Tub
Section on the user’s right side (Refer to Figure 7):
1) Remove the commode section legs from the frame (Refer
to Figure 8)
2) Rotate the frame 180 degrees (Refer to Figure 8)
3) Re-install the legs (Refer to Figure 8)
4) Reverse the release latch: Use the provided black L-Handle
wrench to remove the latch by unscrewing the two machine
screws, which attach it to the seat frame. Re-install the
release latch on the opposite side of the seat frame (Refer to
Figure 9).
5) Follow the Assembly Instructions (Pages 1-2) to configure
the rest of the chair.
ADDITIONAL ASSEMBLY INSTRUCTIONS
NOTE!
Assemble the multiCHAIR 5000 to the factory setting (with the
tub on the user’s left side) first, following the Assembly
Instructions (Pages 1-2). Then, if desired, follow the Additional
Assembly Instructions to reconfigure the chair with the Tub
Section on the user’s right side.
(2) Machine
Screws
Release Latch
Figure 9
NOTE!
Release Latch Assembly: Do not attempt to unscrew
the inner slotted screws. Doing so can cause the
entire latch assembly to come apart, rendering it use-
less (There is no tool provided for this operation) .
- PAGE 3 -
Connector Bridge
Tub Section
Figure 7
multiCHAIR 5000
Figure 8
Commode Section

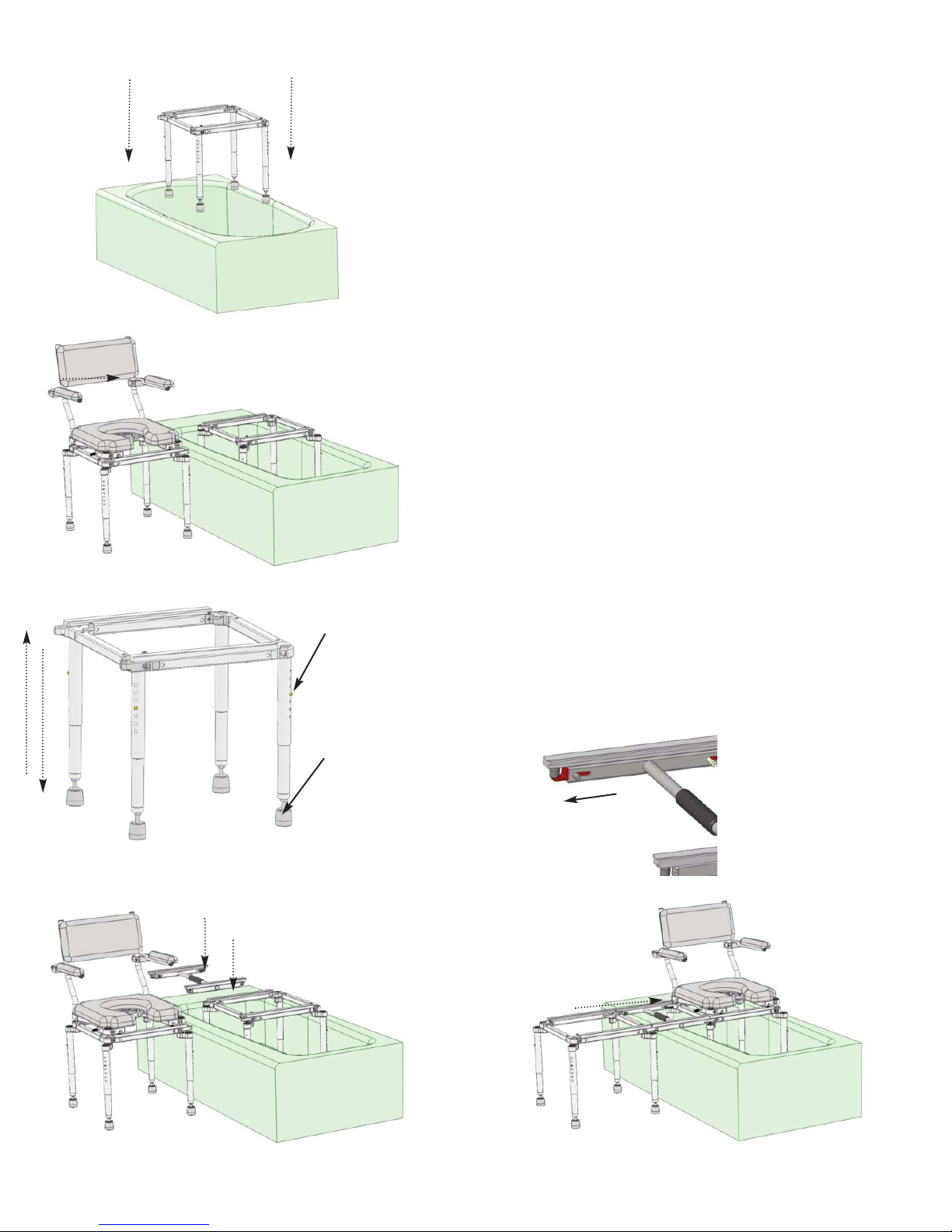

AEnsure all fasteners (bolts/washers) are securely tightened and all
chair parts have been assembled correctly (Refer back to Assembly
Instructions if needed. Contact Nuprodx, Inc. if unsure of anything).
BPlace the assembled tub section of the slider into the desired
position of the bath tub (Refer to Figure 10).
CPosition the assembled commode section of the slider next to the
outside wall of the bath tub (Refer to Figure 11).
DAdjust the height of the tub section to match the height of the
commode section by either adjusting the four inner legs (tub section)
and/or the adjustable crutch tips (tub section) - Refer to Figure 12.
EInsert the connector bridge into the four eyelet holes (Two located
on the commode section and two located on the tub section) - Refer
to Figure 13. Switch the four shoulder screws to the lock position on
the connector bridge (Refer to Figure 14).
FRelease the latch mechanism on the commode section and slide
the slider seat assembly onto the tub section, making sure the latch
engages fully and locks in place. If the commode section and tub
section are not level in height or out of alignment, the slider seat
assembly will not function correctly and safely. To ensure the safety
of the user, make adjustments to both sections as needed and retry
Step F (Refer to Figure 15).
GRemove the connector bridge to test the stability of the tub sec-
tion. Also, ensure that the slider seat frame is locked into place and
will not remove during use. Once this is complete, replace the con-
nector bridge and slide the slider seat frame back to the commode
section. The connector bridge can then be removed and the chair is
ready for use.
OPERATING INSTRUCTIONS
- PAGE 4 -
Figure 14
Figure 15
Figure 10
Figure 12
Figure 13
Figure 11
Inner Leg
Adjustment
Crutch Tip
Adjustment

A Leg Height Adjustment: When making height adjustments to
any of the legs, make sure that the brass buttons are fully
engaged into the outer legs. If pushed too hard the button
could become stuck inside the inner leg (Contact Nuprodx, Inc.
if this occurs). Leg height adjustment should only be made
before transferring the user into the chair (Refer to Figure 15).
BFasteners: Over time the screws and washers on the chair
may become loose. It is very important that these are checked
and securely tightened before each use. Failure to do so could
cause a part to dislodge from the chair (Refer to Figure 16).
CRelease Latch: Verify that the release latch is fully engaged
on the slider seat before removing the connector bridge (Refer
to Figure 17).
DLeveling: The commode and tub sections must both be level
and equal in height. To further adjust the height on the tub sec-
tion legs, rotate the crutch tip feet clockwise or counterclock-
wise (Refer to Figure 18).
ADDITIONAL SAFETY PRECAUTIONS
!ATTENTION: PLEASE READ!
WARNING! Failure to account for the afformentioned and the following safety precautions can result in seri-
ous injury to the user or even death!
Figure 15
Figure 17
Figure 16
Figure 18
Release Latch
- PAGE 5 -

- PAGE 6 -
889 Hayes St., Sonoma, CA 95476
[phone], [phone] fax, [phone] toll free, [email protected]
A WARRANTY ACTIVATION Please read this warranty before operating or using your multiCHAIR. To activate the
warranty on your multiCHAIR register it online (www.nuprodx.com/form-registration/index.htm) or by phone. By operat-
ing or using the chair, you agree to the terms of this warranty.
B WARRANTY: Nuprodx, Inc. warrants this product against defects in material and workmanship as follows: There is
a 10-Day conditional money-back warranty. During this time period, the customer is permitted to try out the
multiCHAIR, fully-clothed, keeping the chair in “like new” condition (NOTE: “Like new” condition, in terms of the
multiCHAIR, is defined by Nuprodx, Inc. as no visible wear/usage/water marks for the multiCHAIR to be accepted and
refunds issued when returned to Nuprodx, Inc.). If the customer decides that the multiCHAIR will not work for them,
before the 10-Day period has passed and with the authorization of Nuprodx, the chair can be returned for a full refund
minus a 10% restocking charge (NOTE: The customer is responsible for both in-bound and out-bound freight). After
the initial 10-Day period has passed, there is a two-year limited warranty for all parts of the chair, with the exception of
the seat and back cushions. The seat and back cushions carry a one year limited warranty.
The warranty does not
cover normal “wear and tear” from everday use of the product and custom parts/custom cushions are also excluded from
the warranty and cannot be returned for a refund under any circumstances. Please see section E WARRANTY LIMITA-
TION AND EXCLUSIONS for more info on warranty exclusions.
C The warranty period begins on the date you receive the chair. For warranty service, please contact Nuprodx, Inc. no
later than one month following the applicable warranty term. The chair will be repaired or replaced at the discretion of
Nuprodx, Inc. with no charges to you for parts and labor, provided you have proof of purchase and of purchase date.
D DISCLAIMER: Except for the above warranty, and the acknowledgement by Nuprodx, Inc. that the chair, as manu-
factured by it, is fit for the general purpose for which most persons acquire a chair of its kind, Nuprodx, Inc. provides
that you accept the chair as is, without warranties, either express or implied. Nuprodx, Inc. makes no warranty of fit-
ness for your particular purpose and no warranty of merchantability beyond that already stated. No warranties extend
beyond the duration of the express warranty stated above.
E WARRANTY LIMITATIONS AND EXCLUSIONS: The only obligation of Nuprodx, Inc. is to provide the purchaser
with free repair and replacement as described above. This exclusive warranty remedy will not have failed as long as
Nuprodx, Inc. is willing and able to repair or replace as described, but if this remedy should be held to have failed, the
only remaining warranty obligation of Nuprodx, Inc.
shall be to refund the acts beyond the control of Nuprodx, Inc. The
warranty does not cover normal “wear and tear” from everday use of the product. Custom parts/custom cushions are not
covered under the warranty.
F This warranty gives you specific legal rights, and you may have other rights that may vary from state to state.
G This warranty does not apply to problems arising from normal wear, improper operation, improper maintenance,
improper storage or similar disclaimer of implied warranties, and some do not allow limitations on how long an implied
warranty may last. Some do not allow exclusion or limitation of incidental or consequential damages. So the above
limitations or exclusions may not apply to you.
H RETURN INSTRUCTIONS In the event that you need to return the Nuprodx multiCHAIR, please follow the instruc-
tions below:
1) Review the information contained in your warranty to see if this applies to you
2) Obtain a Return Authorization # from Nuprodx, Inc.
3) Re-package the entire chair and its contents in the original packaging and ship to the following address:
Nuprodx, Inc. / Attn: RMA# xxxx
161 S. Vasco Rd., Suite G
Livermore, CA 94551
925-292-0714
LIMITED WARRANTY
