MOBB Health Care MH3RLBE User manual

LIFETIME LIMITED WARRANTY
If you have a question about your MOBB Healthcare
device or this warranty, please contact an authorized
MOBB Healthcare dealer.
MOBB Healthcare warrants to the original consumer
purchaser for as long as they own their MOBB product
that it will be free from defects in material and
workmanship under normal use. This warranty is only
applicable to products used in residential applications
within the United States and Canada and is not
transferable to subsequent owners. Should defects in
material or workmanship exist during the applicable
warranty period in any MOBB Healthcare Product, MOBB
Healthcare will elect at its discretion to either repair or
replace the defective material. This warranty covers only
parts and materials of the products supplied by MOBB
Healthcare. Not covered under this warranty are wear
and tear items or abuse of the product in a manner that
was not intended for the product to be used. This
warranty shall become void if the product is in any way
modified, improperly adjusted or abused.
  

 



INSTRUCTIONS INSIDE
MOBB Health Care Ltd.






3 Wheel Aluminum Rollator
3001bs Weight Capacity
MH3RLBE - Blue MH3RL RE - Red

Assembly Instructions
Please read these instructions before assembly or use of Rollator.
This Rollator must always be assembled Authorized and fitted for the
user by a qualified dealer. Before using your new Rollator please
ensure that your weight is within the weight assembly capacity of this
unit. This Rollator will require very little assembly and assembly can
be completed without tools.

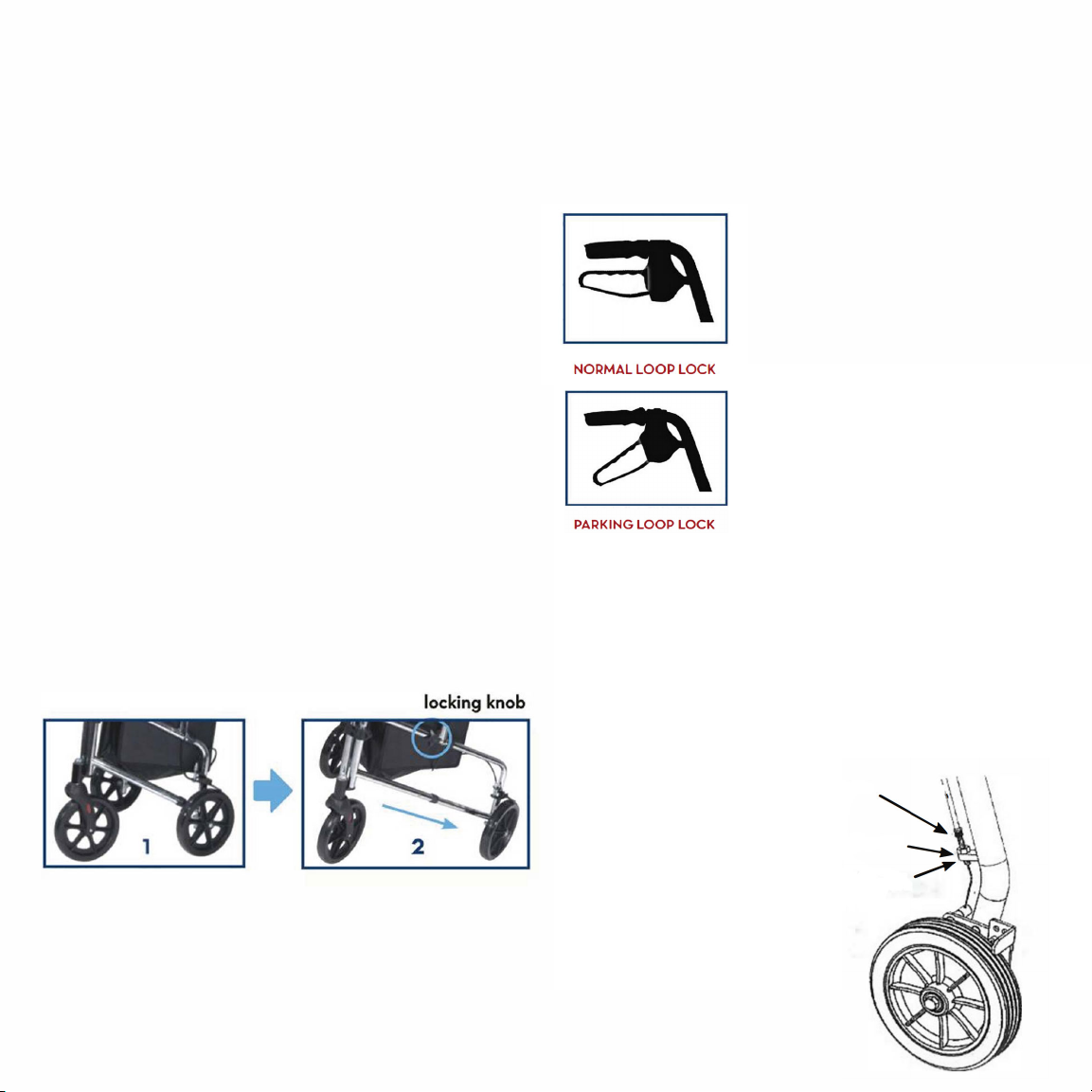

The way of activating the parking loop lock is by pushing the
handle down. This way is convenient for people who cannot easily
pinch the handle, because of certain disabilities of their hands.
Releasing the parking loop lock can be done by moving the loop
lock handle up. For is operation the provided with a parking wider
loop section lock, at the the end.
4. Test and adjust the loop lock mechanism tension to ensure
proper and secure locking before use.
Normal loop lock is activated by pulling
the handle UP, similar to operating the
brakes of a will bicycle. Once the handle
is released, the lock will release as well.
Release the parking loop lock by pulling
the handle UP. The handle will return lo
its basic position; the parking loop lock is
OFF.
Instructions to Adjust the Hand Break System
Important Safety Notice
The hand brake system fitted on this rallator complies with the
manufacturer's quality standards. The hand brake system has been
preset (adjusted) to the best performance settings. To better suit
you personally, please follow the instructions set out below.You
may need to adjust the hand brake systems from time to
time as they will wear out with normal use.
1.
2.
3.
To open your rollator, pull both side frames outward. Push the
folding hinge with the black handle until straight to secure the unit in
the proper position.
Place a handle bar in each handle bar receptacle and adjust to the
desired height. The brake cable should remain on the same side as
the corresponding wheel. Do not cross cables. Insert locking knobs
into adjustment holes and tighten to secure handle in place, making
sure both handles ore at equal height.
Slide wheels back until push pins pops through the adjustment
hole located on the bottom section of the wheel frame. Lock wheels in
place by inserting the locking knobs into the top section of the wheel
frame and tightening until secure (figures 1 & 2)
Hold firmly in place do not turn
To tighten the hand brake adjustment.
"turn the nut clockwise"
To loosen the hand break adjustment.
"turn the nut counter clockwise"
