Owner’s Manual
Mini40

Micro30L

TABLE OF CONTENTS
TABLE OF CONTENTS
Important Safety Instructions 3-5
Parts—Exploded View & Identification
Micro 30L 6
Mini 40 7
Introduction
Micro 30L 8-9
Mini 40 10-11
Micro 30L Cabinet Stand
Cabinet Panels 12
Hardware Included 13
Instructions 14-21
Mini 40 Cabinet Stand
Cabinet Panels 22
Hardware Included 23
Instructions 24-31
Maintenance Procedures 32-33
Warranty Information 34
Owners Product Information 35
2

IMPORTANT SAFETY INSTRUCTIONS
3
WARNING
To guard against injury, basic safety precautions should be observed
including the following:
READ ALL SAFETY INSTRUCTIONS BEFORE USE.
To avoid electric shock, special care should be taken since water is
employed in the use of aquarium equipment. For each of the following
situations, do not attempt to repair yourself. Return the appliance to
an authorized service facility for service or discard the appliance.
 If the appliance falls into water, DO NOT reach for it! First unplug
it and then retrieve it. If the electrical components of the appli-
ance get wet, unplug the appliance immediately.
 Carefully examine the appliance after installation. It should not be
plugged in if there is water on parts not intended to be wet.
 Do not operate any appliance if it has a damaged cord or plug, or
if it is malfunctioning or if it is dropped or damaged in any man-
ner.
 To avoid the possibility of the appliance plug or receptacle getting
wet, position aquarium to one side of a wall mounted receptacle

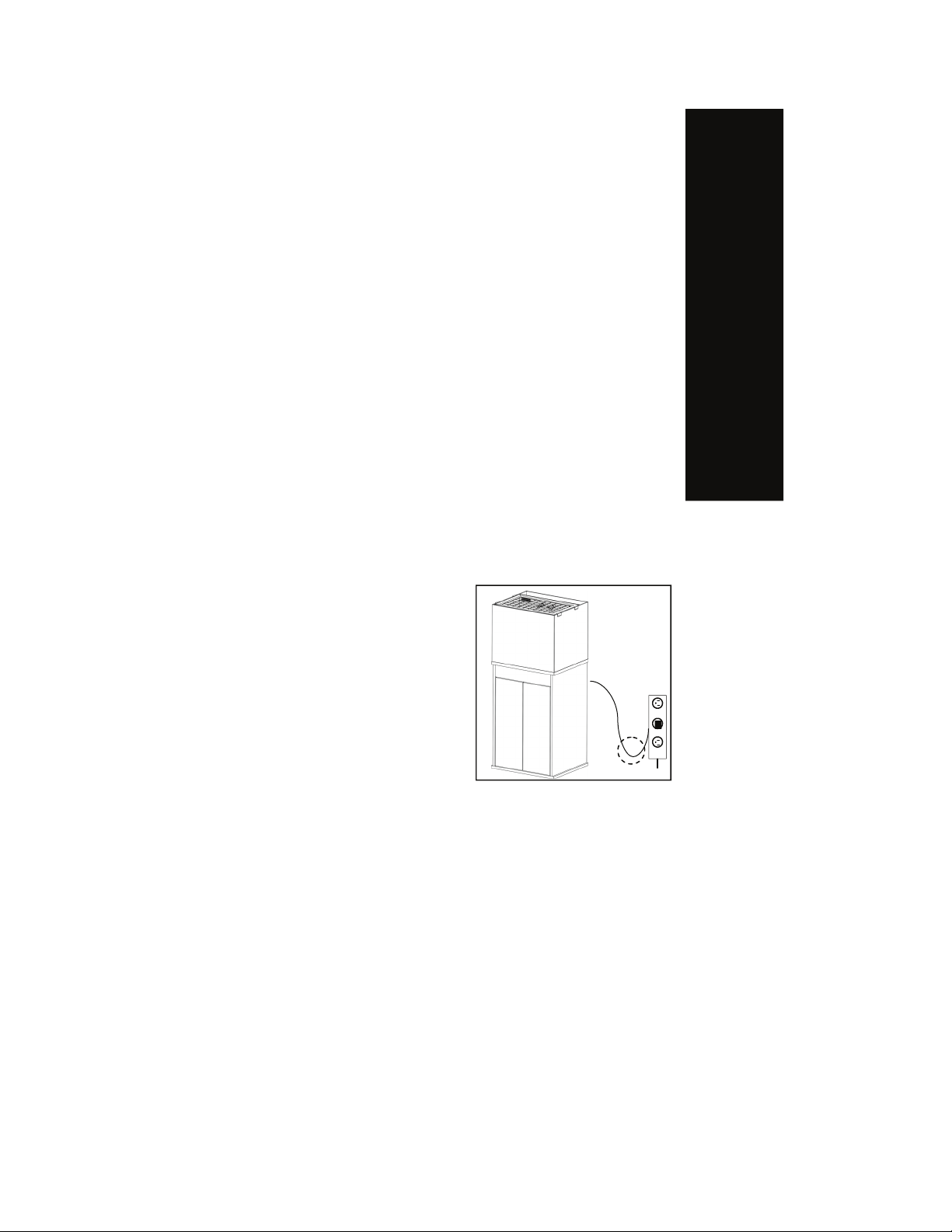

to prevent water from dripping onto the receptacle plug. A “Drip
Loop” should be arranged by the
user for EACH cord connecting an
aquarium appliance to a recepta-
cle. The “Drip Loop” is that part of
the cord below the level of the re-
ceptacle or the connector if an ex-
tension cord is used. This “Drip
Loop” prevents water travelling
along the cord and coming in con-
tact with the receptacle. If the plug
or the receptacle do get wet DO
NOT unplug the cord. Disconnect
the fuse to the circuit breaker that
supplies power to the appliance. Then unplug and examine for
the presence of water in the receptacle.
 Close supervision is necessary when any appliance is used by or
near children.
 To avoid injury, do not contact moving parts or hot parts such as
heaters, reflectors, lamps bulbs and etc.
 Always unplug an appliance from the outlet when not in use, be-
fore putting on or taking off parts, and before cleaning. Never
yank the cord to pull plug from outlet. Grasp the plug and pull to
disconnect.

4
IMPORTANT SAFETY
INSTRUCTIONS
 Do not use an appliance for other than intended use. The use
of attachments not recommended or sold by the appliance
manufacturer may cause an unsafe condition.
 Make sure an appliance mounted on a tank is securely installed
before operating it.
 Read and observe all the important notices on the appliance.
 This appliance has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electri-
cian. Never use with an extension cord unless plug can be fully
inserted. Do not attempt to defeat this safety feature.
 This appliance is intended FOR HOUSEHOLD USE ONLY.
FINDING A LOCATION
 Find a location that can handle the weight of your NUVO
Fusion
 Do not install or store the aquarium where it will be exposed to
the weather or to temperatures below freezing.
 Do not place aquarium in direct sunlight or near heater vents.
 We recommend ambient room temperature around 25° C/
77° F.
 Place aquarium 5-6” away from the wall to allow access to the
back if needed
 Make sure surrounding appliances are waterproof and move
anything that might be damaged by salt creep.
ASSEMBLY
 Upon arrival please check tank and/or stand for missing parts If
parts are missing, please contact Innovative Marine for further
assistance. 1-866-368-7941.

IMPORTANT SAFETY INSTRUCTIONS
PLACING AND LEVELING YOUR NUVO AQUARIUM
 Make sure your NUVO is set on a level surface to prevent undue
stress on the aquarium tank from stress and leaks.
 It is not recommended that this aquarium is set upon coffee ta-
bles, end tables, TV stands, or night stands unless the structure
has been properly tested to withstand the weight limits of the
aquarium.
 Please pay special attention when leveling your aquarium on car-
pet.
 Before lifting your aquarium, make sure your stand is in position
and your leveling mat is properly adhered to the top of your
stand.
 Lifting the glass aquarium onto its stand will require more than
two people. Please use proper lifting techniques when lifting large
heavy objects.
 Lift from the bottom of the aquarium DO NOT lift using the aquari-
ums’ glass edges this will cause stress on the glass and seals
and may cause leakage.
 The back of the aquarium should be flush with your stand and all
four corners are not overhanging the edges.
 Once you have placed your aquarium atop your stand, make sure
your stand has not moved from its position.
 Place a level on edge of tank, if necessary readjust and reposi-
tion tank and stand.
LEAK TESTING AND FILLING YOUR NUVO AQUARIUM
 Find a good location to test your aquarium.
 Your location should be level, flat and should not be in a place
where can be damaged in case of a leak. (Garage or covered
patio)
 Slowly fill your aquarium from the display portion of the tank and
let the water naturally enter the overflows.
 Plug in your pumps and continue adding water until your water
line reaches about 1” under the last baffle wall in the back of the
aquarium
 Check every 8 hours over the next 24 hours for leaks. If any leaks
have been detected please contact your authorized Innovative
Marine Dealer immediately.
5

PARTS

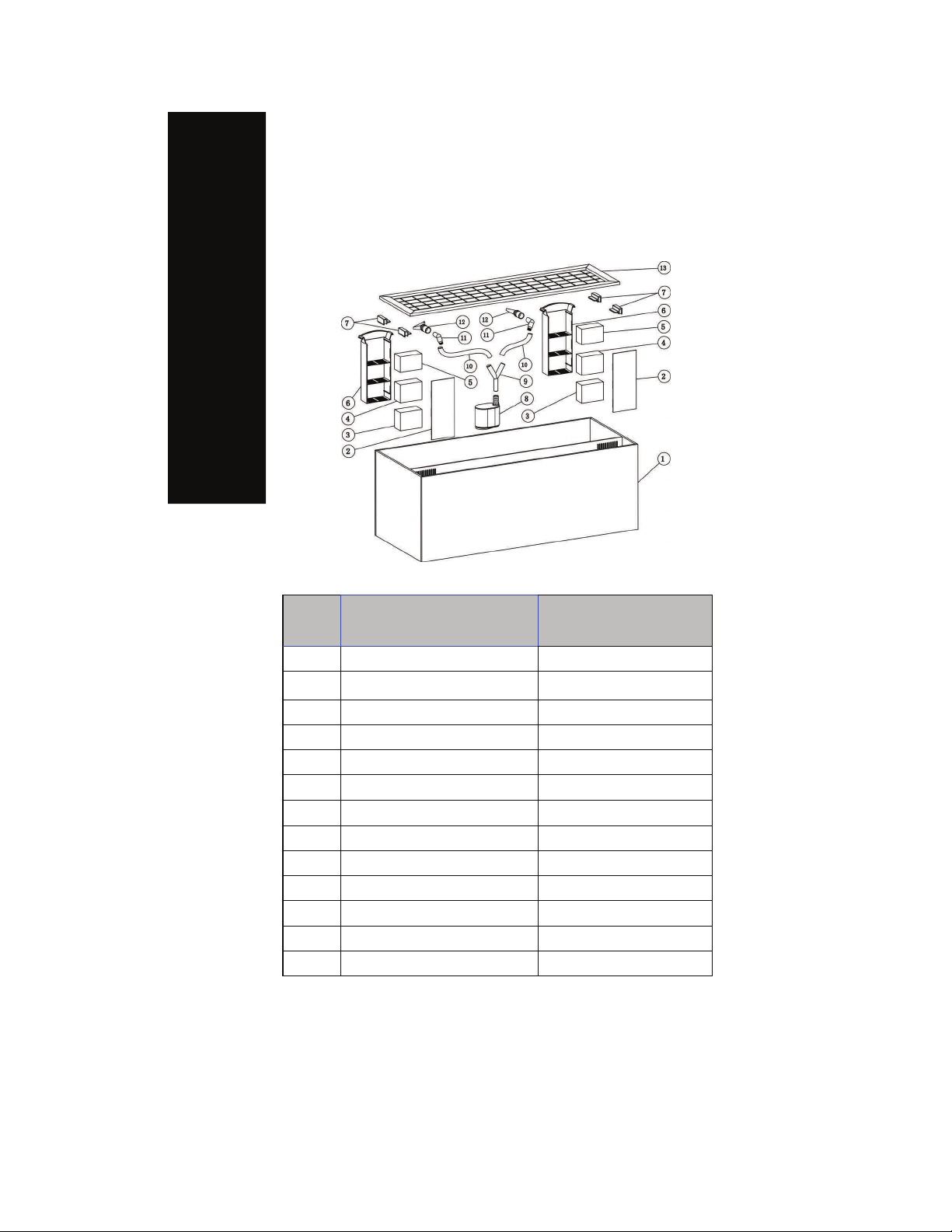

Exploded View
Micro 30L
# Description Item Code
1 Glass Tank 30 Gallons 040501
2 Filter Basket Door 000008
3 Phosphate Filter Sponge 000010
4 Activated Carbon Sponge 000010
5 Mechanical Filter Sponge 000010
6 Filter Basket 000008
7 Mesh Screen Clips 000015
8 30 Gallon Pump 040001
9 “Y” Connector 030002
10 Return Hose 030002
11 Return Elbows 030002
12 Return Nozzle 000012
13 Mesh Screen Top 040504
Model #:
0405
6

PARTS Exploded View
Mini 40
Model #:
0505
# Description Item Code
1 Glass Tank 40 Gallons 050501
2 Filter Basket Door 000008
3 Phosphate Filter Sponge 000010
4 Activated Carbon Sponge 000010
5 Mechanical Filter Sponge 000010
6 Filter Basket 000008
7 Mesh Screen Clips 000015
8 40 Gallon Pump 040001
9 “Y” Connector 030002
10 Return Hose 030002
11 Return Elbows 030002
12 Return Nozzle 000012
13 Mesh Screen Top 050404
7

Micro 30L
Features:
DIMS: Length 35.43” Width: 14.96” Height: 12.99”
8mm High Clarity Low Iron Glass
Mesh Screen Top with Clips
Dual Built-in Overflows
Rubber Leveling Mat
(2) - Removable 3 Stage Filter Baskets
(1) - 45W 110v/60Hz 476 GPH Return Pump
Includes flexible hose and return elbows with Dual Directional Flow
Nozzle
INTRODUCTION
Channel your inner artist and expand your reef keeping possibilities
with the NUVO Fusion 30L. 36 inches of unobstructed viewing allows
you to create panoramic aquascapes never seen before. Elegance
and beauty come together with a purpose to stand apart.
We have upscaled our luxurious midsize aquariums by merging the
premium features of our Full Size SR-Series aquariums with the
Award Winning customizable filtration system of our NUVOs. This
perfect blend gives you 10-15% more room for aquascaping, the
highest clarity viewing, a screen lid that removes excess heat and
provides maximum light penetration, and the cleanest and clearest
water possible.
8

INTRODUCTION
Micro 30L FILTRATION
2
3
4
1 1
2
1. 3 Stage Filter Column
2. Skimmer & Media Reactor Column
3. Return Pump/Water Reservoir Column (ATO Sensor Column)
4. Removable 3 Stage Filter Media Basket
(Heater, Skimmer, Media Reactor not included)
2
2
3
4
1
1
9

Mini 40
10
Features:

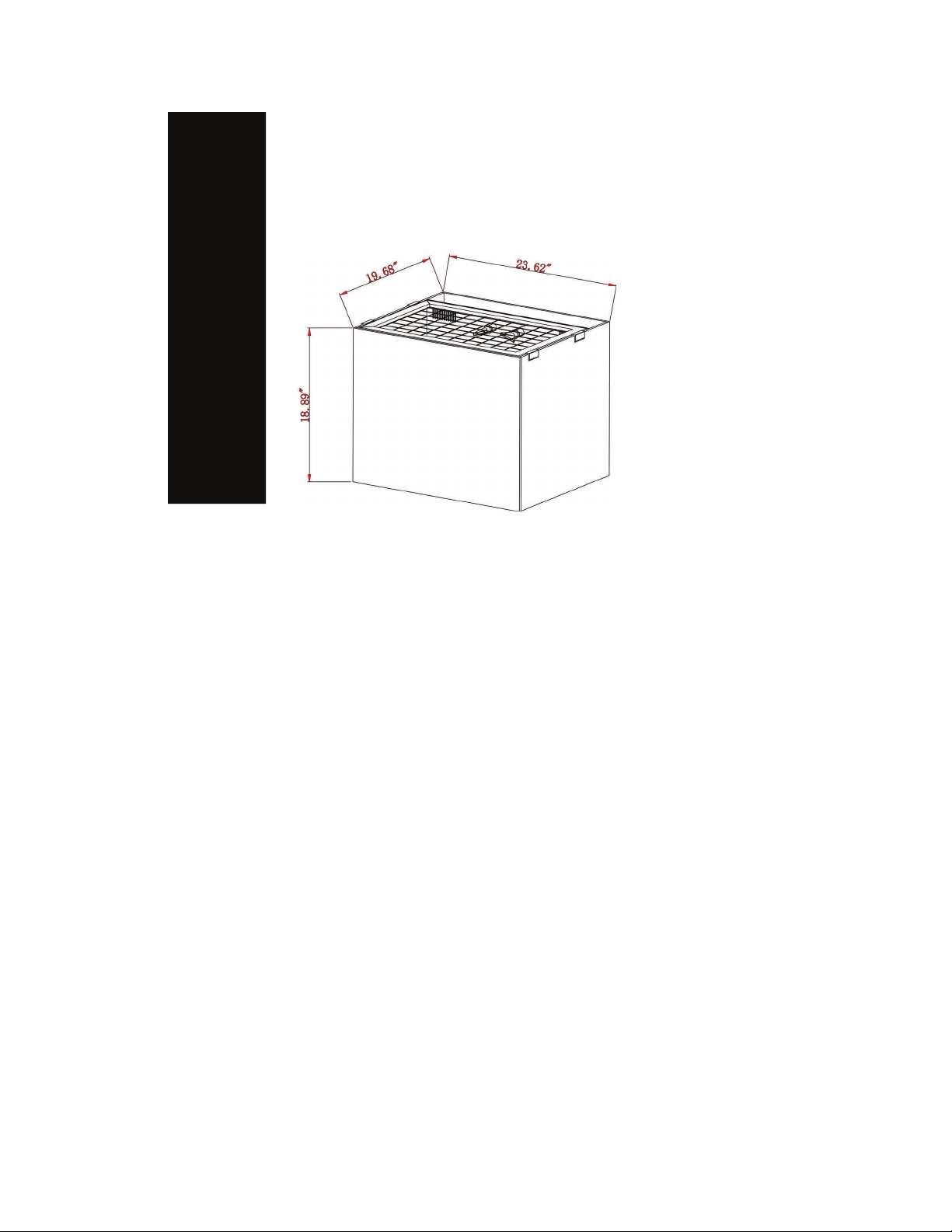

DIMS: Length: 23.62” Width: 19.68” Height: 18.89”
8mm High Clarity Low Iron Glass
Mesh Screen Top with Clips
Dual Built-in Overflows
Rubber Leveling Mat
(2) - Removable 3 Stage Filter Baskets
(1) - 45W 110v/60Hz 476 GPH Return Pump
Includes flexible hose and return elbows with Dual Directional Flow
Nozzles
INTRODUCTION
The NUVO Fusion 40 represents everything we love about Reef
Keeping and features that will boost your hobby’s experience to the
next level; it’s not just the next aquarium, but what the next aquarium
should be.
We have upscaled our luxurious midsize aquariums by merging the
premium features of our Full Size SR-Series aquariums with the
Award Winning customizable filtration system of our NUVOs. This
perfect blend gives you 10-15% more room for aquascaping, the
highest clarity viewing, a screen lid that removes excess heat and
provides maximum light penetration, and the cleanest and clearest
water possible.

INTRODUCTION
Mini 40 FILTRATION
2
3
4
1 1
2
2
2
3
1. 3 Stage Filter Column
2. Skimmer & Media Reactor Column
3. Return Pump/Water Reservoir Column (ATO Sensor Column)
4. Removable 3 Stage Filter Media Basket
(Heater, Skimmer, Media Reactor not included)
4
1 1
11

Micro 30L
CABINET STAND

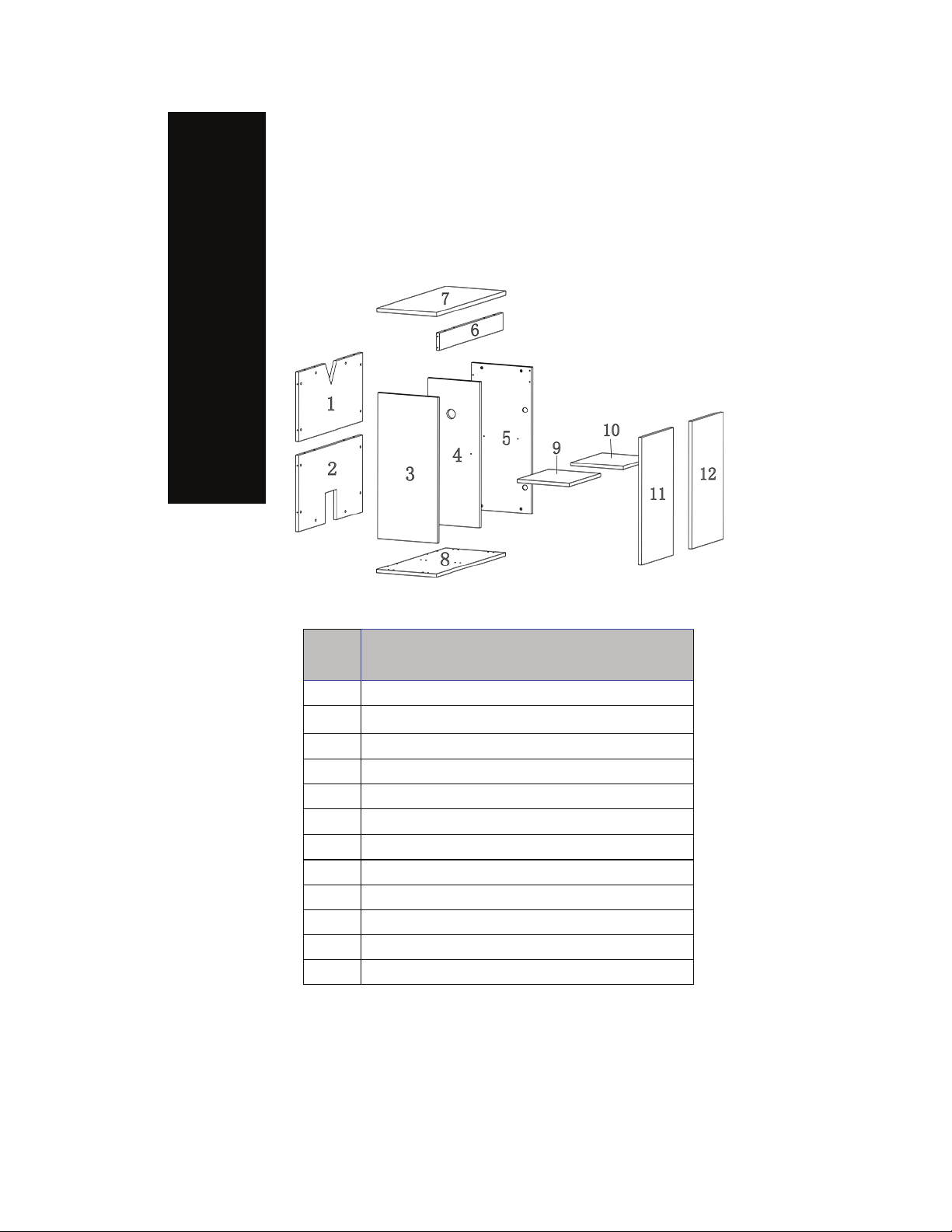

Micro 30L Cabinet Stand
# Description
1 Upper Back Panel
2 Lower Back Panel
3 Left Side Panel
4 Center Panel
5 Right Side Panel
6 Front Support Beam
7 Top Panel
8 Bottom Panel
9 Left Storage Shelf
10 Right Storage Shelf
11 Left Cabinet Door
12 Right Cabinet Door
12

Micro 30L CABINET STAND

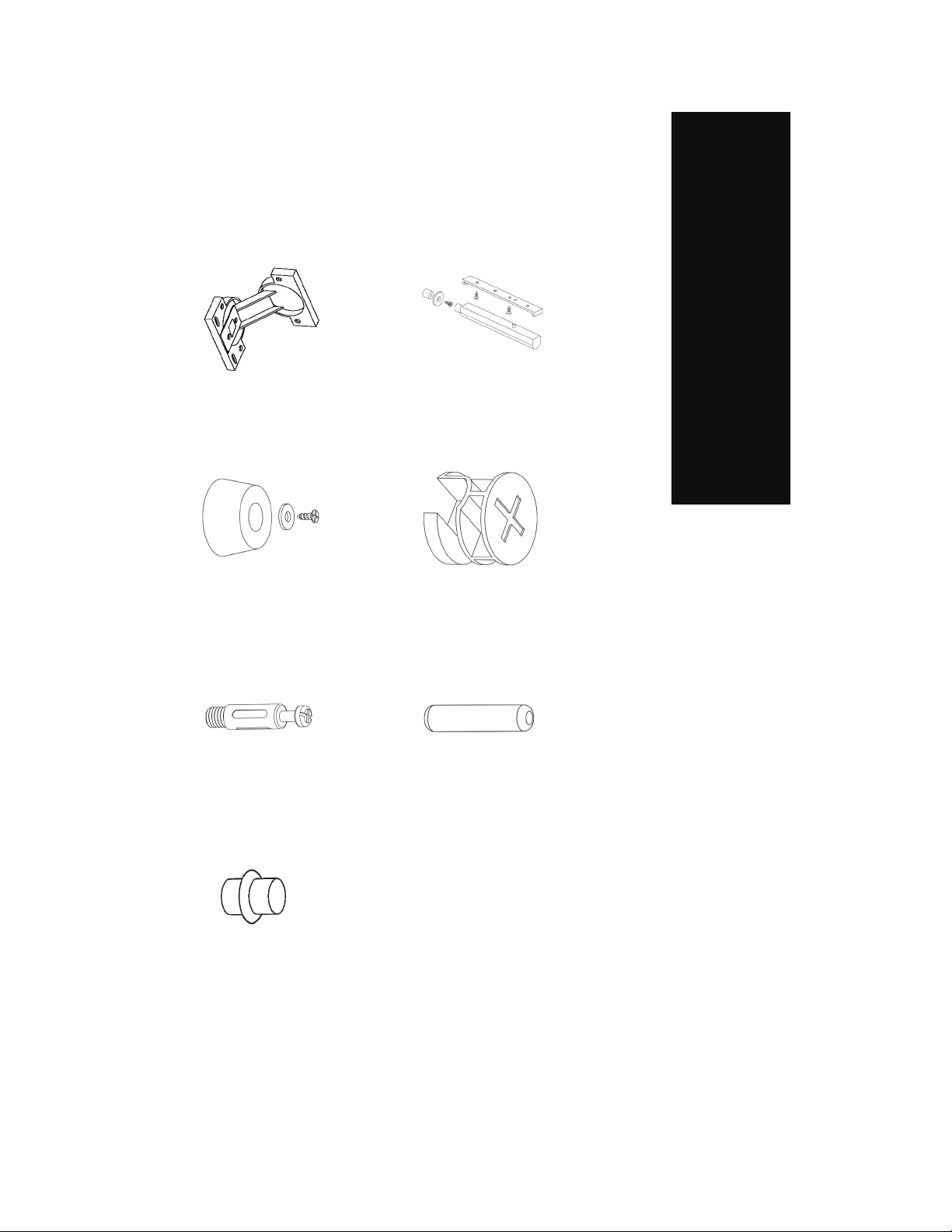

Hardware Included
Door Hinge:
(4) x Door Hinge
(24) x Wood Screws
Push to Open System:
(2) x Latch and Catch System
(6) x Screws
Cam Locks:
(30) x Cam Locks
Rubber Feet:
(5) x Rubber Feet
(5) x Washer
(5) x Screws
Cam Screw:
(30) x Cam Screws
Wooden Dowel:
(22) x Wooden Dowels
Shelf Pegs:
(8) x Shelf Pegs
13

Assembled Stands
Micro 30L
CABINET STAND

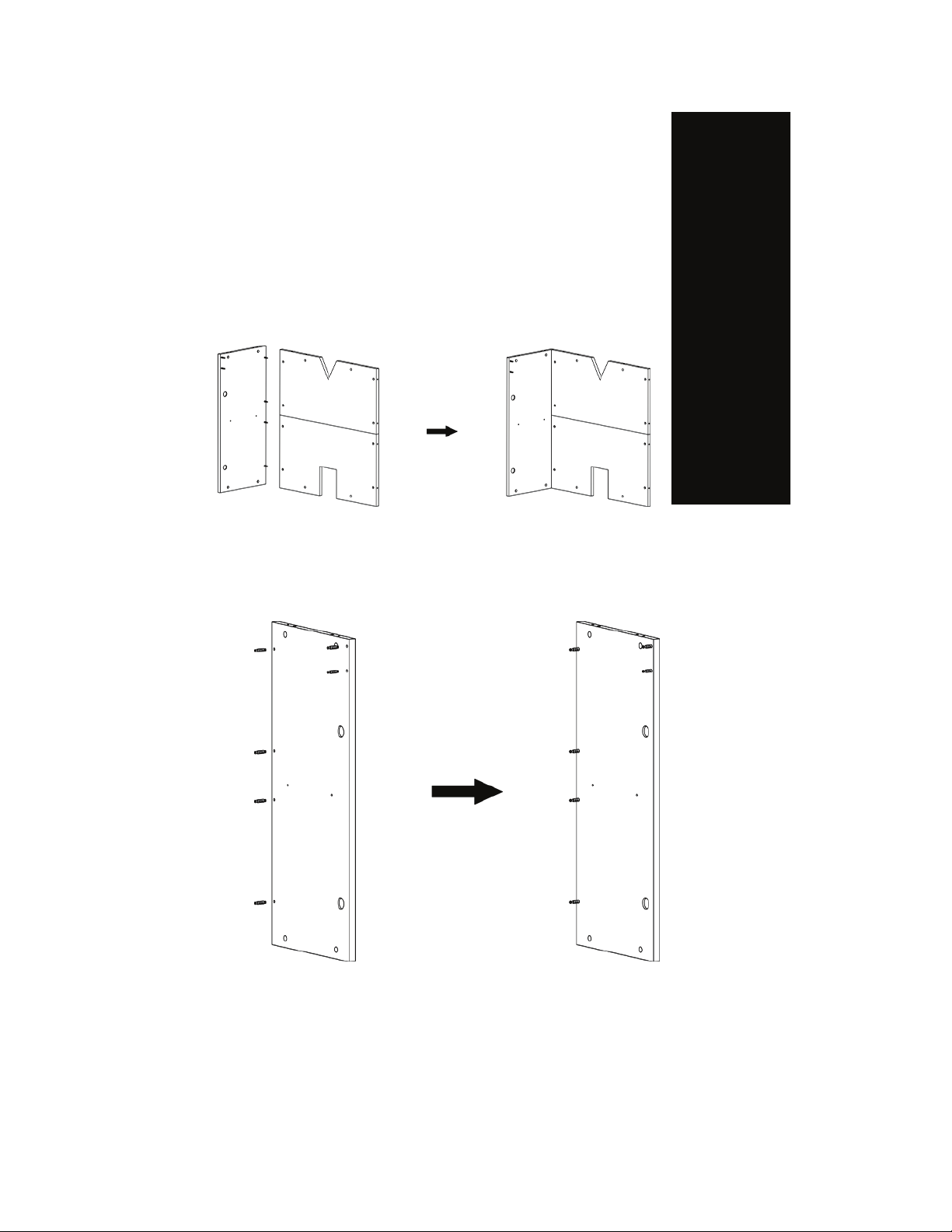

Step 1: Connect upper back panel to lower back panel.
Step 2: Screw in cam screws into the left side panel.
14

Micro 30L CABINET STAND
Step 3: Attach left side panel onto back panel, insert cam locks
and tighten clockwise.
Step 4: Screw in cam screws into the right side panel.
15

Micro 30L
CABINET STAND

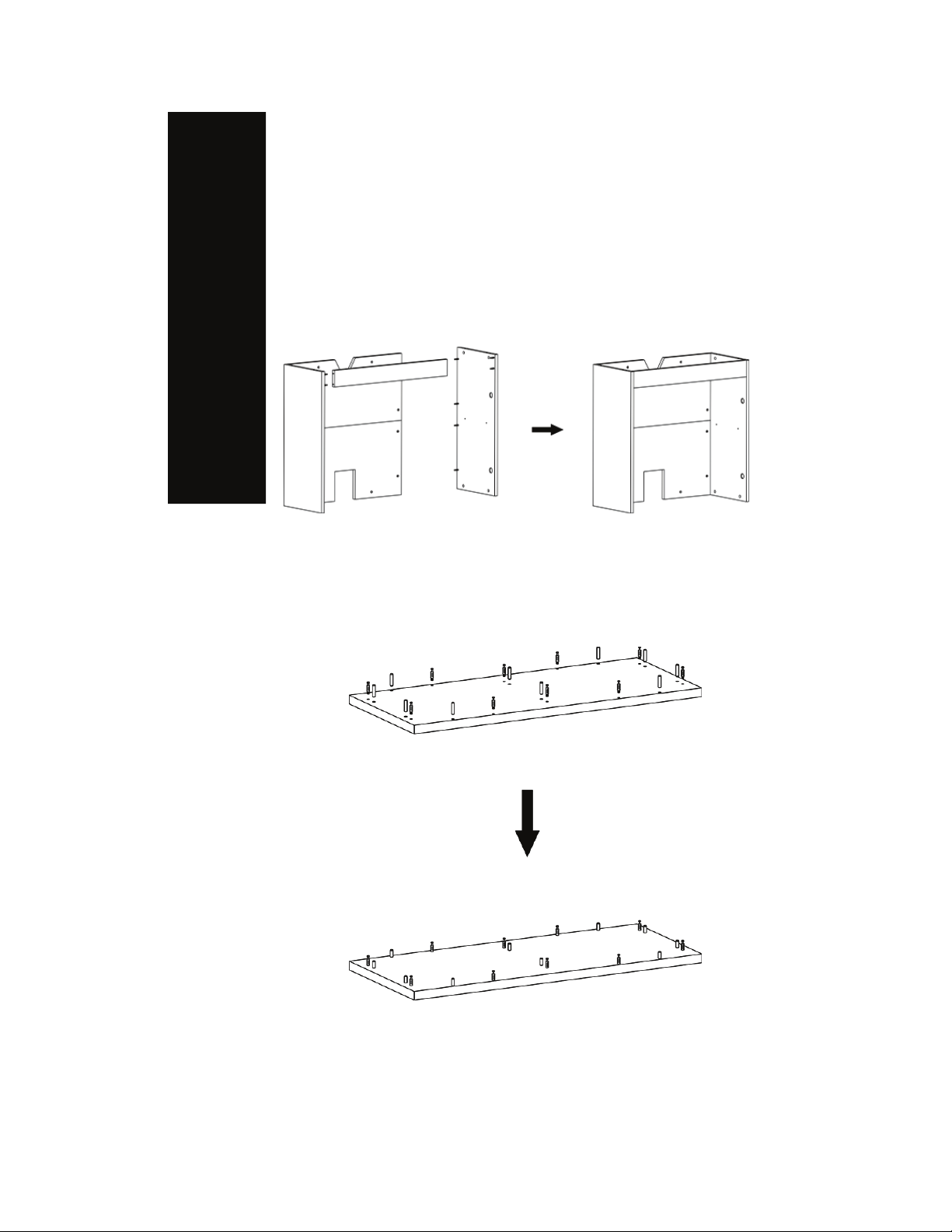

Step 5: Attach front support beam and right side panels insert
cam locks and tighten clockwise.
Assembled Stands

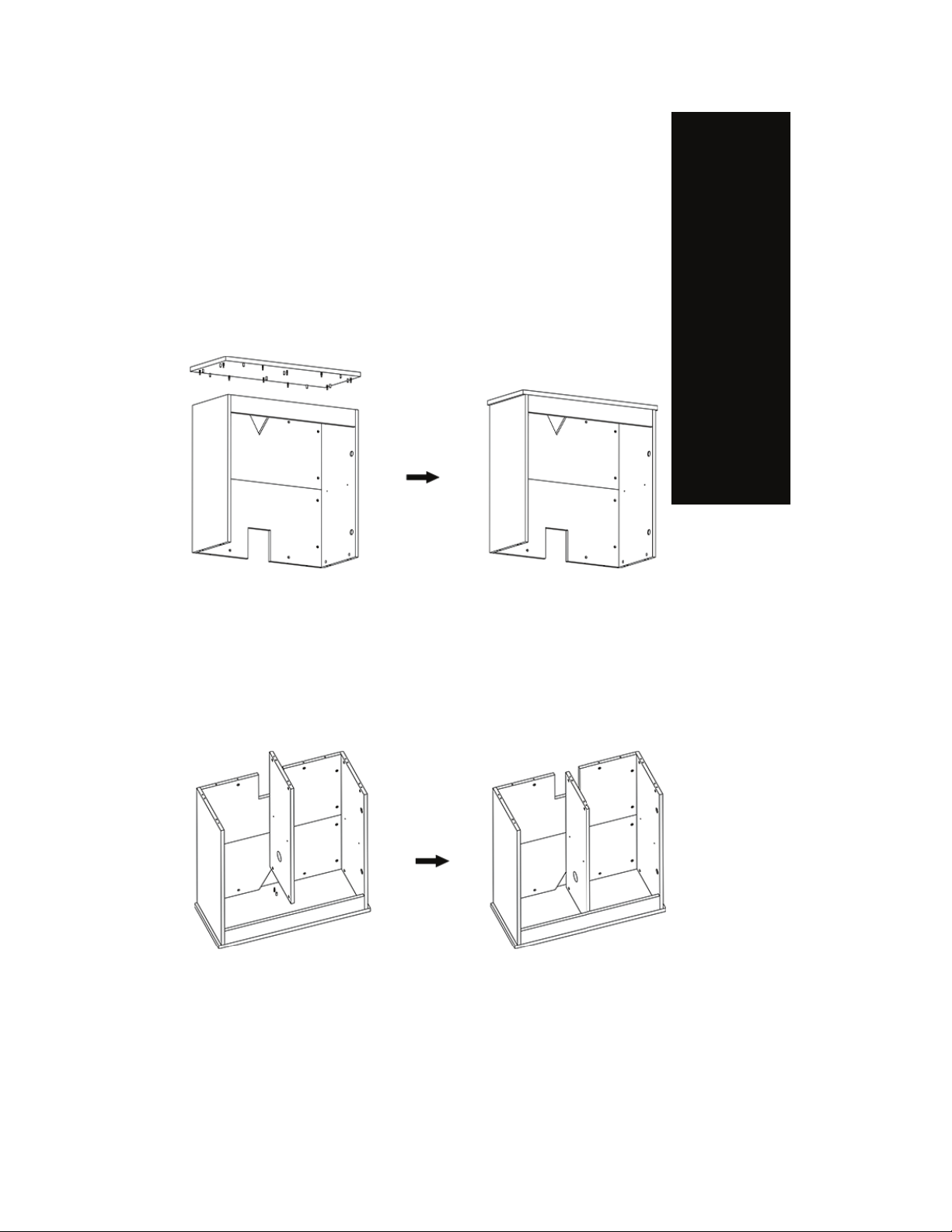

Step 6: Insert wooden dowels and cam screws into top panel
16

Micro 30L CABINET STAND

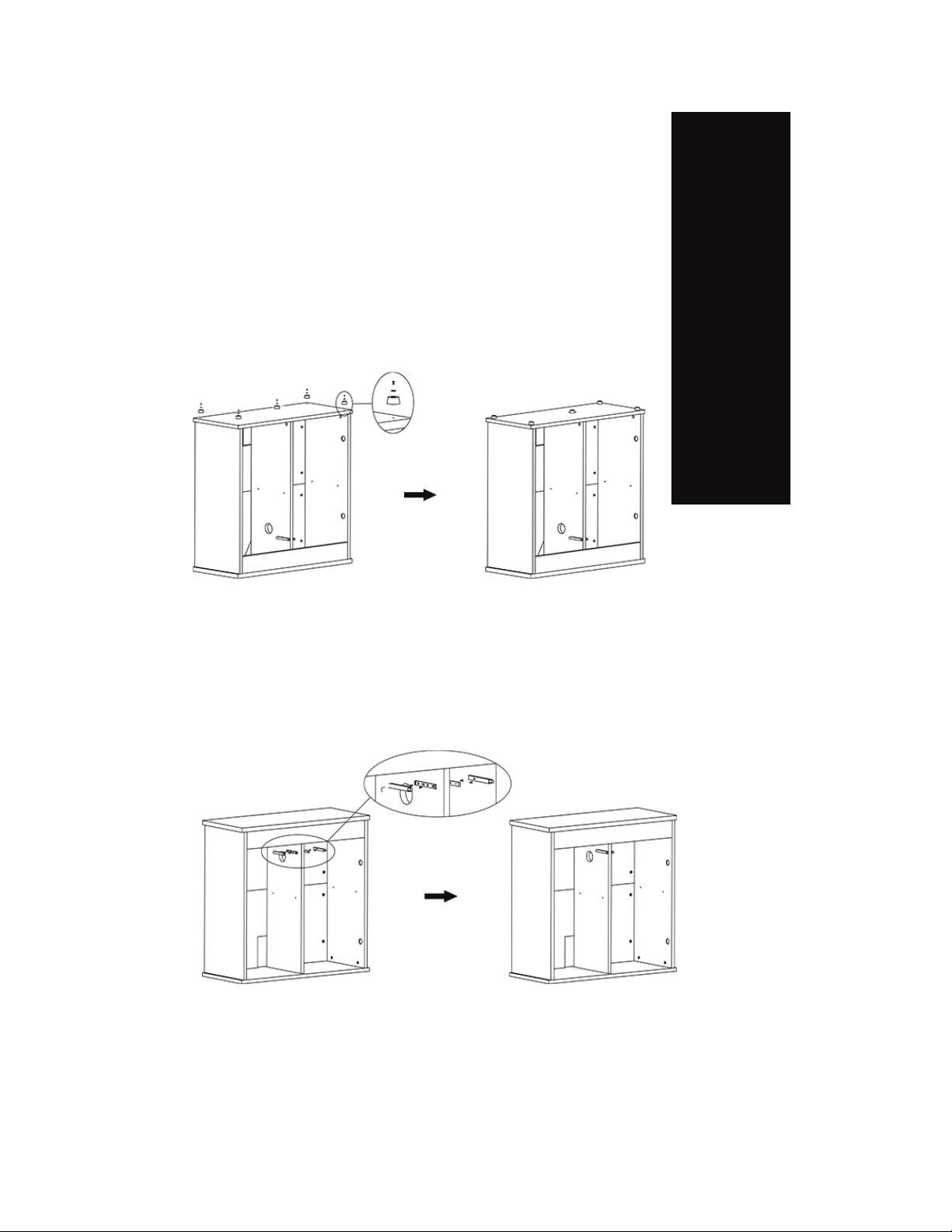

Step 8: Carefully place the stand onto the top panel and insert
the center panel. Insert cam locks and tighten clockwise.
Step 7: Place top panel onto stand and insert cam locks and
tighten clockwise.
17

Assembled Stands
Micro 30L
CABINET STAND

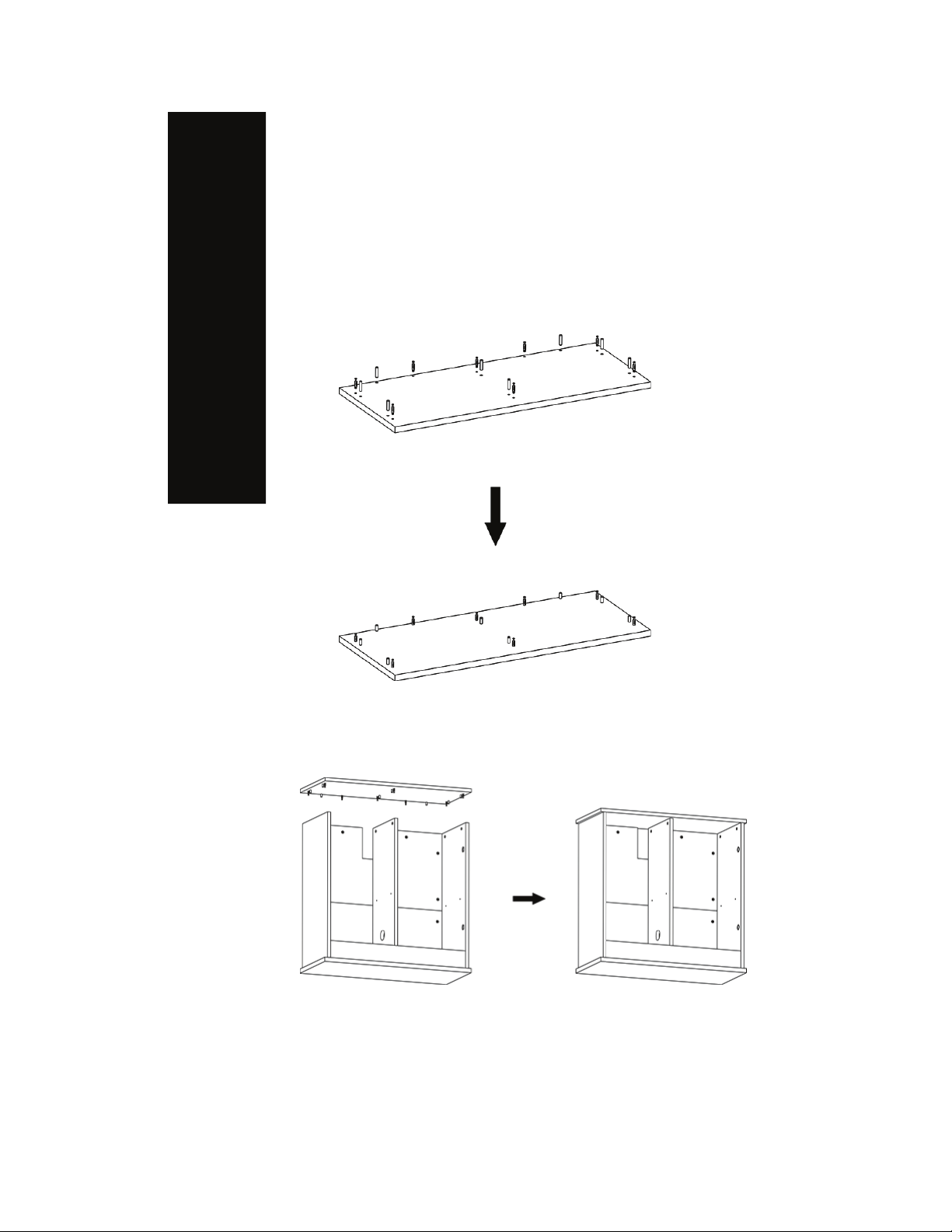

Step 9: Insert wooden dowels and cam screws into bottom panel
Step 10: Place top panel onto stand and insert cam locks and
tighten clockwise.
18

Micro 30L CABINET STAND
Step 11: Attach rubber feet to the bottom of the stand.
Step 12: Place stand on its rubber feet and attach push open
latch to the interior of the stand.
19

Assembled Stands
Micro 30L
CABINET STAND
Step 13: Insert shelf pegs and place left and right storage
shelves a top of them.
Step 14: Attach door hinges and door catch to left and right
doors.
20
