INTRODUCTION
INTRODUCTIONTABLE OF CONTENTS
Thank you for choosing the NVIDIA®GeForce®
GTX 980 Ti graphics card.
The GeForce GTX 980 Ti is a powerful graphics
card that gives you the fast, smooth, quiet gaming
you’re looking for in all your favorite titles. With
features like GPU Boost 2.0, NVIDIA TXAA, and
NVIDIA PhysX, this graphics card will give you the
best your games have to offer.
Plus, with NVIDIA’s GeForce Experience built
right into its drivers, you can take advantage of
NVIDIA’s tens of thousands of hours of testing to
optimize your gameplay settings with one click.
About This Guide
This installation guide discusses the installation and operation of
the NVIDIA GeForce GTX 980 Ti graphic card.
Note: It is important to register your product in order to
receive online and phone support. Consult the registration
card included in the retail packaging for more information on
registering your product.



UNPACKING
UNPACKING
INTRODUCTION

Prior to unpacking your new NVIDIA GeForce
GTX 980 Ti graphics card, it is important to make
sure you meet all the system requirements listed
on page 2 for a smooth installation.
Be sure to inspect each piece of equipment
shipped in the packing box. If anything is missing
or damaged, contact your reseller.
Equipment
The following equipment and documentation are included in the
GeForce GTX 980 Ti graphics card box.
NVIDIA Driver Installation Disc
Contains:
• GeForce Experience Software
For other operating systems and to keep your
drivers current, visit www.nvidia.com/drivers
and download the latest drivers
• Digital version of this Manual and Driver
Quick Start Guide
Fast and easy steps to install the GeForce
graphics card.
Minimum System Requirements
>Motherboard
PCI Express®or PCI Express 3.0-compliant motherboard
with one dual-width x16 graphics slot.
>System Power Supply
Minimum 600 W or greater system power supply with two 6-pin
PCI Express supplementary power connectors.
>Operating System
zMicrosoft Windows 8, 32-bit or 64-bit
zMicrosoft Windows 7, 32-bit or 64-bit
zLinux, 32-bit or 64-bit
zFreeBSD x86
>System Memory
8 GB system memory (16 GB recommended)
>DVD-ROM drive or internet connection for driver installation
>300 MB of available hard disk space



HARDWARE INSTALLATION
HARDWARE INSTALLATION
UNPACKING
 WELCOME
Registration Card
Register to gain priority access to online and
phone support.
GeForce GTX 980 Ti Graphics Card
Installing the NVIDIA GeForce GTX 980 Ti
graphics card hardware involves opening up your
computer. Follow all of the safety instructions
provided here to ensure that there is no damage
to you, your computer, or the graphics board.
Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow basic
safety precautions.
Note: All hardware must be installed prior to installation of
the drivers.
>Remove power from your computer by disconnecting the AC main
source before installation.
>Do not operate this product near water or when your hands or
body are wet.
>Do not place this product on soft surfaces that could block the
ventilation slots and cause overheating.
>Do not place this product near a heating register or radiator.
>Place this product securely on a stable surface. Serious damage
to this product may result if it falls.
>Do not allow anything to rest on the power cord. Do not place
this product where a person can step or trip on the power cord.

DisplayPort
Connector
(Qty Three)
HDMI
Connector
DVI
Connector
One 6-Pin and one 8-Pin Power Connectors
SLI
Connector
DisplayPort
Connectors

HARDWARE INSTALLATION  HARDWARE INSTALLATION
 Before You Begin
The GeForce GTX 980 Ti graphics card is a PCI Express 3.0 ×16 graphics
card. Your computer may already have a graphics card installed in the
PCI Express slot. If so, you will need to remove that graphics card and
replace it with the GeForce GTX 980 Ti graphics card.
If you do not have a graphics card, this means that your motherboard
has on-board graphics (there is a graphics chip installed on your
motherboard or integrated in the motherboard chipset). If this is the
case, there is no action that needs to be taken before installing your
new graphics card.
Installing the GeForce Graphics Card
Because there are so many different computer systems on the market,
the procedure to install the GeForce GTX 980 Ti graphics card can
vary from system to system. Use the following instructions as a
guideline and consult the documentation for
your computer system for any further information on your individual
system.
Note: It is important that all power to the computer be
disconnected before you install the graphics card.
Discharge your body’s static electricity by touching a grounded surface
before touching the graphics card. A grounded surface is the computer
chassis, or some other surface you know to be grounded.
Use the following procedure to install the GeForce GTX 980 Ti
graphics card into your computer system.
1 Turn off your computer and monitor and disconnect the power cord.
Depending on your computer system, you may need to disconnect the
cable going to the back of your system. Mark the cables so you can
make sure you reconnect them properly.
2 Open your computer by removing the cover/side panel. Refer to
your computer documentation from the original manufacturer
for assistance.
3 Remove any existing graphics card (if there is one). Save hardware
(such as screws and brackets) to use when installing the NVIDIA
graphics card.
!Attention: If your system has been running for a period of
time prior to opening the panels, it is very important that you
wait until the graphics card in your system has cooled before
taking the card out of the system. Graphics cards get very hot
when they have been operating for any length of time.
4 Remove two adjacent slot covers if you do not have a graphics card
installed.
Note: The GeForce GTX 980 Ti card is double-wide so it will
require removing two slot covers.

HARDWARE INSTALLATION  HARDWARE INSTALLATION
 5 Plug the GeForce GTX 980 Ti graphics card into the Primary PCI Ex-
press x16 slot on your motherboard. This is often the slot closest to the
CPU but may be the second or third slot. Look for the slot labeled ×16.
It will likely be the only PCI Express slot with a retention lever on the
end of the slot or the one closest to the CPU
Note: It is recommended that you install the graphics card
into the primary PCI Express x16 slot. If you install the graphics
card into the secondary slot, your system may not recognize the
graphics card and there will be nothing displayed on the monitor.
Also note that on some motherboard SBIOS, the physical
location of the primary slot can be configured when there are
more than one PCI Express x16 slots.
If you are installing additional GeForce GTX 980 Ti graphics cards for
an SLI configuration, continue with step 6 (2-way SLI) or step 6 and 7
(3-way SLI). If you are only installing one GeForce card, go on to step 8.
Note: All of the graphics cards in an SLI configuration must
be identical. Therefore, you must have all GeForce GTX 980 Ti
graphics cards.
6 Install a second GeForce GTX 980 Ti graphic card (2-way SLI):
a) Install the second GeForce card into the outer most PCI Express
x16 slot on the motherboard.
b) Connect the two GeForce GTX 980 Ti cards together using the dual
SLI bridge connector that came with your SLI-ready motherboard.
7 Install a third GeForce GTX 980 Ti graphic card (3-way SLI):
a) Install the third GeForce card into the middle PCI Express x16 slot
on the motherboard.
b) Connect the three GeForce GTX 980 Ti cards together using
the tripple SLI bridge connector that came with your SLI-ready
motherboard.
SLI
SLI


SOFTWARE INSTALLATION
SOFTWARE INSTALLATION
 SOFTWARE INSTALLATION
8 Connect one 6-pin and one 8-pin PCI Express auxiliary power
connectors to the top edge of the GeForce GTX 980 Ti graphics card.
Note that the connectors and sockets on the graphics card have a
unique shape and connect one way only.
9 Reinstall the cover on your computer and reconnect any cables that
you removed earlier in the installation.

DisplayPort Connector (Qty Three)
Supports single-lane transfer rates
over a single cable. The interface
is primarily used to connect a video
source to a display device such as a
computer monitor.
HDMI (High-Definition Multimedia
Interface) Connector
Supports output of both video and
audio from the PC to a high-defini-
tion television.
DVI Connector
Use this to connect a digital display.
Note: If you are connecting a VGA
display, you will need to obtain a
DVI-to-VGA adapter,
With the hardware installed, it is now time to
install the GeForce Experience software and the
graphics driver.

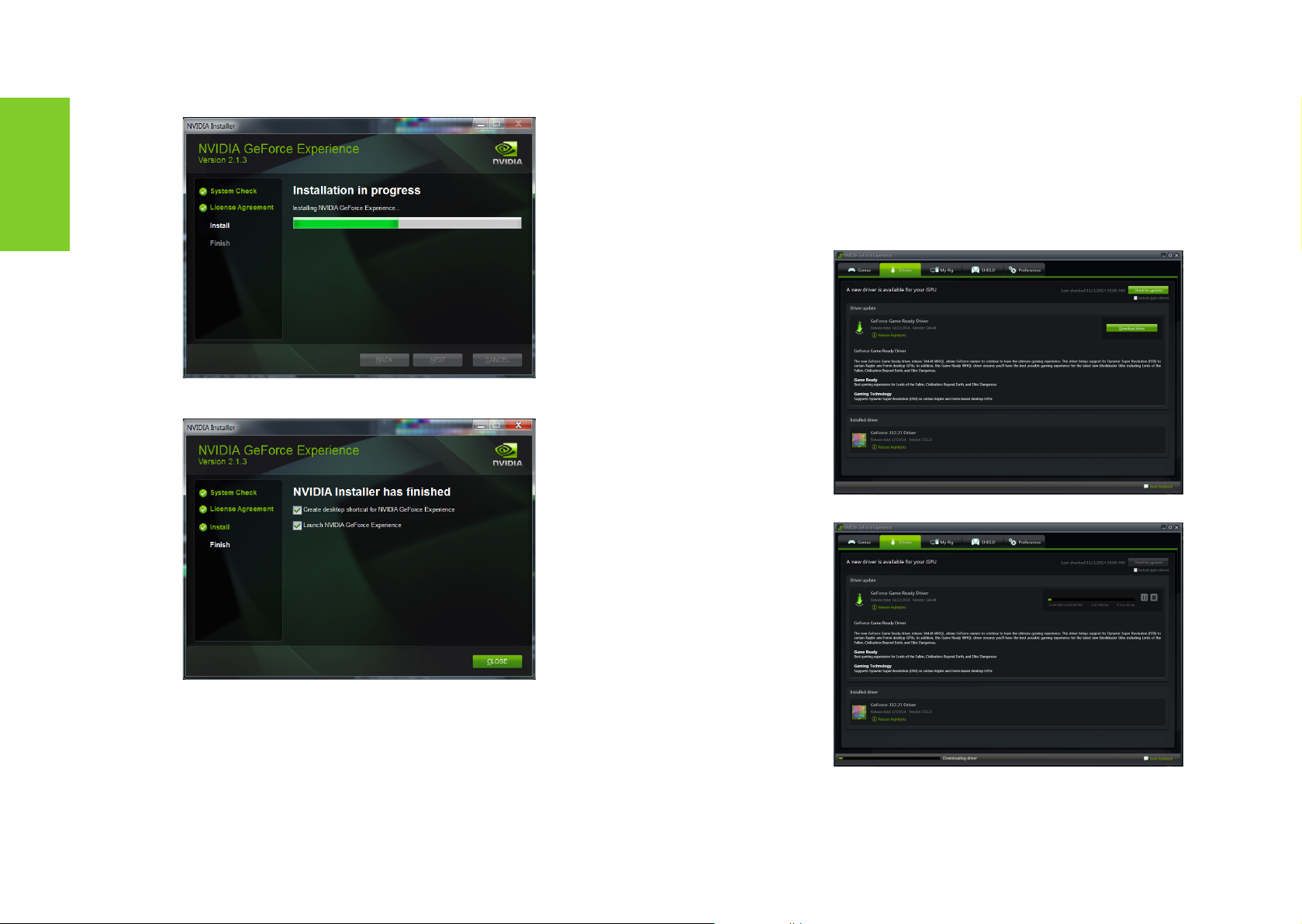

GeForce Experience Software Installation
1 Go to http://www.geforce.com/geforce-experience/download. to
download GeForce Experience software.
2 Accept the NVIDIA software license agreement by selecting AGREE
AND CONTINUE.


SOFTWARE INSTALLATION  SOFTWARE INSTALLATION
NVIDIA Driver Installation

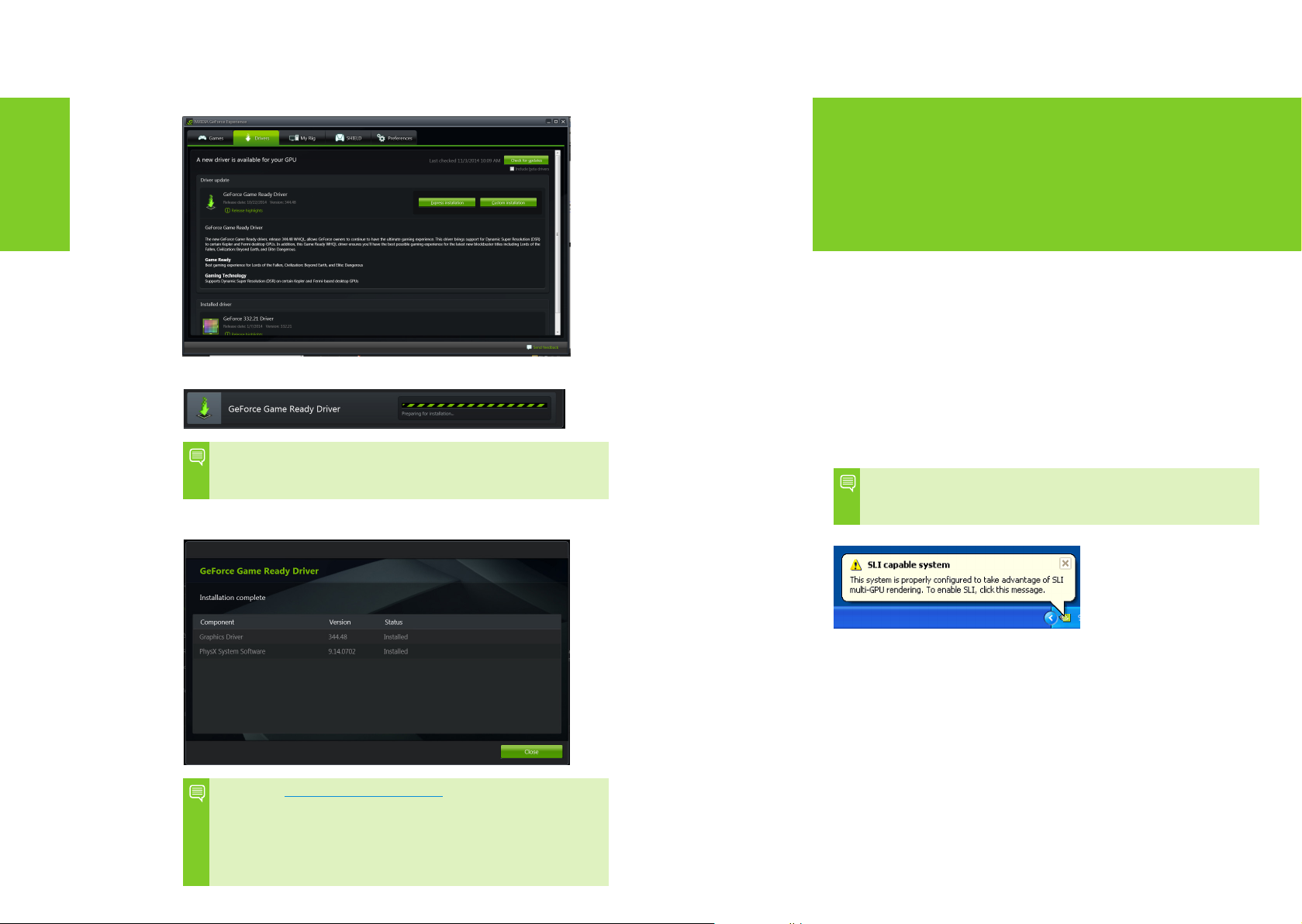

To install/update your graphics driver, use the newly installed Ge-
Force Experience. GeForce Experience automatically checks NVIDIA
servers for the latest GeForce drivers each day, and notifies users if a
new driver is available
1 Open GeForce Experience and select the Drivers tab.
2 Select Download driver.
Your GPU driver begins to download.
 The GeForce Experience software begins to install.
3 Select Close to finish the installation.


CONFIGURING SLI
CONFIGURING SLI
 SOFTWARE INSTALLATION
3 Select Express installation when the download finishes.
GeForce Express begins to install the graphics driver.
Note: It may take several minutes for the installation to take
place. Your screen may go blank for a few seconds one or
more times during installation. This is normal.
4 Click CLOSE when the driver install completes.
Note: Visit www.nvidia.com/support to access our 24 x 7x 365
online support system. GeForce customers purchasing
NVIDIA-branded products also have access to toll free
technical support at 1-800-797-6530 from 8:00AM-5:00PM
Pacific Time, M-F. The technical support line is accessible
from the U.S. and Canada only.

SLI is a revolutionary technology developed
by NVIDIA that allows you to connect identical
GeForce graphics cards together to deliver
increased performance.
You can enable SLI by either clicking on the SLI capable system
balloon in the system tray or by going to the NVIDIA Control Panel.
Note: You must have an SLI-ready motherboard and 2 or 3
identical SLI-ready GeForce graphics cards installed in your
PC in order to enable SLI.
Accessing the NVIDIA Control Panel
1 To access the NVIDIA Control Panel, you can right-click the Windows
desktop and select NVIDIA Control Panel from the menu. Other ways
to access the NVIDIA Control Panel depends on the operating system.
>Windows 8
Using a mouse, point to the upper-right corner of the screen,
click Settings Control Panel Hardware and Sound and
select the NVIDIA Control Panel icon.
>Windows 7
Go to Start Control Panel Hardware and Sound and select
the NVIDIA Control Panel icon.

CONFIGURING SLI


CONFIGURING HDMI
 CONFIGURING SLI
Enabling / Disabling SLI
1 Once you have the NVIDIA Control Panel open, click on
Configure SLI, Surround, PhysX in the left task pane.
2 Select from the following multi-GPU configurations:
>Maximize 3D performance
Select this mode when you want your graphics cards to work to-
gether to increase your rendering performance and image quality.
>Acivate all displays
Activate all displays disables SLI and activates all connected
displays (heads).
>PhysX settings
PhysX settings switches which GPU runs PhysX and can also
dedicate a GPU to PhysX only.
>Disable SLI
Default Selection.
3 Click Apply.

Connecting your HDTV via HDMI allows you to
output both digital audio and video from your
graphics card to an HDTV.
Enabling Audio Over HDMI
If you are connecting to your display over HDMI, you may need to set
the HDMI output to be your default audio device.
In Windows 8, select Start Control Panel Sound.
On the Playback tab, select your HDMI display and select
Set Default.
In Windows 7, select Start Control Panel Sound.
On the Playback tab, select your HDMI display and select
Set Default.
Congratulations! Your GeForce graphics card(s) is now ready to use!
For detailed instructions on using the NVIDIA Control Panel, consult
the Control Panel User’s Guide found at www.geforce.com/drivers
(select your driver, then click on Documentation to download the
User’s Guide).

CONFIGURING HDMI


FEATURES
 CONFIGURING HDMI

>NVIDIA Maxwell™: This is NVIDIA’s most advanced architecture
ever, delivering incredible performance and unmatched power
efficiency. Plus, it offers cutting-edge features like advanced
sampling and Dynamic Super Resolution technology that delivers
4K fidelity—even on 1080p displays.
>GeForce®Experience™: Ensures the best gaming experience, the
day a game releases, by automatically updating your game-ready
drivers. Plus, it allows users to optimize the game settings to their
PC with a single click. GeForce Experience also includes NVIDIA
ShadowPlay™ that lets you capture and share your favorite
gaming moments.
>Multi-Frame sampled Anti-Aliasing (MFAA): MFAA delivers a
30% performance boost while maintaining smooth, high-quality
edges by alternating sample calculations across each frame and
each pixel.
>Dynamic Super Resolution (DSR): This innovative feature can
delivers 4K fidelity to 1080p displays for exceptional detail and
image quality.
>Voxel Global Illumination (VXGI): Part of the NVIDIA GameWorks™
library for developers, VXGI accelerates dynamic lighting effects
for a truly immersive, cinematic experience.
>NVIDIA GameStream™1: Stream extreme GeForce® GTX™ PC
gaming experiences to portable devices like NVIDIA SHIELD™
with super-smooth, low-latency performance.
>NVIDIA G-SYNC™-Ready2:NVIDIA G-SYNC monitors feature
revolutionary NVIDIA technology that eliminates screen tearing
while also reducing input lag. The result is a smoothest, fastest,
and most responsive gaming monitor experience ever seen.
>DirectX 12 Support: Support for the latest Microsoft DirectX API

FEATURES


COMPLIANCES
 FEATURES
to enable next-generation gaming.
>NVIDIA GPU Boost™ 2.0: Dynamically maximizes clock speeds
based on workload and allows enthusiast-class controls such
as temperature target and fan controls, extra over-voltage
headroom, and optimizations for water-cooling solutions. This
allows gamers to push performance to new levels.
>NVIDIA Adaptive Vertical Sync: Dynamically enable vertical sync
based on your current frame rates for the smoothest gaming
experience.
>NVIDIA CUDA™: Unlock the power of the GPU’s processor
cores to accelerate demanding tasks such as video transcoding,
physics simulation, ray tracing, and more, delivering incredible
performance improvements over traditional CPUs.
>DisplayPort: Drive the latest DisplayPort panels with support for
resolutions up to 5120x3200.
>HDMI: Support for HDMI includes 4K resolution at 60 Hz, GPU-
accelerated Blu-ray 3D support, x.v.Color, HDMI Deep Color, and
7.1 digital surroundsound.
>Dual-link DVI: Drive flat-panel displays up to 2560x1600
resolution over a DVI connector.
>PCI Express 3.0: This card is designed for the new PCI Express
3.0 bus architecture, offering the highest data transfer speeds for
the most bandwidth-hungry games and 3D applications. It also
maintains backwards compatibility with existing PCI Express
motherboards for the broadest support.
1. NVIDIA GameStream requires an NVIDIA GameStream-ready device.
2. NVIDIA G-SYNC requires an NVIDIA G-SYNC-ready monitor.

The NVIDIA GeForce GTX 980 Ti graphics card is compliant with the
following regulations:
>Federal Communications Commission (FCC)
>Industry Canada (IC)
>Conformité Européenne (CE)
>Australian Communications and Media Authority (C-tick)
>Voluntary Control Council for Interference (VCCI)
>Bureau of Standards Metrology and Inspection (BSMI)
>Korean Certification (KC)
>Underwriters Laboratories (UL, cUL)
>ISO 9241-307 Visual Display Ergonomics
UNITED STATES
Federal Communications Commission (FCC)
NVIDIA CORP
Model: PG600
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.

COMPLIANCES

 COMPLIANCES COMPLIANCES 
However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
>Reorient or relocate the receiving antenna.
>Increase the separation between the equipment and receiver.
>Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
>Consult the dealer or an experienced radio/TV technician
for help.
CANADA
Industry Canada (IC)
This Class B digital apparatus complies with ICES-003
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
EUROPEAN UNION
European Conformity; Conformité Européenne (CE)
This device complies with the EMC Directive for Class B, I.T.E
equipment.
AUSTRALIA & NEW ZEALAND
Australian Communications and Media Authority (C-tick)
This product meets the applicable EMC requirements for Class B,
I.T.E equipement
JAPAN
Voluntary Control Council for Interference (VCCI)
This is a Class B product based on the standard of the VCCI Council.
If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the
equipment according to the instruction manual.
KOREA
Radio Research Agency (RRA)
KCC-REM-NVA-PG600
B급기기(가정용 방송통신기기)
이기기는 가정용(B급)으로 전자파적합등록을 한
기기로서 주로 가정에서 사용하는 것을 목적으로
하며, 모든 지역에서 사용할 수있습니다.
Class B Equipment (For Home Use Broadcasting & Communication
Equipment)
This equipment is home use (Class B) electromagnetic wave
suitability equipment and to be used mainly at home and it can be
used in all areas.


 COMPLIANCES COMPLIANCES 
Notice
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS,
DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY,
“MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES,
EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE
MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE.
Information furnished is believed to be accurate and reliable. However, NVIDIA
Corporation assumes no responsibility for the consequences of use of such
information or for any infringement of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise under
any patent or patent rights of NVIDIA Corporation. Specifications mentioned in this
publication are subject to change without notice. This publication supersedes and
replaces all information previously supplied. NVIDIA Corporation products are not
authorized for use as critical components in life support devices or systems without
express written approval of NVIDIA Corporation.
Trademarks
NVIDIA, the NVIDIA logo, CUDA, GeForce, GeForce GTX, GeForce Experience,
GigaThread, Lumenex, PureVideo, and PhysX Technology are trademarks or
registered trademarks of NVIDIA Corporation. Other company product names may be
trademarks of the respective companies with which they are associated.
Copyright
© 2014 NVIDIA Corporation. All rights reserved.
 TAIWAN COMPLIANCE
Bureau of Standards, Metrology and Inspection (BSMI)
This device complies with CNS 13438 (2006) Class B
SAFETY
Underwriters Laboratories (UL)

www.nvidia.com
