Nview 960H/AHD/SDI User manual
User’s manual for NVIEW DVRs
Models - 960H / AHD / SDI
User’s Manual
960H / AHD / SDI
Contents
CONTENTS ...........................................................................................................................................................................
SAFETY INSTRUCTION ......................................................................................................................................................
CHAPTER 1 FEATURES AND FUNCTIONS ................................................................................................................... 1
CHAPTER 2: OVERVIEW.................................................................................................................................................. 2
2.1 FRONT PANEL........................................................................................................................................................................... 2
2.1.1
、
4/8/16 CH DVR Front Panel ................................................................................................................................. 2
2.2 REAR PANEL............................................................................................................................................................................. 3
2.2.1
、

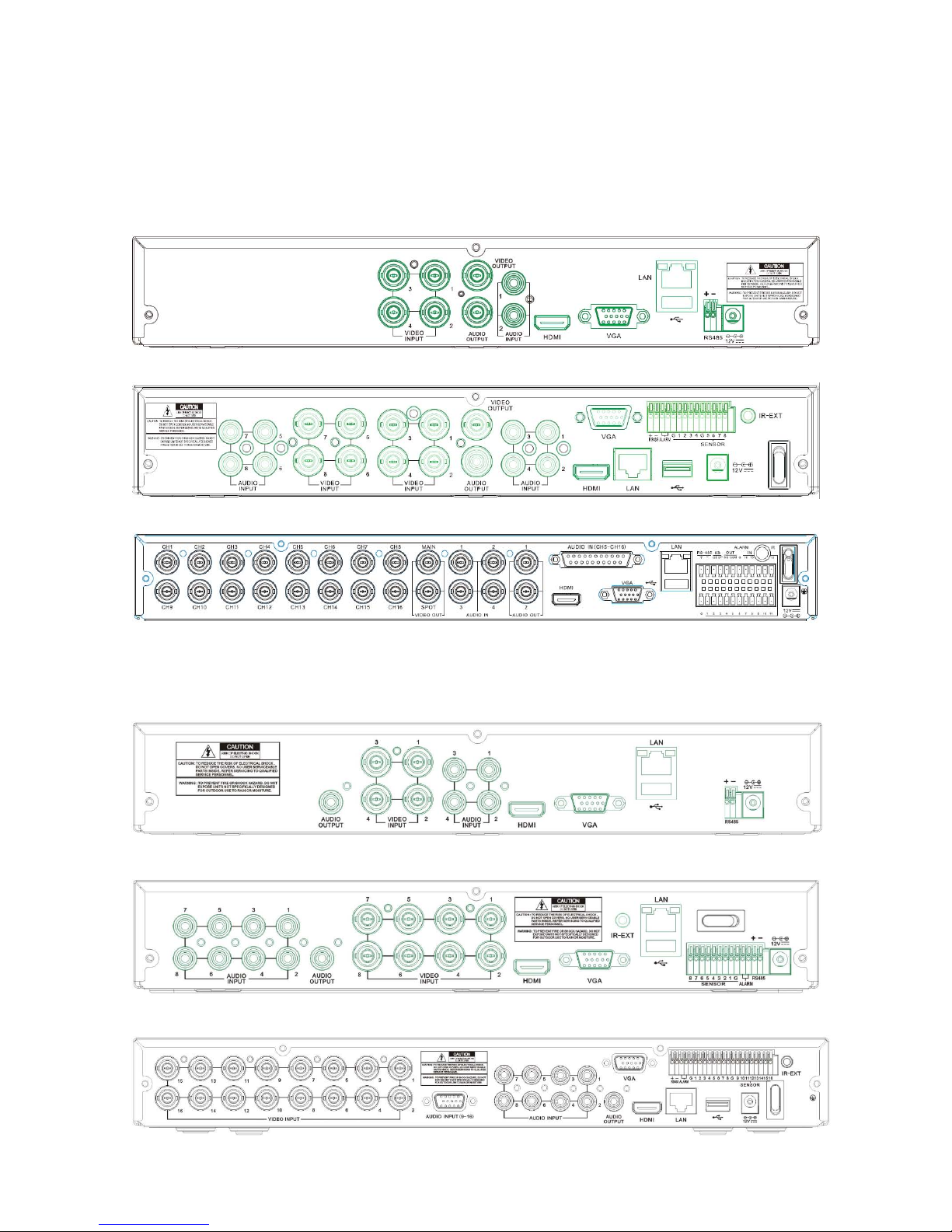

4/8/16 CH DVR Rear Panel.................................................................................................................................. 4
2.3 REMOTE CONTROLLER ............................................................................................................................................................... 5
2.4 MOUSE CONTROL ..................................................................................................................................................................... 6
CHAPTER 3 DVR CONNECTION ..................................................................................................................................... 8
3.1 HDD INSTALLATION................................................................................................................................................................... 8
3.2 CAMERA AND MONITOR CONNECTION.......................................................................................................................................... 8
3.3 POWER SUPPLY CONNECTION ...................................................................................................................................................... 8
CHAPTER 4: DVR BOOT UP ............................................................................................................................................ 8
4.1 SYSTEM INITIALIZATION .............................................................................................................................................................. 8
4.2 LIVE INTERFACE ........................................................................................................................................................................ 9
CHAPTER 5: DVR MENU .................................................................................................................................................. 9
5.1 MAIN MENU GUIDE................................................................................................................................................................ 10
5.2 MAIN MENU ......................................................................................................................................................................... 11
5.2.1. Display..................................................................................................................................................................... 11
5.2.1.1 Live mode.................................................................................................................................................................................11

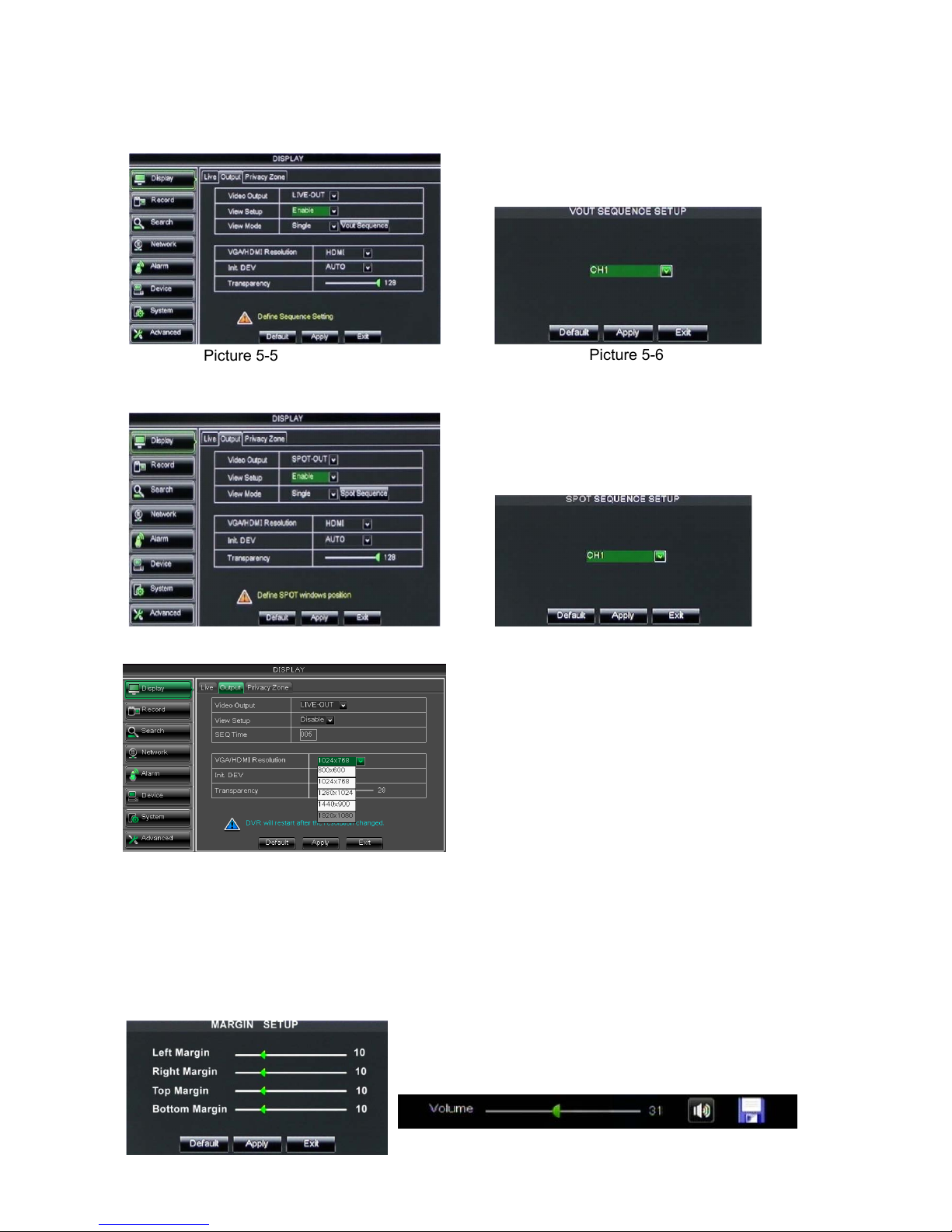

5.2.1.2 Output mode ........................................................................................................................................................................... 11
5.2.1.3 Privacy Zone.............................................................................................................................................................................13
5.2.2 Record set................................................................................................................................................................ 13
5.2.2.1 Record parameters...................................................................................................................................................................13
5.2.2.2 Schedule .................................................................................................................................................................................. 13
5.2.2.3 Main Stream ............................................................................................................................................................................ 14
5.2.3 Search ...................................................................................................................................................................... 14
5.2.3.1 Record Search .......................................................................................................................................................................... 14
5.2.3.2 Channel Select ......................................................................................................................................................................... 15
5.2.3.3 Time Axis setup, file clip and zoom in/out............................................................................................................................... 15
5.2.3.4 Event Search ............................................................................................................................................................................ 16
5.3.3.5 File Backup............................................................................................................................................................................... 16
5.3.3.5.1 back-up file based on event........................................................................................................................................ 16
5.3.3.5.2 back-up file based on time.......................................................................................................................................... 17
5.3.3.5.3 Play backup file ............................................................................................................................................................ 17
5.2.3.6 Log Search................................................................................................................................................................................ 19
5.2.4 Network .................................................................................................................................................................... 19
5.2.4.1 Network set ............................................................................................................................................................................. 19
5.2.4.3 Router’s Port Forwarding ......................................................................................................................................................... 21
5.2.4.4 Sub stream ............................................................................................................................................................................... 21
5.2.4.5 Email set .................................................................................................................................................................................. 21
5.2.4.6 DDNS Set.................................................................................................................................................................................. 22
5.2.5 Alarm......................................................................................................................................................................... 22
5.2.5.1 Motion ..................................................................................................................................................................................... 22
5.2.5.2 Alarm Set ................................................................................................................................................................................. 23
5.2.6 Device....................................................................................................................................................................... 24
5.2.6.1 HDD Set.................................................................................................................................................................................... 24
5.2.6.2 PTZ Set ..................................................................................................................................................................................... 25
5.2.7 System...................................................................................................................................................................... 25
5.2.7.1 General .................................................................................................................................................................................... 25
5.2.7.2 Users ........................................................................................................................................................................................26
5.2.7.3 Information.............................................................................................................................................................................. 27
5.2.8 Advanced ................................................................................................................................................................. 27
5.2.8.1 Maintain................................................................................................................................................................................... 27
5.2.8.2 Event ........................................................................................................................................................................................ 27
5.3 MENU LOCK .......................................................................................................................................................................... 28
5.4 SPLIT MODE ........................................................................................................................................................................... 28
5.5PTZCONTROL ......................................................................................................................................................................... 28
5.6 PIP MODE ............................................................................................................................................................................ 29
5.7RECORD SEARCH...................................................................................................................................................................... 29
5.8MUTE ................................................................................................................................................................................... 29
5.9 MANUAL RECORD................................................................................................................................................................... 29
5.10 STOP RECORD....................................................................................................................................................................... 29
5.11 START SEQUENCE.................................................................................................................................................................. 29
5.12 START CRUISE....................................................................................................................................................................... 29
CHAPTER 6: WEB APPLICATION MANAGER .......................................................................................................................... 30
6.1 ACTIVEX CONTROL DOWNLOAD AND INSTALLATION........................................................................................................................ 30
6.2 WEB APPLICATION MANAGER LOG-IN......................................................................................................................................... 31
6.3 LIVE INTERFACE....................................................................................................................................................................... 31
6.3.1 Menu Bar.................................................................................................................................................................. 31
6.3.1.1 Live Display ..............................................................................................................................................................................31
6.3.1.2 PTZ Control........................................................................................................................................................................ 32
6.3.1.3 Video control ........................................................................................................................................................................... 32
6.3.2 Playback................................................................................................................................................................... 33
6.3.2.1 Record search .......................................................................................................................................................................... 33
6.3.2.2 Playback control....................................................................................................................................................................... 34
6.3.3 Configuration ........................................................................................................................................................... 35
6.3.3.1 Display Configuration............................................................................................................................................................... 35
6.3.3.2 Record...................................................................................................................................................................................... 36
6.3.3.3 Network Parameters ................................................................................................................................................................ 36
6.3.3.4 Alarm Set ................................................................................................................................................................................. 37
6.3.3.5 Device ...................................................................................................................................................................................... 38
6.3.3.6 System...................................................................................................................................................................................... 39
6.3.3.7 Advanced ................................................................................................................................................................................. 40
6.3.4 Local setting............................................................................................................................................................. 41
6.3.5 Logout....................................................................................................................................................................... 41
CHAPTER 7: APPENDIX ................................................................................................................................................. 42
7.1 RECORD ALARM SETTING.......................................................................................................................................................... 42
7.2 TROUBLESHOOTING................................................................................................................................................................. 42
7.3 USAGE MAINTENANCE............................................................................................................................................................. 43
7.4 SYSTEM CONNECTION DIAGRAM................................................................................................................................................ 44
7.5 ACCESSORIES................................................................................................................................................................... 44
Safety Instruction
1. Read instruction
All the safety and operating instruction should be read before the equipment is operated.
2. Power sources
This equipment should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power, please consult your equipment dealer.
3. Objects and Liquid
Never push objects of any kind through openings of this equipment and / or spill liquid of any kind on the
equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric
shock.
4. Water and / or Moisture
Do not use this equipment near water or in contact with water.
5. Heat sources
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifier) that produce heat.
6. Dusty field
Never use this equipment near dusty or intense magnetic field.
7. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp
soft cloth for cleaning.
8. Lightning
Unplug this equipment during lightning storm or when unused for long periods of time.
9. Accessories
Do not place this equipment on an unstable cart, stand or table. When a cart is used, use caution when moving
the cart / apparatus combination to avoid injury from tip-over.
10. Moving
Disconnect the power before moving the equipment. And the equipment should be moved with care.
11. Attachment
Never add any attachments and/or equipment without the approval of the manufacturer as such additions may
result in the risk of fire, electric shock and other personal injury.
12. Correct Batteries
Risk of explosion occurs if battery is replaced by an incorrect type. Therefore you must use the same type of
battery as the one being used in the product.
13. Ventilation.
Do not block any ventilation openings, installation of the equipment in the rack should be such that the amount
of airflow required for safe operation of the equipment is not compromised.
14. Overloading
Do not overload wall outlets and extension cords to avoid the risk of fire or electric shock.
15. Reliable Earthlings (Grounding)
Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to
supply connections other than direct connections to the branch circuit.
1
Chapter 1 Features and Functions
Features：
H. 264 video compression format; supports 960H resolution;
G.711 audio compression format;
Windows Graphical interface; embedded real-time Linux2.6 operation system;
Friendly Menu reminder;
Multiple operation modes (Preview, record, playback, backup, network surveillance and mobile phone
monitoring);
Supports Double Streaming network transmission;
Supports remote live surveillance via smart mobile phone;
Supports Zoom in/out and sequence function;
The video package time is adjustable;
Multiple alarm record modes;
Rear USB2.0 ports for back-up, recorder, upgrade and mouse operation;
With IR remote control operation;
Multiple language OSD;
Support auto-maintain.
Function Brief and Description
Real time
monitoring
Double video output; with monitor, VGA virtual output port or HDMI Output;
Support net-viewer and MP live surveillance and also support zoom in/out,
auto sequence and PIP display.
Record
H.264 video compression format; record quality/resolution/frame rate
adjustable, multiple record modes (Always, Scheduled, Manual, Alarm,
Motion detection and remote record)
Record
storage
Support SATA large capacity HDD and save real-time record image to
HDD.
Playback Support DVR single CH and multiple CH Search/Playback of recorded
files.
Backup Support DVR backup via USB flash drive, removable drive, Recorder and
network.
Alarm
Setting
Supports HDD & video input alarm management and external alarm signal
inputs.
Network
operation
Supports remote surveillance by authority users to increase system
security.
Mouse
Operation Supports Mouse operation for faster menu navigation.
PTZ Control Supports PTZ camera operations through RS-485.
List 1-1
*
* External alarm input not supported by 4ch AHD DVR
2
Chapter 2: Overview
2.1 Front Panel
2.1.1、4/8/16 CH DVR Front Panel
4CH
8CH
16CH
3
Item Type Key title
/Indicator Marks Function
1 HDD indicator HDD When the “Red” indicator flashes it means the hard drive is
being read or written to.
2
Indicator
Power indicator PWR If the “Green” indicator is on the system is getting power
normally.
3 IR Receiver Receives IR signal from Remote Control
4 Menu MENU/ESC Enter into main menu / Exit
5
Complex
Key PTZ PTZ Enter into PTZ control, select [Enter] / [Edit] operation
6 UP Move up
7 RIGHT / Move right / FWD
8 DOWN Move down
9
Direction
Key
LEFT / Move left / RWD
10
Channel
Select &
numeric
input
Single Channel
and numeric key
Numeric key
0,1-9 and CH
key CH1~9
1. Number 1~9 stand for numeric 1~9 and CH 1~9.
2. CH11-CH16 select method: press firstly numeric
key 1 and then other numeric key. For example
CH16 select firstly press 1, and then press 6.
3. Holding press key 0 for three seconds may convert
current output device
11 Rec. Manual record ● Press the button to start manual record.
12 Stop Stop playing and stop manual record
13 By frame Play frame by frame
14 Play Convert to play status
15 Mute Open or close audio input
16
Play Control
Multi Display Live display Quad mode, 9-split and 16-split mode
17 USB Port Connect to USB2.0 port
4
2.2 Rear Panel
2.2.1、4/8/16 CH DVR Rear Panel
960H DVR
AHD DVR
4CH
8CH
16CH
4CH
8CH
16CH
5
SDI DVR
Item Physical port Connection method
1
Video input Connect CH1-4 (Virtual) video input device（BNC interface）
2
Video output Connect monitor output(BNC interface)
3
Audio Input 4CH audio input (RCA interface）;
4
Audio Output Audio output (RCA interface）;
5
USB Port Connect USB device (Flash Drive, Hard Drive and Recorder etc)
6
USB Port Connect USB mouse
7
VGA /HDMI Port Connect to VGA monitor, such as PC monitor (Optional)
8
RS-485/Sensor/Ala RS485/Sensor/Alarm interface (see pin outs below)
9
Power Port Connect power supply - DC12V 2A(4ch) , DC 12V 2A(8CH)
10
Ethernet: Port Connect LAN, Ethernet (RJ45 interface)
11
Power Switch Turn Power on and off
4CH
8CH
*
* External alarm input not supported by 4ch AHD DVR
6
RS485/Sensor/Alarm port functions:
Alarm input: Connect [-] port of your sensor to G (GND) pin, and [+] port to channel input according to the
alarm device you purchased.
Alarm output: Connect to the two ports marked with “out”
PTZ Port：Connect your camera to RS-485A and RS485B accordingly.
2.3 Remote Controller
Item Key title Key function
1 1-8 Channel select 1-8; Numeric key
2 9、0 Numeric key; Clicking numeric “0” allow you
switch to output device
3 ALL Multiple display mode
4 Menu Enter into Main menu/Exit
5 ▲ Up arrow key, Volume adjust
6 ▼ Down arrow key, Volume adjust
7 ◄/ Left/Down key,
Decrease/increase parameter value of control bar
8 SEL Select key/Edit key;
Confirm the selected operation.
9 Rewind key
10
Enter into record search menu;
Play key
11 Forward key
12 ● Record key
13 Pause/Sequence key
14 ■ Stop manual record; stop playing
15 Audio Testing
16 Mute Mute on/off
External alarm input not supported by 4ch AHD DVR
7
2.4 Mouse Control
Except using buttons of front panel or remote controller, you also can use mouse to perform system
operation.
TYPE Function
In menu lock mode, Enter into pop-up menu and clicking any sub
menu to pop up Log-in window; on menu unlock mode, enter into pop-up
menu, and then clicking left key to enter into any sub menu directly.
After entering into main menu, clicking left key could enter into any sub
menu; On [Detailed file] menu mode, clicking left key could playback one
recording file.
Change the status of check box and motion detection area.
Clicking combo box to access pull-down menu; Click left key to stop dwell
time display when dwell time display is activated.
By clicking left key you can adjust Color control bar and volume control bar.
Clicking combo box to access pull-down menu
Click left key
of Mouse
By clicking left key you can select values in edit boxes or pull-down menu
and supports Chinese word input, special symbol, numeric and character
input, use instead of [Enter- ] or [Backspace ]
In live display mode, clicking right key will display pop-up menu
(shown as Picture 5-1).
Click
right key of
Mouse In Main menu or sub menu mode, clicking right key will exit current menu.
Double-click
Left key of
Mouse
In live display or playback mode, double-clicking left key will maximize
the screen.
Moving
Mouse
Select menu item
Sliding Mouse
On motion mode, sliding mouse will select motion area; On [Color set]
menu mode, sliding mouse will adjust color control bar and volume control
bar.
8
Chapter 3 DVR Connection
3.1 HDD Installation
Caution： Please do not Install or take out hard drive when DVR is running!
HDD Installation:：
(1) Cut power firstly, and then remove screws and open DVR upper cover carefully;
(2) Insert Power Cord and data cable into Pin of hard drive securely;
(3) Remove the screws on the HDD bracket; fix the HDD to the bracket and then fix the bracket with HDD to
DVR body;
(4) Put the upper cover back carefully, re-attach screws.
Note: If user requires higher performance HDD, strongly recommend you use special hard driver for security
and protection.
3.2 Camera and Monitor Connection
Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector
(Refer to section2.2-Rear Panel); or
If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR
respectively (refer to system figuration on Chapter 8).
3.3 Power Supply connection
After power on please make sure the video I/O connection well, audio device with BNC cable.
Chapter 4: DVR Boot up
4.1 System Initialization
After connecting the Power cable of DVR to wall outlet
and pressing the Power button on the front panel, you will
enter into the system initializing screen shown as Picture
4-1
Picture 4-1
9
4.2 Live Interface
Note: When internal HDD is not connected or an error occurs, the character “H” will appear on the first
channel of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm, please enter
into [Main menuAlarm] to set HDD loss, HDD space not enough and alarm output to “off”
Chapter 5: DVR Menu
Pop-up Menu
After finishing system initialization, click right
key of mouse on main interface mode to enter into
Pop-up Menu. Now you could perform parameter
setting and operate on Main Menu, Multi-Pics, PTZ,
Auto Cruise, Zoom in/out, Rec. Search, Manual
record, Sequence, PIP, and Vo Switch etc.
For 4CH&8CH, holding press 'REW' key on the
front panel can switch the output device, but for
16CH, '0' button works.
After finishing initialization the system will enter into
<Live> screen. Picture 4-2 is the 16-split display defaulted by
system, which is showing no video input status. Once there
are video inputs, the screen will display live images from the
cameras. In Live mode, if you use the mouse to double-click
the live image of any channel, the image will be maximized to
full screen, by double-clicking again, image will be come back
to 16-split display mode; clicking the right button of the mouse
will enter into Pop-up Menu; clicking the left button of the
mouse allows you select menu items; and clicking any area
outside the menu allows you exit the Pop-up menu.
Picture 4-2
Picture 5-1
10
5.1 Main Menu Guide
Record Playback
Search
Record Search
Event Search
Backup
Log search
Display
Output Set
Main Menu
Live set
Privacy Zone
Clip Set
Record Parameters
Schedule
Main Stream
Record
Sub stream
Network Set
Email Set
DDNS Set
Network
Motion Detection
Alarm set
Alarm
Device
PTZ set
HDD
Maintain
Advanced
Event
System Users
System Information
General
11
5.2 Main Menu
5.2.1. Display
5.2.1.1 Live mode
Go to <Main menuDisplayLive> option and enter into the <Display> setting interface shown as
Picture 5-3.
Explanation：
1、 The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu
windows and being prompted to save and then clicking [ok] button.
2、 If you want to cancel the modification, click [Exit] button to exit the menu.
3、 When clicking [DEFAULT] button, all system default values will be reset to default value.
4、 System default value indicates the value pre-set at the factory.
5.2.1.2 Output mode
Go to [Main menuDisplayOutput] to enter into the output set interface shown as Picture 5-5.
On <Live> mode, click [Menu] button on the
front panel or Remote controller to enter into Main
menu interface shown as Picture 5-2. And also you
can click [ ] icon to enter the main menu
screen. In Main Menu mode, you can control
device management settings, such as Display,
Record, Network, Search, Device, System and
Advanced setting etc.
Channel: allow you setup the channel you desired.
Name: allow you setup the channel name, and system
support up to eight characters or four Chinese
characters.
Position: allow you setup the display position of each
channel.
Color: Click [Setup] option to enter into the [Color setup]
interface shown as Picture 5-4.
Covert: allow you enable [Live] surveillance screen
Show time: allow you enable system time appear in the
<Live> screen.
Record time: When set to “Enable”, you are allowed to
record system time into the record history.
Copy: allow you copy all data of one channel to any other
one
Above picture 5-4 is the Color Menu where you can
adjust image brightness, saturation, contrast and hue
parameters of each channel.
Picture 5-2
Picture 5-3
Picture 5-4
12
Display Mode: Live output: display window will include Single, Quad, 9-split and 16-split mode;
Spot output: display window will include Single, Quad and 9-split mode.
Transparency: allow you adjust menu’s transparency, and its range is 1~128.
Margin: allow you adjust the whole screen’s margin. Details operations please refer to the Picture 5-10.
Volume: allow you adjust the DVR volume shown as Picture 5-11.
Picture 5-5
Picture 5-6
Go to [Main menuDisplayOutput]
to enter into the output set interface
shown as Picture 5-5.
Click [Live] to pop up the interface
shown as Picture 5-6. Now you could
perform channel sequence setting.
Click [Spot output] option and set relative
parameters shown as Picture 5-7.
Click [Spot sequence] to enter into the
interface shown as Picture 5-8.
Picture 5-7 Picture 5-8
Video output: Support CVBS output Live and Spot
mode simultaneously, and Live is main output, and
Spot is auxiliary output.
CH Sequence: the option is defaulted to “Off” and
sequence time is 5 second. User can activate the
option as per request.
Rotate time: allow you set sequence time, and
minimum time can be set to 1 second.
VGA/HDMI Resolution: allow you select VGA or
HDMI output, including 800x600, 1024x768,
1280x1024, 1440x900 and 1920 x 1080.
Picture 5-9
Picture 5-10
Picture 5-11
13
5.2.1.3 Privacy Zone
The function Allow you setup privacy zone parameters according to Picture 5-12. Each channel could set
up to four privacy zones, and please follow below steps to set:
1. Select the area no (Area 1 ~ Area 4);
2. Click [Setup] to adjust position of mask area;
3. After finishing position adjust, click right key of mouse to return back [Privacy zone] interface;
4. Click [Apply] to save the above setting.
5.2.2 Record set
5.2.2.1 Record parameters
5.2.2.2 Schedule
Click [Main MenuRecordSchedule] to enter into
the interface shown as Picture 5-15.
[Channel] option allows you select one channel you
desired.
To setup weekly schedules, tick-select the box of the
record status you want (Alarm, General, or No Record)
and then click on each box in the schedule time line that
you want this method to apply to. You can use the [Copy
– To] pull-down menus and Copy button to copy settings
from one day to another day or all days.
Click [Main menuRecordRecord Para] to enter
into the interface shown as Picture 5-14.
Channel: allow you setup the channel you
desired.
Record: allows you set up record status
(Enable/Disable) of each channel
Pack Duration: indicates maximum continuous
record time (15, 30, 45 and 60 min).
Pre-record: Motion detection and I/O triggered
record support Pre-record function.
Picture 5-14
Picture 5-15
Picture 5-13
Picture 5-12
14
After you complete the schedule you activate it by clicking the [Apply] button.
You can also click on the Default button to use the system defaults.
Explanation: Under the <record> menu and <search> menu, original color stands for no record, “Red” stands
for alarm record, “yellow” stands for Motion record and “Green” stands for normal record.
5.2.2.3 Main Stream
Go to [Main menuRecordMain Stream] to enter into the interface shown as Picture 5-16.
5.2.3 Search
5.2.3.1 Record Search
Click [Main MenuSearchRecord Search] to enter into the interface shown as Picture 5-17.
Time Search: In the <Search screen>, user can search for a specific date and time for a recording and
view it in Playback mode. This is useful for hunting a specific recording of an incident if you know the date
and time it occurred.
File List: click [File List] button to enter into the [Event Search] screen shown as Picture 5-19, the video
records for the time quantum will appear in the screen.
Playback Mode: You can use the Playback Control bar to operate the Fast Forward (X2, X4, X8 and X16),
Slow play (1/2, 1/4 and 1/8 speed), Play, Pause/Frame, Rewind(X2, X4, X8 and X16). When ending
playback, DVR will return back to previous menu shown as Picture 5-20.
Play control Bar: the play control bar will display current playing processing shown as Picture 5-20.
When user click any time at the control bar and this point have not any record file, system will auto return
back to previous menu.
Resolution: support 720P, 960H and D1.
720P: includes 1080P and 720P
960H: includes WD1, WHD1 and WCIF;
D1: include D1, HD1 and CIF
Frame rate: PAL: 1-25 f/s ; NTSC: 1-30 f/s.
Bit rate: user could select the relative value by
pull-down menu.
Audio: When tick-selecting the option, system
will record video stream with audio
simultaneously.
Picture 5-16
Picture 5-17
Channel: allows you select the channel(s)
you desire to search.
Date Search: In the Video Search screen,
user can search for all the records in a
specific date. To execute a video search,
highlight and select the date numeric field，
and then click a detailed time quantum of
the specific date, system will start the
playback from the first record of the time
quantum.
15
5.2.3.2 Channel Select
5.2.3.3 Time Axis setup, file clip and zoom in/out
1) The DVR supports the processing control bar function when playing back record files shown as
Picture5-19A (Up to 4 CH is available).
2) Click [ ] icon beside the processing bar to pop up the interface shown as Picture 5-19A-1.
Time Axis: defaulted to 24hours, and allow user select 2hours, 1hour, 30minutes or
user-defined.
Detailed operation is as follows:
（1） Fixed time axis: If you select [ ] option, that means the processing control bar cover two-hours
video content.
（2） User-defined: select [ ]option and move the cursor to processing bar to select start time
and/or end time (that is to say, click any points of the processing bar as start time and/or end time),
Now, the whole time axis equals the time quantum you just selected (shown as Picture 5-19B-1.
Picture 5-18 Picture 5-19
Click [Main MenuSearchRecord search]
to enter into the interface shown as Picture
5-18
Then tick-select the channel you want to playback;
and click [Play] button to enter into the playback
mode shown as Picture 5-19
Picture 5-19A Picture 5-19A-1
Picture 5-19A-2 Picture 5-19B-1
Table of contents
