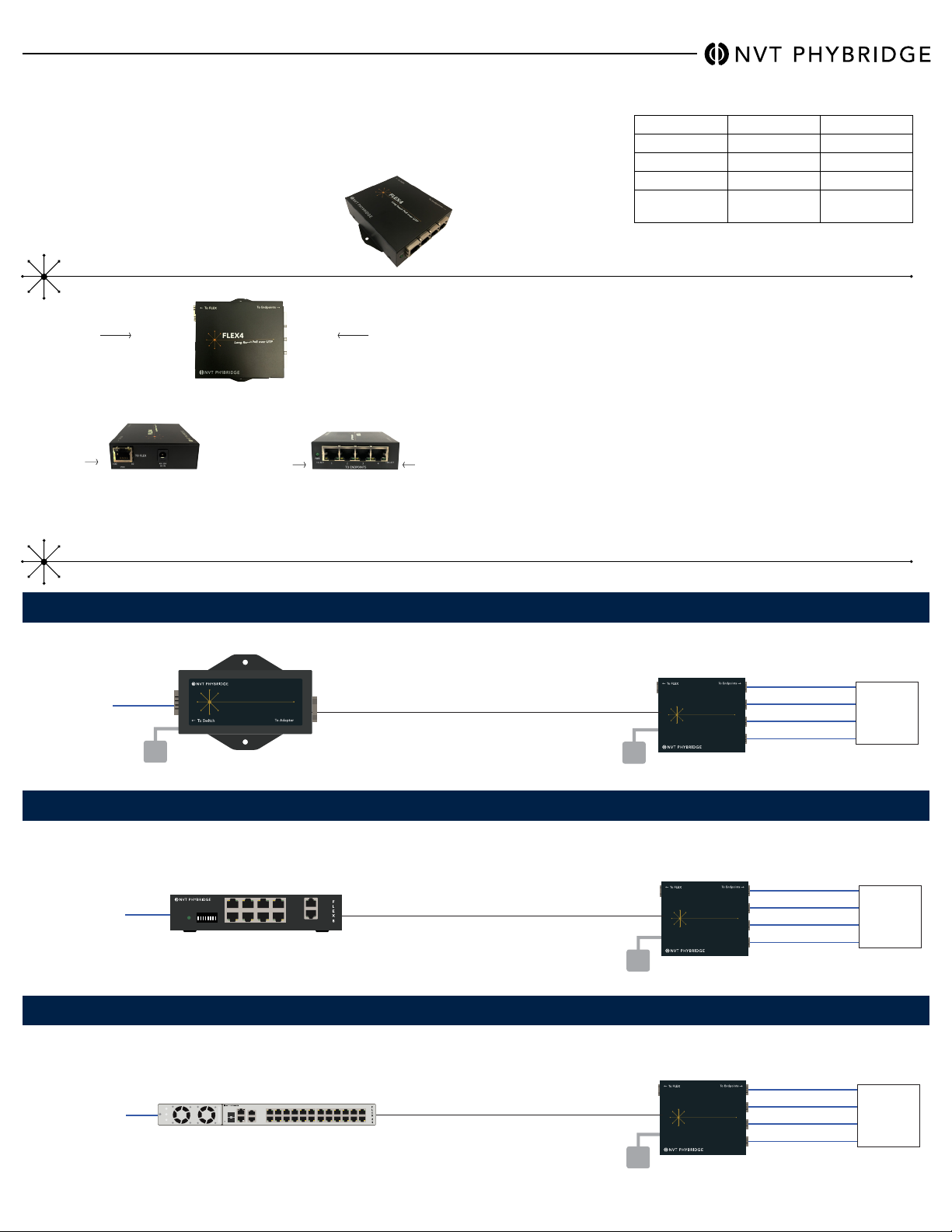

NVT Phybridge FLEX4 User manual

Local Power
Up to 110W, 55V
(Optional)
Local Power
Up to 110W, 55V
(Optional)
The FLEX4 adapters enable extended Ethernet and PoE reach beyond
traditional distances using 1, 2 or 4 pair UTP infrastructure. The adapters, when
used with the FLEX Switch or FLEX-Base, deliver 10/100 Mbps, symmetrical full
duplex. The FLEX offering is designed specifically to enable easy deployment
over UTP for reaches beyond that of standard Ethernet eliminating the costs
and disruption associated with IDF closet requirements.

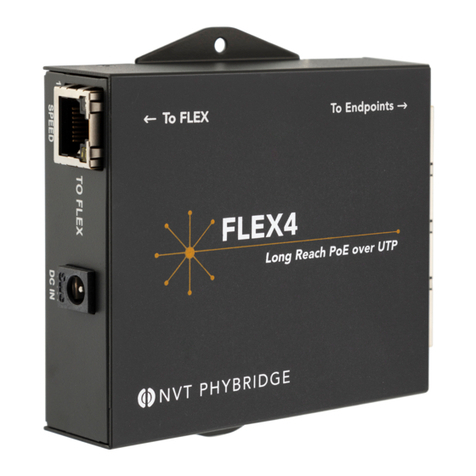

FLEX4 Installation Details
Product Details (NV-FLX-04)
• Paired with FLEX-Base, FLEX8, FLEX24
• 1 uplink port and 4 downlink ports
• Max 30W per downlink port
• Supports IEEE compliant devices
• Can be locally powered for additional PoE delivery
NOTE: Please see page 2 for important safety instructions
QUICK INSTALL GUIDE
Copyright 2017 NVT Phybridge | 445-0004-1 | 2017/07 | Page 1888.901.3633 | [phone] | www.nvtphybridge.com
Speed
Green:
100Mbps
Orange:
10Mbps
100/ACT
10/ACT
To FLEX To Endpoint
To FLEX To Endpoint
FLEX4
APPLICATIONS
Single Port Solution
Using With Unmanaged Switch
4 IP
Endpoints
FLEX4
FLEX4
Long Reach PoE over UTP
Local Power
Up to 60W, 55V
(Optional)
To Switch
PoE over 2 or 4 Pair
UTP to 2,000ft (610m)

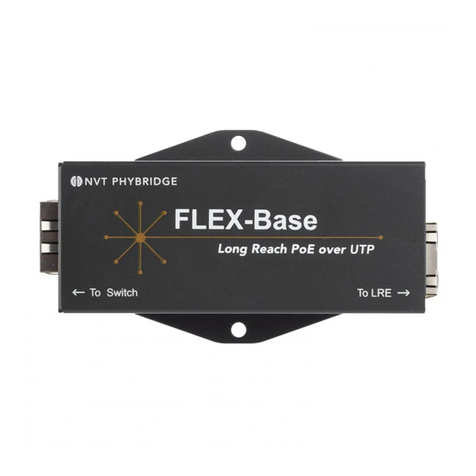

FLEX-Base
Long Reach PoE over UTP
FLEX-Base
4 IP
Endpoints
FLEX4
FLEX4
Long Reach PoE over UTP
To
Application
PoE over 2 or 4 Pair
UTP to 2,000ft (610m)
FLEX8
Using With Managed Switch
4 IP
Endpoints
FLEX4
FLEX4
Long Reach PoE over UTP
PoE over 2 or 4 Pair
UTP to 2,000ft (610m)
FLEX24
Console
Reset Gbic2 GbE2
Mgmt
Gbic1
GbE1
24222018161412108642
2321191715131197531
RUN
ALARM
FAULT
To
Application
1 2 3 4 5 6 7 8
WE
Note: The bandwidth speed shared by the four ports (“To Endpoint”) can be determined by looking at the
LED indicators on the RJ45 connector (“To FLEX”). If the left side green LED activates, the bandwidth
available is 100Mbps. If the right side orange LED activates, the bandwidth speed available is 10Mbps.
Local Power
Up to 110W, 55V
(Optional)
4 pair CAT5e
2 pair CAT5e
2 pair CAT5e
1 pair CAT5e
Cable Type Data Rate
100 Mbps
100 Mbps
10 Mbps
100 Mbps
Reach
610m/2000ft
300m/1000ft
610m/2000ft
300m/1000ft
(adapter must be locally
powered)
1 RJ45 port: UTP cable (2-pair or 4-pair)
1. Remove the FLEX4 from its packaging.
2. Must ensure cable is properly terminated before connecting any FLEX
product.
3. Remove all legacy equipment from the UTP cable infrastructure.
Note: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the FLEX4.
4. Connect the Network Infrastructure cable from the FLEX24 switch, FLEX8
switch, or FLEX-Base to the FLEX4 (FLEX side).
5. Using CAT5 or higher category cable, connect the endpoint to FLEX4
(Endspoint side).

QUICK INSTALL GUIDE
Copyright 2017 NVT Phybridge | 445-0004-1 | 2017/07 | Page 2888.901.3633 | [phone] | www.nvtphybridge.com
Technical Specifications
Model FLEX4
Part Number NV-FLX-04
Dimensions 9.8cm x 9.6cm x 2.5cm (LxWxH); 3.86” x 3.78“ x 0.98” (LxWxH)
Weight 214g (7.6oz)
Mounting Inline between the Ethernet cable to general Switch (PoE or non-PoE), and the network infrastructure cable
Interface: Network Infrastructure Side 1 RJ4 port: UTP/STP cable (2-pair or 4-pair)
Interface: IEEE Side 4 RJ45 ports: IEEE802.3 af/at compliant, 10/100 Mb connection to IP end device
Power Supply PoE from the FLEX switch, or external power supply maximum 30W (over 4 pairs) each port
DC IN (Barrel Connector) Optional (sold separately) -55VDC / 2A
NVT Phybridge External Power Adapter: P/N = NV-PS55-110W (tested against railways standard EN 50121-4)
Power Consumption 1.5W
Operating Temperature -40°C to +70°C
Tests conducted against international safety standard at maximum ambient temperatures of:
60°C at 64W and 55°C at 120W
Humidity 10% to 95% (non-condensing) at 35°C
External AC/DC Power Adapter: input 120/240VAC, 50-60Hz (IEC Class II isolated only - Efficiency VI)
Note the Following:
All of the above instructions provide basic
installation information necessary for the proper
and safe functioning of this equipment. Persons
installing or maintaining this product must read
all of the safety instructions and the parts of
system grounding, which are applicable to the
system being maintained. Only trained, qualified
service personnel shall install or maintain this
product.
WARNINGS
FAILURE TO FOLLOW ALL INSTRUCTIONS
MAY RESULT IN IMPROPER EQUIPMENT
OPERATION AND/OR RISK OF ELECTRICAL
SHOCK.
ANY CONNECTION TO AN OUTSIDE PLANT
LEAD, AN OFF-PREMISE APPLICATION, OR
ANY OTHER EXPOSED PLANT APPLICATION
MAY RESULT IN A FIRE OR SHOCK HAZARD,
AND/OR DEFECTIVE OPERATION, AND/OR
EQUIPMENT DAMAGE.
Keep these instructions with the equipment.
Do not attempt to install or service this
equipment unless you are skilled in the
installation and maintenance of electronic
telecommunications equipment and have
successfully completed specific training for this
equipment.
Compliance and
Environmental Information
All the compliance and environmental
information is available on our website
www.nvtphybridge.com.
Technical Support
The NVT Phybridge Technical Support Group is
available to assist you with product installation,
configuration, monitoring and troubleshooting
procedures. Should you experience trouble with
this equipment or for repair or warranty
information, please contact NVT Phybridge at
+1 888.901.3633 or [email protected].
Safety Warnings
Refer to the FLEX24 or FLEX8 Quick Install
Guides under “Safety Warnings” for the FLEX
adapters
Reportez-vous aux Quick Install Guides
FLEX24 ou FLEX8 sous “Safety Warnings”
pour les adaptateurs FLEX
Beachten Sie die FLEX24- oder FLEX8- Quick
Install Guides unter “Safety Warnings” für die
FLEX-Adapter
Consulte las Quick Install Guides FLEX24 o
FLEX8 bajo “Safety Warnings” para los
adaptadores FLEX
Katso FLEX24- tai FLEX8 Quick Install Guides
FLEX-sovittimien “Safety Warnings” alla
Raadpleeg de FLEX24 of FLEX8 Quick Install
Guides onder “Safety Warnings” voor de
FLEX-adapter
Se FLEX24 eller FLEX8 Quick Install Guides
under “Safety Warnings” för FLEX-adaptrarna
Ανατρέξτε στους οδηγούς FLEX24 ήFLEX8
Quick Install Guides στην ενότητα “Safety
Warnings” για τους προσαρμογείς FLEX
Fare riferimento alla sezione FLEX24 o FLEX8
Quick Install Guides sotto “Safety Warnings”
per gli adattatori FLEX
Consulte o FLEX24 ou FLEX8 Quick Install
Guides em “Safety Warnings” para os
adaptadores FLEX
Irreferi għall-FLEX24 jew FLEX8 Quick Install
Guides taħt “Safety Warnings” għall-adapters
FLEX
Vaadake FLEX24 või FLEX8 Quick Install
Guides alusel “Safety Warnings” FLEX
adapterid
A FLEX adapterek “Safety Warnings” című
részében olvassa el a FLEX24 vagy a FLEX8
Quick Install Guides című részt
Nanašajo na FLEX24 ali FLEX8 Quick Install
Guides pod "Safety Warnings" za FLEX
adapterji
Další informace naleznete v příručkách
FLEX24 nebo FLEX8 Quick Install Guides v
části "Safety Warnings" pro adaptéry FLEX
Kreiptis į FLEX24 ar FLEX8 Quick Install
Guides pagal "Safety Warnings" Už FLEX
adapteriai
Skatiet FLEX24 vai FLEX8 Quick Install Guides
zem "Safety Warnings,” lai FLEX adapteri
Pozrite si FLEX24 alebo FLEX8 Quick Install
Guides v časti "Safety Warnings" pre
adaptéry FLEX
Sjá FLEX24 eða FLEX8 Quick Install Guides
undir "Safety Warnings " fyrir FLEX-millistykki
Zobacz FLEX24 lub FLEX8 Quick Install
Guides w sekcji "Safety Warnings" w
przypadku adapterów FLEX
Se FLEX24 eller FLEX8 Quick Install Guides
under "Safety Warnings" for FLEX-adaptere
Consultați ghidurile FLEX24 sau FLEX8 Quick
Install Guides din secțiunea "Safety
Warnings" pentru adaptoarele FLEX
Обърнете се към FLEX24 или FLEX8 Quick
Install Guides в"Safety Warnings" за
адаптери FLEX.
Warranty
The FLEX4 is backed by NVT Phybridge’s award
winning customer support and 5-year warranty.
