NXP Semiconductors GreenChip TEA2209DB1584 User manual

UM11493
TEA2209DB1584 active bridge rectifier controller demo board
Rev. 1.1 — 6 April 2021 User manual
Document information
Information Content
Keywords TEA2209T, TEA2209DB1584, active bridge rectifier controller, X-capacitor
discharge, self-supplying, high efficiency, traditional diode bridge, power
supply, demo board
Abstract The TEA2209T is an active bridge rectifier controller replacing the traditional
diode bridge. Using the TEA2209T with low-ohmic high-voltage external
MOSFETs significantly improves the efficiency of the power converter as the
typical rectifier diode-forward conduction losses are eliminated. In addition,
the TEA2209T includes an X-capacitor discharge function. To reduce power
consumption at a standby condition, an external signal via the COMP pin can
disable the TEA2209T. This user manual describes how the TEA2209DB1584
demo board can be used to replace the traditional diode bridge. This demo
board contains a TEA2209T and four low-ohmic high-voltage MOSFETs.

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
Rev Date Description
v.1.1 20210406 Updated version
Modifications: •Figure 6 in Section 5 has been updated.
•Figure 9 in Section 6.3 has been updated.
v.1 20210129 Initial version
Revision history
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
2 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
1 Introduction
Note: This product has not undergone formal EU EMC assessment. As a component
used in a research environment, it is the responsibility of the user to ensure that the
finished assembly does not cause undue interference when used. It cannot be CE
marked unless assessed.
WARNING
Lethal voltage and fire ignition hazard
The non-insulated high voltages that are present when operating this
product, constitute a risk of electric shock, personal injury, death and/
or ignition of fire. This product is intended for evaluation purposes only.
It shall be operated in a designated test area by personnel qualified
according to local requirements and labor laws to work with non-
insulated mains voltages and high-voltage circuits. This product shall
never be operated unattended.
This user manual describes the TEA2209DB1584 demo board. It provides a functional
description, supported with instructions on how to connect the board to obtain the best
results and performance.
The TEA2209T is a product of a new generation of active bridge rectifier controllers
replacing the traditional diode bridge.
Using the TEA2209T with low-ohmic high-voltage external MOSFETs significantly
improves the efficiency of the power converter as the typical rectifier diode-forward
conduction losses are eliminated. Efficiency can improve up to about 1.4 % at 90 V (AC)
mains voltage.
The TEA2209T is intended for power supplies with a boost-type power-factor controller
as a first stage. The second stage can be a resonant controller, a flyback controller, or
any other controller topology. It can be used in all power supplies requiring high efficiency
such as adapters, server and telecom power supplies, desktop PCs, all-in-all PC power
supplies, and television power supplies.
aaa-038079
IC
L VR
VCCHL HVS
GATEHL GATEHR
HVS VCCHR
GATELL R
VCC HVS
GND GATELR
COMP_POL COMP
1
2
3
4
5
6
7
8
10
9
12
11
14
13
16
15
Figure 1. Pin configuration diagram (SO16)
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
3 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
1.1 Features
•Elimination of forward conduction losses of the diode rectifier bridge
•Very low IC power consumption (2 mW)
•Integrated high-voltage level shifters
•Directly drives four rectifier MOSFETs
•Very low external part count
•Integrated X-capacitor discharge (2 mA)
•Self-supplying
•Full-wave drive improving total harmonic distortion (THD)
•Undervoltage lockout (UVLO) for high-side and low-side drivers
•Drain-source overvoltage protection for all external power MOSFETs
•Gate pull-down currents at start-up for all external power MOSFETs
•Disable function for all external power FETs
2 Safety warning
This demo board is connected to the mains voltage. Avoid touching the board while it
is connected to the mains voltage and when it is in operation. An isolated housing is
obligatory when used in uncontrolled, non-laboratory environments. Galvanic isolation
from the mains phase using a fixed or variable transformer is always recommended.
019aab173
019aab174
a. Isolated b. Not isolated
Figure 2. Isolation symbols
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
4 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
3 Board photographs
The TEA2209DB1584 demo board consists of the TEA2209T in an SO16 package with
four MOSFETs (600 V; 28 mΩ). Figure 3 shows the front side of demo board.
Figure 3. TEA2209DB1584 demo board photograph
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
5 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
4 TEA2209DB1584 demo board setup
The TEA2209DB1584 demo board contains four 600 V/28 mΩ MOSFETs. It makes the
board suitable for universal AC input and output power applications of several hundreds
of Watts. The TEA2209DB1584 demo board contains four leads that can easily replace
a traditional diode bridge. The outer two leads are connected to positive and negative
rectified voltages. The inner two leads are connected to AC mains lines. These four leads
are pin-to-pin with typical bridge rectifier diodes pins. Figure 4 describes the difference
between bridge diodes and active bridge configurations.
aaa-036471
aaa-039044
TEA2209T
a. Diode bridge b. Active bridge
Figure 4. Diode bridge configuration versus TEA2209DB1584 demo board typical
configuration
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
6 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
Figure 5 shows an example of the TEA2209DB1584 demo board mounted on an NXP
Semiconductors TEA2016DB1519 demo board.
Figure 5. TEA2209DB1584 demo board added to 240 W resonant adapter board
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
7 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
5 Operation
The TEA2209T is a controller IC for an active bridge rectifier. It can directly drive the four
MOSFETs in an active bridge. Figure 6 shows a typical configuration. As the output is a
rectified sine wave, a boost-type power-factor circuit must follow the application.
aaa-038080
CONTROL
VCC
1.3 V SUPPLY
+
XCAP DISCH
GATELR
GNDCOMP_POL
R
GATEHR
VCCHR
COMP
enable
GATELL
L
GATEHL
200 nF 200 nF
2.2 µF
VCCHL VCCVCC
VR
VR
LEVEL
SHIFT
LEVEL
SHIFT
Figure 6. Typical configuration
The control circuit of the TEA2209T senses the polarity of the mains voltage between
pins L and R. Depending on the polarity, either GATELL or GATELR is switched on. The
comparator in the control circuit, which compares the L and R voltages, has thresholds of
250 mV and −250 mV depending on the slope polarity. If the difference voltage between
L and R is less than 250 mV both GATELL and GATELR are low.
The gate drivers are high-current rail-to-rail MOS output drivers. An on-chip supply circuit
which draws current from either L or R generates the gate driver voltage. After a zero-
crossing of the mains voltage, the supply capacitor CVCC is charged to the regulation
level Vreg. Then the discharge state is entered. The resulting power dissipation from
the mains voltage is about 1 mW excluding gate charge losses of the external power
MOSFETs. These gate charge losses typically add 1 mW of dissipation.
At start-up, the supply capacitor is first charged to the Vstart voltage and enters the start-
up state. After a next zero-crossing of the mains voltage, the supply capacitor is charged
to Vreg in the charging state. When the voltage at the supply capacitor exceeds Vdis, the
gate driver outputs are enabled. When all drivers are active, the MOSFETs take over the
role of the diodes which, compared to a passive diode rectifier bridge, results in lower
power loss.
When the mains voltage is disconnected, the internal bias current in the discharge state
discharges the supply capacitor. When the voltage at pin VCC drops to below Vdis, the X-
capacitor discharge state is entered, which draws 2 mA of current from VR to discharge
the X-capacitor. The waiting time td until X-capacitor discharge starts is:
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
8 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board

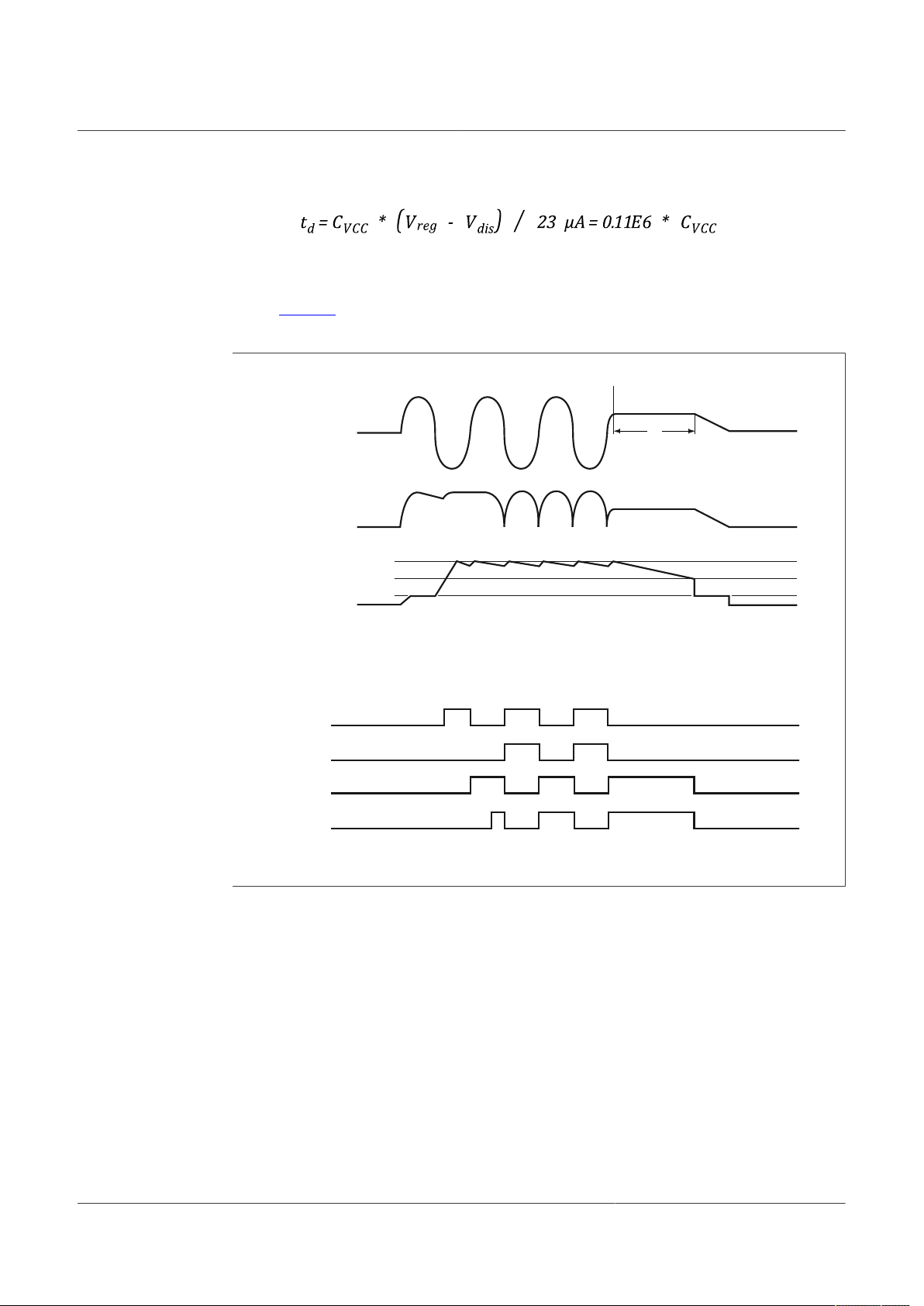

(1)
Using a typical value of 2.2 μF for CVCC yields about 0.24 s. While VR discharges the
X-capacitor, the mains can be reconnected. In that case, the charge mode is entered
again. Figure 7 describes the start-up, the normal operation, and the power-off of the
TEA2209T.
aaa-038081
td
L-R
VR
Vreg
Vdis
Vstartup
VCC
GATELL
startup charge
charge charge charge charge charge
discharge
X-capacitor discharge
discharge discharge discharge discharge discharge
GATEHR
GATELR
GATEHL
mains
discount
Figure 7. TEA2209T signals (start-up, normal operation and power-off)
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
9 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
6 Performance
6.1 Test facilities
•Oscilloscope: Agilent Technologies DSOX3034T
•AC power source: Chroma 61504
•Electronic load: Chroma 63600-2
•Digital power meter: WT210
•Power board: TEA2016DB1519
6.2 Test setup
To measure the system performance the TEA2209DB1584 is mounted on
the TEA2016DB1519. The diode bridge rectifier, BD101, is removed from the
TEA2016DB1519 and replaced by the TEA2209DB1584. Figure 8 shows details of the
test setup.
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
10 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
Figure 8. TEA2209T test setup on TEA2016DB1519
When the MOSFET pin open test for active bridge is required, add a diode in parallel to
each active bridge MOSFET.
To enable or disable active bridge operation via the COMP pin, the TEA2209T supports
an external signal. This COMP pin is connected to digital high/low signal output from the
MCU or the PFC gate signal throughout RC filter. When the PFC gate signal is used, the
PFC gate pin can be connected to the TEA2209DB1584 directly, because the RC filter is
already implemented. When a digital high/low signal is input, remove the C4 capacitor on
the TEA2209DB1584 to avoid additional delay time.
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
11 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
6.3 Design guideline for COMP and COMP_POL
The TEA2209T can disable gate drivers using an external signal. The external signal is
connected to the COMP pin. Depending on the COMP_POL selection, either a high level
or a low level on the COMP pin disables gate operation. Table 1 shows the functionality
of COMP and COMP_POL. When COMP pin voltage exceeds 1.3 V, the COMP level is
HIGH. When the COMP pin voltage is lower than 0.95 V, the COMP level is LOW.
COMP_POL = VCC COMP_POL = GND
COMP HIGH All gate drivers are disabled All gate drivers are enabled
COMP LOW All gate drivers are enabled All gate drivers are disabled
Table 1. COMP and COMP_POL functionality
Disabling all gate drivers is helpful to reduce power loss and increase efficiency at a low-
load condition. A signal from a microprocessor can disable gate drivers. When there
is no microprocessor on the system, the PFC gate signal can be used to disable the
gate drivers at light load throughout the external circuit. Figure 9 shows an application
example with PFC gate signal. The PFC gate duty-ratio, the PFC gate level, and the
external resistor divider determine the COMP level. When PFC operates in burst mode,
COMP level has ripple according to burst mode frequency. Whenever the ripple exceeds
1.3 V threshold, gate drivers are enabled. Section 6.5 shows the test waveform.
aaa-038084
CONTROL
VCC
1.3 V SUPPLY
+
XCAP DISCH
PFC
CONTROL
VBOOST
boost-type pFC
GATELR
GNDCOMP_POL
R
GATEHR
VCCHR
COMP
GATELL
V (AC)
mains filter
L
GATEHL
200 nF 200 nF
2.2 µF
VCCHL VCCVCC
VR
VR
LEVEL
SHIFT
LEVEL
SHIFT
RCOMP_high
RCOMP_low
CCOMP_low
Figure 9. Application diagram example with PFC gate signal
The TEA2209DB1584 implements an external RC filter with RCOMP_high = 18 kΩ,
RCOMP_low = 180 kΩ, CCOMP_high = 2.2 μF and 1N4148. To adjust the output power level
which disables gate drivers, change RCOMP_high. As reducing RCOMP_high value, gate
drivers can be disabled at lower power levels. Section 6.8.2 gives the test result with the
TEA2016DB1519.
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
12 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
6.4 Start-up sequence
After AC mains voltage is applied, the body diodes of the MOSFET rectifiers are
connected until the TEA2209T is enabled. The internal self-bias circuit from the rectified
mains voltage, VR, supplies the VCC.
Depending on the output load condition, the COMP pin voltage may vary. At 264 V (AC)
and a no-load condition, the TEA2209T is disabled. At 90 V (AC) and a no-load condition,
however, the COMP pin level is high enough to enable the TEA2209T when PFC gate
signals are available.
When the 3.3 V (DC) external source level to enable the TEA2209T is connected to the
COMP pin, TEA2209T is enabled when VCC has reached the Vstart level. As mentioned
in Section 6.2, the C4 capacitor is removed from the TEA2209DB1584 demo board.
Figure 12 and Figure 13 show the start-up sequences when an external 3.3 V (DC)
source is connected to COMP pin.
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 200 ms/div
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 200 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 10. Start-up sequence at no load; PFC gate signal connected to COMP pin
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
13 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 100 ms/div
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 100 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 11. Start-up sequence at 240 W load; PFC gate signal connected to COMP pin
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 12. Start-up sequence at no load; 3.3 V (DC) connected to COMP pin
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
14 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
CH1: AC mains (300 V/div)
CH2: VCC (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 13. Start-up sequence at 240 W load; 3.3 V (DC) connected to COMP pin
6.5 Normal operation
6.5.1 Connecting the PFC gate signal to the COMP pin
When the voltage between L and R is higher than 250 mV, the GATEHL and GATELR
are enabled. When the voltage between L and R is below −250 mV, the GATEHR and
GATELL are enabled. Depending the +250 mV and −250 mV detection thresholds, dead
time occurs between the gates. At no load, the PFC of the TEA2016 operates in burst
mode. Because the on-time of the PFC gate and the switching period in burst mode are
long at 90 V (AC) and no load, the TEA2209T is enabled in every PFC burst period.
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
15 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
CH1: AC mains (300 V/div)
CH2: PFC gate from TEA2016 (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 5 s/div and 100 ms/div
CH1: AC mains (300 V/div)
CH2: PFC gate from TEA2016 (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 100 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 14. Normal operation at no load; the PFC gate signal is connected to the COMP pin
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 20 ms/div and 10 μs/div
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 20 ms/div and 10 μs/div
a. Dead time while GATELR is enabled b. Dead time while GATELL is enabled
Figure 15. Normal operation at 90 V (AC)/240 W load; the PFC gate signal is connected to the COMP pin
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
16 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 20 ms/div and 10 μs/div
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 20 ms/div and 10 μs/div
a. Dead time while GATELR is enabled b. Dead time while GATELL is enabled
Figure 16. Normal operation at 264 V (AC)/240 W load; the PFC gate signal is connected to the COMP pin
6.5.2 Connecting the external DC signal to the COMP pin
When the COMP level exceeds 1.3 V, the TEA2209T is enabled. Before enabling the
first gate signal after TEA2209 is enabled, it can have a maximum of around a half mains
cycle delay time because of the MOSFET drain-source overvoltage protection. As soon
as COMP level is below 0.95 V, the TEA2209T is disabled.
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (5 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (5 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 17. COMP level increase at no load condition
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
17 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (5 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
CH1: AC mains (300 V/div)
CH2: GATELR (5 V/div)
CH3: GATELL (5 V/div)
CH4: COMP (2 V/div)
Time: 20 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 18. COMP level decrease at no load condition
6.6 Output dynamic load condition operation
Output dynamic load is applied between 240 W and a no-load condition. The dynamic
load period is 14 ms. Regardless of the output load condition, the gates operate well in
alignment with the mains polarity without shoot-through. Because the output dynamic
load frequency is lower than the RC filter design on the COMP pin, the COMP level is still
the DC level. The COMP level is in accordance with the average output load.
CH1: AC mains (300 V/div)
CH2: Output load (20 A/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 20 ms/div
CH1: AC mains (300 V/div)
CH2: Output load (20 A/div)
CH3: GATELL (10 V/div)
CH4: COMP (5 V/div)
Time: 20 ms/div
a. 90 V (AC) b. 264 V (AC)
Figure 19. Dynamic load operation; the PFC gate is connected to the COMP pin
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
18 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board

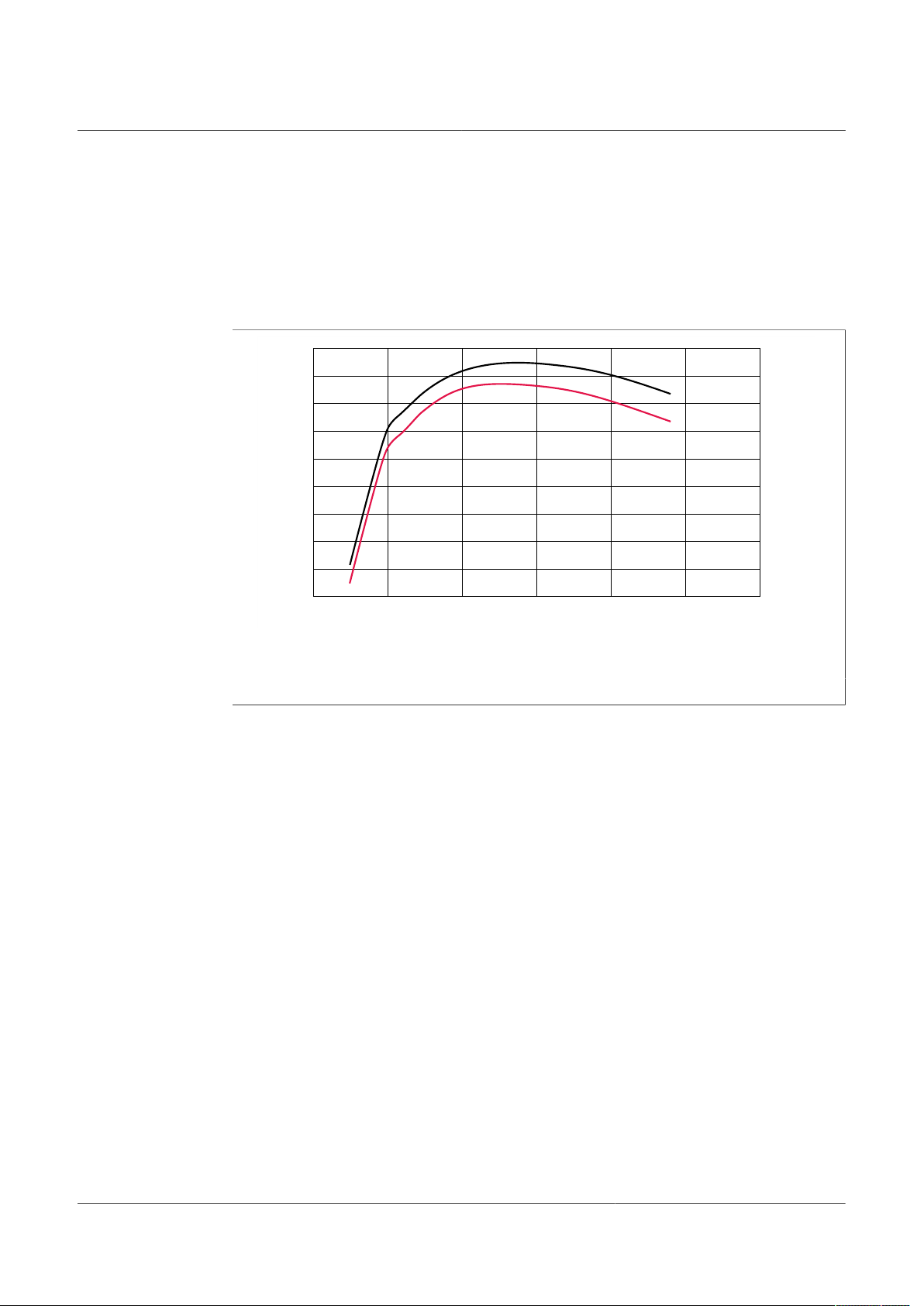

6.7 Efficiency test result and RDSon selection
The efficiency test result includes power losses of bridge rectifiers and other power
stages, such as PFC and LLC. However, throughout the active bridge incorporated in the
TEA2209T an efficiency improvement compared a diode bridge can be seen. Depending
on the different RDSon values of the active bridge MOSFET, the efficiency improvement
varies.
Po (W)
0 300250100 150 20050
aaa-037226
89
91
87
93
88
90
86
92
94
η
(%)
85
(1)
(2)
(1) Active bridge with the TEA2209T
(2) Diode bridge
Figure 20. Efficiency comparison between diode and active bridge at 115 V (AC)
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
19 / 29

NXP Semiconductors UM11493
TEA2209DB1584 active bridge rectifier controller demo board

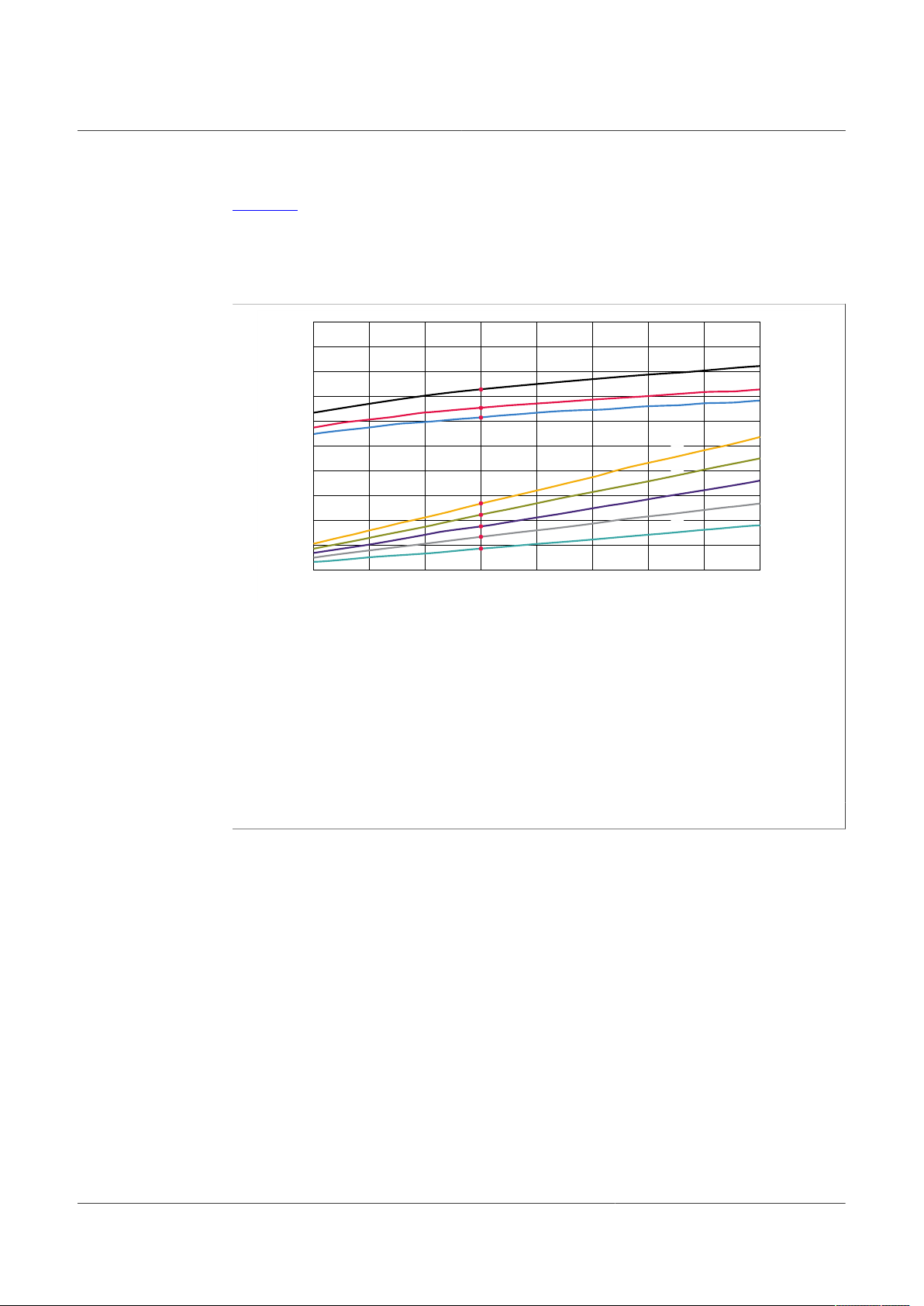

Figure 21 shows the comparison between different MOSFET RDSon values and the
number of diodes in parallel at 115 V (AC). To see the improvement achieved with the
active bridge with a MOSFET at its worst condition, the efficiency is calculated at a
junction temperature of 125 °C. The efficiency improvement can reduce the temperature
on the bridge rectifier. It helps to increase power density.
Po (W)
200 1x103 800600400300 900700500
aaa-037227
0.8
1.2
0.4
1.6
2.0
0.6
1.0
0.2
1.4
1.8
0
η
(%)
(1)
(2)
(3)
(6)
(7)
(4)
(5)
(8)
Efficiency drop comparison calculation based on 115 V (AC) input and a die temperature of
125 °C (bridge diode bridge: GSIB15A60;15 A; 600 V; 20 A 600 V).
(1) One diode bridge (eff_drop_Diode_125deg_onePoVin_rms)
(2) Two diode bridges parallel (eff_drop_Diode_125deg_twoPoVin_rms)
(3) Three diode bridges parallel (eff_drop_Diode_125deg_threePoVin_rms)
(4) Active bridge with MOSFET RDSon = 30 mΩ (eff_drop_Active_125degPo0.030, 2, Vin_rms)
(5) Active bridge with MOSFET RDSon = 25 mΩ (eff_drop_Active_125degPo0.025, 2, Vin_rms)
(6) Active bridge with MOSFET RDSon = 20 mΩ (eff_drop_Active_125degPo0.02, 2, Vin_rms)
(7) Active bridge with MOSFET RDSon = 15 mΩ (eff_drop_Active_125degPo0.015, 2, Vin_rms)
(8) Active bridge with MOSFET RDSon = 10 mΩ (eff_drop_Active_125degPo0.01, 2, Vin_rms)
Figure 21. Efficiency improvement based on different RDSon values at 115 V (AC)
Example:
When an RDSon of 0.015 Ω is used on a MOSFET for a 500 W design, the efficiency
improvement that can be achieved, when compared to a single diode for a diode
bridge, is 1.2 %.
6.8 Standby power consumption test result and design guidelines
6.8.1 Recommended setting for low standby power consumption
When active bridge is enabled, the rectified AC mains voltage is a full-wave rectified
waveform even at no-load condition. Although a full wave rectified waveform achieves
a better THD performance, it can make an additional current path on capacitors (which
are placed on the rectified mains voltage). The result is extra power losses on these
capacitors because of ESR. To minimize standby power consumption, disable the
TEA2209T via COMP pin. To disable the TEA2209T at a no-load condition, either the
external DC level or the PFC gate signal can be selected. When the PFC gate signal is
used, an external RC filter can adjust a power level which disables the TEA2209T.
UM11493 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.1 — 6 April 2021
20 / 29
