MIMXRT1064 EVK Board Hardware User’s
Guide
1.Introduction
This document is a Hardware User’s Guide for the
MIMXRT1064 Evaluation Kit (EVK) based on the NXP
Semiconductor i.MX RT1064 Processor. This board is
fully supported by NXP Semiconductor. This manual
includes system setup and debugging, and provides
detailed information on the overall design and usage of
the EVK board from a hardware systems perspective.
1.1. Board overview
This EVK board is a platform designed to showcase the
most commonly used features of the i.MX RT1064
Processor in a small, low cost package. The
MIMXRT1064 EVK board is an entry level
development board, which gives the developer the option
of becoming familiar with the processor before investing
a large amount or resources in more specific designs.
NXP Semiconductors
Document Number: MIMXRT1064EVKHUG
User's Guide
Rev. 0
,
10 /2018
Contents
1. Introduction........................................................................1
1.1. Board overview .......................................................1
1.2. MIMXRT1064 EVK vontents.................................3
1.3. MIMXRT1064 EVK board revision history............3
2. Specifications .....................................................................3
2.1. i.MX RT1064 processor..........................................5
2.2. Boot mode configurations .......................................6
2.3. Power tree................................................................6
2.4. SDRAM memory ....................................................9
2.5. SD card slot.............................................................9
2.6. Hyper flash..............................................................9
2.7. QSPI flash ...............................................................9
2.8. Ethernet connector.................................................10
2.9. USB PHY connector..............................................10
2.10. Audio input / output connector..............................10
2.11. OpenSDA circuit (DAP-link)................................10
2.12. JTAG connector ....................................................10
2.13. Arduino expansion port.........................................11
2.14. Camera module connector.....................................12
2.15. User interface switch.............................................12
2.16. Power switch .........................................................13
2.17. ON/OFF button......................................................13
2.18. Reset button...........................................................13
2.19. USER button .........................................................13
2.20. Sensor....................................................................13
2.21. User interface LED indicator.................................13
2.22. LCD interface........................................................14
3. PCB information...............................................................14
4. EVK design files...............................................................14
5. Contents of the evaluation kit...........................................15
6. Revision history................................................................15

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
2 NXP Semiconductors
Features of the MIMXRT1064 EVK board are shown in Table 1
Table 1. Board features
Processor
NXP Processor
MIMXRT1064DVL6A
DRAM Memory
SDRAM 256 Mb, 166MHz
IS42S16160J-6BLI
DCDC
MPS
MP2144GJ
LDO
UNION
UM1550S-18
UM1750S-00
Mass Storage
TF Card Slot
64 Mbit Quad SPI Flash
512 Mbit Hyper Flash
Display Interface
LCD Connector
Ethernet
10/100 Mbit/s Ethernet Connector. PHY Chip: KSZ8081RNB
USB
USB 2.0 OTG Connector
USB 2.0 Host Connector
Audio Connector
3.5 mm Audio Stereo Headphone Jack
Board-Mounted Microphone
Left & Right Speaker Out Connectors
SPDIF Interface(unpopulated)
Power Connector
5V DC-Jack
Debug Connector
JTAG 20-pin Connector (SWD by default)
OpenSDA with DAP-Link
Sensor
FXOS8700CQ: 6-Axis Ecompass (3-Axis Mag, 3-Axis Accel)
(Some boards are unpopulated)
Camera
CMOS Sensor Interface
CAN
CAN Bus Connector
User Interface Button
ON/OFF, POR Reset, Reset, USER Button
Led Indicator
Power Status, Reset, OpenSDA, USER LED
Expansion Port
Arduino Interface
PCB
3.937-inch x 5.9055-inch (10cm x 15cm), 4-layer board

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 3
1.2. MIMXRT1064 EVK vontents
The MIMXRT1064 EVK contains the following items:
•MIMXRT1064 EVK Board
•USB Cable (Micro B)
•Camera
1.3. MIMXRT1064 EVK board revision history
•EVK: Mass Product.
2.Specifications
This chapter provides detailed information about the electrical design and practical considerations of the
EVK Board, and is organized to discuss each block in the following block diagram of the EVK board.

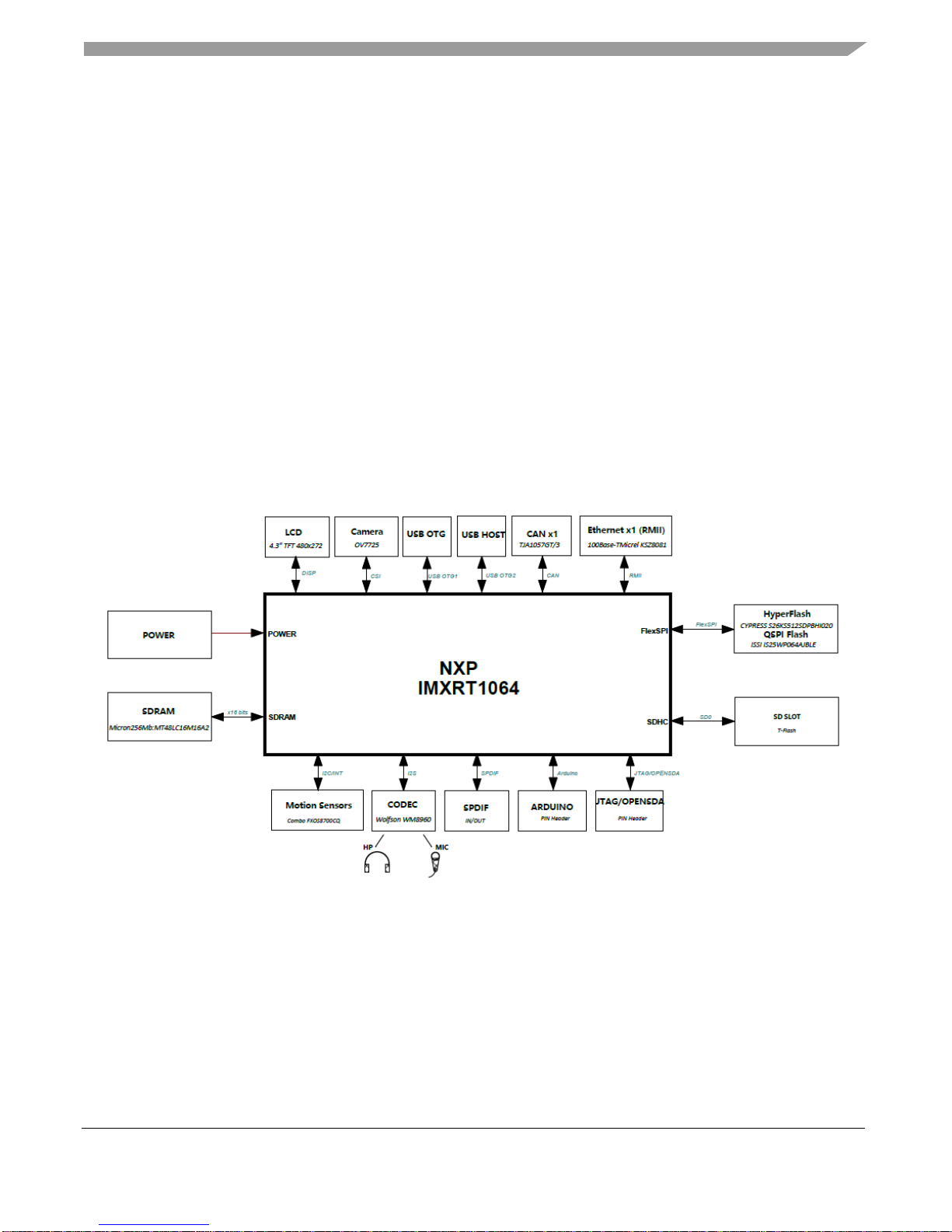

Figure 1. Block diagram
The overview of the MIMXRT1064 EVK Board is shown in Figure 1 & Figure 2.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
4 NXP Semiconductors
Figure 2. Overview of the MIMXRT1064 EVK Board (Front side)

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 5
Figure 3. Overview of the MIMXRT1064 EVK Board (Back side)
2.1. i.MX RT1064 processor
The i.MX RT1064 is a new processor family featuring NXP's advanced implementation of the ARM
Cortex-M7 Core. It provides high CPU performance and best real-time response. The i.MX RT1064
provides various memory interfaces, including SDRAM, Raw NAND FLASH, NOR FLASH,
SD/eMMC, Quad SPI, HyperBus and a wide range of other interfaces for connecting peripherals, such
as WLAN, Bluetooth™, GPS, displays, and camera sensors. Same as other i.MX processors, i.MX
RT1064 also has rich audio and video features, including LCD display, basic 2D graphics, camera
interface, SPDIF and I2S audio interface.
The i.MX RT1064 applications processor can be used in areas such as industrial HMI, IoT, motor
control and home appliances. The architecture's flexibility enables it to be used in a wide variety of other
general embedded applications too. The i.MX processor provides all interfaces necessary to connect
peripherals such as WLAN, Bluetooth™, GPS, camera sensors, and multiple displays.
The more detail information about i.MX RT1064 can be found in the Datasheet and Reference Manual
documents.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
6 NXP Semiconductors
2.2. Boot mode configurations
The device has four boot modes (one is reserved for NXP use). The boot mode is selected based on the
binary value stored in the internal BOOT_MODE register. Switch (SW7-3 & SW7-4) is used to select
the boot mode on the MIMXRT1064 EVK Board.
Table 2. Boot Mode pin settings
BOOT_MODE[1:0] (SW7-3 SW7-4)
BOOT Type
00
Boot From Fuses
01
Serial Downloader
10
Internal Boot
11
Reserved
Typically, the internal boot is selected for normal boot, which is configured by external BOOT_CFG
GPIOs. The following Table 3 shows the typical Boot Mode and Boot Device settings.
Table 3. Typical Boot Mode and Boot Device settings
SW7-1
SW7-2
SW7-3
SW7-4
Boot Device
OFF
OFF
ON
OFF
Internal QSPI Flash
NOTE
For more information about boot mode configuration, see the System Boot chapter of the
MIMXRT1064 Reference Manual.
For more information about MIMXRT1064 EVK boot device selection and configuration, see the
respective main board schematic on www.nxp.com.
2.3. Power tree
A DC 5V external power supply is used to supply the MIMXRT1064 EVK Board at J2, and a slide
switch SW1 is used to turn the Power ON/OFF. J41 and J9 also can be used to supply the EVK Board.
Different power supply need to configure different Jumper setting of J1. Table 4 shows the details:
Table 4. Jumper settings of Power Supply
Power Supply
J1 Setting
J2
1-2
J9
3-4
J41
5-6
The power tree is shown in the following figure.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 7
Figure 4. Power Tree
The power control logic of the MIMXRT1064 EVK board is shown in the following figure:
•It will power up SNVS firstly, then PMIC_REQ_ON will be switched on to enable external
DC/DC to power up other power domains.
•ON/OFF button is used to switch ON/OFF PMIC_REQ_ON to control power modes.
•RESET button and WDOG output are used to reset the system power.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
8 NXP Semiconductors
Figure 5. Power Control Diagram
The power rails on the board are shown in Table 5.
Table 5. Power Rails
Power Rail
MIN
(V)
TYP
(V)
MAX
(V)
Description
VDD_SOC_IN
0.925
--
1.26
Core supplies input voltage
VDD_HIGH_IN
3
3.3
3.6
VDD_HIGH_IN supply voltage
DCDC_IN
3
3.3
3.6
Power for DCDC
VDD_SNVS_IN
2.4
3
3.6
Power for SNVS and RTC
USB_OTG1_VBUS
USB_OTG2_VBUS
4.4
5
5.5
Power for USB VBUS
VDDA_ADC
3
3.3
3.6
Power for 12-bit ADC
NVCC_SD0
3
3.3
3.6
Power for GPIO in SDIO1 bank
(3.3V mode)
1.65
1.8
1.95
Power for GPIO in SDIO1 bank
(1.8V mode)

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 9
NVCC_SD1
3
3.3
3.6
Power for GPIO in SDIO2 bank
(3.3V mode)
1.65
1.8
1.95
Power for GPIO in SDIO2 bank
(1.8V mode)
NVCC_EMC
3
3.3
3.6
IO supply for GPIO in EMC bank
(3.3 V mode)
1.65
1.8
1.95
IO supply for GPIO in EMC bank
(1.8 V mode)
NVCC_GPIO
3
3.3
3.6
IO power for GPIO
2.4. SDRAM memory
One 256 MB, 166 MHz SDRAM (IS42S16160J-6BLI) is used on the EVK Board.
2.5. SD card slot
There is a SD card slot(J39) on the MIMXRT1064 EVK Board.J39 is the Micro SD slot for USDHC1
interface. If the developer wants to boot from the SD Card, the boot device switch (SW7) settings should
be: ON, OFF, ON, OFF, as shown in Table 3.
2.6. Hyper flash
On the MIMXRT1064 EVK Board, there is one 512Mbit Hyper Flash device for developer to rework
MIMXRT1064 EVK Board and use the onboard Hyper Flash.
By default, this Hyper Flash is disabled on the EVK. To enable the onboard Hyper Flash, the settings
need to be changed.
Step 1:
Weld resistors: R356, R361 - R366.
Step 2:
Removed 0 Ωresistors: R153 - R158.
2.7. QSPI flash
A 64 Mbit QSPI Flash is used on the MIMXRT1064 EVK Board for developer to rework
MIMXRT1064 EVK Board and use the onboard QSPI Flash.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
10 NXP Semiconductors
2.8. Ethernet connector
There is one Ethernet Mac controller in the MIMXRT1064 processor. The Ethernet subsystem of the
MIMXRT1064 EVK Board is provided by the KSZ8081RNB 10/100M Ethernet Transceiver (U16) and
a RJ45 (J19) with integrated Magnetic.
2.9. USB PHY connector
The MIMXRT1064 contains 2 integrated USB 2.0 PHYs capable of connecting to USB host/device
systems at the USB low-speed (LS) rate of 1.5 Mbits/s, full-speed (FS) rate of 12 Mbits/s or at the USB
2.0 high-speed (HS) rate of 480 Mbits/s.
2.10.Audio input / output connector
The Audio CODEC used on the MIMXRT1064 EVK Board is Wolfson’s Low Power, high quality
Stereo Codec, WM8960.The MIMXRT1064 EVK Board include one headphone interface (J12), one
onboard MIC (P1), two speaker interfaces (J16, J17), and the SPDIF interface (J14 & J18, DNP). J12 is
a 3.5mm audio stereo headphone jack, which supports jack detect.
2.11.OpenSDA circuit (DAP-link)
The OpenSDA circuit (CMSIS–DAP) is an open-standard serial and debug adapter. It bridges serial and
debug communications between a USB host and an embedded target processor.
CMSIS-DAP features a mass storage device (MSD) bootloader, which provides a quick and easy
mechanism for loading different CMSIS-DAP Applications such as flash programmers, run-control
debug interfaces, serial-to-USB converters, and more. Two or more CMSIS-DAP applications can run
simultaneously. For example, run-control debug application and serial-to-USB converter runs in parallel
to provide a virtual COM communication interface while allowing code debugging via CMSIS-DAP
with just single USB connection.
For the MIMXRT1064 EVK Board, J41 is the connector between the USB host and the target processor.
Jumper to serial downloader mode to use stable DAP-Link debugger function. If developer wants to
make OpenSDA going to the bootloader mode, J43 should jumper to 1-2, and press SW4 when power
on. Meanwhile, the OpenSDA supports drag/drop feature for U-Disk. First, use the seral downloader
mode and drag/drop the image file to U-Disk. Then select QSPI Flash as boot device and reset the
Board, the image will run.
2.12.JTAG connector
J21 is a standard 20-pin/2.54 mm Box Header Connector for JTAG. The pin definitions are shown in the
following figure. Support SWD by default.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 11
Figure 6. JTAG pin definitions
NOTE
If developer wants to use JTAG, J47 and J48 should be removed.
2.13.Arduino expansion port
J22 –J25 is defined as Arduino Interface. The pin definitions of Arduino Interface are shown in Table 6.
Table 6. Arduino Interface pin definitions
J22
J23
UART_RX/D0
A0/ADC0
UART_TX/D1
A1/ADC1
D2/INT0
A2/ADC2
D3/INT1/PWM/OC2B
A3/ADC3
D4/T0/XCK
A4/ADC4/SDA
D5/TI/PWM
A5/ADC5/SCL

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
12 NXP Semiconductors
D6/AIN0/PWM/OC0A
D7/AIN1/PWM
J24
J25
D8/CLKO/ICP1
NC
D9/OC1A/PWM
IOREF
D10/SPI_CS
RESET
D11/OC2A/PWM/SPI_MOSI
3.3V
D12/SPI_MISO
5V
D13/SPI_CLK
GND
GND
GND
AREF
VIN
D14/I2C_SDA
D15/I2C_SCL
2.14.Camera module connector
One parallel CSI (Camera Sensor Interface) is supported by the i.MX RT1064. There is a Camera
Module Connector (J35) on the MIMXRT1064 EVK Board. The CA031C based on OV7725 and
CA111C based on MT9M114 can be used directly.
NOTE
J35 supports both MT9M114 and OV7725 camera module, but 3.3 V is a
violation to MT9M114 spec 3.1 V. It proved fine for evaluation/demo
with 3.3 V supply, but in product design, it is recommended to adjust
DCDC output or add level shifter.
2.15.User interface switch
There are four user interface switches on the MIMXRT1064 EVK Board. Their functionality is as
below.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 13
2.16.Power switch
SW1 is a slide switch to control the power of the MIMXRT1064 EVK Board when the power supply is
from J2. The function of this switch is listed below:
•Sliding the switch to the ON position connects the 5V power supply to the Evaluation board
main power system.
•Sliding the switch to OFF position immediately removes all power from the board.
2.17.ON/OFF button
SW2 is the ON/OFF button for MIMXRT1064 EVK Board. A short pressing in OFF mode causes the
internal power management state machine to change state to ON. In ON mode, a short pressing
generates an interrupt (intended to be a software-controllable(power-down). An approximate 5 seconds
or more pressing causes a forced OFF. Both boot mode inputs can be disconnected.
2.18.Reset button
There are two Reset Button on the EVK Board. SW3 is the Power On Reset Button. Pressing the SW3 in
the Power On state will force to reset the system power except SNVS domain. The Processor will be
immediately turn off and reinitiate a boot cycle from the Processor Power Off state. SW4 is Reset
Button.
2.19.USER button
SW8 is the USER Button(GPIO5-00) for developers using. Pressing can produce changes in high and
low levels.
2.20.Sensor
U32 on the EVK Board is a 6-Axis Ecompass (3-Axis Mag, 3-Axis Accel) sensor FXOS8700CQ. The
Ecompass is connected to i.MX RT1064 I2C1 port.
NOTE
The sensor on some boards are unpopulated.
2.21.User interface LED indicator
There are four LED status indicators located on the EVK Board. The functions of these LEDs include:
•Main Power Supply (D3)
Green: DC 5 V main supply is normal.
Red: J2 input voltage is over 5.6 V.
Off: the board is not powered.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
14 NXP Semiconductors
•Reset RED LED(D21)
•OpenSDA LED(D20)
•USER LED(D18)
2.22.LCD interface
The enhanced Liquid Crystal Display Interface (eLCDIF) is a general purpose display controller.
The eLCDIF block supports the following:
•Displays that support moving pictures and require the RGB interface mode (DOTCLK interface).
The eLCDIF provides fully programmable functionality to supported interfaces:
•Bus master interface to source frame buffer data for display refresh.
•8/16/18/24/32 -bit LCD data bus support available depending on I/O mux options.
•Programmable timing and parameters for DOTCLK LCD interfaces.
If developers want to use LCD, NXP provides an optional LCD module RK043FN02H-CT which has a
4.3 inches touch-screen and supports a resolution of up to 480*3(RGB)*272. This module contains two
FPC cables. The LCD interface can be connected to J8(A1-A40) and the CPT interface can be connected
to J8(B1-B6). LCD modules can be purchased from the NXP website.
3.PCB information
The MIMXRT1064 EVK Board is made using standard 4-layer technology. The material used was FR-
4. The PCB stack-up information is shown in Table 7.
Table 7. Board stack-up information
Layer
Description
Copper(Oz)
Dielectric
Thickness(mil)
1
Signal
1
—
Dielectric
—
3
2
GND
1
—
Dielectric
—
52
3
Power
1
—
Dielectric
—
3
4
Signal
1
—
4.EVK design files
The schematics, layout files, and gerber files (including Silkscreen) can be downloaded from
nxp.com/MIMXRT1064-EVK.

Specifications
MIMXRT1064 EVK Board Hardware User’s Guide, User's Guide, Rev. 0, 10/2018
NXP Semiconductors 15
5.Contents of the evaluation kit
Table 8. EVK contents
Item
Description
EVK Board
EVK Board with processor, memory, interfaces, etc
USB Cable
USB cable (Micro-B to Standard-A)
Camera
CA111C based on MT9M114
NOTE
Power adaptor, Micro SD Card and LCD Module are not standard parts of the evaluation kit.
6.Revision history
Table 9 summarizes the changes made to this document since the initial release.
Table 9. Revision history
Revision number
Date
Substantive changes
0
10/2018
Initial release

Document Number: MIMXRT1064EVKHUG
Rev. 0
10/2018
How to Reach Us:
Home Page:
nxp.com
Web Support:
nxp.com/support
Information in this document is provided solely to enable system and software implementers to
use NXP products. There are no express or implied copyright licenses granted hereunder to
design or fabricate any integrated circuits based on the information in this document. NXP
reserves the right to make changes without further notice to any products herein.
NXP makes no warranty, representation, or guarantee regarding the suitability of its products
for any particular purpose, nor does NXP assume any liability arising out of the application or
use of any product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters that may be provided in
NXP data sheets and/or specifications can and do vary in different applications, and actual
performance may vary over time. All operating parameters, including “typicals,” must be
validated for each customer application by customer’s technical experts. NXP does not convey
any license under its patent rights nor the rights of others. NXP sells products pursuant to
standard terms and conditions of sale, which can be found at the following address:
nxp.com/SalesTermsandConditions.
While NXP has implemented advanced security features, all products may be subject to
unidentified vulnerabilities. Customers are responsible for the design and operation of their
applications and products to reduce the effect of these vulnerabilities on customer’s
applications and products, and NXP accepts no liability for any vulnerability that is discovered.
Customers should implement appropriate design and operating safeguards to minimize the
risks associated with their applications and products.
NXP, the NXP logo, NXP SECURE CONNECTIONS FOR A SMARTER WORLD,
COOLFLUX, EMBRACE, GREENCHIP, HITAG, I2C BUS, ICODE, JCOP, LIFE VIBES,
MIFARE, MIFARE CLASSIC, MIFARE DESFire, MIFARE PLUS, MIFARE FLEX, MANTIS,
MIFARE ULTRALIGHT, MIFARE4MOBILE, MIGLO, NTAG, ROADLINK, SMARTLX,
SMARTMX, STARPLUG, TOPFET, TRENCHMOS, UCODE, Freescale, the Freescale logo,
AltiVec, C‑5, CodeTEST, CodeWarrior, ColdFire, ColdFire+, C‑Ware, the Energy Efficient
Solutions logo, Kinetis, Layerscape, MagniV, mobileGT, PEG, PowerQUICC, Processor
Expert, QorIQ, QorIQ Qonverge, Ready Play, SafeAssure, the SafeAssure logo, StarCore,
Symphony, VortiQa, Vybrid, Airfast, BeeKit, BeeStack, CoreNet, Flexis, MXC, Platform in a
Package, QUICC Engine, SMARTMOS, Tower, TurboLink, and UMEMS are trademarks of
NXP B.V. All other product or service names are the property of their respective
owners. AMBA, Arm, Arm7, Arm7TDMI, Arm9, Arm11, Artisan, big.LITTLE, Cordio, CoreLink,
CoreSight, Cortex, DesignStart, DynamIQ, Jazelle, Keil, Mali, Mbed, Mbed Enabled, NEON,
POP, RealView, SecurCore, Socrates, Thumb, TrustZone, ULINK, ULINK2, ULINK-ME,
ULINK-PLUS, ULINKpro, µVision, Versatile are trademarks or registered trademarks of Arm
Limited (or its subsidiaries) in the US and/or elsewhere. The related technology may be
protected by any or all of patents, copyrights, designs and trade secrets. All rights reserved.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. The Power
Architecture and Power.org word marks and the Power and Power.org logos and related
marks are trademarks and service marks licensed by Power.org.
© 2018 NXP B.V.
