NXP Semiconductors PTN38007-EVM User manual

UM11595
PTN38007-EVM/PTN38003A-EVM evaluation board
Rev. 1.0 — 28 June 2021 User manual
Document information
Information Content
Keywords PTN38007, PTN38003A, PTN5110, USB Type-C, CC Logic, Orientation
Detection, USB3.1 Gen2, USB3.2, USB4.0, SuperSpeed, DisplayPort, Linear
Redriver
Abstract The PTN38007-EVM/PTN38003A-EVM is capable of interfacing a USB
Type-C port with various alternate mode devices. The evaluation board is
intended for use as an evaluation and customer demonstration tool, as well as
a reference design.

NXP Semiconductors UM11595
PTN38007-EVM/PTN38003A-EVM evaluation board
Rev Date Description
v.1.0 20210628 Initial version
Revision history
UM11595 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.0 — 28 June 2021
2 / 26

NXP Semiconductors UM11595
PTN38007-EVM/PTN38003A-EVM evaluation board
Important notice
NXP provides the enclosed product(s) under the following conditions:
This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR
EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a
printed circuit board to make it easier to access inputs, outputs, and supply terminals.
This evaluation board may be used with any development system or other source of
I/O signals by simply connecting it to the host MCU or computer board via off-the-
shelf cables. This evaluation board is not a Reference Design and is not intended to
represent a final design recommendation for any particular application. Final device in
an application will be heavily dependent on proper printed circuit board layout and heat
sinking design as well as attention to supply filtering, transient suppression, and I/O
signal quality.
The goods provided may not be complete in terms of required design, marketing, and
or manufacturing related protective considerations, including product safety measures
typically found in the end product incorporating the goods. Due to the open construction
of the product, it is the user's responsibility to take any and all appropriate precautions
with regard to electrostatic discharge. In order to minimize risks associated with the
customers applications, adequate design and operating safeguards must be provided
by the customer to minimize inherent or procedural hazards. For any safety concerns,
contact NXP sales and technical support services.
UM11595 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.0 — 28 June 2021
3 / 26

NXP Semiconductors UM11595
PTN38007-EVM/PTN38003A-EVM evaluation board
1 Introduction
PTN38007 and PTN38003A (PTN38007/3A) are a Type-C USB3.2/ DP1.4 combo
redriver optimized for USB3 and DisplayPort applications on either the Downstream
Facing Port (DFP) or Upstream Facing Port (UFP) by following the four high-speed
differential data flow to extend the signal reach.
This document explains in detail how to connect the PTN38007/3A-EVM evaluation
board in a system using external PD controller in a stand-alone mode, and how to
configure the on-board multiplexers for each operation mode. The document also
illustrates the LPCUSBSIO module operation and configuration with the PTN38007/3A-
EVM evaluation board.
2 Finding kit resources and information on the NXP web site
NXP Semiconductors provides online resources for this evaluation board and its
supported device(s) on http://www.nxp.com.
The information page for PTN38007-EVM evaluation board is at http://www.nxp.com/
PTN38007-EVM, and the information page for PTN38003A-EVM evaluation board is
at http://www.nxp.com/PTN38003A-EVM. The information page provides overview
information, documentation, software and tools, parametrics, ordering information and
a Getting Started tab. The Getting Started tab provides quick-reference information
applicable to using the PTN38007/3A-EVM evaluation board, including the downloadable
assets referenced in this document.
2.1 Collaborate in the NXP community
The NXP community is for sharing ideas and tips, ask and answer technical questions,
and receive input on just about any embedded design topic.
The NXP community is at http://community.nxp.com.
3 Getting ready
Working with the PTN38007/3A-EVM evaluation board requires the kit contents,
additional hardware and a Windows PC workstation with installed software.
3.1 Kit contents
•Assembled and tested evaluation board in an anti-static bag
•Quick Start Guide
3.2 Additional hardware
In addition to the kit contents, the following hardware is necessary or beneficial when
working with this kit.
•One PC/Notebook with USB-C supporting USB3.2 Gen1/2, DisplayPort, Thunderbolt
3 (PTN38007 only), or USB4 (PTN38007 only). A USB-A connector is also needed to
configure EVM via micro-USB cable
•Corresponding device for evaluation: USB3.2 Gen1/2, DisplayPort monitor, Thunderbolt
3 (PTN38007 only), or USB4 (PTN38007 only)
UM11595 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.0 — 28 June 2021
4 / 26

NXP Semiconductors UM11595
PTN38007-EVM/PTN38003A-EVM evaluation board
•One Type-C cable to connect between EVM and device
•One micro-USB cable to connect EVM to a PC
3.3 Windows PC workstation
This evaluation board requires a Windows PC workstation. Meeting these minimum
specifications should produce great results when working with this evaluation board.
•USB-enabled computer with Windows 7 or Windows 10
3.4 Software
Installing software is necessary to work with this evaluation board. All listed software is
available on the evaluation board's information page at http://www.nxp.com/PTN38007-
EVM or http://www.nxp.com/PTN38003A-EVM.
4 Getting to know the hardware
The stand-alone board is intended to evaluate PTN38007/3A on an existing USB Type-
C port that supports USB3.1/3.2, DisplayPort, Thunderbolt 3 and USB4. When using
the DFP board (“H2” is marked on the top side of the board), the user connects the
upstream port (J101) of this evaluation board directly to a Type-C port of a computer or
phone without any Type-C cable, and downstream port (J102) is connected to a device
or docking station through either a standard Type-C cable, or tethered cable from the
device/dock.
When using the UFP board (“D2” is marked on the top side of the board), user connects
the downstream port (J201) of this evaluation board directly to a Type-C port of a device
or a docking station without any Type-C cable, and upstream port (J202) is connected to
a computer or a phone through a standard Type-C cable.
While this board is powered through a USB micro-B cable (5 V input) on J105,
PTN38007/3A, on-board AUX/LS multiplexers, and PCA9570 GPIO expanders are
powered up, and the user can use an I2C tool such as LPCUSBSIO (built-in function in
LPCUSBSIO module) to configure PTN38007/3A into different operating modes, using
the GPIO expander’s output to configure plug orientation and multiplexer selection (tri-
stated or DisplayPort AUX Enabled). A GUI interface is also available to configure the
above configurations.
UM11595 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
User manual Rev. 1.0 — 28 June 2021
5 / 26

NXP Semiconductors UM11595
PTN38007-EVM/PTN38003A-EVM evaluation board
4.1 Block diagram
aaa-042332
T
Y
P
E
-
C
R
E
C
E
P
T
A
C
L
E
T
Y
P
E
-
C
P
L
U
G
P
T
N
3
8
0
0
7
/
P
T
N
3
8
0
0
3
A
R
X
2
T
X
2
T
X
1
R
X
1
C
C
2
R
X
2
T
X
2
T
X
1
R
X
1
C
C
1
S
B
U
2
S
B
U
1
T
o
p
U
S
B
_
D
±
B
o
t
t
o
m
U
S
B
_
D
±
C
C
2
C
C
1
D
2
±
D
1
±
S
B
U
2
S
B
U
1
V
B
U
S
V
B
U
S
C
C
2
C
C
1
D
2
±
D
1
±
S
B
U
2
S
B
U
1
V
B
U
S
A
U
X
P
A
U
X
N
S
D
A
/
M
2
S
C
L
/
M
1
A
D
D
R
L
C
T
R
L
1
R
C
T
R
L
3
R
C
T
R
L
2
R
C
T
R
L
1
L
C
T
R
L
3
L
C
T
R
L
2
L
S
R
X
L
S
T
X
P
C
A
9
5
7
0
(
G
P
I
O
)
J
1
0
4
J
1
0
5
(
µ
U
S
B
)
J
1
0
3
M
I
C
5
3
5
7
5
V
3
V
3
1
V
8
Figure 1. Block diagram

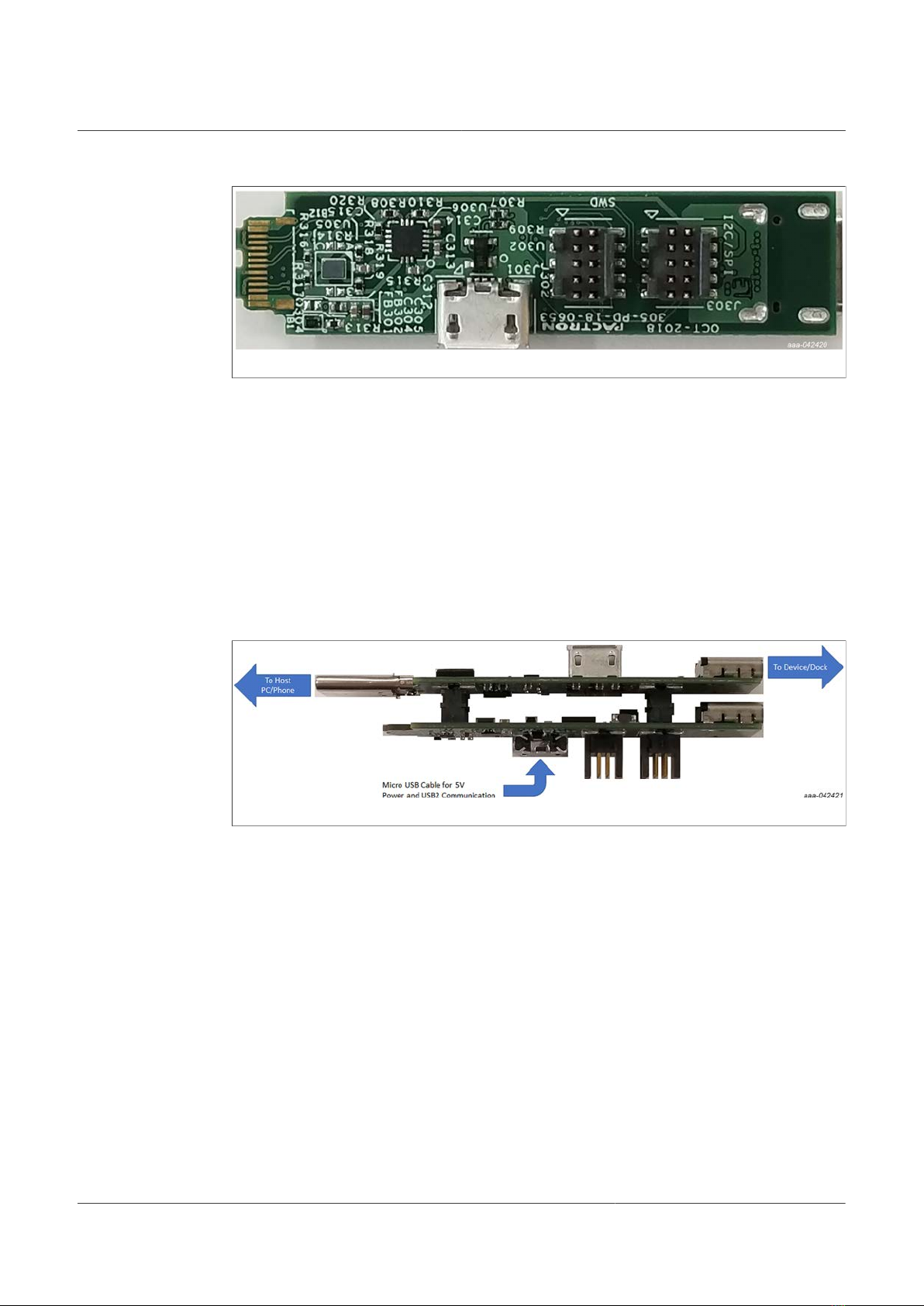

4.2 PCB photo
