NXP Semiconductors S12ZVM12EVB User manual

1 Introduction
The S12ZVMx12EVB board is designed to drive 3-phase
BLDC or PMSM motors, enabling implementation of motor
control techniques:
• Sensor-less:
• Back-EMF signal sensing using the MCU
integrated ADC modules
• Back-EMF zero-cross signal monitoring using
MCU integrated comparators
• Sensor-based:
• Hall sensor signal monitoring
• Resolver sin/cos signal monitoring
The board features the S12ZVM, a 16-bit automotive
microcontroller from the MagniV family. This System on
Chip integrates an S12Z microcontroller with a Local
Interconnect Network (LIN) physical interface, a 5-V
regulator and a Gate Driver Unit (GDU). The motor power
stage comprises 6 N-channel power MOSFETs that are
controlled by the MCU integrated GDU.
A USB to SCI interface is available and can be used for
FreeMaster PC-based application control. An integrated
OSBDM debugger interface is also provided for easy
programming/debugging of the S12ZVM microcontroller
device.
The board is available in the following versions:
• S12ZVML12EVBLIN – Features the
MC9S12ZVML12, with integrated LINPHY
Freescale Semiconductor Document Number: MC9S12ZVM128MCBUG
User's Guide Rev. 2, 03/2016
S12ZVM12EVB Evaluation Board
User Guide
© 2016 Freescale Semiconductor, Inc.
Contents
1 Introduction................................................................1
2 Interface Description.................... .............................4
3 Design Considerations.................... ........................ 11
4 Motor Control Kit Board Set-Up........... ................. 29
5 Electrical Characteristics................ .........................30
6 References...............................................................30
7 S12ZVMxEVB Board Schematics..... .................... 31

• S12ZVMC12EVBCAN – Features the MC9S12ZVMC12, with a Voltage Regulator controller to supply an external
CAN transceiver
• MTRCKTSBNZVM128 – Motor Control Kit integrating the S12ZVML12EVBLIN Evaluation Board with a 3-phase
BLDC Motor with Hall sensor, running a sensorless control application using Back-EMF zero-crossing detection
1.1 EVB Features
• MC9S12ZVML12MKH or MC9S12ZVMC12MKH microcontroller, 64LQFP package
• BDM interface for MCU code download and debugging, via 6-pin header
• On-board OSBDM for MCU code download and debugging, via USB connector
• 6 N-channel Power MOSFETs in 3-phase half H-bridge array
• Motor Control Interface:
• Hall Sensor
• Resolver interface
• SINCOS interface
• Connectivity:
• LIN
• CAN
• USB-to-SCI serial port
• Phase and DC-bus current sensing circuits
• LED indicators:
• Supply voltage indicator
• Reset indicator
• VDDX (MCU 5 V supply) indicator
• FAULT indicator
• Over-voltage and over-current FAULT indicator with potentiometer adjustments
• 2 general-purpose, user configurable LEDs
• 2 general-purpose, user configurable push buttons
• 1 general-purpose, user configurable switch
• Optional 4 MHz external oscillator
• 1 general-purpose Potentiometer
1.2 Board Architecture
The S12VMx12EVB Controller Board basic building blocks are depicted in the following figure.
Introduction
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
2 Freescale Semiconductor, Inc.

Figure 1. S12ZVMx12EVB block diagram
The board is supplied by VBAT voltage in the range from 3.5 V to 26 V. The board includes a reverse battery protection FET
to the output Field Effect Transistor (FET) power bridge, as well as a reverse battery protection diode to the logic supply. A
boost converter can be enabled by using the integrated boost controller and external inductor and diode components, for low
voltage operation (VBAT < 7 V).
The S12ZVM microcontroller integrates the necessary regulation stages, so that VBAT is supplied directly to the
microcontroller device. The VDDX regulator integrated into the S12ZVM provides 5 V to the I/O stages of the
microcontroller.
The S12ZVM can supply 5 V to an external Hall sensor via the EVDD pin. Another integrated voltage regulator provides the
necessary voltages to drive the power MOSFETs.
The MCU also integrates a Gate Driver Unit to drive the power MOSFETs directly from the MCU pins, using external
bootstrap capacitors on the high side FETs. The GDU module includes a Charge Pump to enable 100% duty cycle driving on
the high side FETs. The GDU outputs are internally controlled by the Pulse Width Modulator with Fault Protection module
(PMF) inside the MCU. The PMF module can drive the different channels independently or in complementary pairs, with
automatic dead time insertion.Several FAULT monitoring comparators are connected to the PMF’s external FAULT pin. The
settings for FAULT triggering can be configured using on-board potentiometers.
Introduction
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 3

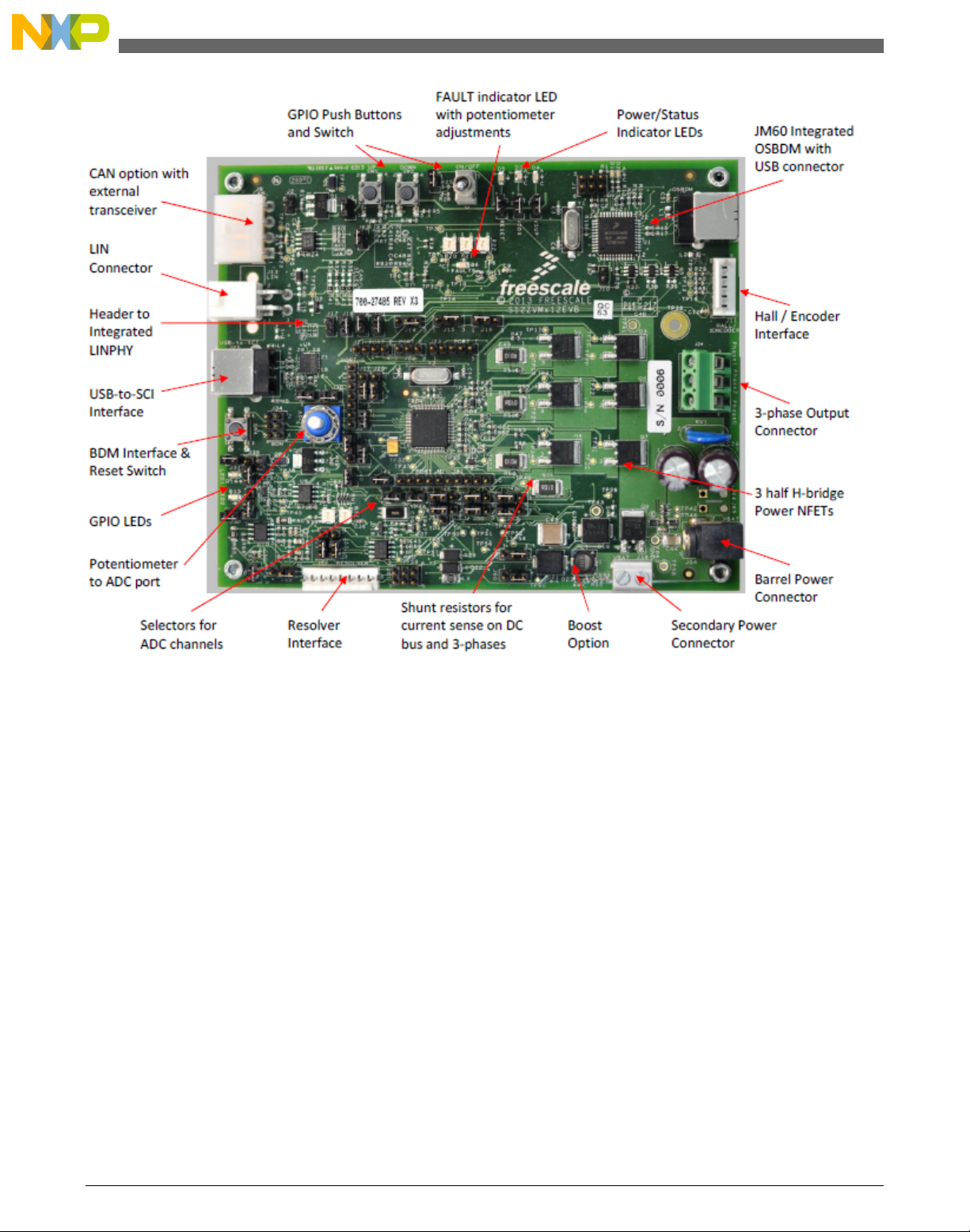

Figure 2. MC9S12ZVM128MCB controller board
2Interface Description
2.1 Power Supply, J54 or J58
The S12VMx12EVB board can be supplied either by using the 2.1 mm DC power plug J54, or the alternate connector J58.
The board can accept input voltage in the range from 3.5 V to 26 V. The board is protected against a reverse battery
condition.
2.2 Alternative Power Supply, J64 and J65
The S12VMx12EVB board can also be supplied either by populating a blade terminal on both J64 (positive) and J65 (ground
reference) for applications requiring higher current capabilities.
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
4 Freescale Semiconductor, Inc.

2.3 3-Phase Motor Connector, J24
Power outputs to the motor are located on connector J24. Phase outputs are labeled 0, 1, and 2. A permanent magnet
synchronous (PMSM) or a brushless DC (BLDC) motor phase windings can be connected into these connectors.
Table 1. 3-phase motor connector
Connector Signal name Description
J24 pin 1 Phase 0 Supplies power to motor phase A
J24 pin 2 Phase 2 Supplies power to motor phase C
J24 pin 3 Phase 1 Supplies power to motor phase B
2.4 Hall Sensor Interface, J11
In Hall sensor based BLDC applications, the Hall sensor inputs are used to determine the actual motor rotor sector. The MCU
is capable of providing a regulated 5 V supply to an external Hall sensor by the EVDD pin.
The signals from this connector can be routed to the timer related inputs on the MCU. The following table shows the pinout
description of the Hall Sensor connector interface.
Table 2. Hall Sensor connector interface
Interface pin Signal name MCU signal Description Direction
1 EVDD EVDD (PP0 through
J14)
5 V supply to Hall
sensor
Power Output
2 GND — Ground reference Power Reference
3 HALL_A/PH_A IOC1 (PT1 through J15) Hall sensor A Digital Input
4 HALL_B/PH_B IOC2 (PT2 through J16) Hall sensor B Digital Input
5 HALL_C/Index IOC3 (PT3) Hall sensor C Digital Input
6 — — (Not connected) —
2.5 Resolver Interface, J62
In applications using a resolver sensor, the position of the rotor is encoded into sine and cosine signals indicating the shaft
angle. A reference signal is generated out of an MCU timer pin. The sine and cosine signals can be routed to two different
ADC channels, depending on the appropriate jumper configuration.
The resolver driver circuit shapes a rectangular reference signal from the timer port PT0 output to a sinusoidal waveform. It
consists of an integrator that transforms the rectangular signal into a triangle. The higher harmonic components are filtered
out by the following stage. The output of the filter stage drives the resolver reference winding (RES_GENP/RES_GENM).
The resolver sine and cosine signals are input into a conditioning circuitry that adjusts voltage levels down to the range
acceptable to the on-chip ADC module.
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 5

The following table shows the pinout description of the resolver connector interface.
Table 3. Resolver connector interface
Interface pin Signal name MCU signal Description Direction
1 RES_GENP (Linked to PT0) Resolver Generator
Positive Output
Analog Output
2 RES_GENM (Linked to PT0) Resolver Generator
Negative Output
Analog Output
3 RES_SIN AN0_0 (through J35) or
AN0_3 (through J46) or
AN1_2 (through J51)
Resolver Sensor SIN
Input
Analog Input
4 RES_SIN_REF — Resolver Sensor SIN
Reference
—
5 RES_COS AN1_1 (through J50) or
AN1_3 (through J52)
Resolver Sensor COS
Input
Analog Input
6 RES_COS_REF — Resolver Sensor COS
Reference
—
7 AGND — Analog ground
reference
Power Reference
8 +5VA — 5 V supply voltage Power Supply
2.6 SINCOS Interface, J61
An alternative simplified resolver interface is also available on the SINCOS connector.
The following table shows the pinout description of the SINCOS interface.
Table 4. Pinouts of SINCOS interface
Interface pin Signal name MCU signal Description Direction
1 PH_A IOC1 (PT1 through J15) Resolver Sensor Phase
A Output
Digital Input
2 RES_SIN AN0_0 (through J35) or
AN0_3 (through J46) or
AN1_2 (through J51)
Resolver Sensor SIN
Input
Analog Input
3 PH_B IOC2 (PT2 through J16) Resolver Sensor Phase
B Output
Digital Input
4 RES_COS AN1_1 (through J50) or
AN1_3 (through J52)
Resolver Sensor COS
Input
Analog Input
5 AGND — Analog ground
reference
Power Reference
6 +5 VA — 5 V supply voltage Power Supply
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
6 Freescale Semiconductor, Inc.

2.7 CAN Connector, J8
An external CAN transceiver is available on board and can be routed to the MCU MSCAN module.
Table 5. CAN connector
Interface pin Signal name MCU signal Description Direction
1 MSCAN_H RXCAN/TXCAN CAN Bus H Diff. bidirectional
2 MSCAN_L RXCAN/TXCAN CAN Bus L Diff. bidirectional
3 — — (Not connected) —
4 — — (Not connected) —
2.8 LIN Connector, J13
The integrated LIN physical layer is used as the LIN interface.
Table 6. LIN connector
Interface pin Signal name MCU signal Description Direction
1 LGND — Ground reference Power Reference
2 LGND — Ground reference Power Reference
3 HD (VBAT) — Power Supply —
4 LIN LIN LIN Bus Digital bidirectional
2.9 LINPHY Header, J17
The LINPHY interface header provides connections to the TXD and RXD functionality of the LIN physical layer integrated
into the MCU.
Table 7. LINPHY interface header
Interface pin Signal name MCU signal Description Direction
1 LPRXD LPRXD LIN Physical Layer
RXD
Digital Output
2 LPTXD LPTXD LIN Physical Layer TXD Digital Input
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 7

2.10 External BDM Connector, J34
A BDM interface for MCU code download and debugging is provided.
Table 8. External BDM connector
Interface pin Signal name MCU signal Description Direction
1 BKGD BKGD Background Digital Input
2 GND — Ground reference Power Reference
3 PDO PS5/PDO Extended DBG module
data output
Digital Output
4 RESET_B RESET Reset Digital Bidirectional
5 PDOCLK PS4/PDOCLK Extended DBG module
data clock
Digital Output
6 VDDX_BDM VDDX 5 V supply to external
BDM interface
Power Supply
2.11 Extended DBG Module Header, J38
The PDO and PDOCLK signals to the DBG extended debug module are available for interfacing with dedicated debug
hardware.
Table 9. Extended DBG module header
Interface pin Signal name MCU signal Description Direction
1 PDO PS5/PDO Extended DBG module
data output
Digital Output
2 PDOCLK PS4/PDOCLK Extended DBG module
data clock
Digital Output
2.12 BDM Connector for OSBDM Microcontroller, J1
A BDM interface is provided to load code to the OSBDM microcontroller, U1.
Table 10. BDM connector for OSBDM microcontroller
Interface pin Signal name OSBDM MCU signal Description Direction
1 U_BKGD BKGD Background Digital Input
2 GND — Ground reference Power Reference
3 — — (Not connected) —
4 U_RESET RESET Reset Digital Bidirectional
5 — — (Not connected) —
6 +5 VU VDD1 5 V supply from
OSBDM USB interface
Power Supply
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
8 Freescale Semiconductor, Inc.

2.13 USB Connector for OSBDM Microcontroller, J7
This USB interface is used to communicate with a PC as an interface to load and debug code to the microcontroller. The
OSBDM tool also may enable a virtual serial port that can be routed to SCI1 serial port in the MCU, at pins PS2 and PS3, by
setting the appropriate registers.
Table 11. USB Connector for OSBDM microcontroller
Interface pin Signal name MCU signal Description Direction
1 +5VU — USB Power Supply Power Supply
2 D- PS2/PS3 or RESET/
BKGD
Data - Digital Bidirectional
3 D+ PS2/PS3 or RESET/
BKGD
Data + Digital Bidirectional
4 GND — Ground reference Power Reference
2.14 USB Connector for USB-to-SCI Interface, J25
This USB interface is used to communicate with a PC as an interface to a virtual serial port.
Table 12. USB Connector for USB-to-SCI interface
Interface pin Signal name MCU signal Description Direction
1 VBUS_USB — USB Power Supply Power Supply
2 D- PS2/PS3 Data - Digital Bidirectional
3 D+ PS2/PS3 Data + Digital Bidirectional
4 GND_USB — Ground reference Power Reference
2.15 MCU Port P Header, J21
The MCU signals from GPIO port P can be monitored using this header.
Table 13. MCU Port P header
Interface pin MCU signal Pin functionality
1 PP0 PP0/EVDD1/KWP0/(PWM0)/ECLK/
FAULT5/XIRQ
2 PP1 PP1/KWP1/(PWM1)/IRQ
3 PP2 PP2/KWP2/(PWM2)
4 GND Ground reference
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 9

2.16 MCU Port E Header, J22
The MCU signals from GPIO port E can be monitored using this header.
Table 14. MCU Port E header
Interface pin MCU signal Pin functionality
1 PE0 PE0/EXTAL
2 PE1 PE1/XTAL
3 GND Ground reference
2.17 MCU Port T Header, J23
The MCU signals from GPIO port T can be monitored using this header.
Table 15. MCU Port T header
Interface pin MCU signal Pin functionality
1 PT3 PT3/IOC3/(SS)
2 PT2 PT2/IOC2/(PWM5)/(SCK)
3 PT1 PT1/IOC1/(PWM4)/(MOSI)/(TXD0)/
LPDR1/PTURE
4 PT0 PT0/IOC0/(PWM3)/(MISO)/(RXD0)
5 GND Ground reference
2.18 MCU Port S Header, J31
The MCU signals from GPIO port S can be monitored using this header.
Table 16. MCU Port S header
Interface pin MCU signal Pin functionality
1 PS0 PS0/KWS0/RXD1/RXCAN/(LPRXD)/
PTUT0
2 PS1 PS1/KWS1/TXD1/TXCAN/(LPTXD)/
PTUT1
3 PS2 PS2/KWS2/(RXD1)/MISO
4 PS3 PS3/KWS3/DBGEEV/(TXD1)/MOSI
5 PS4 PS4/KWS4/SCK/PDOCLK
6 PS5 PS5/KWS5/SS/PDO
7 GND Ground reference
Interface Description
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
10 Freescale Semiconductor, Inc.

2.19 MCU Port AD Header, J41
The MCU signals from GPIO port AD can be monitored using this header.
Table 17. MCU Port AD header
Interface pin MCU signal Pin functionality
1 PAD0 PAD0/KWAD0/AMP0/AN0_0
2 PAD1 PAD1/KWAD1/AMPM0/AN0_1
3 PAD2 PAD2/KWAD2/AMPP0/AN0_2
4 PAD3 PAD3/KWAD3/AN0_3/
5 PAD4 PAD4/KWAD4/AN0_4/
6 PAD5 PAD5/KWAD5/AMP1/AN1_0
7 PAD6 PAD6/KWAD6/AMPM1/AN1_1/(SS)
8 PAD7 PAD7/KWAD7/AMPP1/AN1_2
9 PAD8 PAD8/KWAD8/AN1_3/VRH
10 GND Ground reference
3 Design Considerations
This section provides additional information about the functional blocks of the S12ZVMx12EVB motor control board.
3.1 MC9S12ZVM Features
The MC9S12ZVM-Family is an automotive 16-bit microcontroller family using the 180 nm NVM + UHV technology that
offers the capability to integrate 40 V analog components. The particular differentiating features of this family are the
enhanced S12Z core, the combination of dual-ADC synchronized with PWM generation and the integration of “high-voltage”
analog modules, including the voltage regulator (VREG), Gate Driver Unit (GDU) and a Local Interconnect Network (LIN)
physical layer. These features enable a fully integrated single chip solution to drive up to 6 external power MOSFETs for
BLDC or PMSM motor drive applications.
• S12Z CPU core
• Memory
• 128, 64 or 32 KB on-chip flash with ECC
• 512 byte EEPROM with ECC
• 8, 4, or 2 KB on-chip SRAM with ECC
• Clock Modules
• Phase locked loop (IPLL) frequency multiplier with internal filter
• 1 MHz internal RC oscillator with +/-1.3% accuracy over rated temperature range
• 4-16 MHz amplitude controlled pierce oscillator
• Internal COP (watchdog) module
• Autonomous periodic interrupt (API)
• Low side and high side FET pre-drivers for each phase
• Gate drive pre-regulator
• LDO (Low Dropout Voltage Regulator) (typically 11 V)
• High side gate supply generated using bootstrap circuit with external diode and capacitor
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 11

• Sustaining charge pump with two external capacitors and diodes
• High side drain (HD) monitoring on internal ADC channel using HD/5 voltage
• 6-channel, 15-bit pulse width modulator with fault protection (PMF)
• Independent or complementary pair operation
• Center-aligned or edge-aligned outputs
• Dead time insertion available for each complementary pair
• Two parallel analog-to-digital converters (ADC) with 12-bit resolution and up to 9 channels available on external pins
• Programmable Trigger Unit (PTU) for synchronization of PMF and ADC
• Connectivity
• One on-chip LIN physical layer transceiver fully compliant with the LIN 2.1 standard (MC9S12ZVML12MKH
version)
• One serial communication interface (SCI) module with interface to internal LIN physical layer transceiver (with
RX connected to a timer channel for frequency calibration purposes, if desired)
• Up to one additional SCI (not connected to LIN physical layer)
• MSCAN (1 Mbit/s, CAN 2.0 A, B software compatible) module
• One serial peripheral interface (SPI) module
• 4-channel timer module (TIM) with input capture/output compare
• Voltage Regulator
• On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages
• Optional VREG ballast control output to supply an external CAN physical layer (MC9S12ZVMC12MKH
version)
• 20 mA high-current output for use as Hall sensor supply
• Supply voltage sense with low battery warning
• Chip temperature sensor
• Two current sense circuits for over-current detection or torque measurement
3.2 Power Supply
The S12ZVMx12EVB motor control board can be supplied from three different options. It can be supplied by J54 and J58
and alternatively by populating blade terminals at locations J64 (positive supply) and J65 (ground). The battery connection to
the MCU main supply, VSUP, is protected against a reverse polarity condition, through diode D19. The capacitor C43 is
provided as a bulk capacitor to store energy and maintain MCU operation for a short duration upon loss of battery. The
capacitor C38 is there to filter the voltage supply into the MCU pin.
3.2.1 Boost DC/DC Converter
The board also provides the external components required to enable a boost DC/DC converter, using the BOOST controller
pin in the MCU, namely the inductor L7, and diodes D19 and D21. When the internal switch at the BOOST pin closes, the
current builds up through L7. When the switch opens, the current flows through D19 and into the storage capacitor, C43.
Diode D21 provides protection to the BOOST pin in case of a reverse battery condition. If the VBAT node shown in the
figure below is already protected against a reverse battery condition, the diode D21 is not needed.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
12 Freescale Semiconductor, Inc.

Figure 3. Boost DC/DC converter option
3.2.2 Bridge Supply (DC Link) Reverse Battery Protection
A separate reverse battery protection is provided for the FET bridge voltage supply. In this case, a power n-channel
MOSFET, Q9, is provided, with its source connected to the battery input. Using external components, a charge pump driven
by pin CP can be enabled to drive the reverse battery MOSFET. Additionally, a circuit is available on the board to enable a
fast turn-off of the n-channel MOSFET in case of a reverse battery condition, using an external bipolar transistor. Upon a
reverse battery condition, the bipolar transistor, Q10, turns on and isolates the HD pin from VBAT by opening the external
MOSFET.
Figure 4. Reverse Battery Protection and Charge Pump circuit
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 13

3.2.3 Charge Pump for High-Side Driver Supply
In the Figure 4, there are two different implementations of charge pumps, using the same pin on the MCU. As described
before, the first charge pump drives the N-channel MOSFET for reverse battery protection based on components D25, D26,
C34 and C107. The second charge pump, composed of C35, C40, D16, and D17, feeds a voltage into the MCU, through the
VCP pin.
3.3 Voltage Regulators
The main 5 V regulator is a linear voltage regulator integrated into the MCU. It is supplied directly from the VSUP battery
input pin and delivers up to 70 mA on a regulated 5 V output on pins VDDX1, VDDX2. In case a larger current is required
out of the VDDX node, an external ballast PNP transistor is provided on board, which is controlled by the BCTL pin.
To enable the ballast transistor, a couple of bits in register CPMUVREGCTL need to be adjusted by software (EXTXON = 1,
INTXON = 0). Additionally, a jumper needs to be placed on header J40, shorting pins 1 and 2.
Figure 5. External ballast transistor option
The maximum current capability of the ballast transistor will be highly dependent on the operating conditions (mainly
temperature and battery voltage). For example, the BCP53 PNP transistor on board is rated to 1.5 W at 25°C. At a nominal
battery voltage of 12 V, the estimated current capability of the transistor would be:
I = P / V, where V = (VSUP –VDDX) = 7 V
I = 1.5 W / 7 V = 214 mA
3.4 CAN/LIN Interfaces
There are two versions of the S12ZVMx12EVB board:
• S12ZVML12EVBLIN, populated with the MC9S12ZVML12 device that integrates a LIN physical layer
• S12ZVMC12EVBCAN, populated with the MC9S12ZVMC12 device that integrates a controller for a second 5 V
voltage regulator to supply an external CAN transceiver.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
14 Freescale Semiconductor, Inc.

3.4.1 CAN/LIN Enablement
The EVB provides an array of 0-ohm resistors that are populated according to the variant of the S12VM device that is
populated on the board. The following image shows the different resistor pairs. Only one resistor on each pair must be
populated at a time.

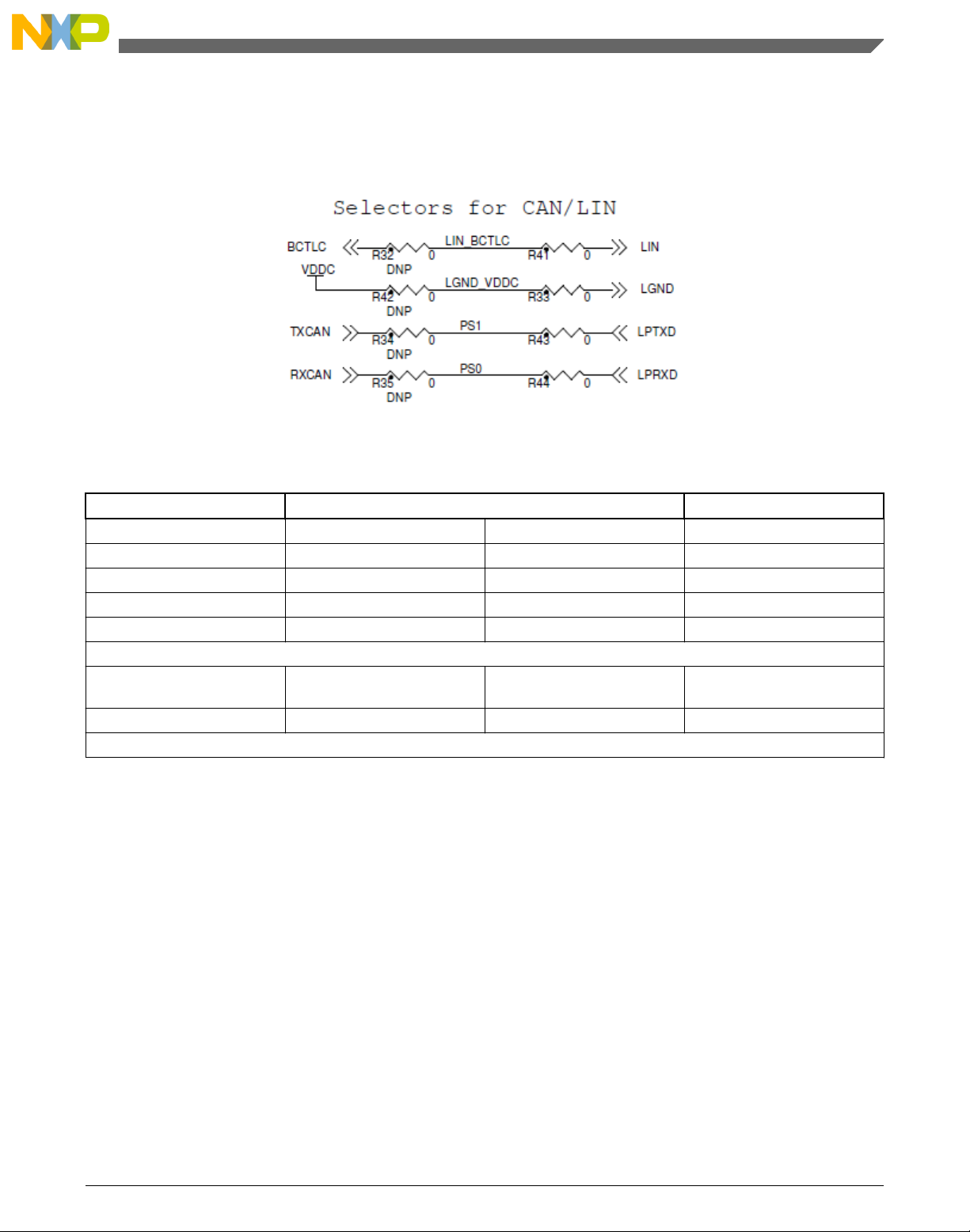

Figure 6. Resistor selection for CAN/LIN options
Table 18. Populating Resistors for CAN/LIN Enablement
S12ZVML12MKH S12ZVMC12MKH
MCU Pin LIN LIN + CAN(*) CAN(*)
1 – LIN / BCTLC R41 R41 R32
64 – LGND / VDDC R33 R33 R42
4 – PS1 (LPTXD / TXCAN) R43 R34 R34
3 – PS0 (LPRXD / RXCAN) R44 R35 R35
Other settings
J3 (VDDC supplied from USB,
J25)
Open Close Open
J2 (supply to VDDC regulator) Open Open Close
(*) Using external CAN transceiver
3.4.2 LIN Physical Layer
The LIN bus pin provides a physical layer for single-wire communication in automotive applications. The LIN physical layer
is designed to meet the LIN Physical Layer 2.2 specification from LIN consortium.
The LIN physical interface pins (LPTXD and LPRXD) are available on a 2-pin header, J17. This can be used to interface
another MCU to the LIN physical interface integrated into the S12ZVML device.
The LIN bus includes an integrated pull-up device, which can be a strong pull-up (~34 Kiloohm) or a high impedance value
(~300 Kiloohm), selectable by software. A 220 pF capacitor is added at the LIN bus pin, according to the device
recommendation. ESD protection is provided in the form of two back-to-back diodes in a single package, D8.
By default, the EVB is configured to operate in slave mode. It can be converted into a Master node by populating a 1
Kiloohm resistor at R45. The footprint in the PCB will hold a 0603 size surface mount resistor. This resistor is connected in
series with the diode required from the battery voltage node. In this case, the battery voltage is taken from the HD node, the
supply to the FET bridge high side drains.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 15

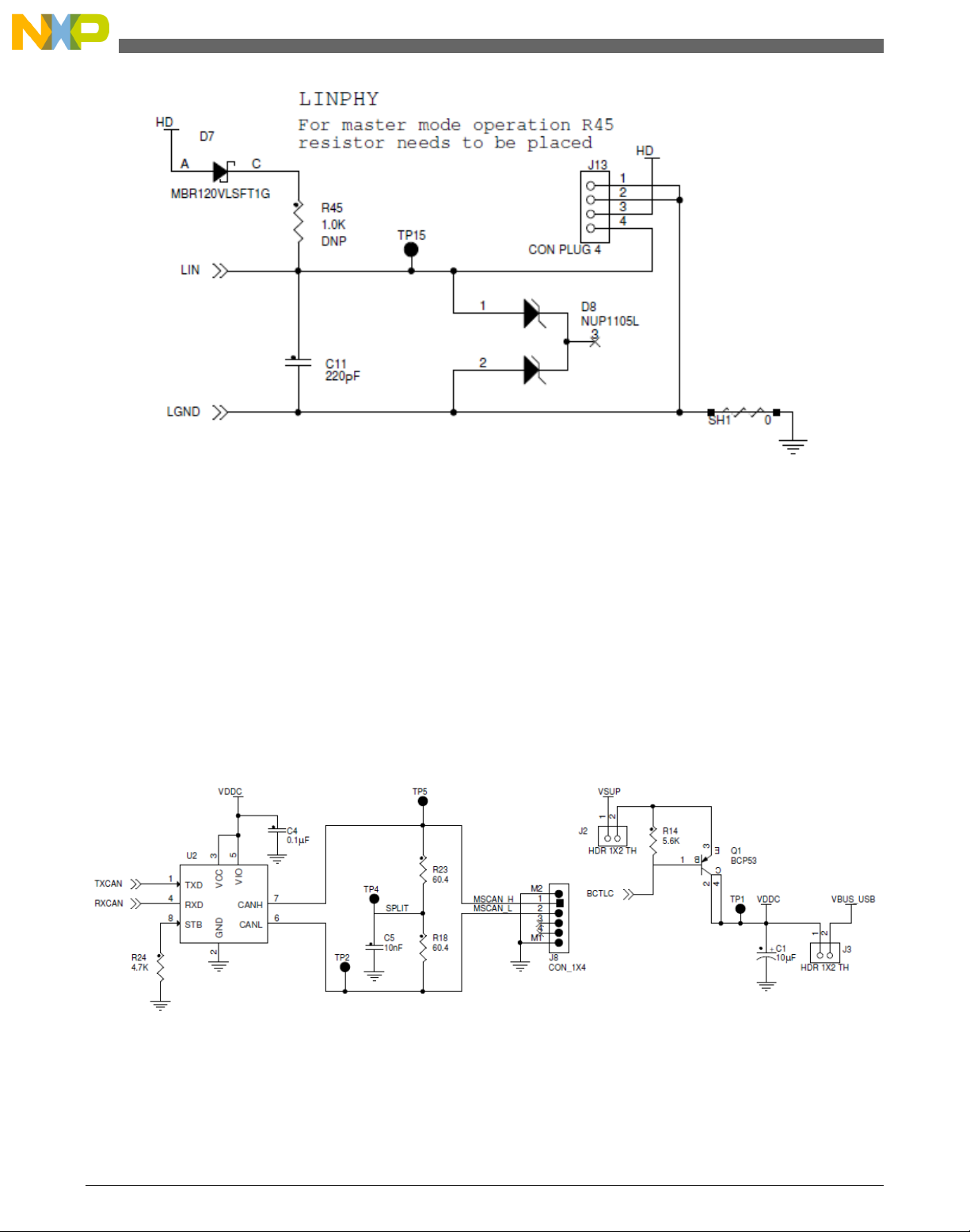

Figure 7. LIN interface
3.4.3 CAN Transceiver
The EVB includes an external CAN transceiver that can be linked to the MSCAN module of the S12ZVM device, by
populating the appropriate resistors as shown in Table 18.
In the CAN version of the EVB, the external transceiver can be powered by a voltage regulator controlled by the
S12ZVMC12 microcontroller. An external PNP BJT ballast transistor is required to deliver regulated 5 V to the CAN
transceiver. The base of the transistor must be connected to the BCTLC base control pin on the microcontroller. The collector
of the transistor must be connected to the VDDC pin on the microcontroller. A 5.6 kiloohm resistor is recommended from the
base to the emitter of the transistor. The emitter terminal must be supplied from the VSUP (reverse polarity protected) battery
supply. A jumper must be populated on header J2 to enable the supply to the transistor. The jumper on header J3 must not be
populated in this case.
Figure 8. CAN Transceiver
In the LIN version of the EVB, the microcontroller can’t control the ballast transistor, because the VDDC and BCTLC pins
are replaced by the LIN and LGND pins of the LIN physical layer. However, the MSCAN module in the microcontroller can
still be linked to the external CAN transceiver. The transceiver 5 V supply can be powered from the USB connector, J25, as
long as a jumper is populated on header J3. In this case, the jumper on header J2 must be removed.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
16 Freescale Semiconductor, Inc.

3.5 SCI
The S12ZVM EVB provides two different routing options to link one SCI module on the microcontroller to a USB port that
could be easily connected to a personal computer.
3.5.1 SCI to USB (CP2102)
The first alternative is to use the USB interface that is provided with the CP2102 USB to UART bridge. This interface is
available through a Type B USB connector, J25, and is digitally isolated. A driver needs to be installed on the host computer
to create a virtual serial COM port, linked to the USB port that is connected to the USB to UART bridge.
A couple of jumpers need to be populated on headers J27 and J28 from pin 2 to pin 3 on both headers. This links the SCI1
pins from the microcontroller to the USB to UART bridge, through the digital isolator.

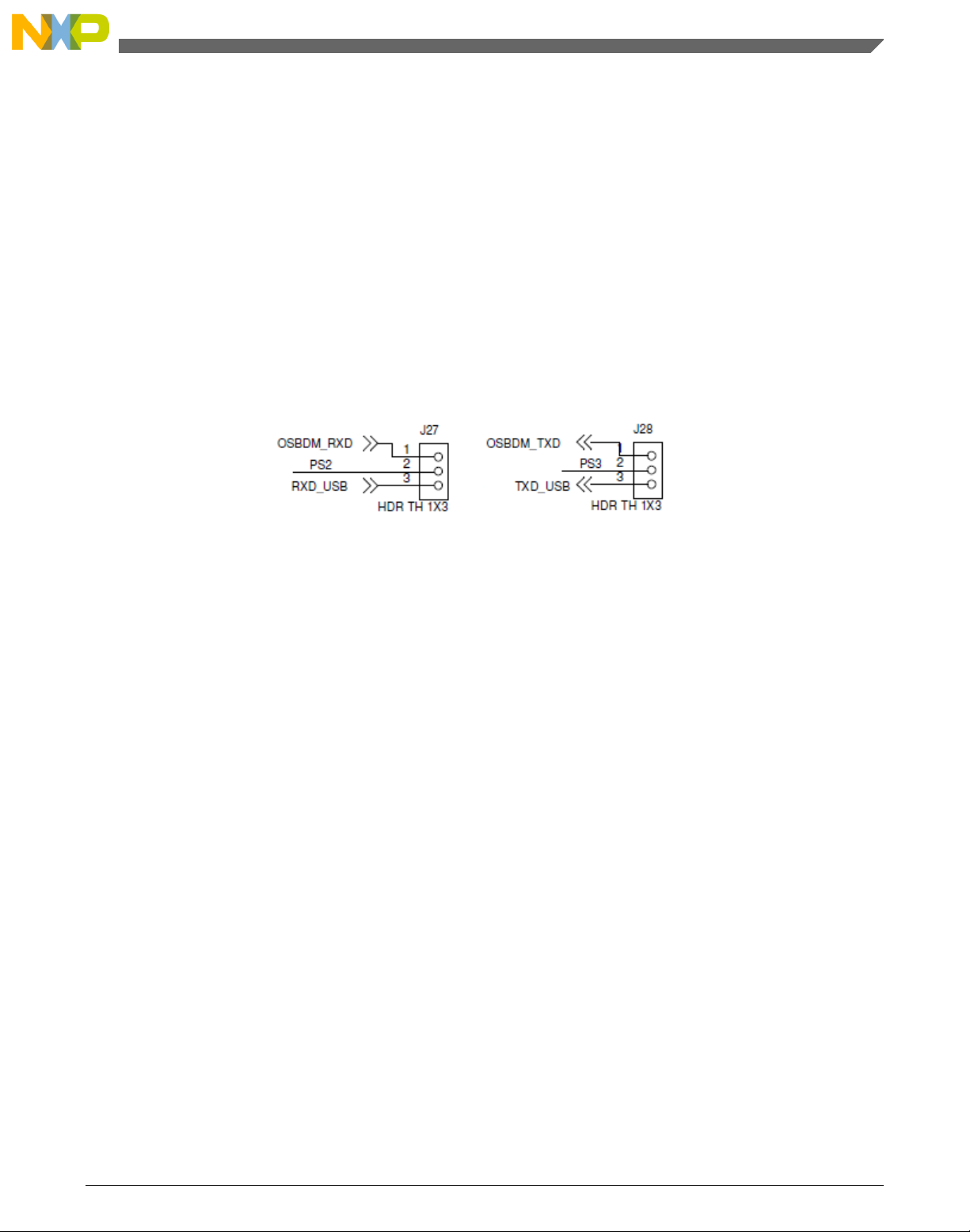

Figure 9. USB to SCI jumper options
3.5.2 SCI to USB (OSBDM)
The second option to route the SCI1 port to a USB interface is by using the on-board OSBDM programmer. This interface is
available through a Type B USB connector, J7. The necessary drivers to operate the serial interface provided by the OSBDM
device should install the first time the EVB is connected to the computer through a USB cable.
In this case, a couple of jumpers need to be placed on headers J27 and J28 from pin 1 to pin 2 on both headers. This will
route the RXD and TXD signals from the SCI1 module, to the RXD and TXD signals from the OSBDM device.
3.6 3-Phase Power Bridge
The power stage is configured as a 3-phase Power Bridge with n-channel MOSFET transistors. The Gate Driver Unit (GDU)
integrated into the MCU provides the supply voltage to the gates of the low-side and high-side MOSFETs. The GDU pins are
designed to interface to external components in the automotive battery range, so they can be connected directly to the
MOSFET terminals. For evaluation purposes, the connections from the GDU pins to the MOSFETs on the S12ZVM128EVB
board are done through a series of 0-ohm resistors.
The drivers for the low-side MOSFET gates are driven by the internal LDO regulator (VLS_OUT). Each driver uses the pin
LSx as its reference, and supplies the voltage into pin LGx to drive the MOSFET gate.
The drivers for the high-side MOSFET gates are driven by the voltage stored in a bootstrap capacitor, which is external to the
MCU. This voltage is derived from the LDO regulator through an external diode and fed into the bootstrap voltage VBSx pin.
Each high-side driver uses the pin HSx as its reference, and supplies the bootstrap voltage into pin HGx to drive the high-side
MOSFET gate.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 17

Figure 10. 3-phase output stage
3.7 Current Sense
A set of four different resistors are provided on the board for current sensing in different applications. There is one current
sense resistor for each phase (R48, R56, R68), plus one resistor to sense the DC bus current (R71). The components
populated on the board are 10 milliohm, 1% tolerance resistors. Several different options are provided on the board to enable
current sense on multiple resistors at the same time. The MCU integrates two current sense amplifiers, and there are three
additional amplifiers provided on board using external op-amps.
The two current sense amplifiers integrated into the MCU are mapped each to a different ADC module, to allow for
simultaneous conversions.
Option 1) Internal Op-Amp 0:
The internal current sense amplifier 0 is mapped to the ADC pins at PAD0, PAD1, and PAD2, with the following
configuration:
PAD0 = AMP0, the operational amplifier output.
PAD1 = AMPM0, the operational amplifier inverting input (minus).
PAD2 = AMPP0, the operational amplifier non-inverting input (plus).
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
18 Freescale Semiconductor, Inc.

Figure 11. Integrated current sense amplifiers
On this board, two different current sense resistors can be connected to the internal operational amplifier, by selecting the
appropriate configuration using jumpers in J60 and J57. To measure the current from Phase A, the jumpers must be on J60
pins 1-2 and on J57 pins 1-2. To measure the DC Bus current, the jumpers must be on J60 pins 2-3 and on J57 pins 2-3.
Table 19. Measurement of the DC Bus current
Header Setting Description
J60 1-2 Positive end of current sense from
Phase A
2-3 Positive end of current sense from DC
Bus
J57 1-2 Negative end of current sense from
Phase A
2-3 Negative end of current sense from DC
Bus
To map the operational amplifier to the AMPx pins, the following jumpers need to be placed, too: J35 pins 1-2, J44 pins 1-2,
J45 pins 1-2.
The gain of the amplifier is set using external resistors where R198 = 199 = 2.2 kiloohm, and R196 = R200 = 40 kiloohm.
With these resistor values, the gain of the amplifier is A = R196 / (R198 + 1K) = 40K/3.2K = 12.5. Please note the
denominator considers additional 1K in series, which is the resistor before the jumper that is used to select which sense
resistor is connected to the operational amplifier.
The output voltage is shifted up by 2V5_REF, a 2.5 V supply which is mid range from the full scale voltage of the ADC, 5 V,
to accommodate positive and negative current swings. The voltage shift can be eliminated by removing R196 and replacing it
with R197 instead.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
Freescale Semiconductor, Inc. 19

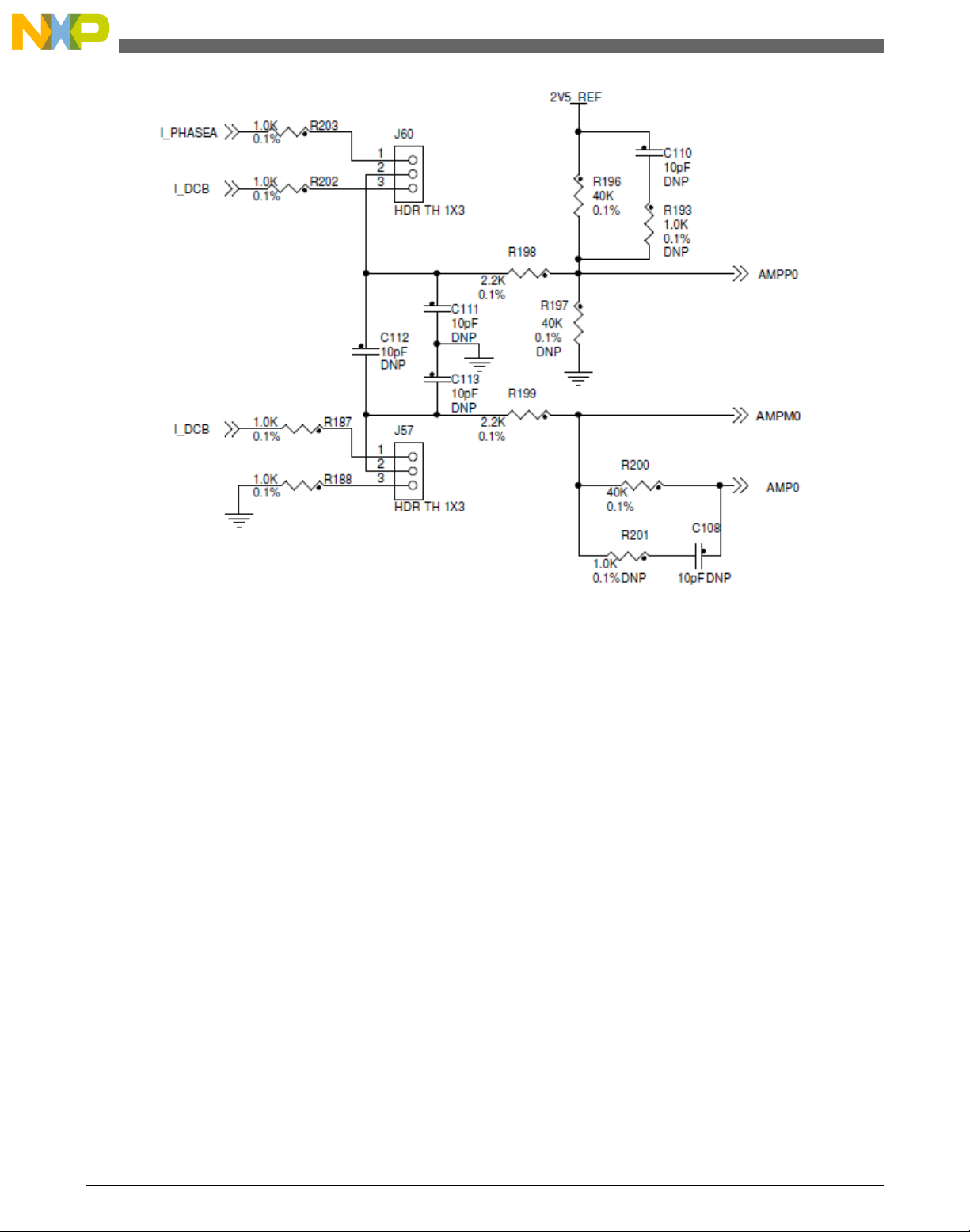

Figure 12. Phase A/DC Bus current sense option
With the sense resistor value of 10 milliohms, and the gain being 12.5, the maximum excursion of +/- 2.5 V from the mid-
range voltage of 2.5 V corresponds to a sensed current of 20 A:
Vamp, max = +/-2.5 V
Vsensed, max = (Vamp, max) / Gain = (+/-2.5V) / 12.5 = 0.2 V
Isensed, max =( Vsensed, max) / Rsense = (+/-0.2V) / 0.01ohm = +/- 20 A.
Option 2) Internal Op-Amp 1:
The internal current sense amplifier 1 is mapped to the ADC pins at PAD5, PAD6, and PAD7, with the following
configuration:
PAD5 = AMP1, the operational amplifier output.
PAD6 = AMPM1, the operational amplifier inverting input (minus).
PAD7 = AMPP1, the operational amplifier non-inverting input (plus).
This amplifier has fixed connections to the Phase B current sense resistor. The external gain setting resistors have the same
values as described before. It is also connected to a 2.5 V reference to allow for positive and negative current swings.
Design Considerations
S12ZVM12EVB Evaluation Board User Guide, Rev. 2, 03/2016
20 Freescale Semiconductor, Inc.
