Chapter 1
Introduction
The LS1043A reference design board (RDB) is a high-performance computing,
evaluation, and development platform for the QorIQ LS1043A processor. It can also be
used as a software development and debugging platform for the LS1043A processor. It
functions as a desktop computer and operates as a development and evaluation system.
The LS1043ARDB is lead-free and RoHS-compliant.
NOTE
Use the part number LS1043ARDB-PD to order the
LS1043ARDB.
You can perform the following operations using the LS1043ARDB onboard resources
and debugging devices:
• Upload and run code
• Set breakpoints
• Display memory and registers
• Connect and incorporate proprietary hardware into the target systems, using the
LS1043A processor as a host processor
• Use the LS1043ARDB as a demonstration tool
A software application developed for the LS1043ARDB can run with various input/
output data streams, for example, PCIe or XFI connections.
The board support package (BSP) is developed using the Linux operating system.
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 7

1.1 Acronyms and abbreviations
The table below lists and describes the acronyms and abbreviations used in this
document.
Table 1-1. Acronyms and abbreviations
Acronym/abbreviation Description
AVDD Supply voltages for the core, platform, DDR, and SerDes PLLs
BCSR Board control and status register
BGA Ball grid array
BRDCFG Board configuration
CLKIN Clock input (interchangeable with SYSCLK)
COP Common on-chip processor
CPLD Complex programmable logic device
CTS Clear to send
CVDD Supply voltage for the DSPI block
DDR Double data rate
DIP Dual inline package
DMA Direct memory access
DRAM Dynamic random access memory
DSPI Deserial serial peripheral interface
DVDD Supply voltage for UART/I2C/DMA
EC Ethernet controllers
ECC Error checking and correction
EEPROM Electrically erasable programmable ROM
EMI Ethernet management interface
eMMC Embedded multimedia card
eSDHC Enhanced secure digital high capacity card
FCM NAND flash control machine
FMan Frame manager
FPGA Field programmable gate array
G1VDD Supply voltage for the DDR module
GETH Gigabit Ethernet (GbE)
GPCM General-purpose chip-select machine
GPINPUT General purpose input
GPIO General purpose input/output
HRESET Hard reset
I2C Inter-integrated circuit multi-master serial computer bus
IFC Integrated flash controller
IPL Initial program load
JTAG Joint Test Action Group (IEEE® standard 1149.1™)
LBMAP Local bus map
Table continues on the next page...
Acronyms and abbreviations
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
8 NXP Semiconductors

Table 1-1. Acronyms and abbreviations (continued)
Acronym/abbreviation Description
LDO Low-dropout
LED Light-emitting diode
LSB Least significant bit
LVDD Supply voltage for the GETH block
MAC Medium access control
MMC Multimedia card
MSB Most significant bit
MSD Mass storage device
OCM Offline Configuration Manager (FPGA-embedded)
OVDD Supply voltage for general purpose I/O
PCBA Printed circuit board assembly
PLL Phase-locked loop
PMIC Power management integrated circuit
POR Power-on reset
POVDD Security fuse programming override supply voltage (PROG_SFP)
ppm Parts per million
PROMJet Memory emulator by EmuTec Inc.
QSGMII Quad serial gigabit media-independent interface
RCW Reset configuration word
REFCLK Reference clock (clock synthesizer input value)
RGMII Reduced gigabit media-independent interface
ROM Read-only memory
RTC Real-time clock
RTS Request to send
SATA Serial advanced technology attachment
SCL/SCLK Serial clock
SD Secure digital card
SDHC Secure digital high capacity card
SDRAM Synchronous dynamic random access memory
SDREFCLK SerDes reference clock
SERCLK SerDes clock
SerDes (SRDS) Serializer/deserializer, for example, PEX, XAUI, SGMII, SATA, sRIO,
AURORA, and XFI
SGMII Serial gigabit media-independent interface
SIP Secure interfaces and power
SLAC Subscriber line access controller
SLC Single-level cell
SLIC Subscriber line interface controller
SMB Subminiature version B connector
SPD Serial presence detect
Table continues on the next page...
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 9

Table 1-1. Acronyms and abbreviations (continued)
Acronym/abbreviation Description
SPI Serial peripheral interface
SRAM Static random-access memory
S1VDD Supply voltage for SerDes1 and SerDes2 core logic
SYSCLK System clock
TAP Test access port, for example, USB TAP or Ethernet TAP
TESTSEL Test select
TH_VDD Supply voltage for the Thermal Monitor unit
TRIG_IN/OUT Trigger input/output
TSEC Three-speed Ethernet controller
UART Universal asynchronous receiver/transmitter
uDIMM Unbuffered dual inline memory module form factor
USB Universal serial bus
USBCLK USB clock
VDD Supply voltage for core and platform
TA_BB_VDD Supply voltage for low power security monitor
XAUI Ten gigabit attachment unit interface
XVDD Supply voltage for SerDes1 and SerDes2 transceivers
1.2 Related documentation
This table lists and describes the additional documents available for more information on
the LS1043ARDB.
Table 1-2. Related documentation
Document Description
QorIQ LS1043ARDB Getting Started Guide
(LS1043ARDBGSG)
Describes the LS1043ARDB hardware kit, provides settings for the
onboard switches, connectors, jumpers, and LEDs, and explains the
basic board operations in a step-by-step manner
QorIQ LS1043A Reference Manual (LS1043ARM) Provides a detailed description on the LS1043A multicore processor and
its features, such as memory map, serial interfaces, power supply, chip
features, and clock information
QorIQ LS1043A Data Sheet Contains information on the LS1043A pin assignments, electrical
characteristics, hardware design considerations, package information,
and ordering information
LS1043A Chip Errata Provides details of all known silicon errata for the LS1043A processor
NOTE
Some of the documents listed in the table above, may be
available only under a non-disclosure agreement (NDA). To
Related documentation
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
10 NXP Semiconductors

request access to such documents, contact your local NXP field
applications engineer or sales representative.
1.3 Board features
The table below lists the features of the LS1043ARDB.
Table 1-3. LS1043ARDB features
LS1043ARDB feature Specification Description
Processor support Core processors 4x64-bit up to 1.6 GHz ARM® Cortex®-v8 A53 cores
High-speed serial ports (SerDes) • Supports 4 lanes, up to 10.3125 GHz SerDes
• Supports PCIe 2.0, QSGMII, and XFI
• Two PCIe connectors supporting:
• Mini-PCIe card
• Standard PCIe card
• X1 RJ45 connector for Ethernet 10G support
• X4 RJ45 connector for QSGMII support
DDR • Supports 2 GB DDR4 SDRAM discrete devices
• 32-bit DDR4 bus
• Supports data rates of up to 1600 MT/s
USB 3.0 • Two super-speed USB 3.0 type A ports
• Supports x1 USB 2.0 connection on the mini-PCIe
connector
IFC • One 128 MB NOR flash 16-bit data bus (1.8 V)
• One 512 MB SLC NAND flash with ECC support (1.8
V)
• CPLD connection: 8-bit registers in CPLD to configure
some mux/demux selections
eSDHC • SDHC port connects directly to a full SD/MMC slot.
DSPI • 16 MB high-speed flash memory (up to 108 MHz in
the Single-Transfer Rate mode)
DUART • One RJ45 to DB9 connector with two UART ports
• UART1 is routed to CMSISDAP circuit and supports
USB port to access serial port as console
Package • 21 x 21 mm, 621 flip-chip, plastic-ball, grid array (FC-
PBGA)
System logic CPLD • Manages system power and reset sequencing
• Latches IFC address/data multiplexed signals
• Controls signal muxing/demuxing
Clock SYSCLK • Supports single-ended SYSCLK, DDRCLK clock
input, with default value as 100 MHz
• Supports single-source differential DIFF_SYCLK_/
DIFF_SYSCLK_N, 100 MHz
SerDes • Provides clocks to all SerDes blocks and slots
• 100 MHz or 156.25 MHz for PLL1
• 100 MHz for PLL2
RTC • Supports 32.768 kHz for RTC
Table continues on the next page...
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 11

Table 1-3. LS1043ARDB features (continued)
LS1043ARDB feature Specification Description
Power One dedicated programmable
regulator supplying the LS1043A
core and DDR power domains.
Power supply details for the LS1043ARDB are given below:
• 1.0 V for core VDD, USB_SVDD, and USB_SDVDD
• 1.2 V for GVDD
• 1.8 V for LS1043A PROG_SFP and PROG_MTR
(POVDD)
• 3.3 V / 1.8 V for CPLD
• 1.35 V for XVDD
• 1.0 V for S1VDD
• 1.8 V for LS1043A general I/O
• 3.3 V for UART/I2C
• 3.3 V for USB HVDD
• 0.6 V for DDR4 VTT/VREF
• 3.3 V / 1.8 V for eSDHC
• 1.0 V for security monitor (TA_BB_VDD)
NOTE: For core VDD, USB_SVDD, USB_SDVDD, and
TA_BB_VDD, the LS1043A processor supports 1.0
V as well as 0.9 V; however, the LS1043ARDB
only supports 1.0 V.
1.4 Block diagrams
The figure below shows the LS1043A processor block diagram.
Block diagrams
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
12 NXP Semiconductors

Watchpoint
Cross
Trigger
Trust Zone
Power Management
IFC, QuadSPI, SPI
2x DUART
32-bit
DDR3L/4
Memory Controller
Real Time Debug
Perf
Monitor
4x I2C, 4x GPIO
Secure Boot
8x FlexTimer
Queue
Manager
Buffer
Manager
Parse, classify,
distribute
1/2.5/10G
PCI Express 2.0
SATA 3.0
Trace
4-Lane, 10 GHz SerDes
ARM Cortex-
A53 64b Cores
1G
SMMUs
3x USB3.0 w/PHY
CCI-400™ Coherency Fabric
32 KB
D-Cache
32 KB
I-Cache
ARM Cortex-
A53 64b Cores
32 KB
D-Cache
32 KB
I-Cache
ARM Cortex-
A53 64b Cores
32 KB
D-Cache
32 KB
I-Cache
ARM Cortex-
A53 64b Cores
1G
1G
1G 1/2.5G
1G
QUICC Engine
PCI Express 2.0
PCI Express 2.0
Frame Manager
SD/SDIO/eMMC
DMA
6x LPUART
Core Complex
Accelerators and Memory Control
Basic Peripherals, Interconnect and Debug
Networking Elements
Security
Engine
(SEC)
DPAA Hardware
Arm®Cortex®-A53
64-bit Core
32 KB
D-Cache
32 KB
I-Cache
1 MB L2 - Cache
Figure 1-1. LS1043A processor block diagram

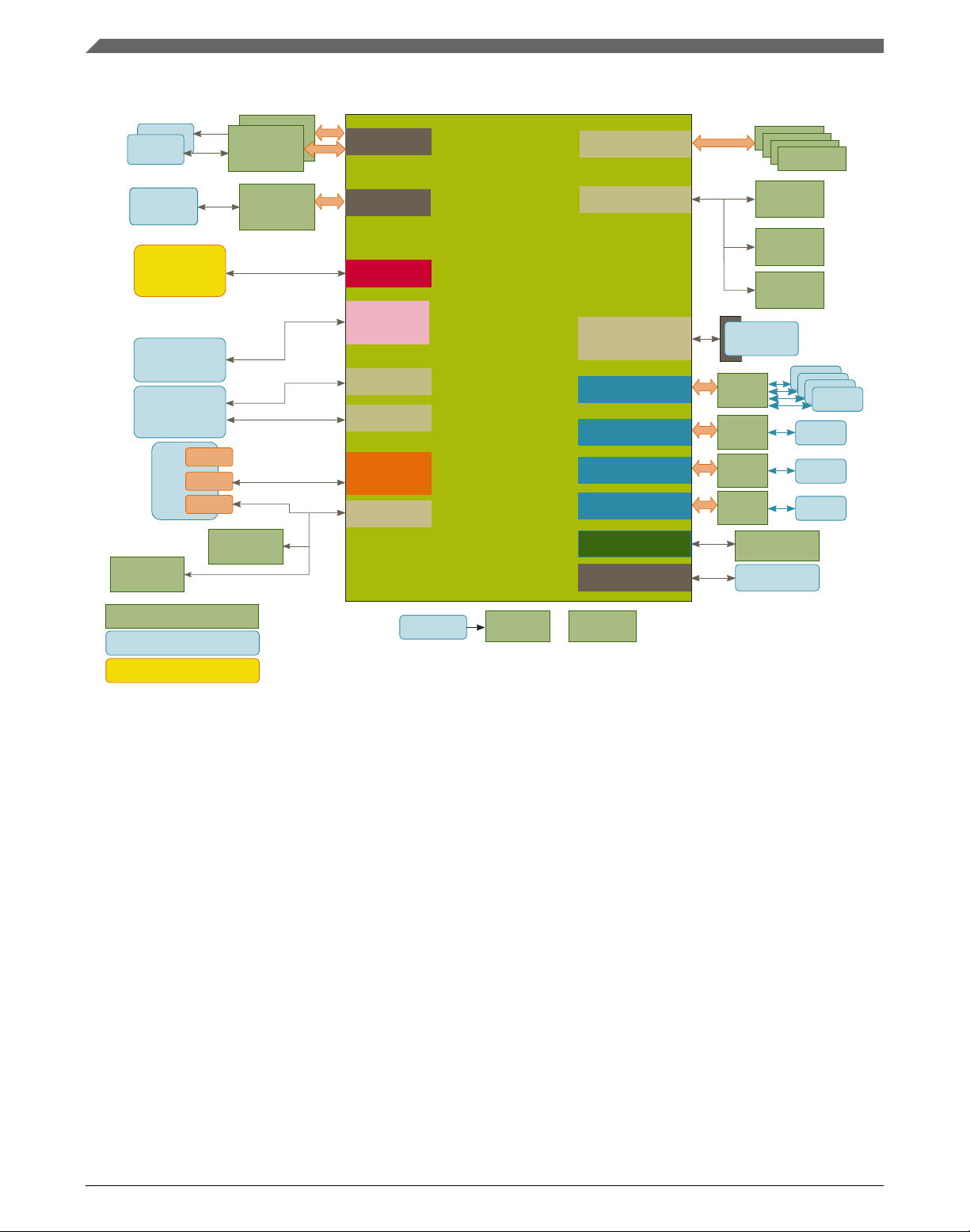

The figure below shows the LS1043ARDB block diagram.
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 13

DUART
QE
For PMC plug-in card
T1/E1 QE
connector
SerDes
lane
USB 3.0
SerDes
lane
PCle X1
USB 3.0
Type A X2
Mini PCle
USB
PCle x1
Board
EEPROM
RTC
Board components
Connectors
Expansion modules
+12 V PSU
I2C
DPAA Ethernet
DPAA Ethernet
DPAA Ethernet
DPAA Ethernet
SPI
COP
Clocks
RJ45
JTAG
header
SPl flash
16 MB
10G
PHY
RGMII
PHY
RGMII
PHY
Quad
PHY
Full SD
slot
CPLD
512 MB
NAND
128 MB
NOR
DDR4
2 GB
x32
DDR
IFC
LS1043A
SDHC
USB 3.0
RJ45
I2C
RJ45
RJ45
RJ45
XFI
USB 2.0
RS-232 Kinetis
K22 MCU UART1
RS-232
serial
Figure 1-2. LS1043ARDB block diagram

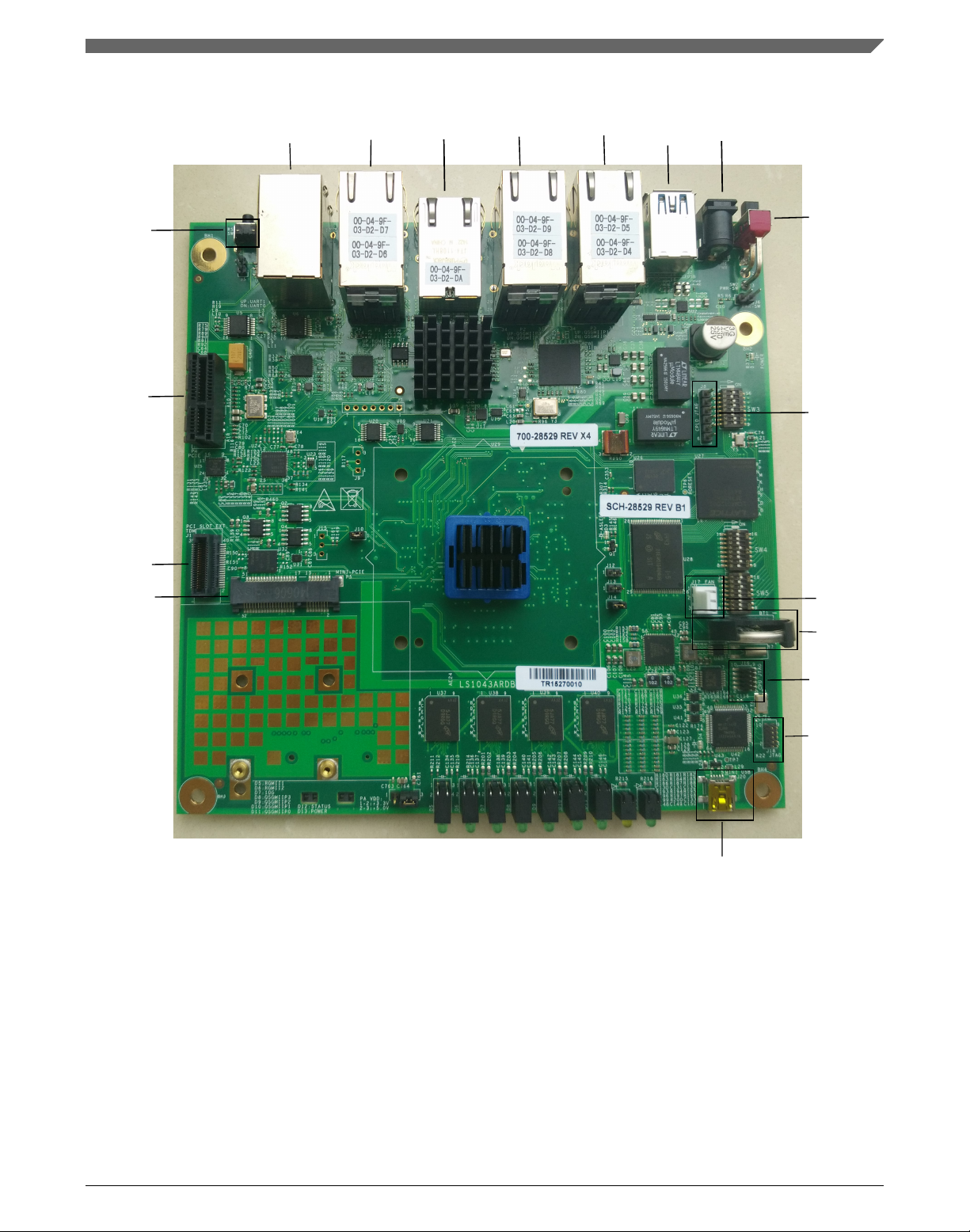

1.5 Board views
The figure below shows the LS1043ARDB top view.
Board views
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
14 NXP Semiconductors

J4
Up: UART2
Down: UART1
SW1
Reset
switch
P1
Up: RGMII2
Down: RGMII1
J3
10G port
P3
Up: QSGMII.P1
Down: QSGMII.P0
J2
Up: USB2
Down: USB1
J1
+12 V power jack
SW2
Power switch
P2
Up: QSGMII.P3
Down: QSGMII.P2
J8
CPLD JTAG
P4
PCIe slot
P5
Mini-PCIe slot
J11
TDM slot
J17
Chassis fan
J16
CPU JTAG
J18
K22 JTAG
J20
Mini-USB to UART1
BT1
RTC battery
Figure 1-3. LS1043ARDB top view
The figure below shows the LS1043ARDB bottom view.
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 15

Figure 1-4. LS1043ARDB bottom view
Board views
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
16 NXP Semiconductors

Chapter 2
Interfaces
The LS1043ARDB architecture is primarily determined by the LS1043A processor with
the need to evaluate LS1043A processor features and to test its ability to deliver an easily
usable off-the-shelf software development platform. Following are the main interfaces
that form the LS1043ARDB architecture:
•DDR interface
•IFC interface
•Serial interfaces
•Ethernet interface
•SerDes interface
•USB interface
•I2C interface
2.1 DDR interface
The LS1043ARDB supports high-speed DRAM with 2 GB double data rate 4 (DDR4)
SDRAM discrete devices (32-bit bus). The memory interface includes all necessary
termination and I/O powers. It is routed such that maximum performance of the memory
bus can be achieved. The figure below shows the DDR memory architecture.
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 17

LS1043A
DDR4
(MT40A512M8)
DDR4_A[0:14], BA[0:2]
MRAS_B, MCAS_B, MWE_B
MCK, MCK_B, MCKE[0:1], MODT[0:1]
MCS[0:1]_B
MDQ[0:31]
MDQS[0:3], MDQS[0:3]_B
MDM[0:3]
Figure 2-1. DDR memory architecture
For power supply details for the DDR interface, see DDR supply.
2.2 IFC interface
The LS1043ARDB integrated flash controller (IFC) has the following features:
• Supports 1.8 V I/O voltage
• Implements little endian support
• Supports 28-bit addressing and 16-bit data bus
• Supports GPCM, NOR, and NAND FCM
• Supports the following IFC clients on the LS1043ARDB:
• NAND flash (async/sync - ONFI 1.0 compatible)
• NOR flash 16-bit

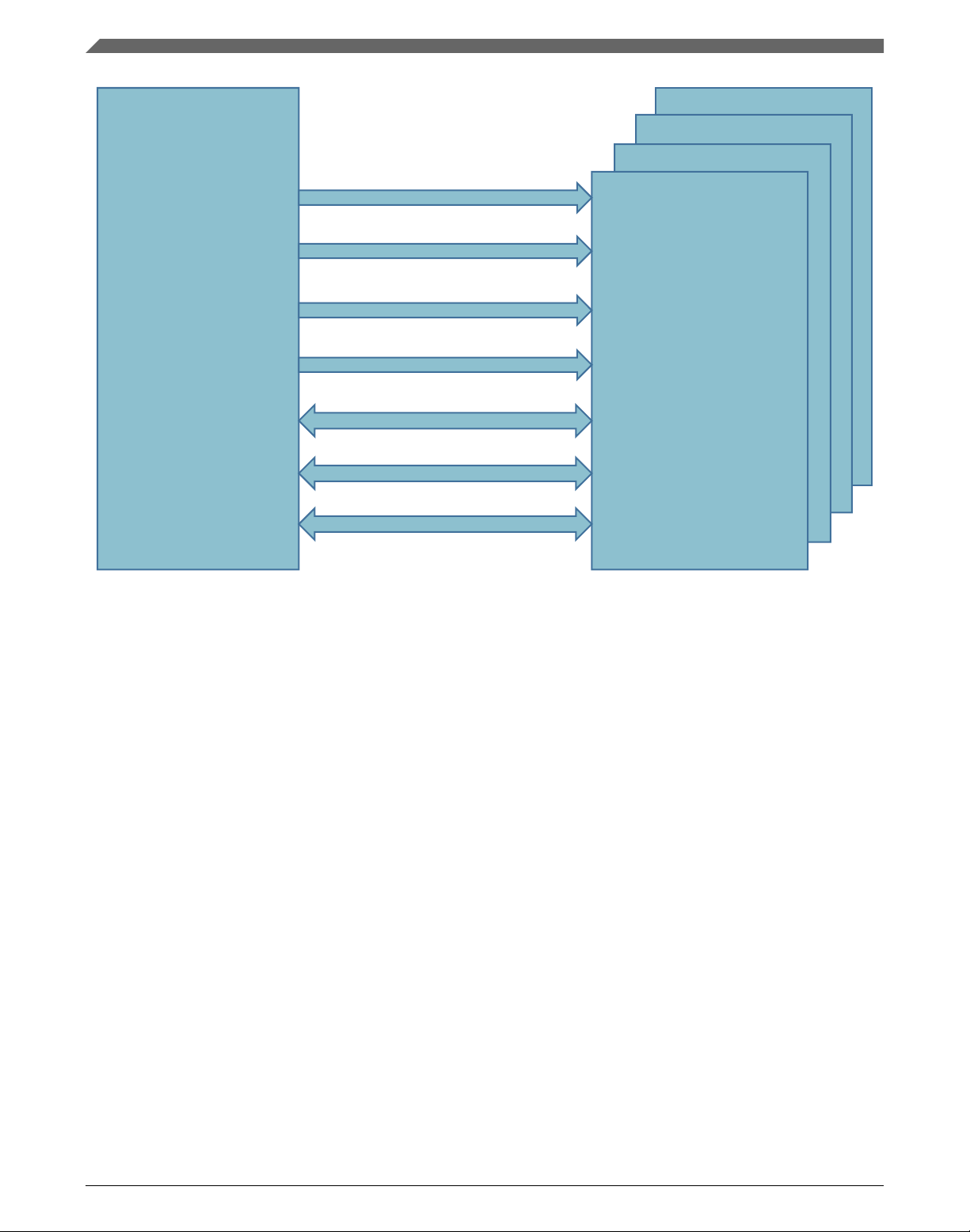

The figure below shows the IFC block diagram.
IFC interface
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
18 NXP Semiconductors

LS1043A
NOR
(MT28EW01G)
IFC_AD[0:15]
NAND
(MT29F4G08ABB
DAH4)
IFC_ADDR[16:27]
IFC_AD[0:7]
IFC
CPLD
NOR_CS_B
NOR_RB_B
NAND_CS_B
NAND_RB_B
IFC_CLE
IFC_AD[0:15]
IFC_CS[0:3]_B
IFC_WE_B, IFC_OE_B, IFC_AVD
IFC_CLE, IFC_TE, IFC_CLK0
IFC_RB[0:1]_B
Figure 2-2. IFC block diagram
LS1043ARDB uses a combination of the IFC chip select signals and DIP switches to
allow dynamic reconfiguration of the IFC boot device (which addresses IFC_CS_B[0]
only).
The table below summarizes the IFC chip select routing.
Table 2-1. IFC chip select device mapping
SW4[1:8]+SW5[1]= Chip select Memory Data width
000100101 CS0 NOR flash 16 bits
CS1 NAND flash 8 bits
CS2 CPLD registers 8 bits
100000110 CS0 NAND flash 8 bits
CS1 NOR flash 16 bits
CS2 CPLD registers 8 bits
Chapter 2 Interfaces
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
NXP Semiconductors 19

2.2.1 NOR flash memory
The LS1043ARDB has a Micron NOR flash memory (MT28EW01G) with 128 MB size
and 16-bit data bus. The NOR flash memory is powered from a 3.3 V power supply but
the signals are driven with the 1.8 V I/O level. The NOR flash memory is controlled by
the NOR IFC machine.
Flash controls are explained below:
• IFC OE_B controls flash OE, whereas IFC WE0_B controls the flash WE_B signal.
• Flash RY/BY_B output signal shows the ready/busy status of the flash. This signal is
connected to the CPLD.
• IFC_NOR_CS_B driven by CPLD selects either IFC_CS0_B or IFC_CS1_B to the
NOR flash memory based on CFG_RCW_SRC[0:8].
CPLD-generated signals are used to re-arrange internal addresses according to user
configuration options CFG_RCW_SRC[0:8]. For details, see CPLD Programming.
2.2.2 NAND flash memory
The LS1043ARDB has an ONFI 1.0 compatible Micron NAND flash memory
(MT29F4G08ABBDAH4-ITX) with 512 MB size and 8-bit data bus. The NAND flash
memory is powered from a 1.8 V power supply. It has signals going to and coming from
the LS1043A processor directly. The NAND flash memory is controlled by the LS1043A
IFC FCM machine.
Flash controls are explained below:
• Flash R/B_B output indicates the status of the NAND operation. This open drain
output connects to complex programmable logic device (CPLD).
• IFC_NAND_CS_B from CPLD drives the NAND flash according to
CFG_RCW_SRC[0:8]. For details, see CPLD Programming.
2.3 Serial interfaces
The LS1043ARDB has several serial interfaces, such as RS-232, DSPI, eSDHC/eMMC,
and I2C. This section describes the following main serial interfaces used in the
LS1043ARDB:
•UART interface
•eSDHC interface
•DSPI interface
Serial interfaces
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 4, 11/2017
20 NXP Semiconductors
