NXP Semiconductors S32R294 User manual

S32R294 EVB User Guide
Revision 2.0 (SCH-32157_B)
by: NXP Semiconductor
1 Introduction
NXP S32R294 Evaluation Board
(hereafter referred to as the EVB). The EVB is intended to provide a mechanism for easy
customer evaluation of the S32R294 microprocessor, and to facilitate hardware and software
development.
For the latest product information, please speak to your NXP representative.
The EVB is intended for bench / laboratory use and has been designed using normal
temperature specified components (+70°C).
1.1 List of Acronyms
Table 1 provides a list and description of acronyms used throughout this document.
Table 1. List of Acronyms
Acronym
Description
ADC
Analog-to-Digital converter
RESET_B
External signal reset

S32R294 EVB User Guide
3
Acronym
Description
EVB
Evaluation board
GND
Ground
HV
High voltage (1.8V and/or 3.3V)
LED
Light emitting diode
LV
Low voltage (0.82V)
MCU
Microcontroller
MPU
Microprocessor
OSC
Oscillator
POR_B
Power-on reset
PWR
Power
RX
Receive
SIPI
Serial Interprocessor Interface
TBD
To be defined
TX
Transmit
VSS
Ground
LCD
Liquid Crystal Display
PMIC
Power Management IC
FXOSC
Fast Crystal Oscillator
2 EVB Features
The EVB provides the following features:
•MCU (soldered or through a socket)
•Single 12V external power supply input with one NXP FS8510 PMIC providing all of the
necessary EVB and MCU voltages; Power supplied to the EVB via a 2.1mm barrel style
power jack; 12V operation allows in-car use if desired
•Master power switch and regulator status LEDs
•Flexible MCU clocking options allow provision of an external clock via adaptor board
(MIPI-CSI0 connector) or 40MHz EVB clock oscillator circuit. Solder pads allow
selection between these external clocks
•Boot mode selection via switches on board
•Standard 14-pin JTAG debug connector and 34-pin Nexus Aurora connector
•10-pin Serial Interprocessor Interface (SIPI) connector
•Gb Ethernet Physical interface IC, with RJ45 connector
•Two MIPI-CSI2 connectors intended for use with TEF810X BEST3 RF front end board
(via a separate adaptor board X-S32R-TEF810X_ADPT)
•All MCU signals readily accessible at a port-

S32R294 EVB User Guide
4
•FlexRAY interface
•3 CAN-FD interfaces:
o1x up to 8Mbps communication speed (CAN2)
o2x up to 5Mbps communication speed (CAN0, CAN1)
•UART to Micro USB interface
•2 user switches and 4 user LEDs, freely connectable
•256Mb (64MB) Serial NOR Flash memory
•64Kb EEPROM connected to MCU via I2C
•4*10-character LCD with DSPI interface (DSPI4)
•Liberal scattering of GND test points (surface mount loops) placed throughout the EVB
•User reset switch with reset status LED
NOTE
To alleviate confusion between jumpers and headers, all EVB 2-pin
jumpers are implemented as 2mm pitch whereas 3/4/6-pin jumper
andheaders are 0.1inch (2.54mm). This prevents inadvertently fitting
a jumper to a header.
CAUTION
Before the EVB is used or power is applied, please fully read the
following sections on how to correctly configure the board. Failure to
correctly configure the board may cause irreparable component,
MCU or EVB damage.

S32R294 EVB User Guide
5
3 Configuration
This section details the configuration of EVB
The EVB has been designed with ease of use in mind and has been segmented into functional
blocks as shown in Figure 1. Detailed silkscreen legend has been used throughout the board
to identify all switches, jumpers and user connectors.

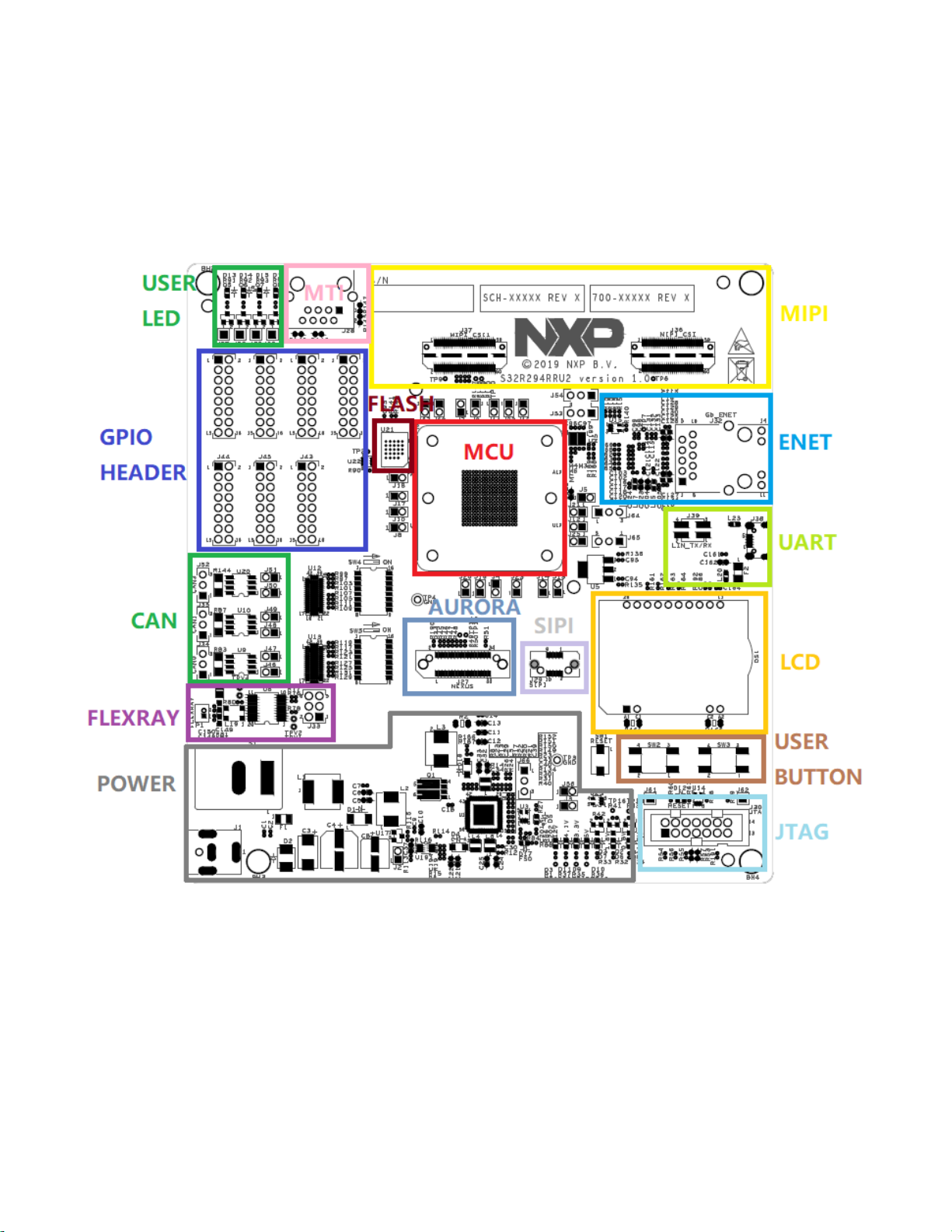

Figure 1. EVB - functional blocks
3.1 MCU Power
The EVB requires an external power supply voltage of 12V DC, minimum 1.5A. This allows the
EVB to be easily used in a vehicle if required. The single input voltage is regulated on-board
using the NXP FS8510 PMIC to provide the necessary EVB and MCU operating voltages of
0.82V, 1.8V, 1.2V, 3.3V and 5V, and one backup 3.3V linear regulator for ENET IO and ENET
PHY.

S32R294 EVB User Guide
6
3.1.1 Power Supply Connectors
2.1mm Barrel Connector P26:
Figure 2. 2.1mm Power Connector
3.1.2 Supply Routing and Jumpers
The figure below shows how the MCU power domains are connected.

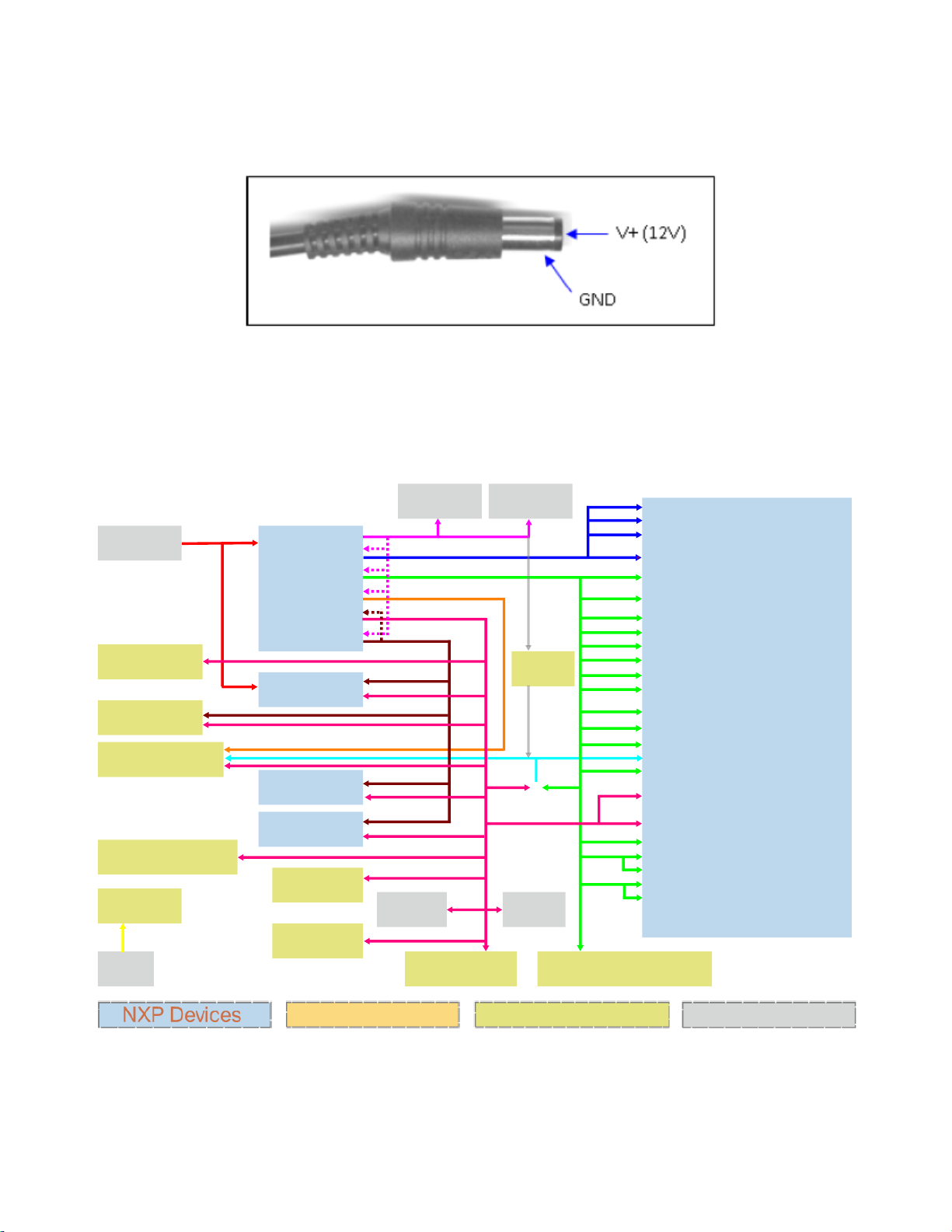

Figure 3. EVB power distribution
The connection of any power domain has to be enabled by a dedicated jumper as described in
Table 2.


















































































































 






S32R294 EVB User Guide
7
Table 2. MCU power selection jumpers
Jumper
Description
J4
Connects VDD Core supplies to 0.82V
J5
Connects VDD LV PLL supplies to 0.82V
J7
Connects VDD LV MIPI supplies to 0.82V
J8
Connects VDD HV PLL AUR supplies to 1.8V
J9
Connects VDD HV MIPI supplies to 1.8V
J10
Connects VDD HV LFASTPLL supplies to 1.8V
J11
Connects VDD HV FIRC supplies to 1.8V
J12
Connects VDD HV EFUSE supplies to 1.8V
J13
Connects VDD HV TMU supplies to 1.8V
J14
Connects VDD HV VREF supplies to 1.8V
J15
Connects VDD HV PLL supplies to 1.8V
J16
Connects VDD HV IO AUR supplies to 1.8V
J17
Connects VDD HV IO QSPI supplies to 1.8V
J18
Connects VDD HV IO MTI supplies to 1.8V
J20
Connects VDD HV IO LFAST supplies to 1.8V
J21
Connects VDD HV IO supplies to 3.3V
J22
Connects VDD HV FXOSC supplies to 1.8V
J23
Connects VREFH ADC supplies to 1.8V
J25
Connects VDD HV ADC supplies to 1.8V
J64
Connects VDD HV IO ENET supplies to 1.8V or 3.3V
3.1.3 FS8510 PMIC Debug Mode
As part of the safety features of the FS8510 PMIC there is an internal watchdog timer which
must be refreshed within 256ms after supply power on. If this watchdog is not serviced then
the FS8510 will assert the MCU RESET_B signal several times before then attempting to
power cycle the MCU.
It is therfore recommended to put the FS8510 device into debug mode after power on by
disabling (default) jumper J2. In debug mode, no watchdog refresh is required which allows
application development without the need for watchdog servicing via the MCU.
3.1.4 Power Switch, Status LEDs and Fuse
The main power switch (switch SW1) can be used to isolate the power supply input from the
EVB voltage regulators if required.
•Push S1 indicator -will turn the EVB on
•will turn the EVB off

S32R294 EVB User Guide
8
When power is applied to the EVB, six blue power LEDs adjacent to the FS8510 PMIC show
the presence of the supply voltages as follows:
•LED D6 Indicates that the 0.82V is enabled and working correctly
•LED D7 Indicates that the 1.8V is enabled and working correctly
•LED D8 Indicates that the 1.2V is enabled and working correctly
•LED D9 Indicates that the 3.3V is enabled and working correctly
•LED D10 Indicates that the 5.0V is enabled and working correctly
•LED D11 Indicates that the 4.1V is enabled and working correctly
If no LED is illuminated when power is applied to the EVB and the FS8510 is correctly
enabled, it is possible that either power switch S1  or that the fuse F1
has blown. The fuse will blow if power is applied to the EVB in reverse-bias, where a protection
diode ensures that the main fuse blows rather than causing damage to the EVB circuitry. If the
fuse has blown, check the bias of your power supply connection then replace fuse F1 with a
SMT 5A fast blow fuse.
dically then it is likely that the FS8510 has not
entered debug mode. Please power off the board and wait at least 1 second before powering
back on to recover from this.
3.2 Reset Circuit
S32R294 POR_B reset is connected to FS8510 PGOOD signal as well as a reset switch SW1
via jumper J3. An orange LED D5 is illuminated after 0.82V, 1.8V, 3.3V working correctly, and
the PGOOD signal is forced high simultaneously by the FS8510 PMIC.
S32R294 RESET_B reset is connected to FS8510 RST signal. Bi-direction connection is
chosen by connecting J56 pin 1->2, and single-direction only from FS8510 RST to S32R294
RESET_B is chosen by connecting J56 2->3 (default). A red LED D12 is used to indicated
RESET_B reset situations.
The EVB reset circuit provides the following functionality:
The reset switch SW1 can be used to reset the MCU and PMIC. FS8510 RST will be released
after PGOOD going high and may assert if errors happen in FS8510 according to the
configured settings. Normally, RESET_B is controlled by S32R294 and is kept high after MCU
leaving the reset state. POR_B is also connected to the QSPI Flash IC (U21) reset pin.
RESET_B is also connected to reset signal of several peripherals and selection signal of the
analog switch IC MAX4886 via a Schmitt trigger buffer.
Table 3. Reset circuit jumper settings
Jumper
Description
J3
Connect reset switch circuit and FS8510 PGOOD pin to POR_B pin

S32R294 EVB User Guide
9
Jumper
Description
J56 1->2
Enable bi-direction connection between FS8510 RST pin and
RESET_B pin
J56 2->3
Enable single direction connection between FS8510 RST pin and
RESET_B pin
3.3 MCU External Clock Circuit
In addition to the internal 48 MHz oscillator, the MCU can be clocked by different external
sources. The EVB system supports two possible MCU clock sources:
1. 40MHz crystal Y1 (The MCU only has a 40MHz input)
2. External differential or single ended clock input to the EVB via MIPI-CSI0 connector
J36, driving MCU EXTAL and XTAL with negative and positive clock signals
respectively
The clock circuitry is shown in Figure 4. Each source is selectable via the 0-ohm links as
shown, with crystal Y1 being the default factory option.
Figure 4. 40MHz crystal circuit
The main use-case for the EVB when using an external clock would be having the TEF810X
RF front end BEST3 board via the S32R-TEF810-ADPT adaptor board connected to J36. In
this configuration a single ended clock can be routed to the MCU by placing a zero-ohm link
(or bridging the solder pads) of M5, M6 and M7, and remove M3 and M4. This gives the
desired effective configuration shown in Figure 5 below.

S32R294 EVB User Guide
10
Figure 5. Effective single ended configuration
3.4 JTAG
The EVB is fitted with 14-pin JTAG debug connector. The following diagram shows the 14-pin

Figure 6. JTAG connector pinout

S32R294 EVB User Guide
11
3.5 Nexus Aurora
Table 4 shows the pinout of the 34-pin Samtec connector for the S32R294 Aurora interface.
Table 4. Aurora Trace connector pinout
Pin No
Function
Pin No
Function
1
TX0+
2
VREF
3
TX0-
4
TCK/TCKC/DRCLK
5
VSS
6
TMS/TMSC/TxDataP
7
TX1+
8
TDI/TxDataN
9
TX1-
10
TDO/RxDataP
11
VSS
12
JCOMP/RxDataN
13
TX2+
14
EVTI1
15
TX2-
16
EVTI0
17
VSS
18
EVTO0
19
TX3+
20
VREG_POR_B
21
TX3-
22
RESET_B
23
VSS
24
VSS
25
TX4+1
26
CLK+
27
TX4+1
28
CLK-
29
VSS
30
VSS
31
TX5+1
32
EVTO1/RDY
33
TX5+1
34
N/C
GND
VSS
GND
VSS
1. Lane not used on the S32R294 device.
3.6 Serial Interprocessor Interface (SIPI)
A dedicated SIPI interface connector is provided on the EVB.
A 10pin Samtec connector (J17: ERF8-005-05.0-LDV-L-TR) is used for the SIPI interface. The
pin-out of the connector is shown in Figure 7.
Figure 7. SIPI connector pinout

S32R294 EVB User Guide
12
3.7 Camera Serial Interface (MIPI-CSI2)
Two dedicated MIPI-CSI2 interfaces are provided on the EVB, and are designed to provide
compatibility with the TEF810X BEST3 Radar front end EVK.
Two 60 pin Samtec connectors (QTH-030-01-L-D-A-K-TR) are used for MIPI-CSI2 interfaces.
The pinout is shown in Figure 8.
To use the TEF810X BEST3 Radar front end EVK an intermediate adaptor board (S32R-
TEF810-ADPT) is required. Contact your local NXP representative for details on how to order
this board.
For single MIPI-CSI2 front end usage connector J37 must be used since the MIPI-CSI1
instance on the S32R294 device contains the PLL. See the S32R294 device RM for more
details.
Figure 8. MIPI-CSI2 connector pinout
3.8 Gigabit Ethernet
The EVB provides support for Gb ethernet, utilising the RGMII interface present on the
S32R294 device. The EVB is designed with a Micrel KSZ9031RNXUA Ethernet physical
interface (U7), and associated RJ45 connector (J32- Bel Fuse V890-1AX1-A1). This is the

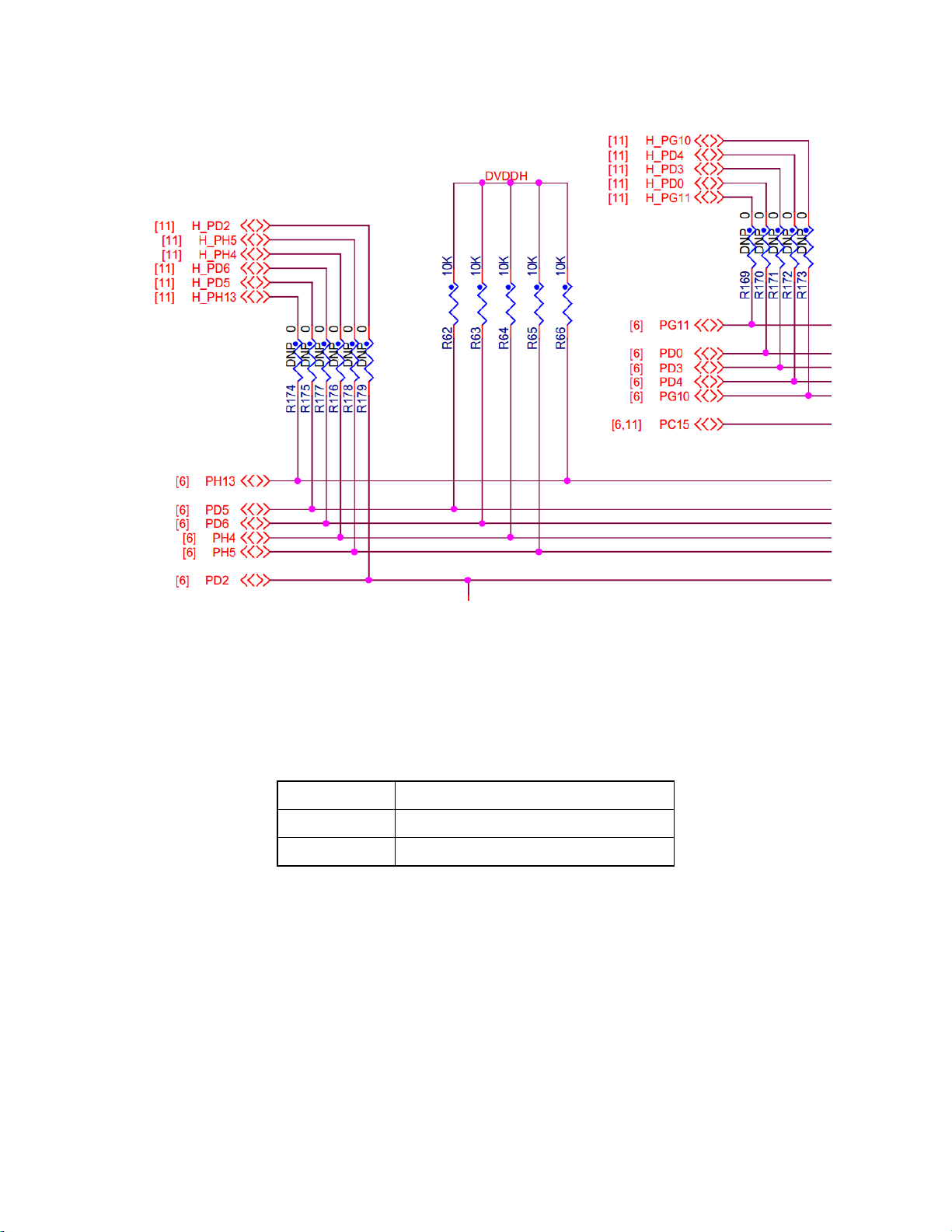

default configuration of the RGMII signals from the S32R294 device. If for any reason the
alternate functions multiplexed on the RGMII pads are required then these signals can be
routed to headers by adding a 0-ohm link to the pads provided. These are not soldered by
default to reduce the signal trace length and parasitics, Gb ethernet operation cannot be
gauranteed if these links are in place since it adds significant length to the signal path.

S32R294 EVB User Guide
13
Figure 9. RGMII Signal Connections to headers
The S32R294 device supports both 3.3V and 1.8V supply and I/O levels for the ethernet
interface, therefore the EVB includes support for both of these options. This can be selected by
changing the connection of J64, as shown in the table below.
Table 5. Ethernet voltage selection
Jumper
Ethernet Supply Level
J64 1-2
1.8V
J64 2-3
3.3V (Default)
3.9 UART-USB

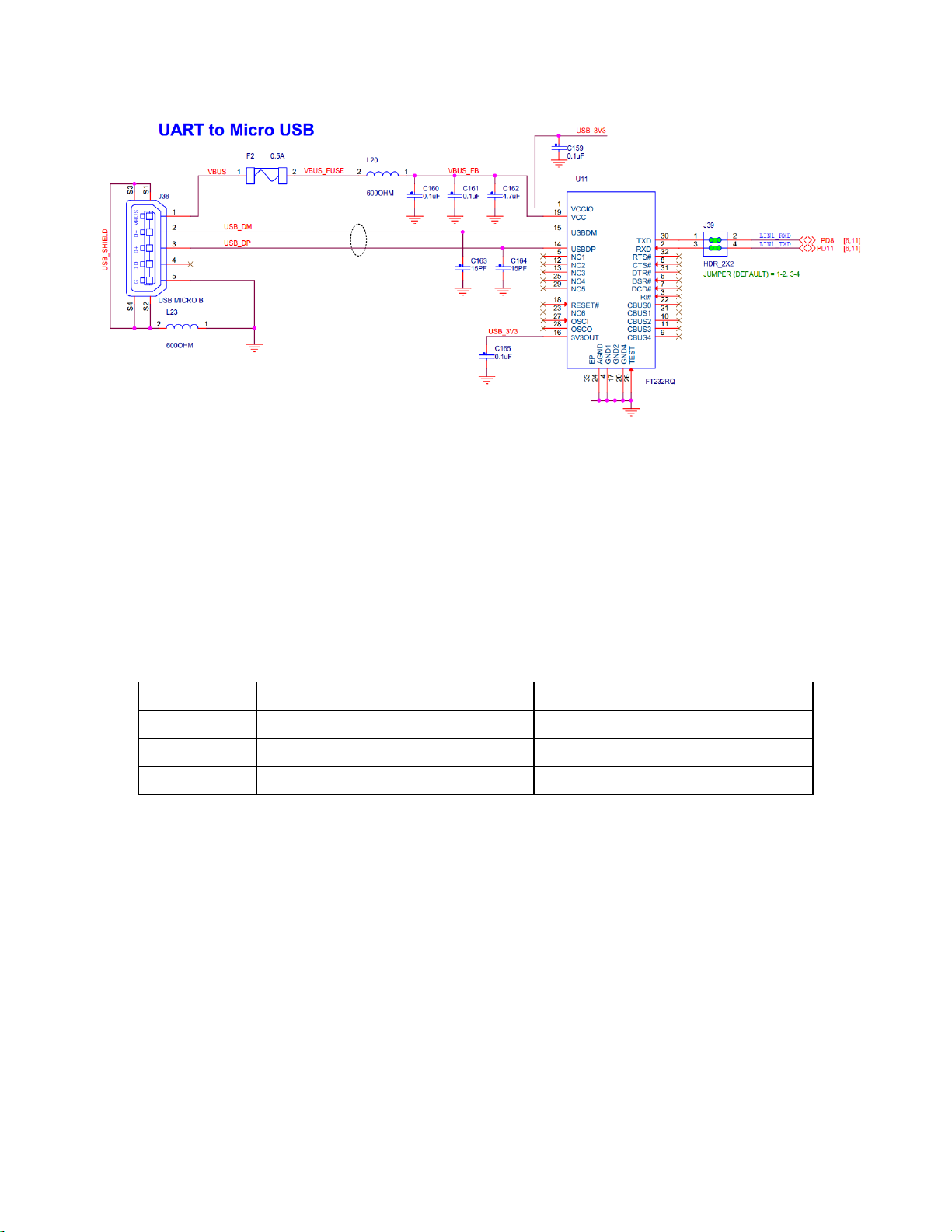

The EVB supports one UART-USB interface with a USB to serial UART Converter IC
FT232RQ (U11).
Since the LIN module pads have multiplexable functions, LIN RXD signal and LIN TXD signal
are routed to both IC FT232RQ U11 via J39, and to the headers on the EVB.

S32R294 EVB User Guide
14
Figure 10. UART to USB interface
3.10 FlexRAY
The EVB supports one FlexRay interface with an NXP TJA1080TS/N FlexRay transceiver
(U8). For flexibility, the FlexRAY transceiver is connected to a FlexRAY connector P1.
By default the FlexRAY interface is not enabled. To enable the FlexRAY interface the jumpers
detailed in Table 6 need to be placed.
Table 6. FlexRAY control jumpers
Jumper
Label
Description
J33 1-2
FLEXRAY_TXD
TX to MCU
J33 3-4
FLEXRAY_TXD_EN
TXEN to MCU
J33 5-6
FLEXRAY_RXD
RX to MCU
3.11 CAN FD
The EVB supports 3x CAN-FD interfaces, CAN0 and CAN1 support up to 5Mbps
communication speed utilizing NXP TJA1051T /3 CAN FD (Flexible Data) compliant physical
interfaces, CAN2 can support up to 8Mbps communication speed utilizing MICROCHIP
MCP2542FD CAN FD (Flexible Data) compliant physical interfaces.
Since the CAN module pads have multiplexable functions, CAN0/1/2 signals are routed to both
on-board CAN-FD phy U9/U10/U20 via J46-J51, and to the headers on board.

S32R294 EVB User Guide
15
Figure 11. CAN FD Physical Interfaces
3.12 FLASH
An external 256Mbits Serial NOR Flash memory ( MX25U25645G, U21) is connected to
S32R294 via the QSPI interface. Since there is no internal Flash inside of the MCU, code can
be stored in the external flash, then loaded into SRAM in MCU after power-on over QSPI
interface. This is the default configuration of the QSPI signals from the S32R294 device. If for
any reason the alternate functions multiplexed on the QSPI pads are required then these
signals can be routed to headers by adding a 0-ohm link to the pads provided. These are not

S32R294 EVB User Guide
16
soldered by default to reduce the signal trace length and parasitics, QSPI operation cannot be
gauranteed if these links are in place since it adds significant length to the signal path.
Figure 12. QSPI Flash circuit
3.13 EEPROM
An external 64Kb EEPROM (AT24C64D, U6) is connected to S32R294 via I2C interface. The
I2C read address is 0xA0 and write address is 0xA1. By default the I2C interface is not
enabled, which can be enabled by jumpers J67 & J68.
Figure 13. EEPROM circuit

S32R294 EVB User Guide
17
3.14 BOOT Configuration
The S32R294 device can support booting from different sources by applying a logic 1 or 0 to
the BOOTMODE pins of the device, which in turn latches the input level on the RCON GPIO
pins of the device at reset release. The EVB supports this by providing 2 switch banks (SW4
and SW5) that can be configured to the application need, and using high speed switches these
are held on the device boot pins until reset is released.
The mapping of these switches is shown in the table below. For information on the supported
boot configurations of the S32R294 device please consult the device reference manual.
Table 7. Boot configuration switches
Switch Bank
Switch
RRU2 Boot Pad
Usual GPIO function
after RESET_B
released
SW4
1
BOOTMODE0
CTEP4
2
BOOTMODE1
None
3
RCON0
FS85_FS0B
4
RCON1
DSPI1_SIN
5
RCON2
None
6
RCON3
CAN0_RXD
7
RCON4
PB4 (only if J6 = 1-2)
8
RCON5
CTEP3
SW5
1
RCON6
None
2
RCON7
CTE_RFS
3
RCON8
CTE_RCS
4
RCON9
None
5
RCON10
CTEP6
6
RCON11
CTEP7
7
RCON12
CTEP5
8
RCON13
None

S32R294 EVB User Guide
18
3.15 Test Points
EVB test points are listed and detailed in Table 8.
Table 8. Test points
Signal
TP name
Shape
Description
P12V
TP1
Surface Pad
12V supply
DNU/ECS
TP2
Surface Pad
Do Not Use/ For
auto part, ECS pin
from Flash.
GND
TP3
Test Loop
Ground
GND
TP4
Test Loop
Ground
P4_1V
TP5
Surface Pad
4.1V FS8510 VPRE
output
CTEP5
TP6
Surface Pad
MIPI-CSI2_0 test
signal
ENET_REF_CLK
TP7
Surface Pad
125MHz ENET
Reference clock
GND
TP8
Test Loop
Ground
CTEP6
TP9
Surface Pad
MIPI-CSI2_1 test
signal
TP10
TP10
Surface Pad
MIPI-CSI2_0
external clock
output P
TP11
TP11
Surface Pad
MIPI-CSI2_0
external clock
output N
GND
TP12
Test Loop
Ground
P5V
TP13
Surface Pad
5V FS8510 Boost
output
AUR_NEXUS_EVTI
TP14
Surface Pad
Nexus Aurora test
signal
AUR_NEXUS_EVT0
TP15
Surface Pad
Nexus Aurora test
signal
P0_82V
TP16
Surface Pad
0.82V FS8510
Buck1 output
P3_3V
TP17
Surface Pad
3.3V FS8510 LDO2
output
P1_2V
TP18
Surface Pad
1.2V FS8510 LDO1
output
FRD_INH2
TPV1
Through hole
Pad
FlexRAY PHY test
signal
FRD_INH1
TPV2
Through hole
Pad
FlexRAY PHY test
signal
FRD_ERRN
TPV3
Through hole
Pad
FlexRAY PHY test
signal
FRD_RXEN
TPV4
Through hole
Pad
FlexRAY PHY test
signal

S32R294 EVB User Guide
19
4 Default Jumper Summary Table
On delivery the EVB comes with a default jumper configuration. Table 9 lists and describes
briefly the jumpers and indicates which jumpers are on/off on delivery of the board.
Table 9. Default Jumper Table
Jumper
Default Pos
PCB Legend
Description
J2
Off
-
FS8510 Debug mode select
J3
On
-
POR_B to PGOOD and switch
J4
On
-
Connect VDD core power
J5
On
-
Connect VDD_LV_PLL power
J6
2-3
Connect TDO to PB4
J7
On
-
Connect VDD_LV_MIPI power
J8
On
-
Connect VDD_HV_PLL_AUR power
J9
On
-
Connect VDD_HV_MIPI power
J10
On
-
Connect VDD_HV_LFASTPLL power
J11
On
-
Connect VDD_HV_FIRC power
J12
On
-
Connect VDD_HV_EFUSE power
J13
On
-
Connect VDD_HV_TMU power
J14
On
-
Connect VDD_HV_VREF power
J15
On
-
Connect VDD_HV_PLL power
J16
On
-
Connect VDD_HV_IO_AUR power
J17
On
-
Connect VDD_HV_IO_QSPI power
J18
On
-
Connect VDD_HV_IO_MTI power
J20
On
-
Connect VDD_HV_IO_LFAST power
J21
On
-
Connect VDD_HV_IO power
J22
On
-
Connect VDD_HV_FXOSC power
J23
On
-
Connect VREFH_ADC power
J25
On
-
Connect VDD_HV_ADC power
J33
Off
-
FlexRAY
1-2: PI6 to PHY U8 TXD
3-4: PI5 to PHY U8 TXED
5-6: PD1 to PHY U8 RXD
J39
On
-
LIN/UART
1-2: PD8 to U11 TXD
3-4: PD11 to U11 RXD
J46
On
-
CAN0
PB0 to PHY U9 TXD
J47
On
-
CAN0
CAN0_RXD to PHY U9 RXD

S32R294 EVB User Guide
20
Jumper
Default Pos
PCB Legend
Description
J48
On
-
CAN1
PA14 to PHY U10 TXD
J49
On
-
CAN1
PB1 to PHY U10 RXD
J50
On
-
CAN2
PF14 to PHY U20 TXD
J51
On
-
CAN2
PF15 to PHY U20 RXD
J53
1-2
-
CTE_RFS signal select
J54
1-2
-
CTE_RCS signal select
J56
2-3
-
Enable/disable RESET_B and
FS8510 RST bi-direction connection
J64
1-2
-
VDD_HV_IO_ENET supply select:
3.3V or 1.8V
J65
2-3
-
Enable/disable Test mode
J66
2-3
-
FS8510 VCOREMON select: BUCK1
output or S32R294 PMIC_SENSE
pin
J67
Off
-
EEPROM I2C
PH7 to U6 SCL
J68
Off
-
EEPROM I2C
PH8 to U6 SDA
5 Known Issues
None
6 Revision History
Version
Comment
Rev A
Initial version
Rev B
Update FS85 (U1) automatic debug mode entry;
Add J6 for RCON/TDO select;
Re-order SW4, SW5 for RCON in order;
Change J37 pin 23 connected to GPIO12 (PA12);
Change R135/R136 to J24, J26;
Add GND test point TP8, TP12;

S32R294 EVB User Guide
21
Change J56 to 3-pin jumper;
Swap connection between MCU_CLK_P/N and TP10/11
