NXP Semiconductors ADC1002S020 User manual

Quick Start ADC1002S020

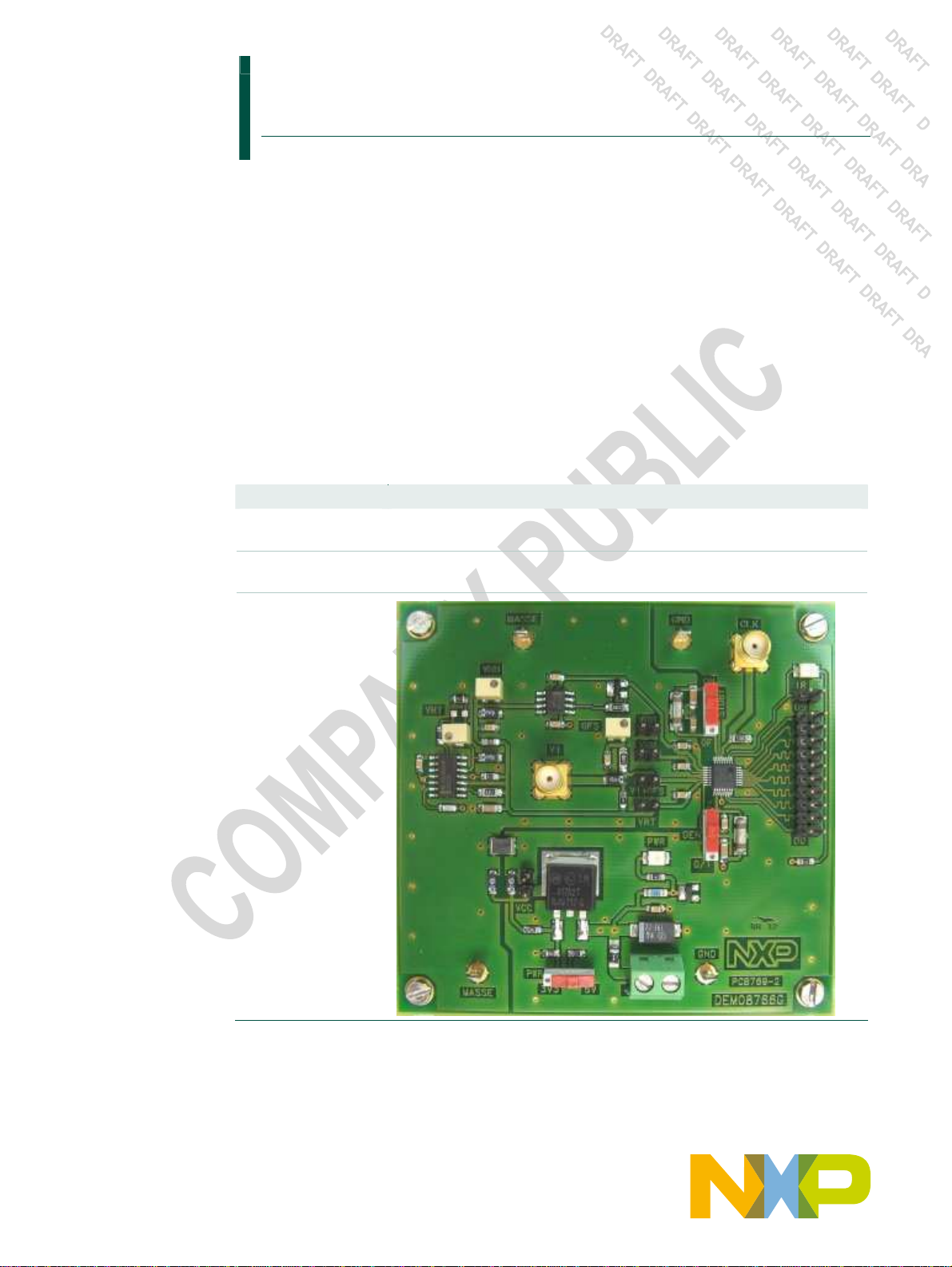

Demonstration board for ADC1002S020
Rev. 2 — 11 octobre 2010 Quick Start
Document information
Info Content
Keywords DEMO8766G, PCB769-2, Demonstration board, ADC, Converter,
ADC1002S020
Abstract This document describes how to use the demonstration board
DEMO8766G for the analog-to-digital converter ADC1002S020.
Overview

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 2 of 24
Contact information
For additional information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: [e-mail]
Revision history
Rev Date Description
1 20080612 Initial version.
2 20101011 Update for data acquisition system.

NXP Semiconductors
QS ADC1002S020
Quick Start ADC1002S020
Quick Start
QS_ADC1002S020_2
Rev. 2 — 11 octobre 2010
3 of
24
1. Overview of the ADC1002S020 demo board
1.1 ADC1002S020 demoboard

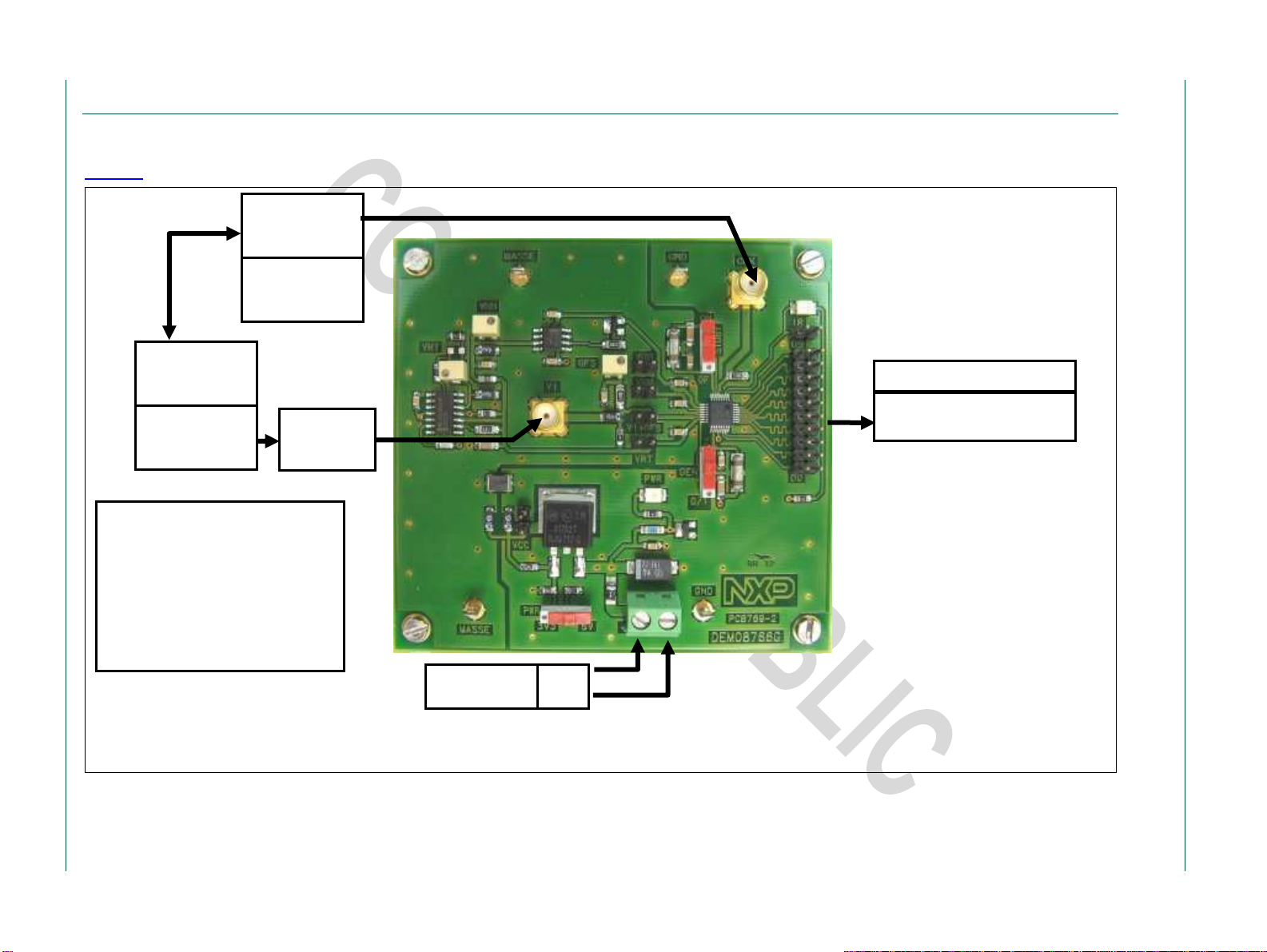

Figure 1 presents the connections to measure the ADC1002S020 based on DEMO8766G:
Fig 1. ADC1002S020 demoboard set-up
P
OWER SUPPLY
. I = 50 mA
. 12 V
.GND
LOGIC
ANALYZER
Output data:
. D9 (MSB) to D0 (LSB)
C
LOCK SIGNAL
. sinewave
. AC
SYNTHESIZED
SIGNAL
GENERATOR
I
NPUT SIGNAL
. 2 V
pp
sinewave
. AC
SYNTHESIZED
SIGNAL
GENERATOR
F
ILTER
. High-order
. Band pass
P
RESENTED CONFIGURATION
. 2V
pp
input full scale
. Single TTL-CMOS clock signal
. 3.3 V power supply
. ADC active
. Binary ADC output
. VRB = 1.2 V
DC
. VI+OFS = VRM (= 2.25 V
DC
)
. VRT = 3.3 V
DC
Synchronized

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2
©
NXP B.V.
2010
. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 4 of 24
1.2 Power supply
The board is powered with a single 12 V
DC
power supply. A power supply regulator is
used to supply all the circuitry on the board.

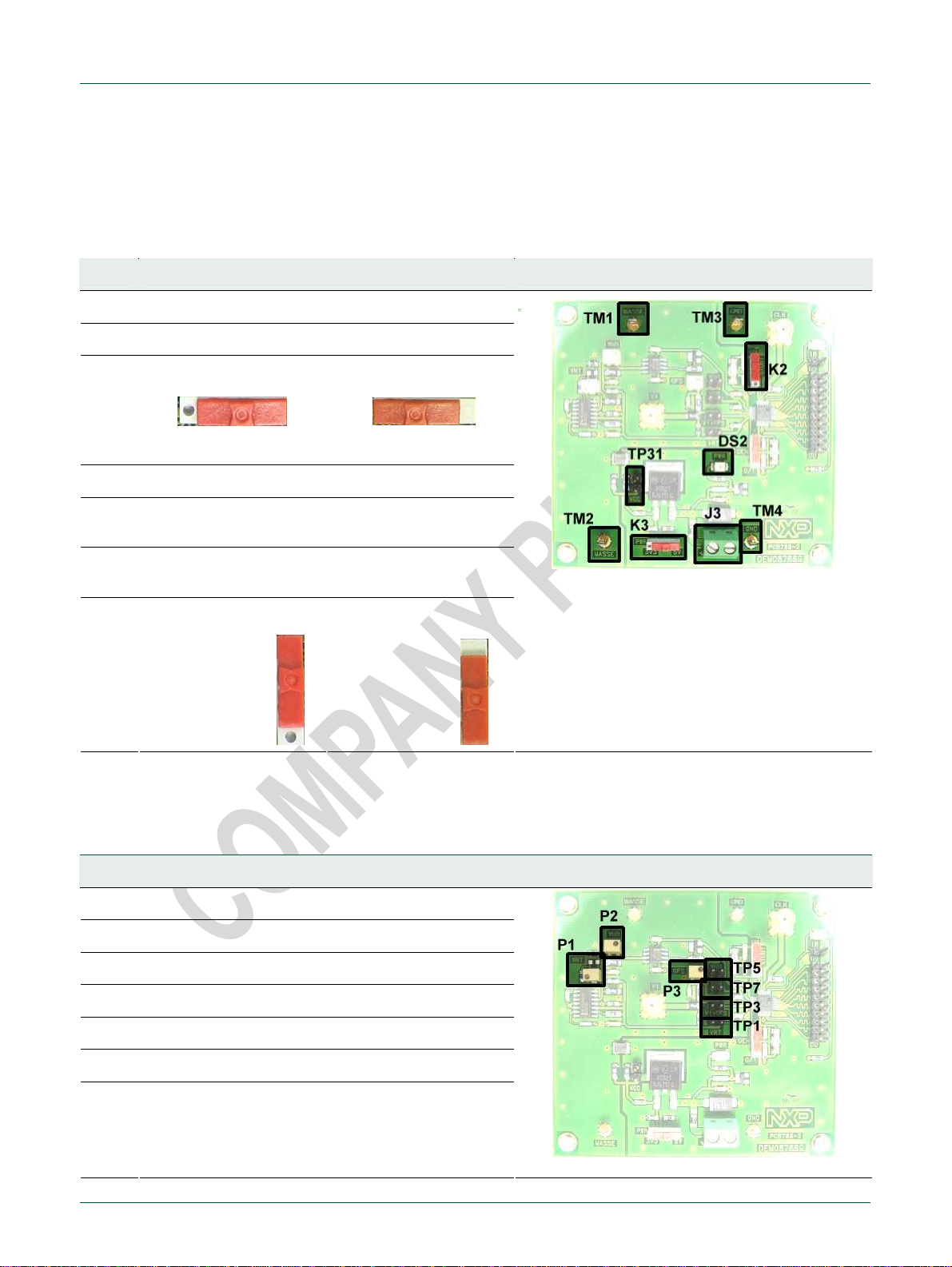

Table 1. General power supply
Name Function View
J3 Green connector – Power supply 12 V
DC
/ 50 mA.
DS2 PWR green light – It indicates the good supply plugging
PWR switch – ADC power supply selectionK3
3.3 V 5 V
TP31 VCC test point – ADC power supply
TM1,
TM2 MASSE test point – Analog ground
TM3,
TM4 GND test point – Digital ground
STDBY switch – ADC stand-by activationK2
ADC active ADC OFF
1.3 DC voltage adjustments
The ADC1002S020 allows to adjust the full scale input signal from 1.6 V to 2.4 V.
Table 2. DC voltage adjustments
Name Function View
P1 VRT trimmer – TOP reference adjustment
TP1 VRT test point – TOP reference value (typ 3.3 V)
P2 VRB trimmer – BOT reference adjustment
TP5 VRB test point – BOT reference value (typ 1.2 V)
P3 OFS trimmer – Input signal DC offset adjustment
TP3 VI+OFS test point – Input signal DC offset (typ 2.25 V)
TP7 VRM test point – MIDDLE reference value (typ 2.25 V)

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2
©
NXP B.V.
2010
. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 5 of 24
1.4 Input signals (VI, CLK)
To ensure a good evaluation of the device, the input signal and the input clock must be
synchronized together.
Moreover, the input frequency (Fi, MHz) and the clock frequency (Fclk, Msps) should
follow the formula:
, where M is an odd number of period and N is the number of samples.
Table 3. Input signals
Name Function View
J2 VI connector – Analog input signal ( 50Ω matching)
J3 CLK connector – Clock input signal ( 50Ω matching)
1.5 Output signals (D0 to D9, IR)
Table 4. Output signals
Name Function View
TP10
to
TP30
Array connector – ADC digital output(D0 to D9) and In
range signal (IR)
DS1 IR green light – It indicates that the analog input signal is
in the full scale range
OEN switch – Output enable selection
K1
Active output
High impedance
output

NXP Semiconductors
QS ADC1002S020
Quick Start ADC1002S020
Quick Start
QS_ADC1002S020_2
Rev. 2 — 11 octobre 2010
6 of
24
2. HSDC extension module: acquisition board
The figure 2 shows an overview of the extension module HSDC-EXTMOD01/DB acquisition board:
Fig 2. HSDC extension module: acquisition board
+5V
P
OWER SUPPLY
. I = 3.2 A
R
EFERENCE SIGNAL
. typical 10 MHz
SIGNAL
GENERATOR
USB
SPI
MODULE
P
RESENTED CONFIGURATION
. acquisition board
. external reference signal
. LVDS DDR 16-bit input stream
. CMOS 2 16
-
bit channels input
LVDS
DDR
I/O
CONNECTOR
.
up to 325 MHz 16
-
bit LVDS DDR
CMOS
I/O
CONNECTOR
. 2 channels up to 200 MHz 16-bit
J
UMPER FOR
I/O
SUPPLY
. define either I/O is 1.8 V or 3.3 V

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2
©
NXP B.V.
2010
. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 7 of 24
The HSDC extension module is intended for acquisition/generation and clock generation
purpose. When connected to an ADC demo-board it is intended as an acquisition system
for digital output bits delivered by ADC, either CMOS (HE14 P1 connector) or LVDS DDR
(SAMTEC QTH_060_02 P2 connector).
The board brief specification is shown below:
•8MB memory size for acquisition pattern;
•2 16-bit channels CMOS up to 200 MHz;
•16-bit LVDS DDR input data stream up to 320 MHz;
•On-board or external reference for signal generation.
In this section the specific requirement for the use with ADC1002S020 demo-board will
be shown.
For more details on the HSDC-EXTMOD01/DB, please contact dataconverter-
[e-mail].
2.1 HSDC extension module: hardware initialization
Before using the generation board, make sure that you connect the USB cable prior to
the supply.
2.2 HSDC extension module: software initialization
Before using the generation board, the user needs to install software to control the board.
The steps are described below.
Go to the installation directory “\HSDC-EXTMOD01\Software\USBConfigSetup v1.3
100212 1525” on the CD. Double click on the file “CDM 2.04.16.exe” file.
Run the application “\HSDC-EXTMOD01\Software\USBConfigSetup v1.3 100212
1525\USBConfigSetup.msi”, this will display the following window:

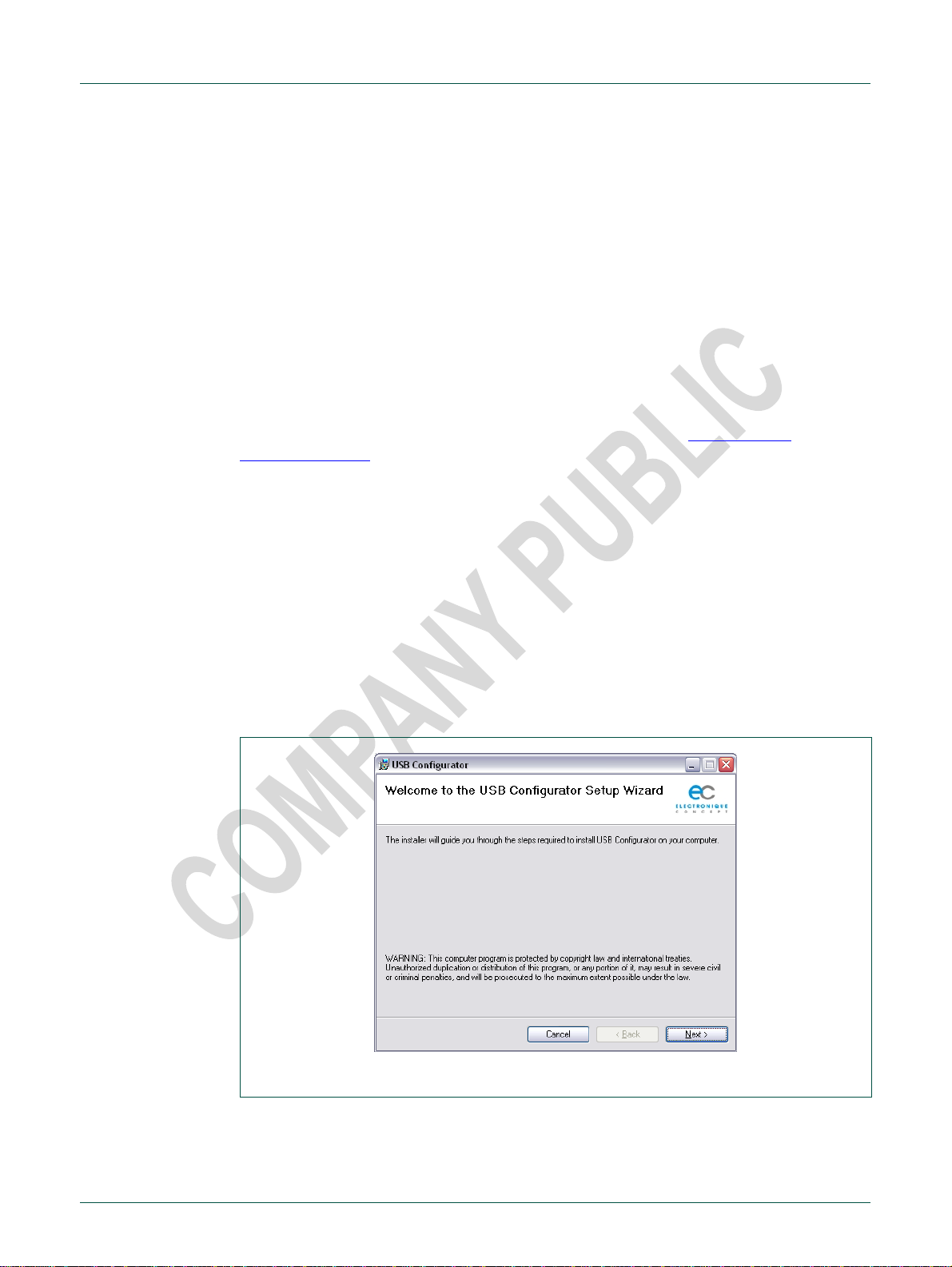

Fig 3. “USBConfigSetup” window: step 1
Click “Next” to proceed with installation process:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2
©
NXP B.V.
2010
. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 8 of 24
Fig 4. “USBConfigSetup” window: step 2
Click “Next” to continue:
Fig 5. “USBConfigSetup” window: step 3
Click “Next” to finish the installation process.
The system is now ready to use the ADC1412D series board for evaluation purpose.
2.3 HSDC extension module: CMOS connector description
The figure 6 shows a brief description of the hardware connection on the HE14
connector:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2
©
NXP B.V.
2010
. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 9 of 24
Fig 6. HSDC extension module: HE14 CMOS hardware schematic overview
The HSDC extension module can acquire data in CMOS level using:
•either the on-board clock generated by the internal PLL, refer to as
pDFS_CLK[0]/nDFS_CLK[0] that will be used by the FPGA. In this case, the
reference of the board should be delivered by the clock signal generator;

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2
©
NXP B.V.
2010
. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 10 of 24
•or the clock provided by the ADC refer to as P1_CLK_IN. This is the preferred
situation since the user will not deal with any set-up/hold timing for the acquisition.
Refer to section 3.2 for software configuration.

NXP Semiconductors
QS ADC1002S020
Quick
Start ADC1002S020
Quick Start
QS_ADC1002S020_2
Rev. 2 — 11 octobre 2010
11 of
24
3. Combo ADC1002S020 and HSDC extension module
3.1 Measurement set-up overview
The figure 07 below shows an overview of the whole system ADC1002S020+HSDC extension module for which connection is done with the
accessory (HSDC-ACC07/DB). The measurement set-up presented below shows 1 generator for input signal. Clock signal is delivered by the
HSDC-EXTMOD for ADC clocking and data acquisition purpose:
Fig 7. Evaluation set-up measurement with ADC1002S020 and HSDC-EXTMOD01/DB
USB
SPI
MODULE
P
RESENTED CONFIGURATION
. Single-ended clock on CLK
. 2 V
pp
input full scale
. Signal generator synchronized with HSDC-EXTMOD
C
LOCK SIGNAL
. e.g 20 Msps
HSDC
-
EXTMOD
CLOCK
R
EFERENCE SIGNAL
. e.g 1 MHz
SIGNAL
GENERATOR
+5
V
POWER SUPPLY
. I = 3.2 A
R
EFERENCE SIGNAL
.
e.g 10 MHz
R
EFERENCE

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 12 of 24
3.2 HSDC extension module: FPGA flash
To get access to the software control of the generation system, run the “USB
Configurator.exe”. It is located by default in the directory "C:\Program Files\Electronique
Concept\USB Configurator\".
If a HSDC extension module is connected to the user system it will display the following
window:
Fig 8. “USB Configurator” window: board main control
This window gives an overview of the current status of the board connected. If supply is
not connected, a FAIL status appears on the Power status field.
Flash the FPGA with the appropriate bin file provided on the CD located at “\HSDC-
EXTMOD01\Software\USBConfigSetup v1.3 100212 1525\HSDCEXTMOD FPGA bin
v03”. Among the 8 files, 2 are considered here:
•“HSDCEXTMOD_v03_P1C_RE_3V3_GEN.bin”: the FPGA will use the rising edge
of the clock delivered by connector P1C;
•“HSDCEXTMOD _v03_P1C_FE_3V3_ACQ.bin”: the FPGA will use the falling edge
of the clock delivered by connector P1C.
For further details regarding the others file please contact dataconverter-
[e-mail].
Browse to select the wanted bin file. Click “Erase” and “Program” buttons. Once the
“Successful” message appears, click “Reset FPGA” button: board is programmed.
3.3 HSDC extension module: DATA clock configuration
To acquire the digital input pattern on P1 connector, the user needs to choose the
wanted frequency. In our example, the frequency used for acquisition is 20 MHz and the
reference signal is provided on external “REF” pin:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 13 of 24
Fig 9. “USB Configurator” window: DATA clock configuration
The FPGA configuration indicates which configuration file has been programmed in
FPGA, in the example shown it is the rising edge of the embedded clock.
In the directory “\HSDC-EXTMOD01\Software\USBConfigSetup v1.3 100212
1525\Config” of the CD, there are 2 configurations files that already defines frequencies
for the DFS and AFS (AQM clock configuration that we don’t use here). Copy these files
to the directory “C:\Documents and Settings\All Users\Application Data\Electronique
Concept\UsbConfig” to get access to these frequencies.
Select “LMK03001 20 MHz – 20 MHz (20.000 MHz)” to define the frequency to be 20
MHz. The pattern will be acquired as this sampling rate, meaning 20 MHz CMOS.
Click “Update”, this should display 6 green check boxes and the value of the
corresponding frequency being actually generated by the board.
The Data Phase Shift allows the user to shift the clock position wrt data by the amount of
time indicated.
Note: you can edit the LMK file by clicking on the “Edit…” button to define your own
frequency, as long as you respect the frequency range defined by the PLL. For other
frequencies to generate, please contact [e-mail] for more
details.
3.4 HSDC extension module: pattern acquisition
The clock frequency is defined, and the board is ready to acquire the pattern.
In order to do the acquisition, the number of samples needs to be filled in the Pattern size
field: this number is a power of 2 with a maximum of 8MB.
Select one-shot mode and source P1 to acquire data (see figure 10).
The hardware connection between the ADC1002S020 and the HSDC extension module
has to be described to get correct results. This is done by using the fields in “Channel 0
Input Configuration” and in “Channel 1 Input Configuration”.
The channel 0 receives the data from ADC where ADC MSB is connected to the 1
st
bit
and ADC LSB is connected to the 10
th
bit of the HSDC extension module. Tune the fields
“Input is located on file A between xx (MSB) and xx (LSB)” to describe this configuration
(see figure 10).

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 14 of 24
Fig 10. “USB Configurator” window: pattern acquisition for ADC1002S020
3.4.1 Pattern acquisition
Browse on both channel path configuration to select the file to store the data that will be
acquired.
Click on “Acquire” and “Save” buttons to end the capture process.
3.5 FFT post-processing
Once acquisition is done, the captured data can now be processed for FFT results using
the “NXP_ADC_Acquisition.exe” tool located under directory “\HSDC-
EXTMOD01\Software\NXP_ADC_Acquisition” of the CD.
Run the application it will display the following window:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 15 of 24
Fig 11. “NXP_ADC_Acquisition” window: start-up screen
3.5.1 Acquisition software: input files
The first step consists in delivering the files to be processed. Browse in field “Select
ADC1 file:” to indicate the file to be used.
Indicate the data format (by default data are stored in binary format).
Note: both files needs to have the same data format and have the same input and clock
frequency.
Indicate CMOS mode.
3.5.2 Acquisition software: frequency indication
The second step consists in indicating the relevant numbers for the FFT processing:
•the resolution N: 10 in this case;
•the input frequency Fin: 1.25 MHz in our example;
•the sampling frequency Fs: 20 Msps in our example;
•whether Fin or Fs are coherent or not:
−if signals are coherent, selected which Fin or Fs are fixed for the calculation (see
appendix A.1). The value of coherent frequency resulting from this calculation will
be displayed (this corresponds to the value to be generated in front of the ADC);
−if signals are not coherent, select the window for FFT processing to apply (the
Blackman window gives better results).
The example shown below is for Fin = 1.25 MHz Fs = 20 Msps, with Fin and Fs coherent
and Fs fixed value in CMOS mode:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 16 of 24
Fig 12. “NXP_ADC_Acquisition” window: frequency entry
3.5.3 Acquisition software: FFT results display
Press the “COMPUTE” button to display the results from the FFT processing. The results
fields will be updated depending on the number of input files. If 2 files have been
processed, it is possible to display both results on the same picture for all graphs using
the “Display …” button (“Display ADC1” or “Display ADC2” or “Display ADC1 & ADC2”).
3.5.3.1 FFT spectrum
The first graph to be displayed is the FFT spectrum of the digital pattern acquired:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 17 of 24
Fig 13. “NXP_ADC_Acquisition” window: FFT result
Press the “Autoscale” button to display the whole content.
The tables 

and 

give the relevant dynamic parameters:
•Table 

: first 6 harmonics frequencies and amplitude level;
•Table 

: dynamics parameters:
−ENOB expressed in bit;
−Level of the digital output signal relative to the full-scale;
−SINAD in dBc;
−THD in dBc calculated over first 6 harmonics;
−SNR in dBc and dBFS;
−SFDR in dBc and dBFS.
3.5.3.2 Reorganized signal
The Reorganized signal displays the reconstructed sine wave from coherency calculation
corresponding to 1 period of the input signal:













NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 18 of 24

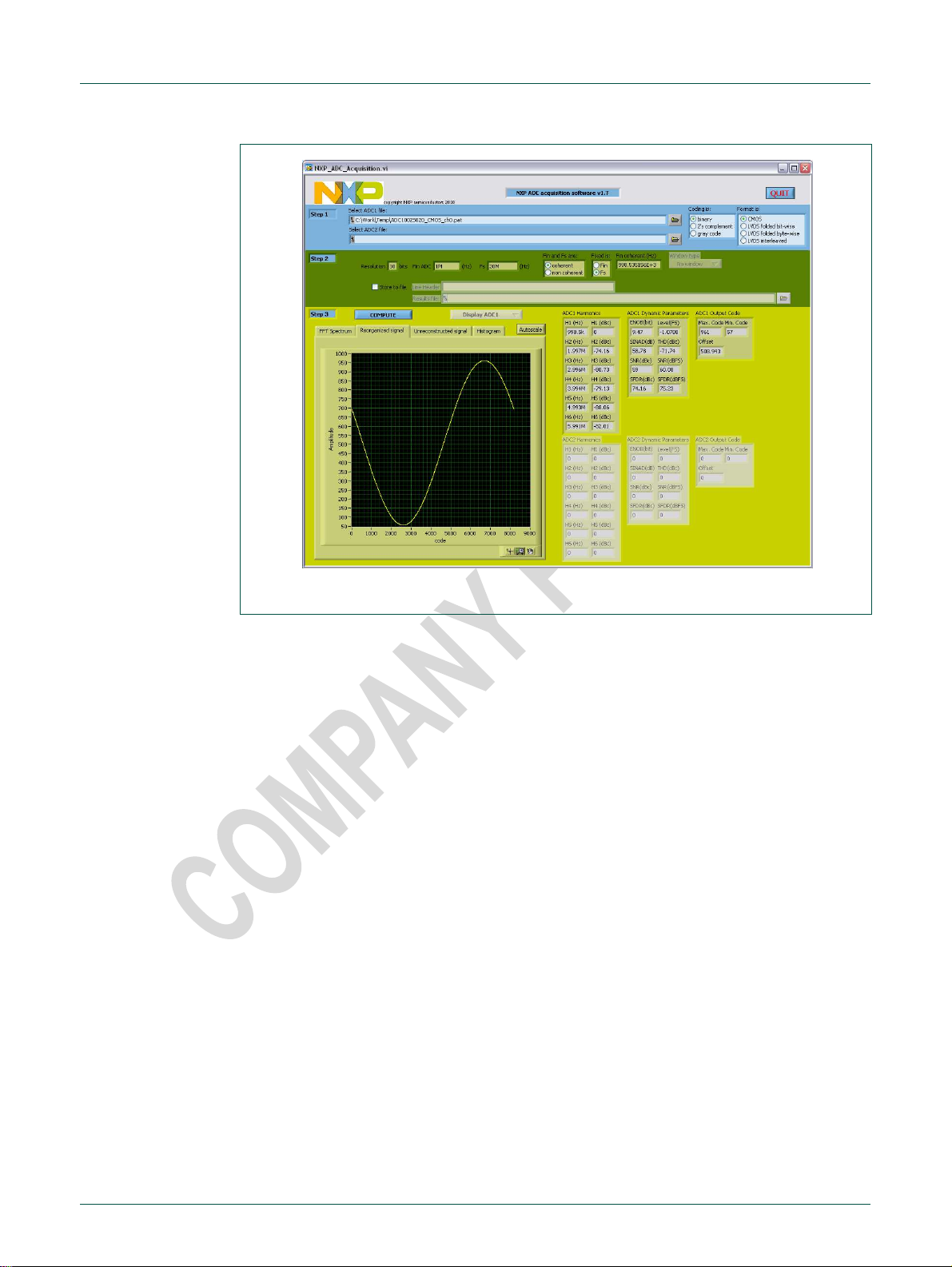

Fig 14. “NXP_ADC_Acquisition” window: reorganized signal
Press the “Autoscale” button to display the whole content.
3.5.3.3 Unreconstruted signal
The unreconstructed signal displays the unreconstructed sine wave corresponding to the
whole number of period being acquired following the coherency rule:

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 19 of 24

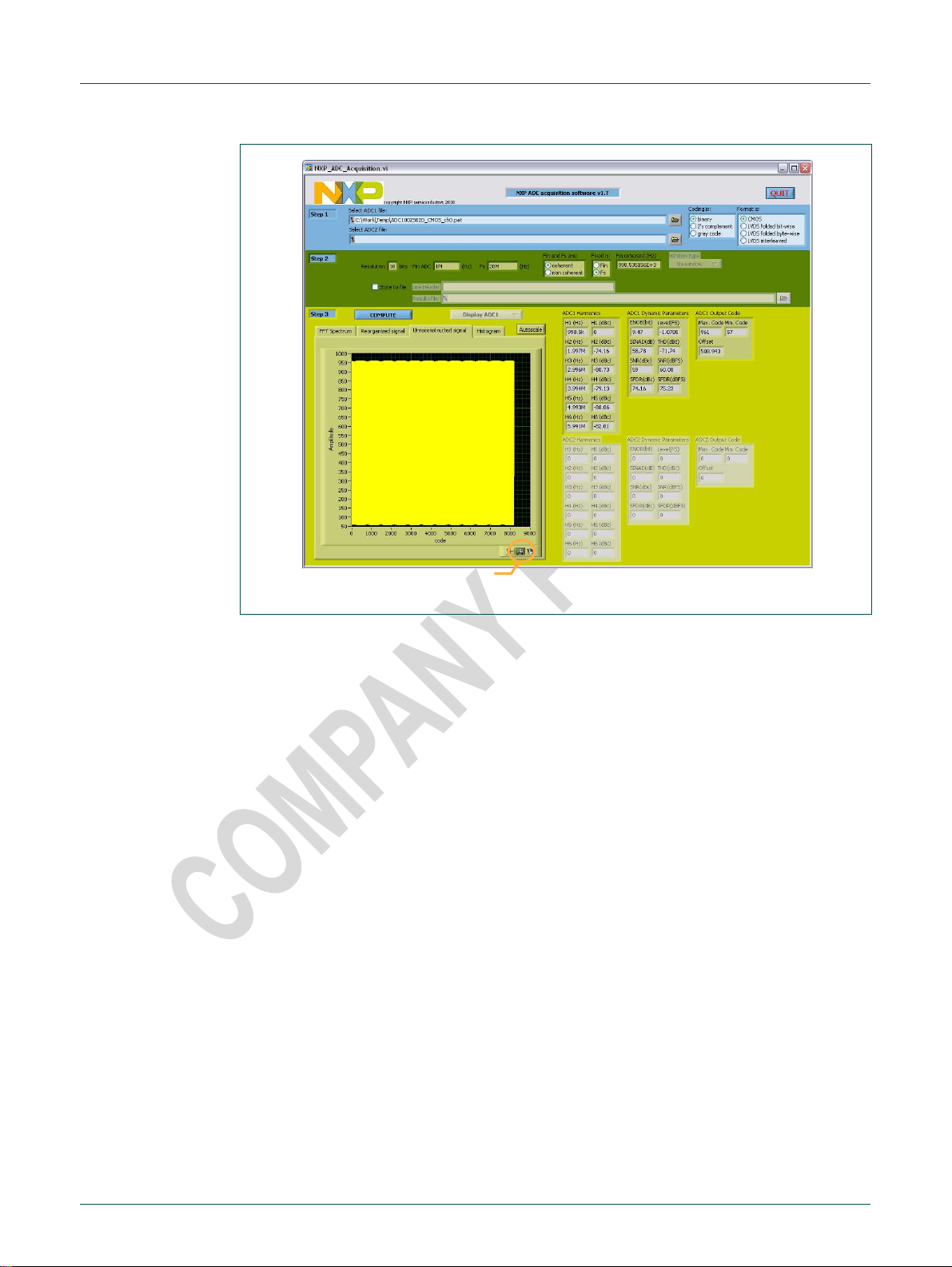

Fig 15. “NXP_ADC_Acquisition” window: unreconstruted signal
Press the “Autoscale” button to display the whole content.
Use the zoom tool to observe in more details all the captured data.
3.5.3.4 Histogram
The histogram graph shows the distribution of output codes. This graph allows to know
which code is present and if there is any missing code in the conversion range:
Zoom tool

NXP Semiconductors
Quick Start ADC1002S020
QS ADC1002S020
QS_ADC1002S020_2 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2010. All rights reserved.
Quick Start Rev. 2 — 11 octobre 2010 20 of 24
Fig 16. “NXP_ADC_Acquisition” window: code histogram
Press the “Autoscale” button to display the whole content.
The table shows the range of output codes.






