NXP Semiconductors MKW01Z128 User manual

Document Number: MKW01xxRM
Rev. 3
04/2016
MKW01Z128
Sub 1 GHz Low Power Transceiver plus Microcontroller
Reference Manual

MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. iii
Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
References. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Chapter 1
MKW01Z128 Introduction and Chip Configuration
1.1 KW01 family introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.2 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.3 General platform features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.4 MCU features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.5 RF transceiver features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.6 Software solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

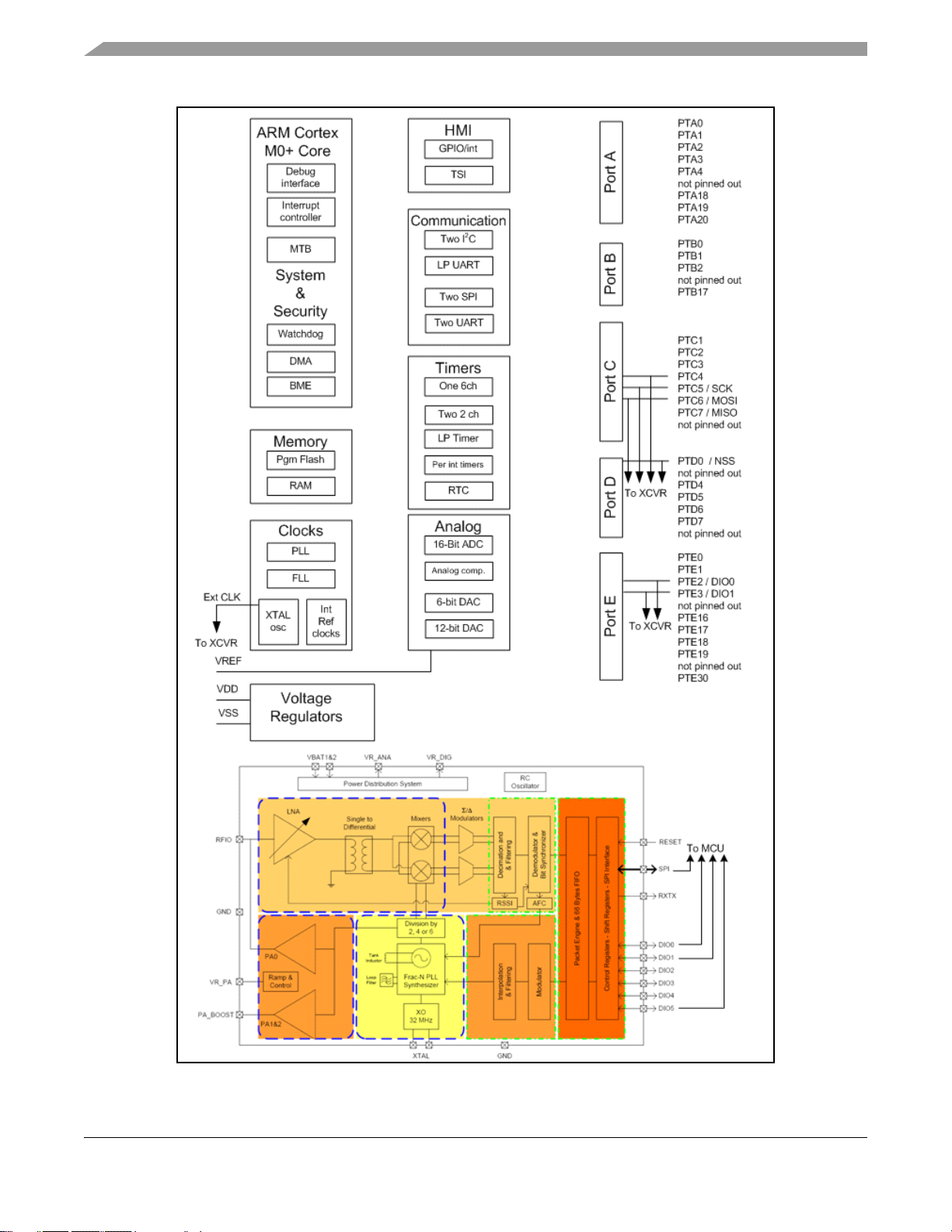

1.7 System overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.7.1 Transceiver overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.7.2 MCU overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.7.2.1 Module functional categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.7.2.2 ARM Cortex-M0 core modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.7.2.3 System modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.7.2.4 Memories and memory interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1.7.2.5 Clock modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1.7.2.6 Security and integrity module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1.7.2.7 Analog modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1.7.2.8 Timer modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1.7.2.9 Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1.7.2.10 Communication interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1.7.2.11 Human-machine interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1.7.2.12 System Device Identification Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Chapter 2
MKW01Z128 Pins and Connections
2.1 Device pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.2 Pin definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.3 Internal Functional Interconnects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Chapter 3 Signal Multiplexing and Signal Descriptions
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2 Signal Multiplexing Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2.1 Port control and interrupt module features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2.2 Clock gating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.2.3 Signal multiplexing contraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.3 Pin Assignments and Signal Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

MKW01xxRM Reference Manual, Rev. 3, 04/2016
iv Freescale Semiconductor, Inc.
Chapter 4
System Considerations
4.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.2 Power connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.3 System functional interconnects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.3.1 In-package Connections (SPI Channel and Status) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.3.2 System Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4.3.2.1 MCU Reset pin (pin 33) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4.3.2.2 Transceiver Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4.3.2.3 MCU Control of Transceiver Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
4.3.3 External Clock Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
4.4 System Clock Sources and Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
4.4.1 Additional Transceiver Status Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
4.4.2 Transceiver Oscillator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
4.4.2.1 Crystal Resonator Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
4.4.2.2 Transceiver ClkOut Output (DIO5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
4.4.3 MCU Clock Sources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
4.4.3.1 MCU External Clock Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
4.4.3.2 MCU External Crystal Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
4.4.3.3 MCU Internal Clock Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
4.4.3.4 LPO 1 kHz Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
4.4.4 System Clock Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
4.4.4.1 Single crystal with ClkOut driving MCU EXTAL input . . . . . . . . . . . . . . . . . . . . . . . 4-12
4.4.4.2 Single Crystal with MCU Using Internal Clock Only . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
4.4.4.3 Dual Crystal Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
4.4.5 Debug Port Pin Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
4.5 MKW01Z128 GPIO (Mixed I/O from Transceiver and MCU) . . . . . . . . . . . . . . . . . . . . . . . . 4-13
4.5.1 MCU GPIO Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
4.5.2 Transceiver DIOX Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
4.6 Transceiver RF Configurations and External Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
4.6.1 RF Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
4.6.2 Standard Output Power RF Configuration (Single, Bidirectional Port). . . . . . . . . . . . . . . 4-15
4.6.3 Higher Output Power RF Configuration (Dual Port with Optional External Power Amplifier)
4-16
4.6.4 Filter and Matching Network Component Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Chapter 5
Sub 1 GHz Transceiver Architecture Description
5.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.2 Simplified Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.3 Transceiver Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.4 Low Battery Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.5 Frequency Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
5.5.1 Reference Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. v
5.5.2 CLKOUT Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
5.5.3 PLL Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5.5.3.1 VCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5.5.3.2 PLL Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5.5.3.3 Carrier Frequency and Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5.5.4 Lock Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5.5.5 Lock Detect Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
5.6 Transmitter Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
5.6.1 Bit Rate Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
5.6.2 FSK Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
5.6.3 OOK Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
5.6.4 Modulation Shaping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
5.6.5 Power Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
5.6.6 Over Current Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
5.7 Receiver Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
5.7.1 LNA - Single to Differential Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
5.7.2 Automatic Gain Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
5.7.2.1 RssiThreshold Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
5.7.2.2 AGC Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
5.7.3 Continuous-Time DAGC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
5.7.4 Quadrature Mixer - ADCs - Decimators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
5.7.5 Channel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
5.7.6 DC Cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
5.7.7 Complex Filter - OOK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
5.7.8 RSSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
5.7.9 Cordic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
5.7.10 FSK Demodulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
5.7.11 OOK Demodulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
5.7.11.1 Optimizing the Floor Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18
5.7.11.2 Optimizing OOK Demodulator for Fast Fading Signals . . . . . . . . . . . . . . . . . . . . . . . 5-19
5.7.11.3 Alternative OOK Demodulator Threshold Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19
5.7.12 Bit Synchronizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19
5.7.13 Frequency Error Indicator (FEI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-21
5.7.14 Automatic Frequency Correction (AFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
5.7.15 Optimized Setup for Low Modulation Index Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
5.7.16 Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
5.7.17 Timeout Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
5.8 High Bit Rate Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
5.8.1 500 kbps Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
5.8.2 600 kbps Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
Chapter 6
Transceiver Operating Modes
6.1 Basic Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

MKW01xxRM Reference Manual, Rev. 3, 04/2016
vi Freescale Semiconductor, Inc.
6.2 Automatic Sequencer and Wake-Up Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6.2.1 Transmitter Startup Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6.2.2 TX Start Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6.2.3 Receiver Startup Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
6.2.4 RX Start Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
6.2.5 Optimized Frequency Hopping Sequences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
6.3 Listen Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
6.3.1 Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
6.3.2 Criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.3.3 End of Cycle Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.3.4 RC Timer Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.4 AutoModes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Chapter 7
Transceiver Digital Control and Communications
7.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.1.1 Data Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.2 Control Block Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7.2.1 SPI Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7.2.2 FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
7.2.2.1 Overview and Shift Register (SR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
7.2.2.2 Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
7.2.2.3 Interrupt Sources and Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
7.2.2.4 FIFO Clearing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
7.2.3 Sync Word Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
7.2.3.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
7.2.3.2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.2.4 Packet Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.2.5 Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.3 Digital IO Pins Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.3.1 DIO Pins Mapping in Continuous Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
7.3.2 DIO Pins Mapping in Packet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
7.4 Continuous Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
7.4.1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
7.4.2 TX Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
7.4.3 RX Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.5 Packet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.5.1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.5.2 Packet Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
7.5.2.1 Fixed Length Packet Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
7.5.2.2 Variable Length Packet Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
7.5.2.3 Unlimited Length Packet Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
7.5.3 TX Processing (without AES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
7.5.4 RX Processing (without AES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. vii
7.5.5 AES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
7.5.5.1 TX Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
7.5.5.2 RX Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
7.5.6 Handling Large Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
7.5.7 Packet Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
7.5.7.1 Sync Word Based . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
7.5.7.2 Address Based. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
7.5.7.3 Length Based . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
7.5.7.4 CRC Based . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
7.5.8 DC-Free Data Mechanisms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
7.5.8.1 Manchester Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
7.5.8.2 Data Whitening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
7.6 Register Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
7.7 Common Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
7.8 Transmitter Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
7.9 Receiver Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
7.10 IRQ and Pin Mapping Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
7.11 Packet Engine Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
7.12 Temperature Sensor Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
7.13 Test Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Chapter 8
MKW01Z128 Transceiver - MCU SPI Interface
8.1 SiP Level SPI Pin Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
8.2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8.3 SPI System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8.3.1 SPI Signal Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
8.3.1.1 Slave Select (SS or NSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
8.3.1.2 SPI Clock (SCK or SPSCK). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
8.3.1.3 Master Out / Slave In (MOSI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
8.3.1.4 Master In / Slave Out (MISO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
8.3.2 MKW0xxx SPI Transaction Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
8.3.3 MKW0xxx SPI Transaction Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Appendix A
MKW01Z128 MCU Reference Manual

MKW01xxRM Reference Manual, Rev. 3, 04/2016
viii Freescale Semiconductor, Inc.

MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. ix
Contents
About This Book
This manual details the MKW01, which is a highly-integrated, cost-effective, system-in-package (SIP),
sub-1 GHz wireless nodesolution with an FSK,GFSK, MSK, orOOKmodulation-capable transceiverand
low-power Kinetis microcontroller. The highly integrated RF transceiver operates over a wide frequency
range including 315 MHz, 433 MHz, 470 MHz, 868 MHz, 915 MHz, 928 MHz, and 955 MHz in the
license-free Industrial, Scientific and Medical (ISM) frequency bands.
Audience
This manual is intended for system designers.
Revision History
The following table summarizes revisions to this document since the previous release (Rev 2.0).
Revision History
Location Revision
Chapter 1 • Corrected the package name from 56 LGA to 60-pin LGA
• Added the following paragraph in Section 1.7.1, “Transceiver overview
“The versatile RF Transceiver in the MKW01 can be configured to be compliant with
the relevant sections of numerous world-wide standards, including but not limited to:
ARIB-T108 and T67, FCC 15.231, 15.247 and 15.249, 802.15.4g, EN54-25 and ETSI
300 220.”
Chapter 2 • Updated Figure 2-1. MKW01Z128 pinout
• Updated Table 2-1. Pin Function Description
• Updated description of pin # 58 in Table 2-2 MKW01Z128 Internal Functional
Interconnects.
Chapter 3 • Updated Table 3-2 Reset State of PORTx_PCRn Register Bit Fields.
• Updated Table 3-3 MKW01 Pin Assignments and Signal Multiplexing.
Chapter 4 • Added a note related to CLKOUT in Idle mode to Section 4.3.3, “External Clock
Connections.
Chapter 5 • Added a note to Section 5.5.5, “Lock Detect Indicator.
• Added a figure to show Pout vs. Programmed Power to Section 5.6.5, “Power
Amplifiers.
• Updated the following sentence in Section 5.7.3, “Continuous-Time DAGC from
“The DAGC is enabled by setting RegTestDagc to 0x10“ to “The DAGC is enabled by
setting RegTestDagc to 0x20“.
• Added Table 5-6. Available DCC Cutoff Frequencies Expressed as Percentage of
RXBW (continued) to Section 5.7.6, “DC Cancellation.
• Added RSSI chart and the notes following the figure to Section 5.7.8, “RSSI.
Chapter 6 • Added a note related to CLKOUT in Idle mode to Section 6.3, “Listen Mode.
Chapter 7 • Updated Reset value of RegVersion (at address 0x10) from 0x22 to 0x 23 in Table 7-4.
Registers Summary. Also added a line for register RegTestTcxo at address 0x59.
• Added a line for register RegTestTcxo at address 0x59 in Table 7-11 Test Registers.
Also updated description of RegTestDagc (0x6F) register.

MKW01xxRM Reference Manual, Rev. 3, 04/2016
xFreescale Semiconductor, Inc.
Definitions, Acronyms, and Abbreviations
The following list defines the acronyms and abbreviations used in this document.
ACK Acknowledgement Frame
API Application Programming Interface
BB Baseband
CCA Clear Channel Assessment
CRC Cyclical Redundancy Check
DCD Differential Chip Decoding
DME Device Management Entity
FCS Frame Check Sequence
FFD Full Function Device
FFD-C Full Function Device Coordinator
FLI Frame Length Indicator
GTS Guaranteed Time Slot
HW Hardware
IRQ Interrupt Request
ISR Interrupt Service Routine
LO Local Oscillator
MAC Medium Access Control
MCPS MAC Common Part Sublayer
MCU Microcontroller Unit
MLME MAC Sublayer Management Entity
MSDU MAC Service Data Unit
NWK Network
PA Power Amplifier
PAN Personal Area Network
PANID PAN Identification
PHY PHYsical Layer
PIB PAN Information Base
PPDU PHY Protocol Data Unit
PSDU PHY Service Data Unit
RF Radio Frequency
RFD Reduced Function Device
SAP Service Access Point
SFD Start of Frame Delimiter

MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. xi
SPI Serial Peripheral Interface
SSCS Service Specific Convergence Layer
SW Software
VCO Voltage Controlled Oscillator
References
The following sources were referenced to produce this book:
[1] IEEE 802.15.4 Standard
[2] Freescale MKW01xx Data Sheet

MKW01xxRM Reference Manual, Rev. 3, 04/2016
xii Freescale Semiconductor, Inc.

MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. 1-1
Chapter 1
MKW01Z128 Introduction and Chip Configuration
Kinetis is the most scalable portfolio of low power, mixed-signal ARM®Cortex™ MCUs in the industry.
Kinetis MCU families are peripheral- and software-compatible devices. Each family offers excellent
performance, memory and feature scalability with common peripherals, memory maps, and packages
providing easy migration both within and between families.
Kinetis MCUs are built from Freescale’s innovative 90 nm thin film storage (TFS) flash technology with
unique FlexMemory. Kinetis MCU families combine the latest low-power innovations and high
performance, high precision mixed-signal capability with a broad range of connectivity, human-machine
interface, and safety & security peripherals.Kinetis MCUs are supported by a market-leading enablement
bundle from Freescale and numerous ARM 3rd party ecosystem partners.
Kinetis W-series devices all contain wireless connectivity options spanning across frequency bands and
standards.
KW01 devices also have these features:
•Core:
— ARM Cortex-M0+ Cores delivering single-cycle access memories, 48 MHz CPU frequency
— Up to 16-channel DMA for peripheral and memory servicing with minimal CPU intervention
— Broad range of performance levels rated at maximum CPU frequencies starting at 48 MHz
• Ultra-low power:
— Multiple low power operating modes for optimizing peripheral activity and wakeup times for
extended battery life.
— Low–leakage wakeup unit, low power timer, and low power RTC for additional low power
flexibility
— Industry-leading fast wakeup times
• Memory: 16 KB RAM, 128 KB flash
• Mixed-signal analog:
Table 1-1. Kinetis W-Series devices
Family Frequency Band
KW0x Sub-Gigahertz
KW2x 2.4 GHz
KW3x Reserved

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
1-2 Freescale Semiconductor, Inc.
— Fast,high precision16-bit ADCs, 12-bit DACs, high speed comparators and an internal voltage
reference. Powerful signal conditioning, conversion and analysis capability with reduced
system cost
• Human Machine Interface (HMI):
— Capacitive Touch Sensing Interface with full low-power support and minimal current adder
when enabled
• Connectivity and Communications:
— UARTs with ISO7816, CEA709.1-B (LON), and IrDA support, I2C, and DSPI
• Reliability, Safety and Security:
— Hardware cyclic redundancy check engine for validating memory contents/ communication
data and increased system reliability
— Independent-clocked computer operating properly (COP) for protection against code runaway
in fail-safe applications
— External watchdog monitor
• Timing and Control:
— Programmable Interrupt Timer for RTOS task scheduler time base or trigger source for ADC
conversion and programmable delay block
•System:
— Wide operating voltage range from 1.8 V to 3.6 V with flash programmable down to 1.8 V with
fully functional flash and analog peripherals
— Ambient operating temperature ranges from –40°C to 85°C
1.1 KW01 family introduction
The KW01 family is the entry point into the Kinetis W-Series portfolio. The K01W is a single-chip
solution combining an ARM Cortex-M0+ microcontroller and a sub-GHz ISM band radio front-end
device.
Devices contain 128 KB of flash and 16 KB of SRAM in an 8 x 8 mm 60-pin LGA package. Standard
features include a rich suite of analog, communication, timing and control peripherals. Additionally,
flexible low-power capabilities and innovative FlexMemory help to solve many of the major pain points
for system implementation.
1.2 Ordering information
Table 1-2 lists the available devices in the MKW01 family.

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. 1-3
1.3 General platform features
• ARM Cortex-M0+ Core
• Sub-1 GHz in-package transceiver
• Multiple power saving modes
• 1.8 V to 3.6 V operating voltage with on-chip voltage regulators
• –40°C to +85°C temperature range
• Low external component count
• Supports single crystal (32 MHz typical) clock source operation or dual crystal operation
• Versatile software solutions
• 60-pin LGA (8x8 mm) Package
1.4 MCU features
•Core:
— ARM Cortex-M0+ 1.77 CoreMark/MHz from single-cycle access memories, 48 MHz CPU
frequency
— 4-channel DMA for peripheral and memory servicing with minimal CPU intervention
— CPU frequencies up to 48 MHz
• Ultra-low power:
— Multiple low power operating modes for optimizing peripheral activity and wakeup times for
extended battery life.
— Low–leakage wakeup unit and low power timer for time keeping function
— Industry-leading fast wakeup times
• Memory:
— 128 KB Flash, 16 KB RAM
• Mixed-signal analog:
— Fast, high precision 16-bit ADCs, and internal high speed comparators. Powerful signal
conditioning, conversion and analysis capability with reduced system cost
• Human Machine Interface (HMI):
— Capacitive Touch Sensing Interface with full low-power support and minimal current adder
when enabled
Table 1-2. Devices in the MKW01 Family
Device Operating Temp
Range (TA.) Package Memory Options Description
MKW01Z128CHN –40° to 85° C 60 LGA 16 KB RAM,
128 KB flash The primary target market is communications for last mile metering, sub metering and associated
devices such as concentrators. The feature set
will also allow it to serve for wireless sensor
networks in building control and automation.

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
1-4 Freescale Semiconductor, Inc.
• Connectivity and Communications:
— Three UARTs, two SPIs, and two I2C
• Reliability, Safety and Security:
— Hardware cyclic redundancy check engine for validating memory contents/ communication
data and increased system reliability
— Independent-clocked computer operating properly (COP) for protection against code runaway
in fail-safe applications
• Timing and Control:
— Powerful timer modules that support general-purpose, PWM, and motor control functions
— Programmable Interrupt Timer for RTOS task scheduler time base or trigger source for ADC
conversion and programmable delay block
•System:
— Wide operating voltage range from 1.8 V to 3.6 V with flash programmable down to 1.8 V with
fully functional flash and analog peripherals
— Ambient operating temperature ranges from –40°C to 85°C
1.5 RF transceiver features
• High Sensitivity: down to –120 dBm at 1.2 kbps
• High Selectivity: 16-tap FIR Channel Filter
• Bullet-proof front end: IIP3 = –18 dBm, IIP2 = +35 dBm, 80 dB Blocking Immunity, no Image
Frequency response
• Low current: RX = 16 mA, 100 nA register retention
• Programmable Pout : –18 to +17 dBm in 1 dB steps
• Constant RF performance over voltage range of chip
• FSK bit rates up to 600 kbps
• Fully integrated synthesizer with a resolution of 61 Hz
• FSK, GFSK, MSK, GMSK and OOK modulations
• Built-in Bit Synchronizer performing Clock recovery
• Incoming Sync Word Recognition
• Automatic RF Sense with ultra-fast AFC
• Packet engine with CRC, AES-128 encryption and 66-byte FIFO
• Built-in temperature sensor and Low battery indicator
• 32 MHz (typical) crystal oscillator clock source
1.6 Software solutions
Freescale will support the MKW01Z128 platform with several software solutions:

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. 1-5
• A radio utility GUI will be available that allows testing of various features and setting registers. A
firmware-based connectivity test will allow a limited set of testing controlled with a terminal
emulator on any computer.
• SMAC (Simple Media Access Controller) — This codebase provides simple communication and
test apps based on drivers/PHY utilities available as source code. This environment is useful for
hardware and RF debug, hardware standards certification, and developing proprietary applications.
• MAC/PHY (Media Access Control/Physical) for IEEE 802.15.4g/e — This release was developed
primarily for the ZigBee Alliance specified Home Energy Management Systems for the Japanese
application space.
• Additional software will be available through 3rd party providers.
1.7 System overview
Figure 1-1 shows a simplified block diagram of the MKW01.

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
1-6 Freescale Semiconductor, Inc.
Figure 1-1. MKW01 system level block diagram

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. 1-7
1.7.1 Transceiver overview
The transceiver (see Figure 1-1) is a single-chip integrated circuit ideally suited for today's high
performance ISM band RF applications. Its advanced features set, including state of the art packet engine,
greatly simplifies system design while the high level of integration reduces the external RF component bill
of material (BOM) to a handful of passive de-coupling and matching components. It is intended for use as
a high-performance, low-cost FSK and OOK RF transceiver for robust, frequency agile, half-duplex
bidirectional RF links.
The MKW01 is intended for applications over a wide frequency range, including the 433 MHz and
868 MHz European and the 902–928 MHz North American and Japan ISM bands. Coupled with a link
budget in excess of 135 dB, the transceiver advanced system features include a 66 byte TX/RX FIFO,
configurable automatic packet handler, listen mode, temperature sensor and configurable DIOs which
greatly enhance system flexibility while at the same time significantly reducing MCU requirements. The
transceiver complies with both ETSI and FCC regulatory requirements.
The major RF communication parameters of the MKW01 transceiver are programmable and most can be
dynamically set. This feature offers the unique advantage of programmable narrow-band and wide-band
communication modes without the need to modify external components. The transceiver is also optimized
for low power consumption while offering high RF output power and channelized operation.
The versatile RF Transceiver in the MKW01 can be configured to be compliant with the relevant sections
of numerous world-wide standards, including but not limited to: FCC Part 15.247 and Part 15.249, ETSI
EN 300 220, ARIB STD-T108, IC RSS 210.
1.7.2 MCU overview
The in-package Kinetis L series 48 MHz MCU features an ARM Cortex M0+, 16 KB Ram and 128 KB
flash. The RF transceiver is controlled through the MCU SPI port which is dedicated to the RF device
interface. Two of the transceiver status IO lines are also directly connected to the MCU GPIO to monitor
the transceiver operation. In addition, the transceiver reset and additional status can be connected to the
MCU through external connections.
1.7.2.1 Module functional categories
The modules on this device are grouped into functional categories. The following sections describe the
modules assigned to each category in more detail.

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
1-8 Freescale Semiconductor, Inc.
1.7.2.2 ARM Cortex-M0 core modules
The following core modules are available on this device.
Table 1-3. Module functional categories
Module category Description
ARM Cortex-M0+ core
System • System integration module
• Power management and mode controllers — Multiple power modes available based on
run, wait, stop, and powerdown modes
• Low-leakage wakeup unit
• Miscellaneous control module
• Crossbar switch
• Peripheral bridge
• Direct memory access (DMA) controller with multiplexer to increase available DMA
requests
• External watchdog monitor
• Watchdog
Memories Internal memories include:
• Up to 128KB program flash memory
• Up to 16KB SRAM
Clocks • Multiple clock generation options available from internally- and externally-generated
clocks
• System oscillator from transceiver to provide clock source for the MCU
• 32 kHz RTC oscillator
Security • Cyclic Redundancy Check module for error detection
Analog • 16-bit analog-to-digital converter
• Internal Comparator with internal 6-bit DAC for reference
• 12-bit DAC with DMA support and two 16-bit buffers
Timers • Low Power Timer/PWM (TPM) modules
• One 6-channel TPM
• Two 2-channel TPMs
• 2-channel periodic interrupt timer
• Real-time clock
• Low-power timer
• System tick timer
Communications • 2x internal serial peripheral interface
• 2x inter-integrated circuit (I2C)
•3xUART
Human-Machine Interfaces (HMI) • General purpose input/output controller
• Capacitive touch sense input interface enabled in hardware

MKW01Z128 Introduction and Chip Configuration
MKW01xxRM Reference Manual, Rev. 3, 04/2016
Freescale Semiconductor, Inc. 1-9
1.7.2.3 System modules
The following system modules are available on this device.
Table 1-4. Core modules
Module Description
ARM Cortex-M0+ The ARM Cortex-M0+ is the newest member of the Cortex M Series of processors
targeting microcontroller applications focused on very cost sensitive, deterministic,
interrupt driven environments. The Cortex M0+ processor is based on the ARMv6
Architecture and Thumb®-2 ISA and is 100% instruction set compatible with its
predecessor, the Cortex-M0 core, and upward compatible to Cortex-M3 and M4 cores.
NVIC TheARMv6-M exceptionmodel andnested-vectoredinterruptcontroller (NVIC)implement
a relocatable vector table supporting many external interrupts, a single non-maskable
interrupt (NMI), and priority levels.
The NVIC replaces shadow registers with equivalent system and simplified
programmability. The NVIC contains the address of the function to execute for a particular
handler. The address is fetched via the instruction port allowing parallel register stacking
and look-up. The first sixteen entries are allocated to ARM internal sources with the others
mapping to MCU-defined interrupts.
AWIC The primary function of the Asynchronous Wake-up Interrupt Controller (AWIC) is to detect
asynchronous wake-up events in stop modes and signal to clock control logic to resume
system clocking. After clock restart, the NVIC observes the pending interrupt and performs
the normal interrupt or event processing.
Single-cycle I/O Port For high-speed, single-cycle access to peripherals, the Cortex-M0+ processor implements
a dedicated single-cycle I/O port.
Debug interfaces Most of this device's debug is based on the ARM CoreSight™ architecture. One debug
interface is supported:
• Serial Wire Debug (SWD)
Table 1-5. System modules
Module Description
System integration module (SIM) The SIM includes integration logic and several module configuration settings.
System mode controller The SMC provides control and protection on entry and exit to each power mode, control
for the Power management controller (PMC), and reset entry and exit for the complete
MCU.
Power management controller
(PMC) The PMC providestheuser with multiple poweroptions.Multiple modesaresupportedthat allowtheusertooptimize powerconsumption forthelevel offunctionality needed.Includes
power-on-reset (POR) and integrated low voltage detect (LVD) with reset (brownout)
capability and selectable LVD trip points.
Low-leakage wakeup unit (LLWU) The LLWU module allows the device to wake from low leakage power modes (LLS and
VLLS) through various internal peripheral and external pin sources.
Peripheral bridge The peripheral bridge converts the crossbar switch interface to an interface to access a
majority of peripherals on the device.
DMA multiplexer (DMAMUX) The DMA multiplexer selects from many DMA requests down to 4 for the DMA controller.
