Nxtar NS-200S User manual

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.
Fiber Optic Intrusion Detection System
NS-200S User Manual

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.

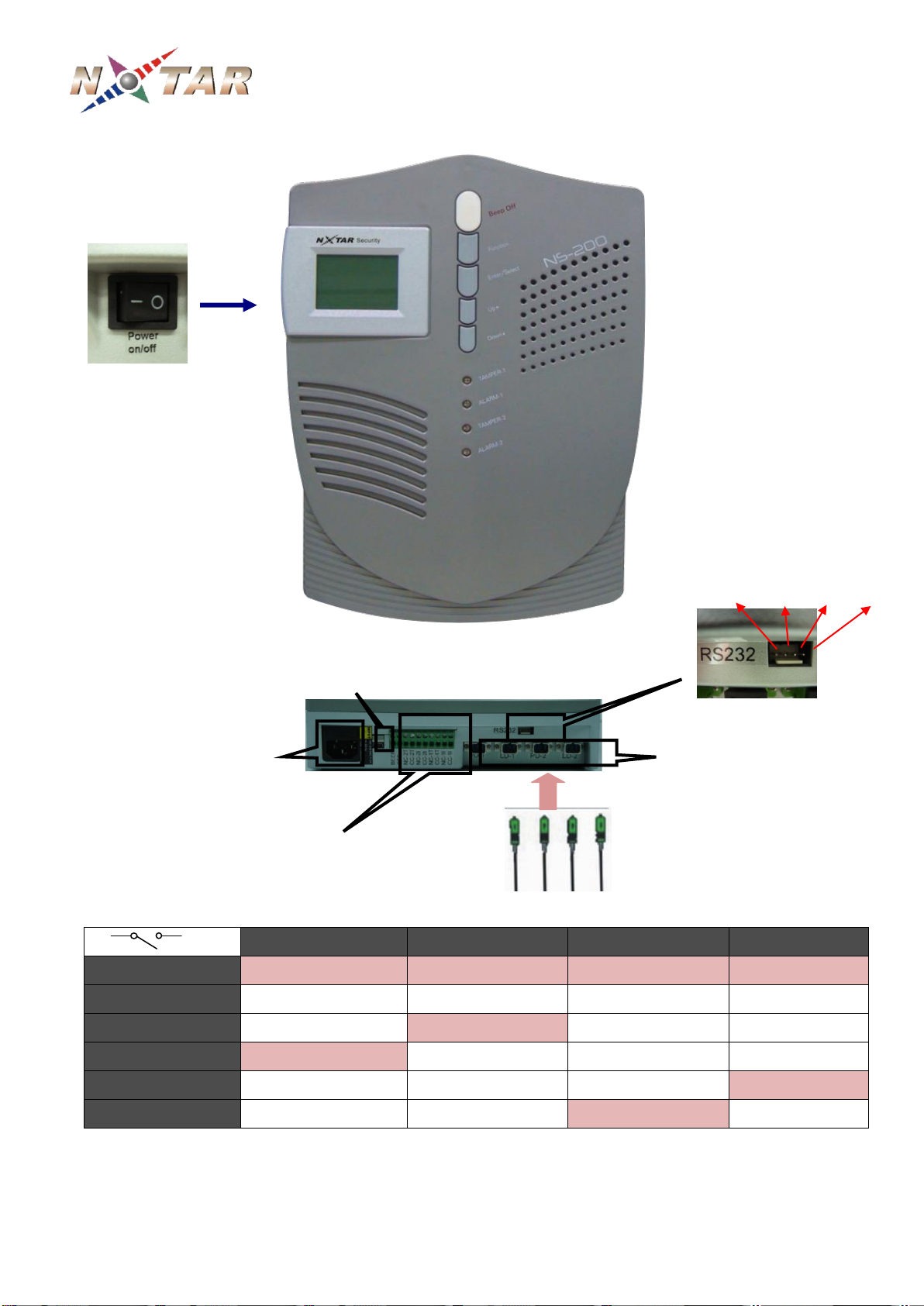

1〃Panel Introduction
NC-1I & CC-1I
NC-1T & CC-1T
NC-2I & CC-2I
NC-2T & CC-2T
TURNED OFF
closed
closed
closed
closed
TURNED ON
open
open
open
open
TAMPER1
open
closed
open
open
INTRUDER1
closed
open
open
open
TAMPER2
open
open
open
closed
INTRUDER2
open
open
closed
open
Bottom View
Left Side View
(left)
Relay Dry Contact：Integration with CCTV, search lights,
siren and etc.
BEEP OFF：Authorized access control flexibility with software use
，可暫時停止發送警報。
Laser Output / Input
GND Rx Tx NC
Leading Fiber
MINI USB Connection port
AC power plug

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.

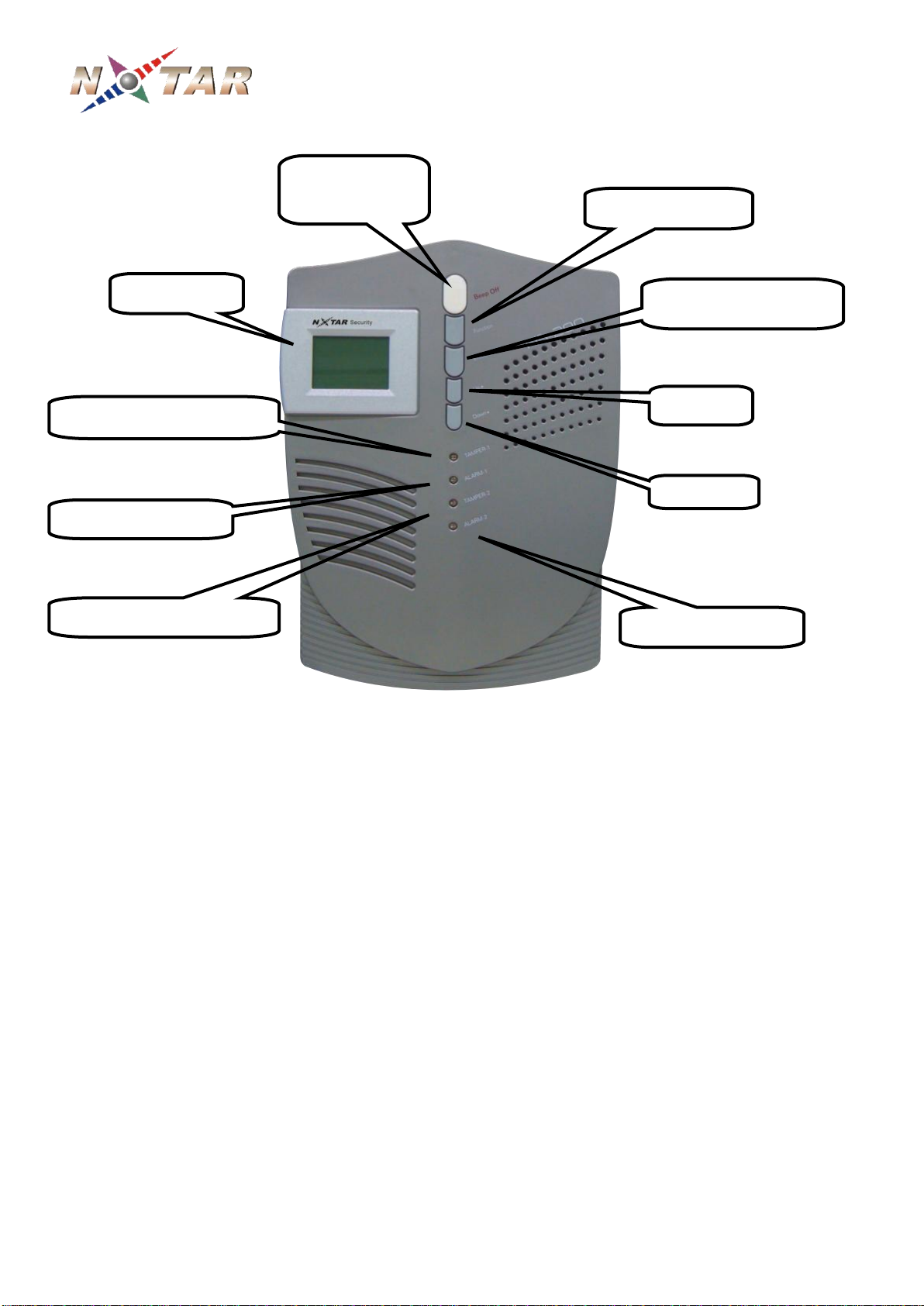

2〃Control Panel :
Control Panel Description
1. FUNCTION：Press Function back to the main menu
2. ENTER / SELECT：In main menu, press the button to enter. In sub menu, press the button to select.
3. UP & DOWN：Press UP & DOWN to adjust the parameters value.
4. BEEP OFF：Disable the alarm manually.
5. INTRUDER LED：When the LED blinks in red, it indicates the pre-warning. When the LED is lit is red ,
it indicates detection of intrusion.
6. TAMPER LED：When the LED is lit in green, it indicates all detection zones operates normally. When
the LED is lit in red, it indicates the tamper of optical path, requiring maintenance.
7. LED Displayer : User can set up parameter and adjust alarm status or signal monitoring here.
INTRUDER-1
TAMPER-1
TAMPER-2
INTRUDER-2
LED
BEEP OFF
Function
Enter / Select
UP
DOWN

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.
Option 3、4
CH1 & CH2 SENSITIVITY
Option 2
SIGNAL MONITOR
Option 1
ALARM MONITOR
3〃System Menu Flow Chart：
Launch Screen
Option 5
MAINTENANCE
Option 6
OTHER
Press UP/DOWN to select and ENTER
to enter a function.
Function Menu
Press Function back to
system menu

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.

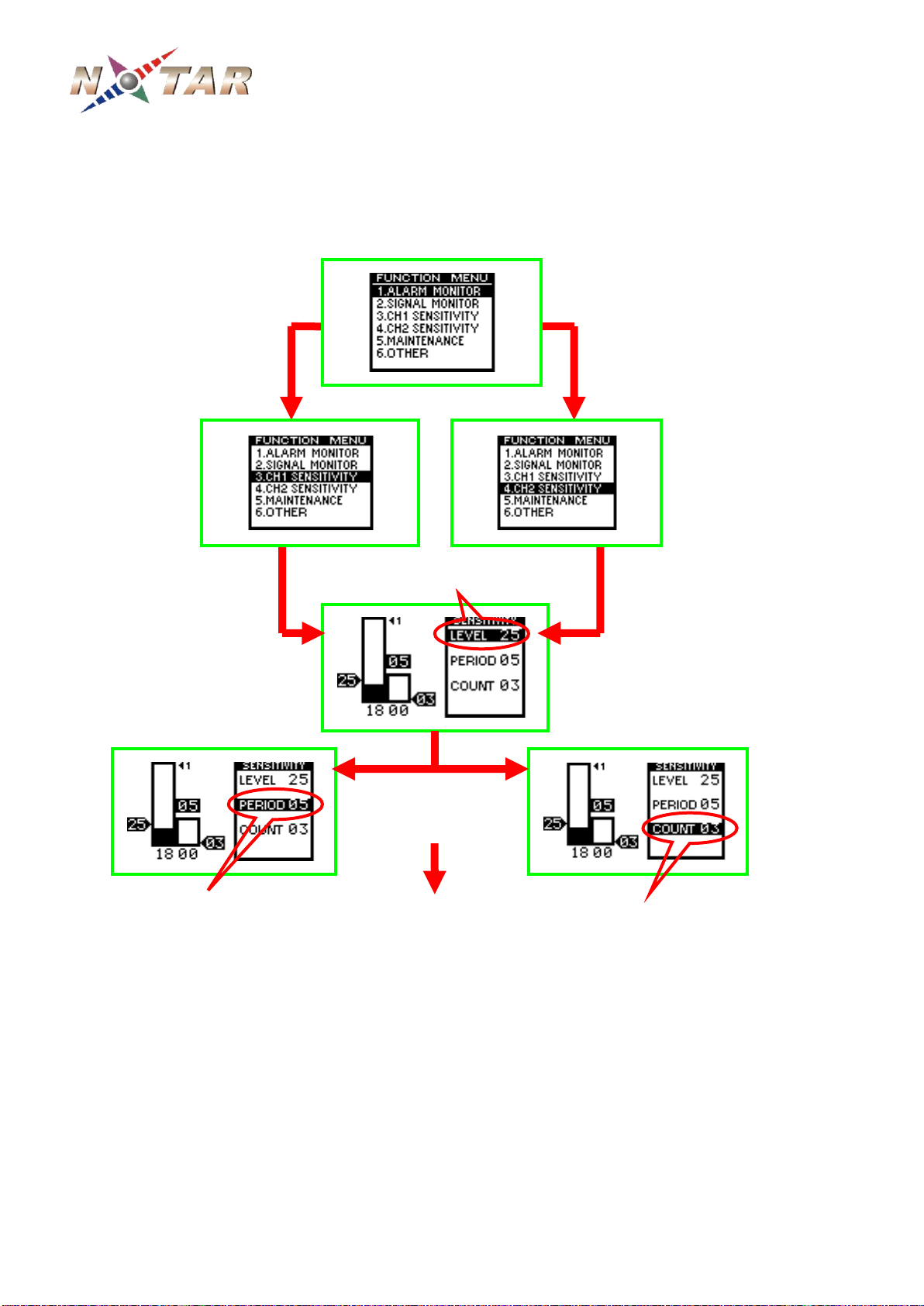

4〃Main menu Descriptions：
1. Option 3、4 - CH1 & CH2 SENSITIVITY Setting：
LEVEL：The system yields sensing signal at every mini second. When signal size goes beyond the preset Level
value, such event is considered as a Count .
PERIOD：It refers to the time (seconds) when the intruder finishes climbing over the fence/detection zone.
COUNT：It refers to within preset Period , how many times that signals go beyond the threshold.
The system issues warning only when above three parameters meet the setting value.
Press UP & DOWN to
Option 4
主功能目錄
Press UP & DOWN
to Option 3
Press Select /
Enter to adjust
CH1 Sensitivity
Press Select / Enter to
set up other parameters.
Press Select / Enter
to adjust CH2
Sensitivity
Press UP & DOWN to adjust
Press UP & DOWN to adjust
Press UP & DOWN to adjust
Finishing Setting，press
Function back to system menu

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.
2. Option 1 - ALARM MONITOR：
3. Option 2 - SIGNAL MONITOR：
Press Select / Enter
鍵
Alarming Situation
Normal situation in
monitoring screen
Press Select / Enter
CH1 PERIOD
CH 1 LEVEL
CH1 real-time
signal
CH1 COUNT
CH2 PERIOD
CH2 LEVEL
CH2 real-time
signal
CH 2 COUNT
CH1 real-time
counts
CH2 real-time
counts
Blinking refers
intrusion
The accumulated counts before pressing
BEEP OFF
It indicates CH2 is
secure

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.
Another parameter setting for adjust 2 zones of detections：
4. Option 5 - MAINTENANCE：
Other diagrams descriptions：
Press Select / Enter
鍵
Press Select / Enter
鍵
Press Select / Enter
鍵
Press Select / Enter
Press Select / Enter
鍵
CH1 indicates LF failure,
and requires maintenance.
CH2 functions normally
Sensing Fiber Failure
Sensing Fiber and
Leading Fiber failures
It indicates the performance
of the optical path
When Optical path is decaying, check on the glitch is required.
Press UP/DOWN to
adjust Level
Press UP/DOWN to
adjust Count
Press UP/DOWN to
adjust Level
Press UP/DOWN to
adjust Count
Note：SF(Sensing Fiber)
LF(Leading Fiber)
P(Power)

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.
5. Option 6 - OTHERS：
RECORD : Allows user to record 10 sets of parameters
VOLUME : Adjust the sound volume.
B_LIGHT : Adjust the brightness of the LCD display.
OTHER Descriptions：
Press Select / Enter
鍵
Press Select / Enter
鍵
Press Select / Enter
鍵
Press Select / Enter
鍵
Press UP/DOWN
to adjust
Press UP/DOWN
to adjust
Press UP/DOWN
to adjust
The parameter
setting is recorded
in second item.
CH1 three
parameters
setting value
CH2 three parameters
setting value
Sound Volume

Fiber Optic Intrusion Detection System
NS-200S User Manual
Nxtar Fiber Optic Security Co.,Ltd.
5〃Connectors Cleaning Cautions ：
1〃The controller is equipped with laser output. Direct exposure of the eye to the tip of connectors
can caused permanent damage to the user. 。
2〃When the system operates，sensor will transmit laser signals. Therefore, forbid direct exposure
of the eye to the connectors.
3〃When TAMPER LED is lit, it means the loss of a given detection zone is too high. In this case, users
can do some simple cleaning on the SC connectors
4〃Before cleaning SC connectors, switch off the power first. Avoid the direct eye exposure to the
connectors.
5〃Connectors cleaning include laser output and input receivers.
6〃If necessary，SJB and TJB connectors need to cleaned as the followings show.
Clean the SC connectors with
99% cleaning alcohol and clean
swipes.
Don’t touch SC connectors with
bare fingers.
