NZXT CRAFTED GAMING ARMOR NEMESIS ELITE EDITION User manual

NZXT. CRAFTED GAMING ARMOR.
NEMESIS ELITE EDITION
User’s manual
NZXT. 1

Thank you.
Dear Valued Customers,
Thank you for purchasing our product. With the
booming of the gaming market and computer cases, NZXT
would like to differentiate ourselves from other case companies
by continuously providing innovative next generation cases.
With every product, we hope to break more boundaries and
limits. I hope you like our products and look for us again in your
future purchases. Any comments and critiques are always
welcome. Thank you again.
Sincerely,
NZXT Team
NZXT. 2

Product Features
SIMPLE INSTALLATION THROUGH SCREWLESS RAIL DESIGN
LIGHT 1.0 MM ALUMINUM CHASSIS
CUSTOMIZABLE EYE 7 COLOR LED
FIRST EVER DIECAST STYLING THAT COMBIES THE ASTHETICS OF
ALUMINUM WITH DESIGN
- FRONT PLATE
- EXTERNAL POWER BUTTON
- DOOR HINGE
- SIDE PANEL FRAME
3 X 120 MM BLUE LED FAN FOR EFFICIENT SILENT COOLING AND
VENTILATION
LUXURY THERMAL METER
- 3 X FAN CONTROL
- CLOCK AND DATE
- 3 X TEMPERATURE DISPLAY
- TEMPERATURE ALARM
- CLOCK ALARM
EXTERNAL PORTS
2 X USB 2.0
1 X HEADPHONE JACK CONNECTION
1 X MIC CONNECTION
1 X 1394 FIREWIRE CONNECTION (OPTIONAL)
EXPANDABILITY
4 X EXPOSED 5.25” DRIVES
2 X EXPOSED 3.5” DRIVES
3 X HIDDEN 3.5” DRIVES
NZXT. 3

LCD Temperature Controller
Installing Fan Control
The Meter comes with three 3-pin transfer wires for the Front fan
(HDD), Rear Fan (SYS), and CPU Fan. With the exception of the 12
cm side fan that uses a 4 pin molex connector, the remaining two
fans use 3 pin connectors. Please attach the wires to the appropriate
connectors.
Installing Fan Control onto the CPU Unit
1. Connect 3-pin connector CPU from Speed Control Unit to
fan unit.
2. Attach 3-pin (Yellow Wire) connector to motherboard's Fan
Header.
Installing Temperature Sensors
In order to attach the SENSOR wires, use the tape provided to
attach them to the appropriate locations marked on the wires. The
SYS sensor can be attached to your VGA card or an area near the
rear fan.
Power Supply Installation
Please refer to the case interior infrastructure and secure the power
supply at the back of the case by using the screws provided.
NOTE: CPU, RAM and any peripheral installation are not
included in this manual. Please refer to your motherboard manual
for related mountin
g
instructions and troubleshootin
g
.
NZXT. 4

Motherboard Installation
Your Nemesis supports the following motherboard: ATX, MINI ATX,
and MICRO ATX. The Index for the standoff holes are as follows.
(Imprinted on the motherboard tray)
A1~A9 ATX
B1~B9 BABY AT
M1~M9 MINI ATX
U1~U7 MICRO ATX
In order to install your motherboard go through the following steps:
1. Lay your case down sideways and remove the side panel so
you can see the drive cages and the standoff holes on the
motherboard tray.
2. Take your motherboard and match the tray to see where you
will need to install brass standoffs.
3. Remembering which standoff holes your motherboard
needs, go ahead and screw the brass standoffs onto the
motherboard tray. ( Note: If you find that some holes are
unused, this is normal, this case is made to support for many
motherboard sizes )
4. Place your motherboard on top of the brass standoffs and
attach it to the tray using screws provided.
5. Connect the 20-pin ATX power connector from your power
supply (and AUX or +12V connectors if appropriate) to your
motherboard.
Power and Reset Switch Installation
NZXT. 5

Please refer first to your motherboard manual to find where your
power switch and reset connectors are located.
1. Connect the Reset switch (labeled RESET SW) by
connecting to your motherboard RESET connector. Make
sure you always attach the white wire to ground.
2. Connect the Power Switch (labeled POWER SW) to the
PWR connector on the motherboard.
3. Connect the HDD LED connectors to the appropriate
headers on your motherboard. ( If you plan to use the HDD
Display on the Meter, please attach the Meter HDD
Connector first )
4. The Nemesis does not have a POWER LED connector
because it has been replaced by a 4-pin power connector. (
Refer to the next section for more information )
The Nemesis LED
The Nemesis Color changing LED gives the user the option to
customize the color of the LED according to their preference. By
pushing down the button located at the back of the front pane,
the user can easily change between the seven colors.
USB & Audio Installation
USB Installation
1. The Nemesis USB and Audio connections are located at the
top of your chassis. Turn the panel towards the front of your
case to reveal the connections and the opposite direction to
hide it.
2. Refer to your motherboard manual and match the labels on
the USB port connectors with your motherboard in order to
install.
NZXT. 6

Audio Port Installation
1. Refer to your motherboard manual and match the labels on
the audio port connectors with your motherboard in order to
install.
2. The green input is the speaker input and the pink input is the
microphone input.
Drive Bay Installation
1. Begin the installation process by removing the front panel.
Complete this step by firmly pulling the opening at the
bottom of the front panel.
2. In the accessory box you will find three types of rails for
5.25”, floppy, and hard drives. Attach the appropriate rail on
both sides of your device. In the case that the rail does not
match your device, manually secure the rail onto the devices
with the extra screws provided.
NZXT. 7

From Left to Right. 5.25”, Hard Drive, Floppy rails
3. Proceed to slide the rail into place until it locks. Check to
make sure the device is secure to avoid any damage during
transportation.
4. Repeat for all your devices.
Fan Installation
NZXT. 8

The case comes with three 120mm blue color LED fans ( rear,
frontal, and side). In the case where you will need to replace or
change the fans, please follow the instructions below.
Front Fan Installation
1. Begin the installation process by removing the front panel.
Complete this step by firmly pulling the opening at the
bottom of the front panel.
2. Detach the fan cage from the front panel, make sure the
power cables have been disconnected.
3. Detach the fan from the cage itself and replace it with the
new fan.
4. Secure the fan back into it’s place to complete this process.

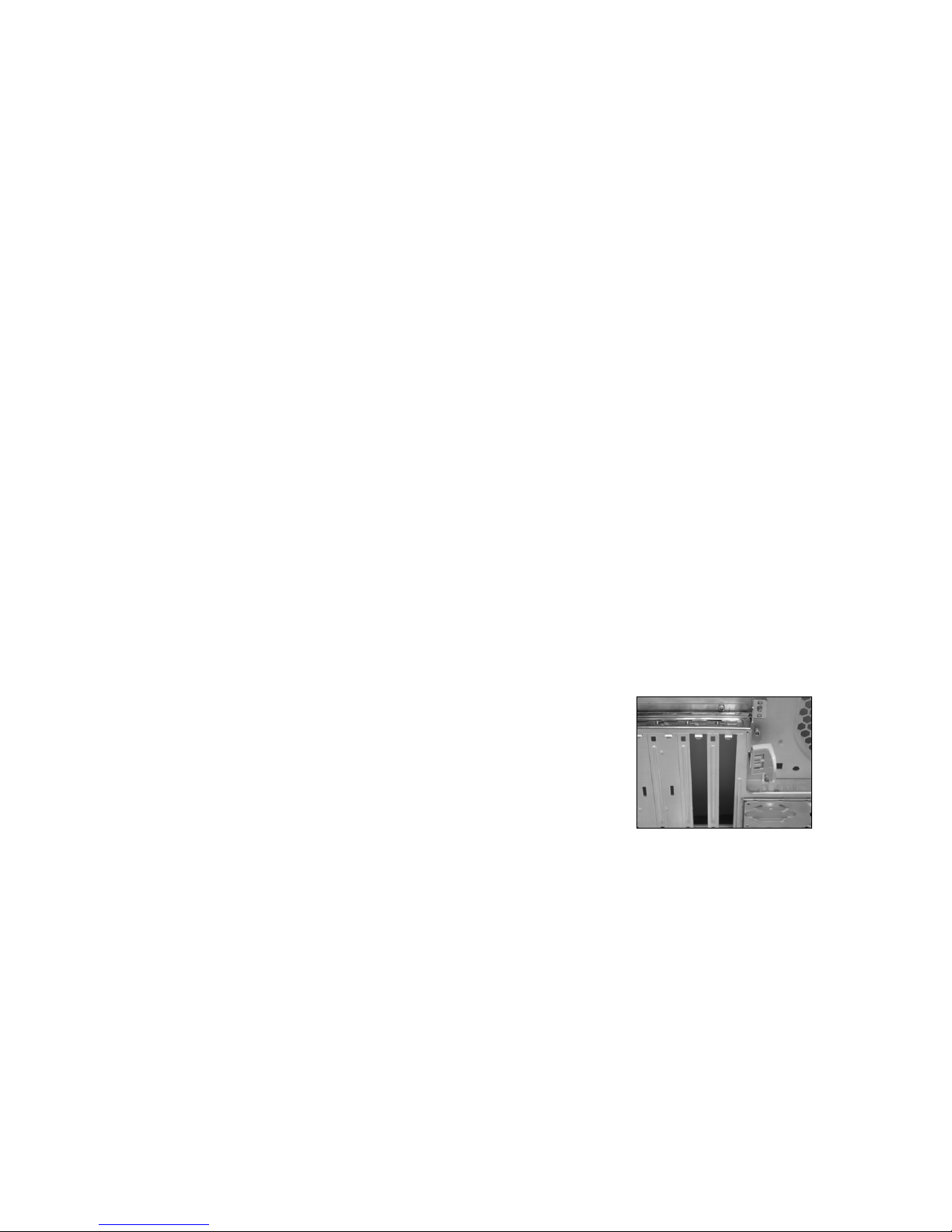

Installing PCI/AGP Cards
1. Your Nemesis comes with a screwless installation design for
securing your peripherals during movement.
2. Begin by placing your peripheral in place.
3. After you have installed your card, secure your card by
pushing the lock down and securing it. To ensure stability,
please use the secure the peripheral with screws provided
and then proceed to use the lock.
Fastener Figure. Push down here to lock the fastener
NZXT. 9

Support Service
For problems with the NZXT product you purchased, please
contact [email protected]m along with a detailed explanation of your
problem and your proof of purchase. You may ask inquire about
replacement parts at this address.
Thank you again for purchasing an NZXT case. If you have
any more comments or questions. Please visit our website or send
us an email.
NZXT.
www.nzxt.com
[email protected]
NZXT. 10
