oaniso BCP Series Technical specifications

BCP Series
AC EV Charger
Use and lnstallation Manual
Scan For
More Information
Address :
TEL : [phone] Email : [email protected]
OANISO ELECTRICAL LIMITED
9 Pantygraigwen Road Pontypridd Mid Glamorgan CF372RR United Kingdom
VERSION : 20220219
For the latest version of specification, please refer to www.beny.com or contact to [e-mail]
We reserve the right to explain the terms of specification.

G R E E N
CONTENTS
Safety information
Important safety instructions
Cautions
Notes
Specification
Features
●
●
●
●
●
P-01
P-02
P-02
P-03
P-03
Prepare for installation

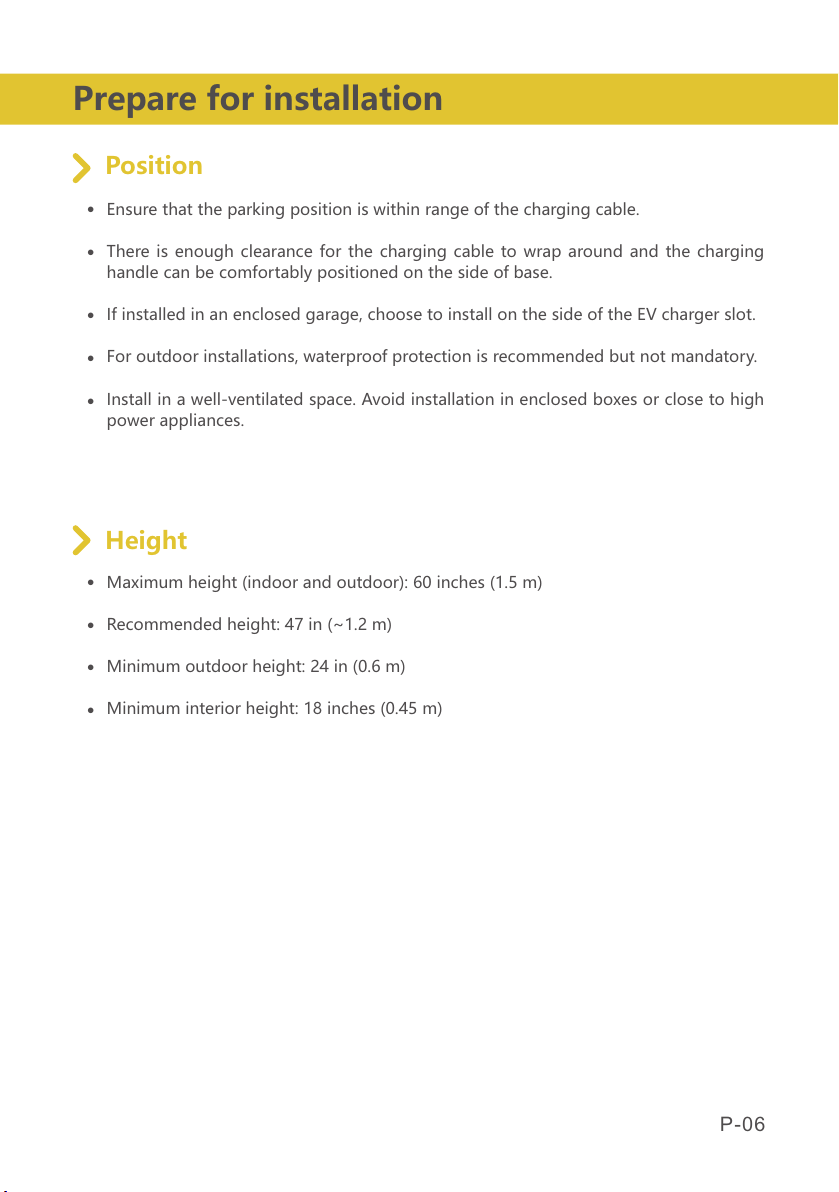

Position
Height

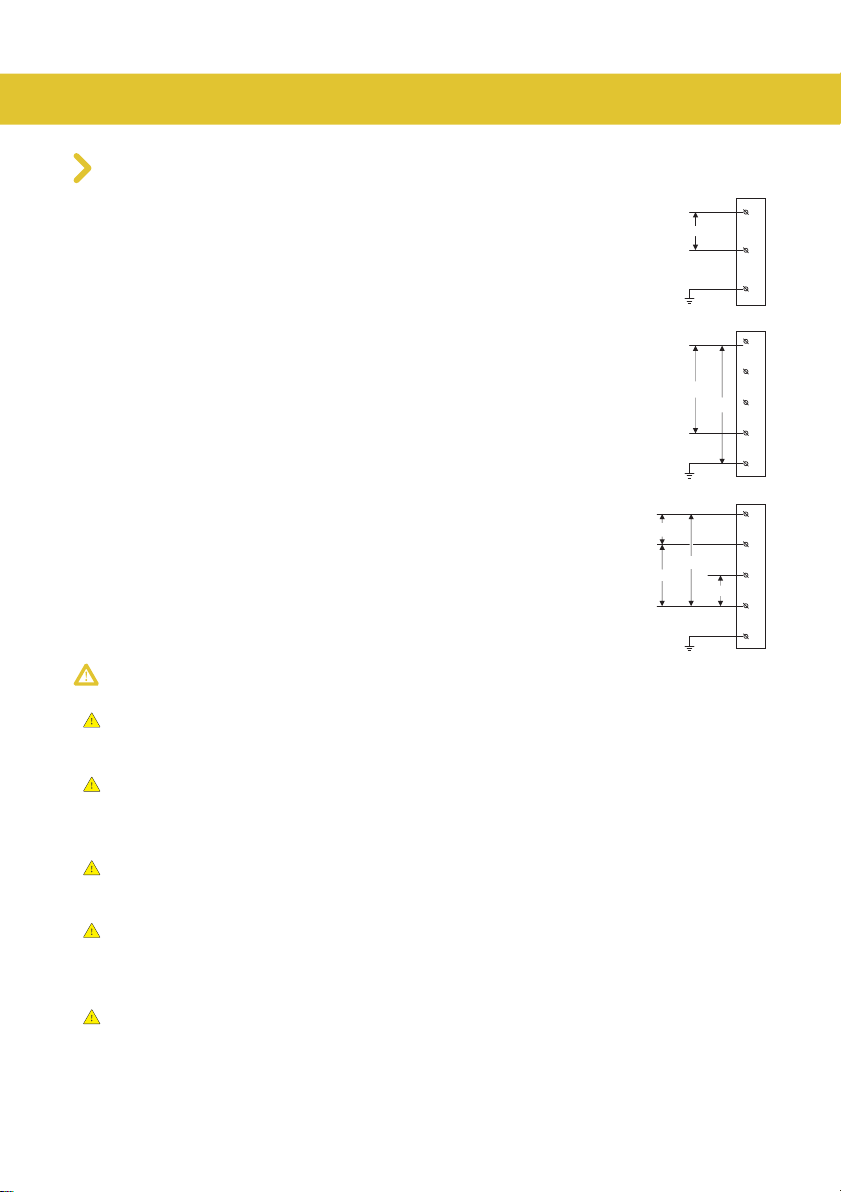

Power supply
Installation considerations

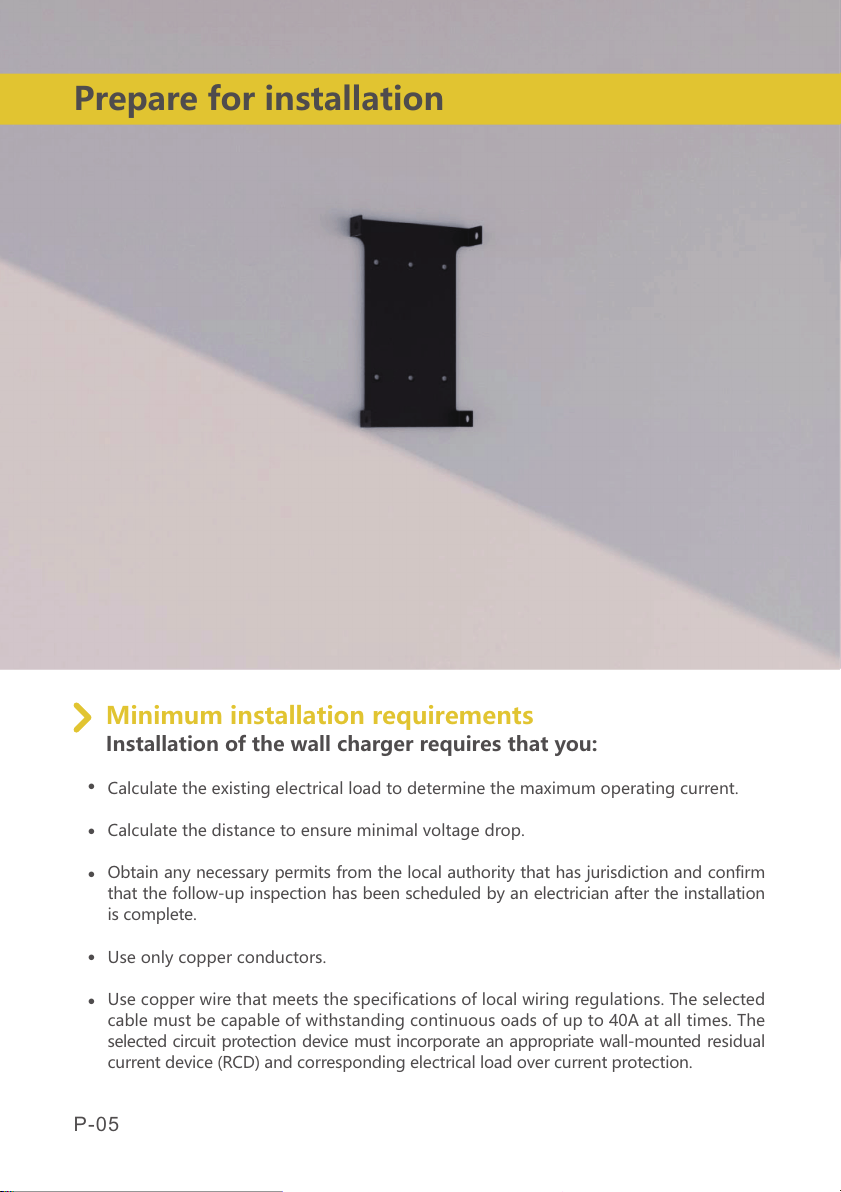

Minimum installation requirements
●
●
●
●
●
P-05
P-06
P-06
P-07
P-08
Installation lnstructions
Step-by-step installation instructions (bottom entry wiring)
Step-by-step installation instructions (top entry wiring)
Step-by-step installation instructions (rear entry wiring)
Set the operating current

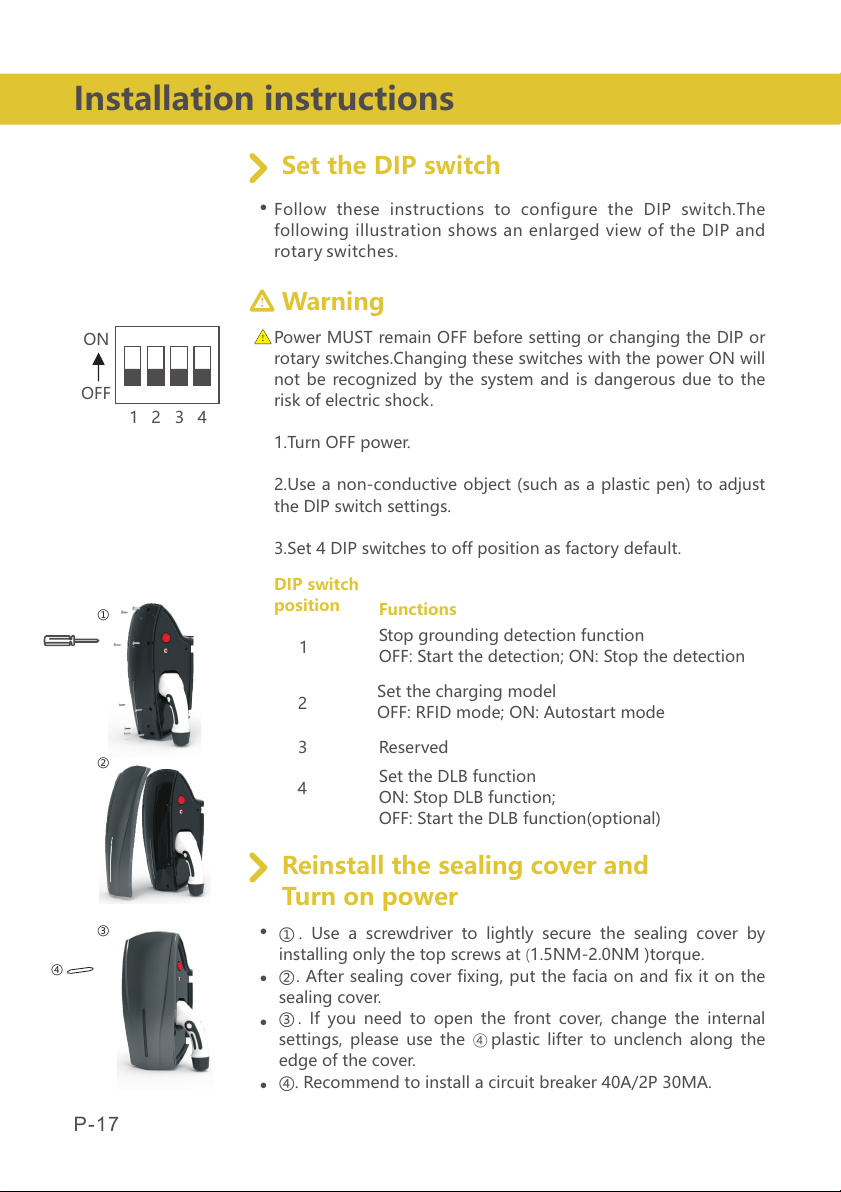

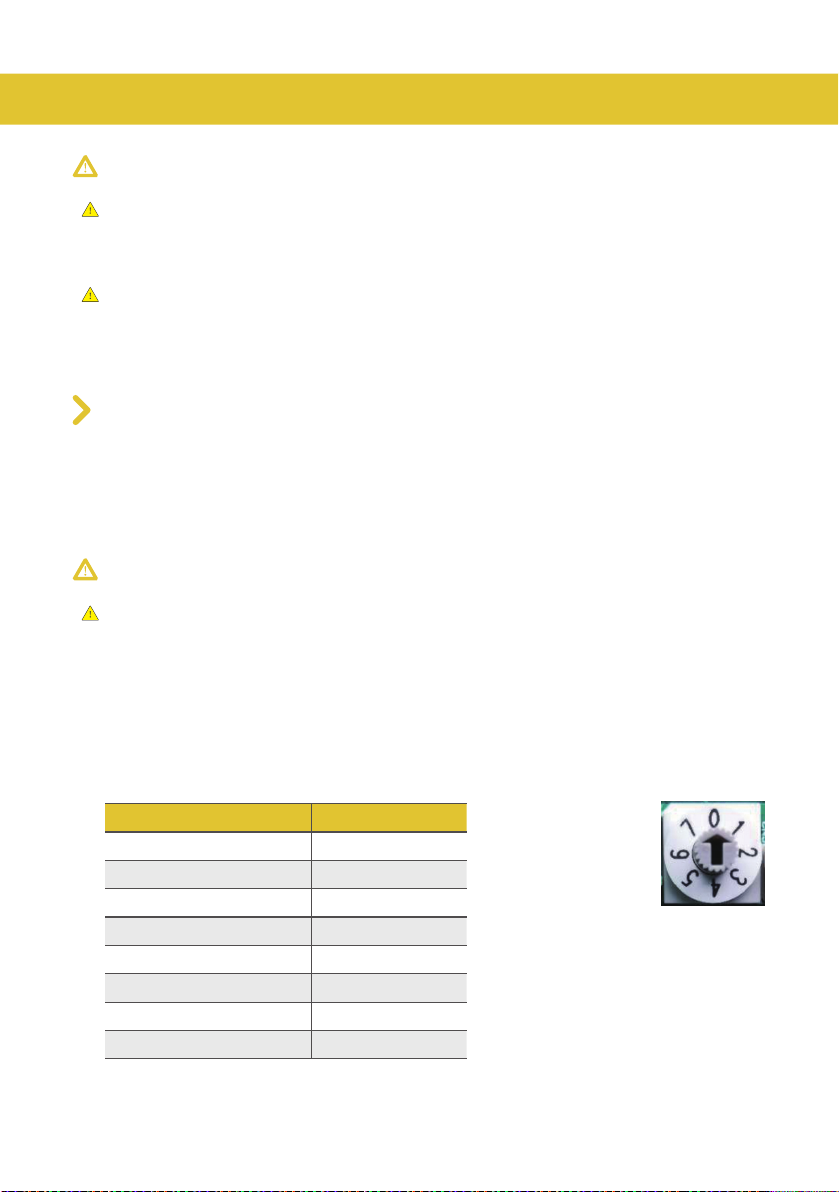

Set the DIP switch
Reinstall the sealing cover and turn on power
●
●
●
●
●
●
P-10
P-14
P-16
P-17
P-17
P-12
Operating status
Power on checking
LED lights instructions
Buzzer prompt description
●
●
●
P-18
P-18
P-20
Maintenance instructions
Product overhaul
Warranty description
Safety notice
Operation and maintenance risk notification
Use risk notification
●
●
●
●
P-21
P-21
P-22
P-22
In the box
In the box
●P-09

G R E E N
CONTENTS
Safety information
Important safety instructions
Cautions
Notes
Specification
Features
●
●
●
●
●
P-01
P-02
P-02
P-03
P-03
Prepare for installation
Position
Height
Power supply
Installation considerations
Minimum installation requirements
●
●
●
●
●
P-05
P-06
P-06
P-07
P-08
Installation lnstructions
Step-by-step installation instructions (bottom entry wiring)
Step-by-step installation instructions (top entry wiring)
Step-by-step installation instructions (rear entry wiring)
Set the operating current
Set the DIP switch
Reinstall the sealing cover and turn on power
●
●
●
●
●
●
P-10
P-14
P-16
P-17
P-17
P-12
Operating status
Power on checking
LED lights instructions
Buzzer prompt description
●
●
●
P-18
P-18
P-20
Maintenance instructions
Product overhaul
Warranty description
Safety notice
Operation and maintenance risk notification
Use risk notification
●
●
●
●
P-21
P-21
P-22
P-22
In the box
In the box
●P-09

Safety information
Important safety instructions
This document contains important instructions and warnings that must be followed
when installing and maintaining the EV Charger.
Read this entire mandatory document before installing or using the EV charger.
This device should be supervised when used around children.
The BCP series EV Charger must be grounded through a permanent wiring system or
an equipment grounding conductor.
Do not install or use the EV Charger near flammable, explosive, harsh, or combustible
materials, chemicals, or vapors.
Use the EV Charger only within the specified operating parameters.
Never spray water or any other liquid directly at the wall mounted EV Charger. Never
spray any liquid onto the charger handle or submerge the charger handle in liquid.
Store the charger handle above the ground to prevent unnecessary exposure to
contamination or moisture.
Stop using and do not use the EV Charger if it is defective, appears cracked, frayed,
broken, or otherwise damaged, or fails to operate, or continue operation.
Do not attempt to disassemble, repair, tamper with, or modify the EV Charger. The EV
Charger is not user serviceable. Contact us for any repairs or modification.
Transporting the EV Charger, handle with care. Do not subject it to strong force or
impact or pull, twist, tangle, drag, or step on the EV Charger, to prevent damage to it
or any components.
Do not touch the EV Charger’s end terminals with sharp metallic objects, such as wire,
tools, or needles.
Do not forcefully fold or apply pressure to any part of the EV Charger or damage it
with sharp objects.
Warning
Safety information
Do not insert foreign objects into any part of the EV Charger.
Use of the EV Charger may affect or impair the operation of any medical or implantable
electronic devices, such as an implantable cardiac pacemaker or an implantable
cardioverter defibrillator. Check with your electronic device manufacturer concerning
the effects that charging may have on such electronic devices before using the EV
Charger.
Cautions
Do not use private power generators as a power source for charging.
Incorrect installation and testing of the EV Charger could potentially damage either
the vehicle's Battery and/or the EV Charger itself. Any resulting damage is excluded
from New Vehicle Limited Warranty and the EV Charger Limited Warranty.
Do not operate the EV Charger in temperatures outside its operating range of -25℃
to +55℃.
That adaptors or conversion adapters are not addowed to be used.
That cord extension sets are not allowed to be used.
Notes
Ensure that the EV Charger's charging cable is positioned so it will not bestepped on,
driven over, tripped on, or subjected to damage or stress.
Do not use cleaning solvents to clean any of the EV Charger's components.The outside
of the EV Charger, the charging cable, and the connector end of the charging cable
should be periodically wiped with a clean dry cloth to remove accumulation of dirt and
dust.
Be careful not to damage the circuit board when removing the power entry knock-
out.
P-01 P-02
●
●
●

Safety information
Important safety instructions
This document contains important instructions and warnings that must be followed
when installing and maintaining the EV Charger.
Read this entire mandatory document before installing or using the EV charger.
This device should be supervised when used around children.
The BCP series EV Charger must be grounded through a permanent wiring system or
an equipment grounding conductor.
Do not install or use the EV Charger near flammable, explosive, harsh, or combustible
materials, chemicals, or vapors.
Use the EV Charger only within the specified operating parameters.
Never spray water or any other liquid directly at the wall mounted EV Charger. Never
spray any liquid onto the charger handle or submerge the charger handle in liquid.
Store the charger handle above the ground to prevent unnecessary exposure to
contamination or moisture.
Stop using and do not use the EV Charger if it is defective, appears cracked, frayed,
broken, or otherwise damaged, or fails to operate, or continue operation.
Do not attempt to disassemble, repair, tamper with, or modify the EV Charger. The EV
Charger is not user serviceable. Contact us for any repairs or modification.
Transporting the EV Charger, handle with care. Do not subject it to strong force or
impact or pull, twist, tangle, drag, or step on the EV Charger, to prevent damage to it
or any components.
Do not touch the EV Charger’s end terminals with sharp metallic objects, such as wire,
tools, or needles.
Do not forcefully fold or apply pressure to any part of the EV Charger or damage it
with sharp objects.
Warning
Safety information
Do not insert foreign objects into any part of the EV Charger.
Use of the EV Charger may affect or impair the operation of any medical or implantable
electronic devices, such as an implantable cardiac pacemaker or an implantable
cardioverter defibrillator. Check with your electronic device manufacturer concerning
the effects that charging may have on such electronic devices before using the EV
Charger.
Cautions
Do not use private power generators as a power source for charging.
Incorrect installation and testing of the EV Charger could potentially damage either
the vehicle's Battery and/or the EV Charger itself. Any resulting damage is excluded
from New Vehicle Limited Warranty and the EV Charger Limited Warranty.
Do not operate the EV Charger in temperatures outside its operating range of -25℃
to +55℃.
That adaptors or conversion adapters are not addowed to be used.
That cord extension sets are not allowed to be used.
Notes
Ensure that the EV Charger's charging cable is positioned so it will not bestepped on,
driven over, tripped on, or subjected to damage or stress.
Do not use cleaning solvents to clean any of the EV Charger's components.The outside
of the EV Charger, the charging cable, and the connector end of the charging cable
should be periodically wiped with a clean dry cloth to remove accumulation of dirt and
dust.
Be careful not to damage the circuit board when removing the power entry knock-
out.
P-01 P-02
●
●
●

Safety information Safety information
Specification
Features
Build-in with overvoltage and under-voltage protection , over-
current protection, over temperature protection, imperfect earth detection, CP abnormal
signal protection and type A + DC 6mA for europe standard.
Operating temperature range: -25 ℃ ~ +55 ℃
IP65(Socket IP55)protecting rate, operating humidity range 0-95% for indoor and
outdoor.
With temperature sensor build-in important areas for fire protection.
With leakage test function, ensure the normal operation of leakage protection.
The charger has a function of automatic reset after troubleshooting. That means when a
charger stop working when an anomaly is detected, the charger will periodically self-
check whether the anomaly is eliminated. The charger will start to work automatically
after ensure the anomaly has been eliminated.
(U>264V or U<187V)
●
●
●
●
●
●
Easy for cable storage.
The ramp-down stop current charging mode protects the EV batteries.
The EV charger can be wall-mounted or pile mounted.There are three wiring ways for
the EV charger, bottom entry wiring,Top entry wiring and rear entry wiring.You will
need to install the wiring box to make top entry wiring.
RFID card or auto-start charging for option.
Rated charging current can be set according to different home load conditions.
With lightning protection ensure personal safety.
Standard：EN IEC 61851-1:2019 IEC 61851-1:2017
Certificate: CE/CB/UKCA/SAA
●
●
●
●
●
●
●
●
P-03 P-04
Description
Voltage and wiring
Current
Frequency
Cable length
EV charger dimensions
Gross Weight
Operating temperature
Enclosure rating
Standby power
Humidity
Altitude
Leakage detection
Specification
Single-phase or three-phase EV Charger:AC230V±10%;
Three-phase EV Charger:AC400V±10%;L1、L2、L3、N、PE
L1、N、
PE
6A/8A/10A/12A/16A/20A/25A/32A
50/60HZ
5M/6M
Height:380mm Width:169mm Depth:151/201mm
7KG/5KG
-25℃~55℃
2W
<95%No condensation
≤2000M
TYPE A + DC6mA leakage sensor built-in
IP65（Socket IP55）

Safety information Safety information
Specification
Features
Build-in with overvoltage and under-voltage protection , over-
current protection, over temperature protection, imperfect earth detection, CP abnormal
signal protection and type A + DC 6mA for europe standard.
Operating temperature range: -25 ℃ ~ +55 ℃
IP65(Socket IP55)protecting rate, operating humidity range 0-95% for indoor and
outdoor.
With temperature sensor build-in important areas for fire protection.
With leakage test function, ensure the normal operation of leakage protection.
The charger has a function of automatic reset after troubleshooting. That means when a
charger stop working when an anomaly is detected, the charger will periodically self-
check whether the anomaly is eliminated. The charger will start to work automatically
after ensure the anomaly has been eliminated.
(U>264V or U<187V)
●
●
●
●
●
●
Easy for cable storage.
The ramp-down stop current charging mode protects the EV batteries.
The EV charger can be wall-mounted or pile mounted.There are three wiring ways for
the EV charger, bottom entry wiring,Top entry wiring and rear entry wiring.You will
need to install the wiring box to make top entry wiring.
RFID card or auto-start charging for option.
Rated charging current can be set according to different home load conditions.
With lightning protection ensure personal safety.
Standard：EN IEC 61851-1:2019 IEC 61851-1:2017
Certificate: CE/CB/UKCA/SAA
●
●
●
●
●
●
●
●
P-03 P-04
Description
Voltage and wiring
Current
Frequency
Cable length
EV charger dimensions
Gross Weight
Operating temperature
Enclosure rating
Standby power
Humidity
Altitude
Leakage detection
Specification
Single-phase or three-phase EV Charger:AC230V±10%;
Three-phase EV Charger:AC400V±10%;L1、L2、L3、N、PE
L1、N、
PE
6A/8A/10A/12A/16A/20A/25A/32A
50/60HZ
5M/6M
Height:380mm Width:169mm Depth:151/201mm
7KG/5KG
-25℃~55℃
2W
<95%No condensation
≤2000M
TYPE A + DC6mA leakage sensor built-in
IP65（Socket IP55）

Prepare for installation
Minimum installation requirements
Calculate the existing electrical load to determine the maximum operating current.
Calculate the distance to ensure minimal voltage drop.
Obtain any necessary permits from the local authority that has jurisdiction and confirm
that the follow-up inspection has been scheduled by an electrician after the installation
is complete.
Use only copper conductors.
Use copper wire that meets the specifications of local wiring regulations. The selected
cable must be capable of withstanding continuous oads of up to 40A at all times. The
selected circuit protection device must incorporate an appropriate wall-mounted residual
current device (RCD) and corresponding electrical load over current protection.
Installation of the wall charger requires that you:
●
●
●
●
●
Prepare for installation
Position
Ensure that the parking position is within range of the charging cable.
There is enough clearance for the charging cable to wrap around and the charging
handle can be comfortably positioned on the side of base.
If installed in an enclosed garage, choose to install on the side of the EV charger slot.
For outdoor installations, waterproof protection is recommended but not mandatory.
Install in a well-ventilated space. Avoid installation in enclosed boxes or close to high
power appliances.
●
●
●
●
●
Height
Maximum height (indoor and outdoor): 60 inches (1.5 m)
Recommended height: 47 in (~1.2 m)
Minimum outdoor height: 24 in (0.6 m)
Minimum interior height: 18 inches (0.45 m)
●
●
●
●
P-05 P-06

Prepare for installation
Minimum installation requirements
Calculate the existing electrical load to determine the maximum operating current.
Calculate the distance to ensure minimal voltage drop.
Obtain any necessary permits from the local authority that has jurisdiction and confirm
that the follow-up inspection has been scheduled by an electrician after the installation
is complete.
Use only copper conductors.
Use copper wire that meets the specifications of local wiring regulations. The selected
cable must be capable of withstanding continuous oads of up to 40A at all times. The
selected circuit protection device must incorporate an appropriate wall-mounted residual
current device (RCD) and corresponding electrical load over current protection.
Installation of the wall charger requires that you:
●
●
●
●
●
Prepare for installation
Position
Ensure that the parking position is within range of the charging cable.
There is enough clearance for the charging cable to wrap around and the charging
handle can be comfortably positioned on the side of base.
If installed in an enclosed garage, choose to install on the side of the EV charger slot.
For outdoor installations, waterproof protection is recommended but not mandatory.
Install in a well-ventilated space. Avoid installation in enclosed boxes or close to high
power appliances.
●
●
●
●
●
Height
Maximum height (indoor and outdoor): 60 inches (1.5 m)
Recommended height: 47 in (~1.2 m)
Minimum outdoor height: 24 in (0.6 m)
Minimum interior height: 18 inches (0.45 m)
●
●
●
●
P-05 P-06

Prepare for installation
Power supply
●230V single-phase power supply
400V three-phase power supply with neutral line
For single-phase EV charger, a single-phase wire (L), Neutral and
earth wire must be connected. The phase voltage between the Line
and Neutral wires should be 230V.
For 3-phase EV charger, connect the single phase wire (L1), the
neutral wire and the earth wire do not connect the other phase
wires (L2 or L3). The phase voltage between the line and neutral
wires should be 230V .
If three phases are applied, all three phases (L1, L2 and L3) and the
neutral line should be connected to each other and the voltage of
each phase to the neutral line should be 230V.
●
●
●
●
L
N
PE
230V
L1
L2
L3
230V
N
PE
230V
L1
L2
L3
230V
N
PE
400V
230V
230V
Warning
Prepare for installation
Installation considerations
Three methods are available to install the EV charger.The location of the conduit
determines which installation method to follow. If the conduit runs along the floor or
low on the wall, use the bottom entry configuration. lf the conduit comes from inside
the wall, use the rear entry configuration. lf the available conduit comes from the
ceiling, use the top entry installation.
Note: Throughout the manual, "conduit" is used as the standard term for the protective
tubing that houses the service wiring. In regions where conduit is not used (Europe for
example), a cable comprised of service wiring enclosed in a protective jacket may be
substituted for conduit if allowed by local regulations.
Here are some additional guidelines
Conduit openings are sized for (32 mm) conduit.
Conduit needs to be metal and flame retardant.
Use an appropriate circuit breaker.
To keep the housing weatherproof,use cable glands.
●
●
●
●
●
●
●
P-07 P-08
Normally, the earth wire should be properly connected, otherwise the EV charger will
not work.
For situations where there is no earth connection, in order to enable the EV Charger
to operate, it can be set via the dial code to turn off the earth detection and it will
work, but it will reduce to the leakage protection safety level.
This BCP series AC EV charger must be grounded via a permanent electrical system or
equipment grounding Conductor.
Before installing an AC EV charger, please confirm the type of grid connection available.
If you are unsure of the type of connection available on the service panel, please consult
an electrician for assistance.
Note:Please consult your local electrician or refer to your local code in order to
choose the proper wire for the AC EV charger current.

Prepare for installation
Power supply
●230V single-phase power supply
400V three-phase power supply with neutral line
For single-phase EV charger, a single-phase wire (L), Neutral and
earth wire must be connected. The phase voltage between the Line
and Neutral wires should be 230V.
For 3-phase EV charger, connect the single phase wire (L1), the
neutral wire and the earth wire do not connect the other phase
wires (L2 or L3). The phase voltage between the line and neutral
wires should be 230V .
If three phases are applied, all three phases (L1, L2 and L3) and the
neutral line should be connected to each other and the voltage of
each phase to the neutral line should be 230V.
●
●
●
●
L
N
PE
230V
L1
L2
L3
230V
N
PE
230V
L1
L2
L3
230V
N
PE
400V
230V
230V
Warning
Prepare for installation
Installation considerations
Three methods are available to install the EV charger.The location of the conduit
determines which installation method to follow. If the conduit runs along the floor or
low on the wall, use the bottom entry configuration. lf the conduit comes from inside
the wall, use the rear entry configuration. lf the available conduit comes from the
ceiling, use the top entry installation.
Note: Throughout the manual, "conduit" is used as the standard term for the protective
tubing that houses the service wiring. In regions where conduit is not used (Europe for
example), a cable comprised of service wiring enclosed in a protective jacket may be
substituted for conduit if allowed by local regulations.
Here are some additional guidelines
Conduit openings are sized for (32 mm) conduit.
Conduit needs to be metal and flame retardant.
Use an appropriate circuit breaker.
To keep the housing weatherproof,use cable glands.
●
●
●
●
●
●
●
P-07 P-08
Normally, the earth wire should be properly connected, otherwise the EV charger will
not work.
For situations where there is no earth connection, in order to enable the EV Charger
to operate, it can be set via the dial code to turn off the earth detection and it will
work, but it will reduce to the leakage protection safety level.
This BCP series AC EV charger must be grounded via a permanent electrical system or
equipment grounding Conductor.
Before installing an AC EV charger, please confirm the type of grid connection available.
If you are unsure of the type of connection available on the service panel, please consult
an electrician for assistance.
Note:Please consult your local electrician or refer to your local code in order to
choose the proper wire for the AC EV charger current.

In the box Installation instructions
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
The 6 pionts
on the position
plate
wall
screwdriver
Mounting
braket
8*40
Expansion bolts
Step-by-step installation instructions
(bottom entry wiring)
Step 1
Position
The bottom of the ⑨positioning plate
is 1.2 m away (recommended), if the EV
charger is installed close to the edge of
the wall, the positioning plate should
be more than 0.5 m away from the edge
of the wall.
Drilling pilot holes
Drilling the holes according to the
instruction on the Position template
for different installation and wiring
ways.
Step 2
lnstall the Mounting braket
Put the 8*40 Socket head screws' anchoring
into the holes, and use the screw driver
make the 6pcs 8*40 Socket head screws to
fix the Mounting braket on the wall .
P-10P-09
① ② ③ ④ ⑤
⑥ ⑦ ⑧ ⑨ ⑩
NO.
1
2
3
4
5
6
7
8
9
10
11
12
Item
EV charger
Wire box
Mounting braket
RFID card (optional)
M32*1.5 cable gland
M6*8 screws
8*40 socket head screws and anchorings
8*40 flat head screws and anchorings
Position template
DLB box (optional)
Plastic lifter
Water-proof cover
Quantity
1
1
1
2
1
4
6
2
1
1
1
2
⑪ ⑫

In the box Installation instructions
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
The 6 pionts
on the position
plate
wall
screwdriver
Mounting
braket
8*40
Expansion bolts
Step-by-step installation instructions
(bottom entry wiring)
Step 1
Position
The bottom of the ⑨positioning plate
is 1.2 m away (recommended), if the EV
charger is installed close to the edge of
the wall, the positioning plate should
be more than 0.5 m away from the edge
of the wall.
Drilling pilot holes
Drilling the holes according to the
instruction on the Position template
for different installation and wiring
ways.
Step 2
lnstall the Mounting braket
Put the 8*40 Socket head screws' anchoring
into the holes, and use the screw driver
make the 6pcs 8*40 Socket head screws to
fix the Mounting braket on the wall .
P-10P-09
① ② ③ ④ ⑤
⑥ ⑦ ⑧ ⑨ ⑩
NO.
1
2
3
4
5
6
7
8
9
10
11
12
Item
EV charger
Wire box
Mounting braket
RFID card (optional)
M32*1.5 cable gland
M6*8 screws
8*40 socket head screws and anchorings
8*40 flat head screws and anchorings
Position template
DLB box (optional)
Plastic lifter
Water-proof cover
Quantity
1
1
1
2
1
4
6
2
1
1
1
2
⑪ ⑫

Installation instructions
Step-by-step installation instructions
(bottom entry wiring)
Step 3
lnstall the EV Charger to the mounting
plate
Align the side hole of EV charger to
the panel's side holes.
lnstallation
Use the 4pcs M6*8 screws to fix the
EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-
2.0NM).
Step 4
Wiring
Note: Consult with your local electrician
or refer to your local code for proper
wire sizing appropriate for the currents
in your EV Charger.
Note: lt is the installer's responsibility
to identify whether additional grounding
is required to ensure that local regulations
are met.Grounding must be installed at
the power source and not at the cable
entry to the EV Charger.
As the picture at left shows, use the
screwdriver loosing the screws on the
EV charger cover. Wire the cable to the
according terminal.
Left hole position Right hole
position
M6*8 bolts
Single-phase
wiring diagram
Three-phase
wiring diagram
Wiring diagram
Installation instructions
Step-by-step installation instructions
(top entry wiring)
Step 1
Position
The bottom of the ⑨positioning
plate is 1.2 m away (recommended), if
the EV charger is installed close to
the edge of the wall, the positioning
plate should be more than 0.5 m
away from the edge of the wall.
Drilling pilot holes
Drilling the holes according to the
instruction on the Position template
for different installation and wiring
ways.
Step 2
Fix the wire box
Put the 8*40 flat head screws'anchoring
into the holes and use the screw driver
make the 2pcs 8*40 flat head screws to
fix the Wire box Mounting Template on
the wall.
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
Two points on
the top and
bottom of
position plate
screwdriver
PS:Hooks and
socketexcluded only for reference
Wire box
8*40
Expansion bolts
P-11 P-12

Installation instructions
Step-by-step installation instructions
(bottom entry wiring)
Step 3
lnstall the EV Charger to the mounting
plate
Align the side hole of EV charger to
the panel's side holes.
lnstallation
Use the 4pcs M6*8 screws to fix the
EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-
2.0NM).
Step 4
Wiring
Note: Consult with your local electrician
or refer to your local code for proper
wire sizing appropriate for the currents
in your EV Charger.
Note: lt is the installer's responsibility
to identify whether additional grounding
is required to ensure that local regulations
are met.Grounding must be installed at
the power source and not at the cable
entry to the EV Charger.
As the picture at left shows, use the
screwdriver loosing the screws on the
EV charger cover. Wire the cable to the
according terminal.
Left hole position Right hole
position
M6*8 bolts
Single-phase
wiring diagram
Three-phase
wiring diagram
Wiring diagram
Installation instructions
Step-by-step installation instructions
(top entry wiring)
Step 1
Position
The bottom of the ⑨positioning
plate is 1.2 m away (recommended), if
the EV charger is installed close to
the edge of the wall, the positioning
plate should be more than 0.5 m
away from the edge of the wall.
Drilling pilot holes
Drilling the holes according to the
instruction on the Position template
for different installation and wiring
ways.
Step 2
Fix the wire box
Put the 8*40 flat head screws'anchoring
into the holes and use the screw driver
make the 2pcs 8*40 flat head screws to
fix the Wire box Mounting Template on
the wall.
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
Two points on
the top and
bottom of
position plate
screwdriver
PS:Hooks and
socketexcluded only for reference
Wire box
8*40
Expansion bolts
P-11 P-12

Installation instructions
Step-by-step installation instructions
(top entry wiring)
Step 3
Cut out on the back of the EV charger.
Find the hole for cut out on the back
of EV charger.
Use the 4pcs M6*8 screws to fix the
EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-
2.0NM).
Step 4
Wiring
Note: Consult with your local electrician
or refer to your local code forproper
wire sizing appropriate for the currents
in your EV Charger.
Note: lt is the installer's responsibility to
identify whether additional grounding is
required to ensure that local regulations
are met.Grounding must be installed at
the power source and not at the cable
entry to the EV Charger.
As the picture at left shows, use the
screwdriver loosing the screws on the
EV charger cover. Wire the cable to the
according terminal.
Left hole position Right hole
position
Back of EV charger
perforating
as image
M6*8 bolts
Power cable
wiring diagram
Cable box with built
-in cable through EV
charger wiring position
lnsert power cord
into the top of
connection box
Three-phase
wiring diagram
Installation instructions
Step-by-step installation instructions
(rear entry wiring)
Step 1
Position
The bottom of the ⑨positioning plate
is 1.2 m away (recommended), if the
EV charger is installed close to the
edge of the wall, the positioning plate
should be more than 0.5 m away from
the edge of the wall.
Drilling pilot holes
Drilling the holes according to the
instruction on the Position template
for different installation and wiring
ways.
Step 2
lnstall the Mounting braket.
Put the 8*40 socket head screws'
anchoring into the holes, and use the
screw driver make the 6pcs 8*40 Socket
head screws to fix the mounting braket
on the wall .
screwdriver
8*40
Expansion bolts
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
The 6 pionts
on the
position plate
Hole for rearentry
(not limited to the
wall only)
P-13 P-14
Single-phase
wiring diagram
Mounting
braket

Installation instructions
Step-by-step installation instructions
(top entry wiring)
Step 3
Cut out on the back of the EV charger.
Find the hole for cut out on the back
of EV charger.
Use the 4pcs M6*8 screws to fix the
EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-
2.0NM).
Step 4
Wiring
Note: Consult with your local electrician
or refer to your local code forproper
wire sizing appropriate for the currents
in your EV Charger.
Note: lt is the installer's responsibility to
identify whether additional grounding is
required to ensure that local regulations
are met.Grounding must be installed at
the power source and not at the cable
entry to the EV Charger.
As the picture at left shows, use the
screwdriver loosing the screws on the
EV charger cover. Wire the cable to the
according terminal.
Left hole position Right hole
position
Back of EV charger
perforating
as image
M6*8 bolts
Power cable
wiring diagram
Cable box with built
-in cable through EV
charger wiring position
lnsert power cord
into the top of
connection box
Three-phase
wiring diagram
Installation instructions
Step-by-step installation instructions
(rear entry wiring)
Step 1
Position
The bottom of the ⑨positioning plate
is 1.2 m away (recommended), if the
EV charger is installed close to the
edge of the wall, the positioning plate
should be more than 0.5 m away from
the edge of the wall.
Drilling pilot holes
Drilling the holes according to the
instruction on the Position template
for different installation and wiring
ways.
Step 2
lnstall the Mounting braket.
Put the 8*40 socket head screws'
anchoring into the holes, and use the
screw driver make the 6pcs 8*40 Socket
head screws to fix the mounting braket
on the wall .
screwdriver
8*40
Expansion bolts
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
The 6 pionts
on the
position plate
Hole for rearentry
(not limited to the
wall only)
P-13 P-14
Single-phase
wiring diagram
Mounting
braket

Rotary Switch Position
0
1
2
3
4
5
6
7
Output Current
6A
8A
10A
12A
16A
20A
25A
32A
Installation instructions
Step-by-step installation instructions
(rear entry wiring)
Step 3
lnstall the EV Charger to the mounting
plate.
Find the hole for cut out on the back
of EV charger.
Use the 4pcs M6*8 screws to fix the
EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-
2.0NM).
Step 4
Wiring
Note: Consult with your local electrician
or refer to your local code for proper
wire sizing appropriate for the currents
in your EV Charger.
Note: lt is the installer's responsibility to
identify whether additional grounding is
required to ensure that local regulations
are met.Grounding must be installed at
the power sourceand not at the cable
entry to the EV Charger.
As the picture at left shows, use the
screwdriver loosing the screws on the
EV charger cover. Wire the cable to the
according terminal.
Left hole position Right hole
position
Back of EV charger
perforating
as image
M6*8 bolts
cable through the hole
on the wall and
connect to the back
hole of EV
Wiring teminals
Three-phase
wiring diagram
Installation instructions
Do not connect the power cord before reading and fully understanding all the
concepts introduced in this section. If you are not sure whether the type of power
supply on the repair panel is available, please consult an electrician for assistance.
Be careful of electric shock! Before use, use a voltmeter to confirm that there is no
voltage on the power supply line or terminal to ensure that the power has been cut
off.
Warning
Set the operating current
Set the rotary switch for the appropriate current setting.Use a small flathead screwdriver
to adjust the rotary switch to the appropriate output current.
●
Warning
Power MUST remain OFF before setting or changing the DIP or rotary switches.Changing
these switches with the power ON will not be recognized by the system and is
dangerous due to the risk of electric shock.
1. Turn OFF power.
2. Use a non-conductive object (such as a plastic pen) to adjust the DlP switch settings:
P-15 P-16

Rotary Switch Position
0
1
2
3
4
5
6
7
Output Current
6A
8A
10A
12A
16A
20A
25A
32A
Installation instructions
Step-by-step installation instructions
(rear entry wiring)
Step 3
lnstall the EV Charger to the mounting
plate.
Find the hole for cut out on the back
of EV charger.
Use the 4pcs M6*8 screws to fix the
EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-
2.0NM).
Step 4
Wiring
Note: Consult with your local electrician
or refer to your local code for proper
wire sizing appropriate for the currents
in your EV Charger.
Note: lt is the installer's responsibility to
identify whether additional grounding is
required to ensure that local regulations
are met.Grounding must be installed at
the power sourceand not at the cable
entry to the EV Charger.
As the picture at left shows, use the
screwdriver loosing the screws on the
EV charger cover. Wire the cable to the
according terminal.
Left hole position Right hole
position
Back of EV charger
perforating
as image
M6*8 bolts
cable through the hole
on the wall and
connect to the back
hole of EV
Wiring teminals
Three-phase
wiring diagram
Installation instructions
Do not connect the power cord before reading and fully understanding all the
concepts introduced in this section. If you are not sure whether the type of power
supply on the repair panel is available, please consult an electrician for assistance.
Be careful of electric shock! Before use, use a voltmeter to confirm that there is no
voltage on the power supply line or terminal to ensure that the power has been cut
off.
Warning
Set the operating current
Set the rotary switch for the appropriate current setting.Use a small flathead screwdriver
to adjust the rotary switch to the appropriate output current.
●
Warning
Power MUST remain OFF before setting or changing the DIP or rotary switches.Changing
these switches with the power ON will not be recognized by the system and is
dangerous due to the risk of electric shock.
1. Turn OFF power.
2. Use a non-conductive object (such as a plastic pen) to adjust the DlP switch settings:
P-15 P-16

Set the charging model
OFF: RFID mode; ON: Autostart mode
Reserved
2
3
4
Set the DIP switch
Installation instructions
Follow these instructions to configure the DIP switch.The
following illustration shows an enlarged view of the DIP and
rotary switches.
●
Warning
Power MUST remain OFF before setting or changing the DIP or
rotary switches.Changing these switches with the power ON will
not be recognized by the system and is dangerous due to the
risk of electric shock.
1.Turn OFF power.
2.Use a non-conductive object (such as a plastic pen) to adjust
the DlP switch settings.
3.Set 4 DIP switches to off position as factory default.
Reinstall the sealing cover and
Turn on power
① . Use a screwdriver to lightly secure the sealing cover by
installing only the top screws at (1.5NM-2.0NM )torque.
②. After sealing cover fixing, put the facia on and fix it on the
sealing cover.
③ . If you need to open the front cover, change the internal
settings, please use the ④plastic lifter to unclench along the
edge of the cover.
④. Recommend to install a circuit breaker 40A/2P 30MA.
●
●
●
1 2 3 4
ON
OFF
Operating status
Power on checking
NO.
1
2
3
4
5
6
Check content
Check and ensure the circuit breaker for the EV charger is reasonably selected
Confirm that there is no short circuit between the
AC output L/N/PE of the charging
Confirm that the charging gun is not connected to the vehicle
Ensure the circuit breaker is closed
The charger is powered on, and the power-on selfcheck is
completed in about 10 seconds
After the power-on self-check is completed, observe the status of the LED
indicator.Normal standby: Green breathing light ON.
Equipment Failure: Yellow light on /Red light on (Please find below for reference)
LED light instructions
P-17 P-18
①
②
③
DIP switch
position
1
Functions
Stop grounding detection function
OFF: Start the detection; ON: Stop the detection
Set the DLB function
ON: Stop DLB function;
OFF: Start the DLB function(optional)
④
●
EV charger
No power
Power on checking
Stayby
Plug the connector without swiping RFID
(not ready to charge)
LED light
LED off
Plug the connector without swiping RFID
(ready to charge)
Green,yellow,red lights on and off
Green light on
Streaming light runs back and forth
Streaming light runs fast back and forth
Plug the connector with RFID swiped
(not ready to charge)
Charging
Streaming light runs from
two ends to the middle
Streaming lights from the
middle to up and down
RFID initiated without charger inserted Green light on the upper, last for 1 min
Charing without current LED lights runs from middle to
the end (not to the bottom).
Charging completed All lights on green
