- GB -

Translation of the original Operating Instructions

Information about these operating instructions

Welcome to OASE Living Water. You made a good choice with the purchase of this product LunAqua 3 LED.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new

owner.

Symbols used in these instructions

The symbols used in this operating manual have the following meanings:

Risk of injury to persons due to dangerous electrical voltage

This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate meas-

ures are not taken.

Risk of personal injury caused by a general source of danger

This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate meas-

ures are not taken.

Important information for trouble-free operation.

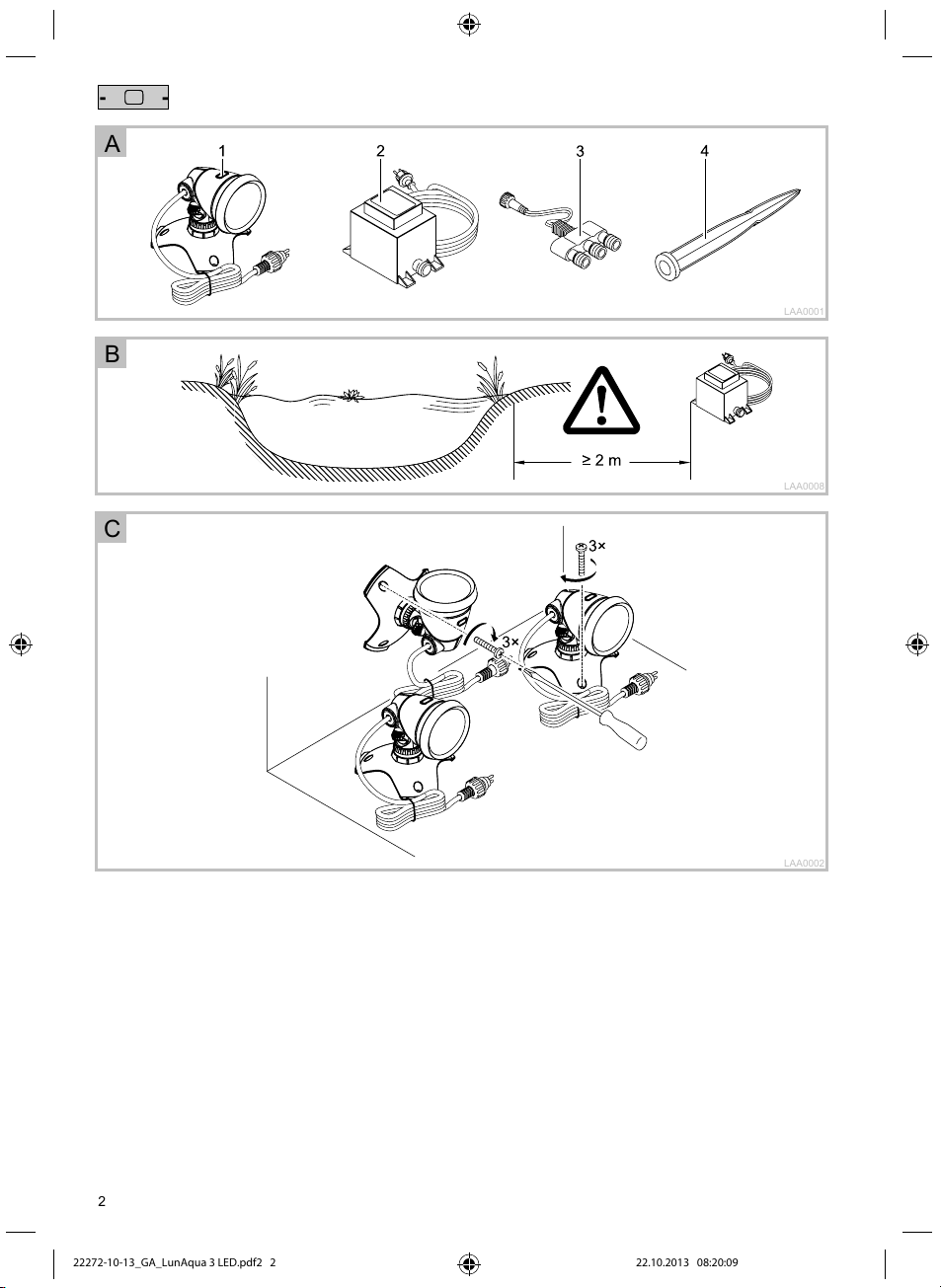

A Reference to one or more figures. In this example: Reference to Fig. A.

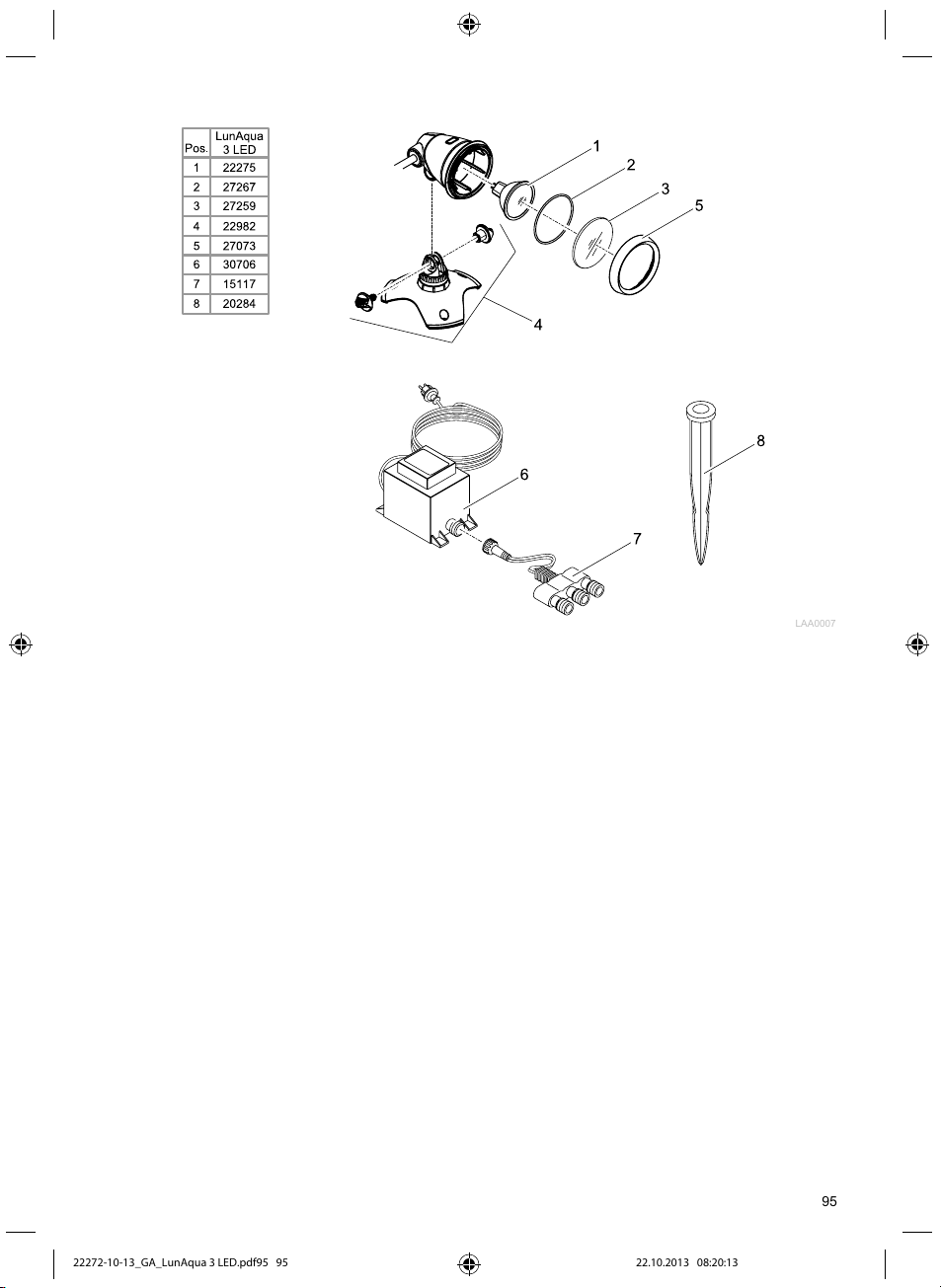

Scope of delivery

LunAqua 3 LED

Quantity

A

Set 1 Set 3

Description

1 1 3 LED spot (including bulb) with base foot

2 1 1 Transformer

3 - 1 3-way distributor

4 1 3 Ground stake

Intended use

LunAqua 3 LED, in the following termed "unit", and all other parts from the delivery scope may be used exclusively as

follows:

•For use in water fountain systems and ponds.

•For use above and under water.

•Operation under observance of the technical data.

- GB -

22272-10-13_GA_LunAqua 3 LED.pdf8 8 22.10.2013 08:20:11

- GB -

Safety information

Hazards to persons and assets may emanate from this unit if it is used in an improper manner or not in accordance

with its intended use, or if the safety instructions are ignored.

This unit can be used by children from the age of 8 and by persons

with physical, sensory or mental impairments or lack of experience

and knowledge, as long as they are supervised or instructed on how

to use the unit safely and are able to understand the potential haz-

ards. Do not allow children to play with the unit. Do not allow children

to clean or maintain the unit without close supervision.

Hazards encountered by the combination of water and electricity

•The combination of water and electricity can lead to death or severe injury from electrocution, if the unit is incorrectly

connected or misused.

•Prior to reaching into the water, always switch off the mains voltage to all units used in the water.

Correct electrical installation

•Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.

•A person is regarded as a qualified electrician, if, due to his/her vocational education, knowledge and experience, he

or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the

recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regu-

lations.

•For your own safety, please consult a qualified electrician.

•The unit may only be connected when the electrical data of the unit and the power supply coincide. The unit data is

to be found on the unit type plate or on the packaging, or in this manual.

•Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.

•Extension cables and power distributors (e. g. outlet strips) must be suitable for outdoor use.

−Install the transformer at a minimum safety distance of 2 m from the water.

•Ensure that the power connection cable cross section is not smaller than that of the rubber sheath with the identifi-

cation H05RN-F. Extension cables must meet DIN VDE 0620.

•Protect the plug connections from moisture.

•Only plug the unit into a correctly fitted socket.

Safe operation

•Never operate the unit if either the electrical cables or the housing are defective!

•Do not carry or pull the unit by its electrical cable.

•Route cords/hoses/lines in a way that they are protected against damage, and ensure that they do not present a

tripping obstacle.

•Only open the unit housing or its attendant components, when this is explicitly required in the operating instructions.

•Only execute work on the unit that is described in this manual. If problems cannot be overcome, please contact an

authorised customer service point or, when in doubt, the manufacturer.

•Only use original spare parts and accessories for the unit.

•Never carry out technical modifications to the unit.

•The power connection cables cannot be replaced. When the cable is damaged, the unit or the component needs to

be disposed of.

•Only operate the unit with the supplied transformer.

•Keep the socket and power plug dry.

•The power pack and the plug connectors of the power cables supplied are not water-tight, but only rain and splash-

proof. Do not route or fit in the water.

22272-10-13_GA_LunAqua 3 LED.pdf9 9 22.10.2013 08:20:11

- GB -

Installation and connection

B

•Install the transformer at least 2 m from the edge of the pond.

•Position the unit in such a way that it does not present a hazard to anyone.

•Ensure safe and stable seating. Ensure the sufficient load carrying capacity of the wall or ground for installation on

the wall or on the base.

•For installation above water: Ensure a safety distance of at least 50 cm from combustible material. Fire hazard:

Do not cover the unit!

Wall or ground installation

C

•The base foot can either be placed on the ground or bolted to a firm base or load bearing wall.

Installation on the ground stake

How to proceed:

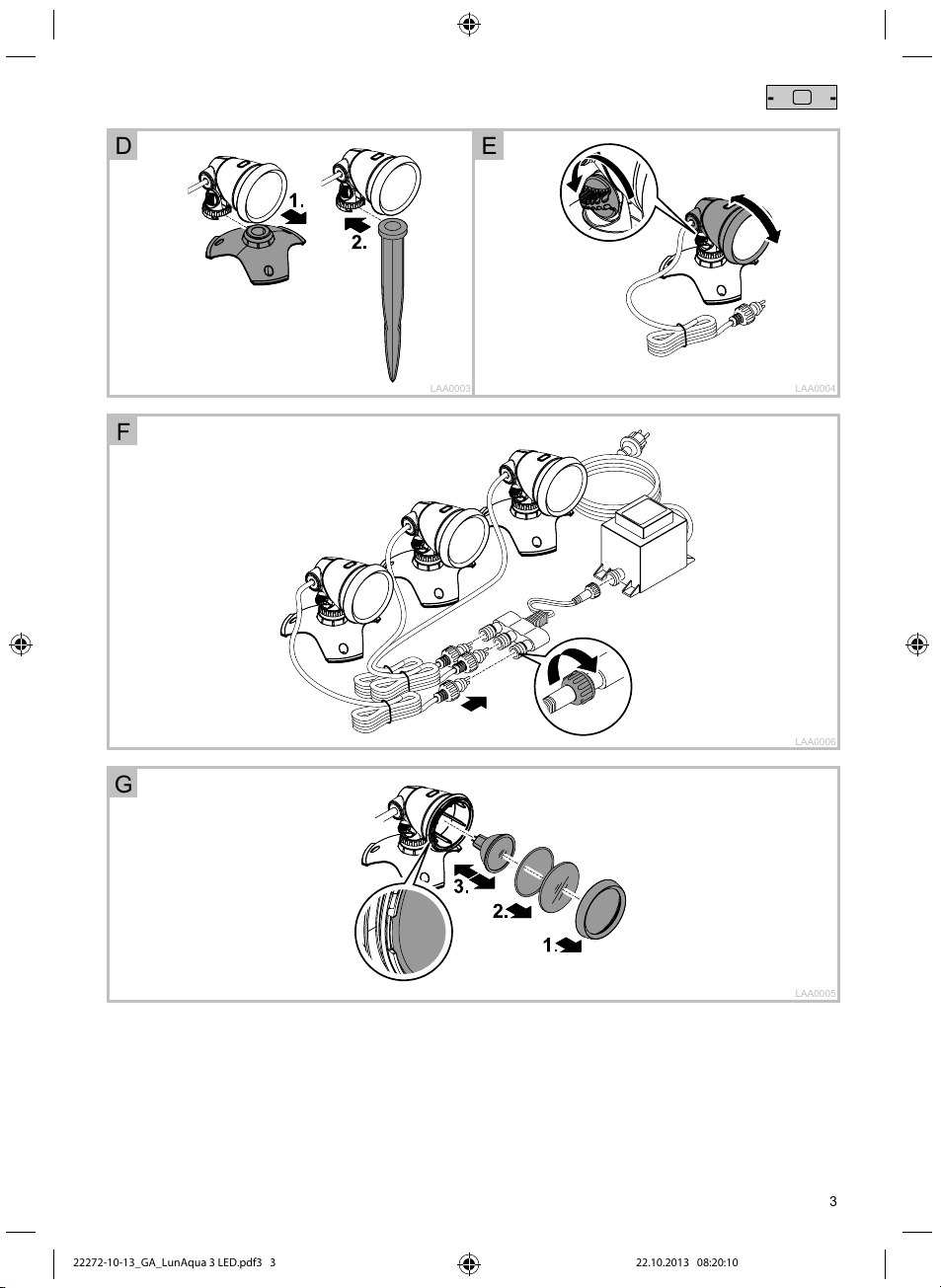

D

1. Pull the spotlight sideways from the base foot.

2. Push the spotlight sideways onto the ground stake and push the ground stake almost completely into the ground.

Check its stability.

Tilting the unit

E

•Turn the holding screw counterclockwise and tilt the unit as required. To fasten in place turn the holding screw

clockwise.

Connect the unit

F

•Connect the connection cable of the spotlight to the socket on the transformer and hand-tighten the union nut.

Start-up

Attention! Sensitive electrical components.

Possible consequence: The unit will be destroyed.

Protective measure: Do not connect the unit to a dimmable power supply.

Attention! Dangerous electrical voltage.

Possible consequences: Death or severe injury.

Protective measures:

•Prior to reaching into the water, disconnect the power supply to all units used in the water.

•Disconnect the power plug prior to carrying out work on the unit.

Switching on: Insert the power plug of the transformer into the socket.

•Check the function of the spotlights.

Switching off: Disconnect the transformer power plug.

Remedy of faults

Malfunction Cause Remedy

Power supply interrupted Check power supplyLamp does not light up

Bulb defective Replace bulb

Lamp glass soiled CleanLuminosity decreases

The brightness of the bulb reduces as the

operating time increases

Replace bulb

Water inside the spotlight housing Seal defective Check sealing rings and replace, if necessary

22272-10-13_GA_LunAqua 3 LED.pdf10 10 22.10.2013 08:20:11

- GB -

Maintenance and cleaning

Attention! Dangerous electrical voltage.

Possible consequences: Death or severe injury.

Protective measures:

•Prior to reaching into the water, disconnect the power supply to all units used in the water.

•Disconnect the power plug prior to carrying out work on the unit.

•Ensure that no moisture can enter the unit.

Cleaning the unit

If necessary, clean the unit with clear water using a soft brush.

Replacing the bulb

•Only use original bulbs from OASE. (→Technical data)

−The unit may be damaged by the use of spare parts from other manufacturers.

How to proceed:

G

1. Unscrew the threaded ring.

2. Remove the glass pane and O ring, check for damage and replace if necessary.

3. Remove the defective bulb from the housing.

4. Insert the new bulb.

5. Reassemble the unit in the reverse order.

−Ensure that the O ring is correctly positioned.

6. Reconnect to the power supply and check the function.

Disposal

Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system provided.

Disable the unit beforehand by cutting off the cables.

22272-10-13_GA_LunAqua 3 LED.pdf11 11 22.10.2013 08:20:11

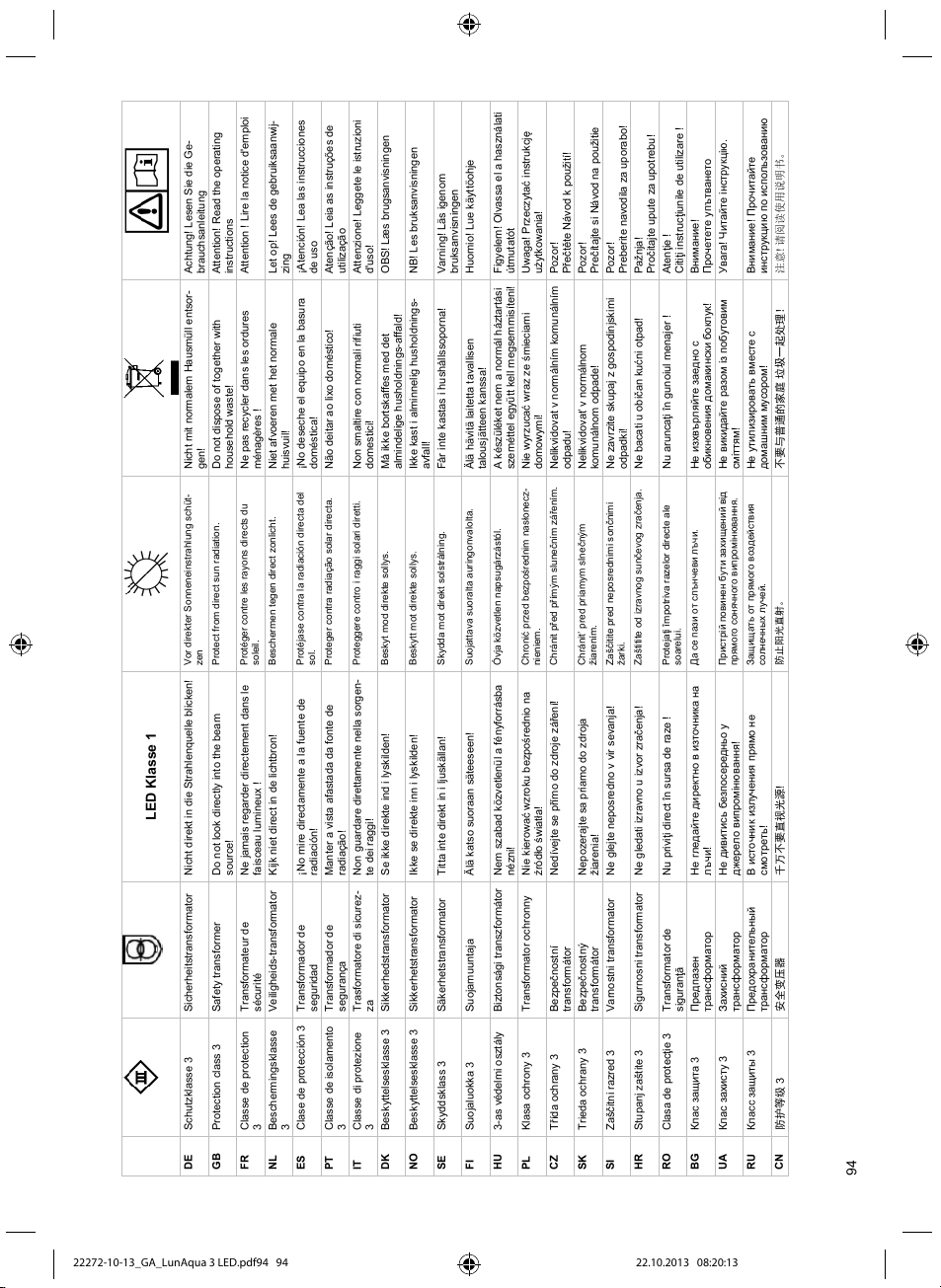

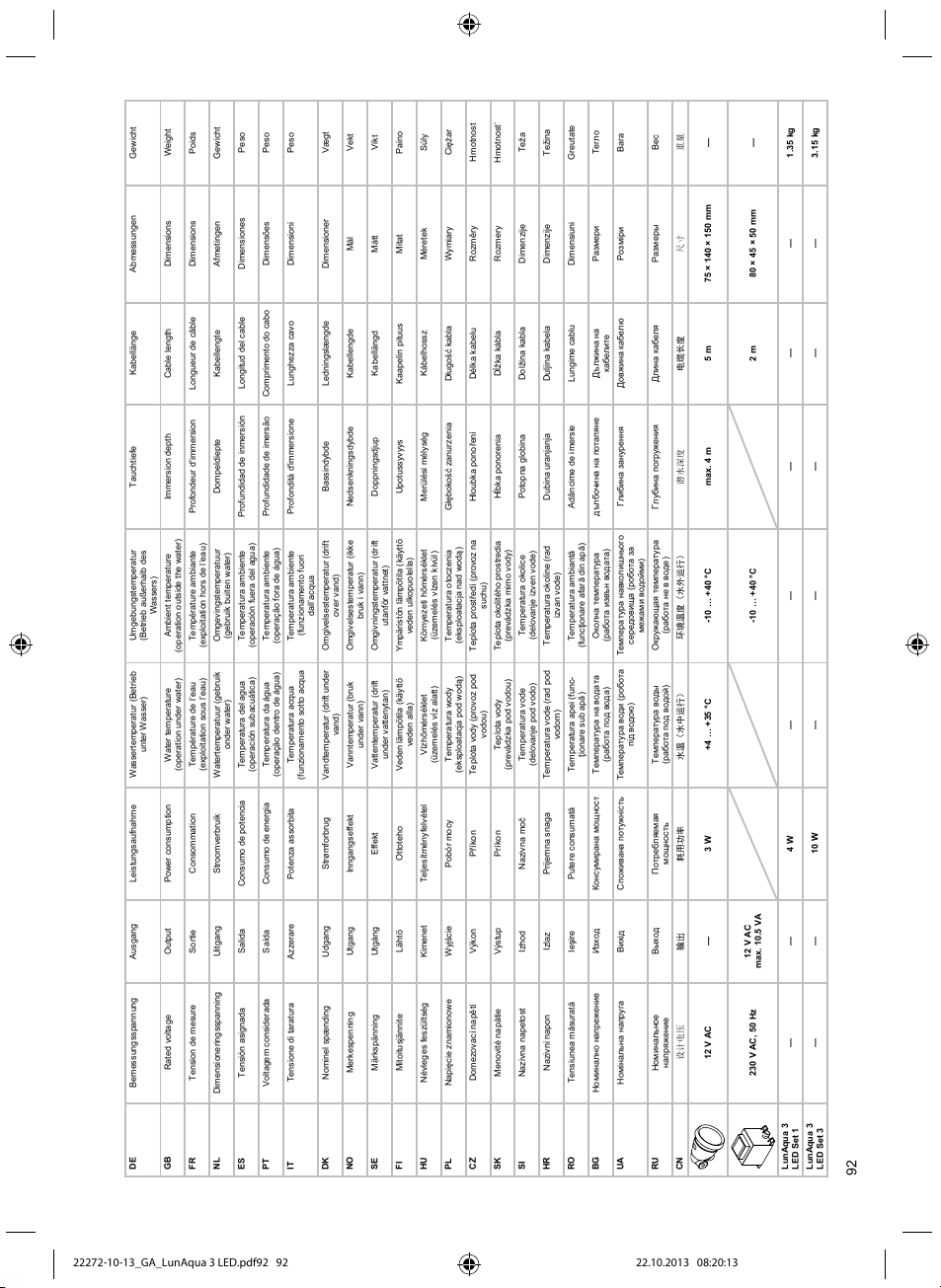

DE Bemessungsspannung Ausgang Leistungsaufnahme Wassertemperatur (Betrieb
